Abb 1Sda053954R1 3 Pole Circuit Breaker 480V 50/60Hz 1/0-3Awg
Abb 1Sda053954R1 3 Pole Circuit Breaker 480V 50/60Hz 1/0-3Awg
Designed By Abb Sace Division
Abb Inc.
Sace
Part Name: Circuit Breaker

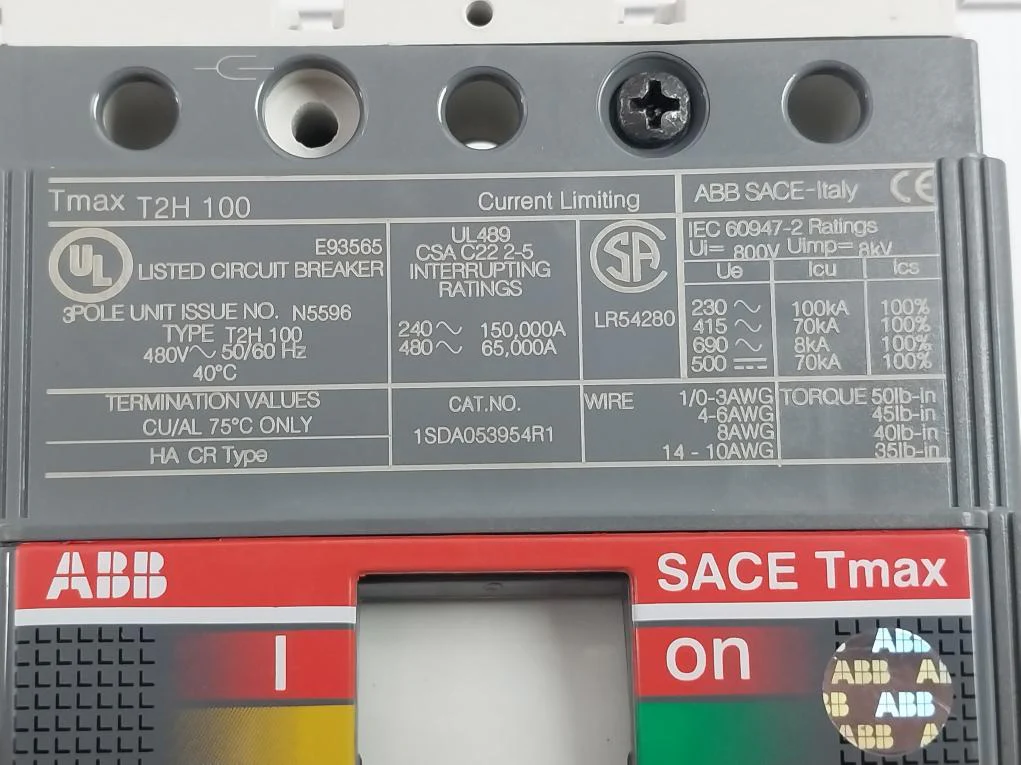

Tmax T2H 100
Current Limiting
Type: T2H 100
Cat. No.: 1Sda053954R1
3 Pole Unit
480V~ 50/60 Hz
40˚C
E93565
Termination Values Cu/Al 75˚C Only
Ha Cr Type
Ul489
Csa C22.2-5
Interrupting Ratings:
240V~ 150,000A
480V~ 65,000A
Iec 60947-2 Ratings
Ui= 800V
Uimp= 8Kv
Wire: 1/0-3Awg
4-6Awg
8Awg
14-10Awg
Torque: 50Lb-in
45Lb-in
40Lb-in
35Lb-in
Nr. Bc71132765
Code: 1Sda053917R1
A.B.: 1120178518 000100
Fb.Nr.: Bc71132765
8 015644 549626
Ec71132765C
28545
Assembly No.: 1298581
Part No.: 1818856
0800066981
Ra0381 D
L3498 M
Tmf20-500 Ul/Tmf20-500 Ul Iii
Lug Kit T2 1/0-14Awg 3 Lugs D3718
Kt2100-3
000007398282
6 62018 00228 6
Tmax Ul
Doc. N.˚ Rh0012.810- L0716
Terminals For Cables
Kit Installazione T2 Iii Ul
Ra0446802
“Zz”
Front Terminals T2-t3 Fixed/Plug-in Fixed Part
Made In Italy
Weight: 1.340 Kg
