Abb Ach580-bcr-014A-4+E213+F267 Vfd Drive 440-480Vac Hvac Enclosure Ul Type1
Abb Inc.
Abb Oy Drives

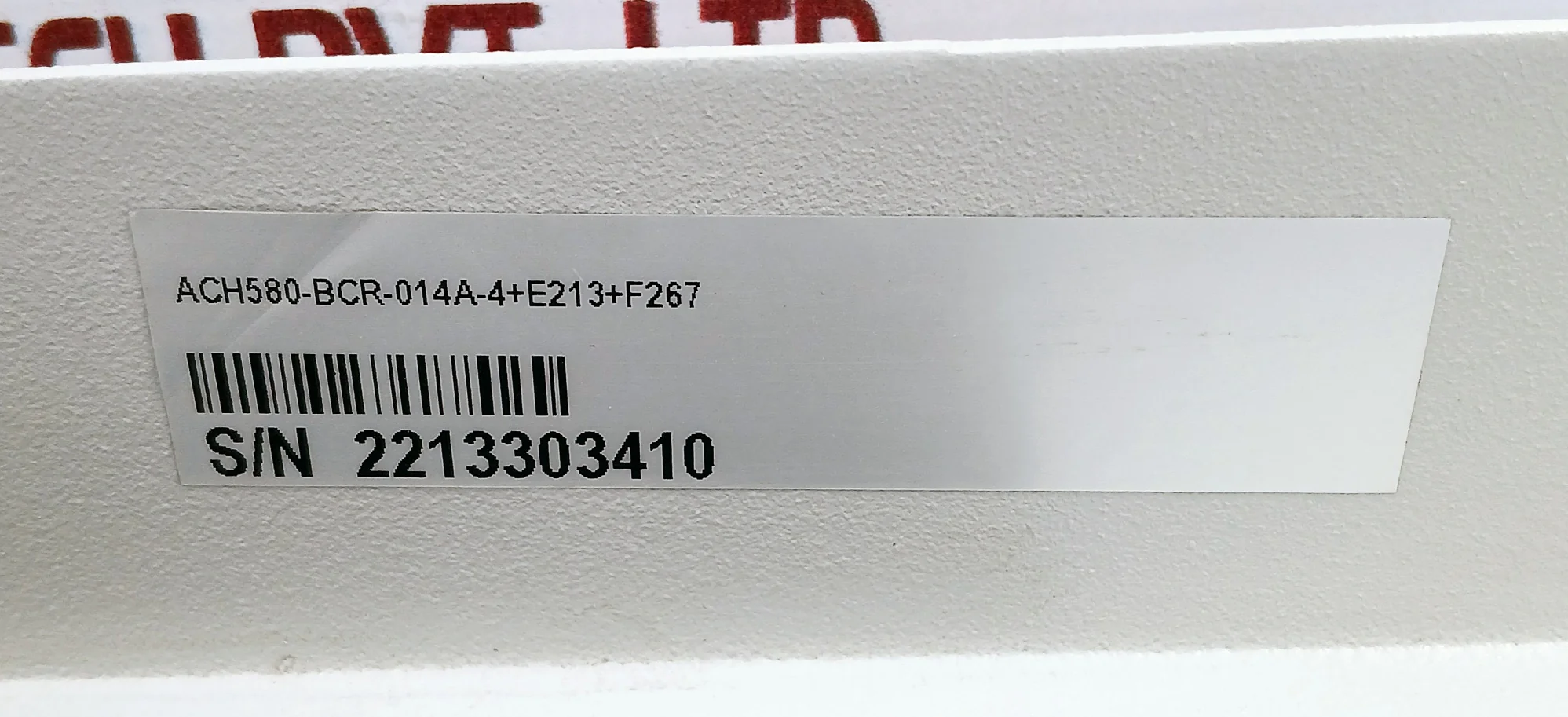

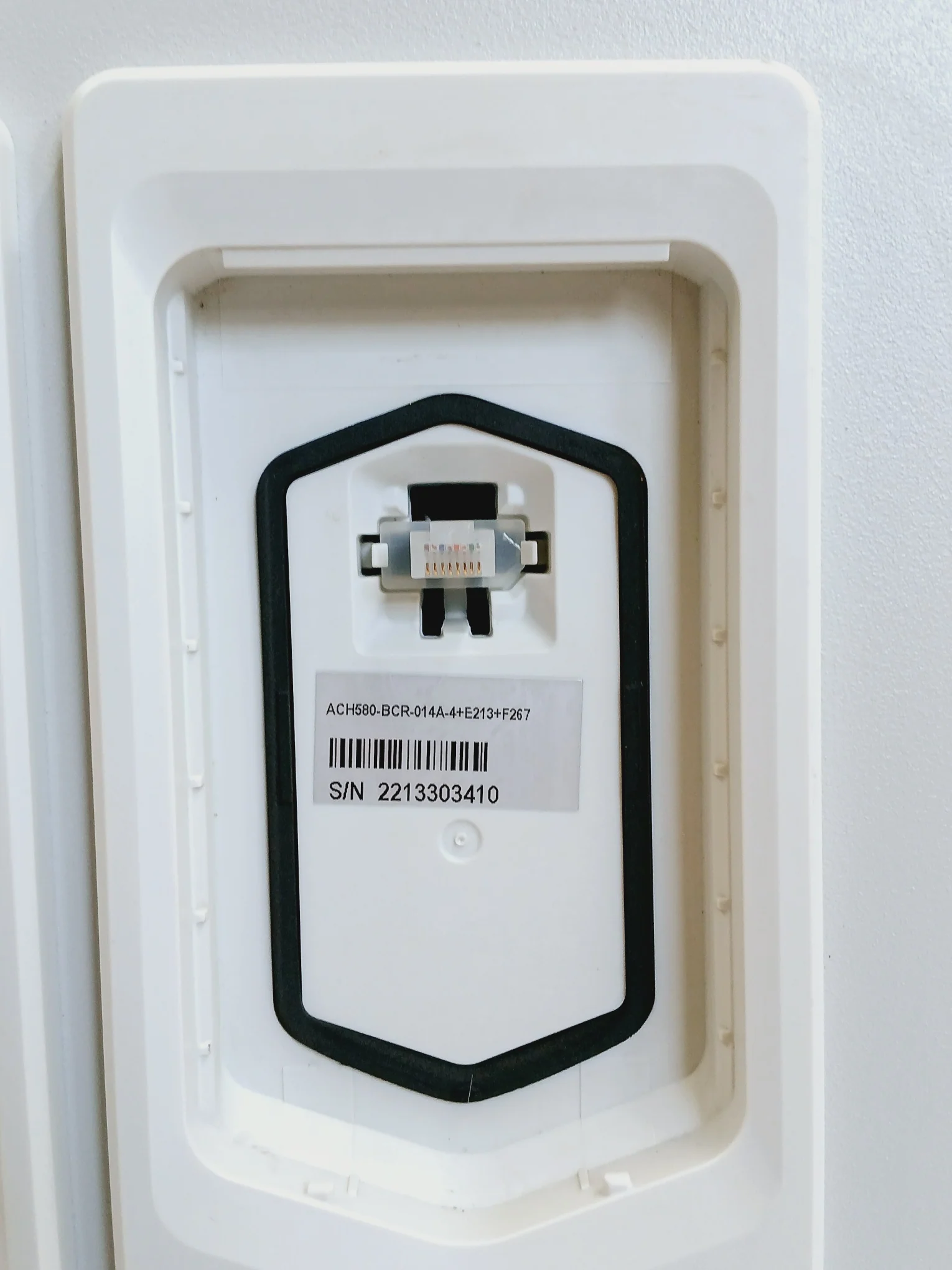

Ach580-bcr-014A-4+E213+F267
Product Name/Model Number: Ach580
Product Type: Vfd

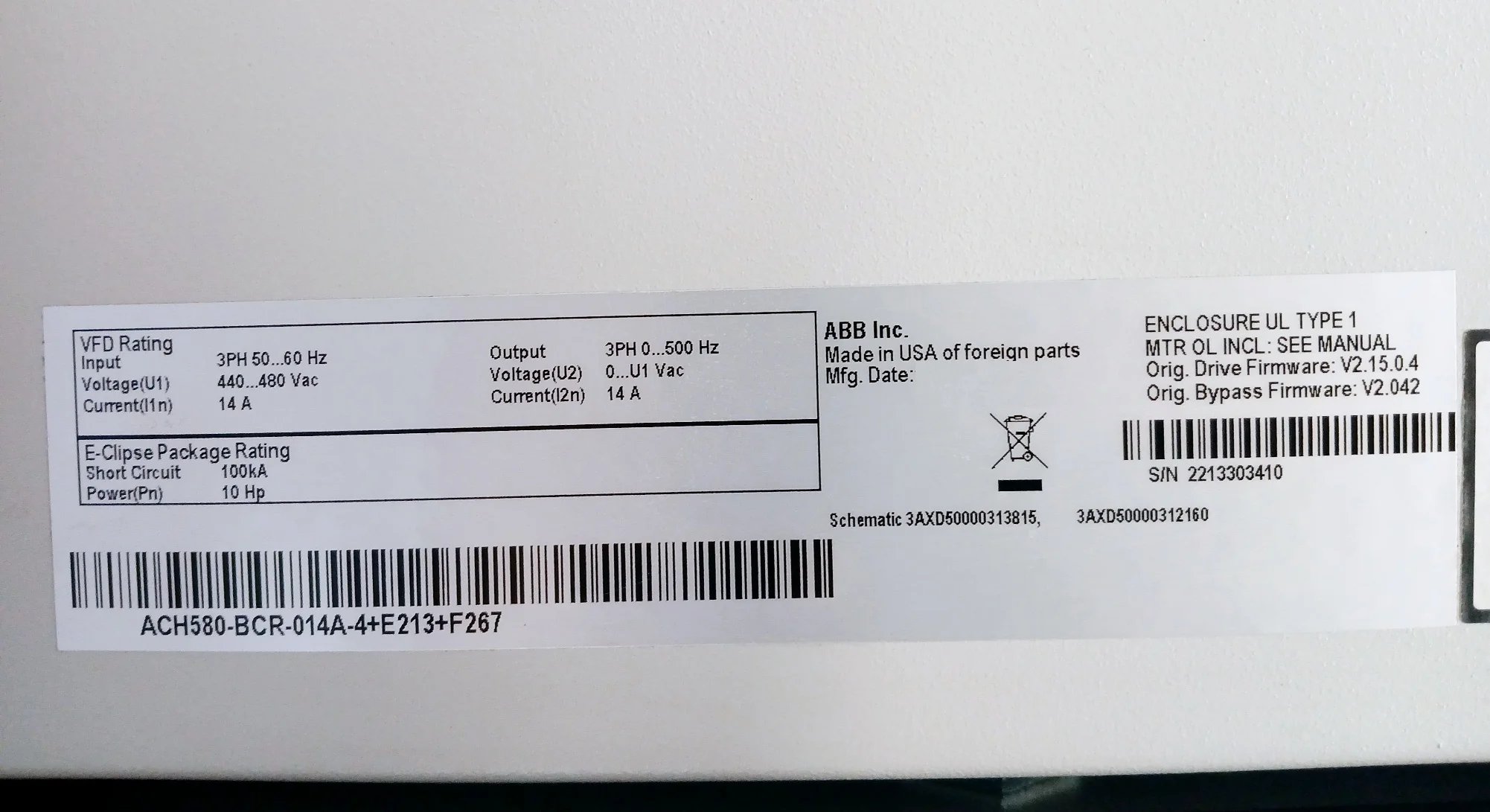

Vfd Rating:
Input: 3Ph 50…60Hz
Voltage (U1): 440…480Vac
Current (I1N)/(I2N): 14A
Output: 3Ph 0…500Hz
Voltage (U2): 0…U1Vac
E-clipse Package Rating
Short Circuit: 100Ka
Power (Pn): 10Hp
Enclosure Ul Type 1
Orig.Drive Firmware: V2.15.0.4
Orig.Bypass Firmware: V2.042
Schematic 3Axd50000313815
3Axd50000312160

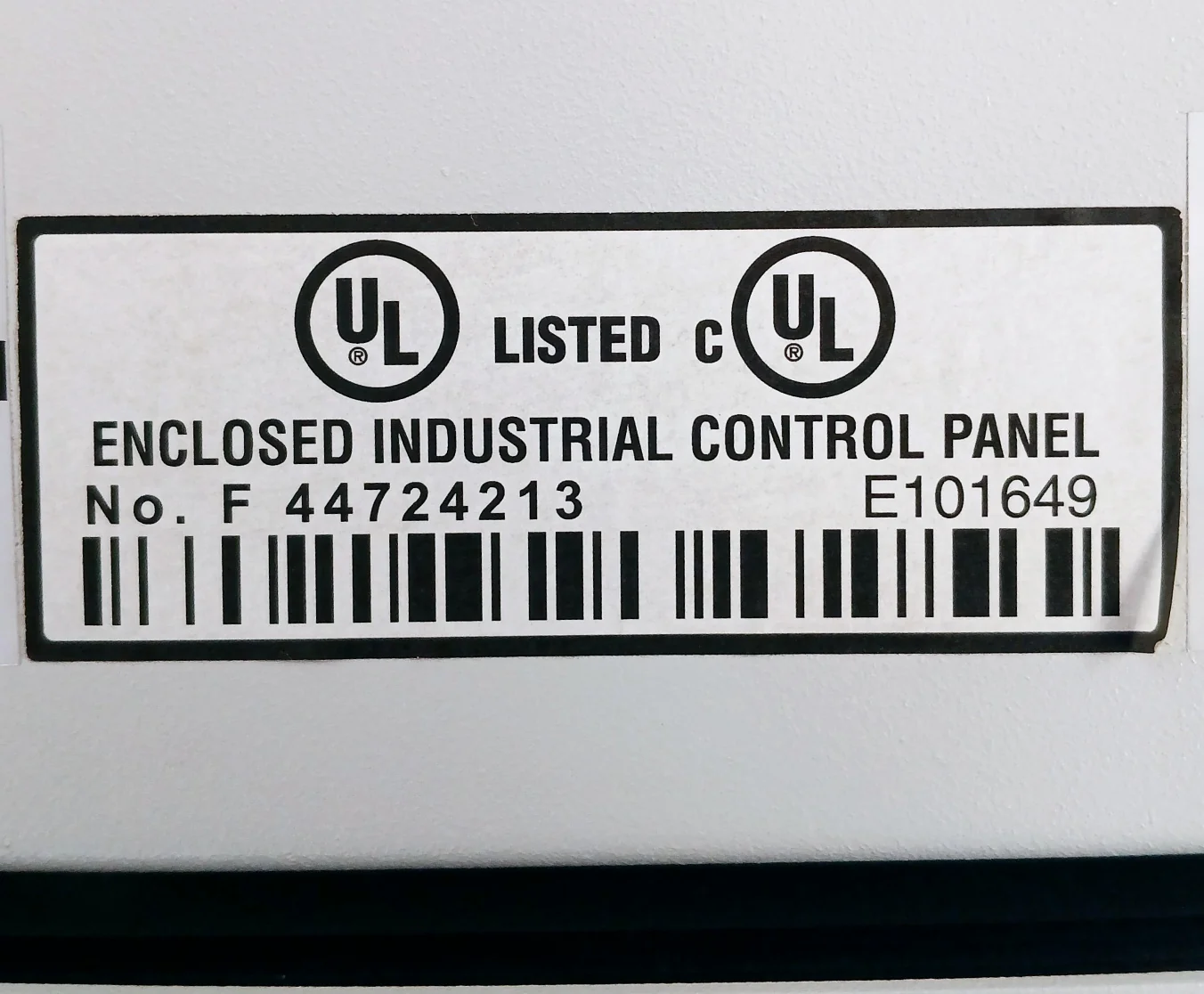

E101649
No: F 44724213
Hvac
Ach-ap-h
Code: 3Aua0000064886
3Aua0000064886D1230637Sb
Sw: 5.95

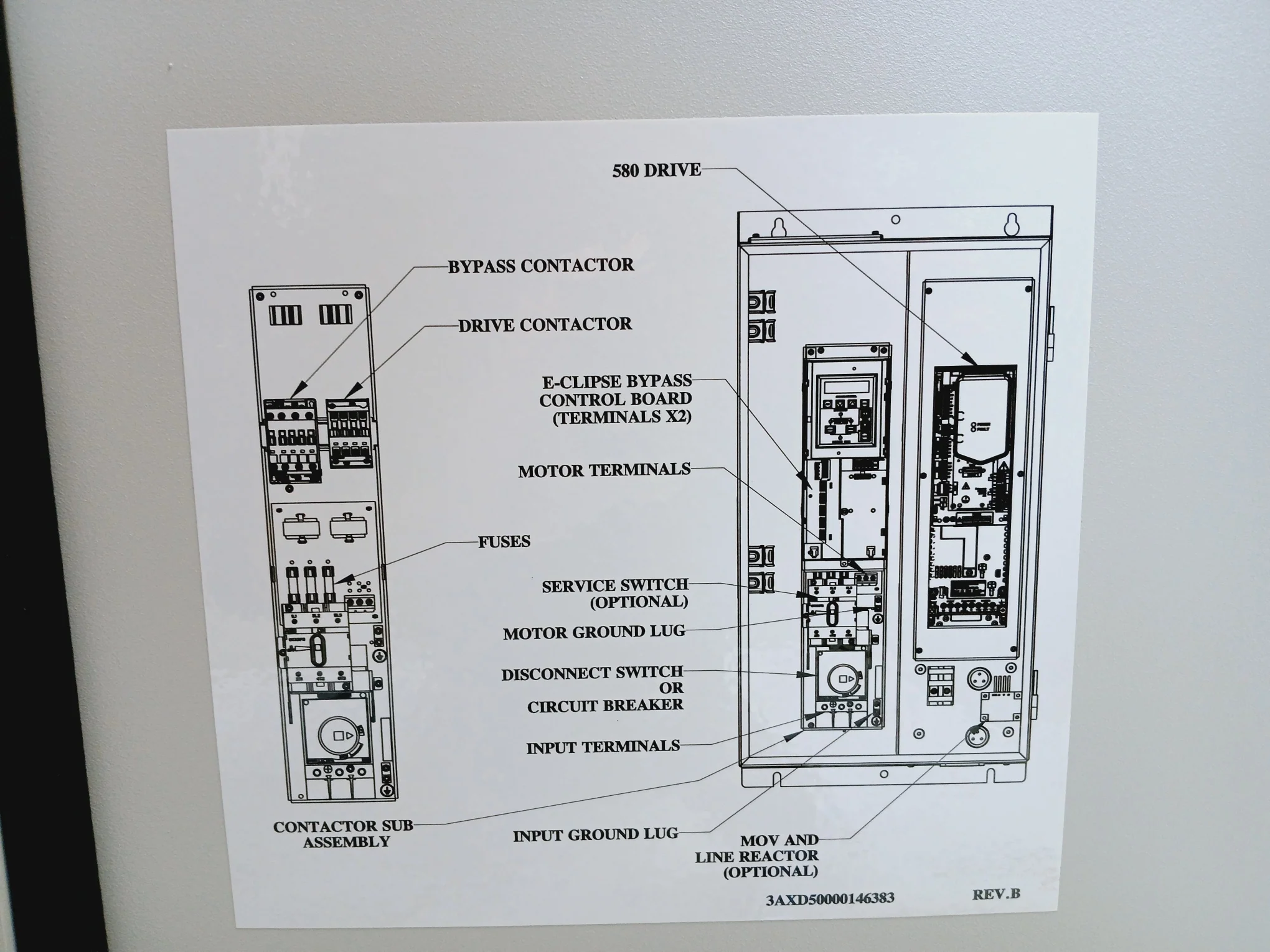

3Axd50000146383
Rev: B

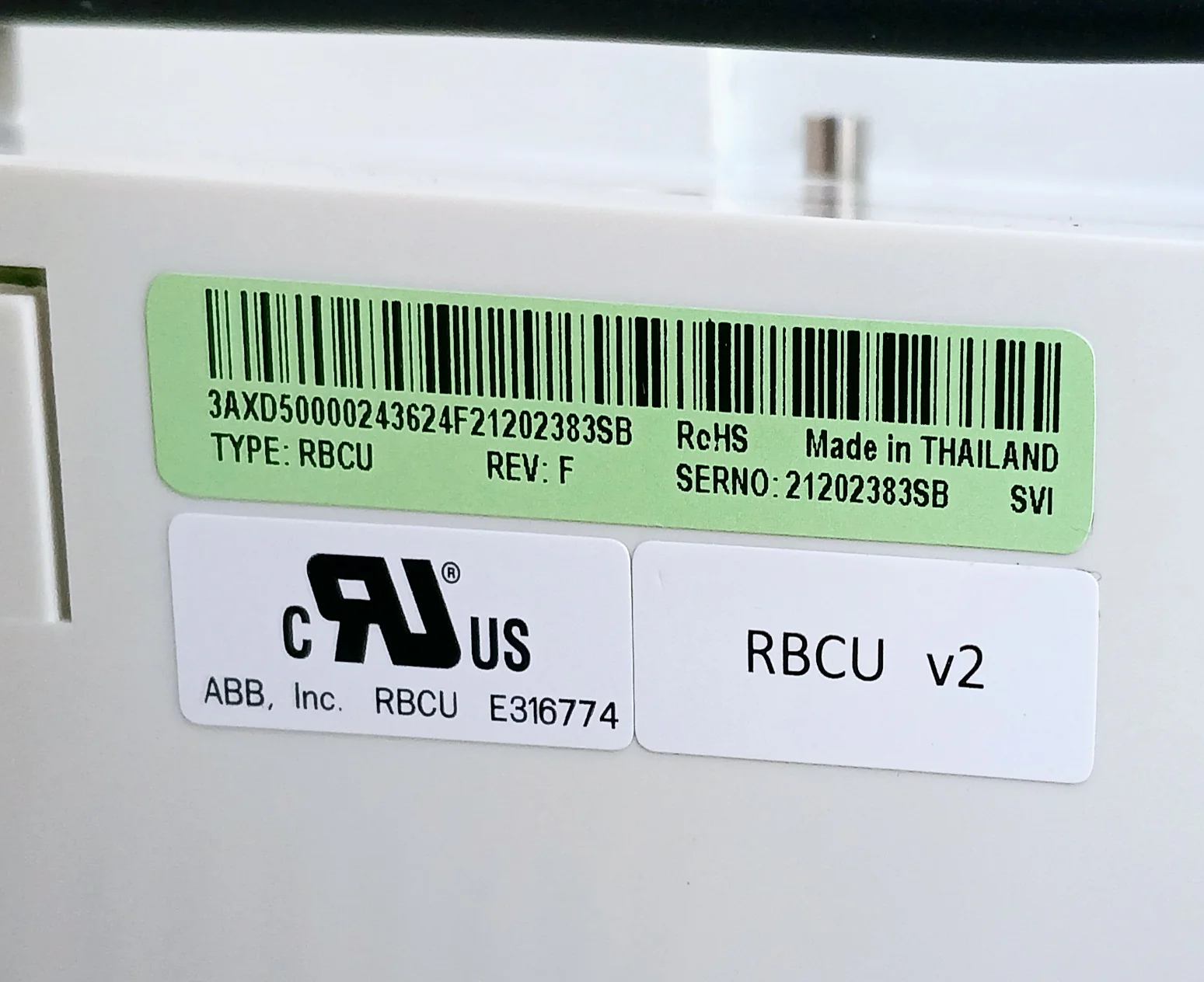

3Axd50000223015
Type: Rbcu
Rev: F
Svi
3Axd50000243624F21202383Sb
E316774
V2

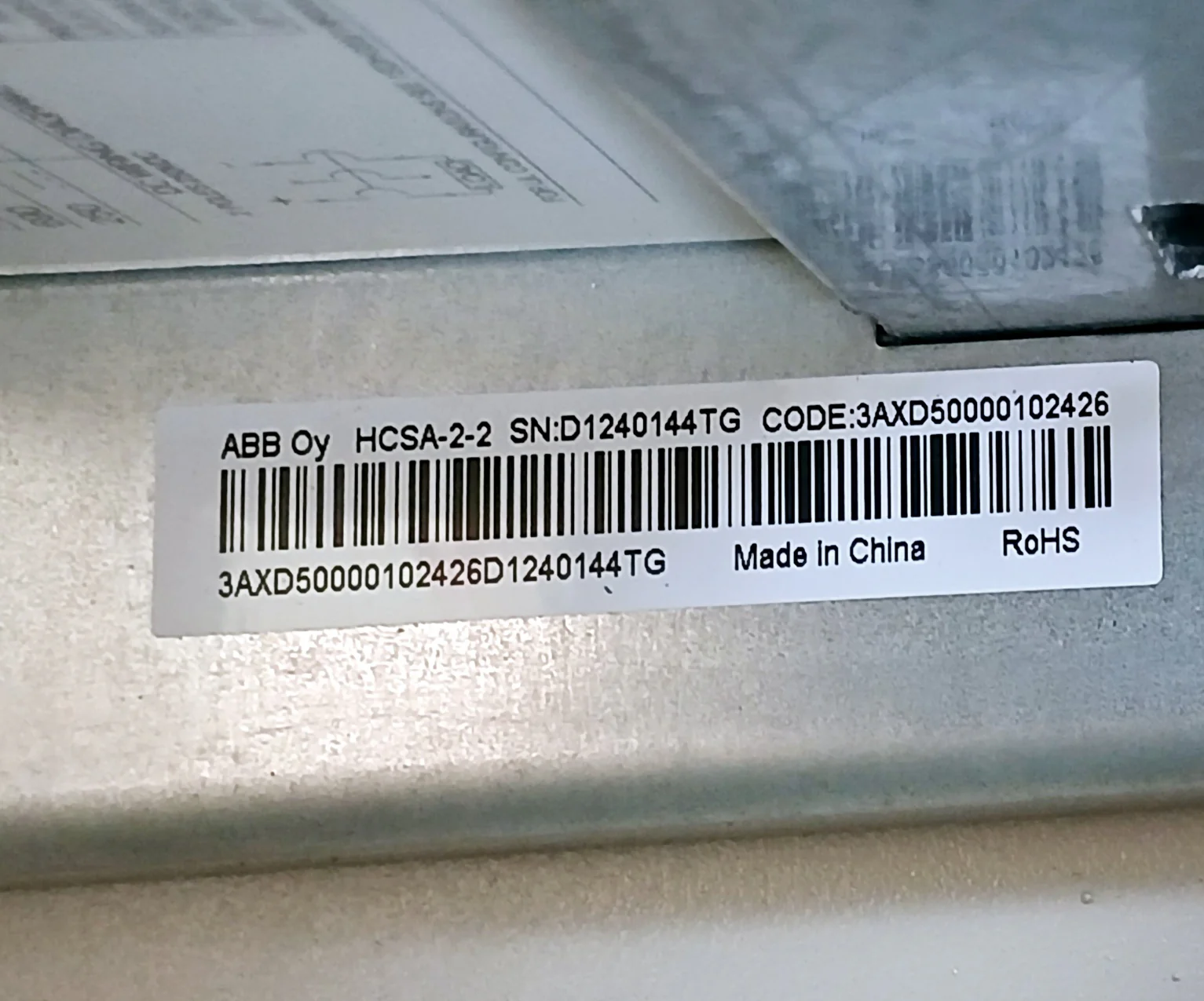

Hcsa-2-2
Code: 3Axd50000102426
3Axd50000102426D1240144Tg

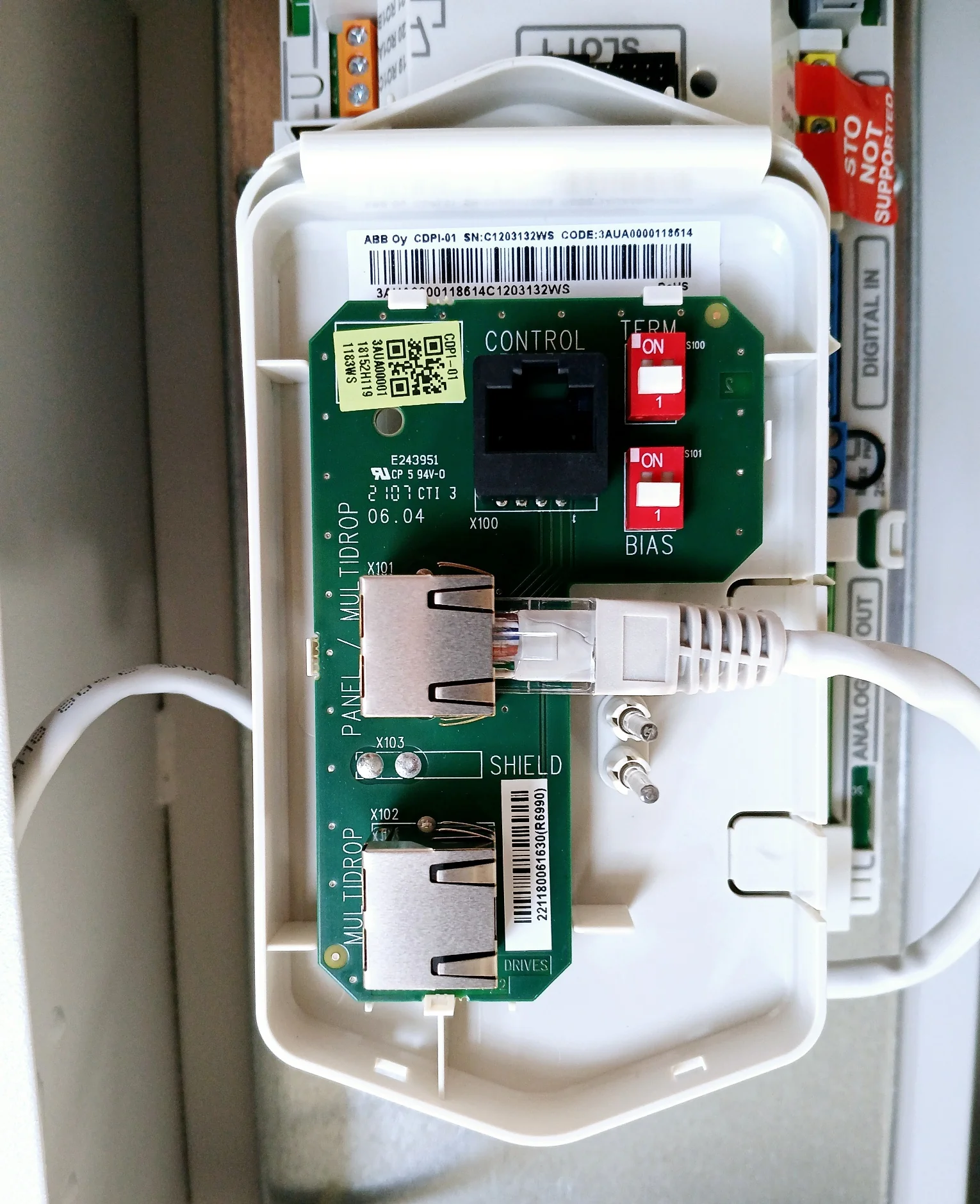

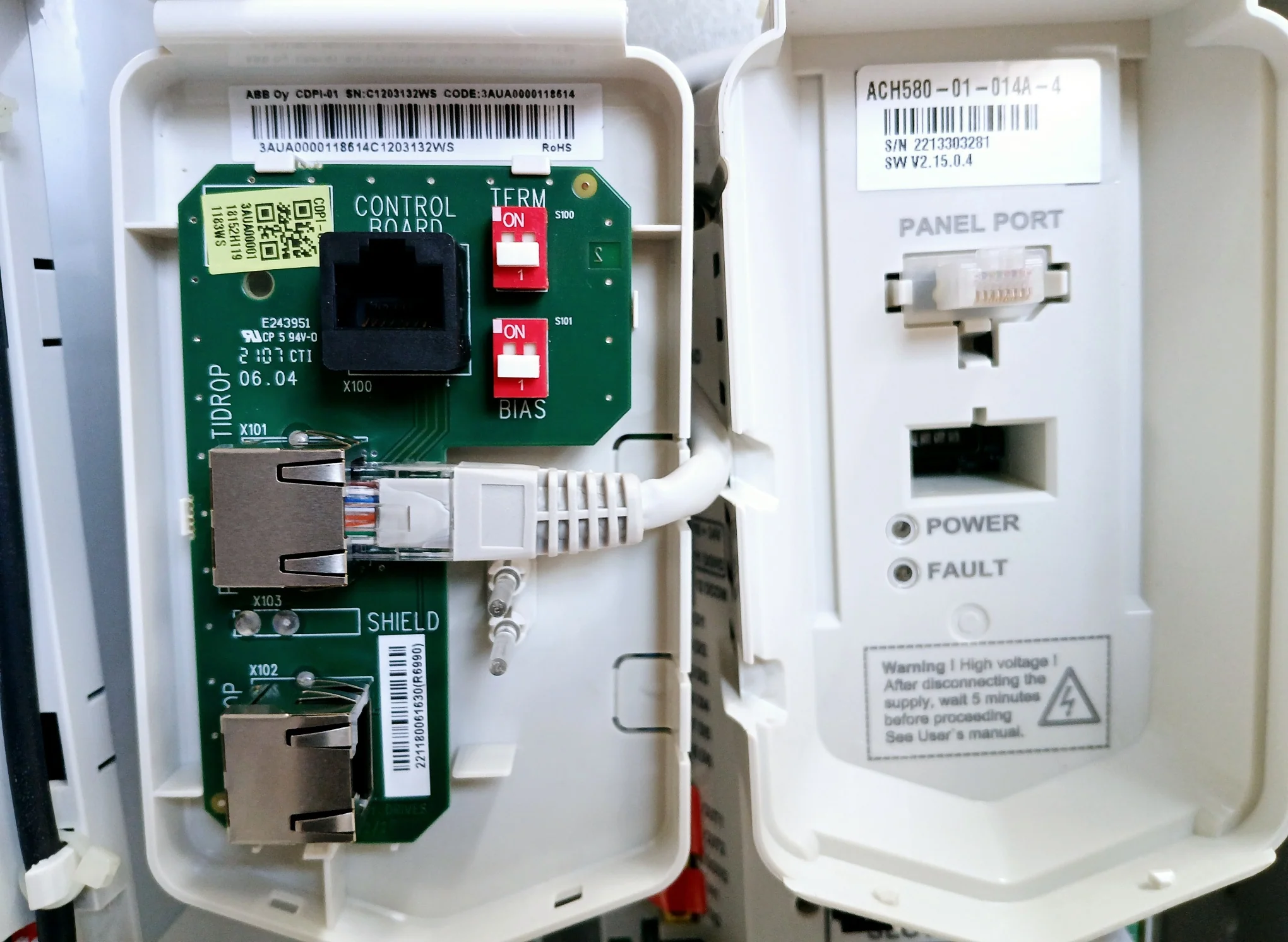

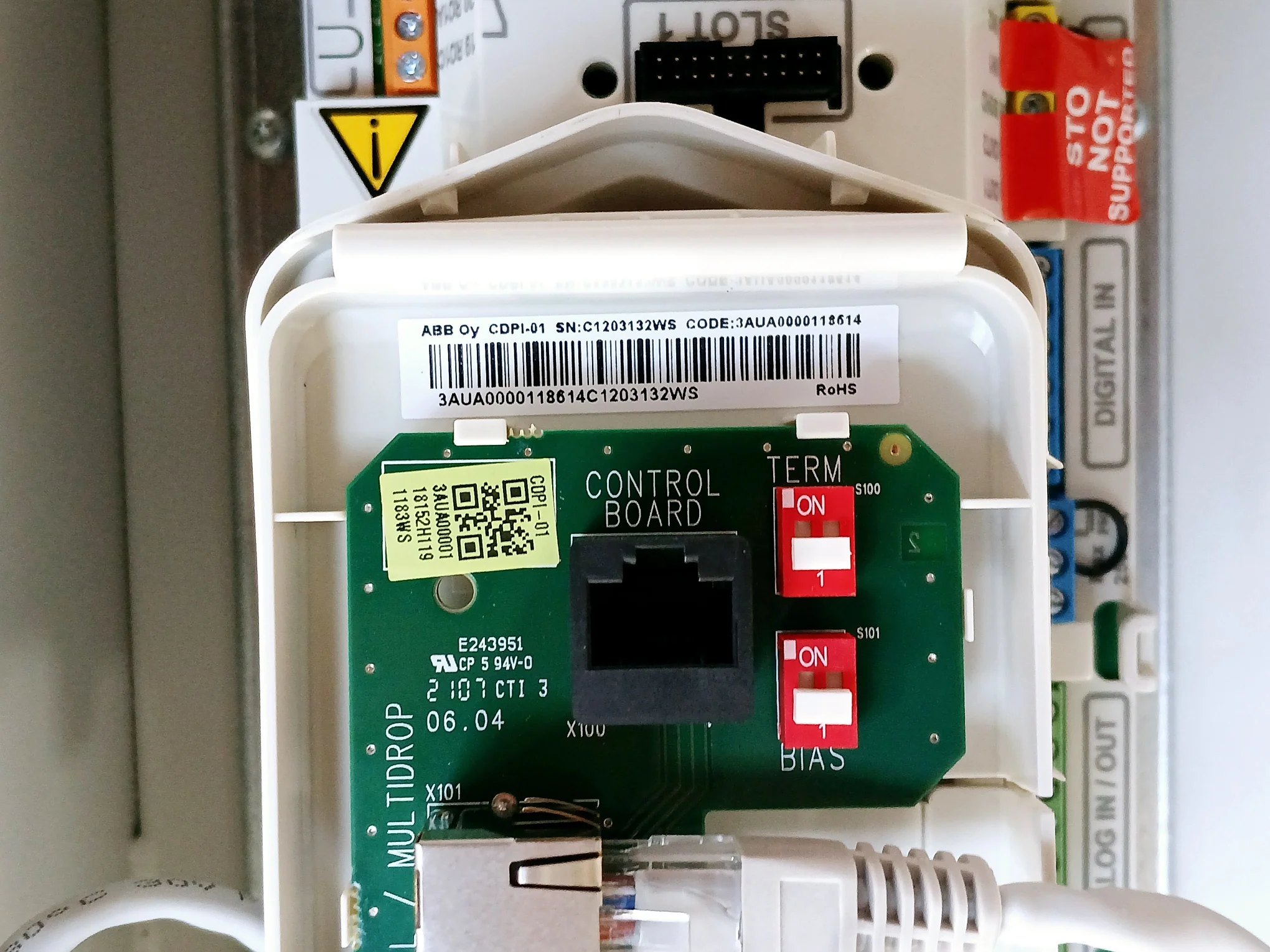

Cdpi-01
Code: 3Aua0000118614
3Aua0000118614C1203132Ws
E243951
Cp 5 94V-0
3Aua00001
18152H119
1183Ws

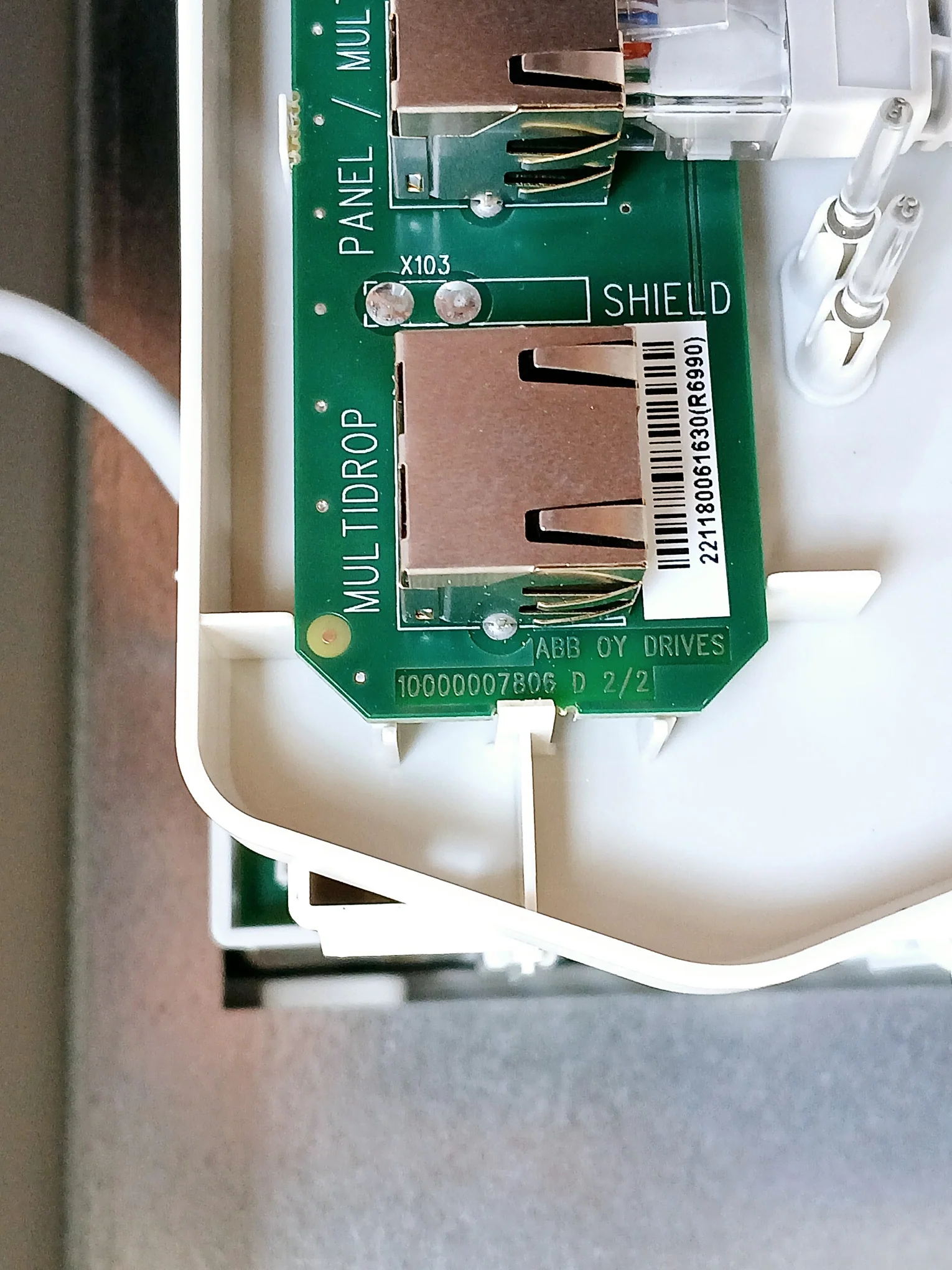

10000007806 D 2/2
221180061630(R6990)
Ach580-01-014A-4
Sw: V2.15.0.4
Made In Usa
Made In China
Made In Thailand
Weight: 41 Kg
