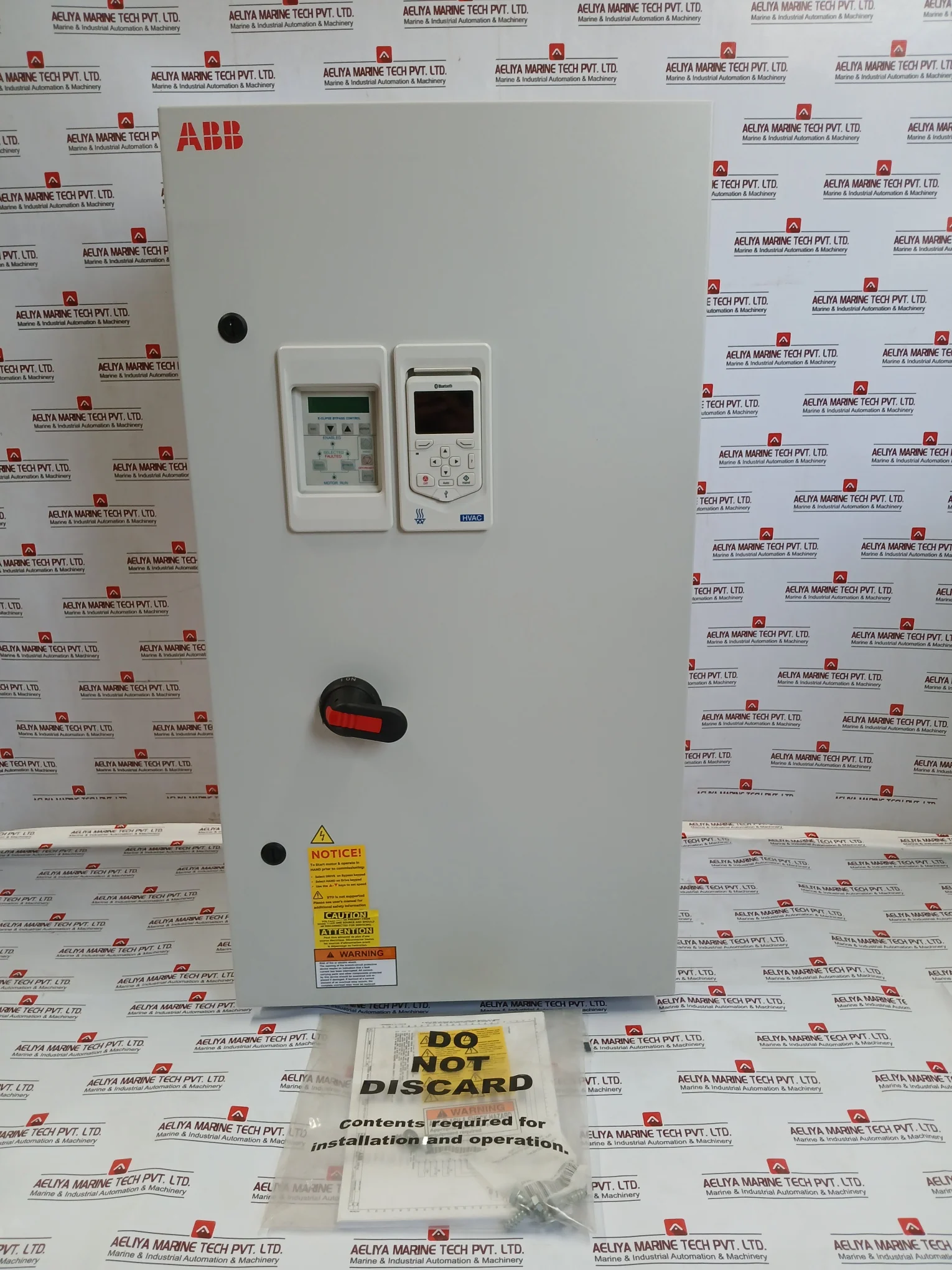

Abb Ach580-bcr-034A-4+J429 Hvac Enclosed Industrial Control Panel V2.15.0.4 34 A
Abb, Inc.
Abb Oy Drives
Hvac
Enclosed Industrial Control Panel
Product Type: Vfd
Product Name/Model Number: Ach580
Ach580-bcr (1…350 Hp, 0.75…250 Kw)

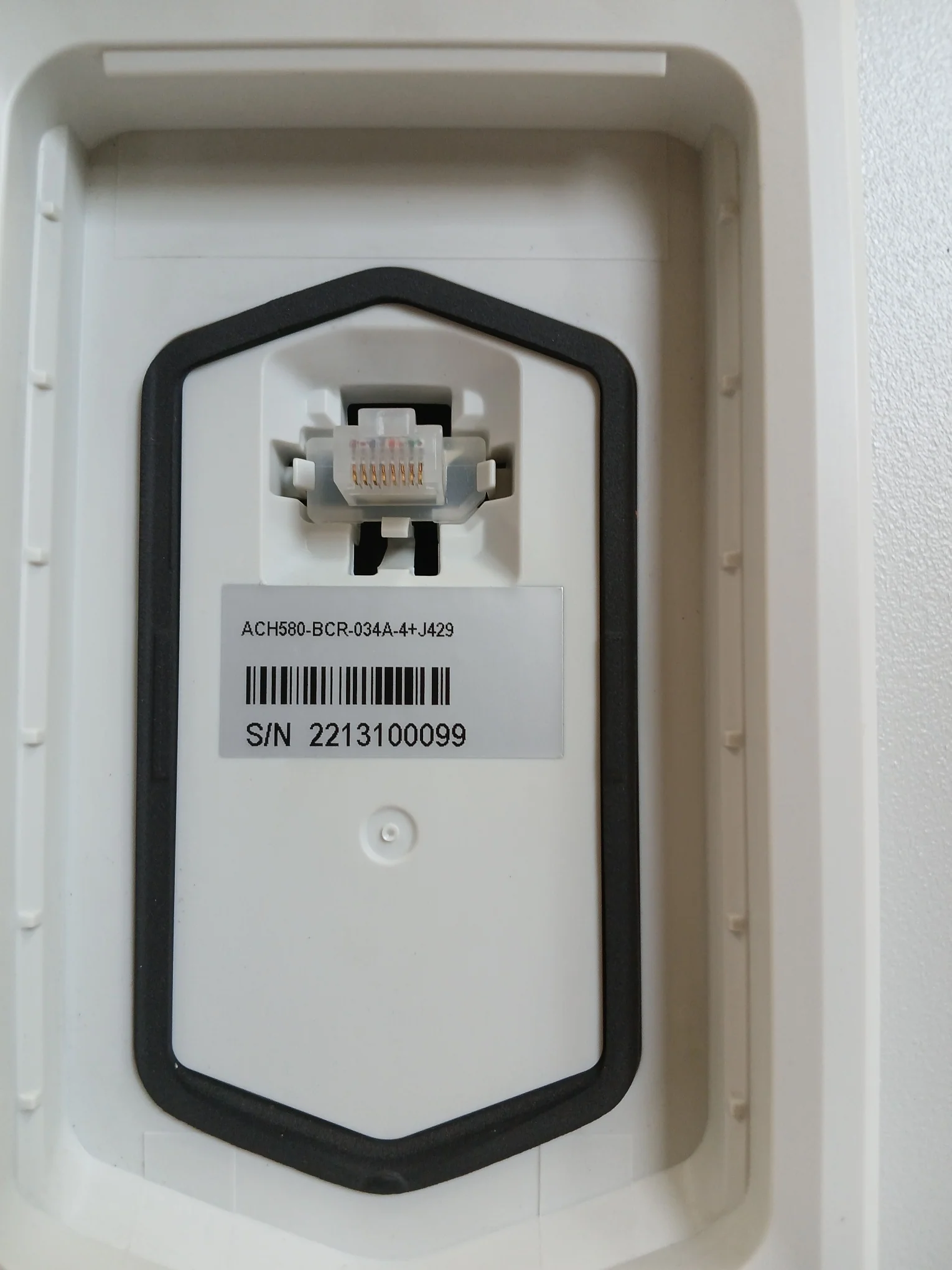

Ach580-bcr-034A-4+J429

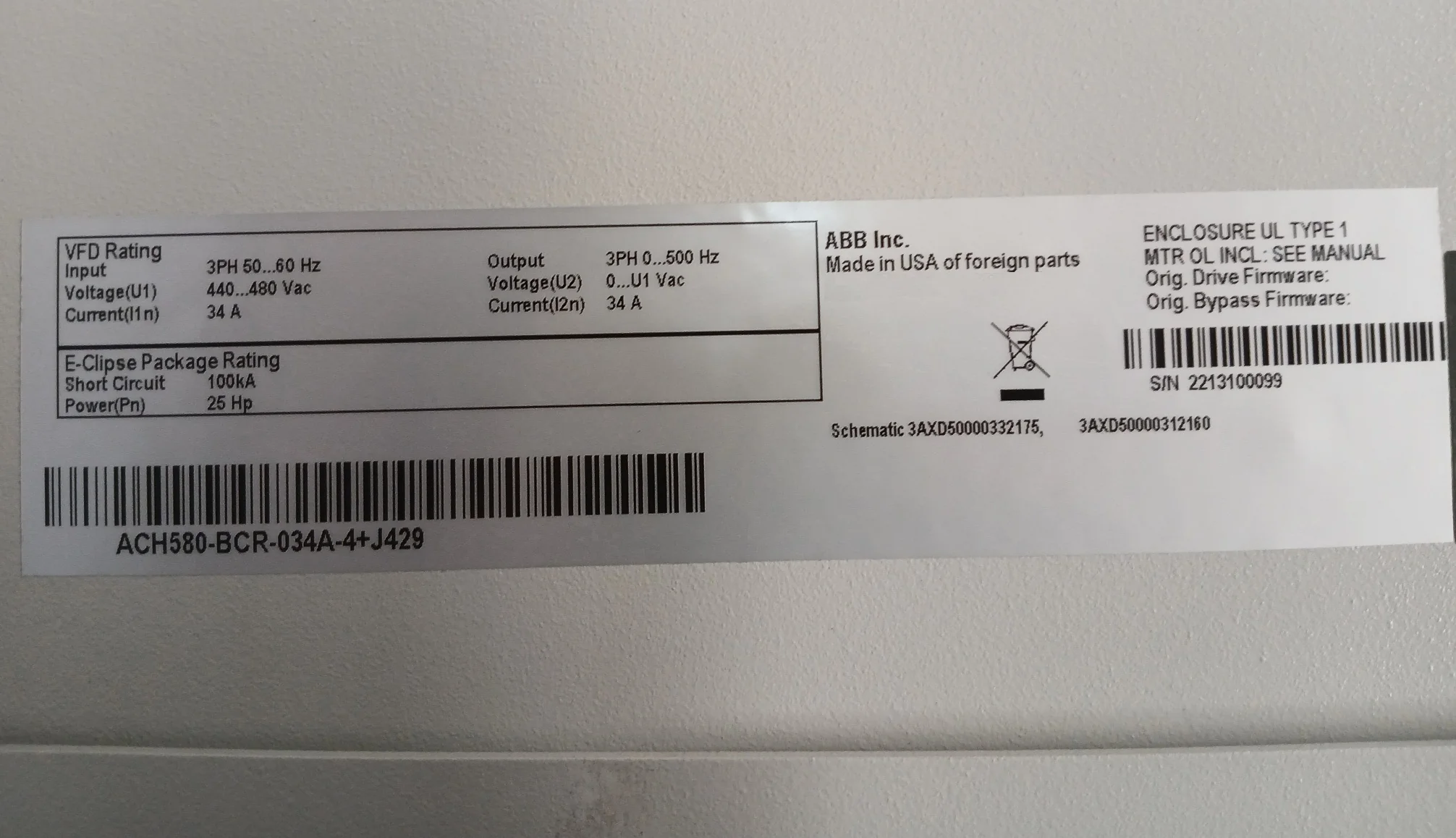

Vfd Rating:
Input: 3Ph 50…60 Hz
Output: 3Ph 0…500 Hz
Voltage (U1): 440…480 Vac
Voltage (U2): 0…U1 Vac
Current (I1N)/(I2N): 34 A
E-clipse Package Rating
Short Circuit: 100Ka
Power (Pn): 25 Hp
Enclosure Ul Type 1

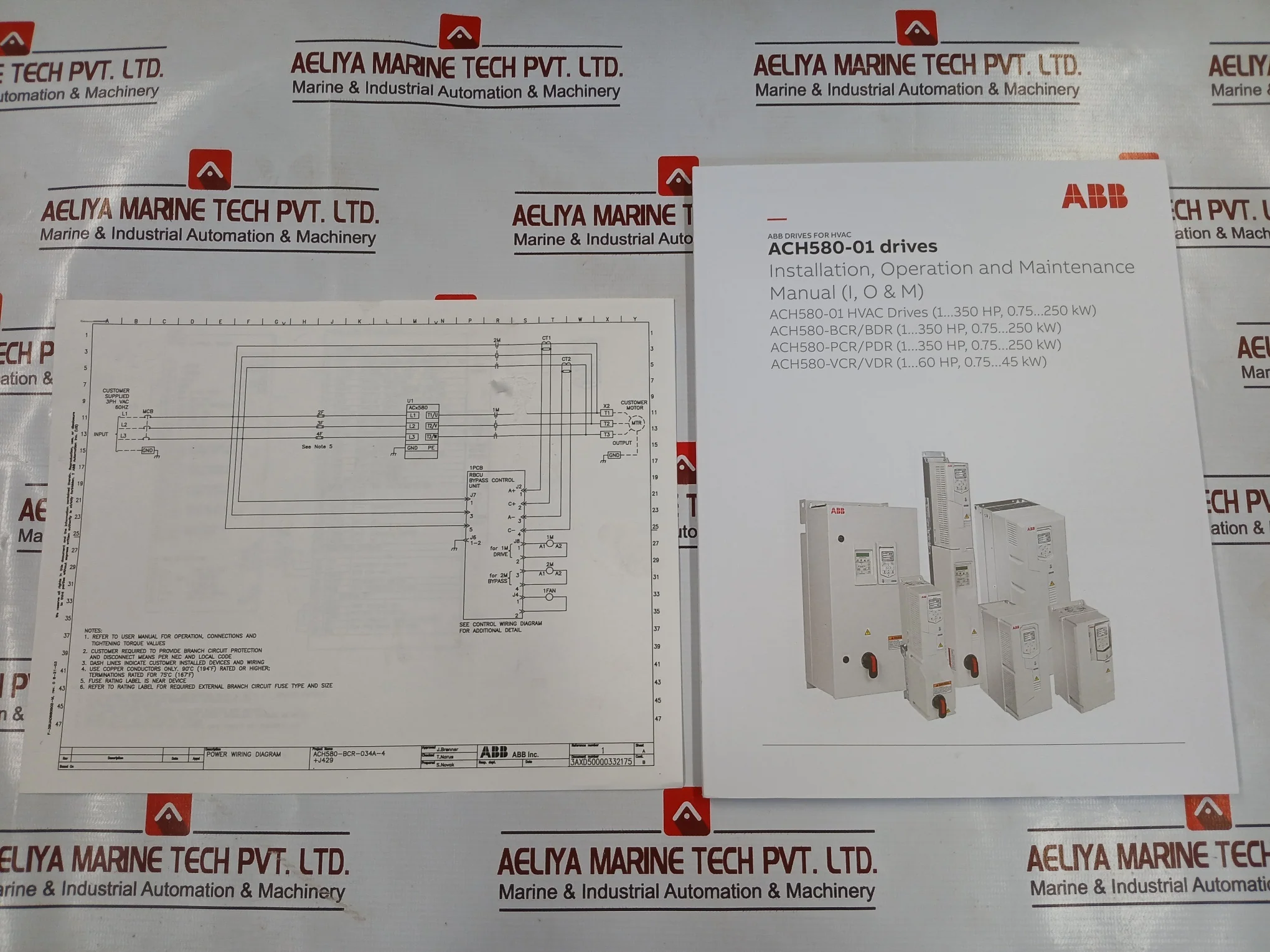

Schematic
3Axd50000332175
3Axd50000312160

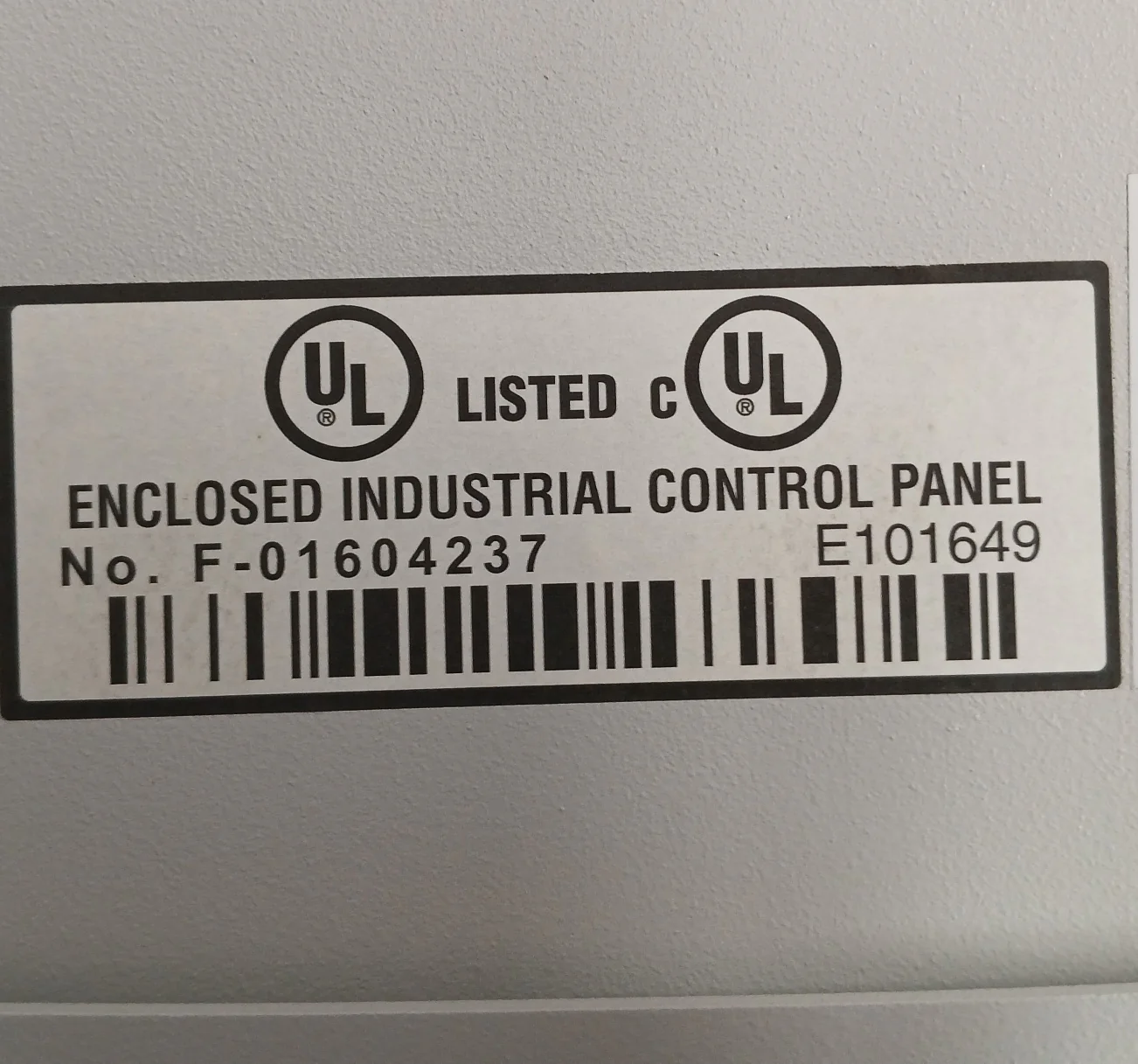

No.: F-01604237
E101649

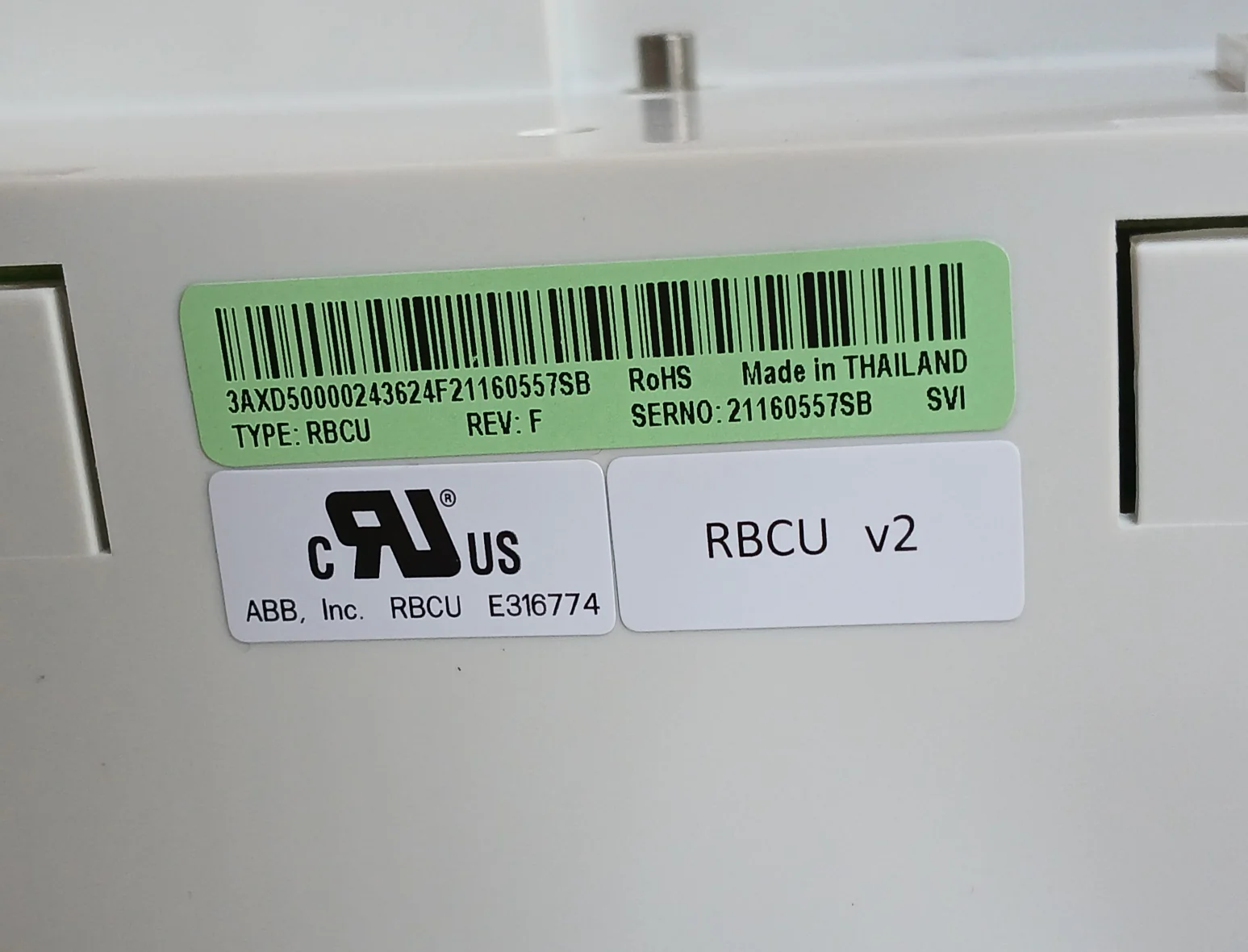

Type: Rbcu
Rev: F
3Axd50000243624F21160557Sb
E316774
Rbcu V2

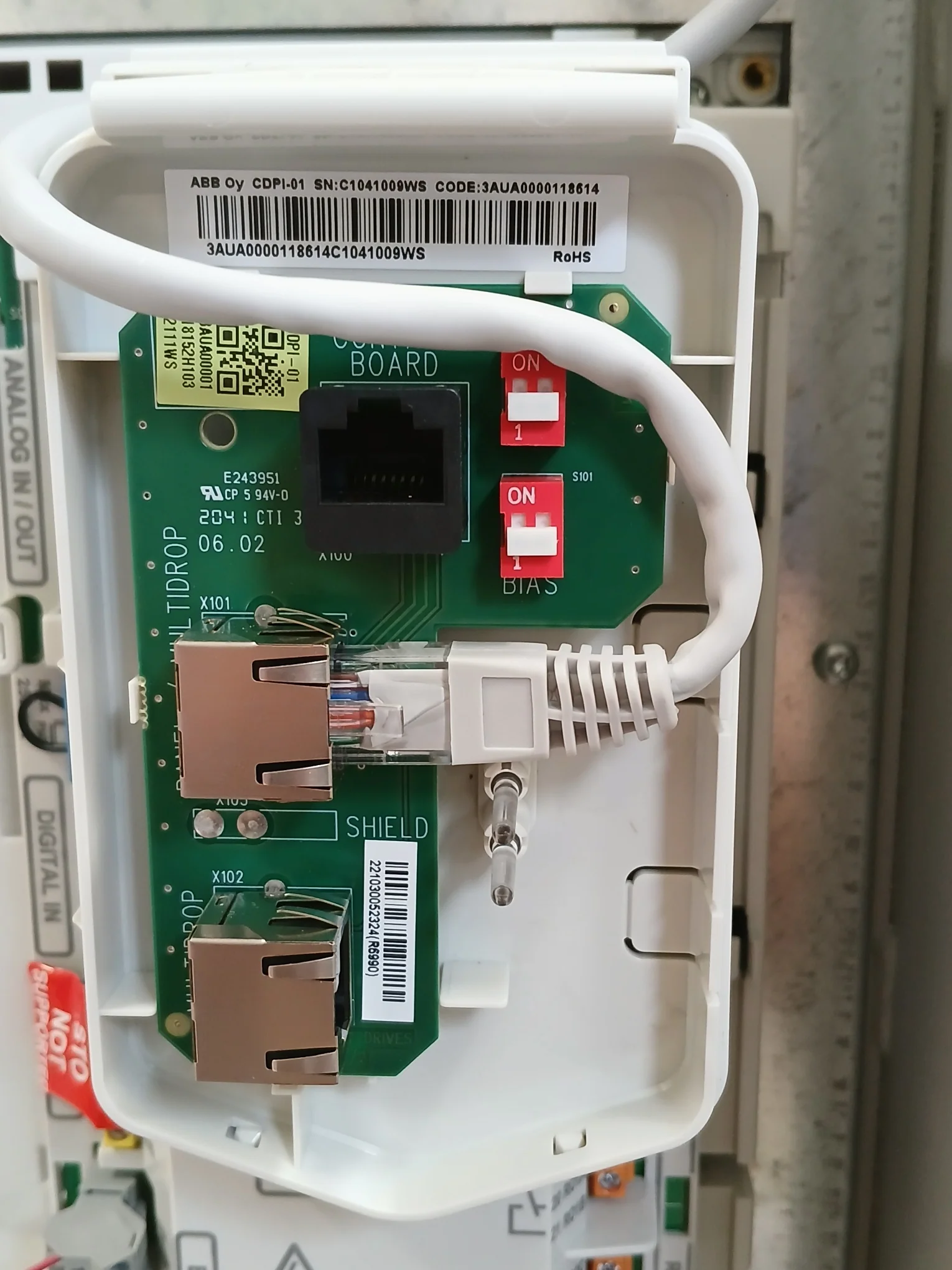

Cdpi-01
Code: 3Aua0000118614
3Aua0000118614C1041009Ws

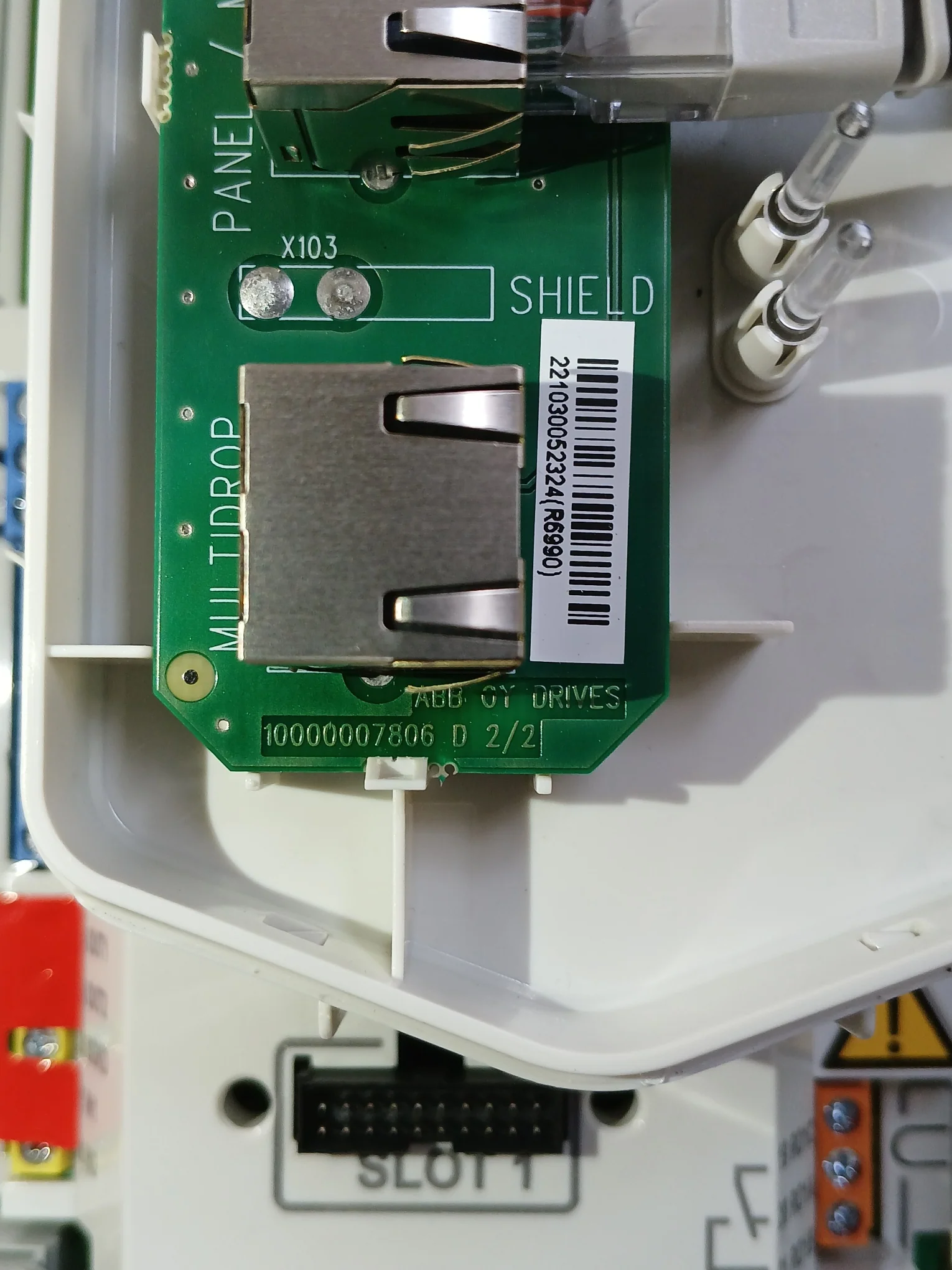

10000007806 D 2/2
Copi-01/C0Pi-01
3Aua0000118152H1032111Ws
E243951
Cp 5
94V-0
Cti 3
221030052324(R6990)

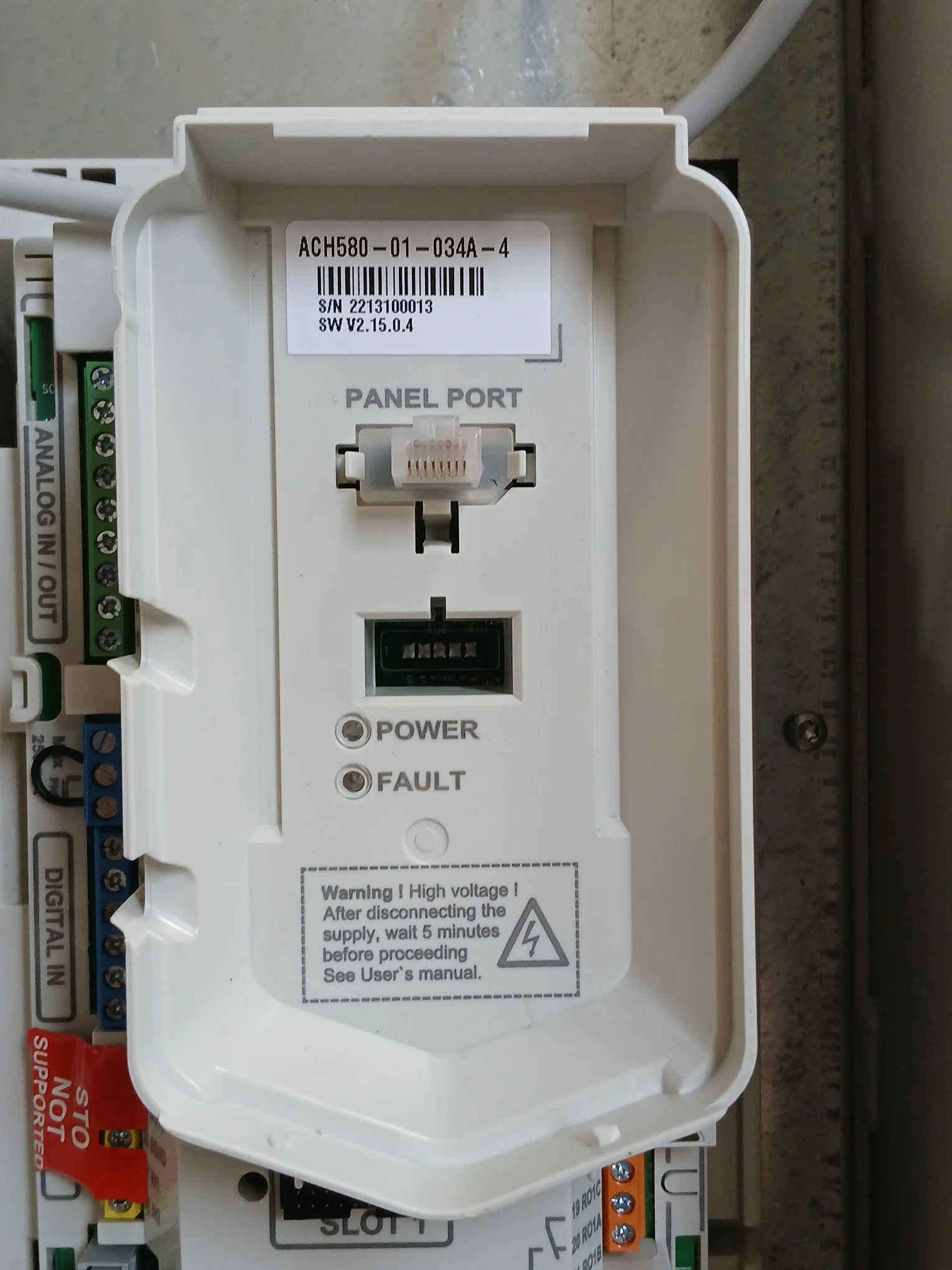

Ach580-01-034A-4
Sw: V2.15.0.4

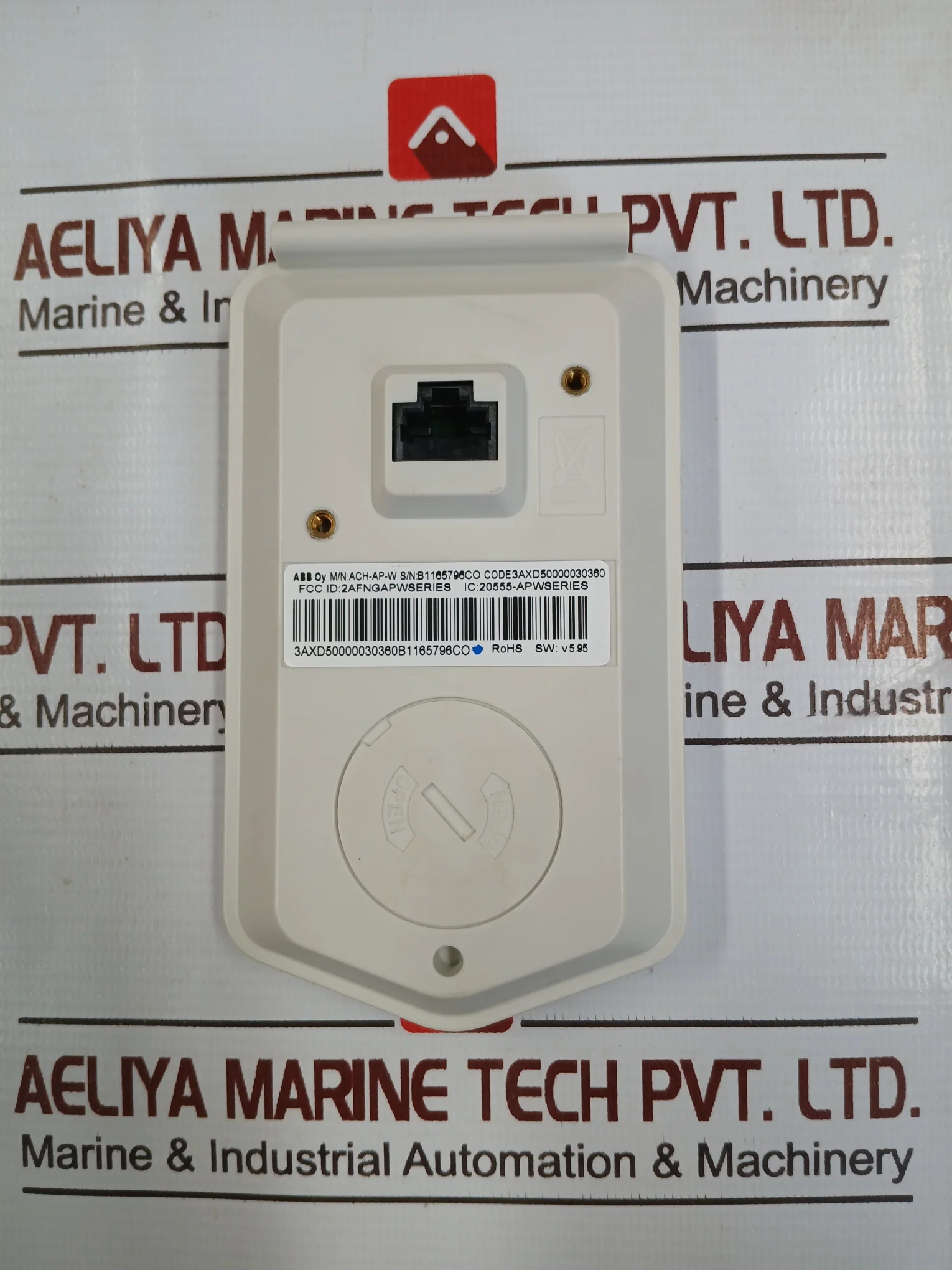

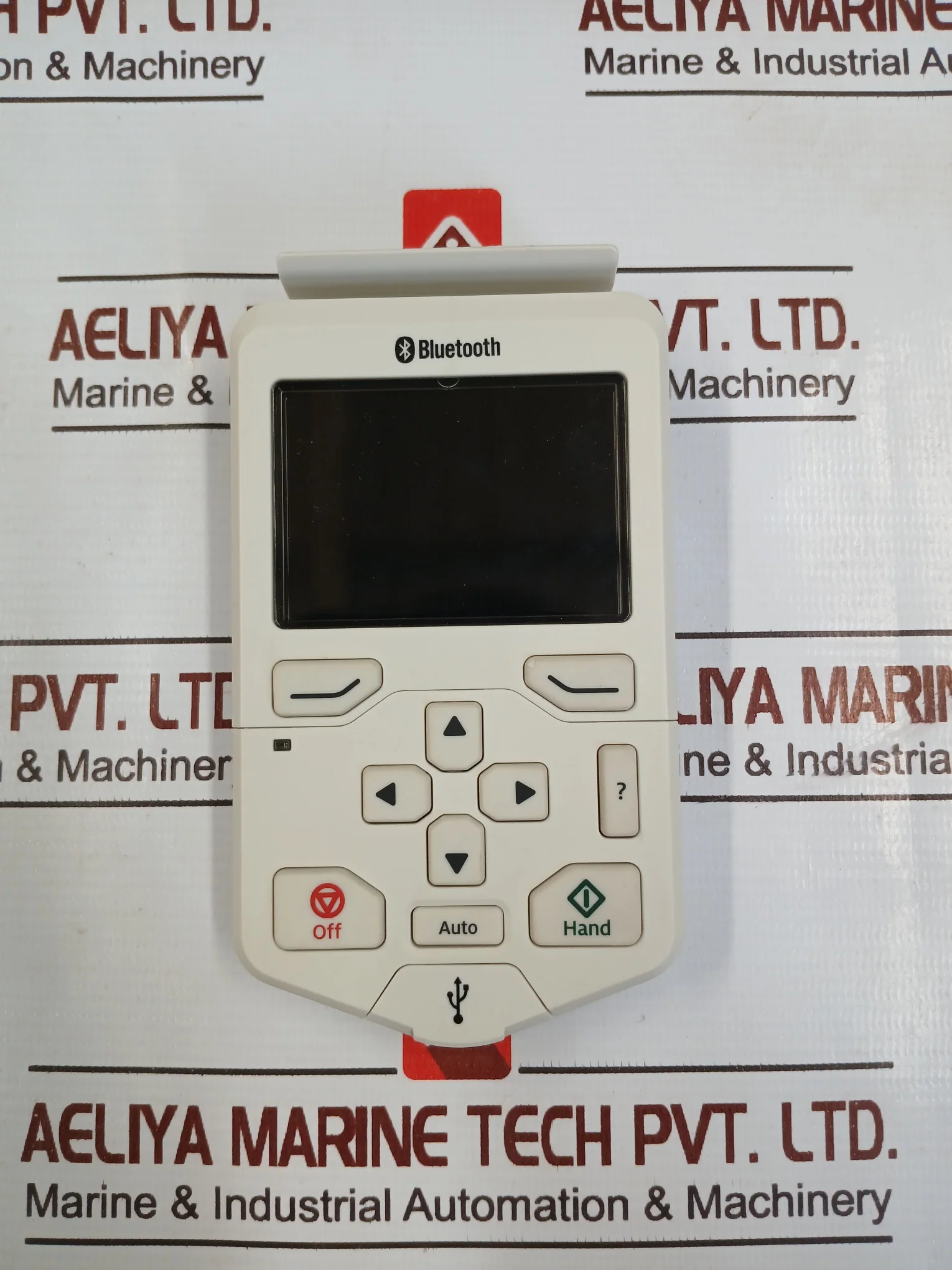

M/N: Ach-ap-w
Code: 3Axd50000030360
Fcc Id: 2Afngapwseries
Ic: 20555-apwseries
Sw: V5.95
3Axd50000030360B1165796Co

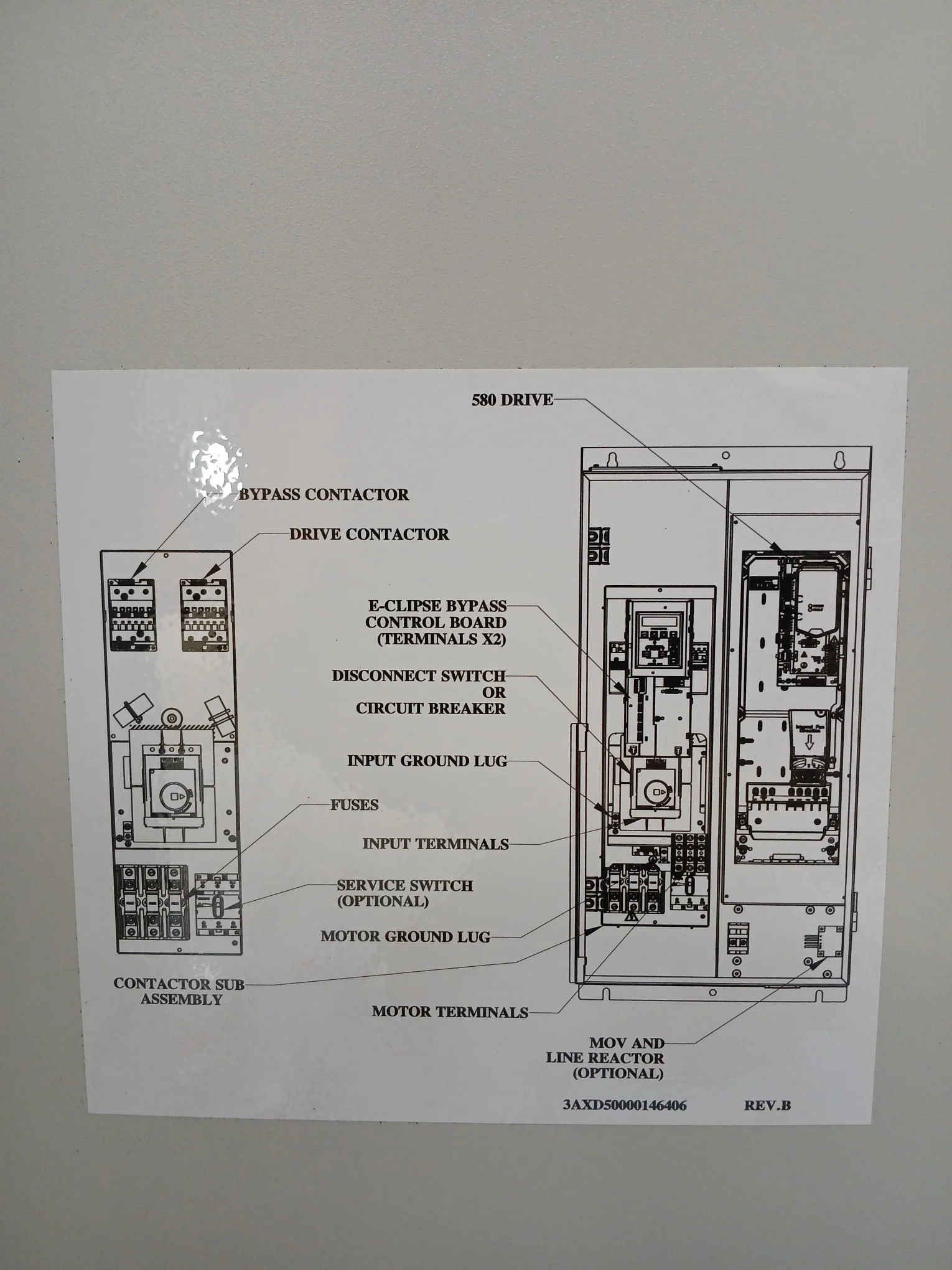

3Axd50000146406
Rev. B

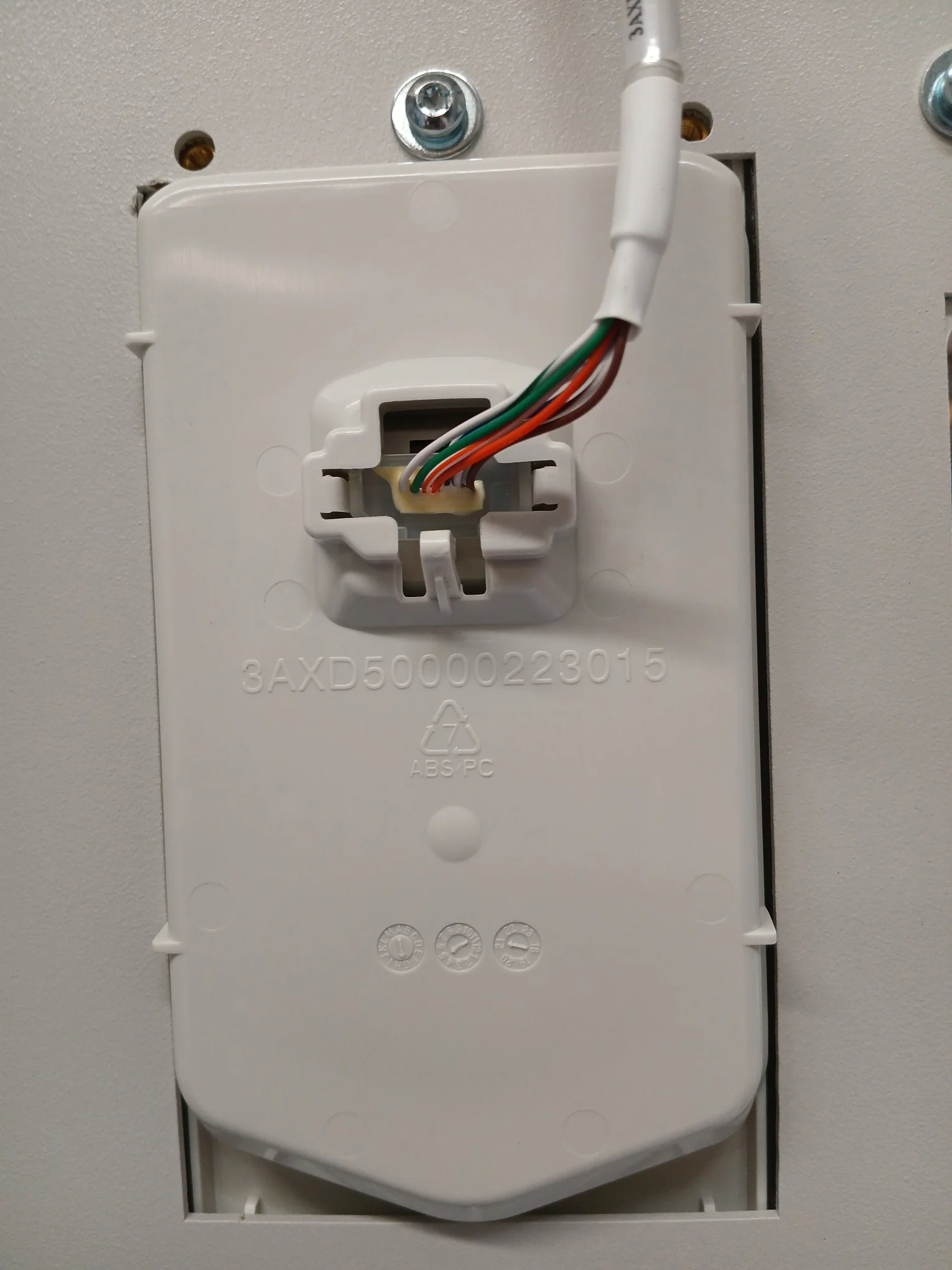

3Axd50000223015

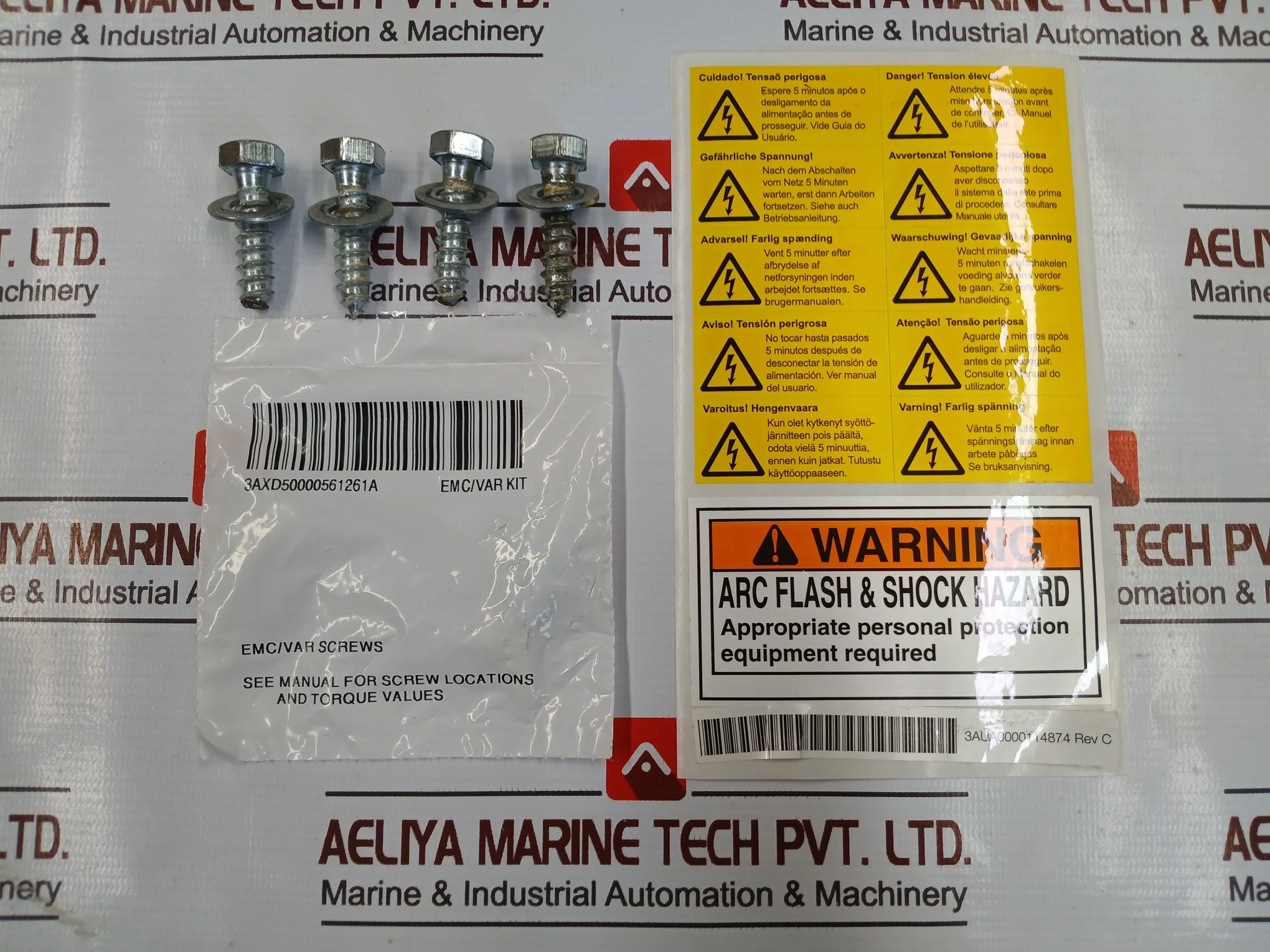

Emc/Var Kit
Emc/Var Screws
3Axd50000561261A
3Aua0000114874
Rev: C
Made In Thailand
Made In Usa
Weight: 77 Kg
