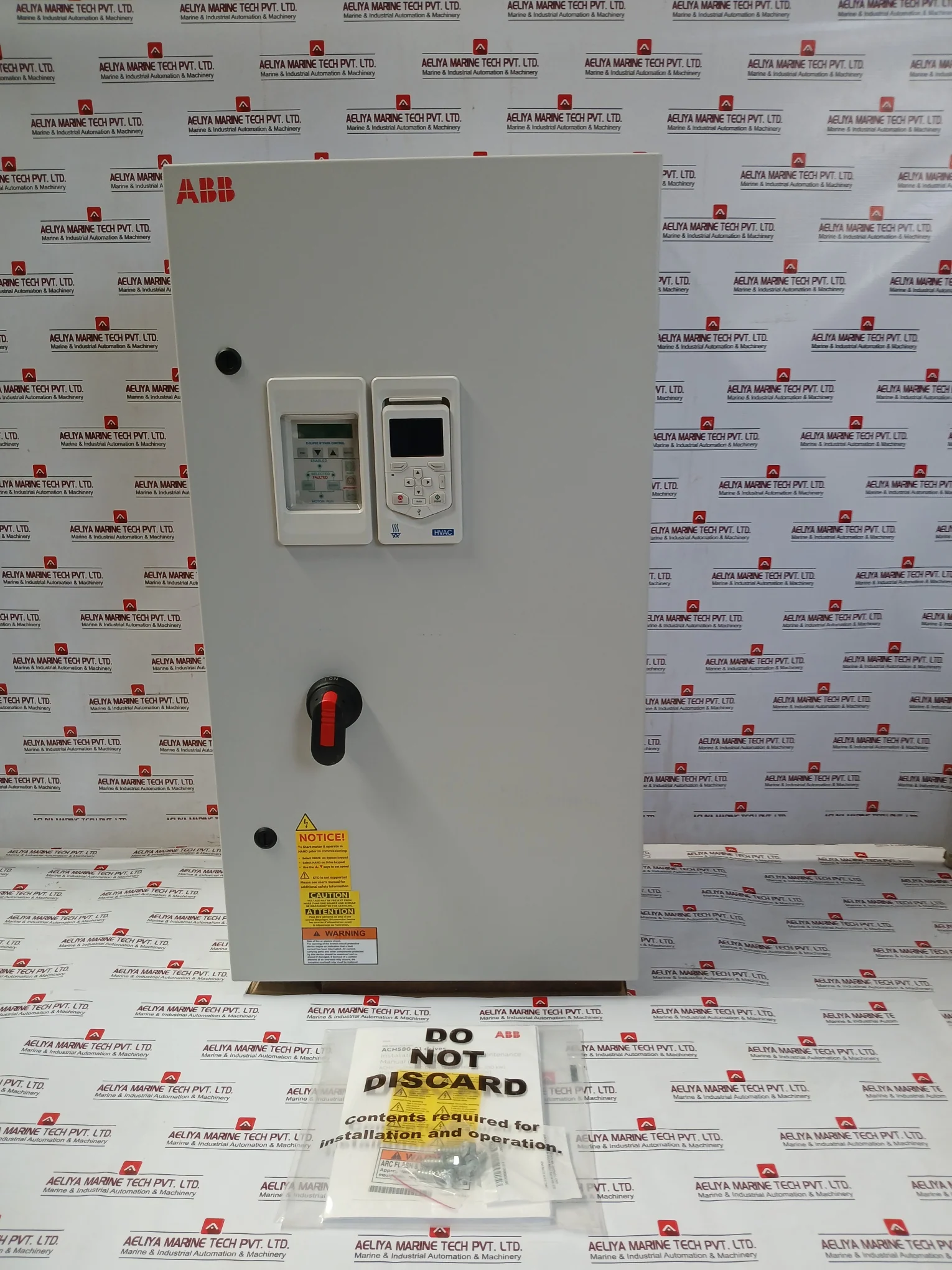

Abb Ach580-bcr-044A-4+B056+F267 Hvac Enclosed Industrial Control Panel 30 Hp 44A
Abb, Inc.
Abb Oy Drives
Hvac
Enclosed Industrial Control Panel
Product Type: Vfd
Product Name/Model Number: Ach580
Ach580-bcr (1…350 Hp, 0.75…250 Kw)

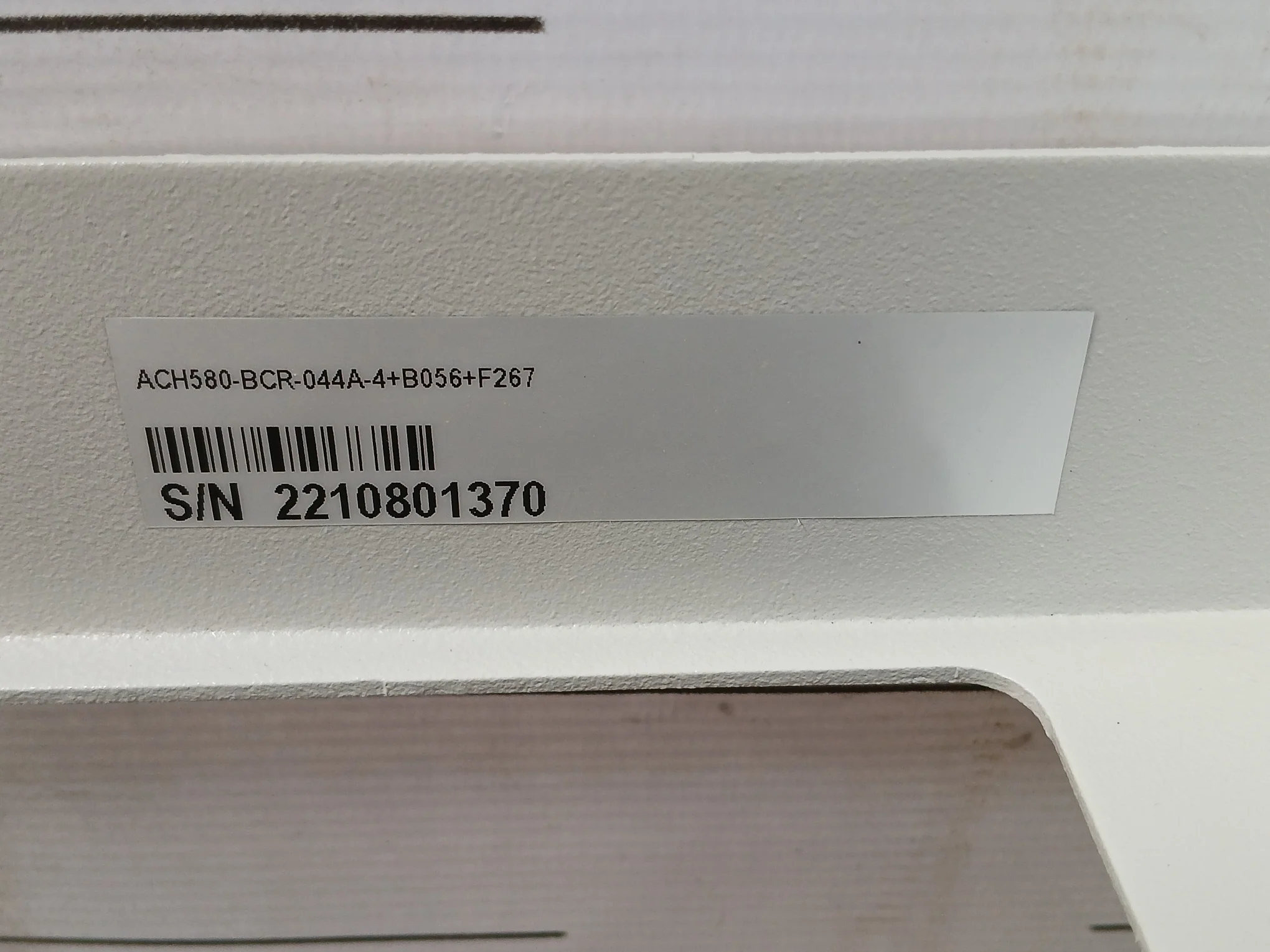

Ach580-bcr-044A-4+B056+F267

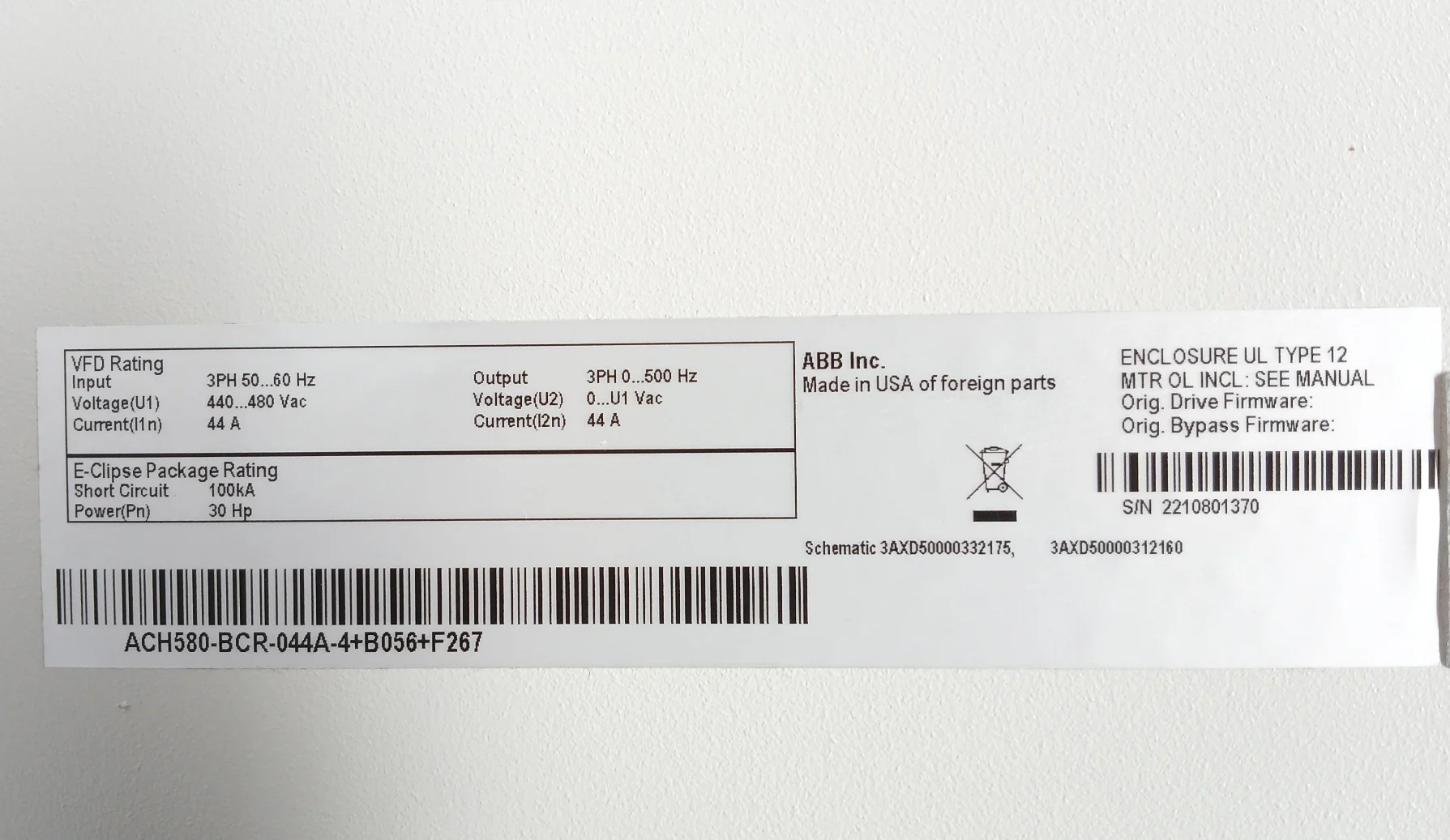

Vfd Rating:
Input: 3Ph 50…60 Hz
Output: 3Ph 0…500 Hz
Voltage (U1): 440…480 Vac
Voltage (U2): 0…U1 Vac
Current (I1N)/(I2N): 44 A
E-clipse Package Rating
Short Circuit: 100Ka
Power (Pn): 30 Hp
Enclosure Ul Type 12

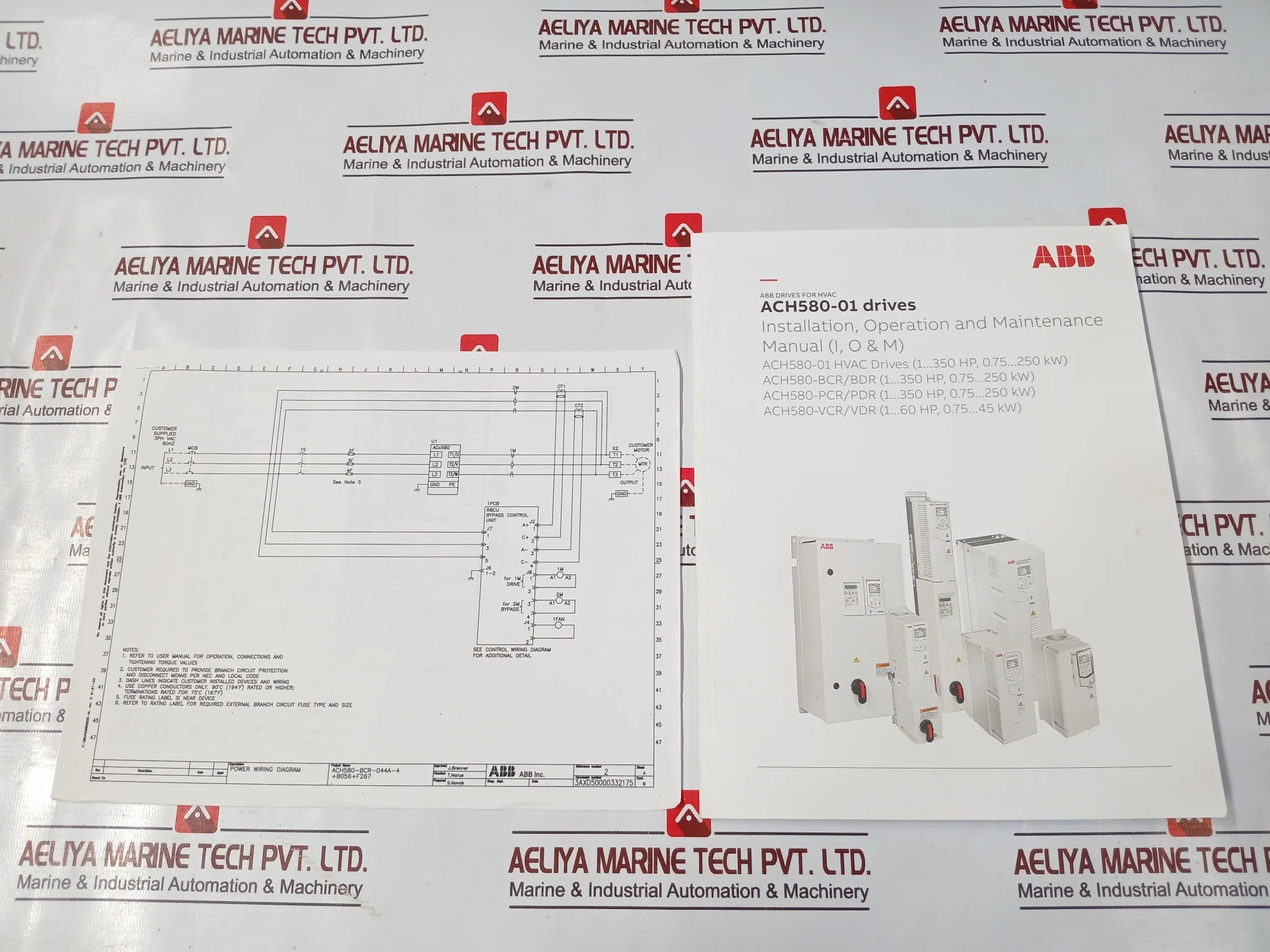

Schematic
3Axd50000332175
3Axd50000312160

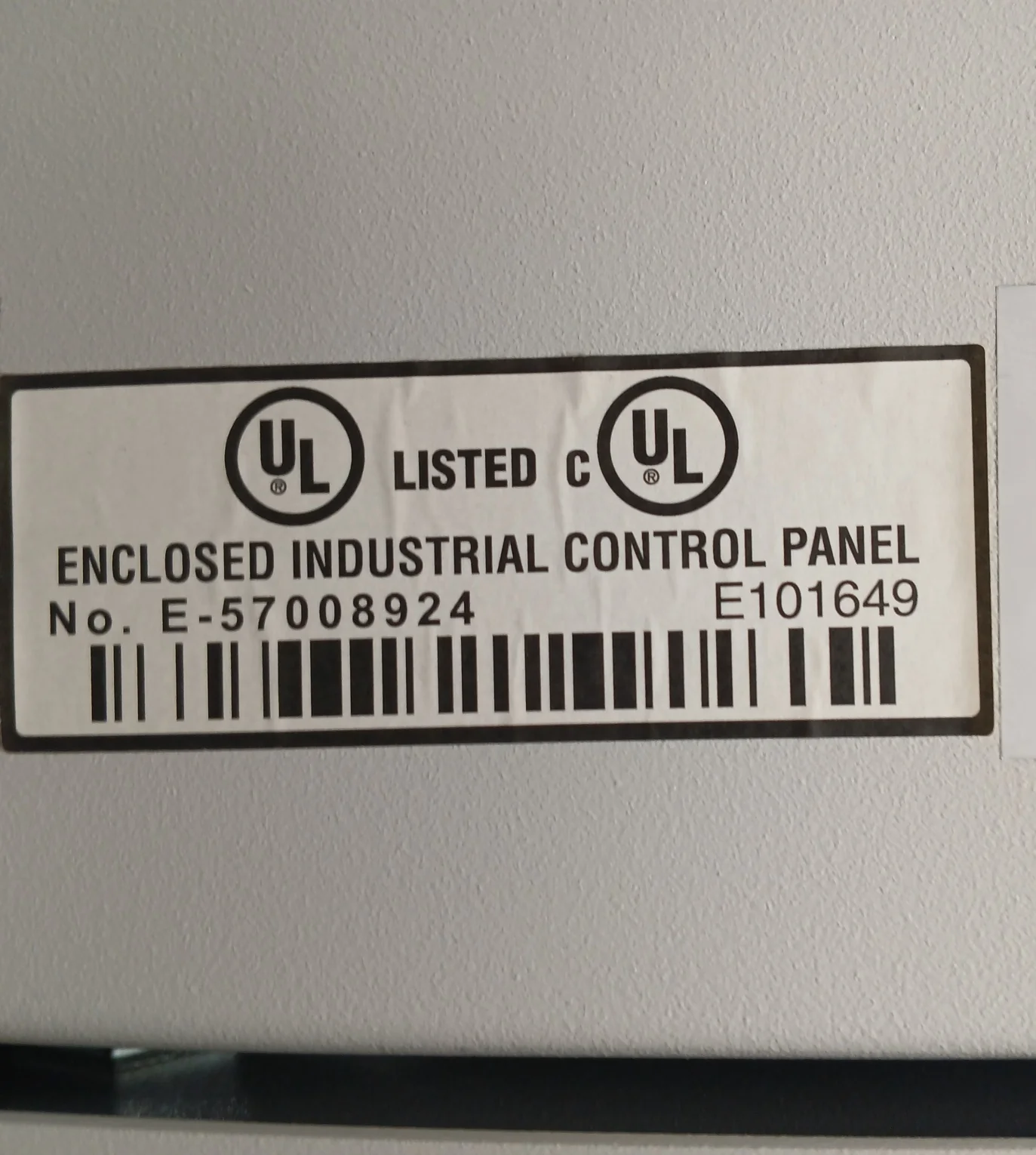

No.: E-57008924
E101649

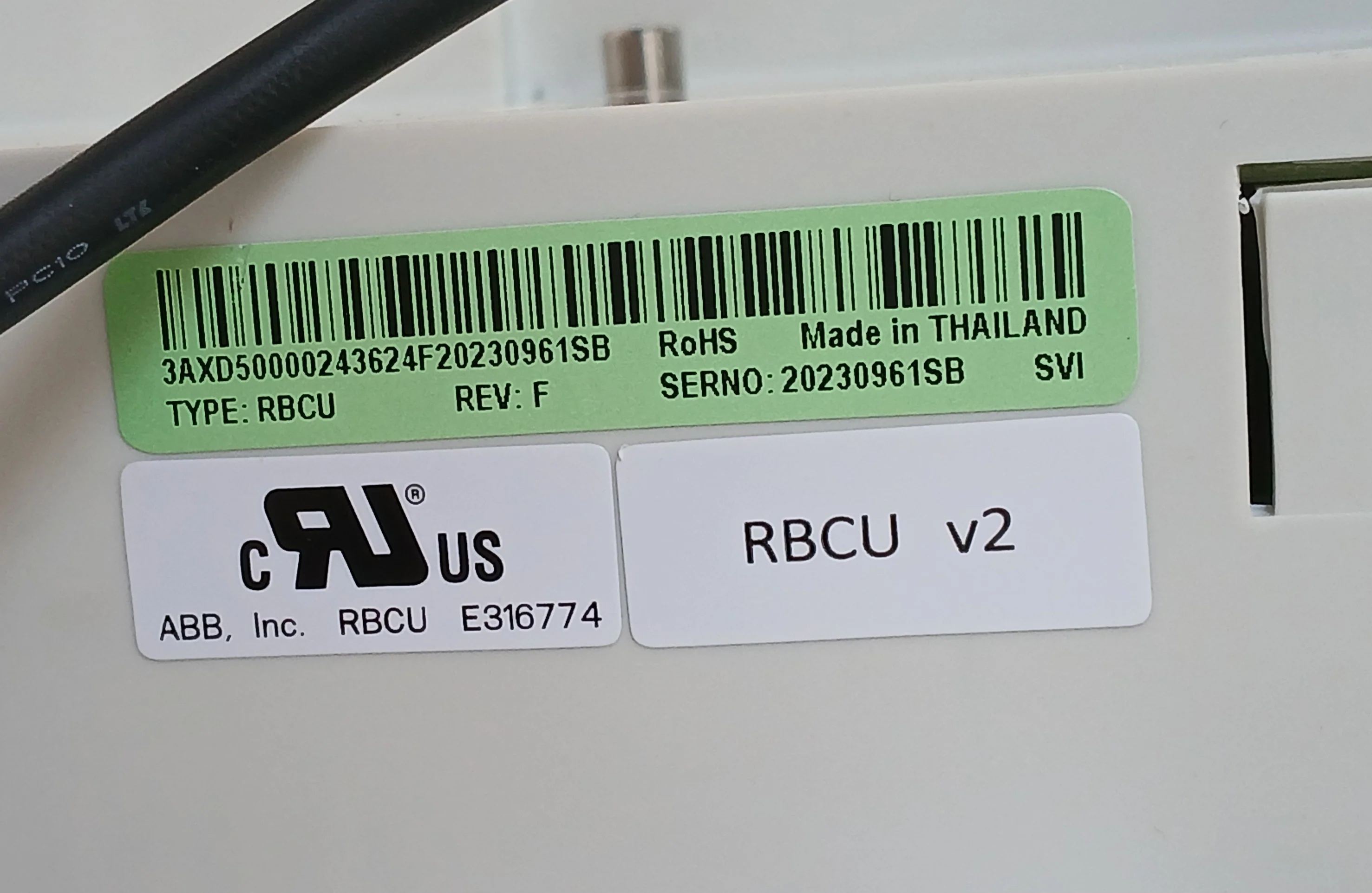

Type: Rbcu
Rev: F
3Axd50000243624F20230961Sb
E316774
Rbcu V2

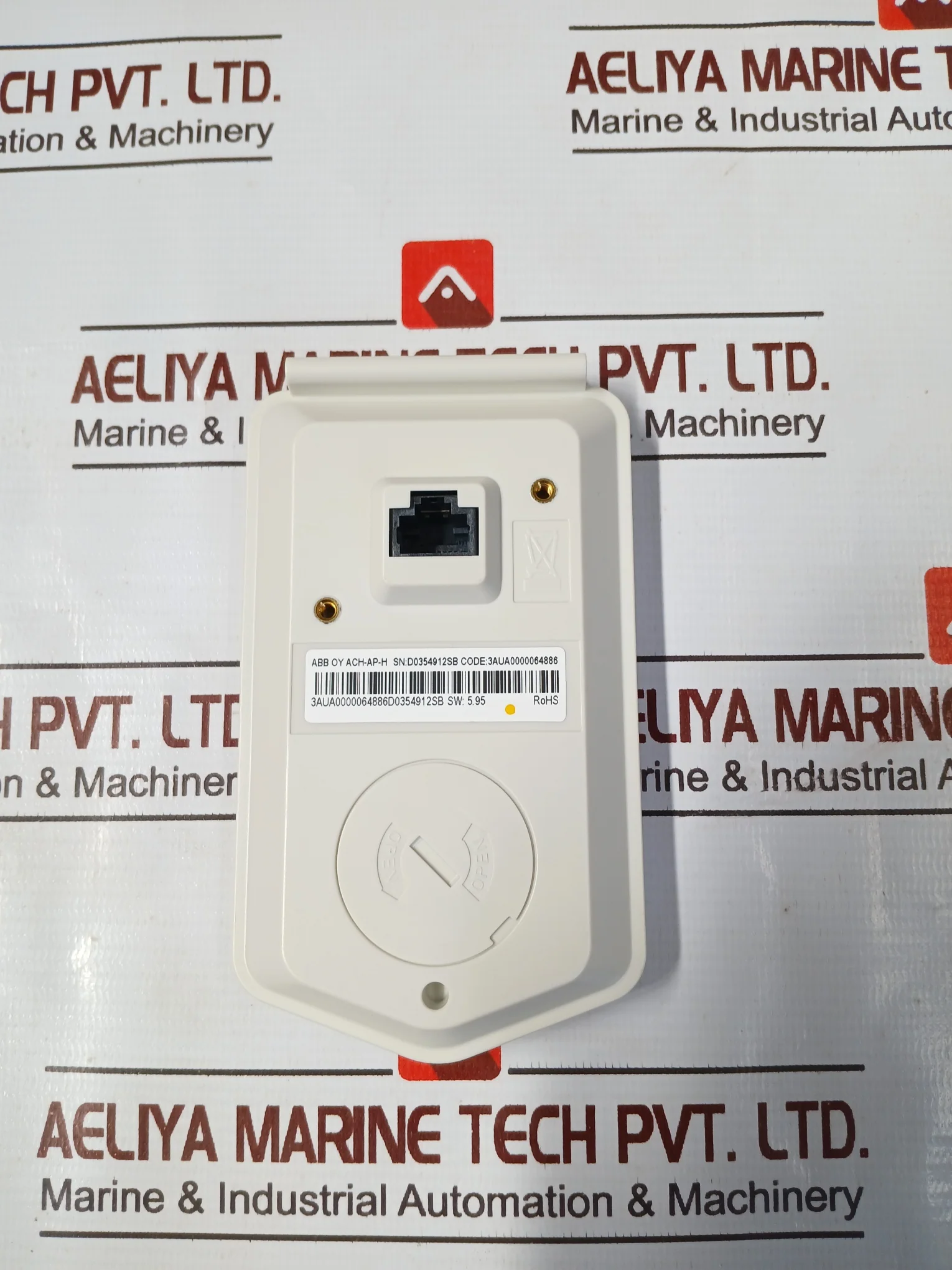

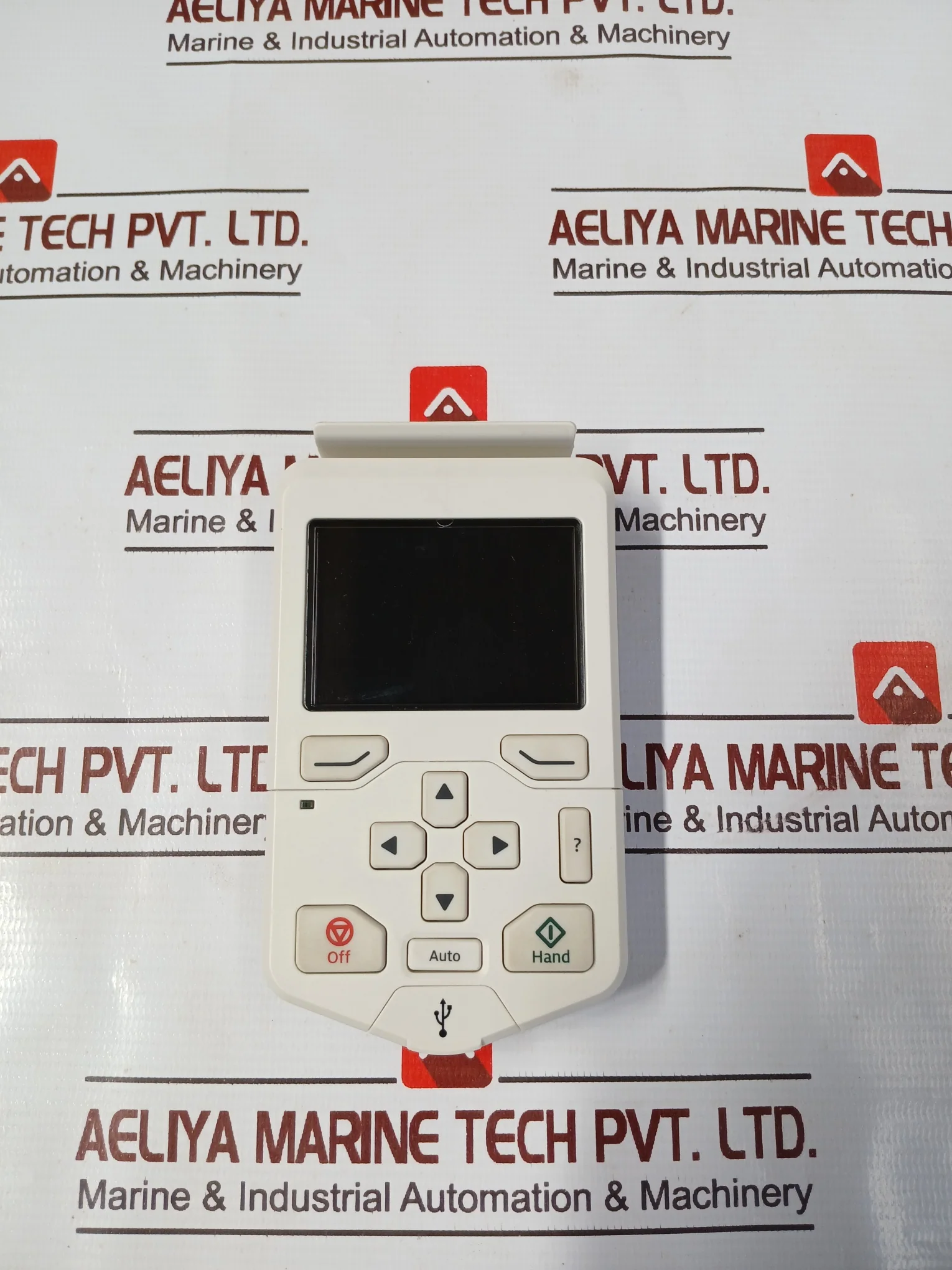

Ach-ap-h
Code: 3Aua0000064886
Sw: 5.95
3Aua0000064886D0354912Sb

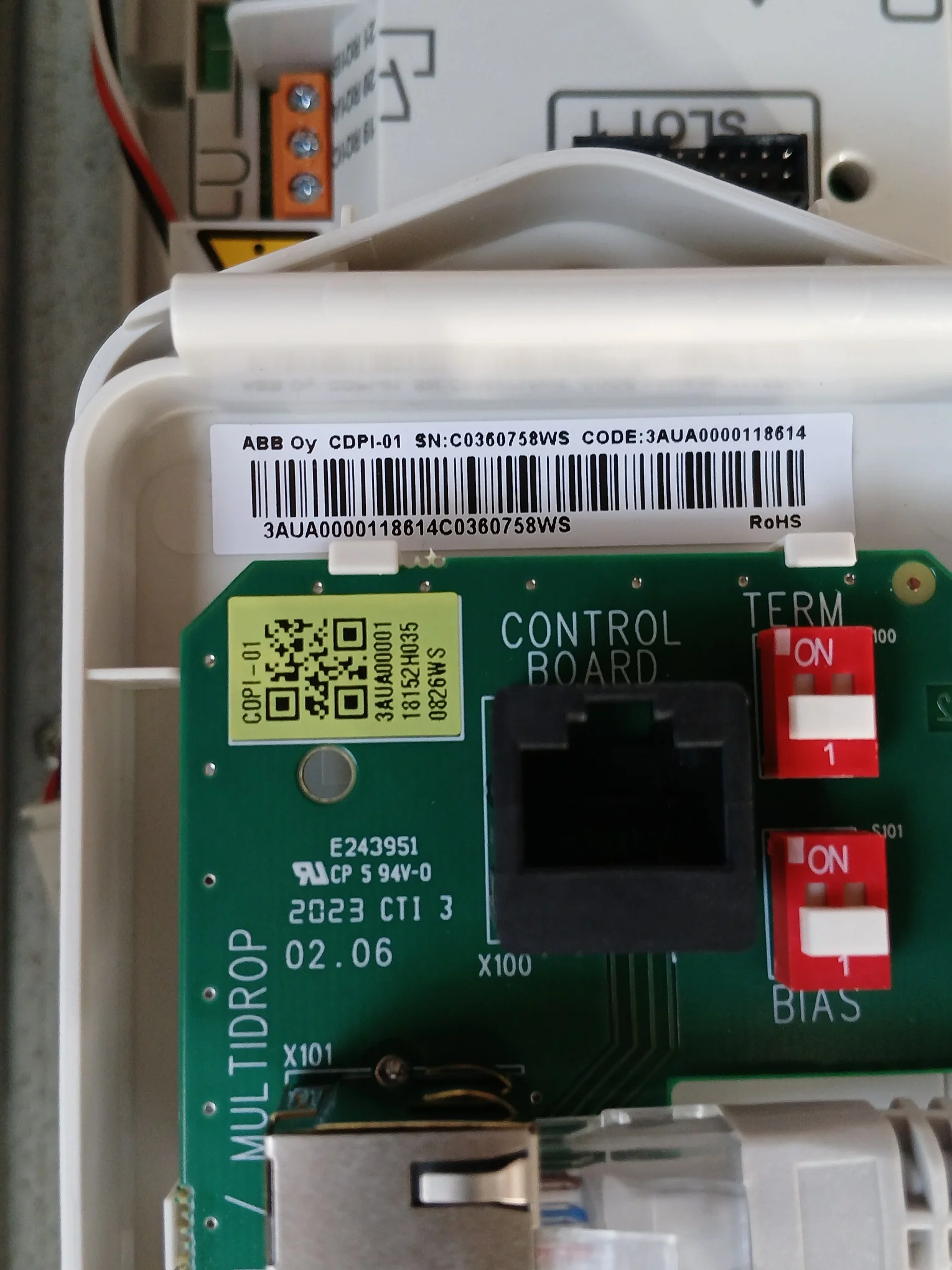

Cdpi-01
Code: 3Aua0000118614
3Aua0000118614C0360758Ws

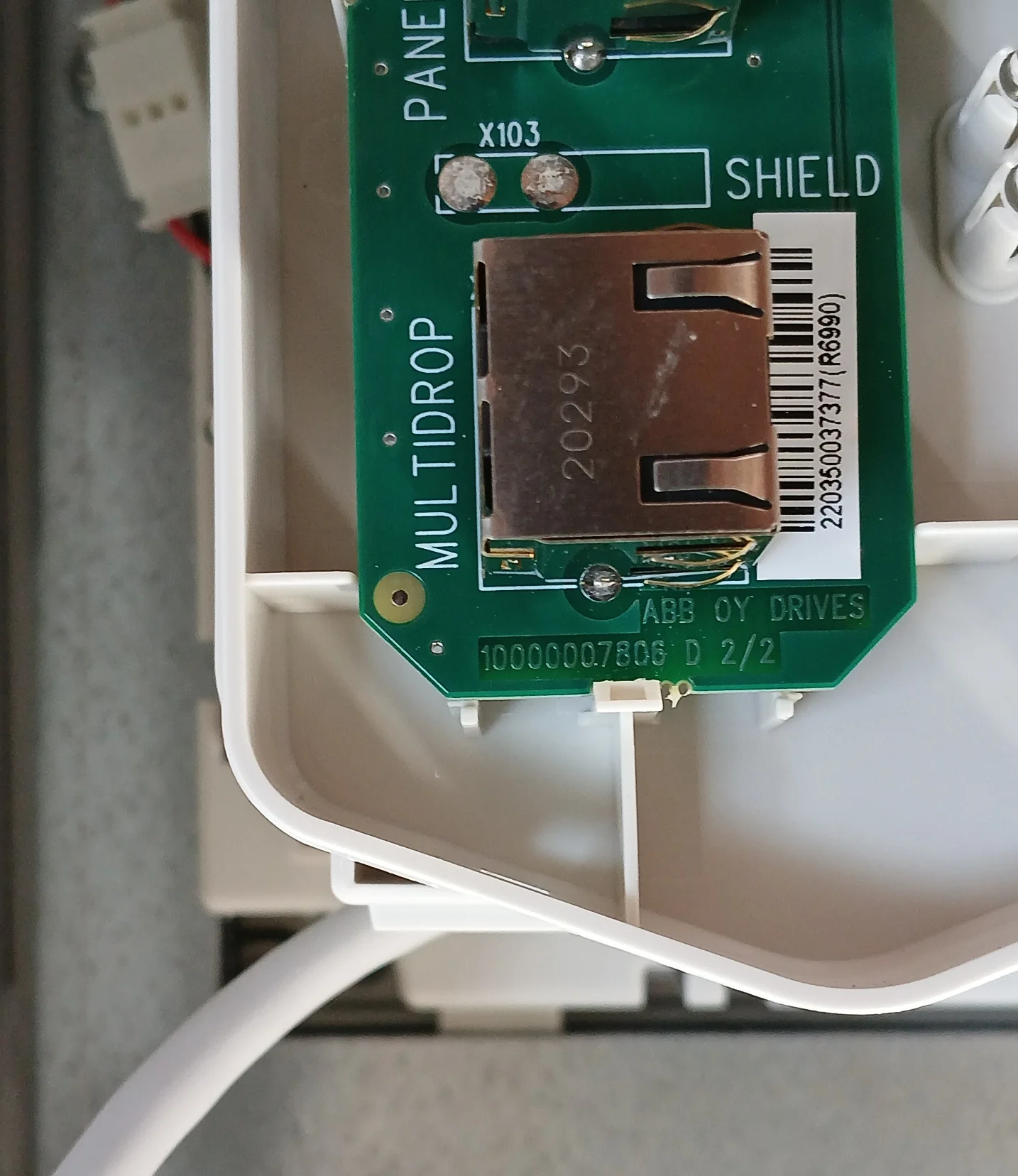

10000007806 D 2/2
Copi-01/C0Pi-01
3Aua0000118152H0350826Ws
E243951
Cp 5
94V-0
Cti 3
220350037377(R6990)

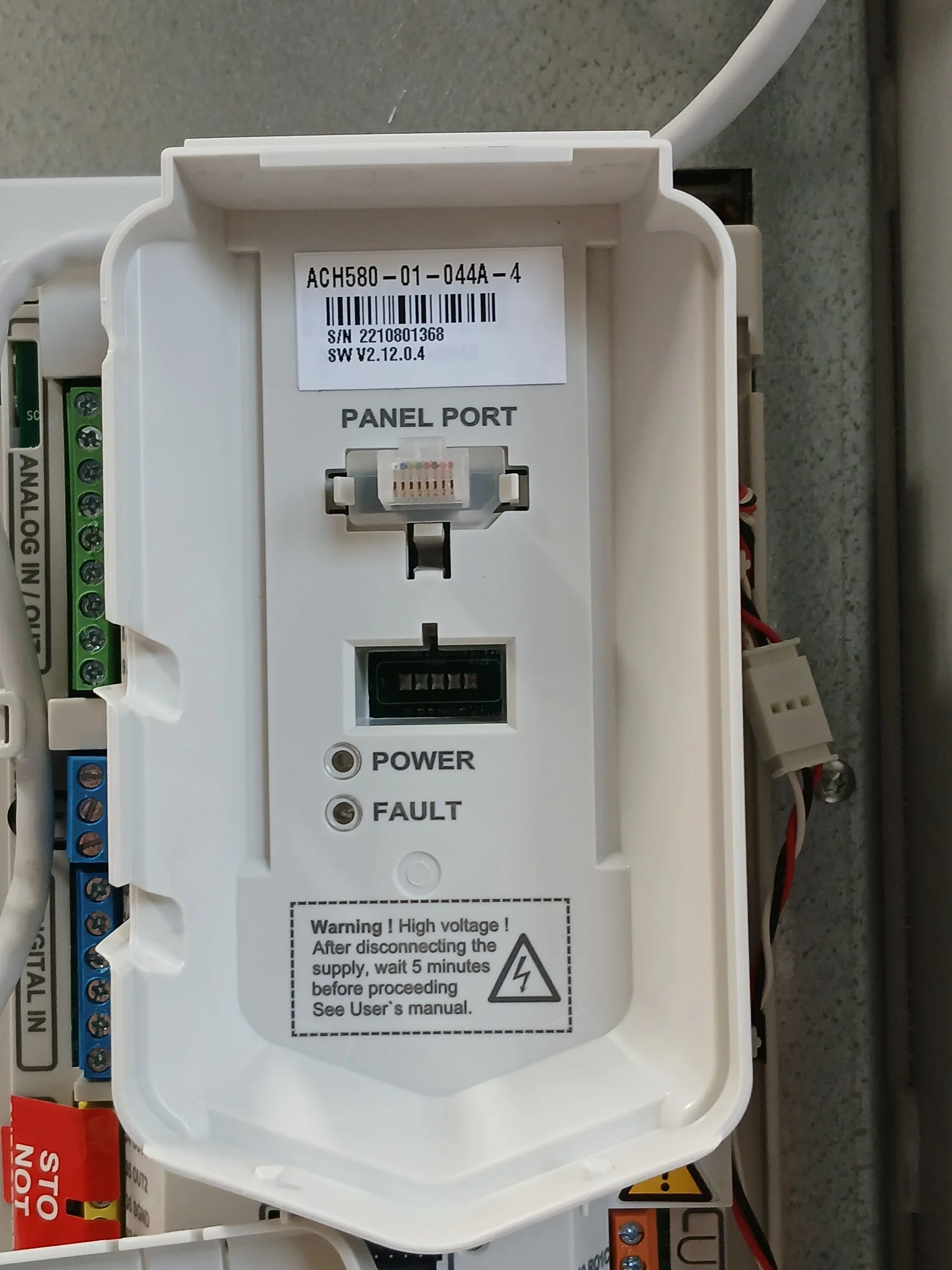

Ach580-01-044A-4
Sw: V2.12.0.4

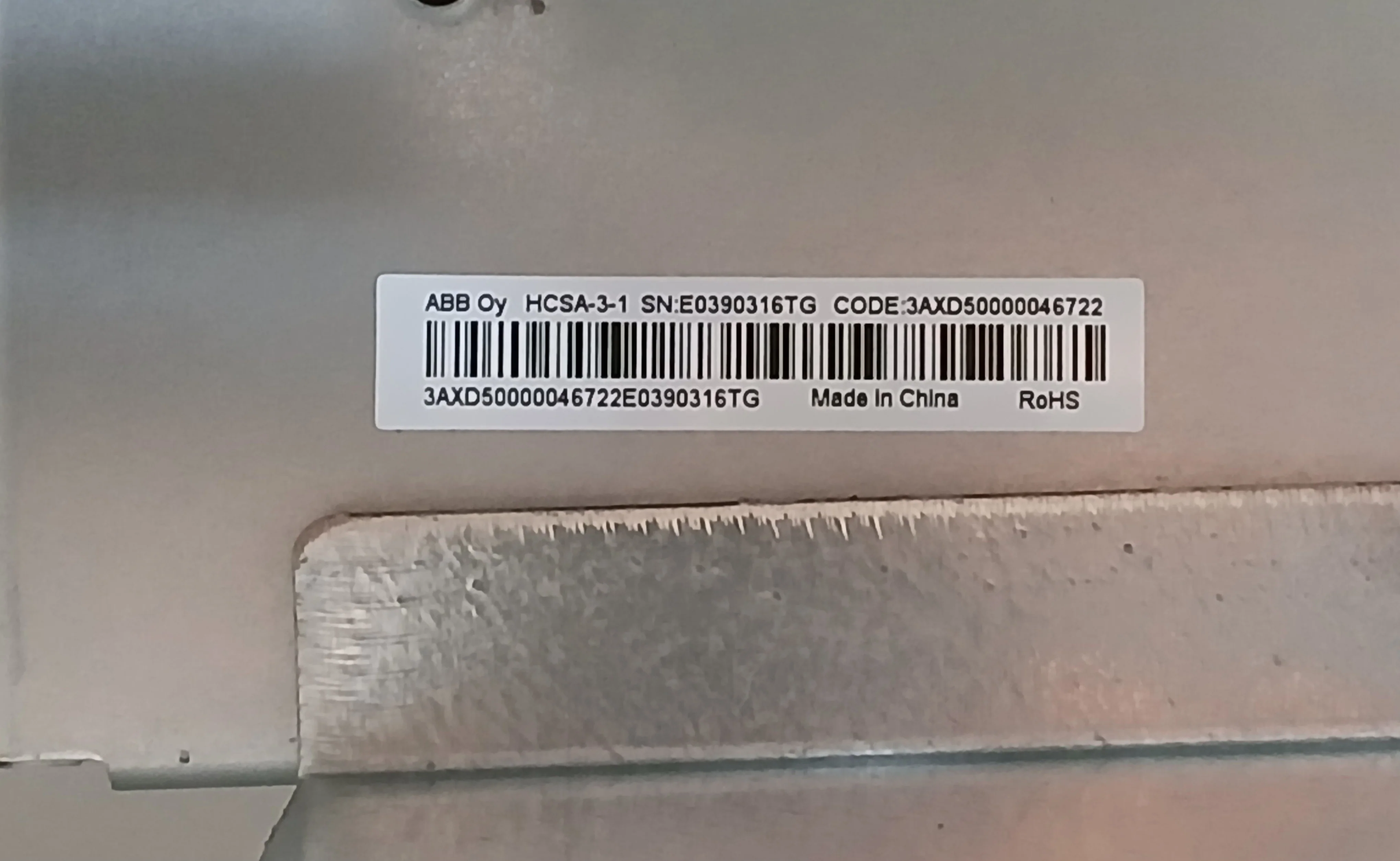

Hcsa-3-1
Code: 3Axd50000046722
3Axd50000046722E0390316Tg
3Axd50000146406
Rev. A

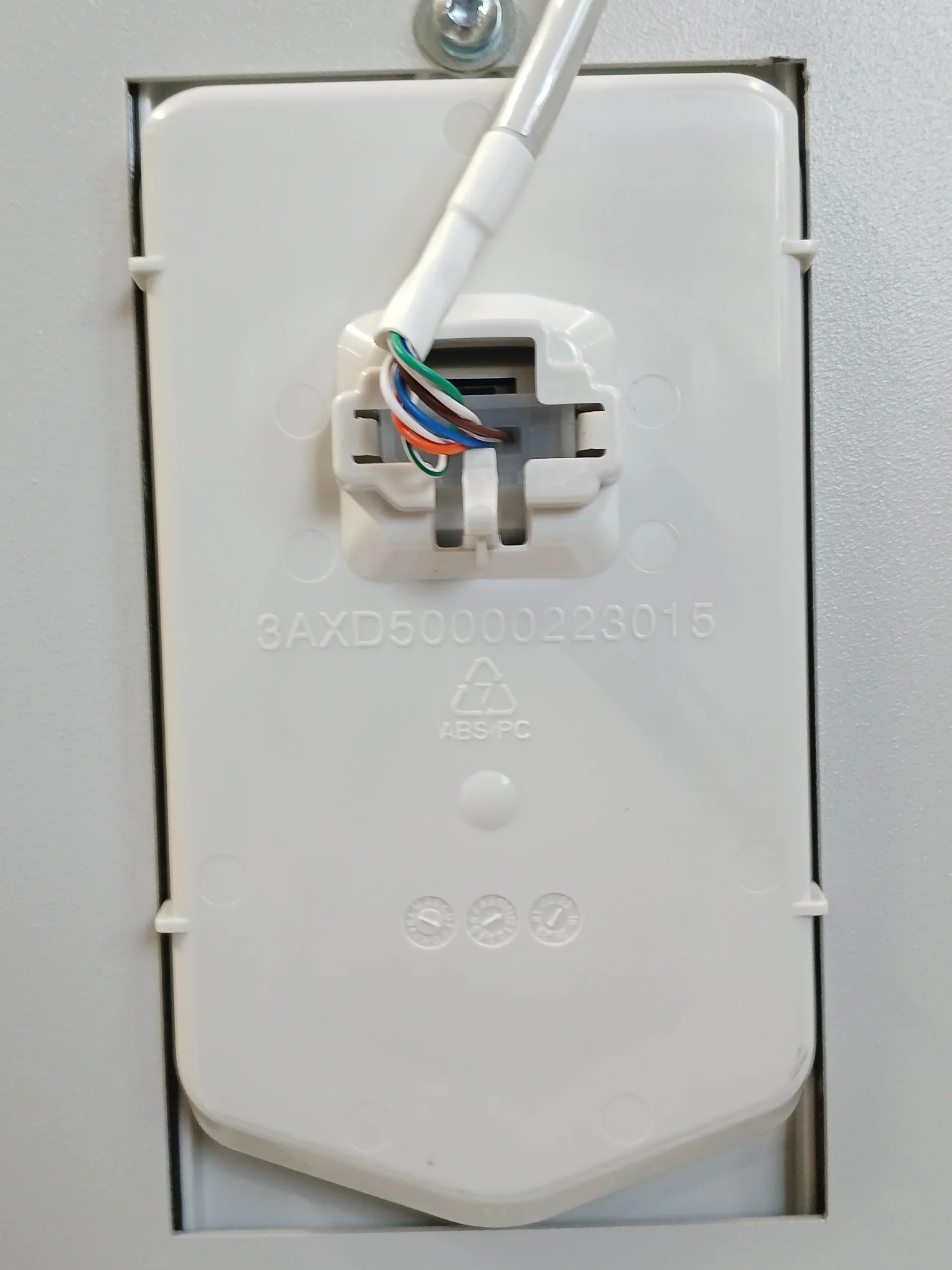

3Axd50000223015

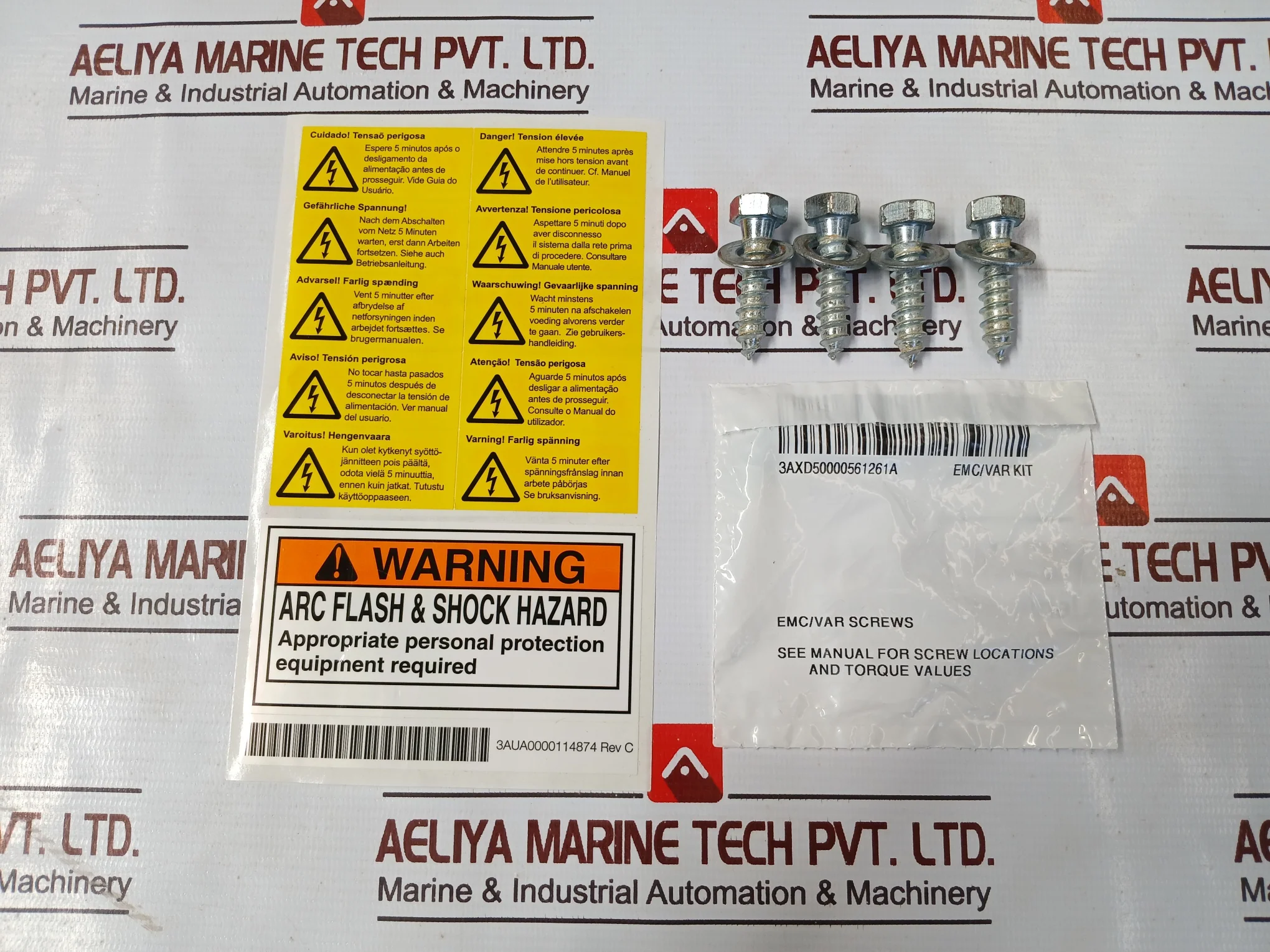

Emc/Var Kit
Emc/Var Screws
3Axd50000561261A
3Aua0000114874
Rev: C
Made In Thailand
Made In China
Made In Usa
Weight: 77 Kg
