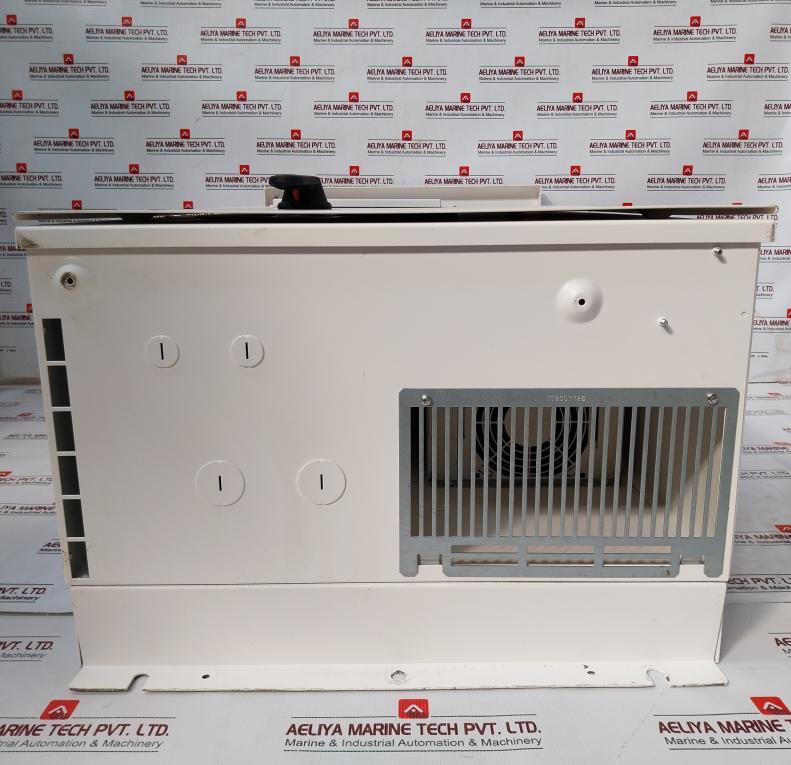

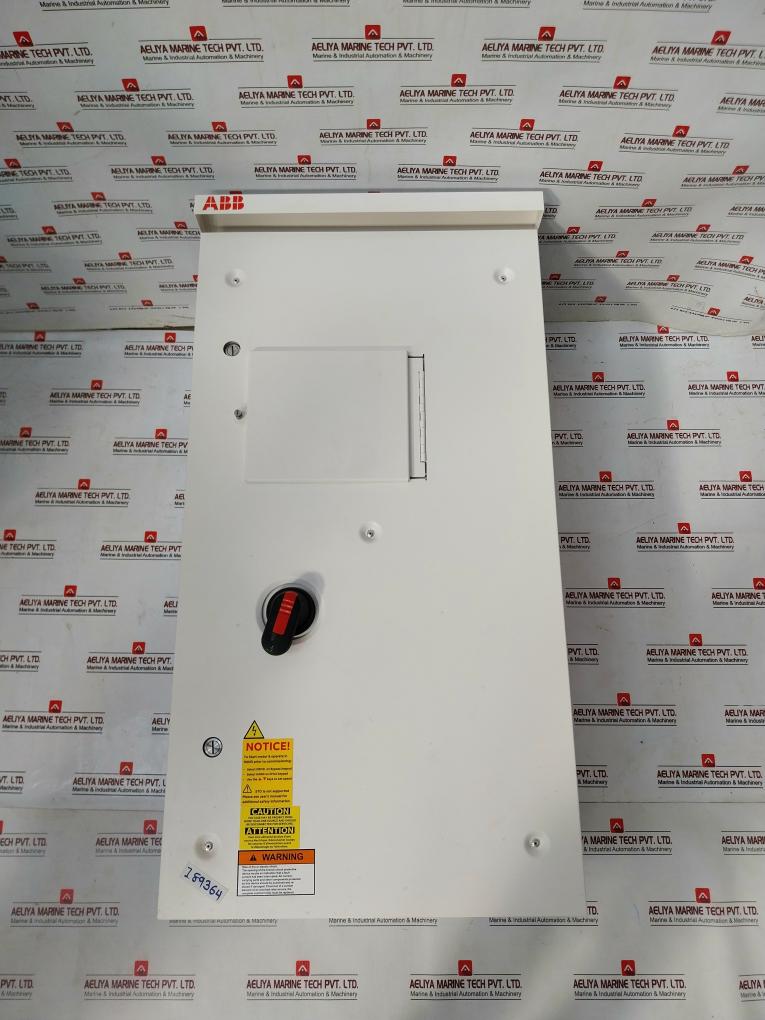

Abb Ach580-bcr-077A-4+B058+F267 3-ph Hvac Variable Frequency Drive 440–480 Vac
Abb Inc.
Abb Oy Drives
Hvac
Buss-bussmann
Limitron
Nmb
Taiton Rhtr

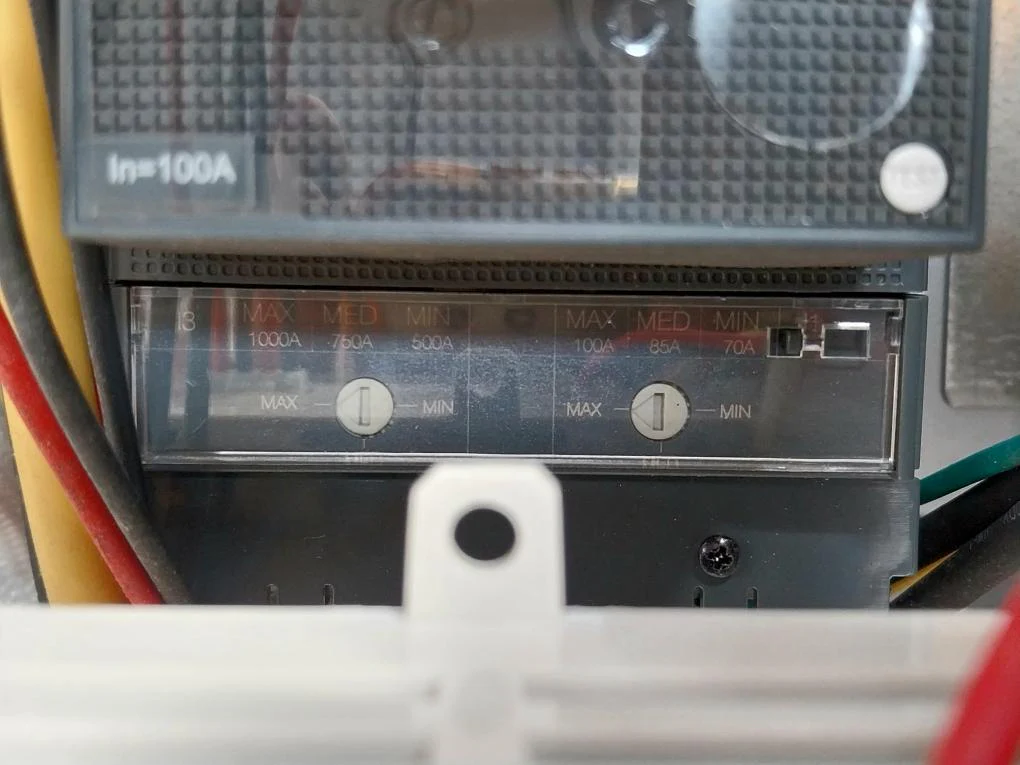

Sace Tmax

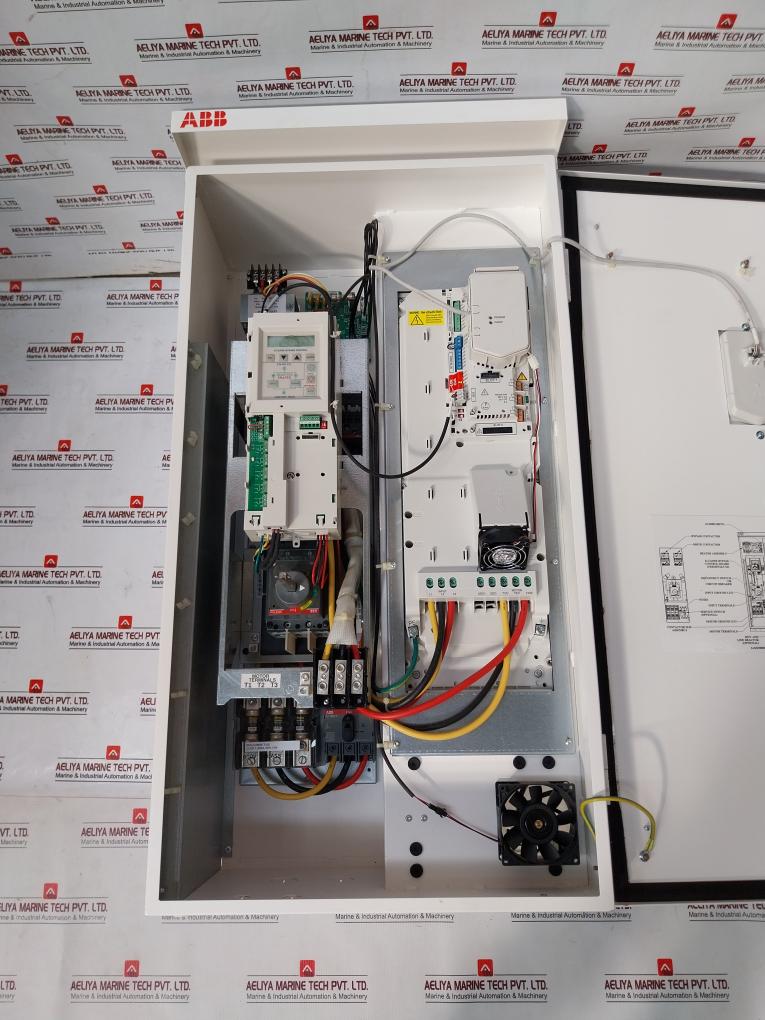

Enclosed Industrial Control Panel
Product Name/Model Number: Ach580
Product Type: Vfd
Ach580-bcr-077A-4+B058+F267
Vfd Rating:
Input: 3Ph 50…60 Hz
Output: 3Ph 0…500 Hz
Voltage (U1): 440…480 Vac
Voltage (U2): 0…U1 Vac
Current (I1N)/(I2N): 77 A
E-clipse Package Rating
Short Circuit: 100Ka
Power (Pn): 60 Hp
Enclosure Ul Type 3R
Schematic
3Axd50000332175, 3Axd50000312160
No.: D-78548774
E101649
Tt2007726
Jjs-100 Amp
Ot100F3
1S200B12028200981

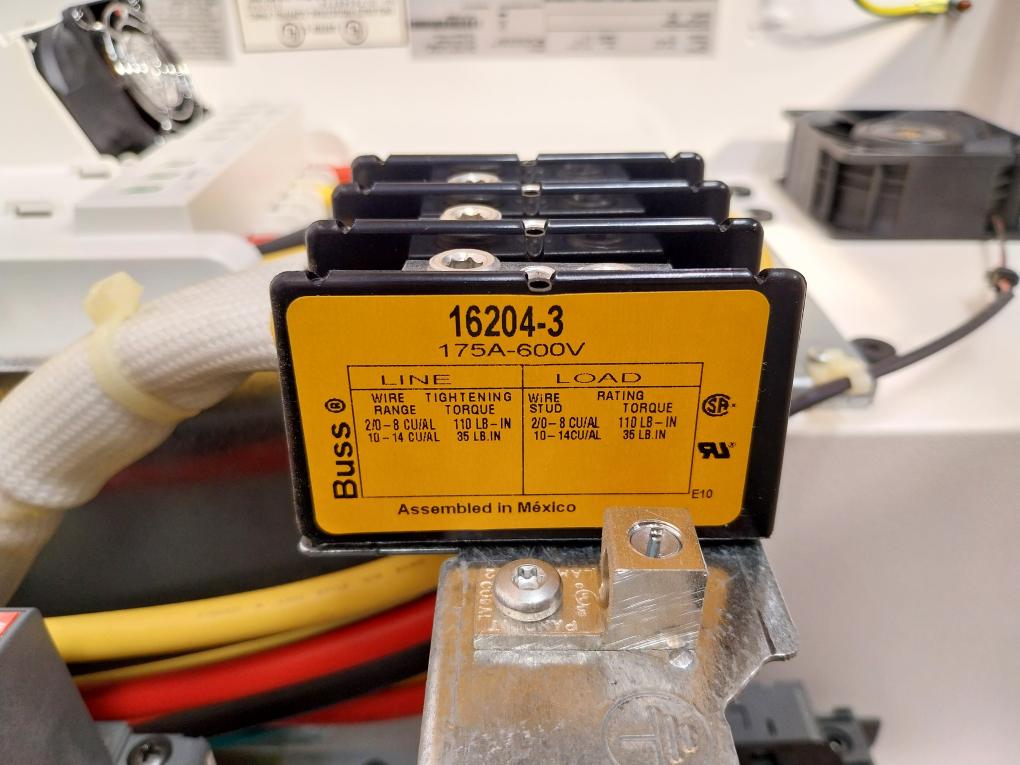

16204-3
175A-600V
Hcsa-4-1
Code: 3Axd50000218653
3Axd50000218653B0390223Tg
Input Voltage: 440-480 Vac
0Xp 10X225

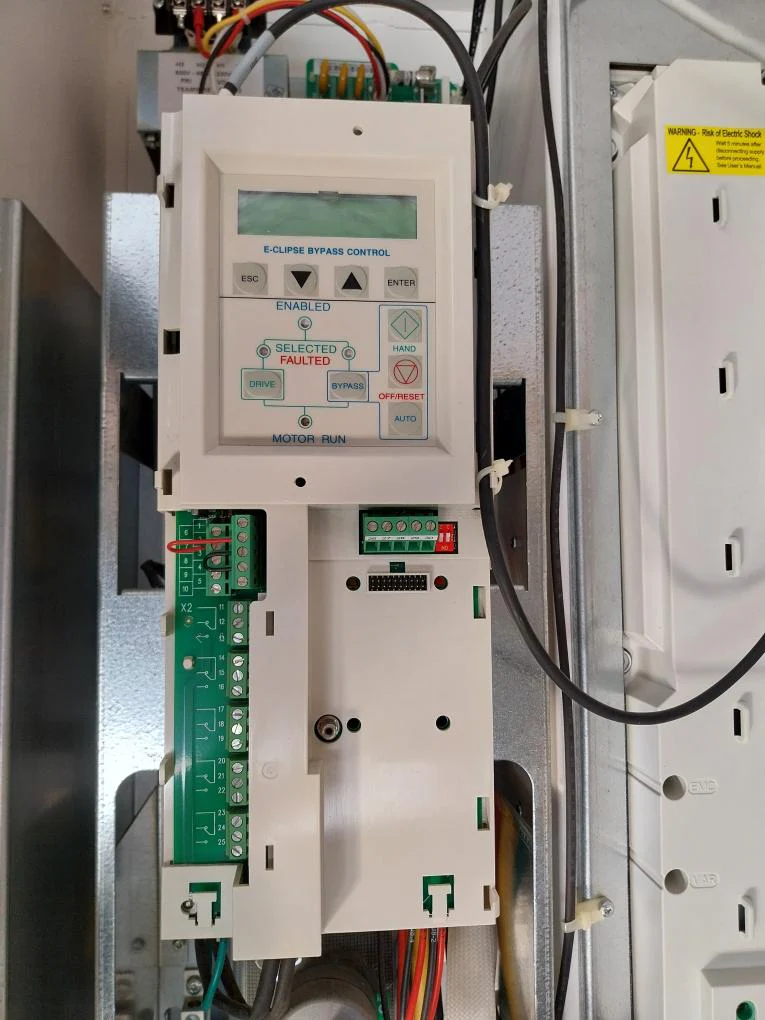

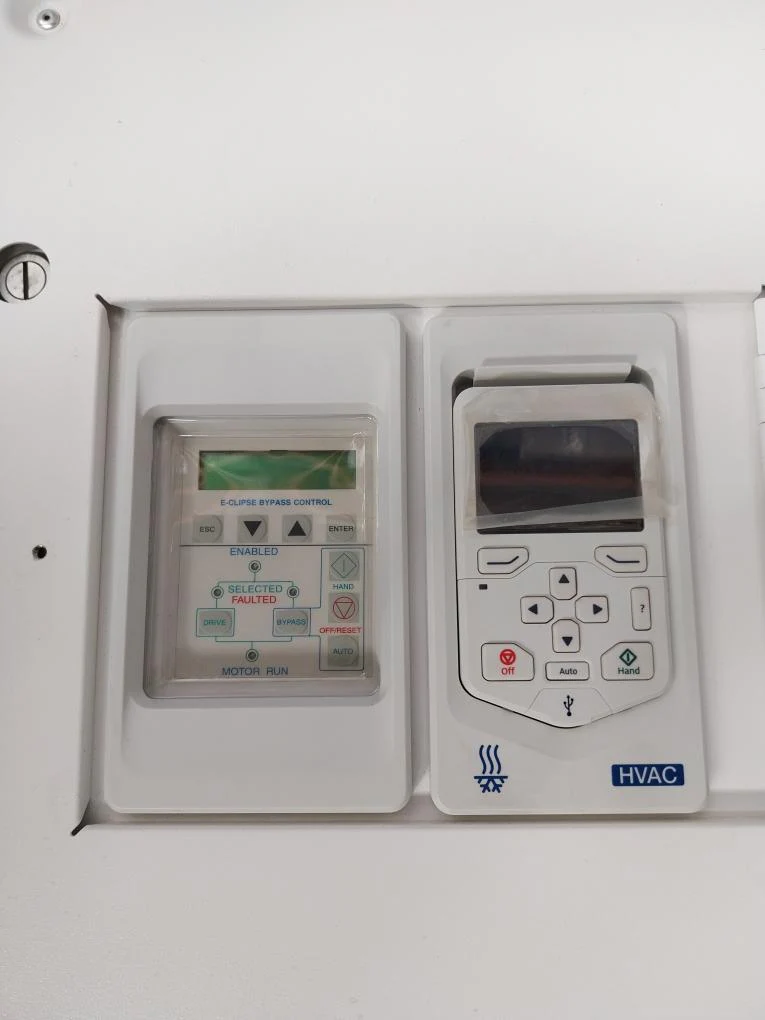

E-clipse Bypass Control
Code: 3Aua0000048833
3Aua0000048833D0370461Tg
Wl203
94V-0
E301369
Ach580-01-077A-4
Sw V2.12.0.4
Cdpi-01
Code: 3Aua0000118614
3Aua0000118614C0400824Ws

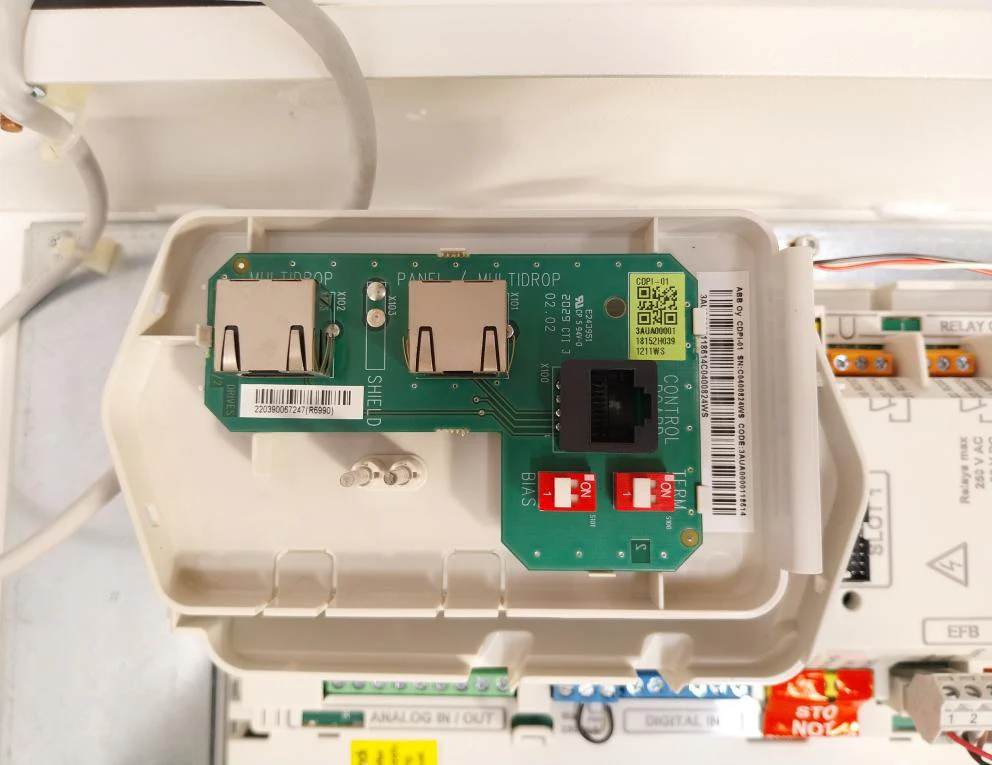

C0Pi-01/Copi-01
3Aua0000118152H0391211Ws
E243951
Cp 5
Cti 3
220390067247 (R6990)
10000007806 D 2/2
Model: 2410Ml-05W-b79
3Axd50000146246
Rev.: A
3Axd50000223015
Ccu-23-h
Code: 3Axd50000018707
3Axd50000018707A0352460Sb
Type: Rbcu
Rev: F
3Axd50000243624F20210963Sb
E316774
V2

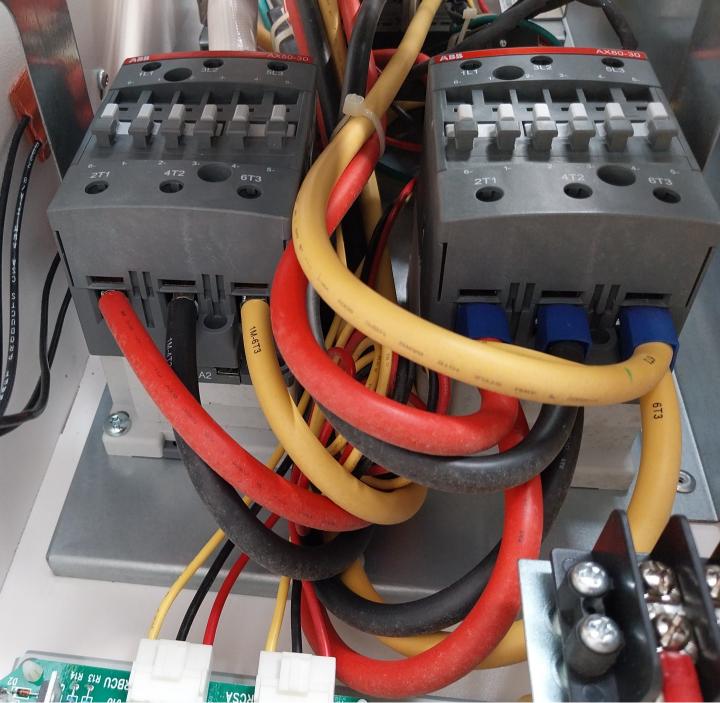

Ax80-30
Ach-ap-h
Code: 3Aua0000064886
3Aua0000064886D0463865Sb
Sw: 5.95
Ach580-bcr-077A-4+B058+F267
Made In Thailand
Made In China
Weight: 76 Kg
