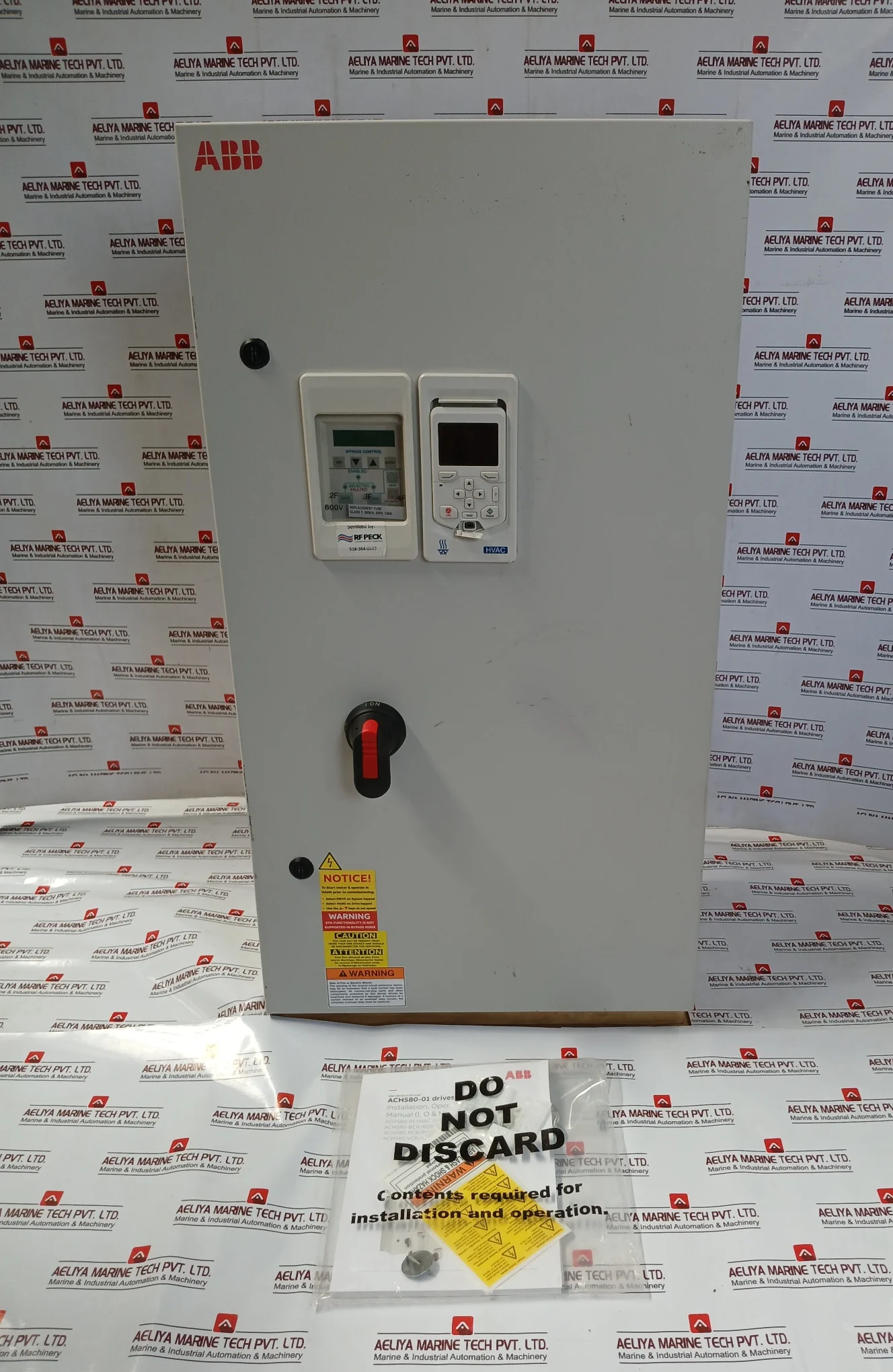

Abb Ach580-bcr-077A-4+E213+F267 Hvac Enclosed Industrial Control Panel Rev A
Abb Inc.
Abb Oy Drives
Hvac
Enclosed Industrial Control Panel
Product Type: Vfd
Model Number/Product Name: Ach580
Ach580-bcr (1…350 Hp, 0.75…250 Kw)

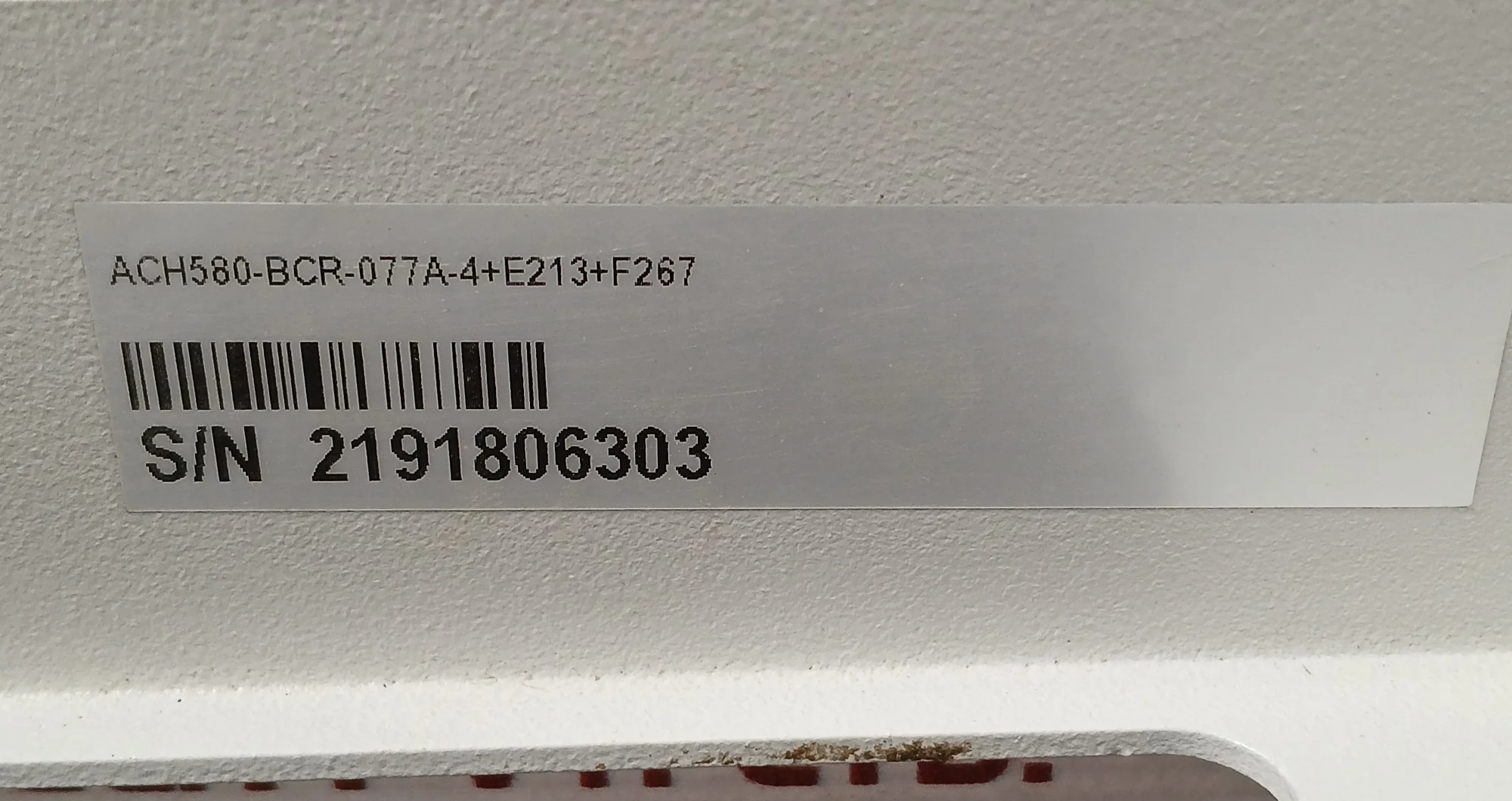

Ach580-bcr-077A-4+E213+F267

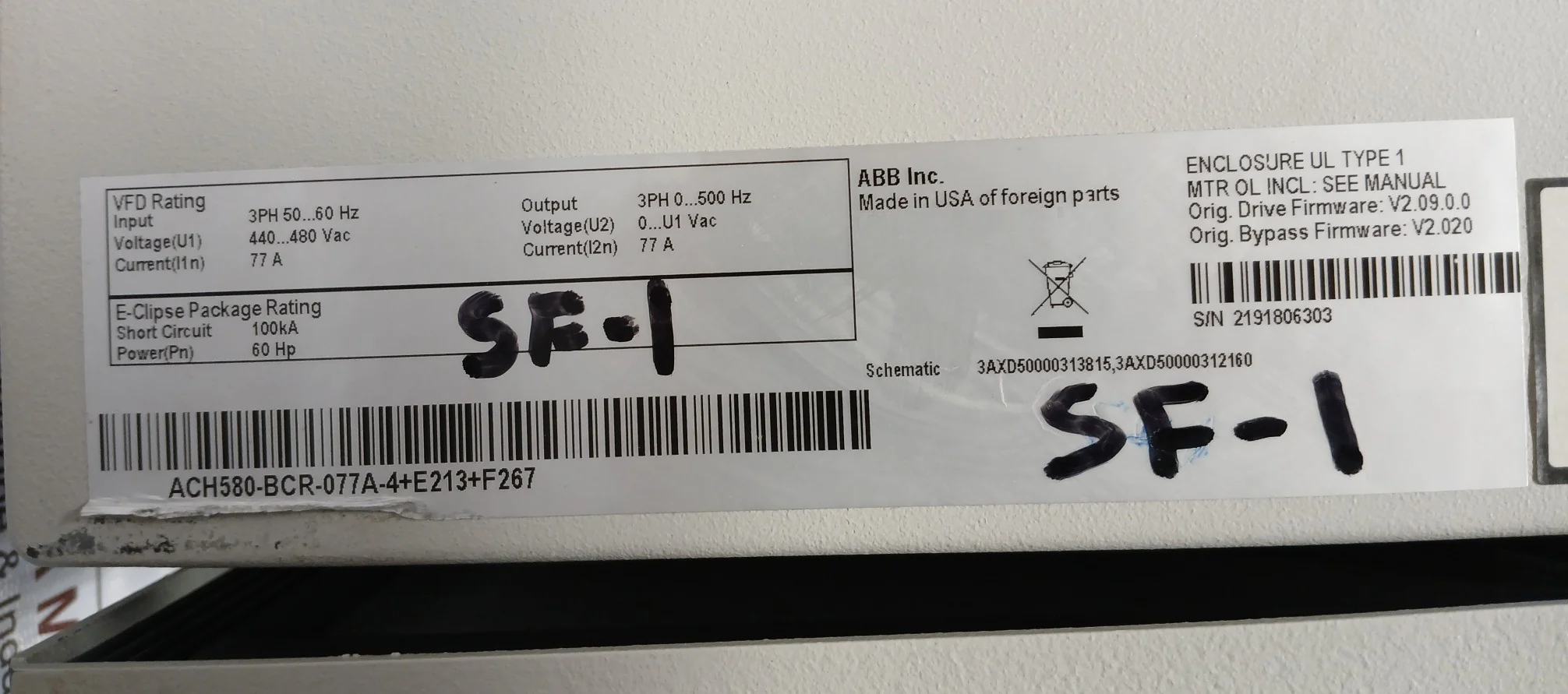

Vfd Rating:
Input: 3Ph 50…60Hz
Output: 3Ph 0…500 Hz
Voltage (U1): 440…480 Vac
Voltage (U2): 0…U1 Vac
Current (I1N)/(I2N): 77A
E-clipse Package Rating:
Short Circuit: 100 Ka
Power (Pn): 60 Hp
Enclosure Ul Type 1
Orig. Drive Firmware: V2.09.0.0
Orig. Bypass Firmware: V2.020

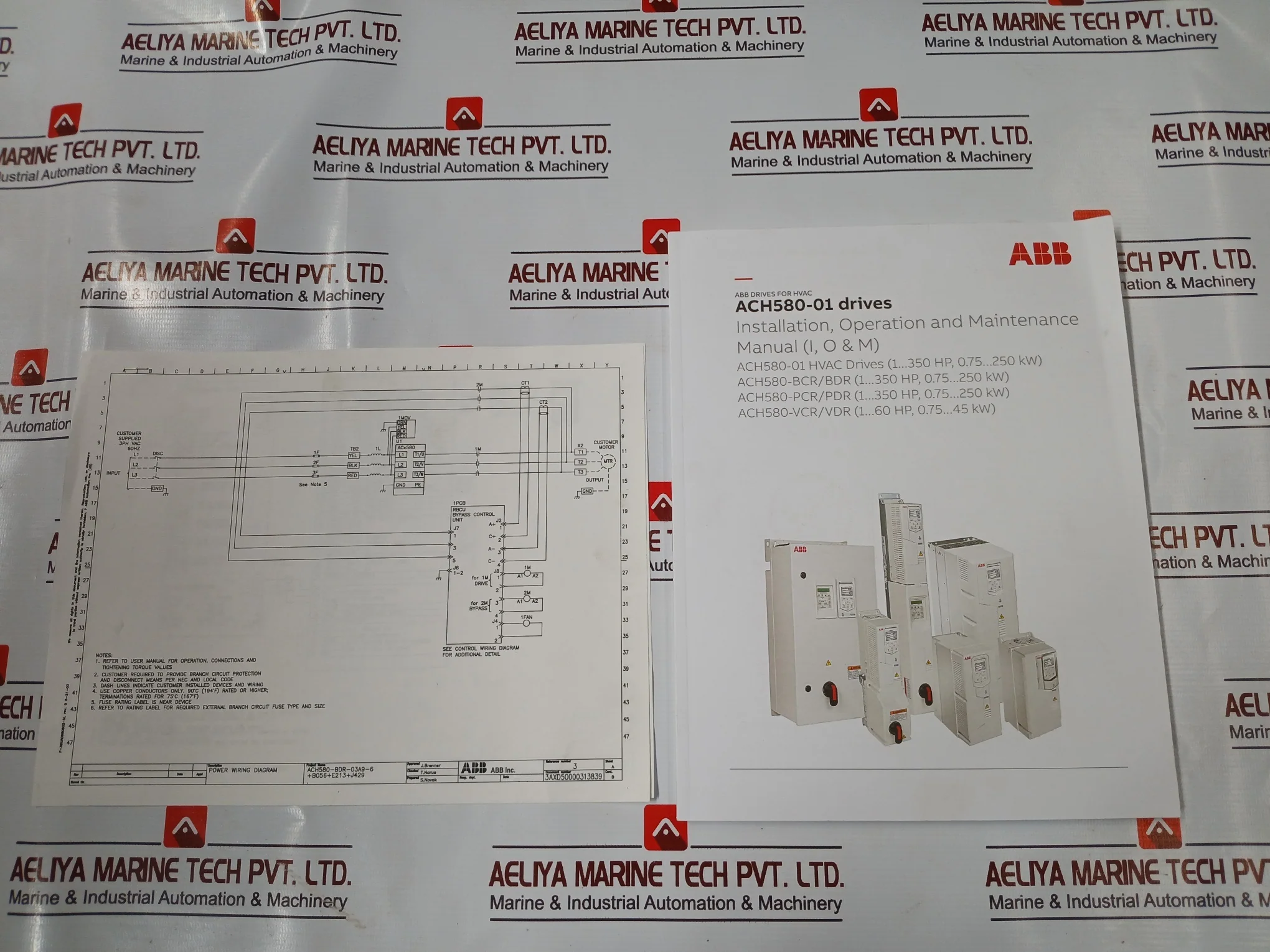

Schematic
3Axd50000313815, 3Axd50000312160

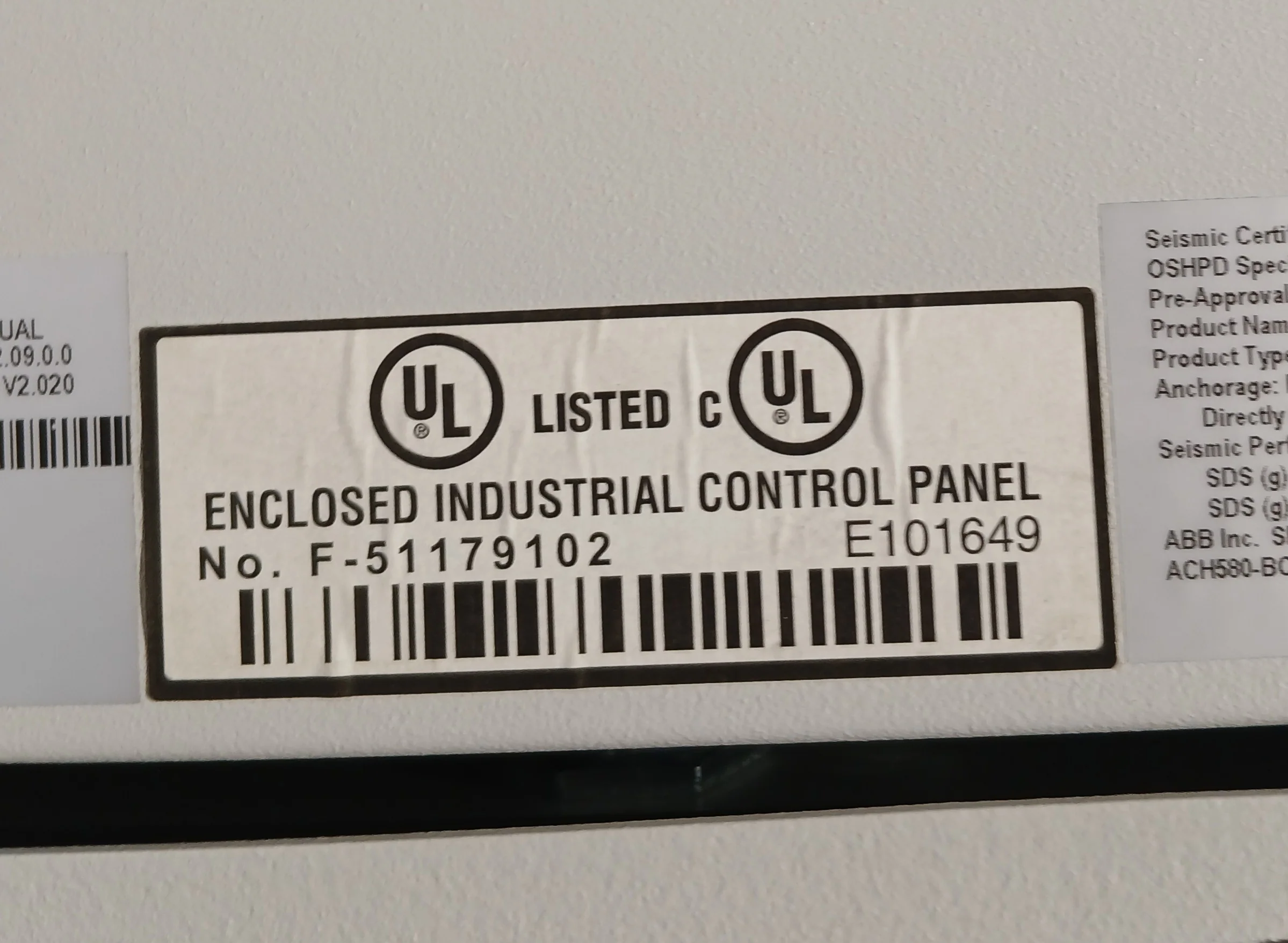

No.: F-51179102
E101649

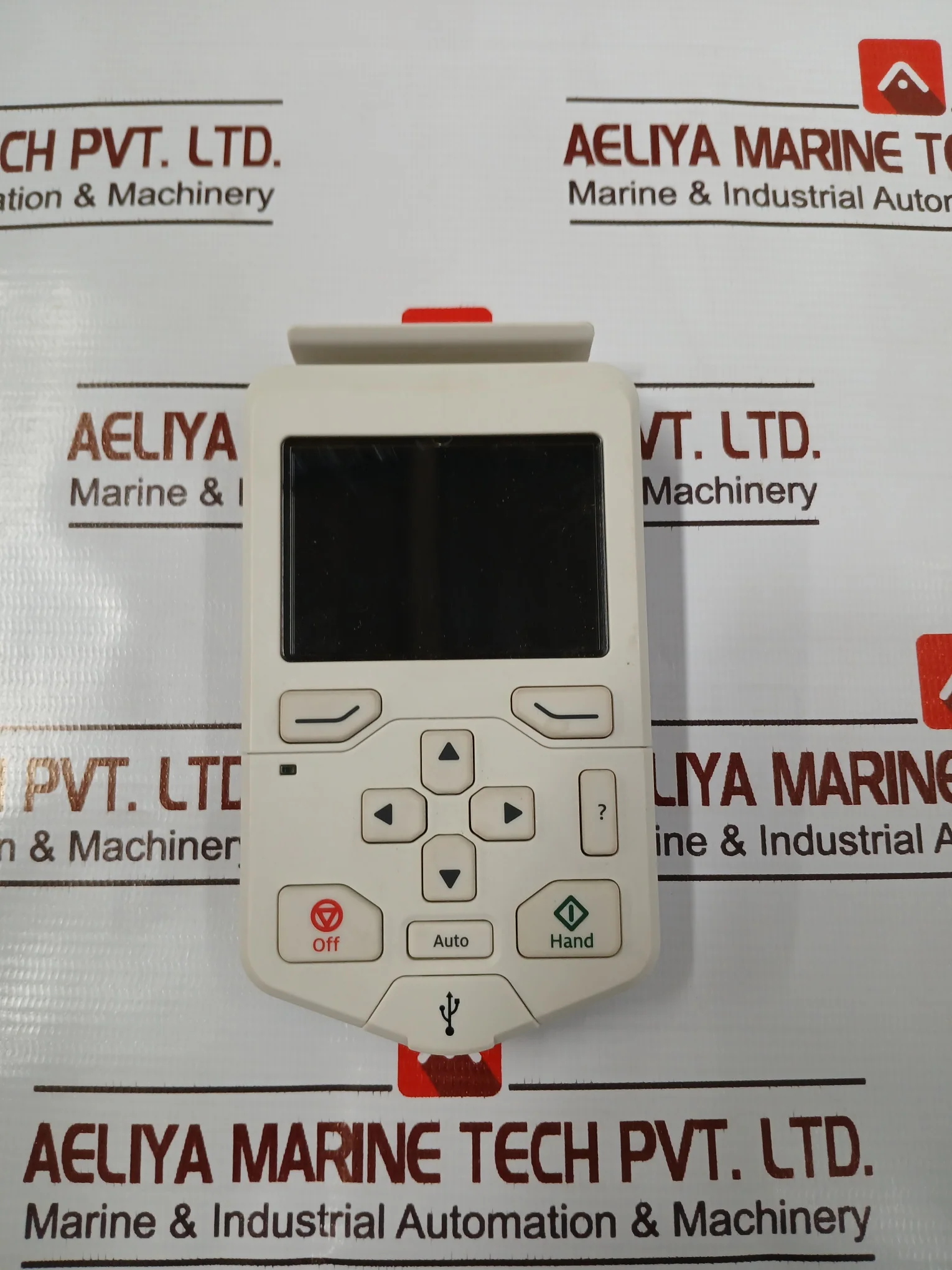

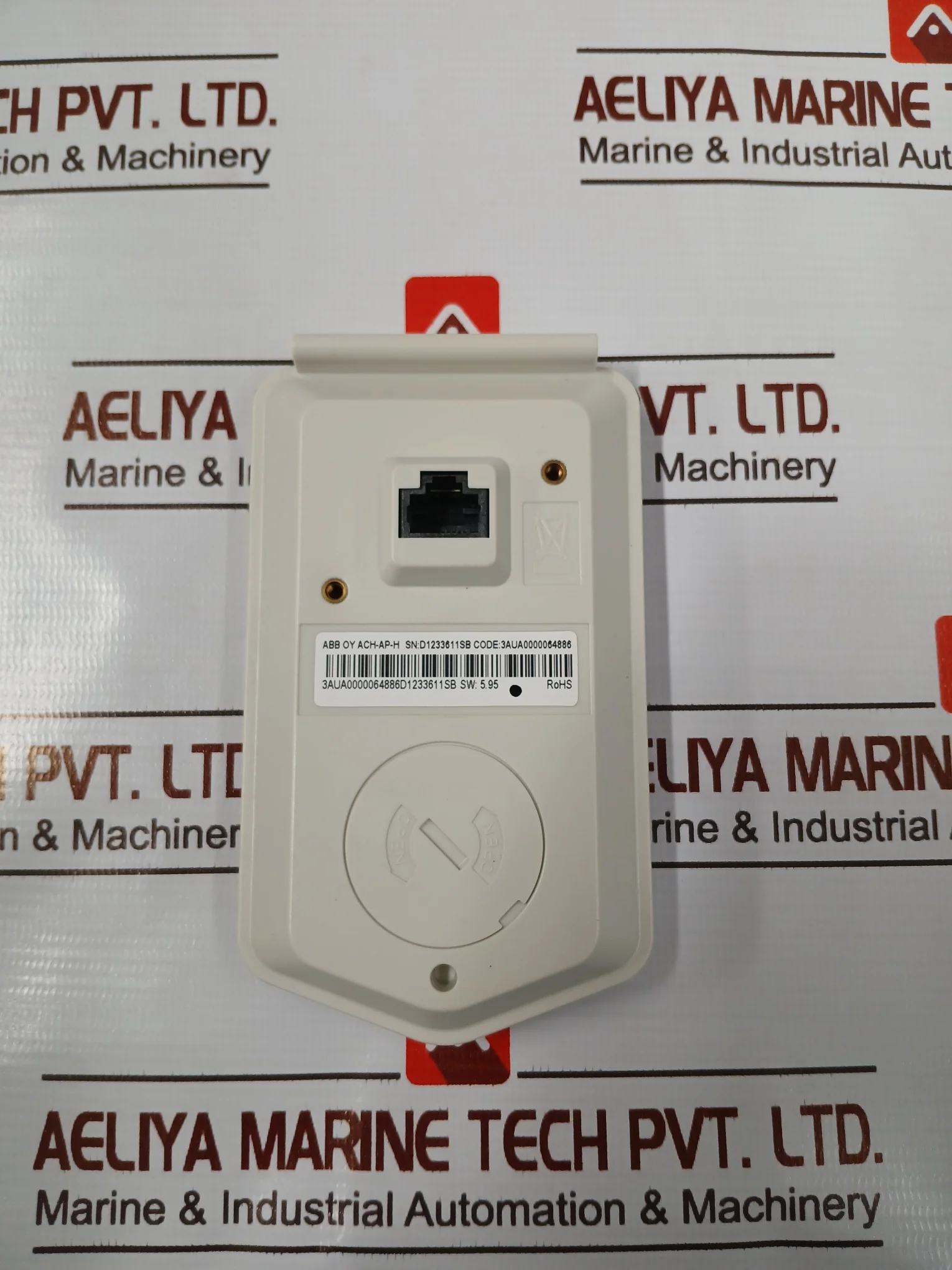

Ach-ap-h
Code: 3Aua0000064886
3Aua0000064886D1233611Sb
Sw: 5.95
3Axd50000223015

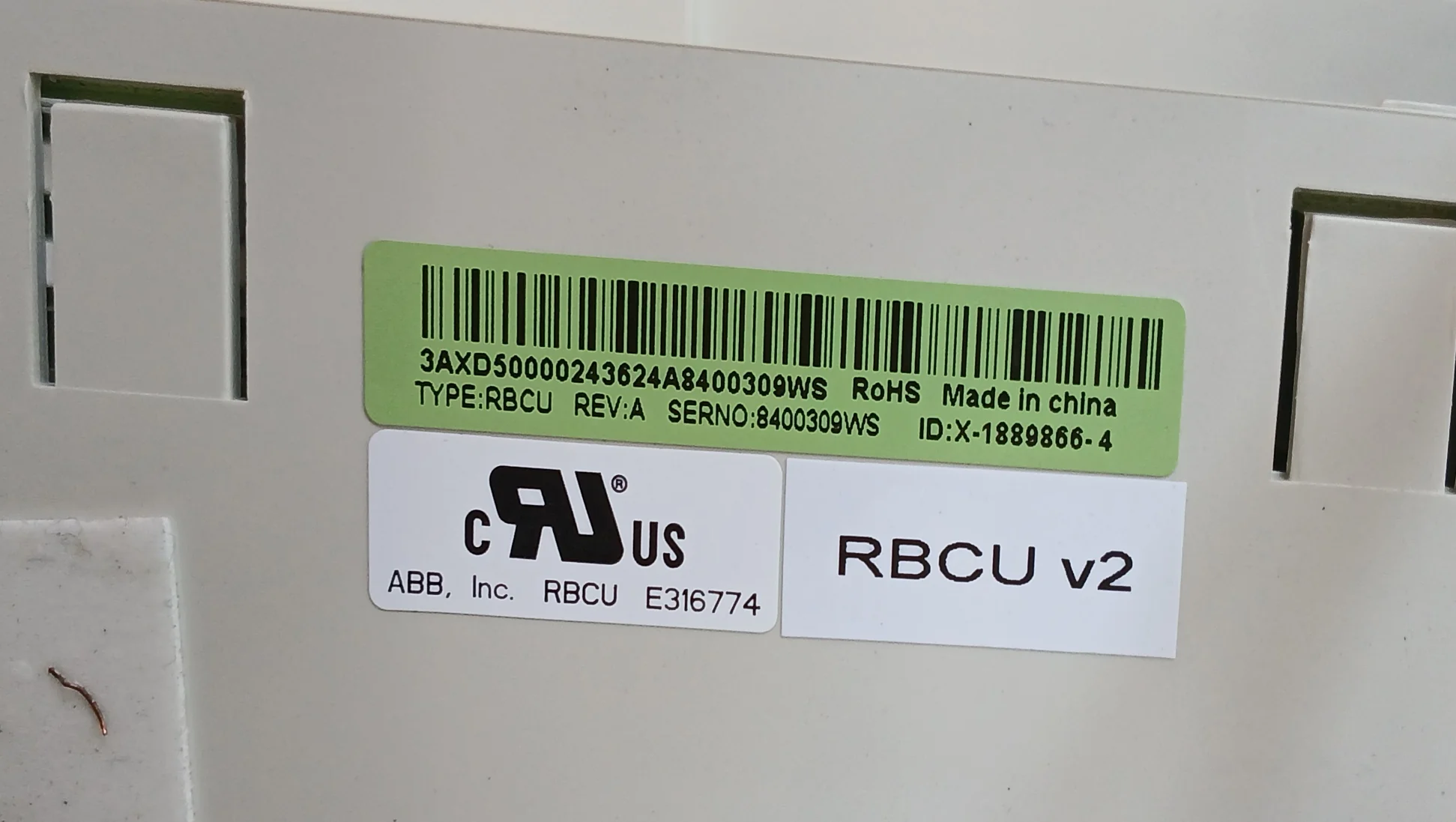

Type: Rbcu
3Axd50000243624A8400309Ws
Rev: A
Id: X-1889866-4
E316774
Rbcu V2

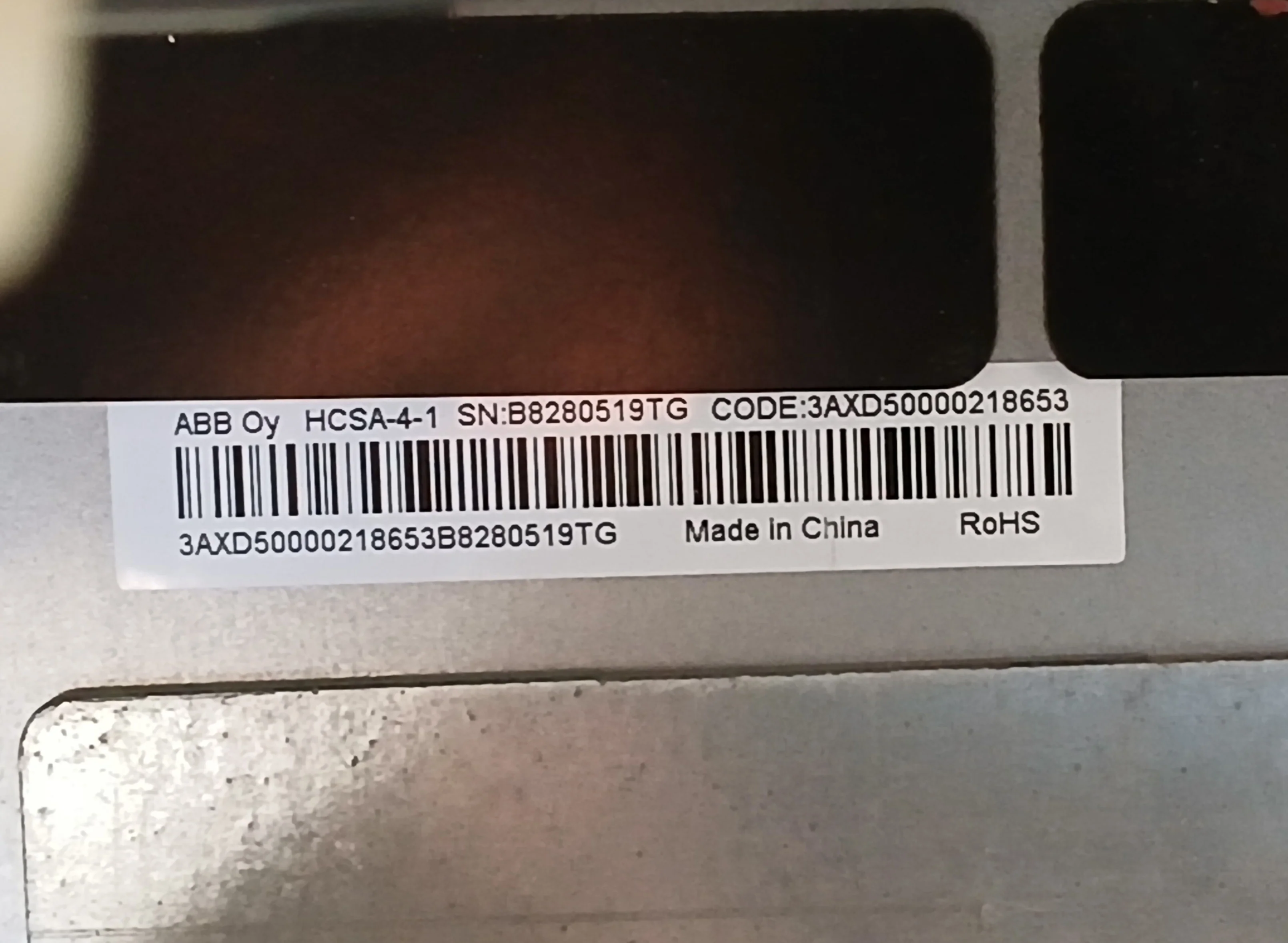

Hcsa-4-1
Code: 3Axd50000218653
3Axd50000218653B8280519Tg

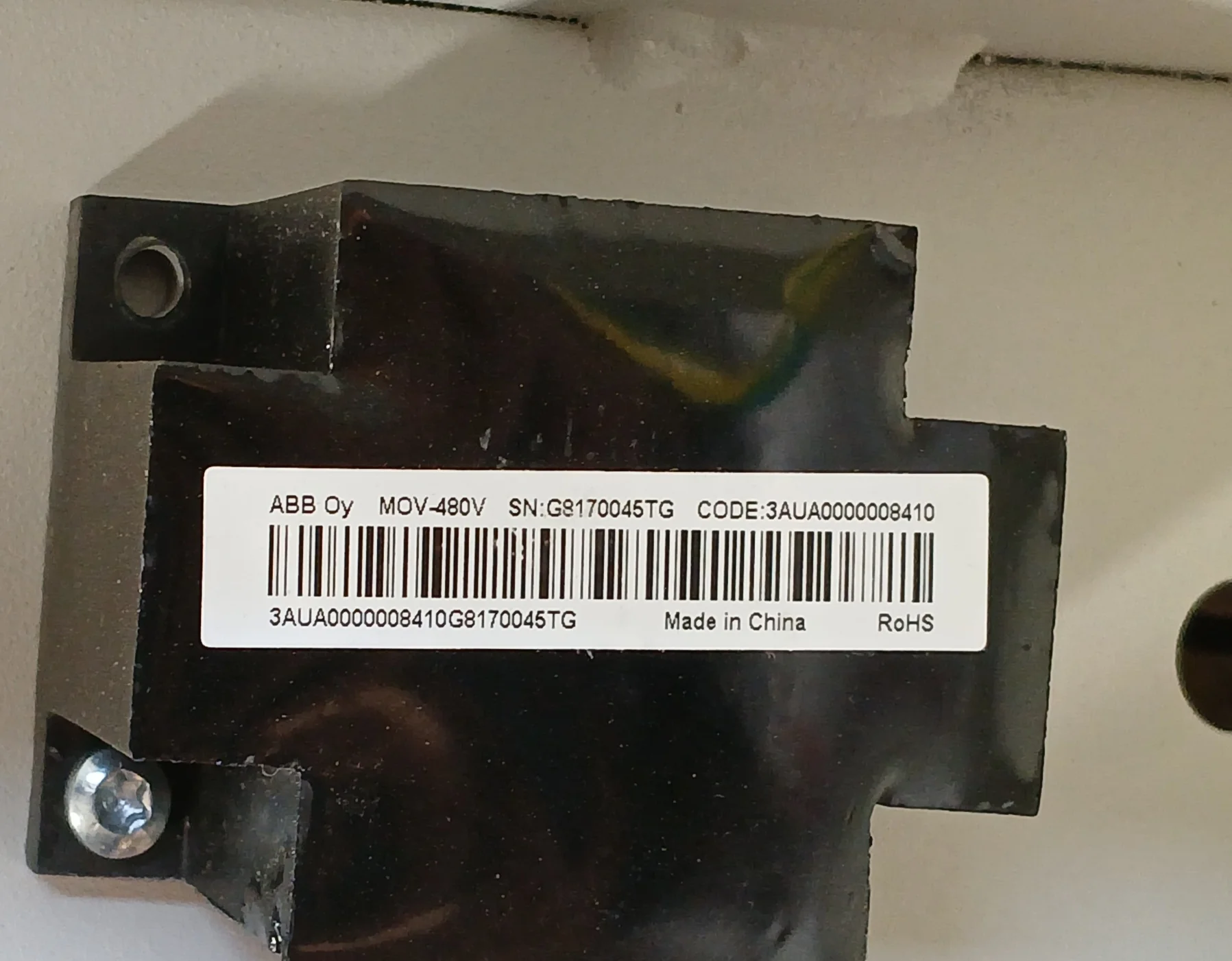

Mov-480V / M0V-480V
Code: 3Aua0000008410
3Aua0000008410G8170045Tg
Base Unit
Cbu-c1-4

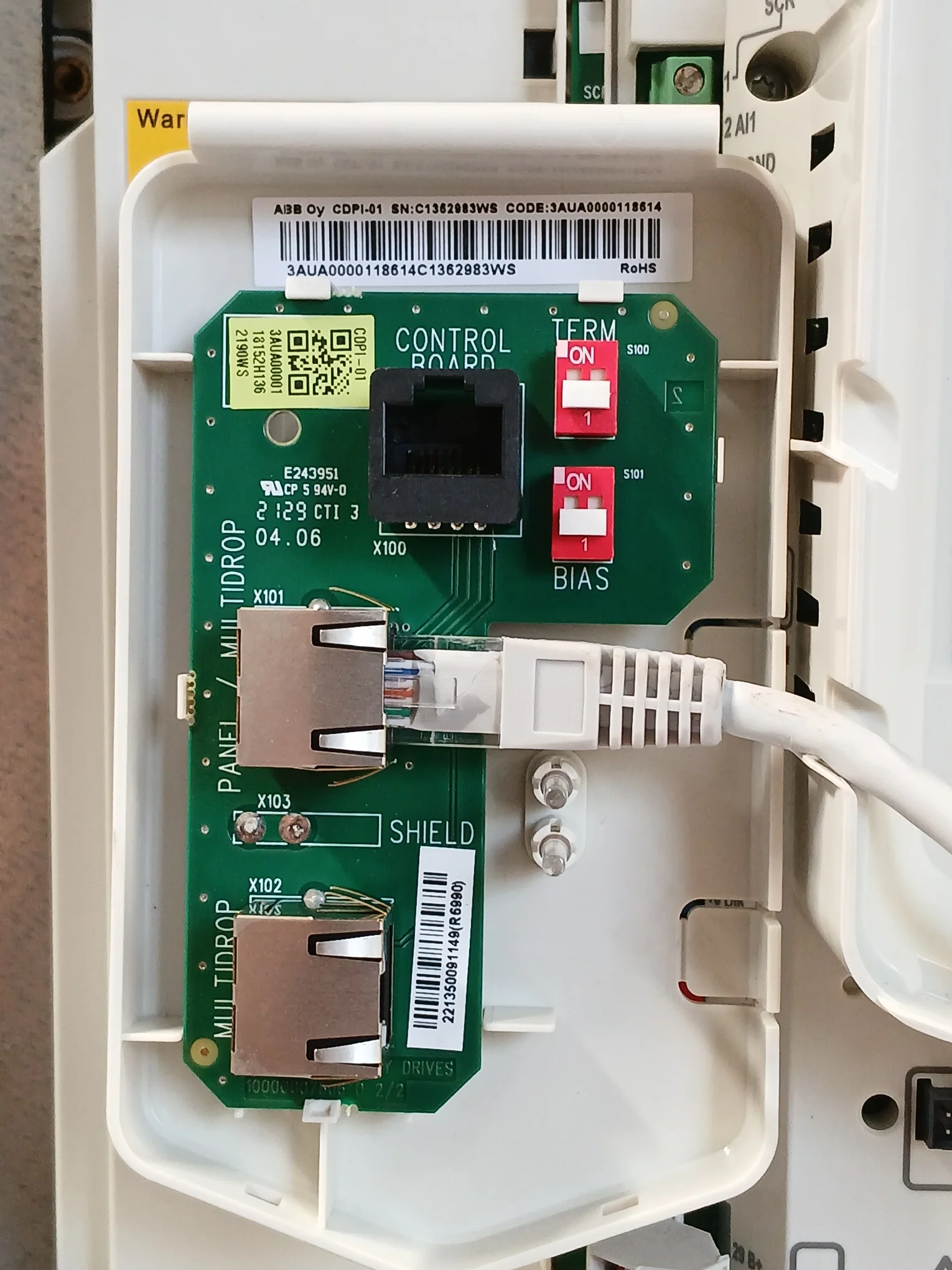

Cdpi-01
Code: 3Aua0000118614
3Aua0000118614C1362983Ws
Copi-01 / C0Pi-01
3Aua0000118152H1362190Ws
E243951
Cp 5
94V-0
Cti 3
221350091149(R6990)
10000007806 D 2/2

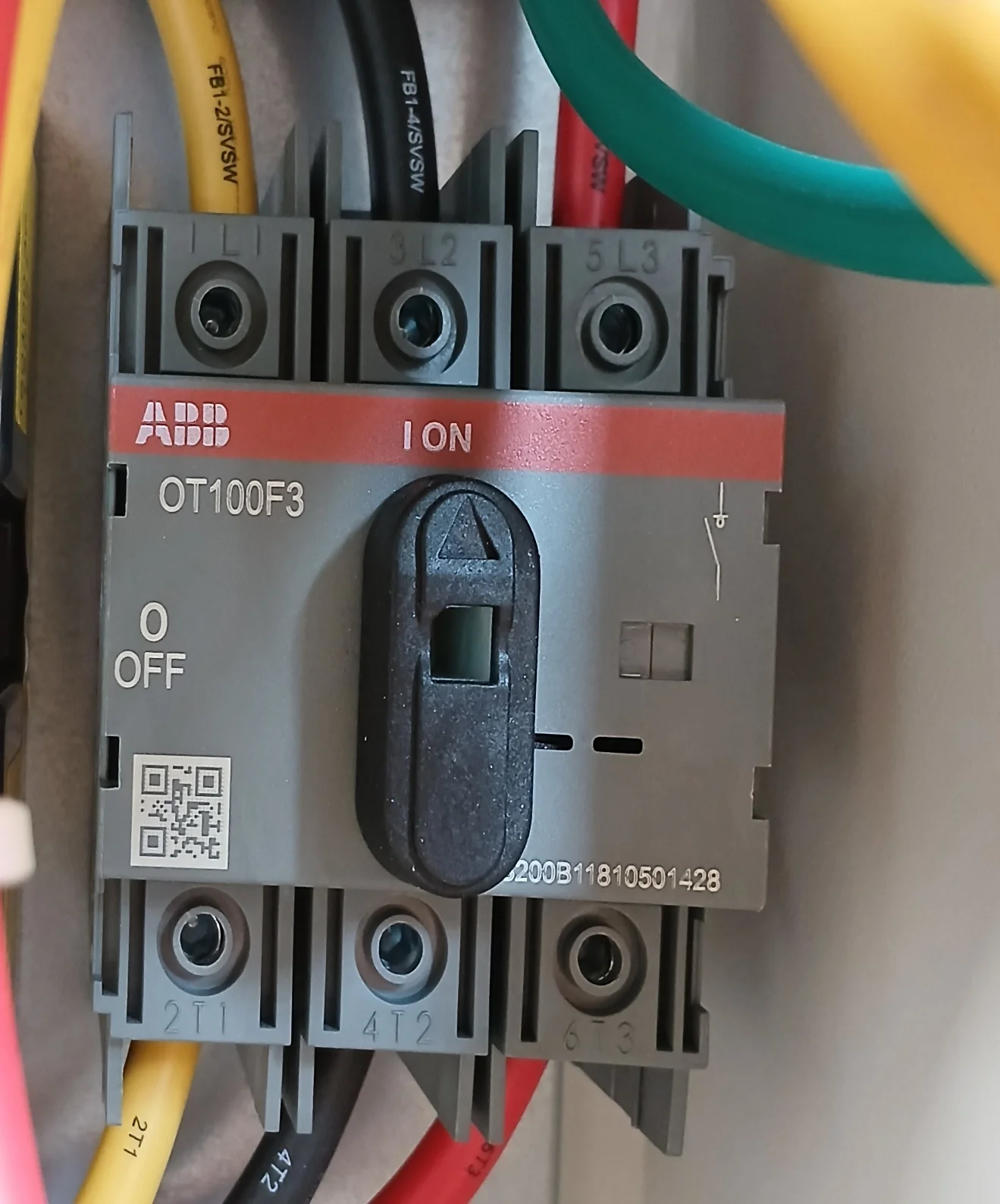

Ot100F3

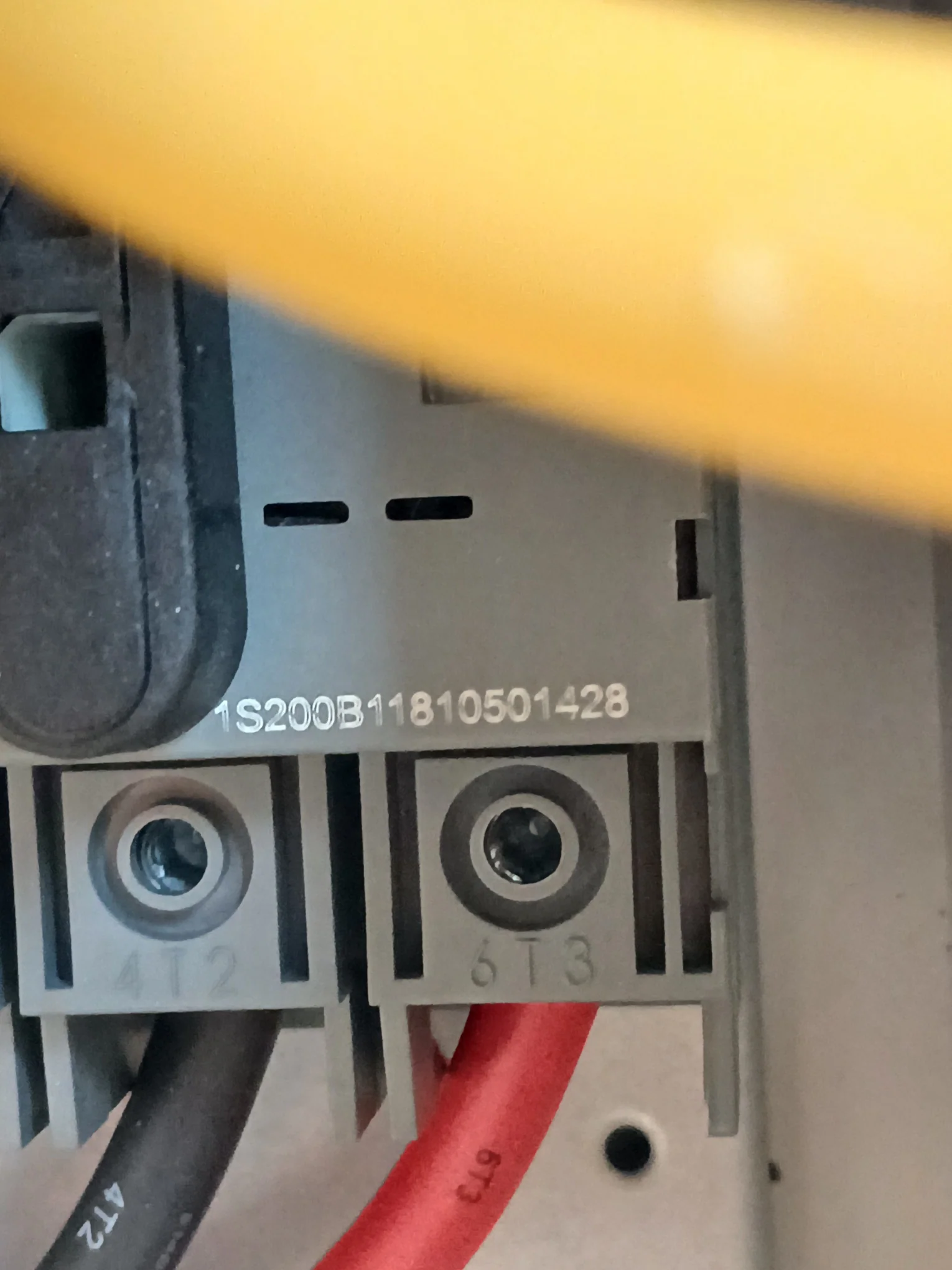

1S200B11810501428
3Axd50000146406 Rev: A
Emc/Var Kit
Emc/Var Screws
3Axd50000561261A
3Aua0000114874
Rev: C
Ach580-bcr-052A-4+B058
3Axd50000313839
Ach580-bdr-03A9-6+B056+E213+J429
Assembled In Mexico
Made In China
Made In Usa
Weight: 87 Kg
