Abb Ach580-bdr-02A7-6+B056+E213+J429 Hvac Enclosed Industrial Control Panel 2 Hp
Abb, Inc.
Abb Oy Drives
Hvac
Enclosed Industrial Control Panel
Product Type: Vfd
Product Name/Model Number: Ach580
Ach580-bdr (1…350 Hp, 0.75…250 Kw)
Ach580-bdr-02A7-6+B056+E213+J429
Vfd Rating:
Input: 3Ph 50…60 Hz
Output: 3Ph 0…500 Hz
Voltage (U1): 600…600 Vac
Voltage (U2): 0…U1 Vac
Current (I1N)/(I2N): 2.7 A
E-clipse Package Rating
Short Circuit: 100Ka With Class J 15A Fuse
Power (Pn): 2 Hp
Enclosure Ul Type 12

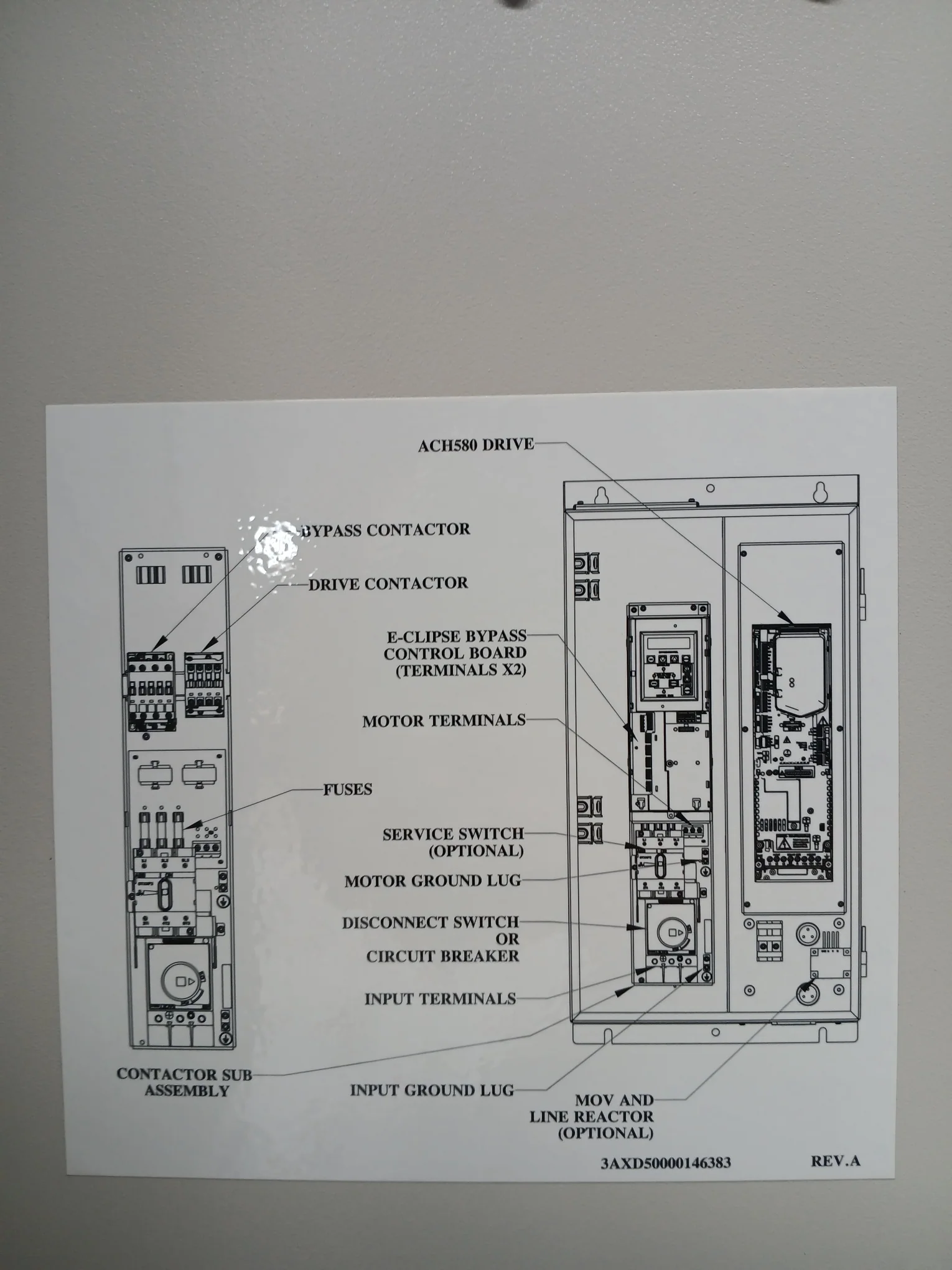

Schematic
3Axd50000313839
3Axd50000312160

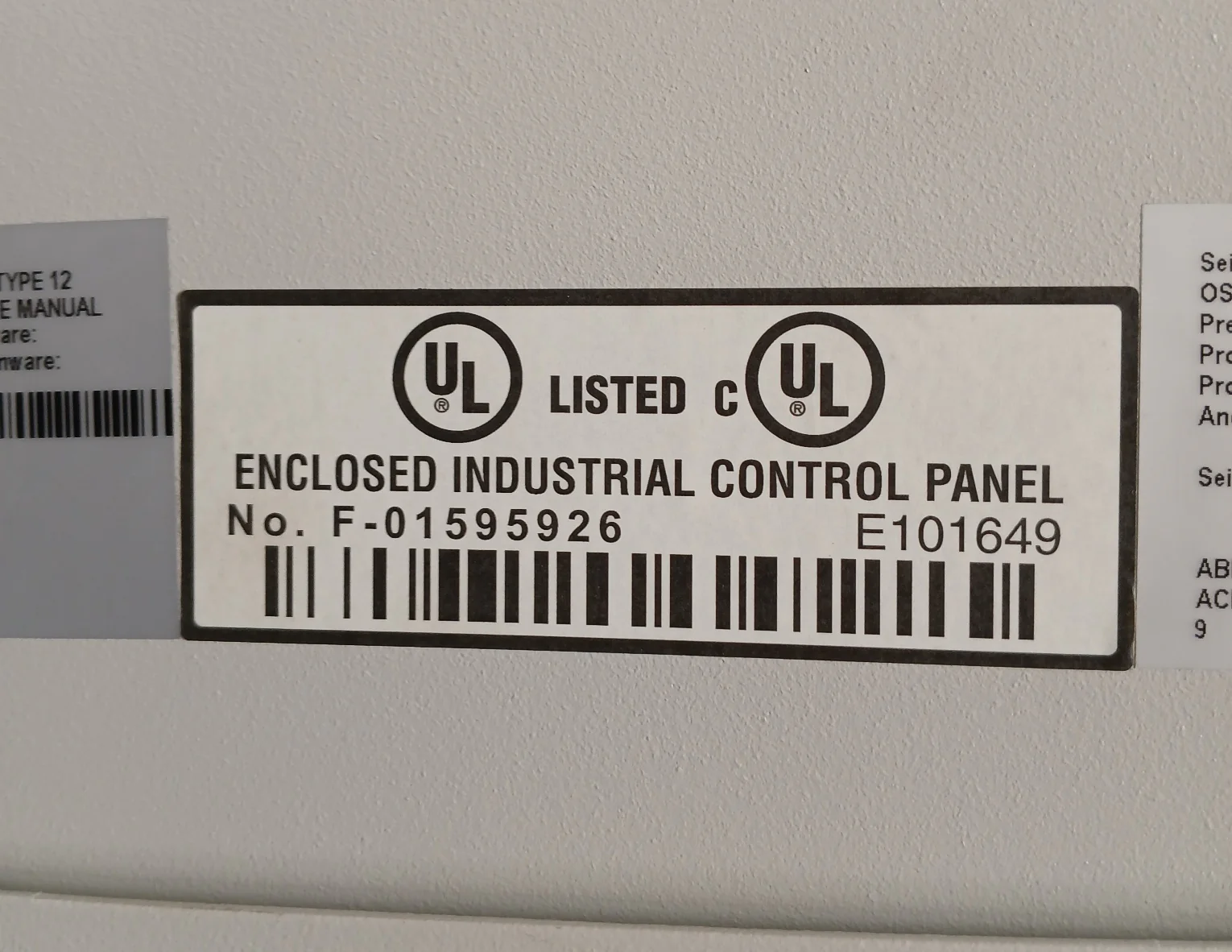

No.: F-01595926
E101649
Type: Rbcu
Rev: F
3Axd50000243624F21160757Sb
E316774

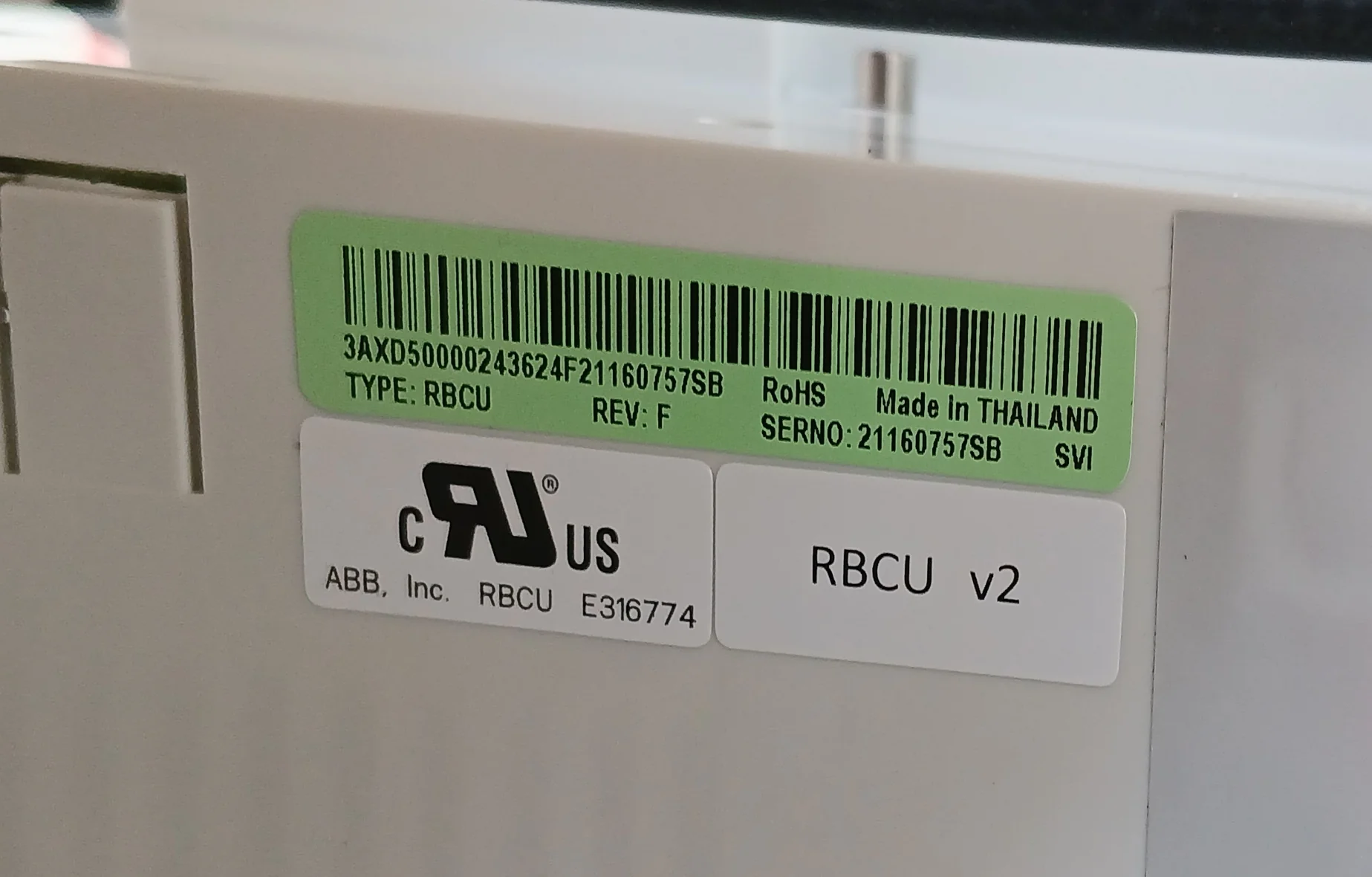

Rbcu V2
Mov-600V
Code: 3Aua0000008411
3Aua0000008411G8150087Tg

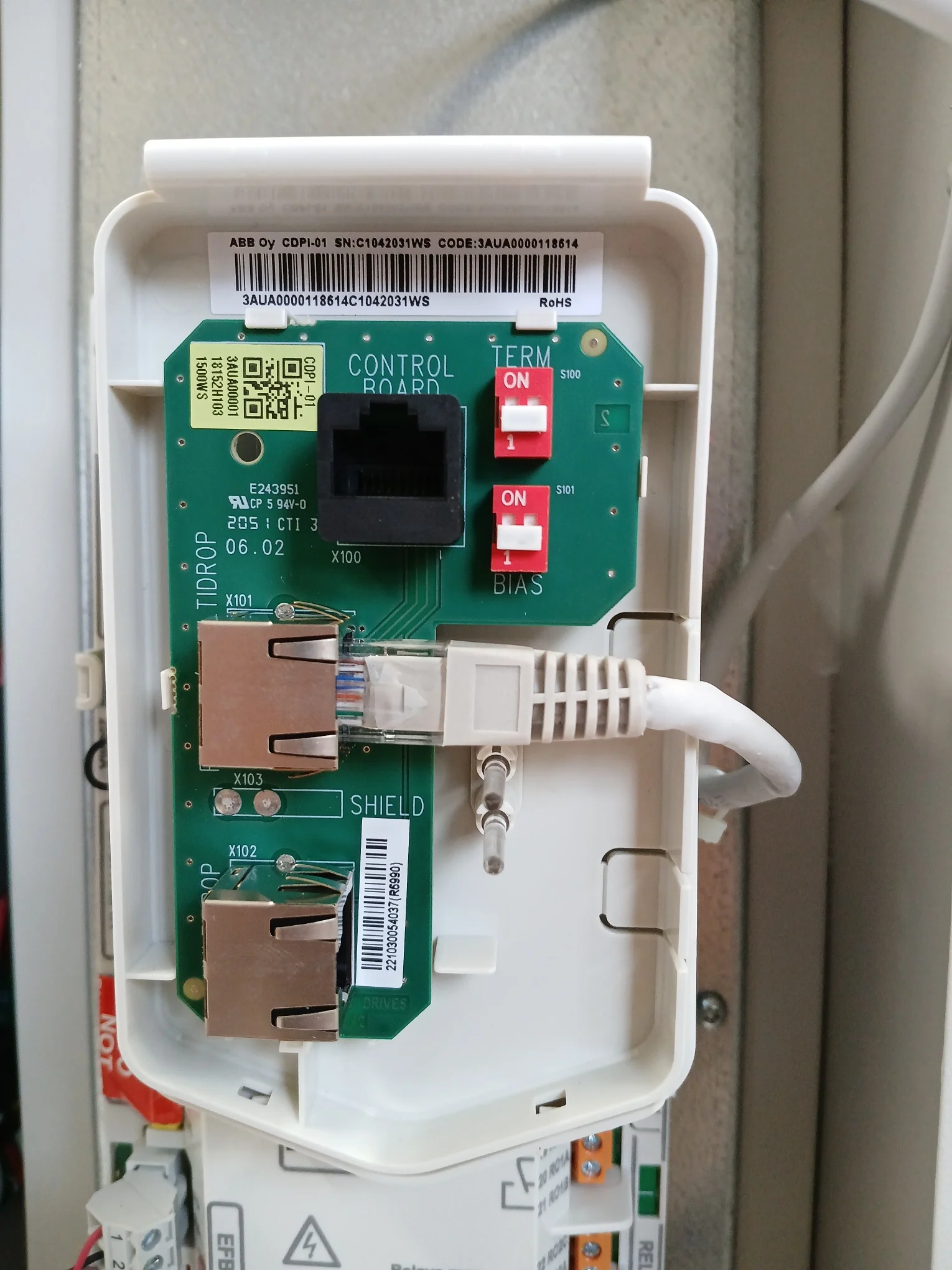

Cdpi-01
Code: 3Aua0000118614
3Aua0000118614C1042031Ws
10000007806 D 2/2
Copi-01/C0Pi-01
3Aua0000118152H1031500Ws
E243951
Cp 5
94V-0
Cti 3
221030054037(R6990)
Ach580-01-02A7-6
Sw: V2.12.0.4
Hcsa-1-1
Code: 3Axd50000046151
3Axd50000046151E0440051Tg
M/N: Ach-ap-w
Code: 3Axd50000030360
Fcc Id: 2Afngapwseries
Ic: 20555-apwseries
Sw: V5.95
3Axd50000030360B1097106Co
3Axd50000146383
Rev. A
3Axd50000223015
Emc/Var Kit
Emc/Var Screws
3Axd50000561261A
3Aua0000114874
Rev: C
Made In Thailand
Made In China
Made In Usa
Weight: 58 Kg
