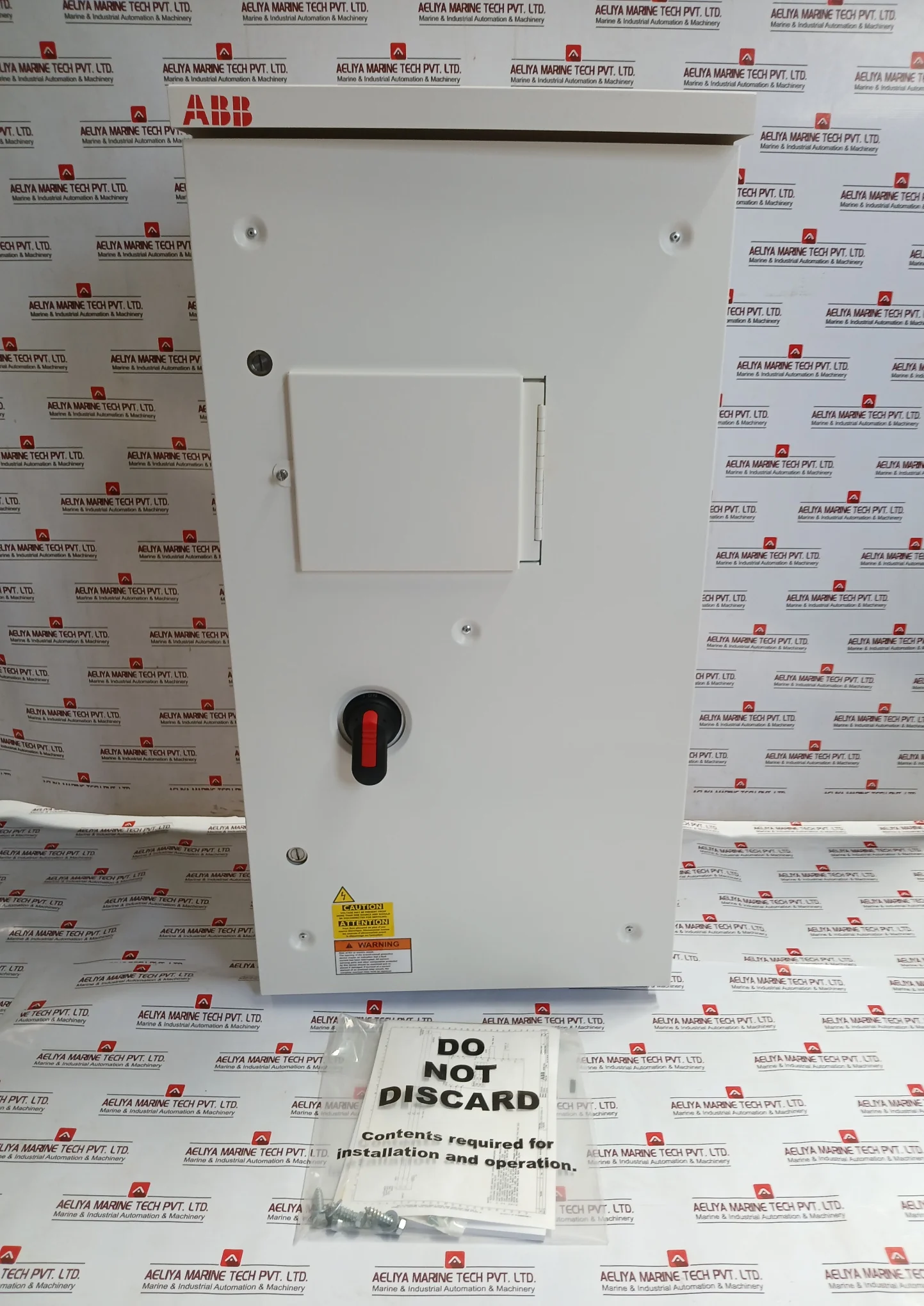

Abb Ach580-pcr-034A-4+B058 3-ph Hvac Enclosed Control Panel 440-480 Vac 50-60 Hz
Abb Inc.
Abb Oy Drives
Hvac
Taiton

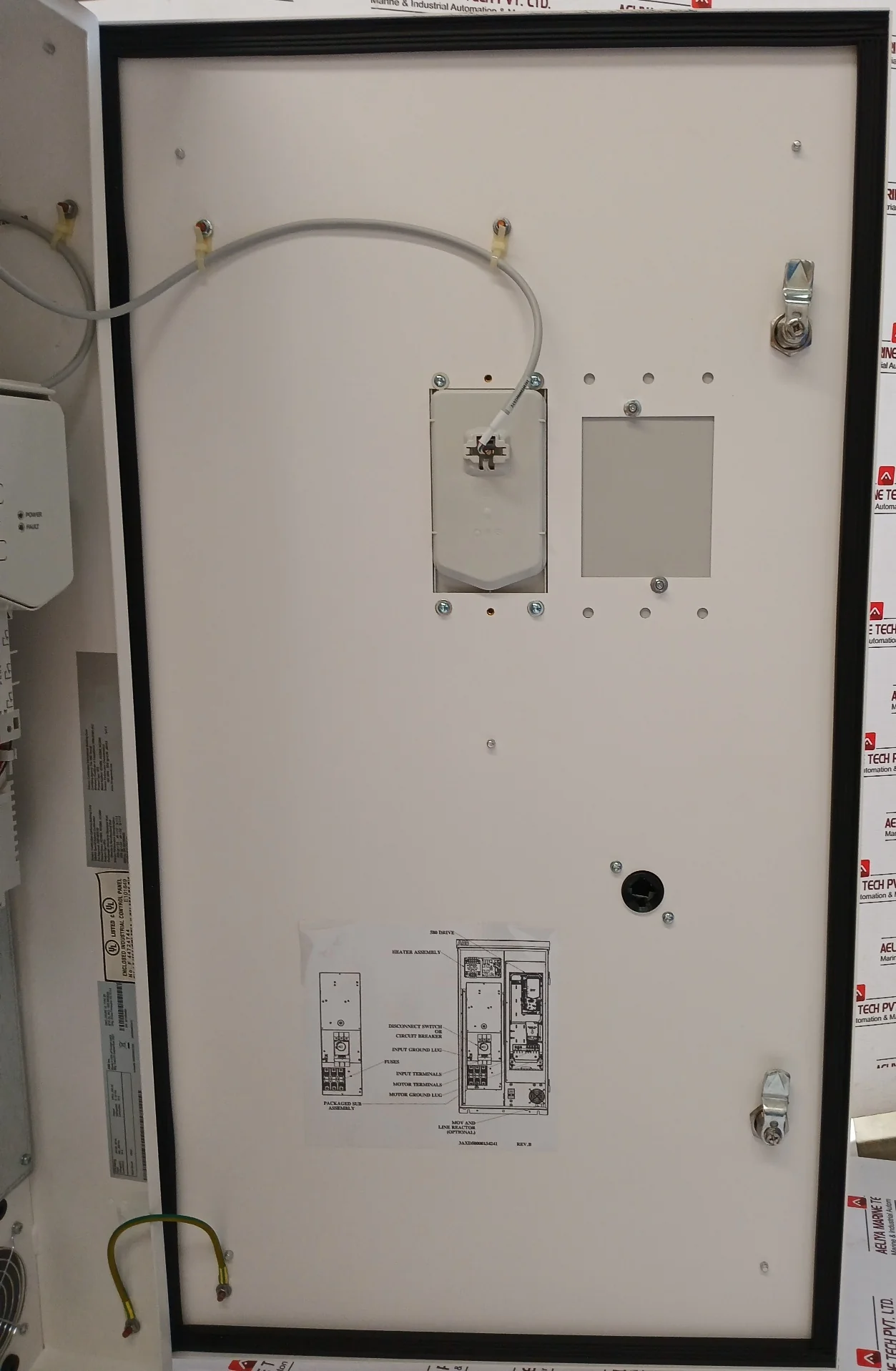

Enclosed Industrial Control Panel
Product Type: Vfd
Product Name/Model Number: Ach580
Ach580-pcr (1…350 Hp, 0.75…250 Kw)

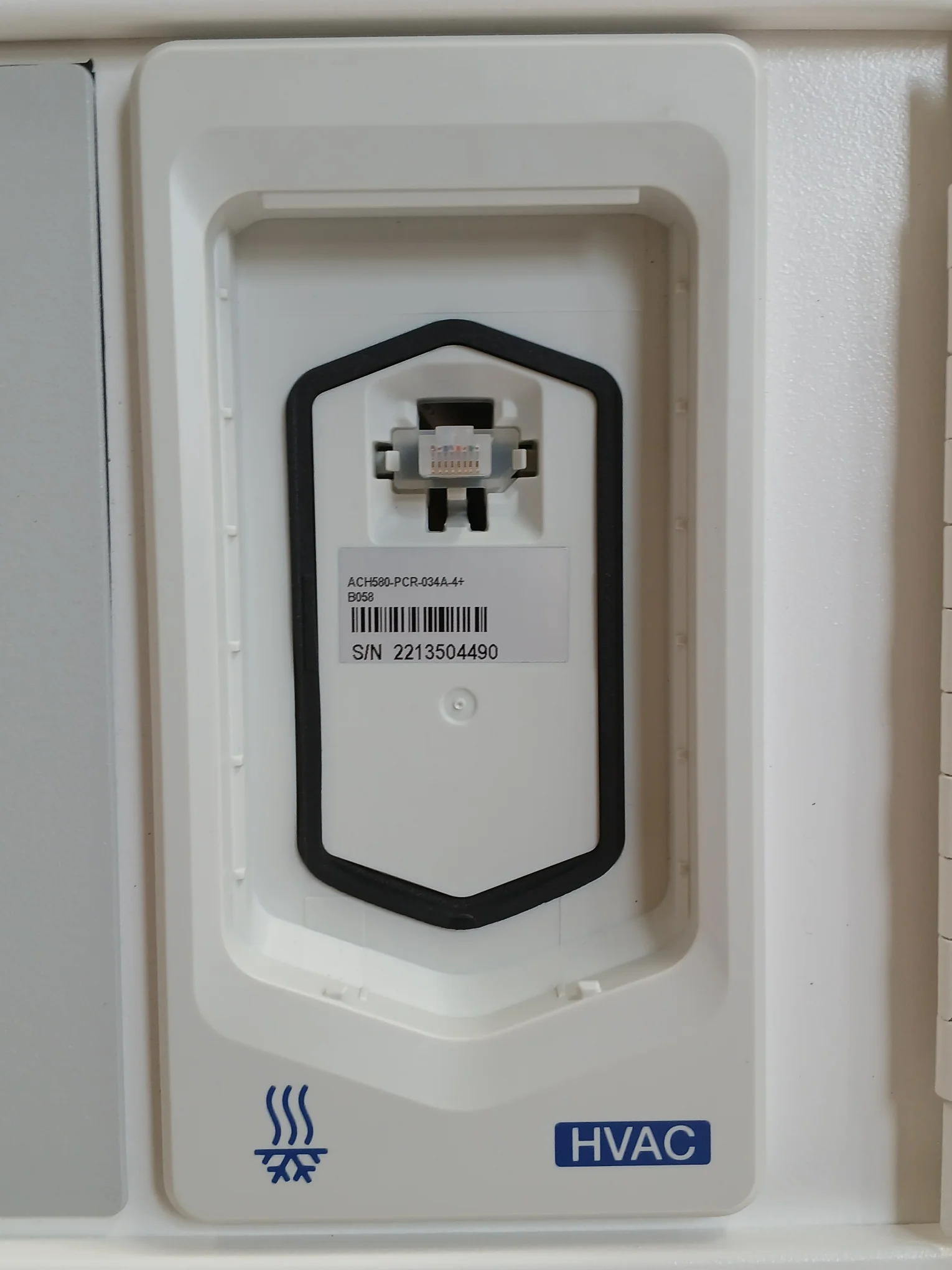

Ach580-pcr-034A-4+B058

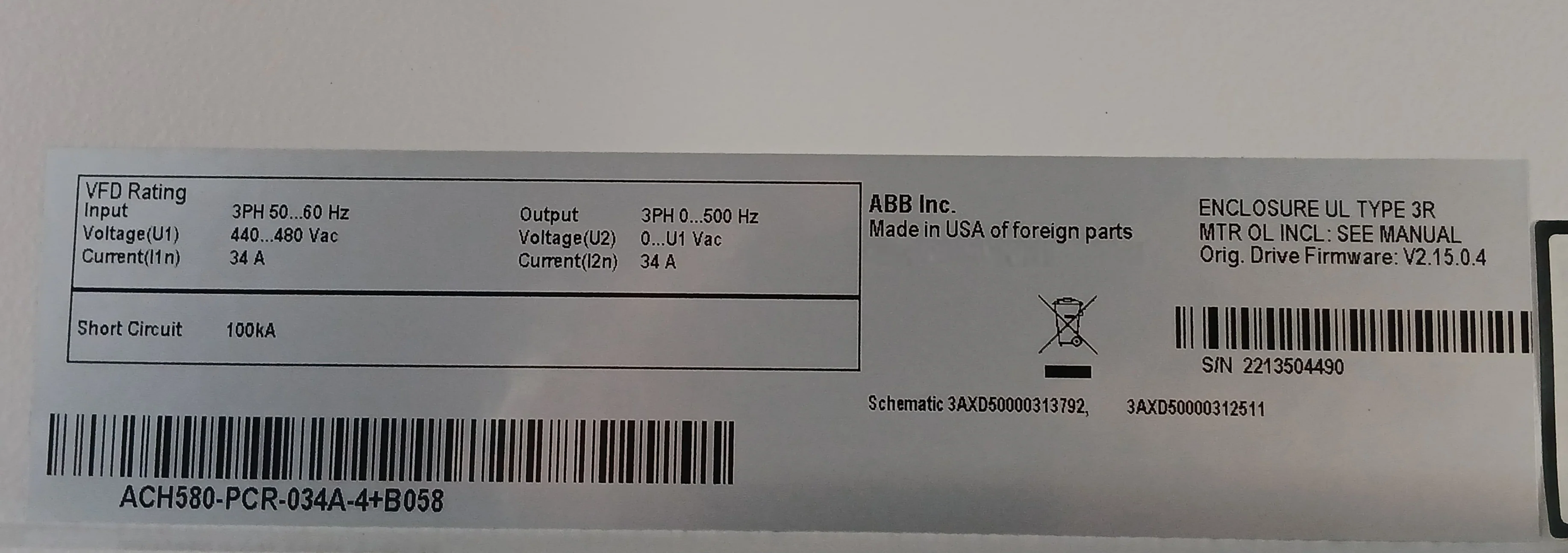

Vfd Rating:
Input: 3Ph 50…60 Hz
Output: 3Ph 0…500 Hz
Voltage (U1): 440…480 Vac
Voltage (U2): 0…U1 Vac
Current (I1N)/(I2N): 34 A
Short Circuit: 100Ka
Enclosure Ul Type 3R
Orig. Drive Firmware/Sw: V2.15.0.4

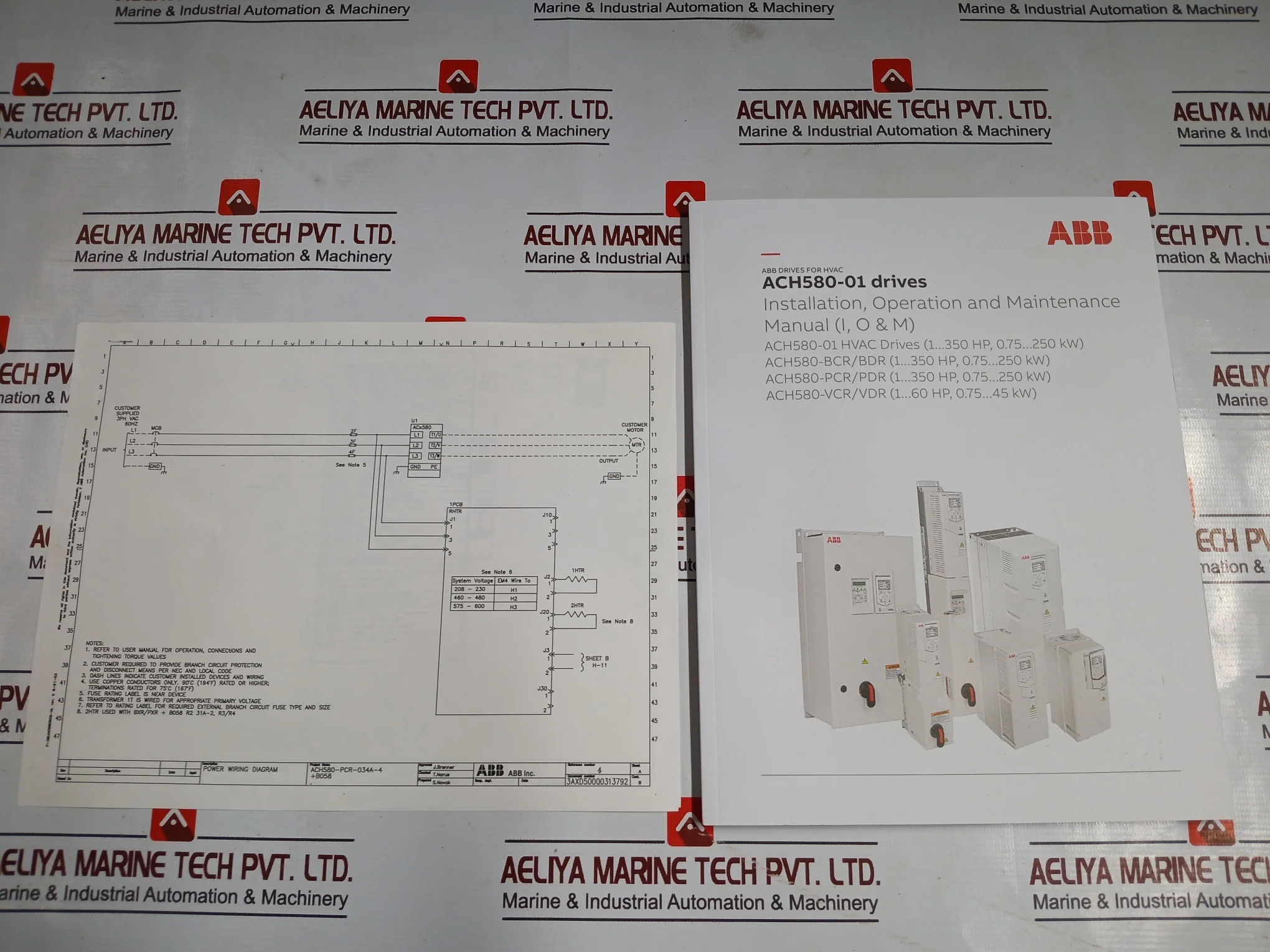

Schematic
3Axd50000313792
3Axd50000312511

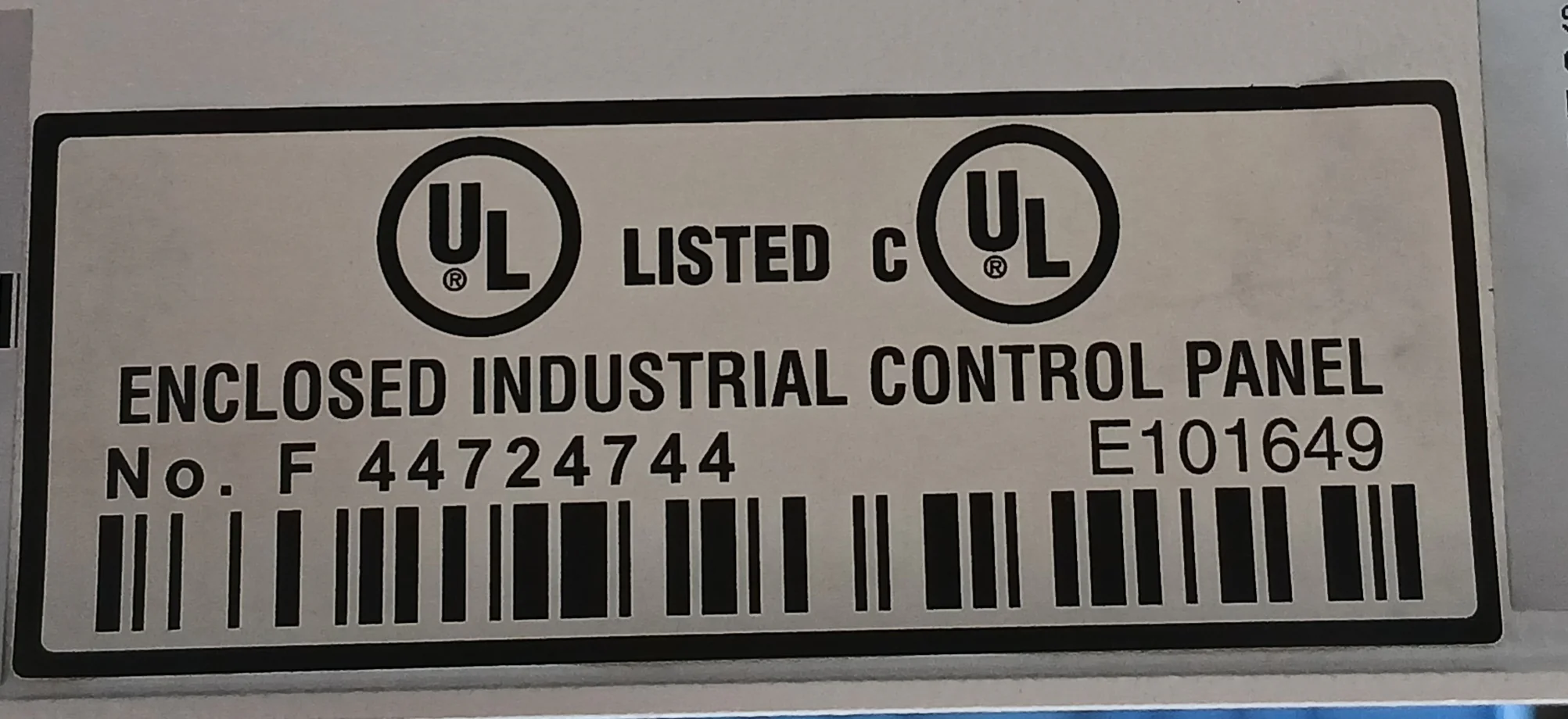

No.: F 44724744
E101649

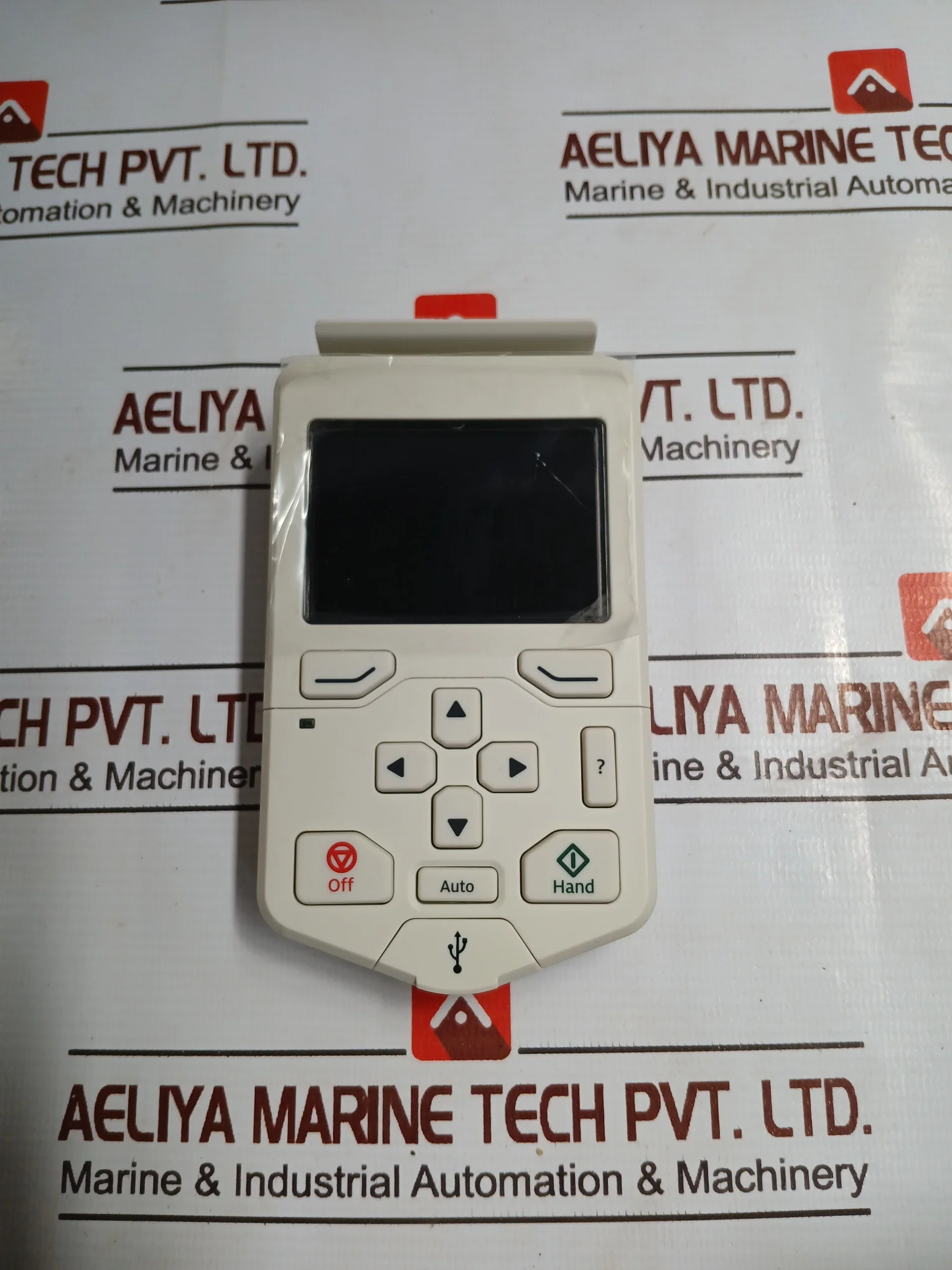

Ach-ap-h
Code: 3Aua0000064886
Sw: 5.95
3Aua0000064886D1171084Sb

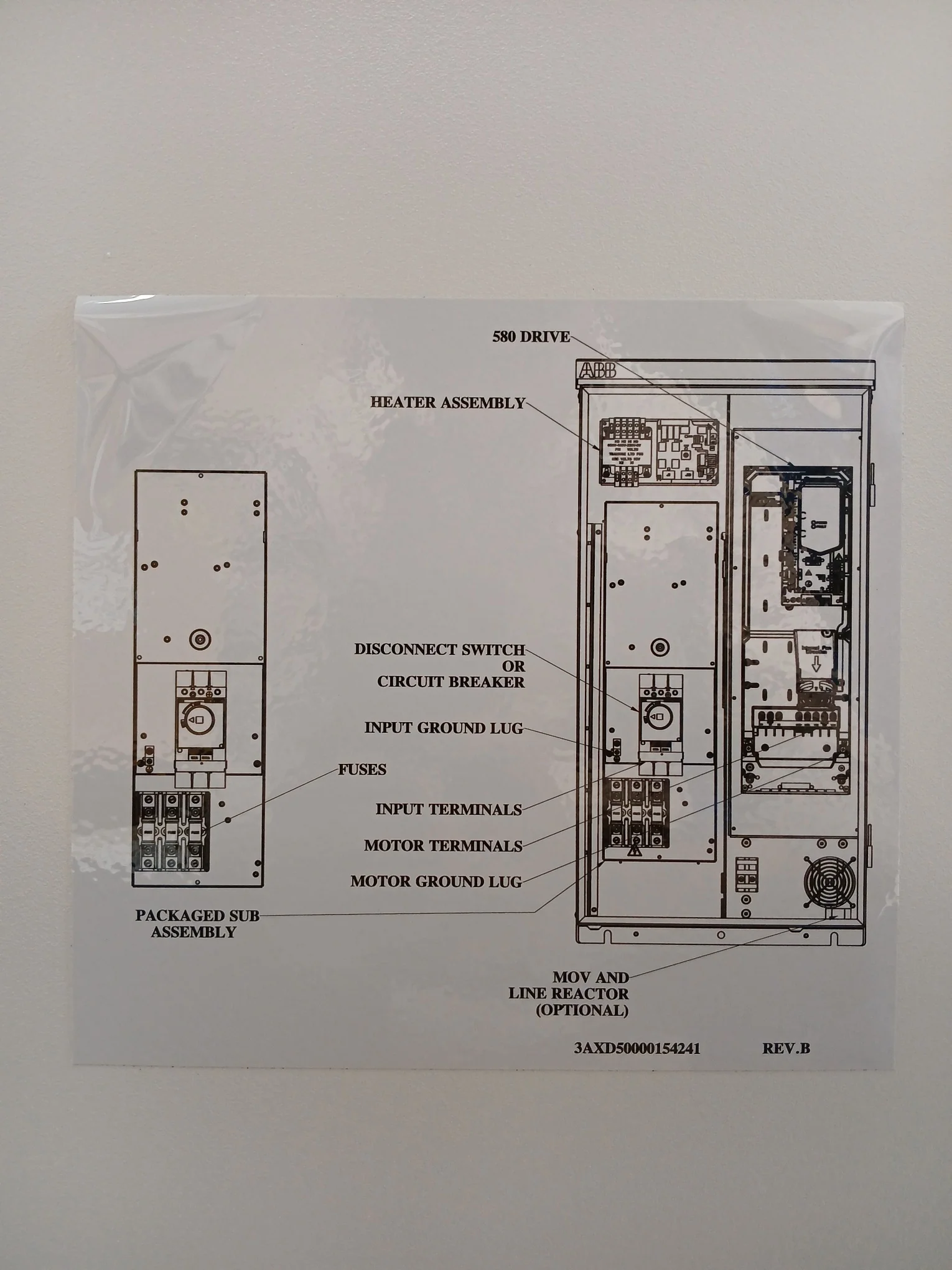

3Axd50000154241
Rev. B

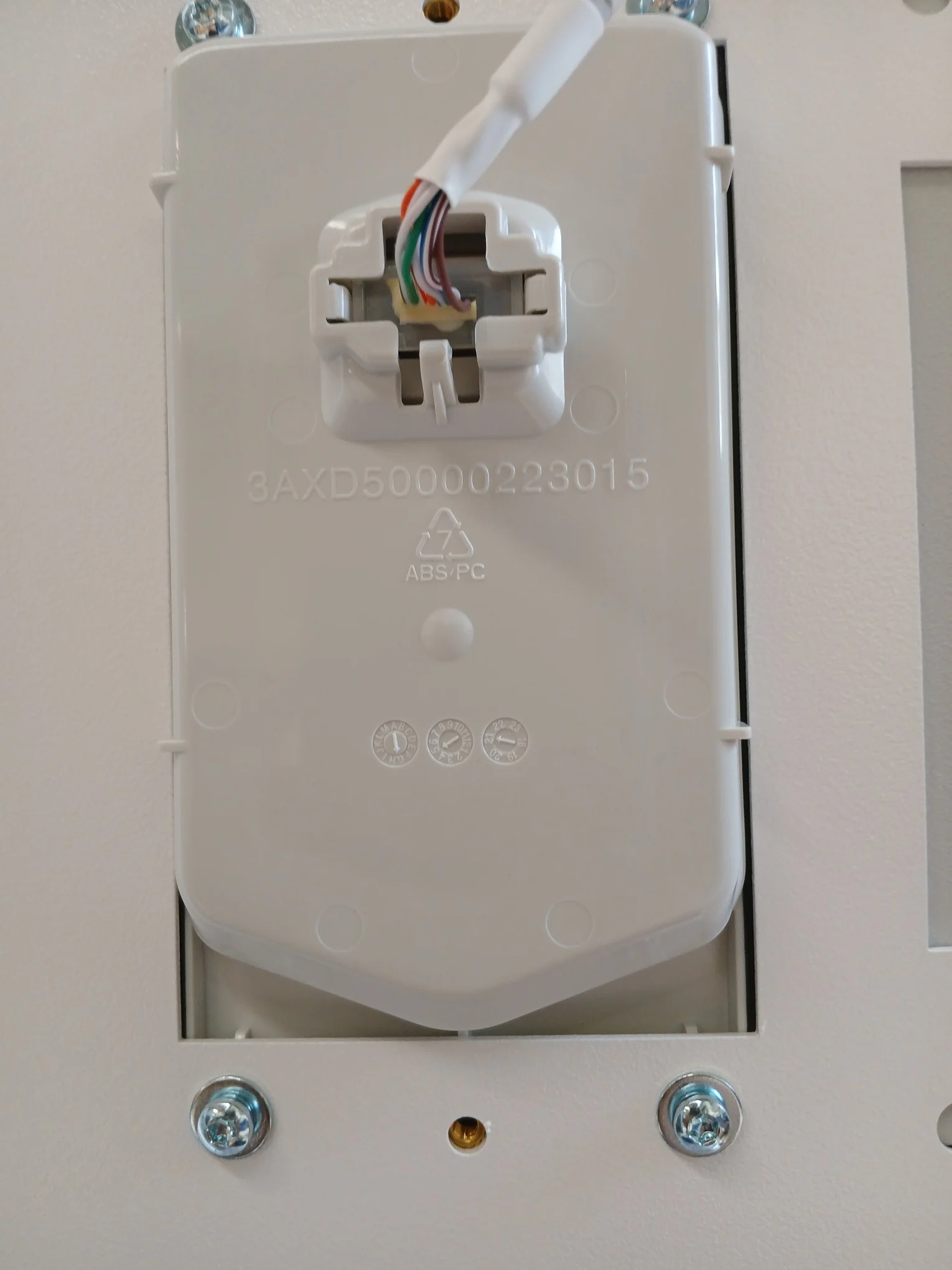

3Axd50000223015
Rhtr
Code: 3Aua0000048833
3Aua0000048833D1200194Tg

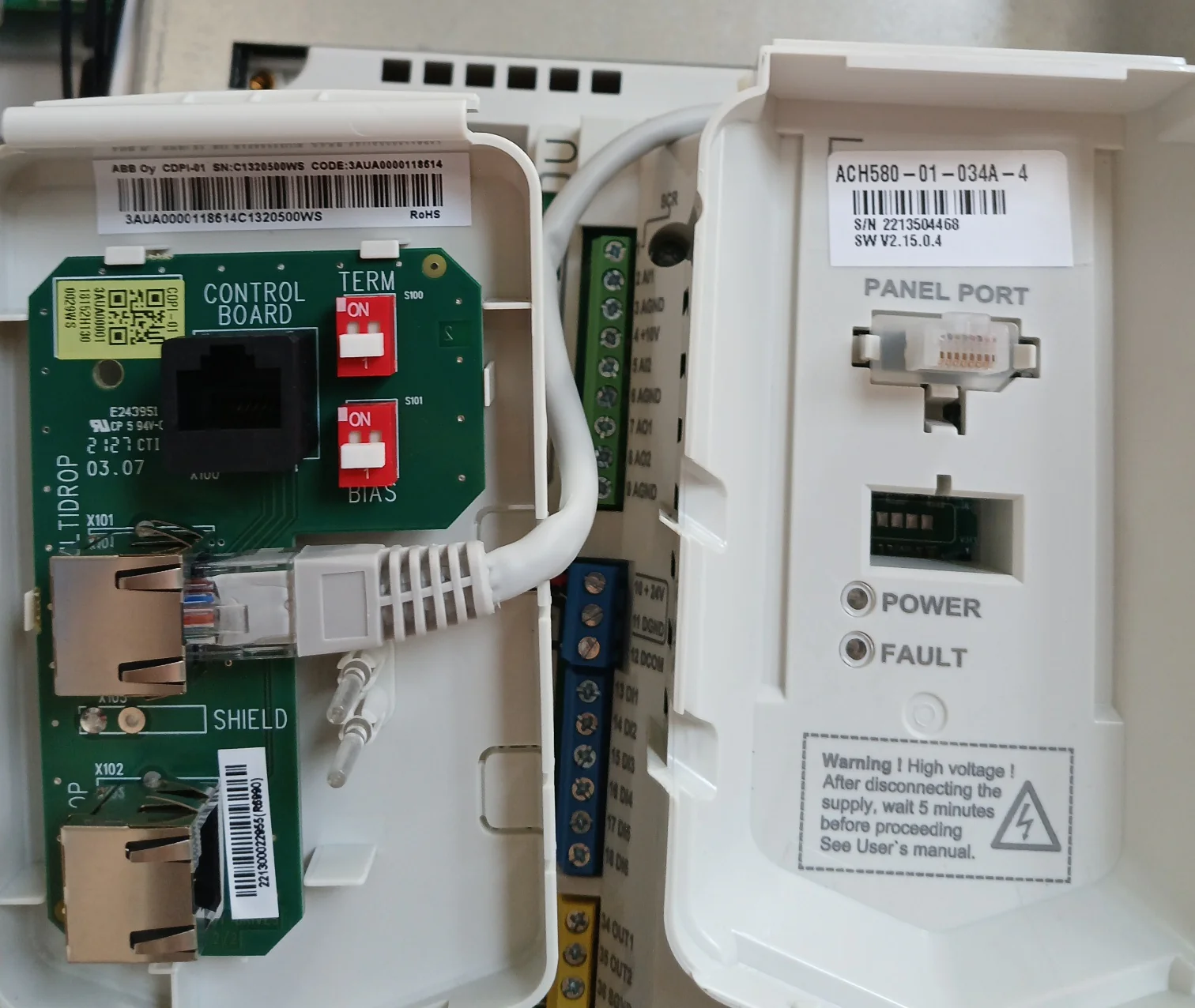

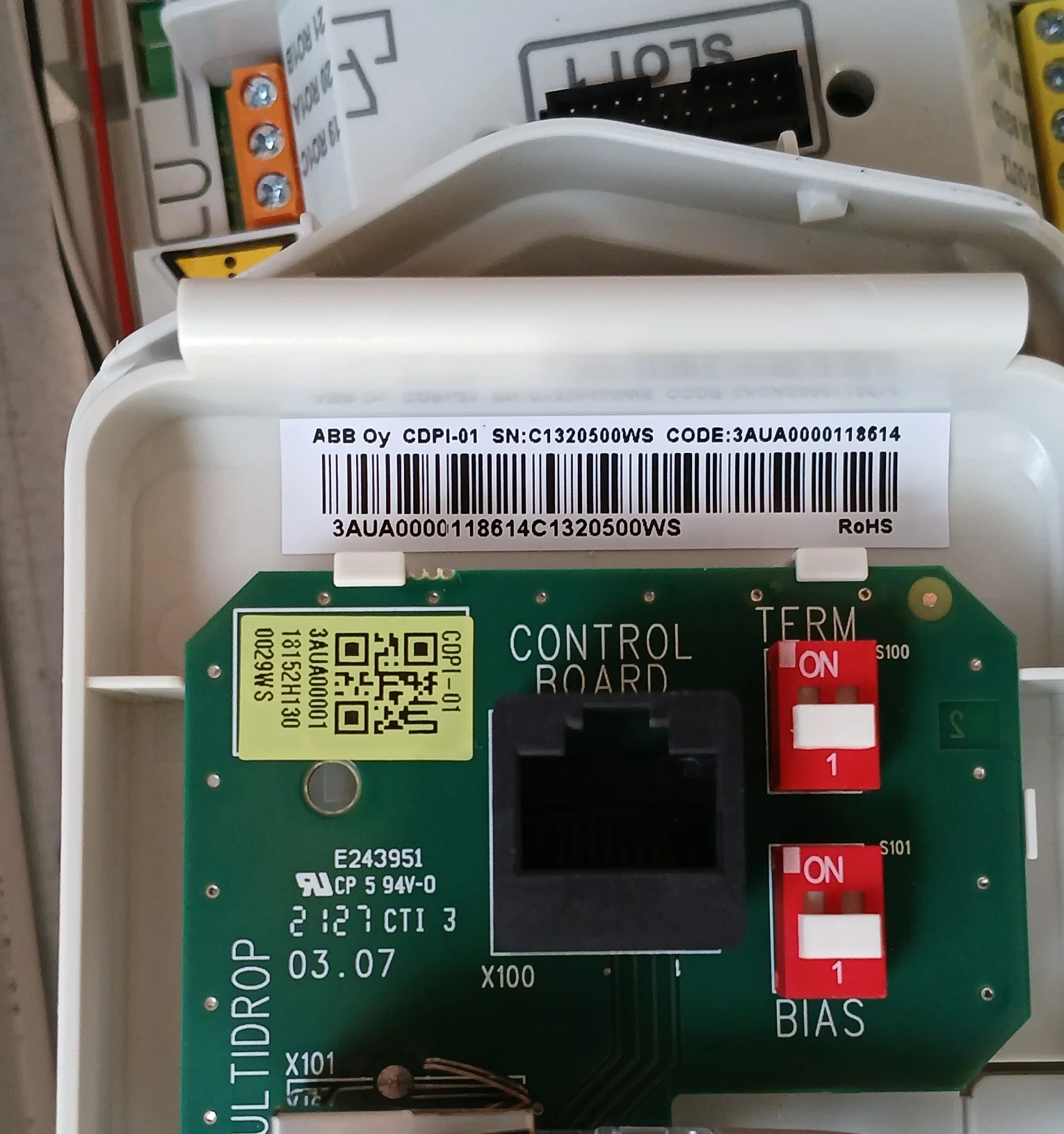

Cdpi-01
Code: 3Aua0000118614
3Aua0000118614C1320500Ws

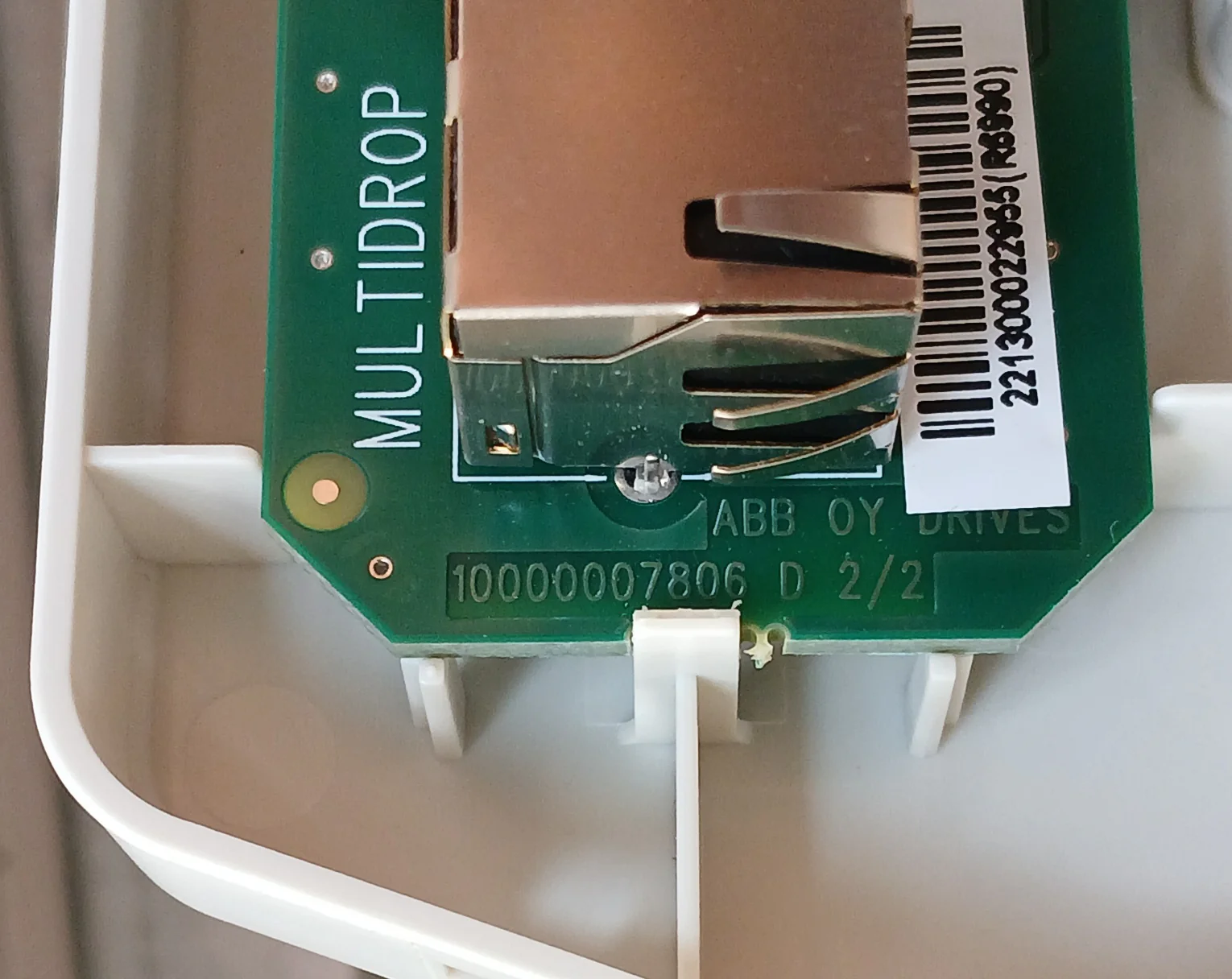

10000007806 D 2/2
Copi-01/C0Pi-01
3Aua0000118152H1300029Ws
E243951
Cp 5
Cti 3
221300022955(R6990)
Wl203
94V-0
E301369

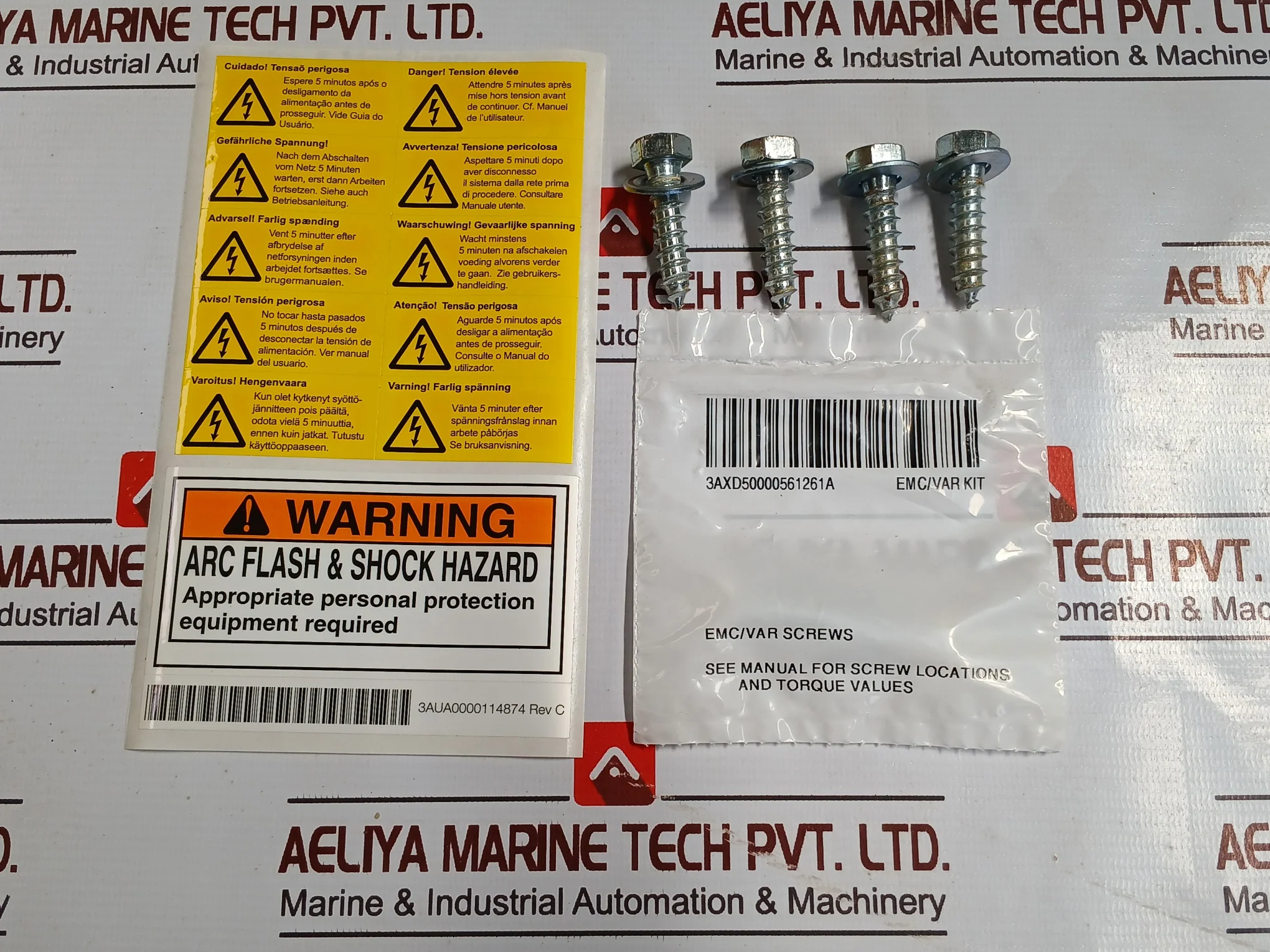

Emc/Var Kit
Emc/Var Screws
3Axd50000561261A
3Aua0000114874
Rev: C
Made In Usa
Weight: 93 Kg
