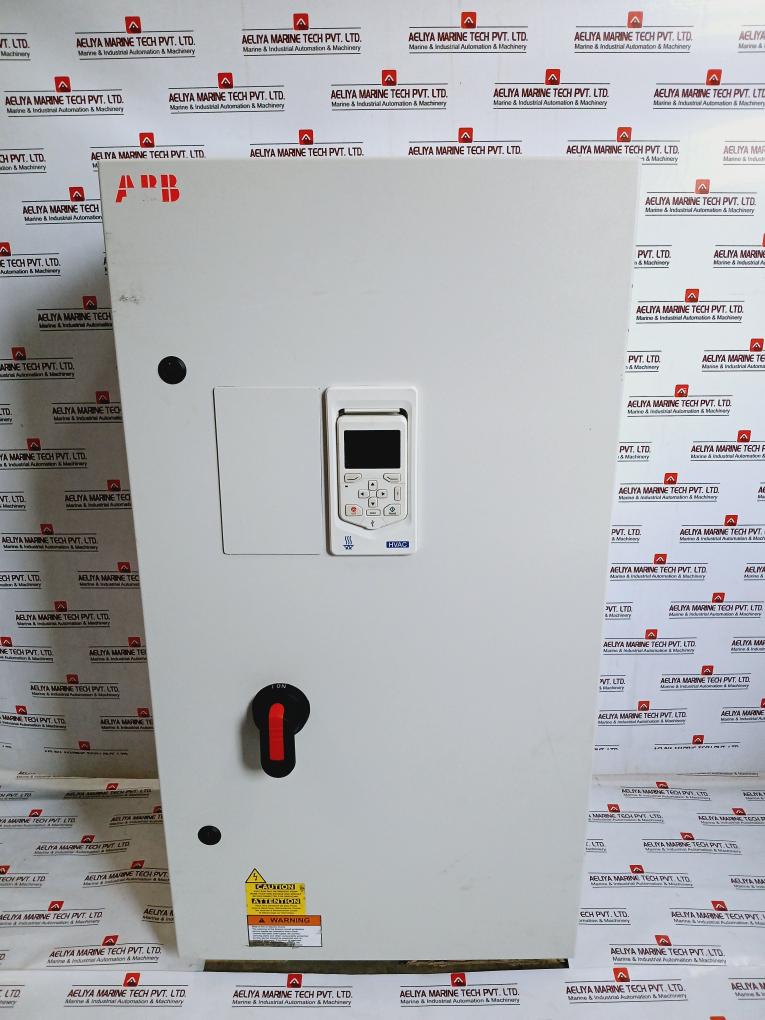

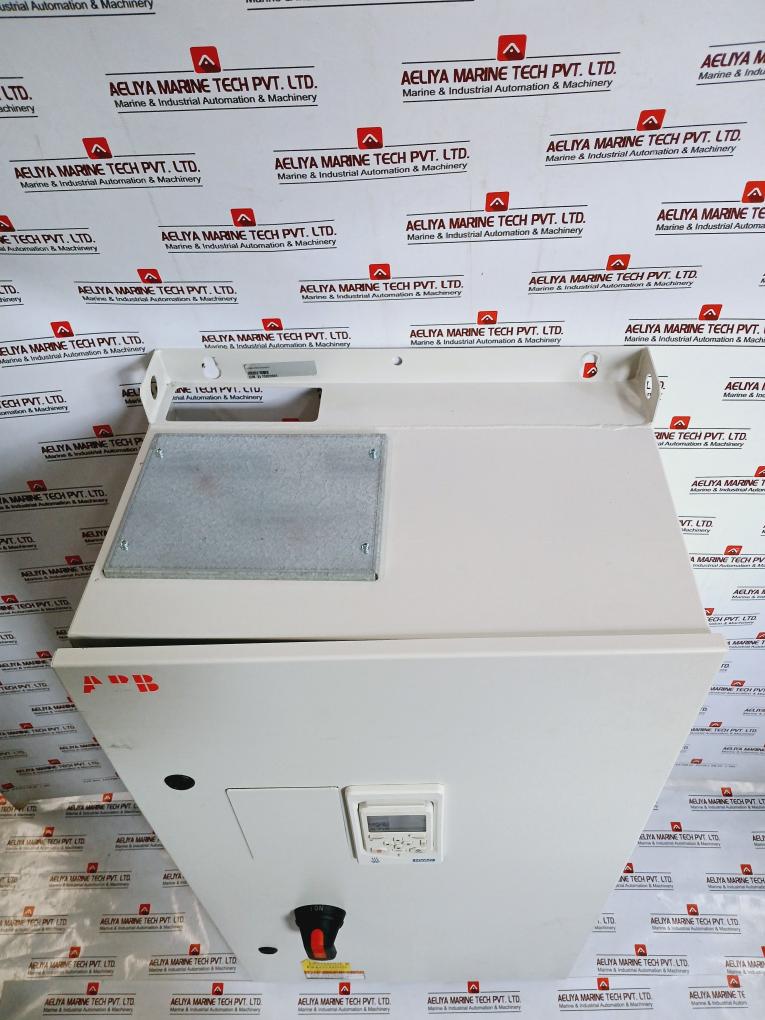

Abb Ach580-pcr-077A-4+E213 Hvac Drive With Circuit Breaker Disconnect 440-480Vac
Abb Inc
Abb Oy Drives
Hvac
Sace Tmax

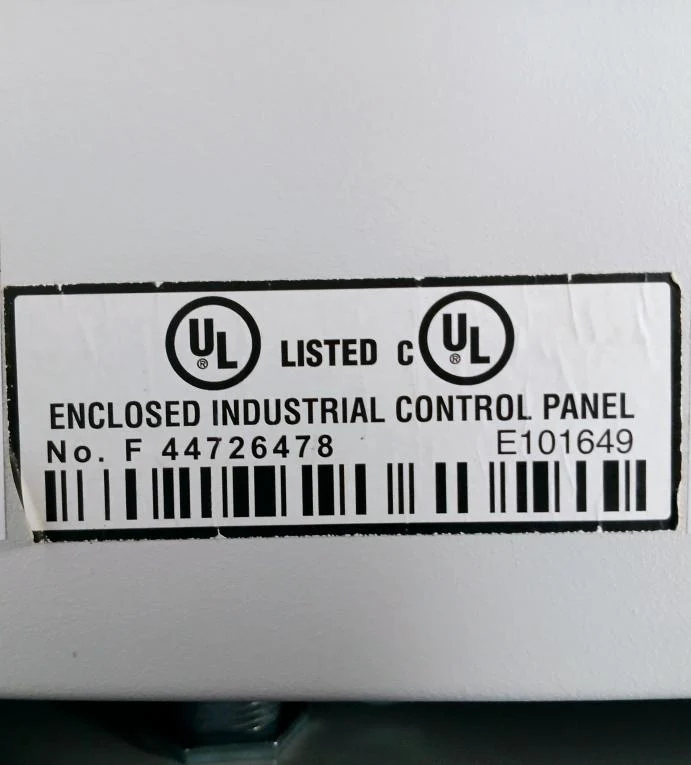

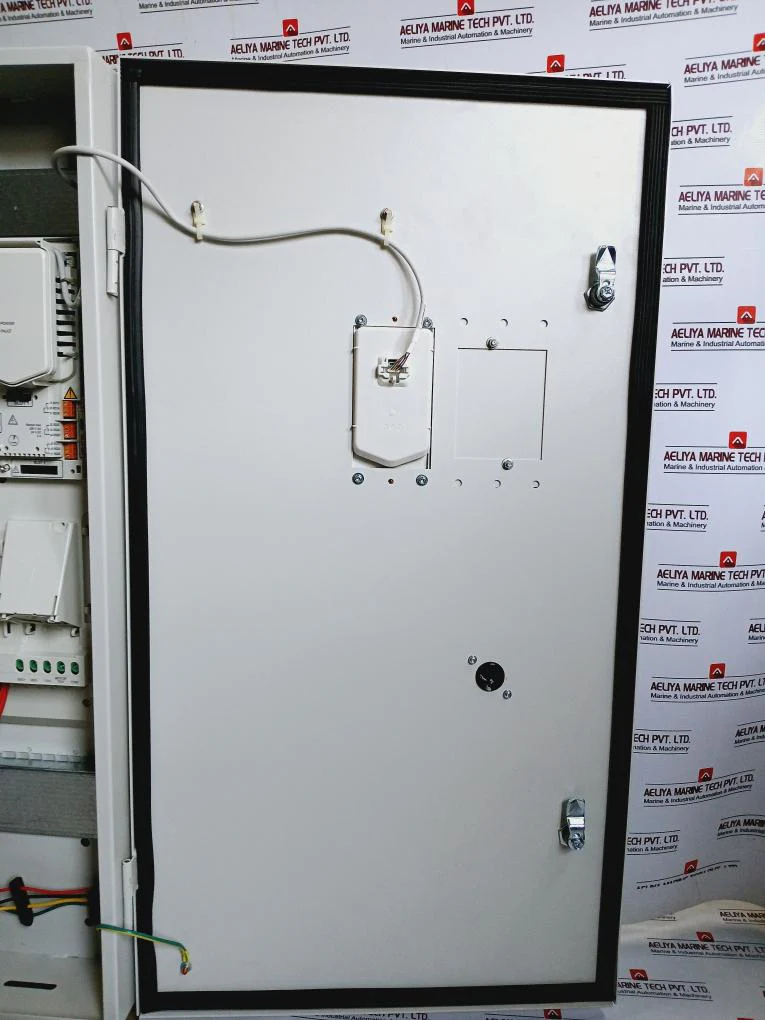

Enclosed Industrial Control Panel
Product Name/Model No: Ach580

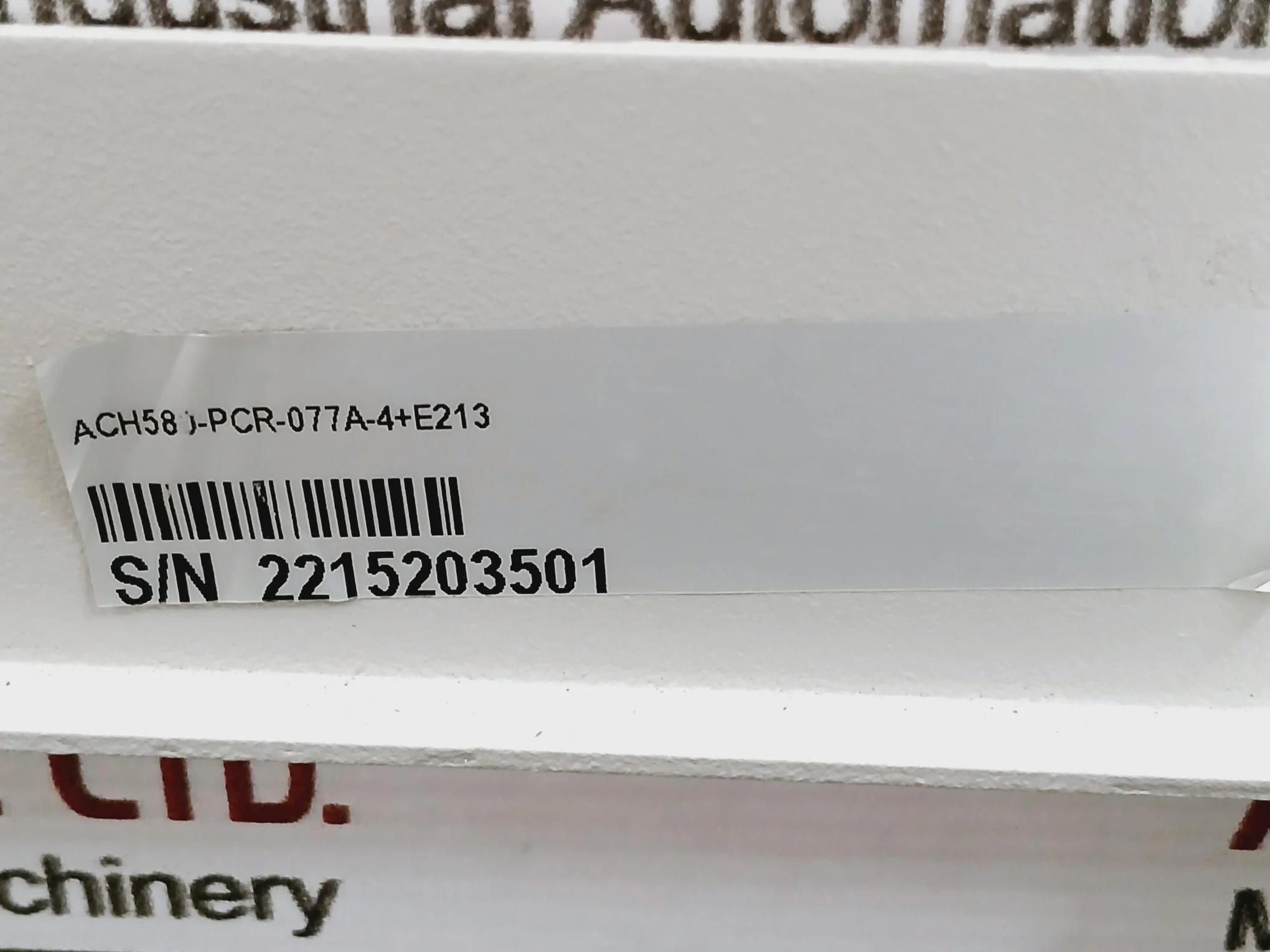

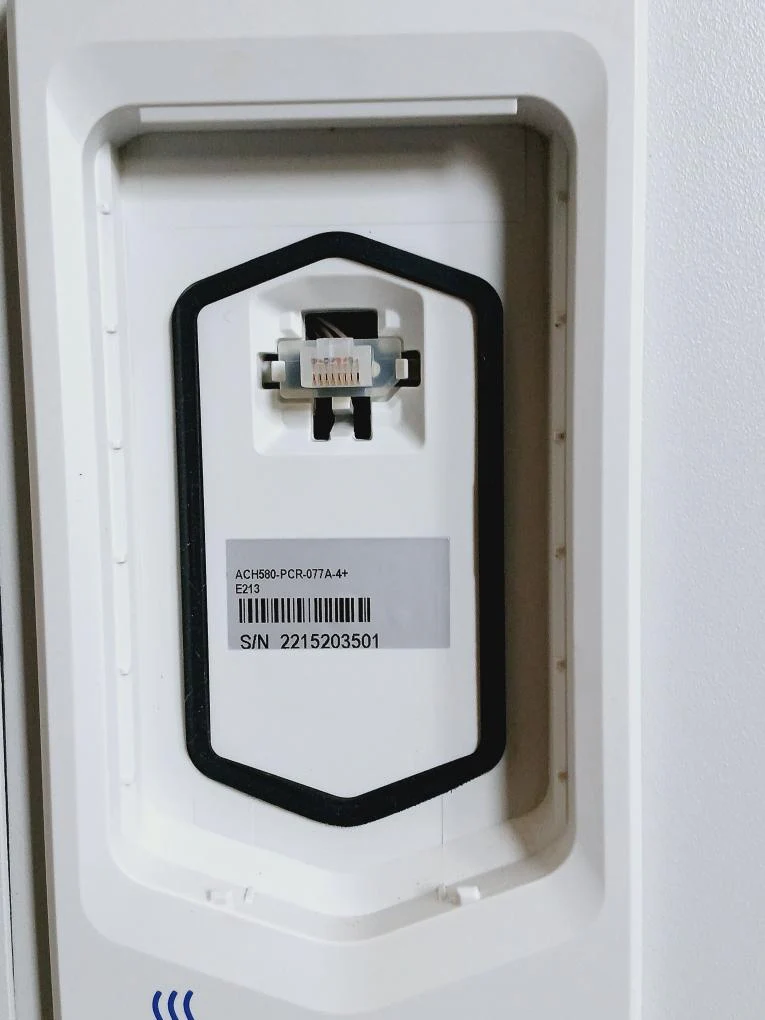

Ach580-pcr-077A-4+E213
Product Type: Vfd

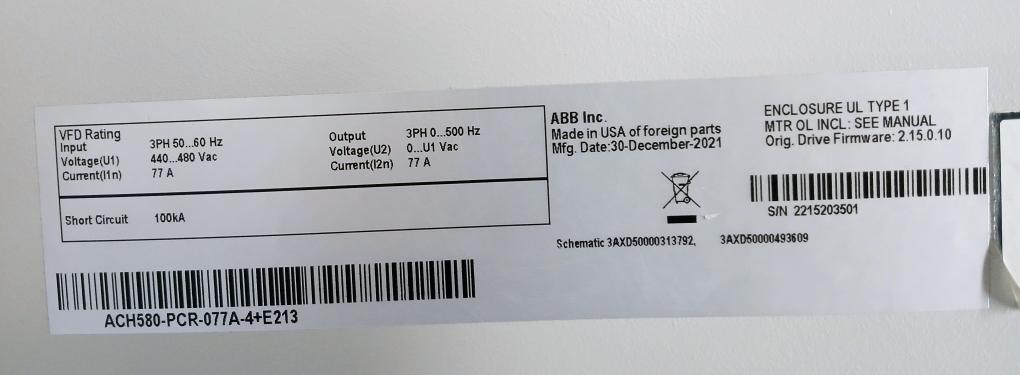

Vfd Rating:
Input:
3Ph 50...60Hz
Voltage (U1): 440...480Vac
Output:
3Ph 0...500Hz
Voltage (U2): 0...U1 Vac
Current (I1N)/(I2N): 77A
Short Circuit: 100Ka
Enclosure Ul Type 1
Orig. Drive Firmware/Sw: 2.15.0.17
Schematic 3Axd50000313792
3Axd50000493609
No: F 44726478
E101649

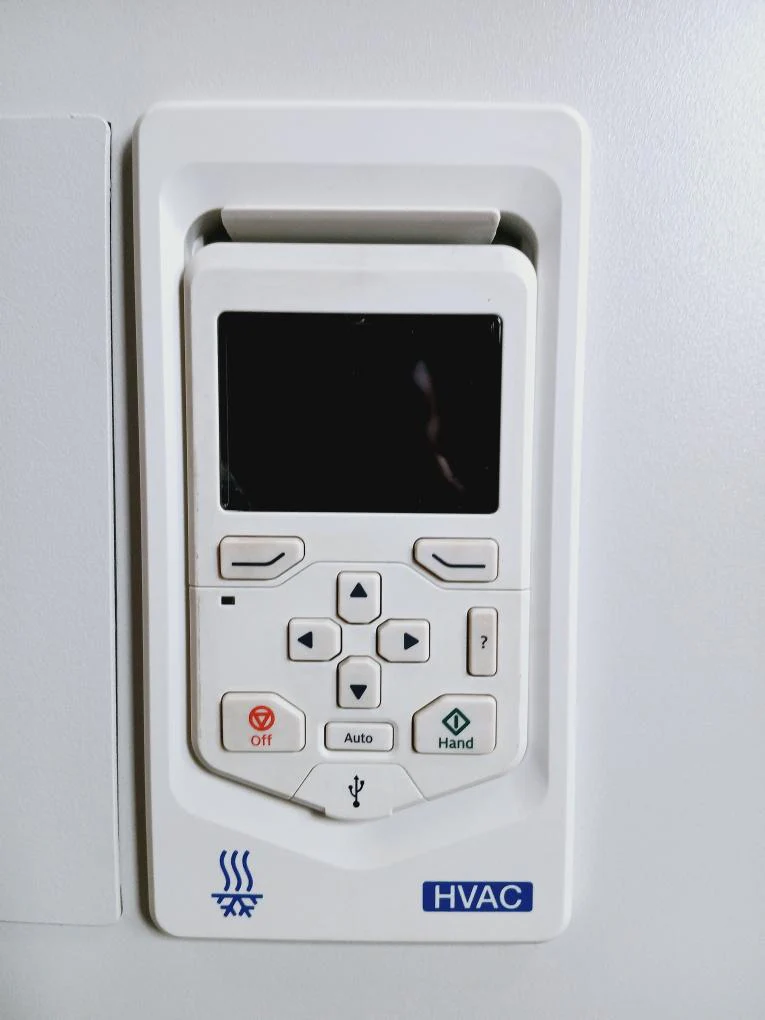

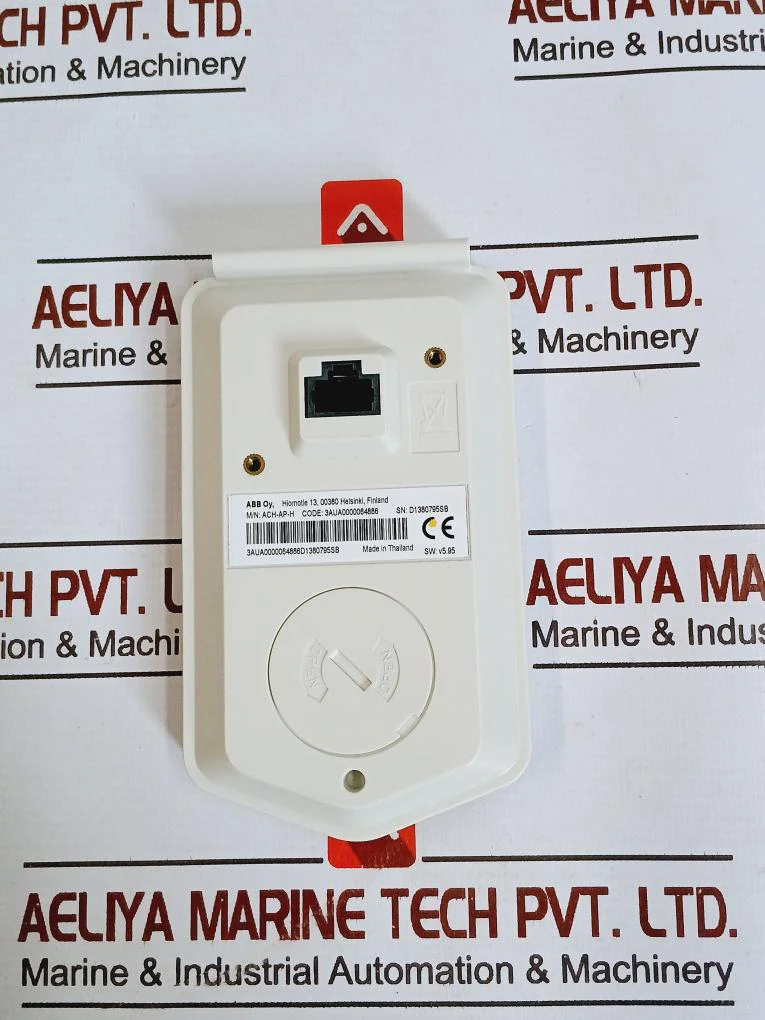

M/N: Ach-ap-h
Code: 3Aua0000064886
Sw: V5.95
3Aua0000064886D1380795Sb

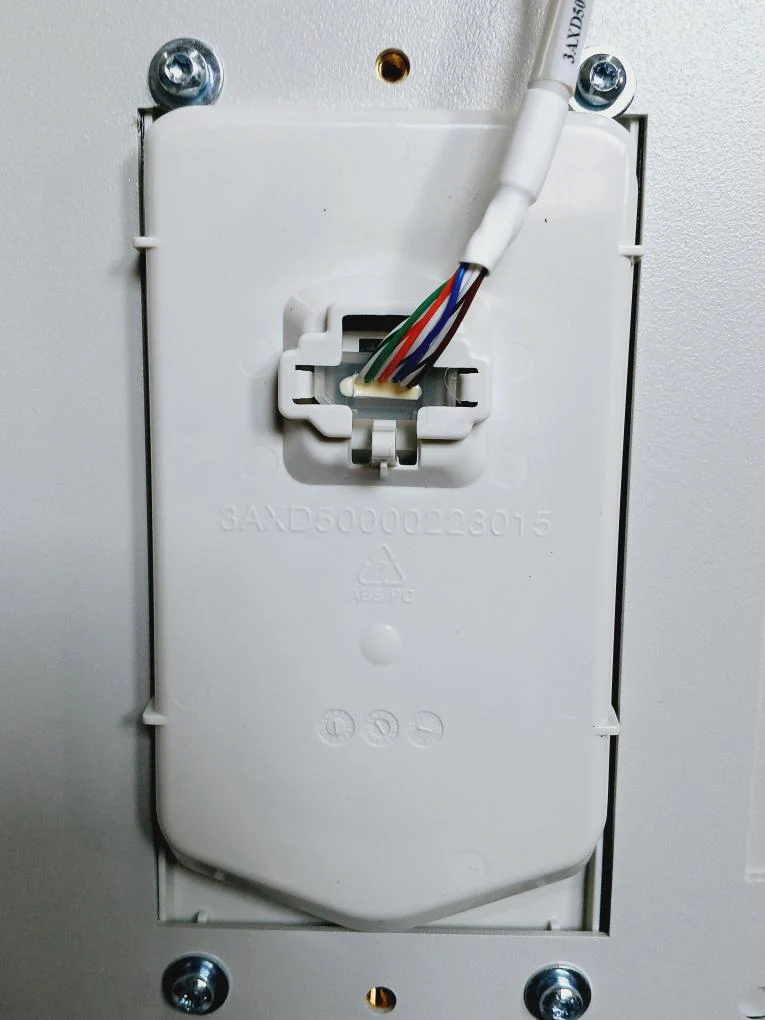

3Axd50000223015

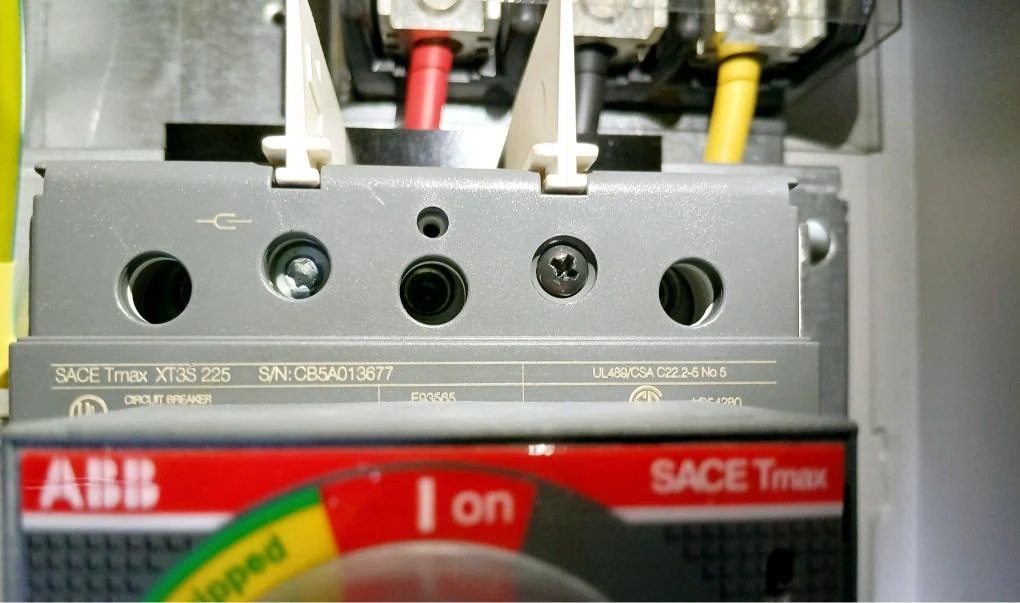

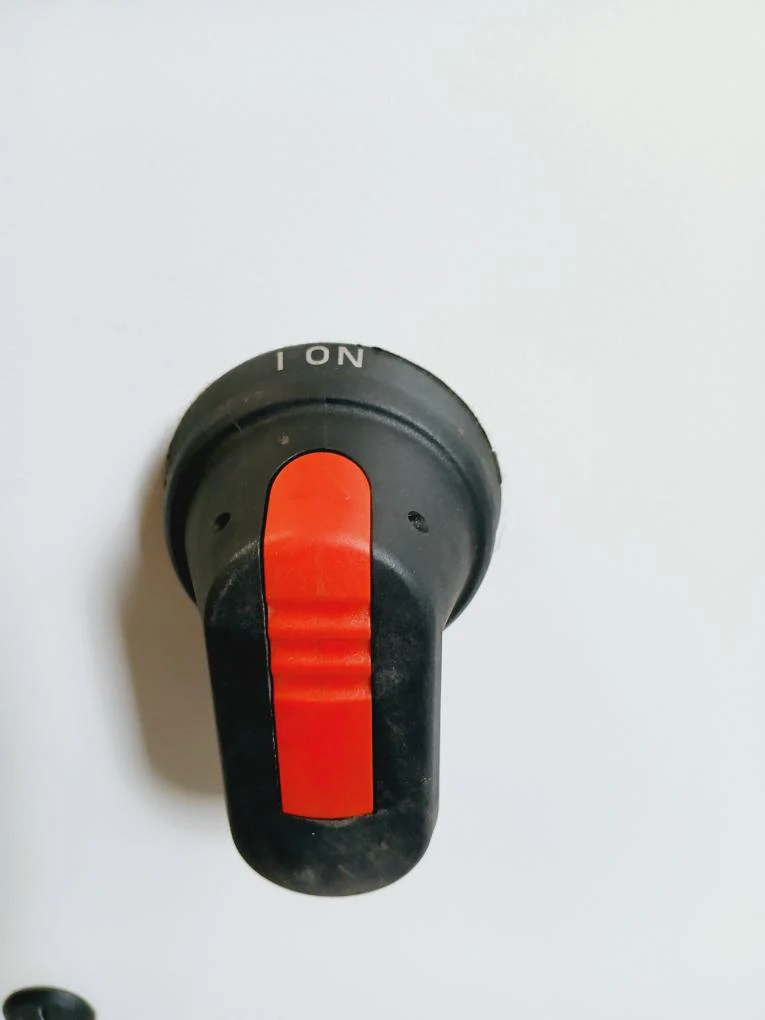

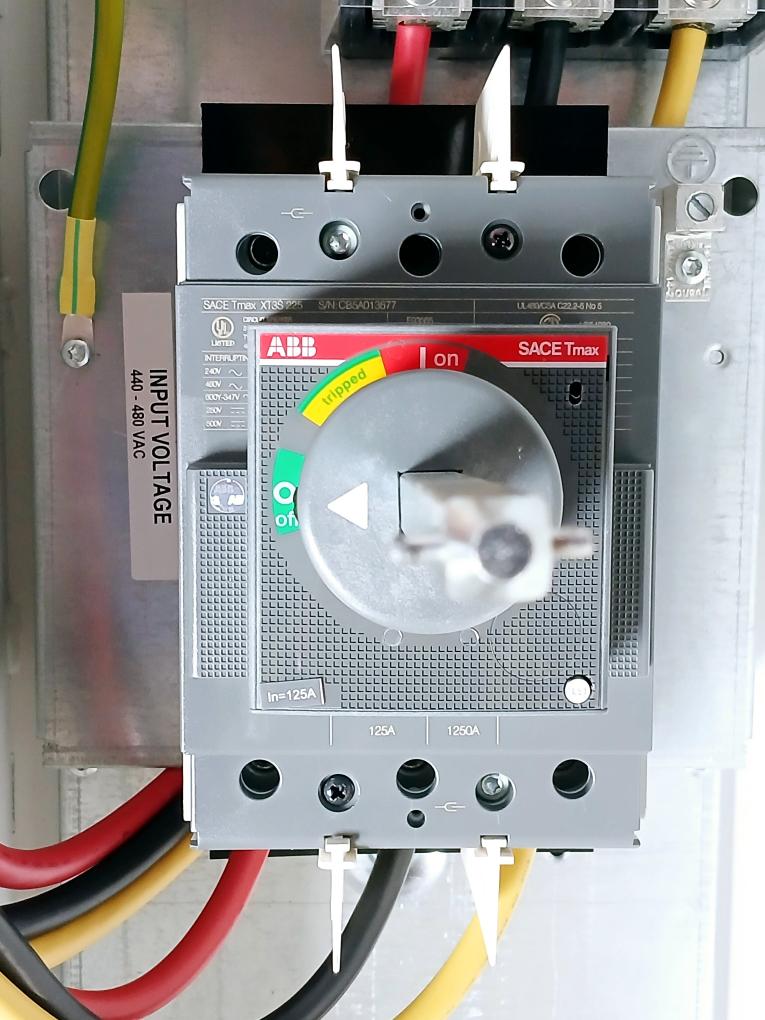

Circuit Breaker
Xt3S 225
Ul489/Csa C22.2-5 No 5
In= 125A
1250A
Input Voltage: 440-480Vac
Ach580-01-077A-4
Relays Max
250Vac
30Vdc
2A

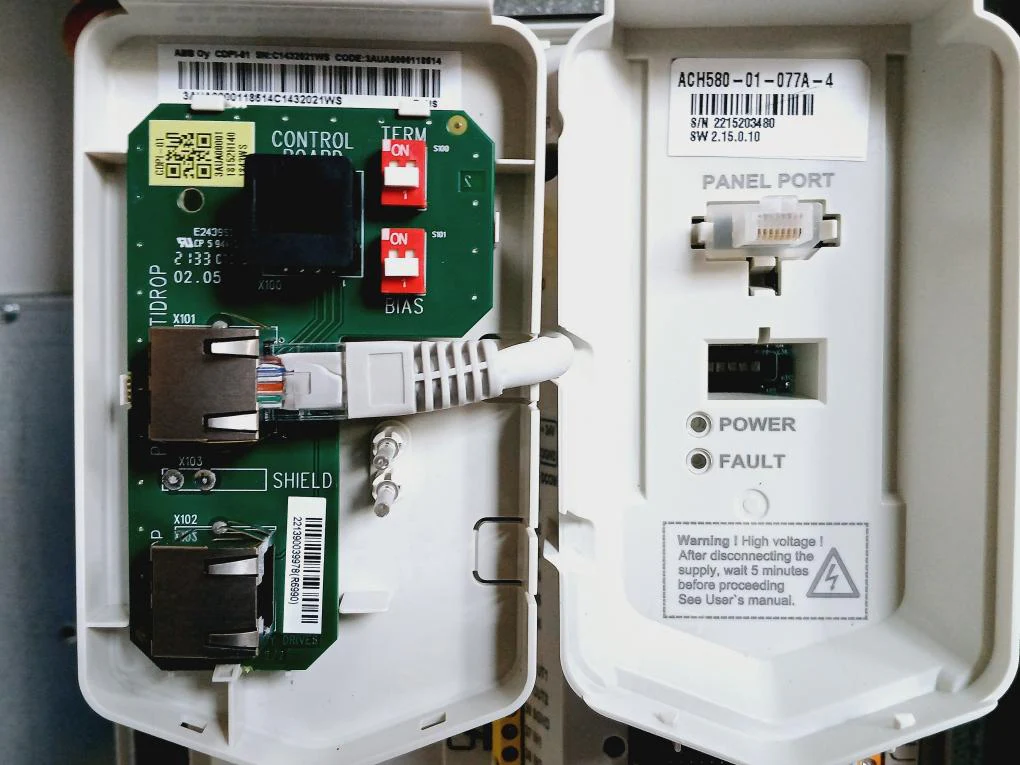

Cdpi-01
Code: 3Aua0000118614
3Aua0000118614C1432021Ws
3Aua0000118152H1401843Ws
E242951
Cp 5
94V-0
Cti 3
10000007806 D
221390039978 (R6990)

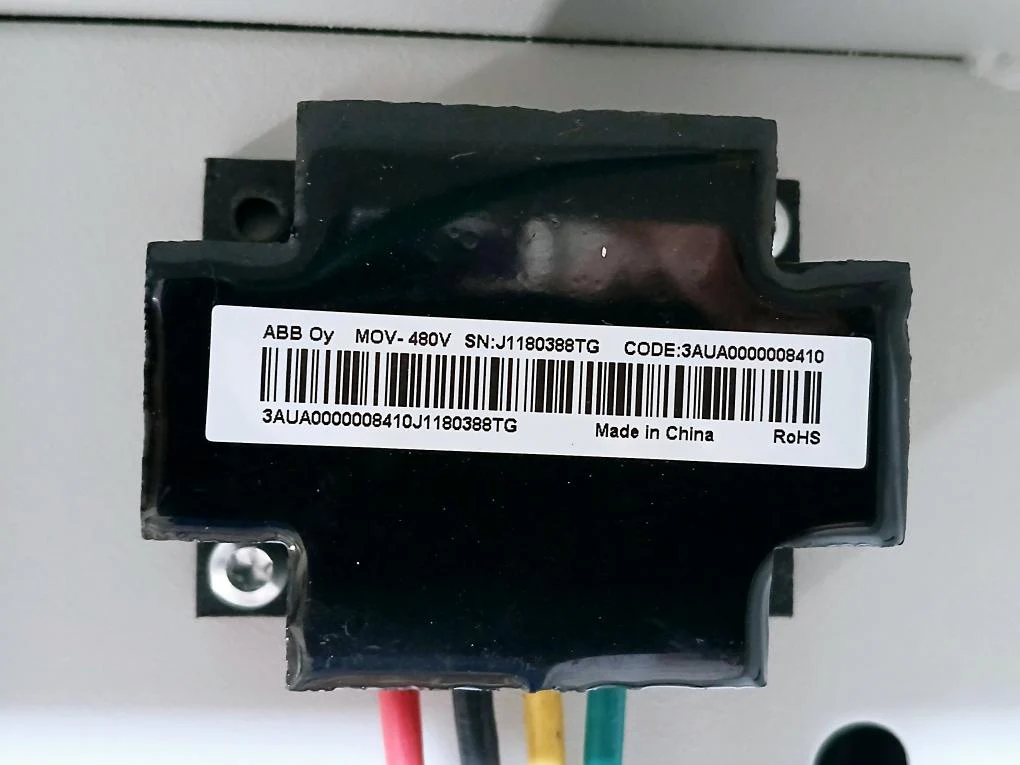

Mov-480V
Code: 3Aua0000008410
3Aua0000008410J1180388Tg
Made In China
Made In Thailand
Made In Usa
Weight: 65 Kg
