Abb Acs800-104-0580-7+E205+Q950+V991 Inverter Drive Module 68685214 709–976 Vdc
Abb Oy
Murrelektronik Power Oy
Ebmpapst

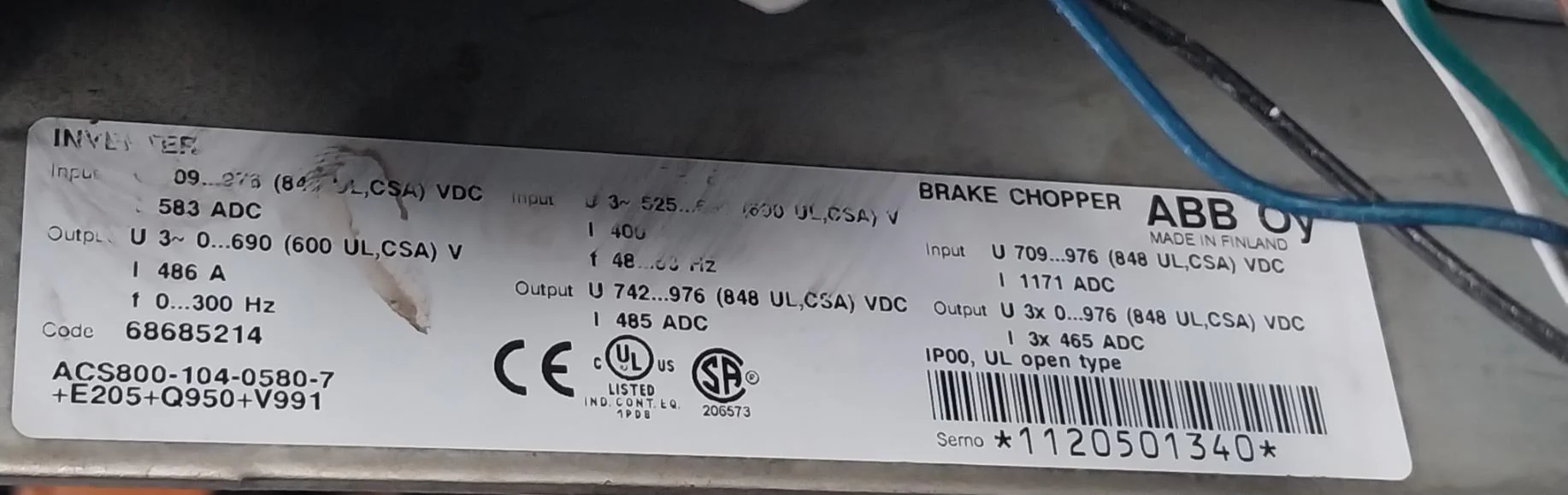

Inverter
Acs800-104-0580-7+E205+Q950+V991
Code: 68685214
Input:
U 709…976 (848 Ul, Csa) Vdc
I 583 Adc
Output:
U 3~ 0…690 (600 Ul, Csa) V
I 486 A
F 0…300 Hz
Line Converter:
Input:
U 3~ 525…690 (600 Ul, Csa) V
I 400 A
F 48…63 Hz
Output:
U 742…976 (848 Ul, Csa) Vdc
I 485 Adc
Brake Chopper
Input:
U: 709…976 (848 Ul, Csa) Vdc
I: 1171 Adc
Output:
U: 3X 0…976 (848 Ul, Csa) Vdc
I: 3X 465 Adc
Ip00, Ul Open Type

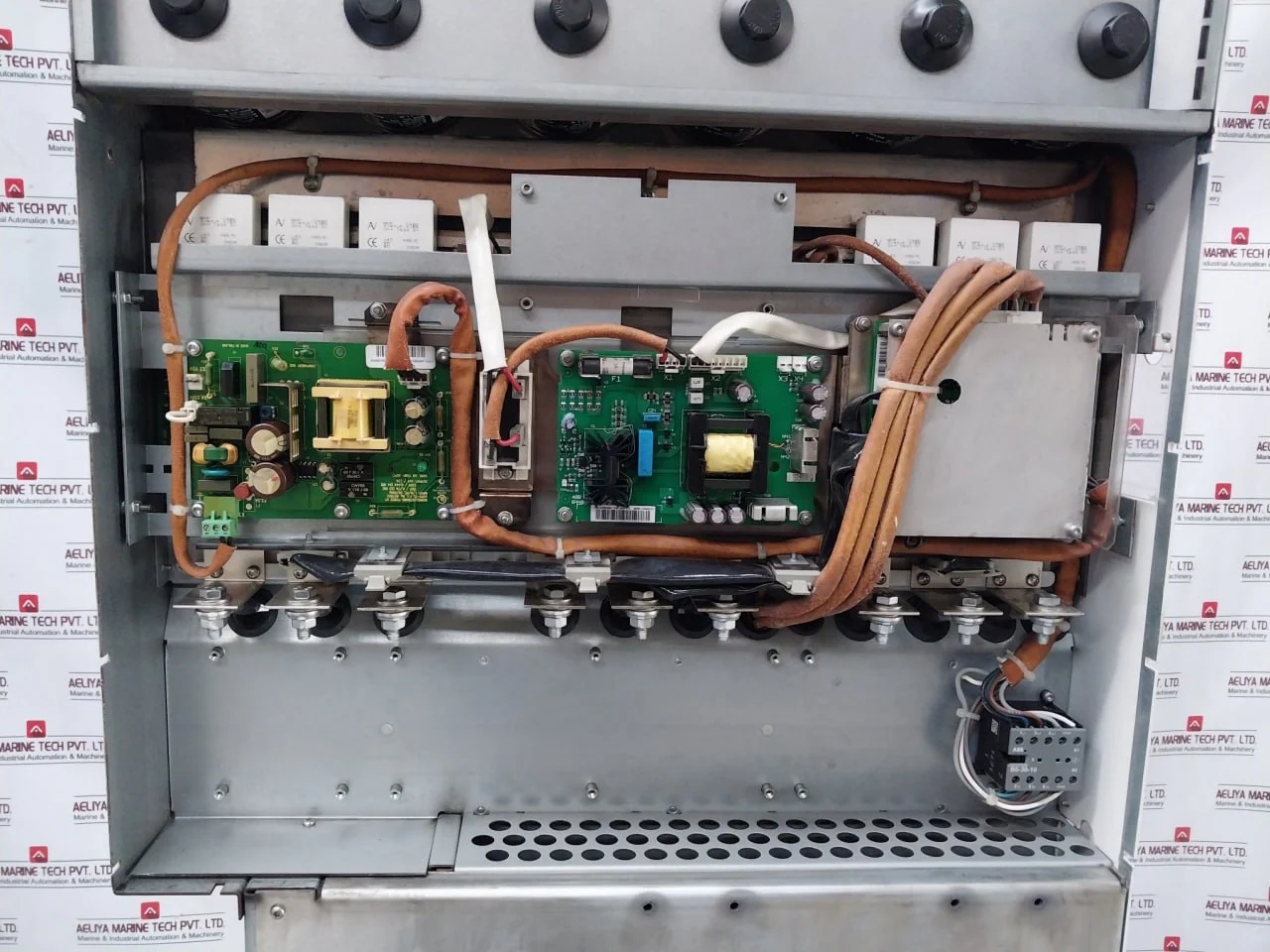

64493647D 1/2
Type: Apow-01C
Code: 6405666B
Type: Agps21C
Code: 64668064A1350476

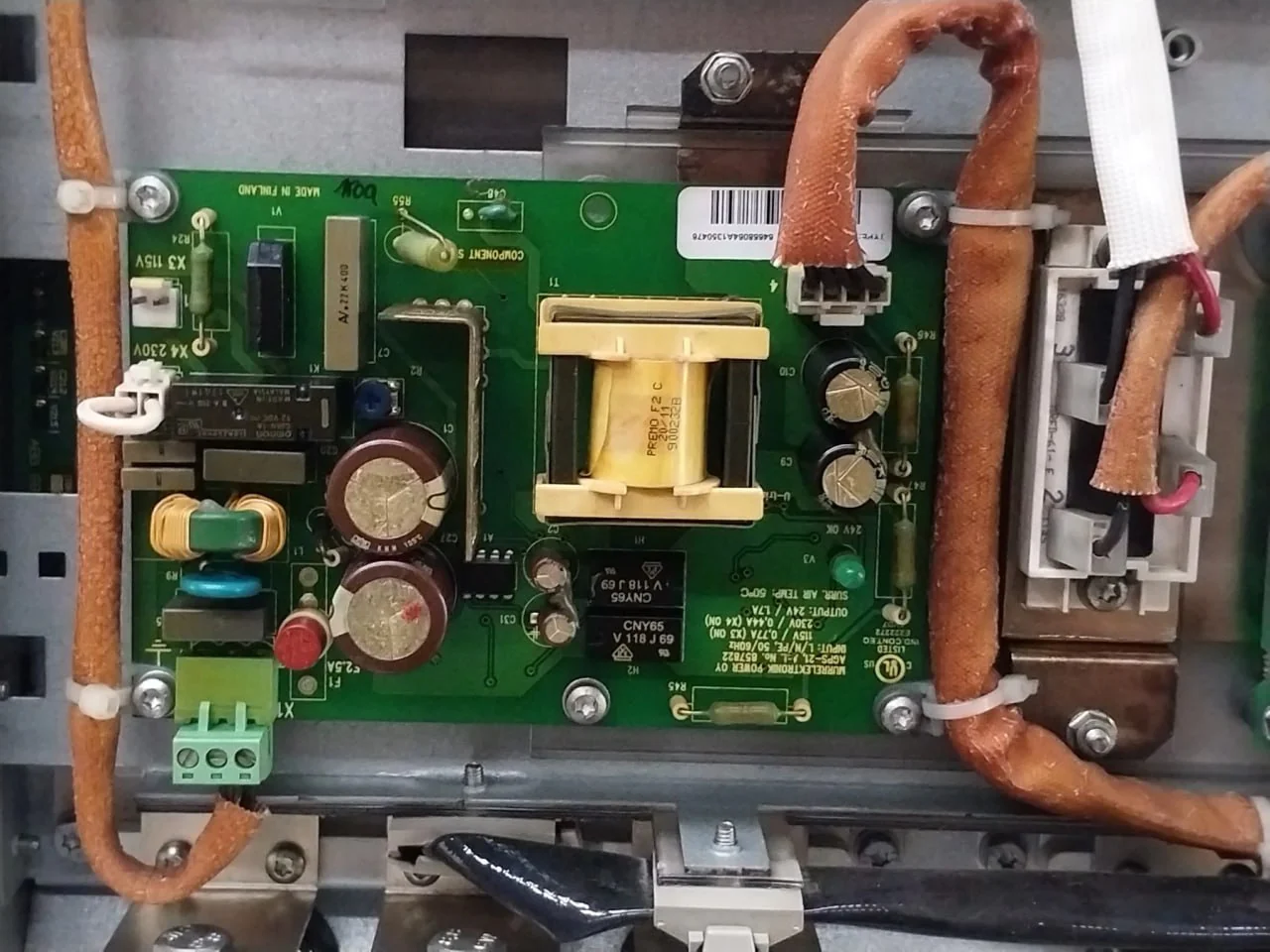

Agps-21
Art No: 857822
Input:
L/N/Pe, 50/60 Hz
115V / 0,77A (X3 On)
230V / 0,44A (X4 On)
Output: 24V / 1.7A
Surr. Air Temp: 50°C
E222272
Type: Aint-14C
Code: 68685826D
68439990A 1/4
Eton Et856 94V-0
Type: Agdr-71C
Rev: B
Atmb-01C
Rev: B
68908574B 1/2
68295505 C 1/2
Type: Aofc-02
Code: 68295459C
D2D160-be02-11
64650424
230/400V~ 50Hz 700W 2700Min-1
*M2D074 230/400V~ 60Hz 1055W 3000Min-1
A009947
Made In Germany
Made In Finland
Weight: 133 Kg
