Abb Acs800-104Lc-0700-7+E205+Q950 Inverter Drive Module Aofc-03,Agps21C,Aint-14C
Abb Oy
Murrelektronik Power Oy
Acs800-104Lc-0700-7+E205+Q950
Code: 68606039
Inverter:
Input:
U: 709…976 (848 Ul, Csa) Vdc
I: 700 Adc
Output:
U: 3~ 0…690 (600 Ul, Csa) V
I: 583 A
F: 0…300 Hz
Line Converter:
Input:
U: 3~ 525…690 (600 Ul, Csa) V
I: 480 A
F: 48…63 Hz
Output:
U: 742…976 (848 Ul, Csa) Vdc
I: 582 Adc
Brake Chopper:
Input:
U: 709…976 (848 Ul, Csa) Vdc
I: 1171 Adc
Output:
U: 3X 0…976 (848 Ul, Csa) Vdc
I: 3X 465 Adc
Ip00
58978396 C
64791745
6865 2162 C
Use 75°C Rated Wire Only For Field Wiring Terminals
3Aua0000080118
68614112 B
Type: Aofc-03
Rev: A
68615976A8431356

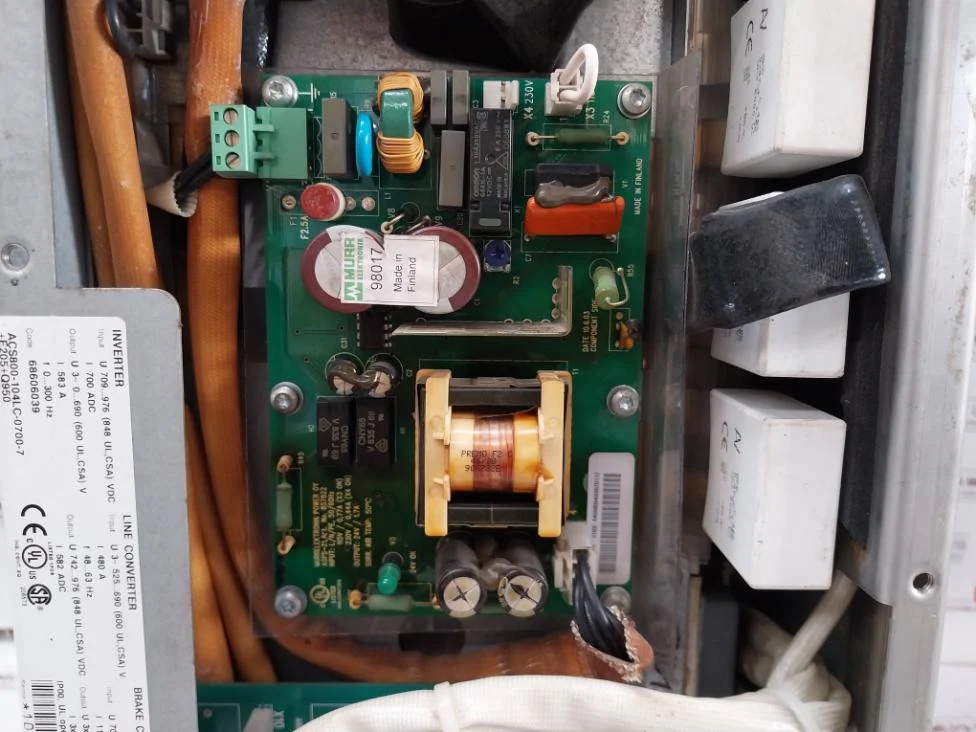

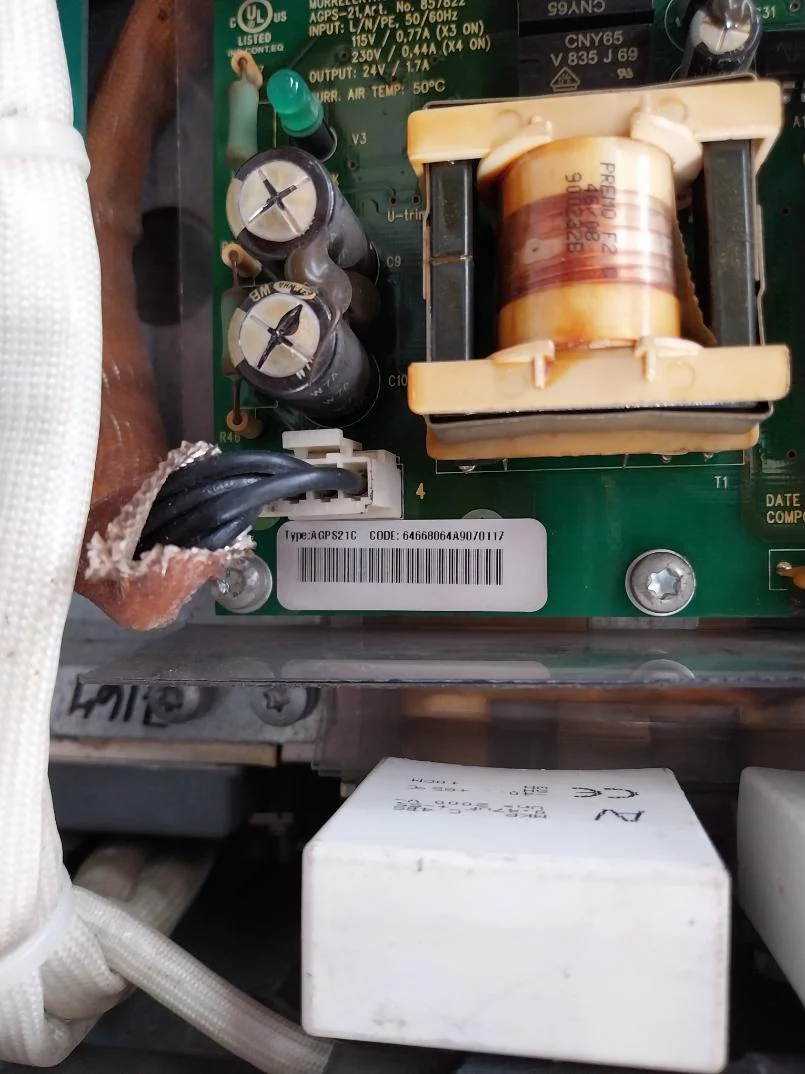

Agps-21, Art. No. 857822
Input: L/N/Pe, 50/60Hz
115V/0,77A (X3 On)
230V/0,44A (X4 On)
Output: 24V/1.7A
Surr. Air Temp: 50°C
Type: Agps21C
Code: 64668064A9070117
Code: 68685826C
Type: Aint-14C
64493647D 1/2
Code: 64605666B
Type: Apow-01C
68628113D
Made In Finland
Weight: 108 Kg
