Abb Hd4/W 12.06.32 Circuit-breaker Iec 62271-100 12 Kv 630 A 50/60 Hz

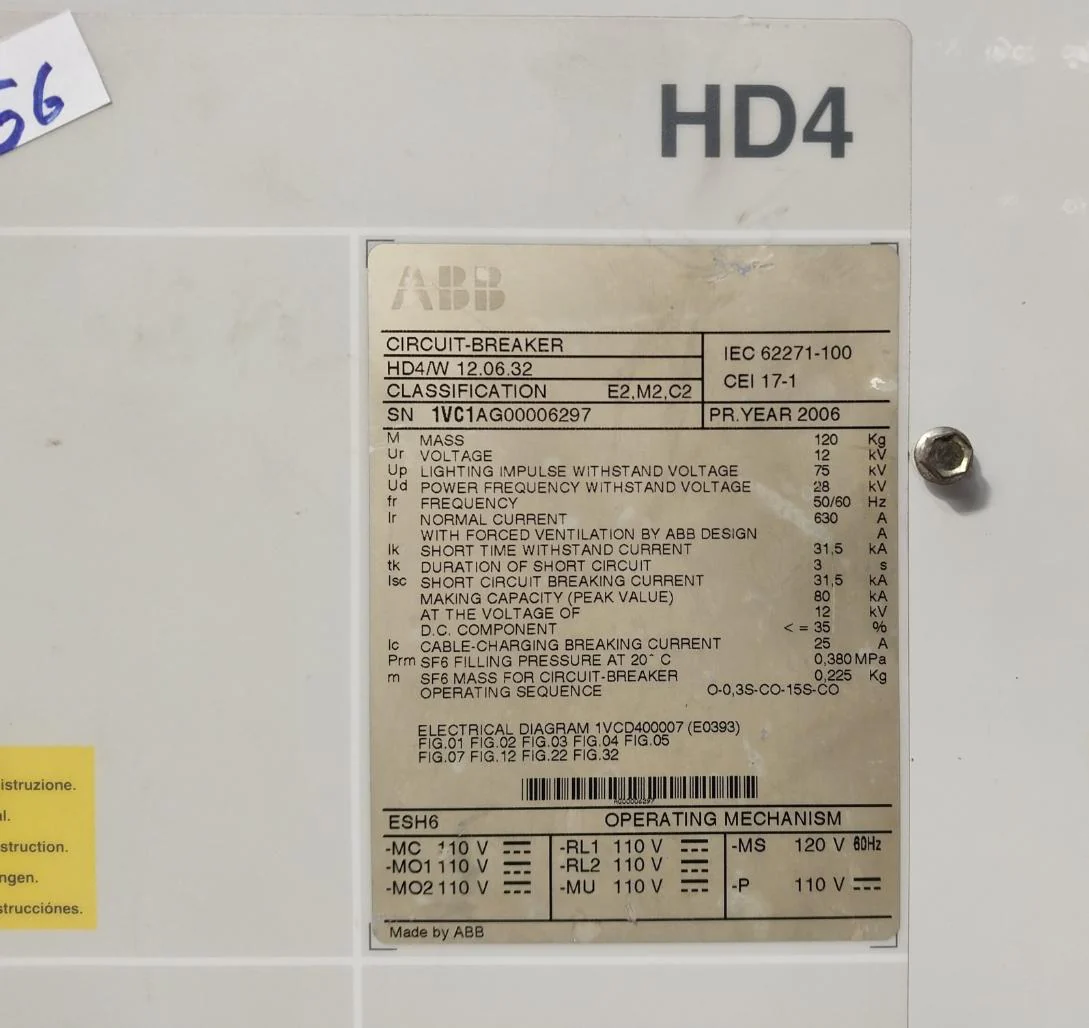

Made By Abb
Abb Inc.
Circuit-breaker
Hd4
Hd4/W 12.06.32
Classification: E2, M2, C2
Iec 62271-100
Cei 17-1
Ur Voltage: 12 Kv
Up Lighting Impulse Withstand Voltage: 75 Kv
Ud Power Frequency Withstand Voltage: 28 Kv
Fr Frequency: 50/60 Hz
Ir Normal Current: 630 A
Ik Short Time Withstand Current: 31.5 Ka
Tk Duration Of Short Circuit: 3 S
Isc:
Short Circuit Breaking Current: 31,5 Ka
Making Capacity (Peak Value): 80 Ka
At The Voltage Of: 12 Kv
D.C. Component: Less Than= 35 %
Ic Cable-charging Breaking Current: 25 A
Prm Sf6 Filling Pressure At 20 C: 0,380 Mpa
Operating Sequence: O-0,3S-co-15S-co
Hg00006297
Esh6

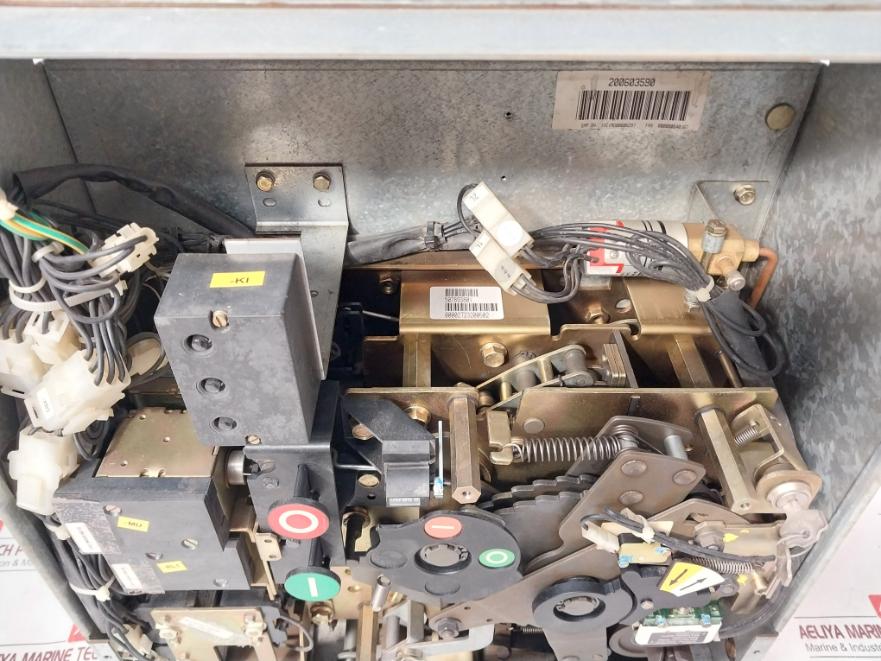

Operating Mechanism
-mc/-mo1/-mo2/-rl1/-rl2/-mu/-p 110 V---
-ms 120 V 60Hz
Sf6
Name: C.Stat
200603590
Fas: 000000640167
507893801
00002723200602
1Vc1U8H13A01C
1Vc1W0881A01C
509155-823
Gen 06
Elt-abb Pt
506450801
00004313200601
00004311200601
00004289200601
433033-831
Saap Cavi
Type Y1
Ui: 380V~
Ith2: 16 A
Weight: 114.600 Kg
