Air Torque Dr00030U Al Pneumatic Actuator 8 Bar Ip66 / Ip67 24V Dc 360 Ma
Air Torque
Parker Lucifer

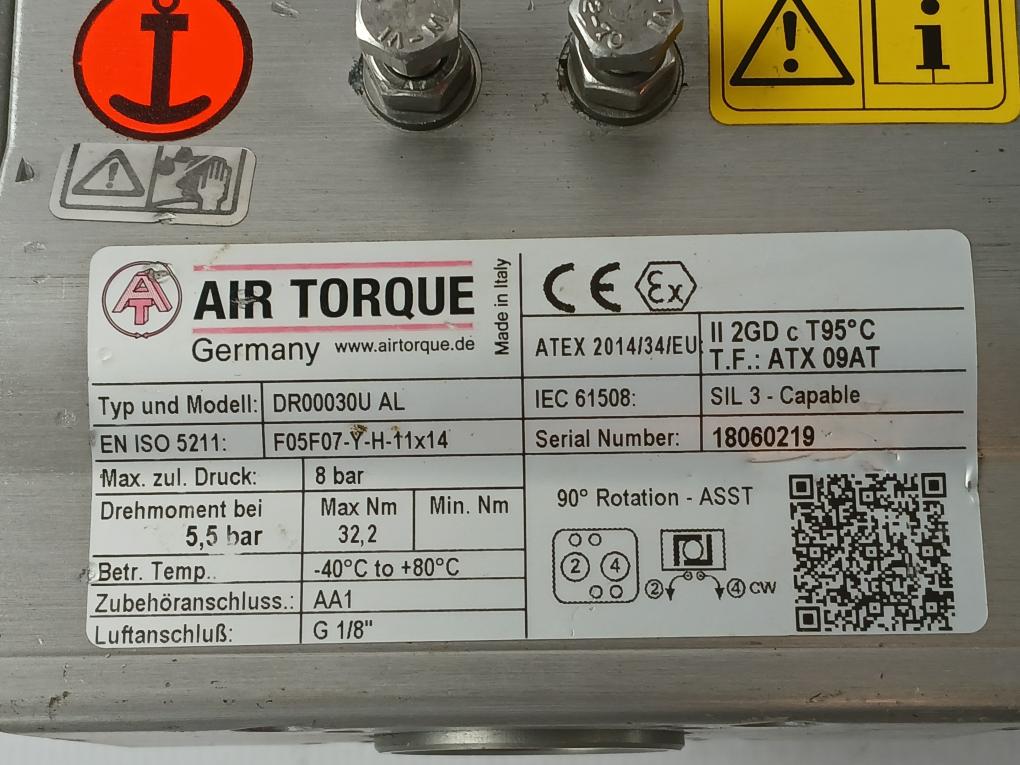

Typ Und Modell/Type And Model: Dr00030U Al
En Iso 5211: F05F07-y-h-11X14
Max. Zul.Druck/Max Allowed Pressure: 8 Bar
Drehmoment Bei/Torque At: 5,5 Bar
Max Nm: 32,2
Betr. Temp./Operating Temp.: -40°C To +80°C
Zubehoranschluss/Accessory Connection: Aa1
Luftanschluẞ/Air Connection: G 1/8”
90°Rotation-asst
Torque For Cover 1,5 To 2 Nm
Cat. No 341N35
10 Bar
Orif. 7 Mm
482993E
P/N: 495905C2
Ip66/67
Un: 24V=
In: 360 Ma
T 130°C
Tamb: -40 To 80°C
341N35
Designed In Switzerland
Made In Italy
Weight: 2.420 Kg
