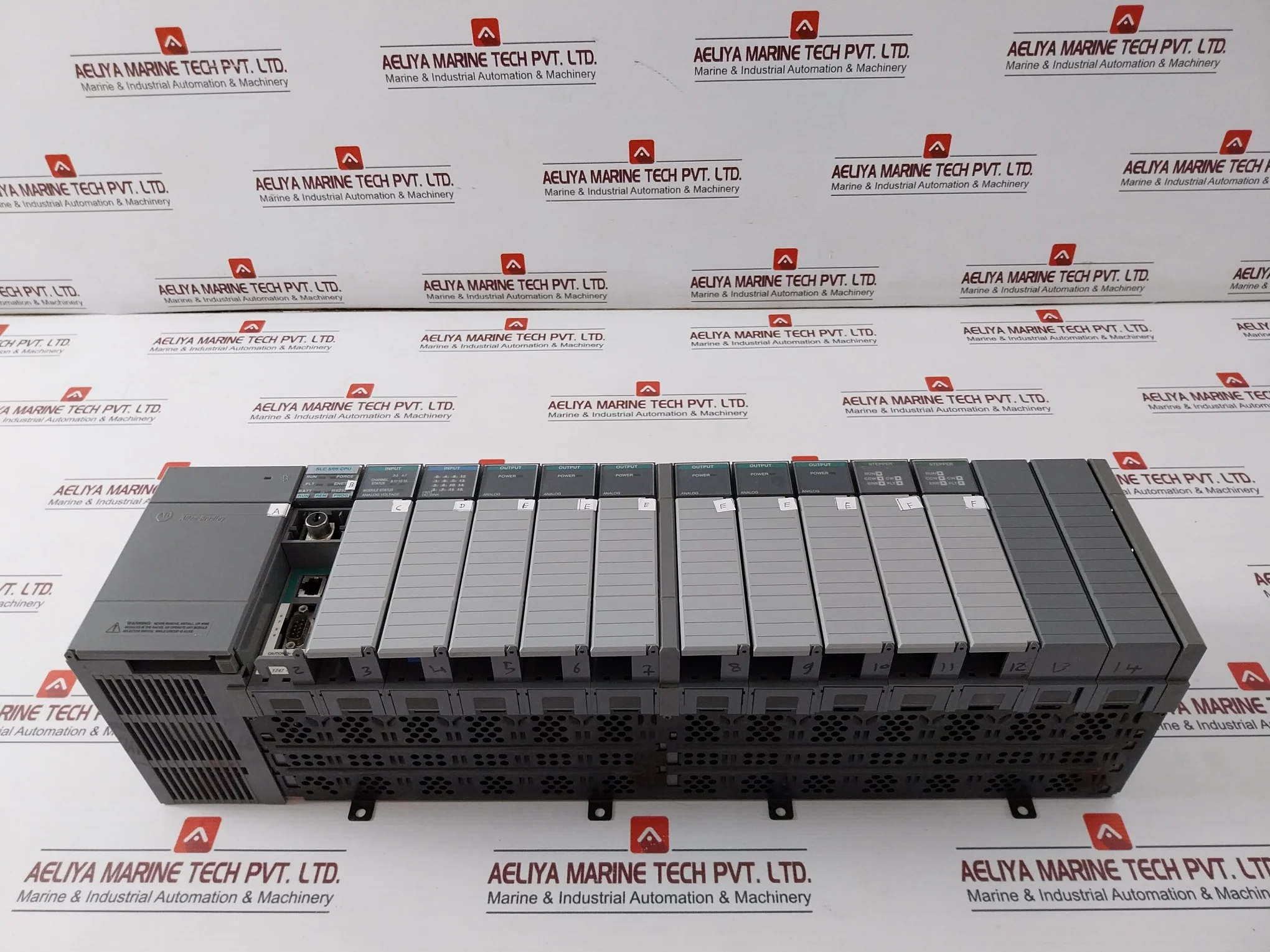

Allen-bradley Slc 500 Controller 120/240Vac
Allen-bradley
A-b
Slc 500

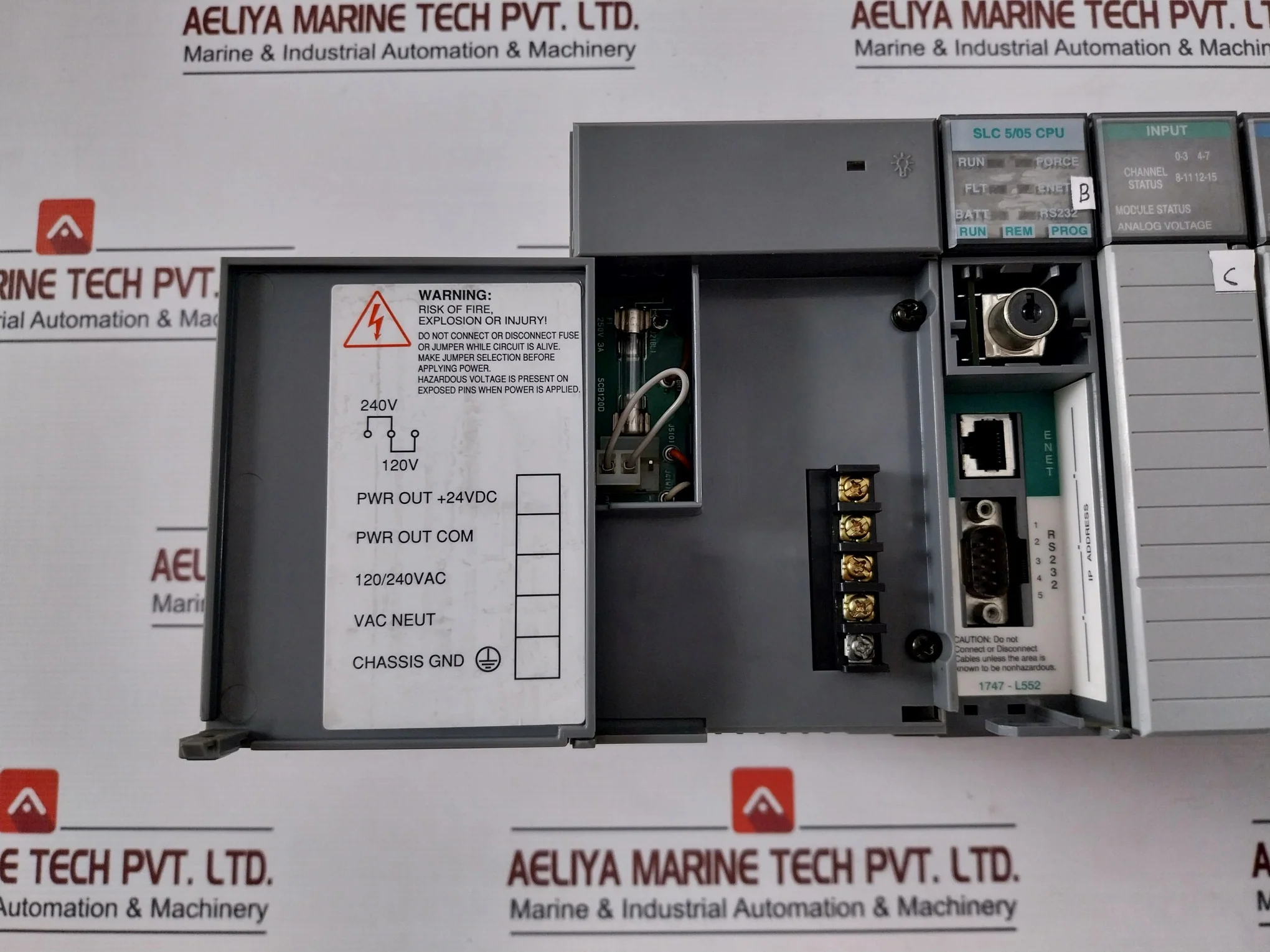

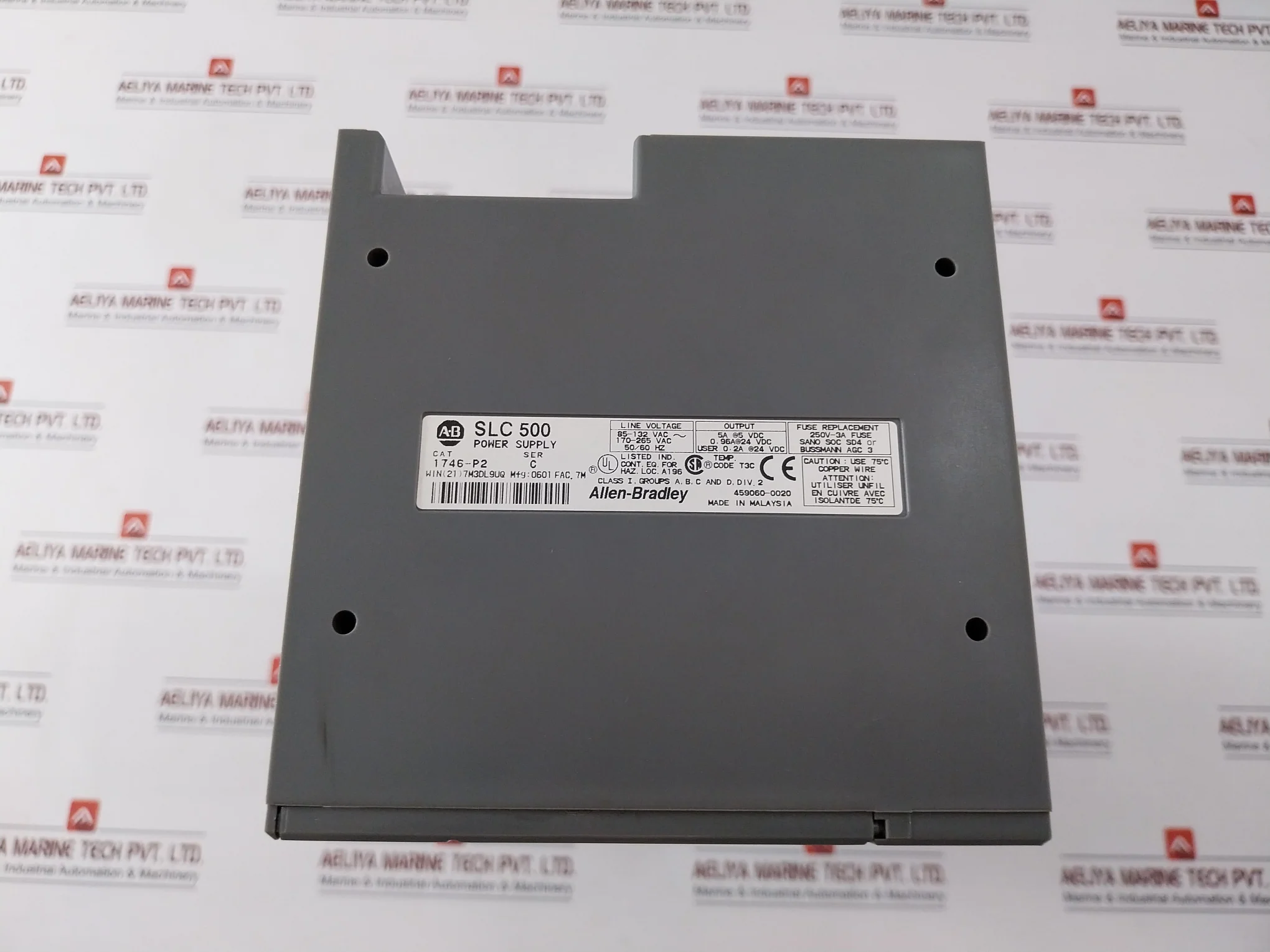

Power Supply
Cat: 1746-p2
Ser. C
Win (21) 7M3Dl9Uq
Fac. 7M
120/240Vac
Line Voltage:
85-132Vac~
170-265Vac
50/60Hz
Output:
5A @5Vdc
0.96A @24Vdc
User 0.2A @24Vdc
459060-0020
Use 75˚C Copper Wire

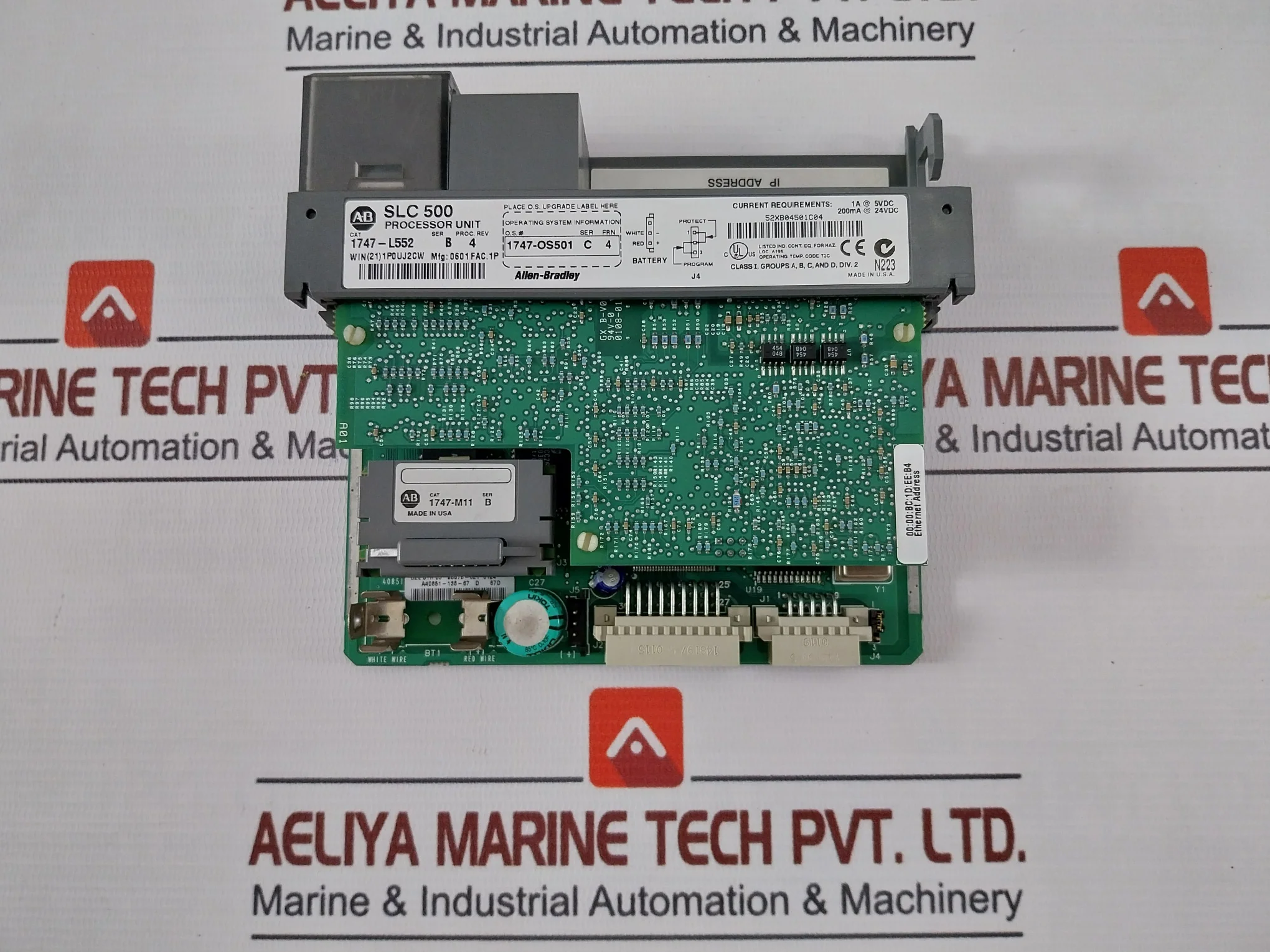

Processor Unit

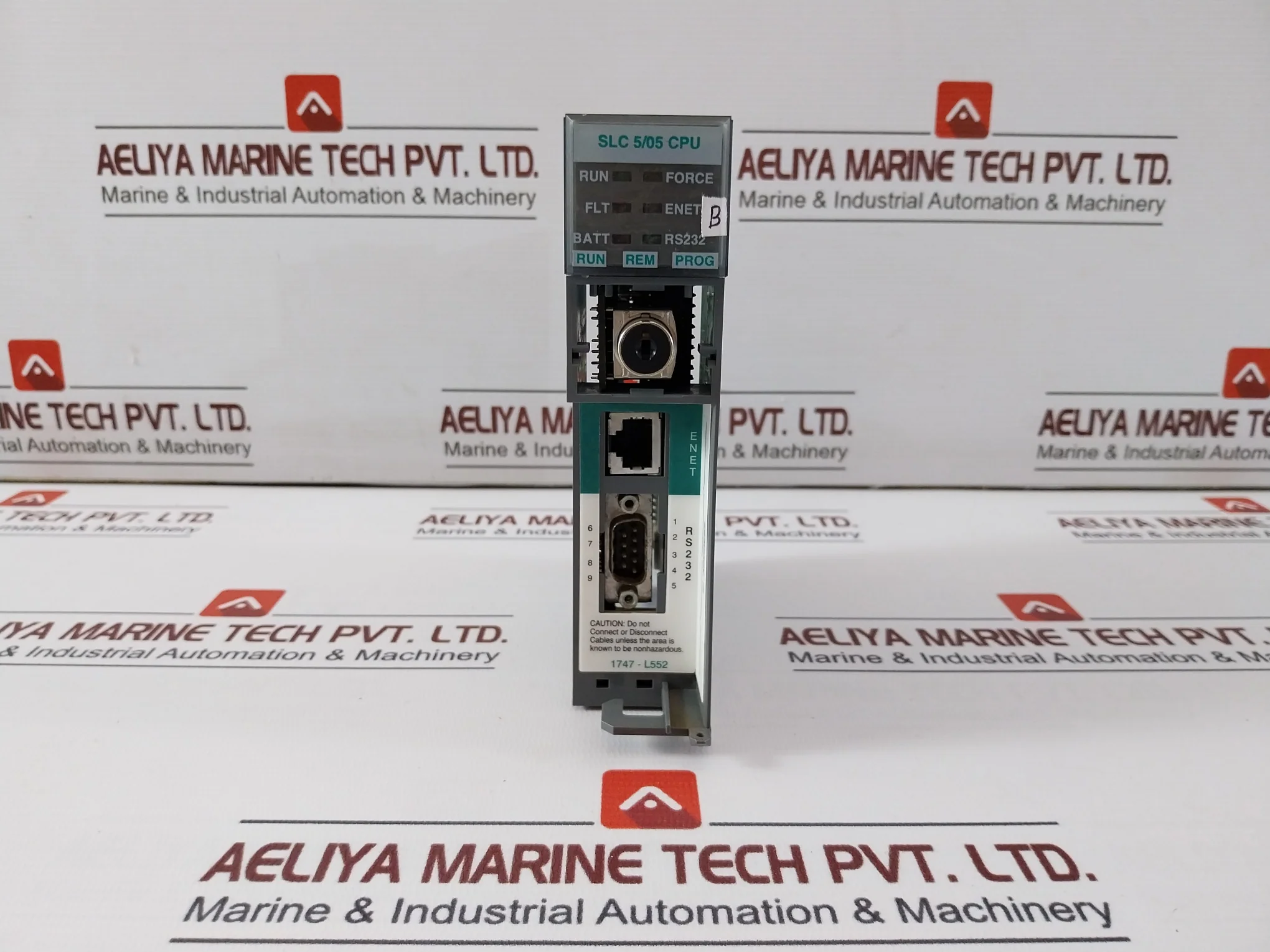

Slc 5/05 Cpu
Cat: 1747-l552
Ser. B
Proc. Rev: 4
Win (21) 1P0Uj2Cw
Fac. 1P
Operating System Information
O.S#: 1747-os501
Current Requirements:
1A @5Vdc
200Ma @24Vdc
Operating Temp Code T3C
52Xb04501C04
Gx B-v0
94V-0
0108-01
00:00:Bc:1D:Ee:B4
40851
D2E 51H 03
98676-821
0124
A40851-138-67 D 67D
40851-157-10A
Cat: 1747-m11

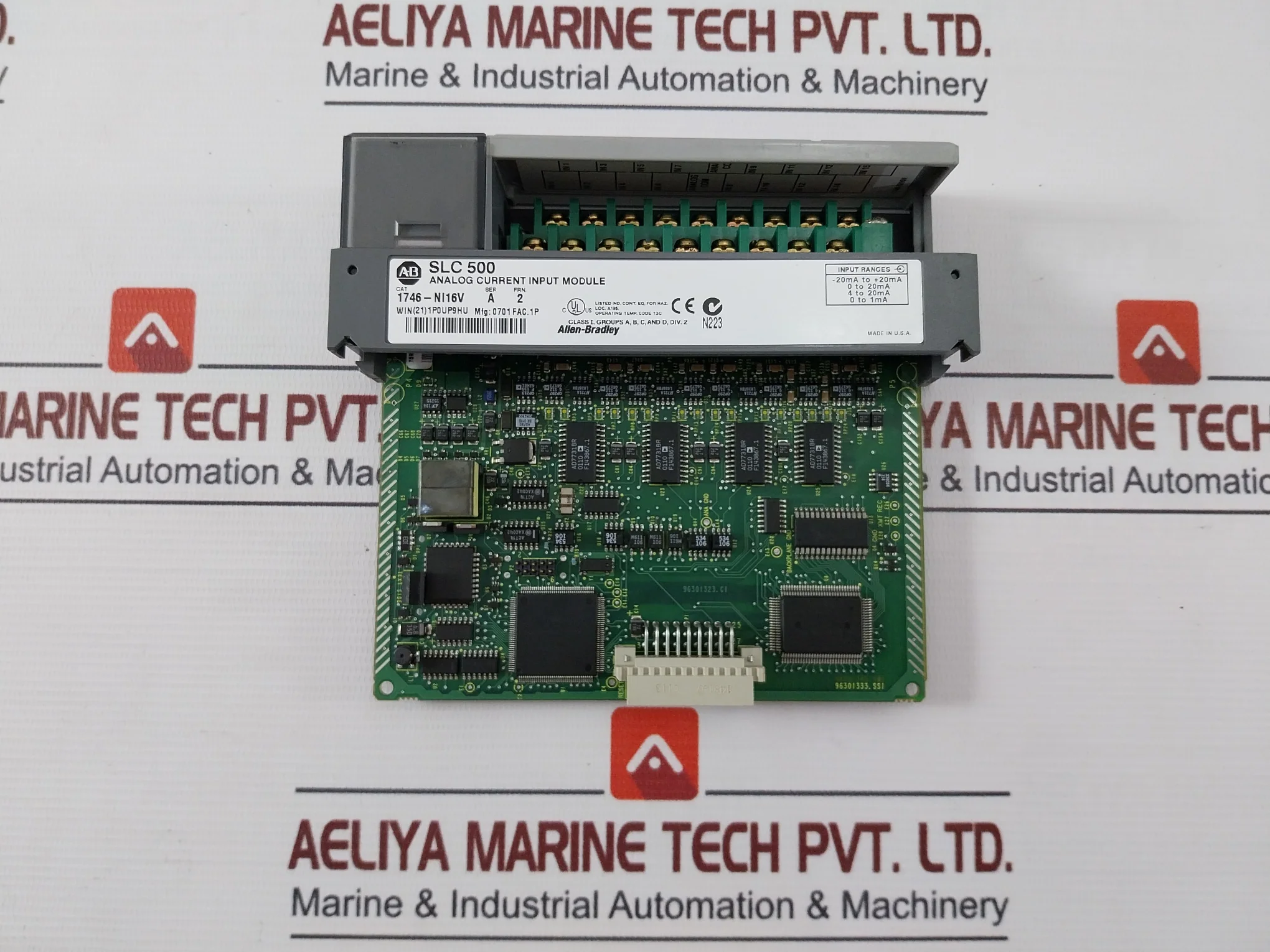

Analog Current Input Module
Cat: 1746-ni16V
Ser. A
Frn: 2
Win (21) 1P0Up9Hu
Input Ranges:
-20Ma To +20Ma
0 To 20Ma
4 To 20Ma
0 To 1Ma
96301323.Ci
96301333.Ssi
96301343.Smi
963012
Tdr S87 01
98678-713
0126
A40851-300-52 A
01C01

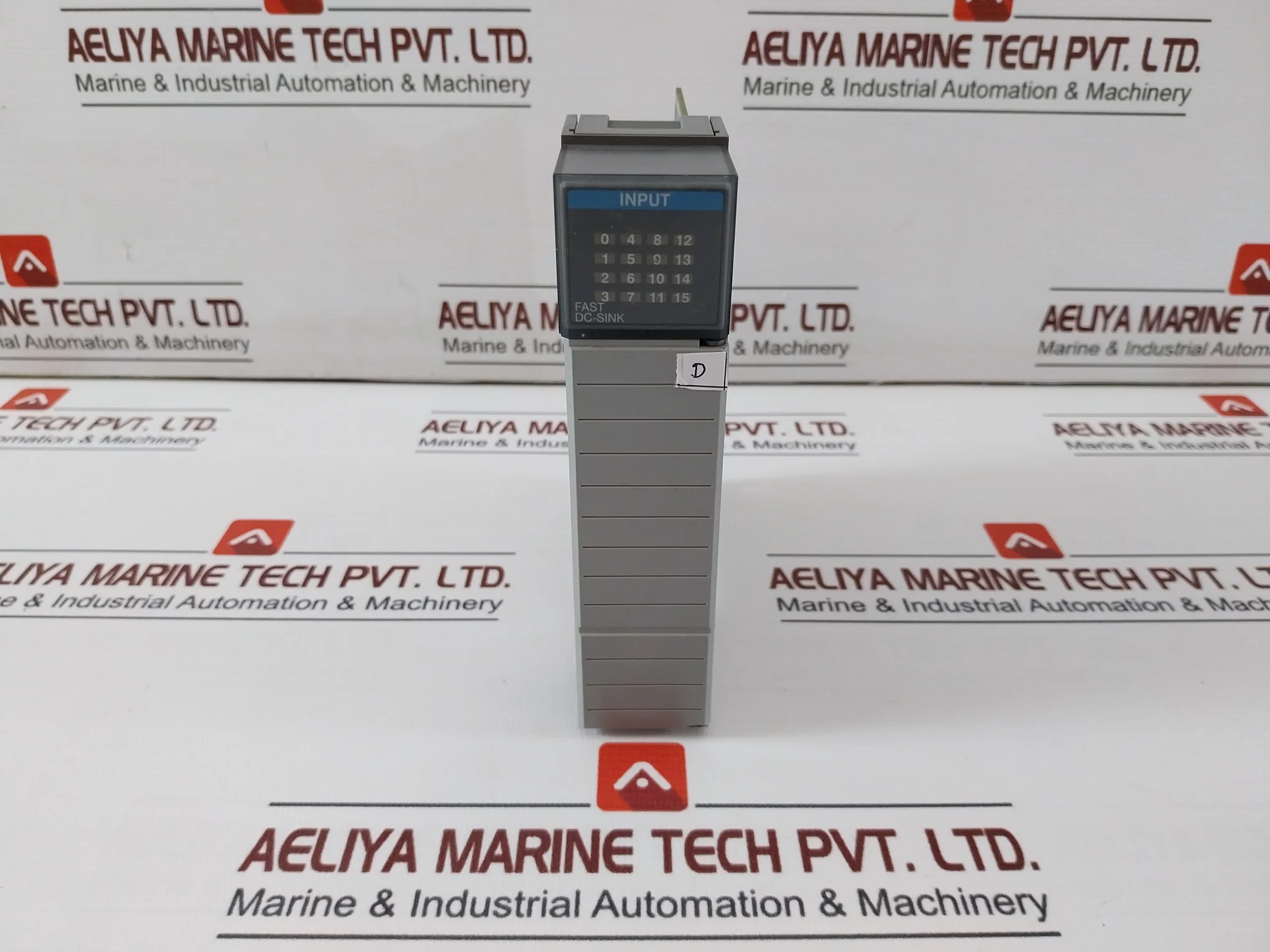

Dc-sink

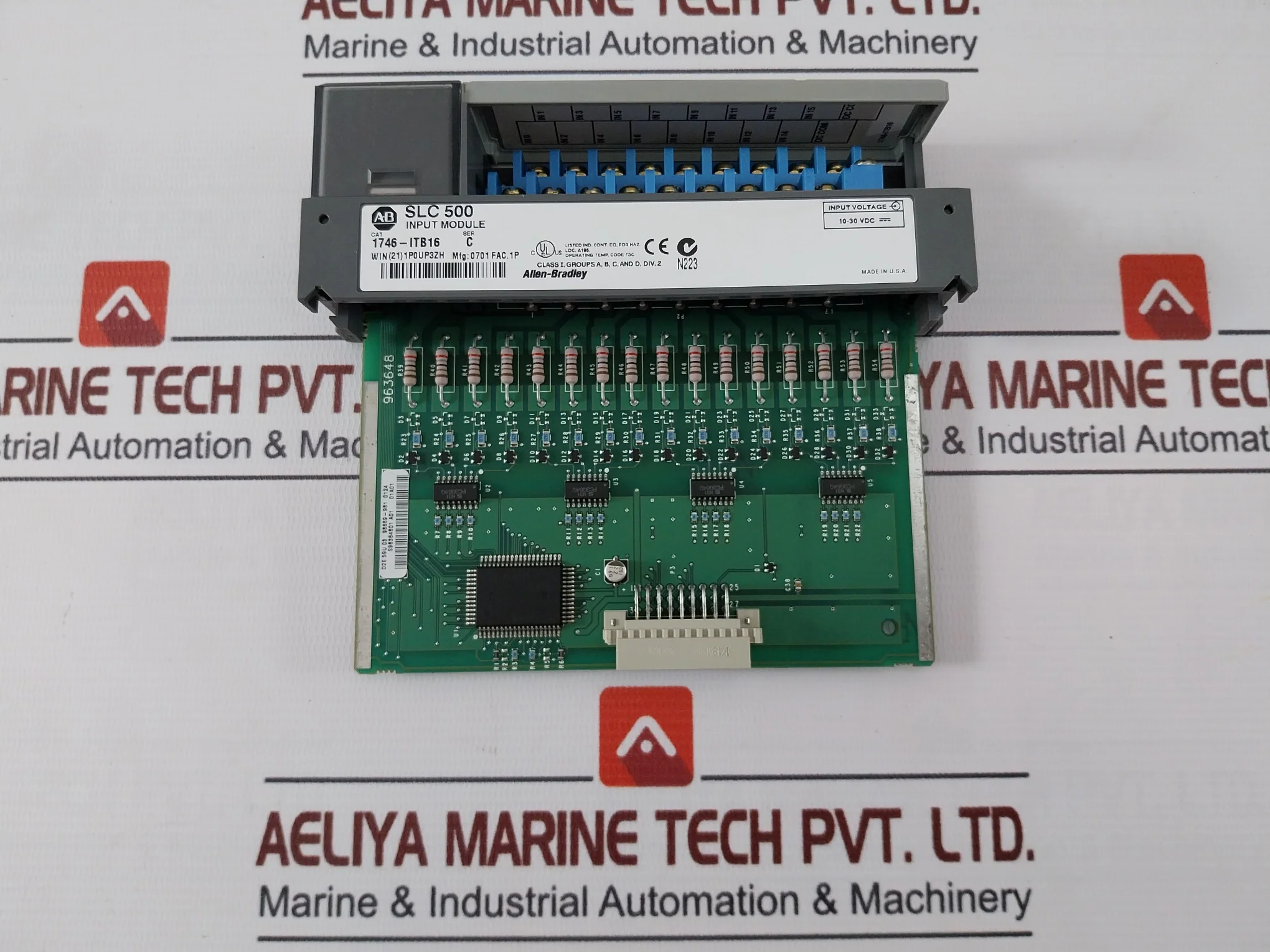

Input Module
Cat: 1746-itb16
Win (21) 1P0Up3Zh
Input Voltage: 10-30Vdc---
963648
D2E 59U 03
98669-981 0124
S96364801 A01 01A01
Vkl0108
96364892 A01

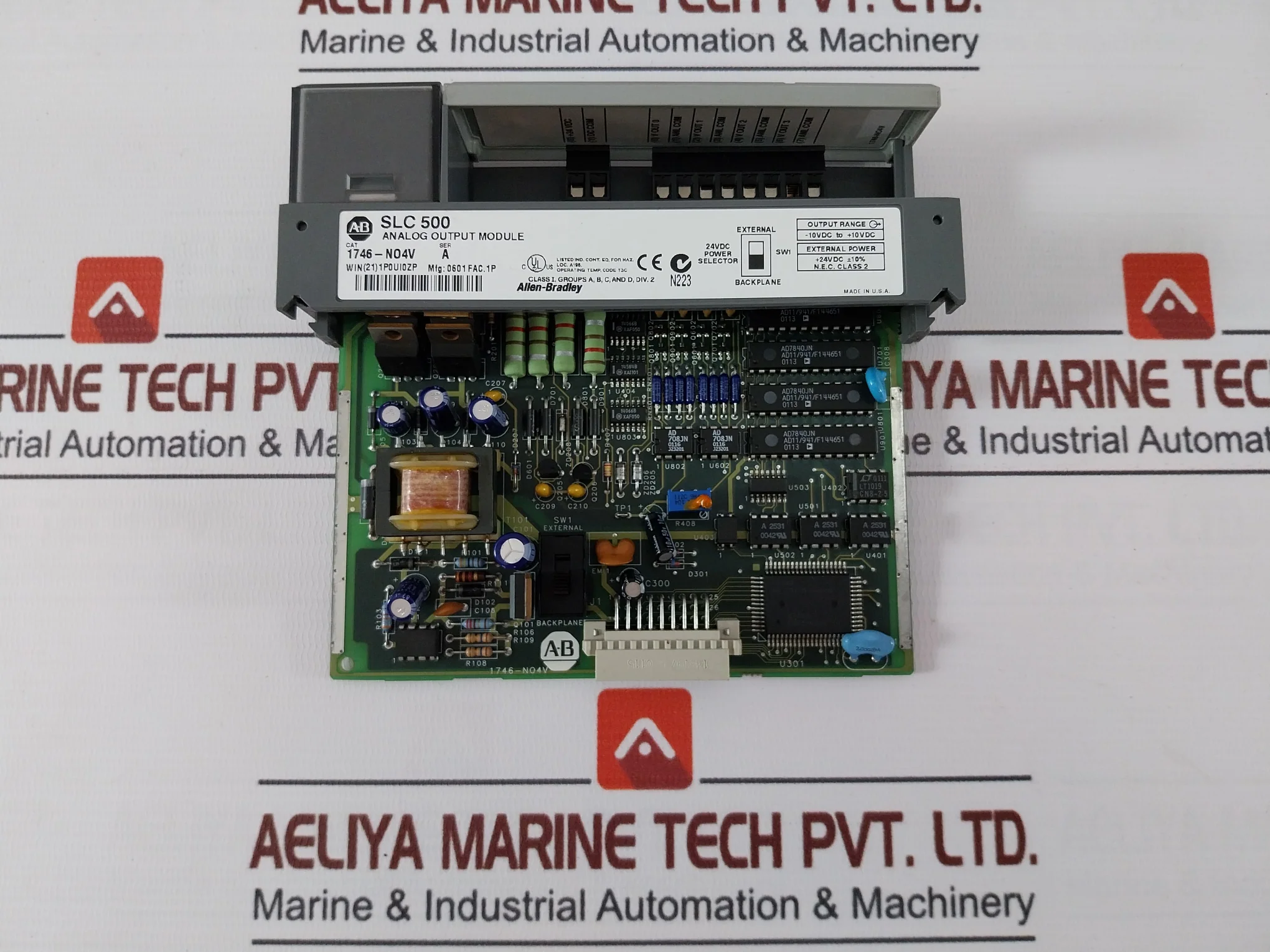

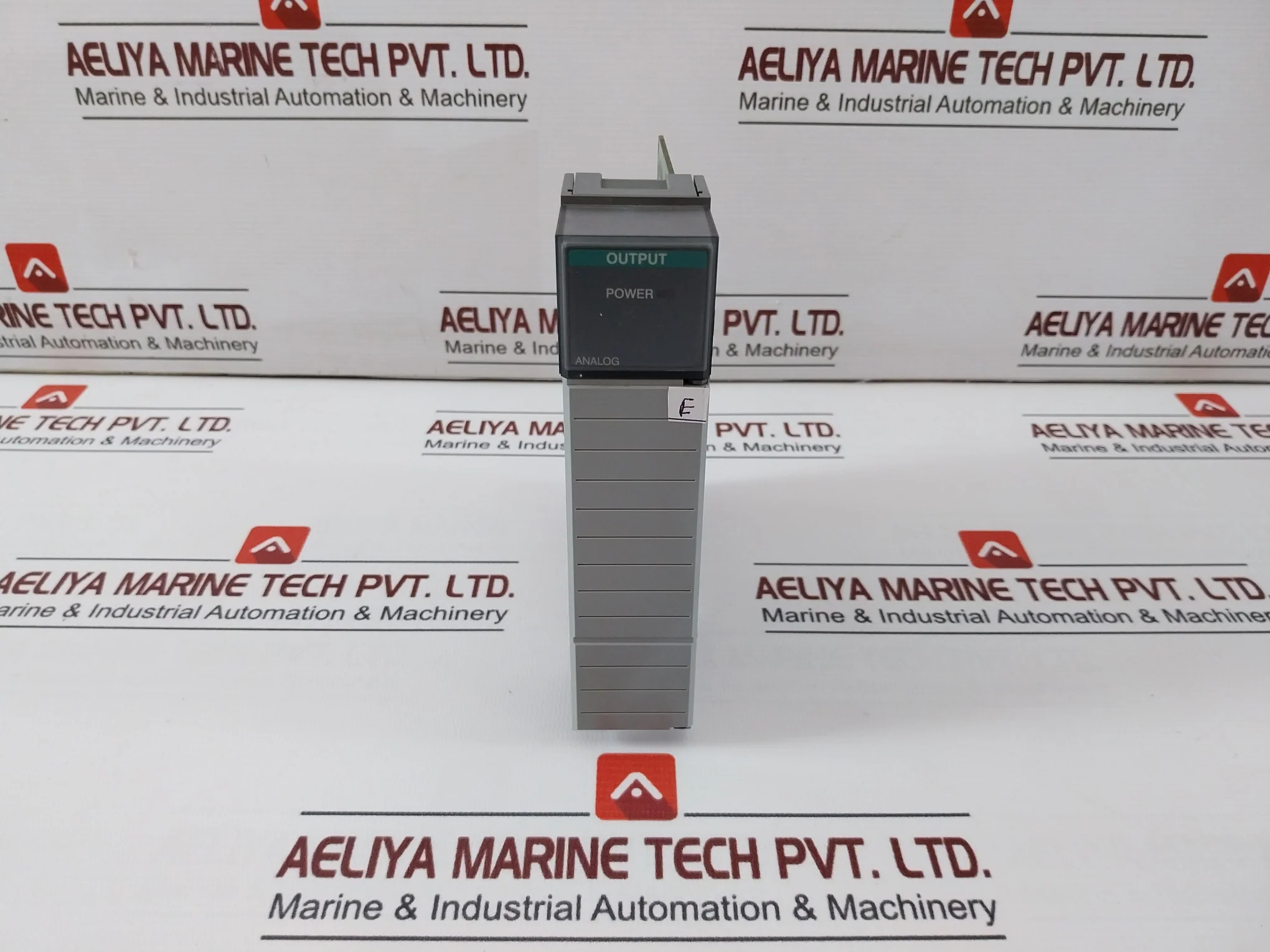

Analog Output Module
Cat. 1746-n04V
Win (21) 1P0Ui0Zp
Output Range: -10Vdc To +10Vdc
External Power:
+24Vdc ±10%
N.E.C. Class 2
Kalex
40847-146-04A

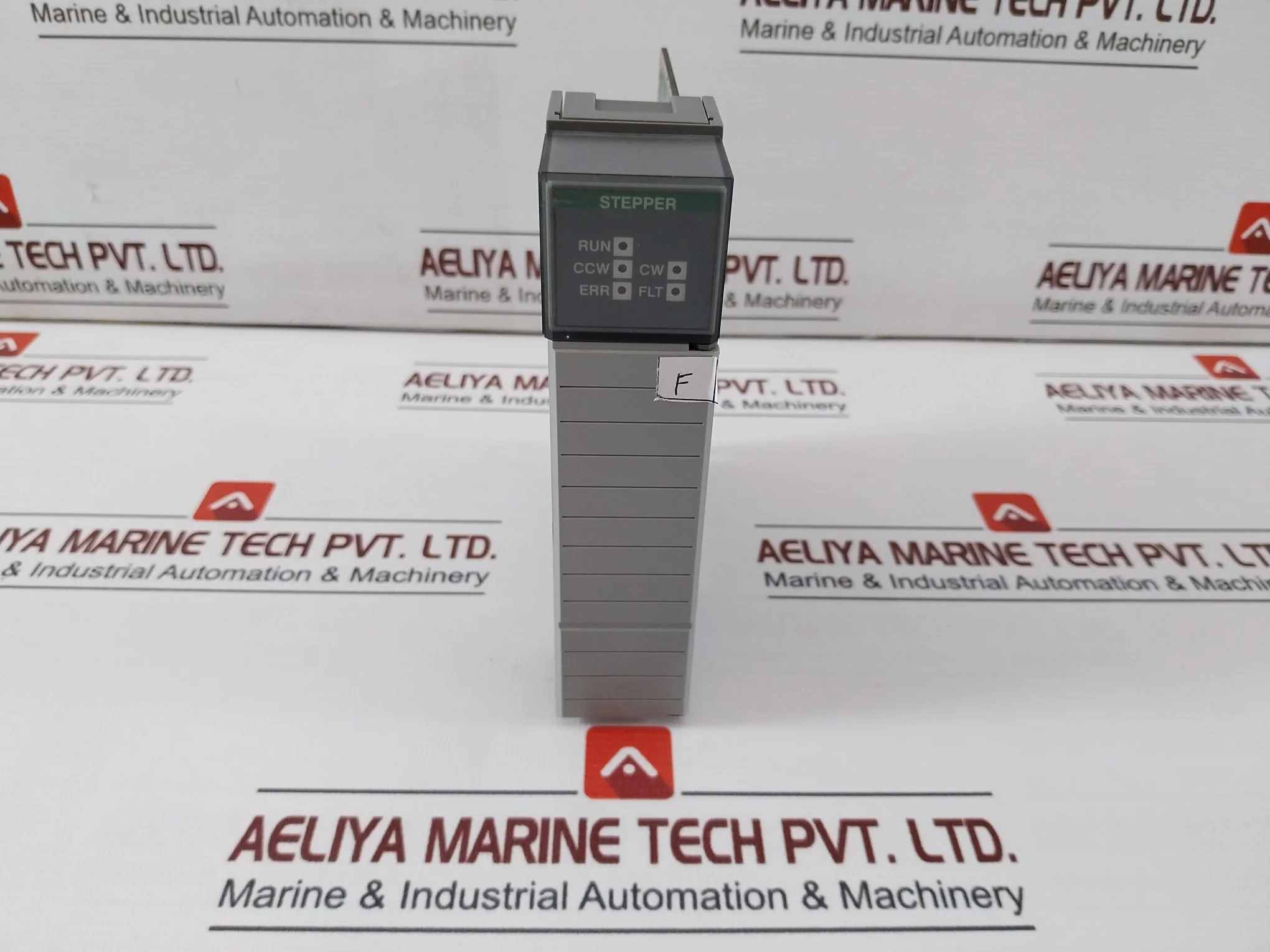

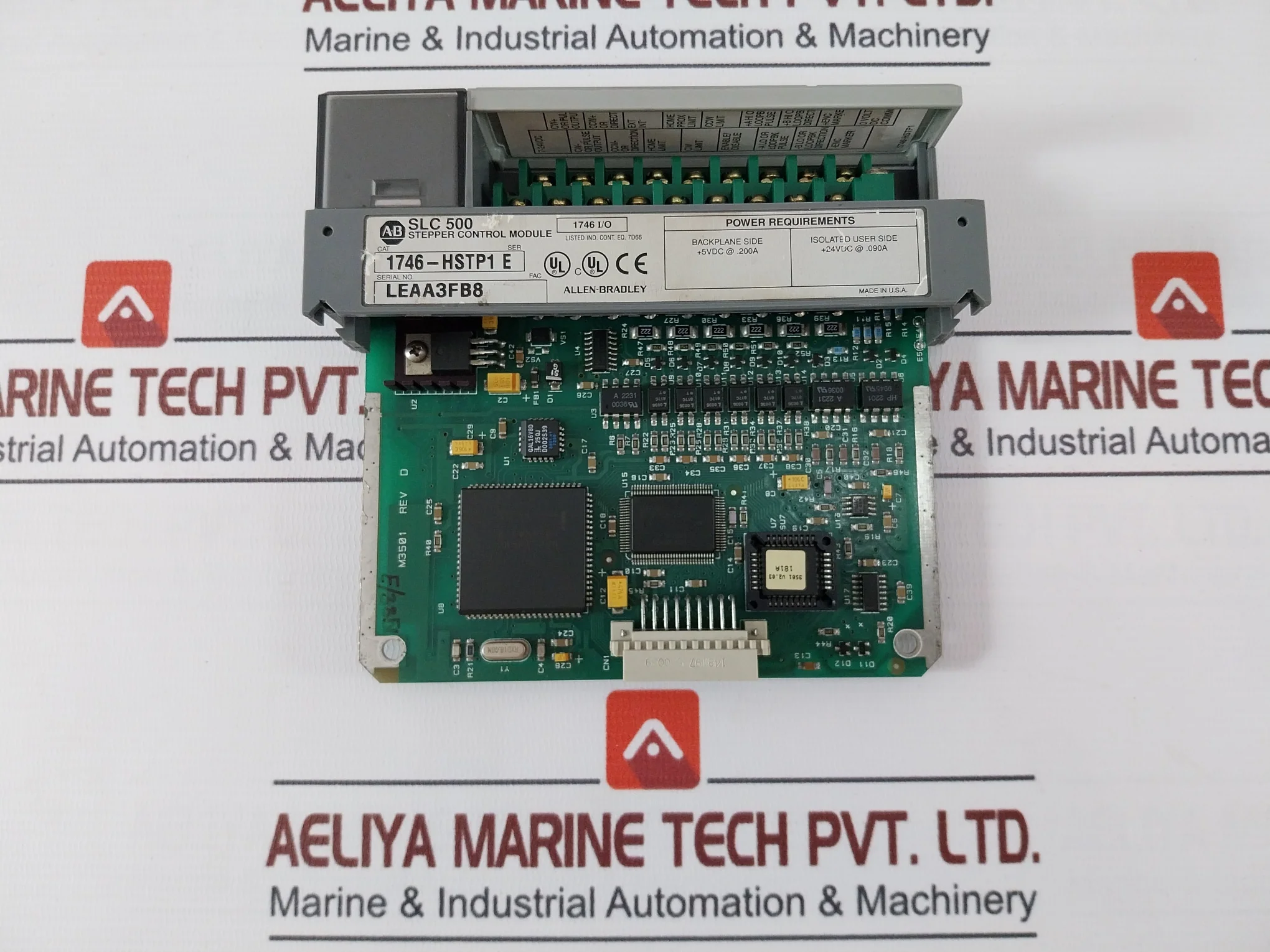

Stepper Control Module
Cat: 1746-hstp1
Ser: E
1746 I/O
Power Requirements:
Backplane Side: +5Vdc @.200A
Isolated User Side: +24Vdc @.090A

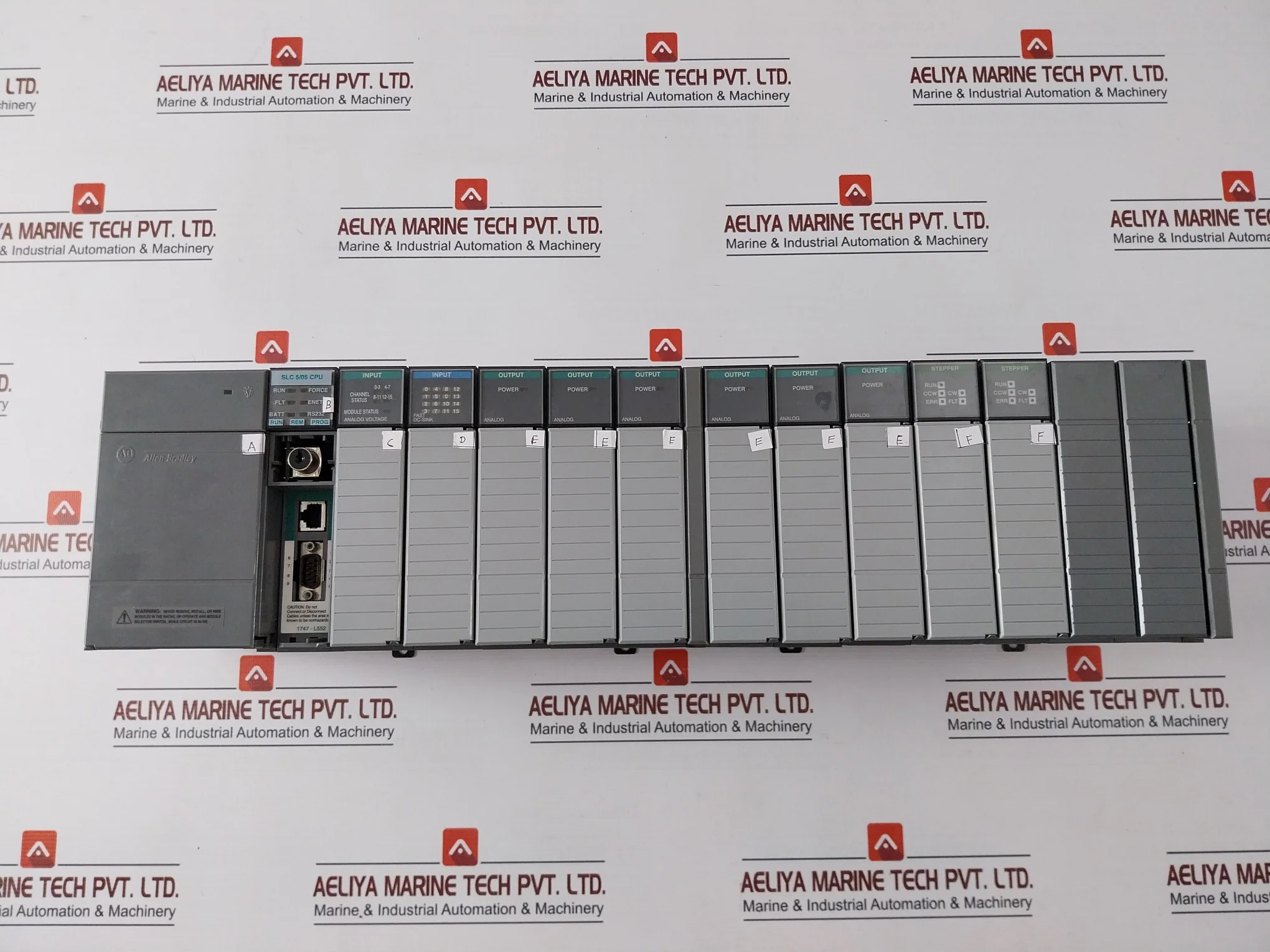

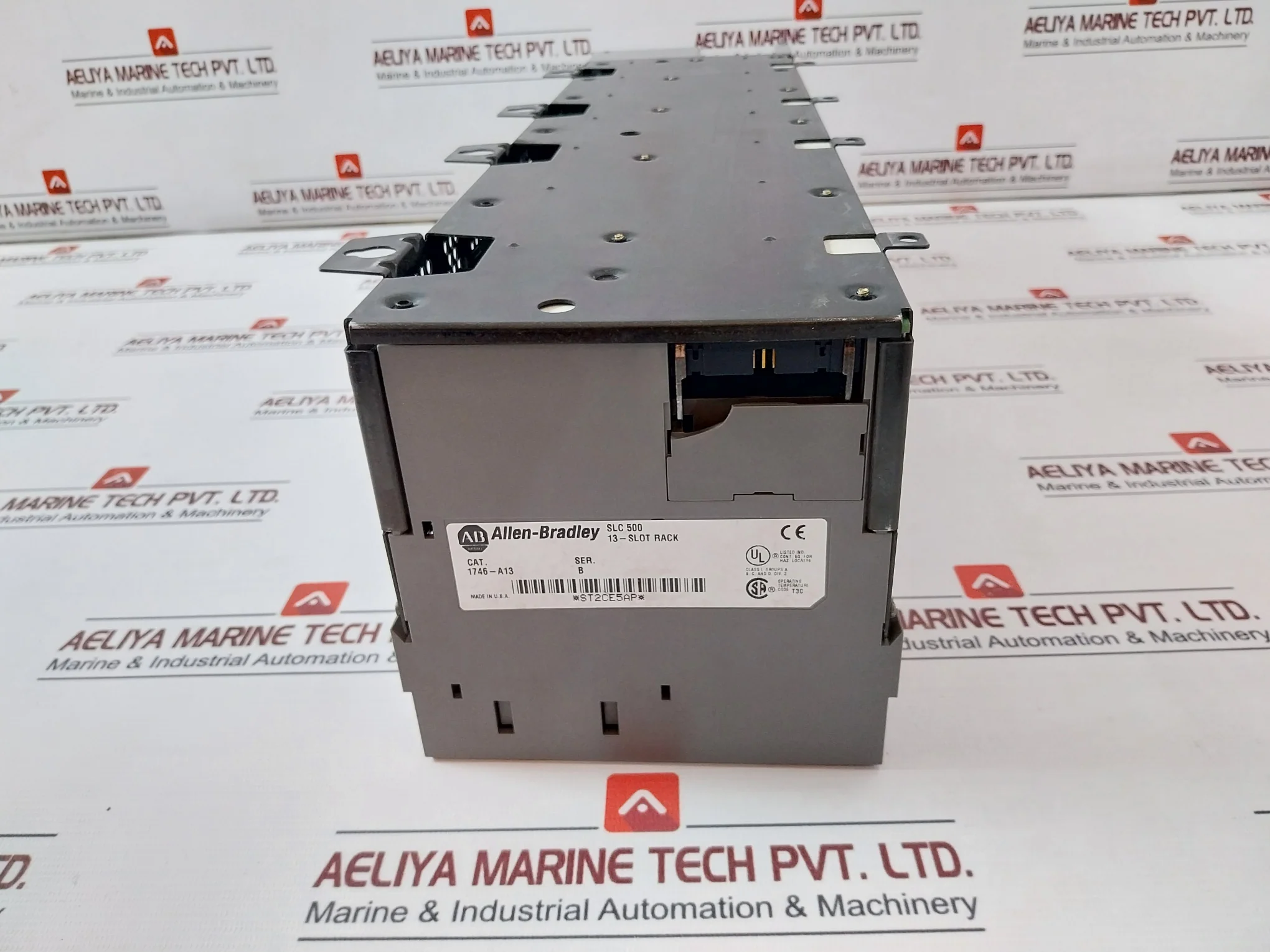

13-slot Rack
Cat: 1746-a13
*St2Ce5Ap*
Made In U.S.A.
Made In Malaysia
Weight: 5 Kg
