Amco Seal Kit F/ Kc 12-22 & Assembly Drawing Kit F/ Rls 222/5-68
(Maker): Amco- Asahi Mechatronic Corporation
Mfg: Amco Engineering
Damcos A/S
Description: Assembly Drawing
Component: Type & Version
Kc 22 A1
Rls 222/5-68
Drawing No.: 140Ad-0184P
Rev: A
Parts Description: Set For Seals For Kc 12-22/Seal Kit Kc 12-22
Material No/ Id No: 219-0200
Parts Description: Scraper 25X33-7/4
Kc 22
Material: Nbr
#28
Parts Description: Truarc Ring 075
Material No/Id No: 267-0360
Circlip Internal: #75
Material: S30C Y05
#36
Product Name/Parts Description: X-ring 40.64/51.3X5.33
Material: Nbr
Item # 31
Item: J4B2 16-0357/Jm-part-c16-00
Use: **32A Cryogenic Globe Valve// Vs#53 Vs#53//Spary Nozzle Inlet Valve
Parts Description: Gasket
Rls 222
Material: Nbr
#03
Parts Description: X-ring 21.82/28.88X3.53
Material: Nbr
#4
Parts Description: Truarc Ring 012
Id No: 267-0009
Material: S30C Y05
#33
Product Name/ Parts Description: O-ring 69.6X2.4
Material: Nbr
Item # 06
Draw No.: 140Ad-0183P-a/140Ad-0184P
For: 32A Cryogenic Globe Valve // V

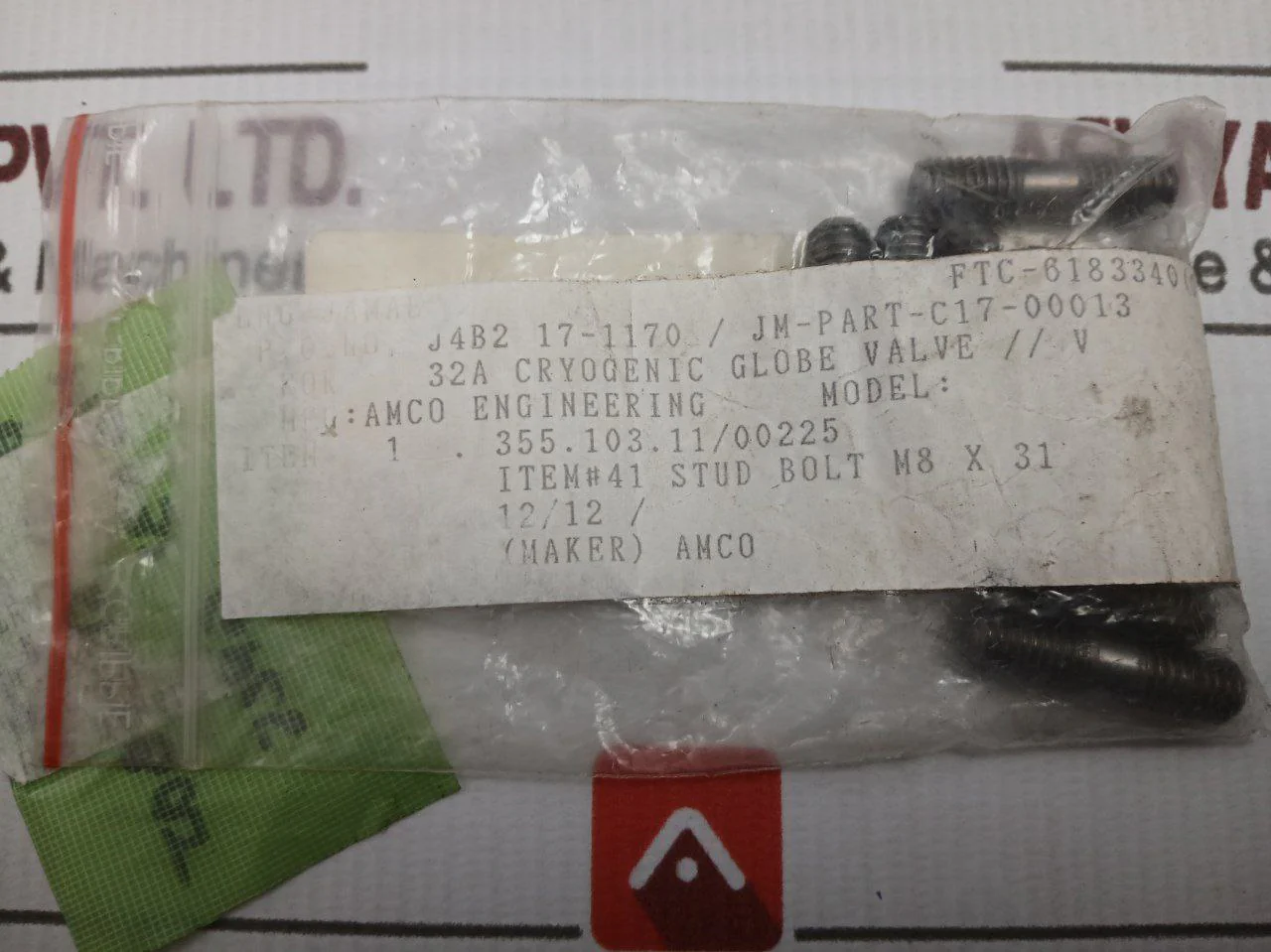

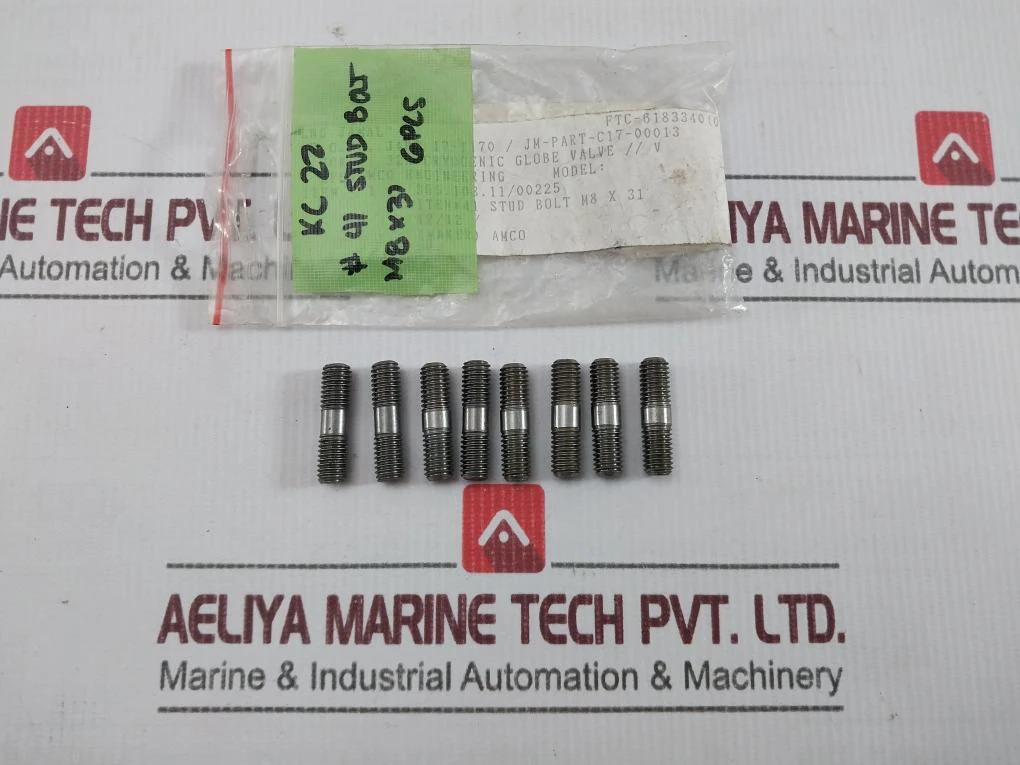

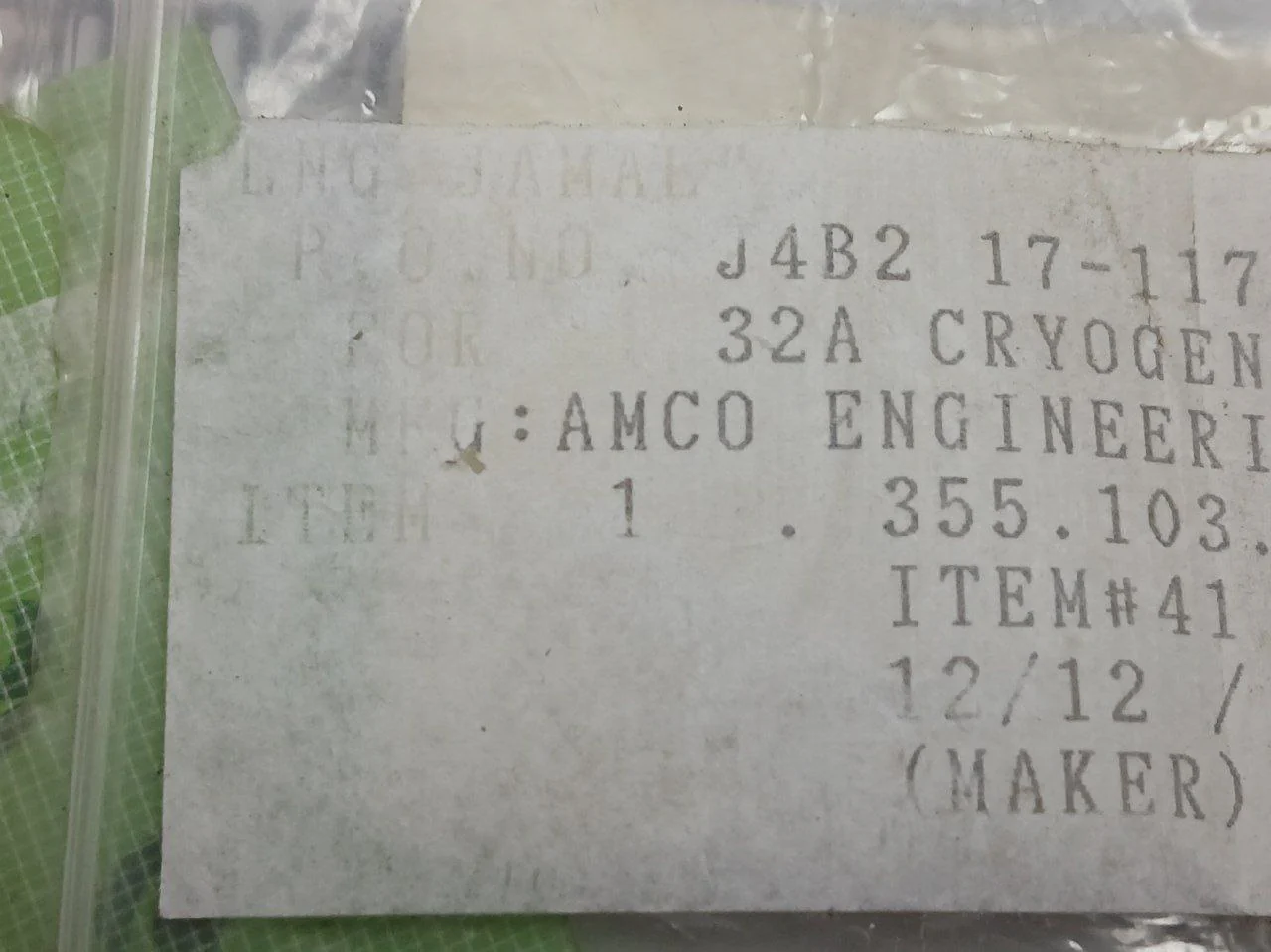

Parts Description: Stud Bolt M8X31 12/12
Material: Sus316
Item: #41
Parts Description: X-ring 11.7/16.99X2.62
Material: Nbr
#27

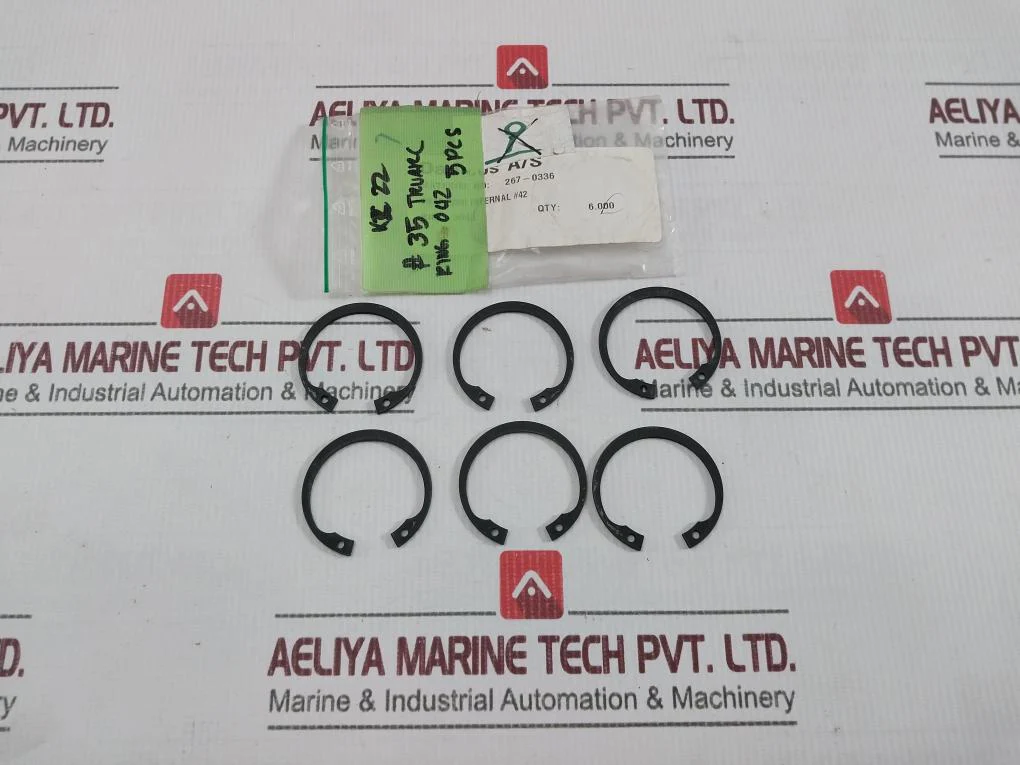

Parts Description: Truarc Ring 042
No/Id No: 267-0336
Material: S30C Y05
#35
Product Name/ Parts Description: O-ring 31.6X2.4
Material: Nbr
Item # 21
Product Name/ Parts Description: O-ring 28.3X1.78
Material: Nbr
Item # 17
Parts Description: Back-up Washer 012/018
Id No/ No: 258-9109
Material: S30C
#32
Product Name/ Parts Description: O-ring 24.5X3.0
Material: Nbr
Item # 22
Product Name/Parts Description: O-ring 6.1X1.6
Material: Nbr
Item # 17
Product Name/ Parts Description: O-ring 49.6X2.4
Material: Nbr
Item # 25
Product Name/ Parts Description: O-ring 24.6X2.4
Material: Nbr
Item # 19
Product Name/ Parts Description: O-ring 41.5X3.0
Material: Nbr
Item # 24

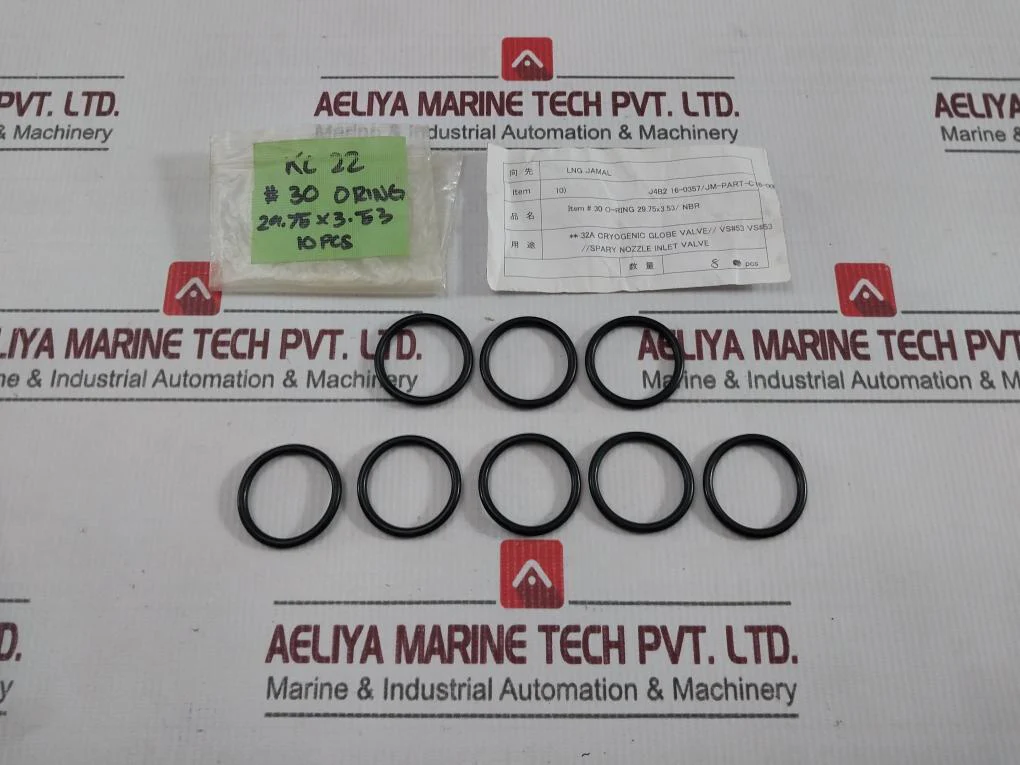

Product Name/ Parts Description: O-ring 29.75X3.53
Material: Nbr
Item # 30
Product Name/ Parts Description: O-ring 41.6X2.4
Material: Nbr
Item # 23
Product Name/ Parts Description: O-ring 29.6X2.4
Material: Nbr
Item # 20
Weight: 650 Gm
