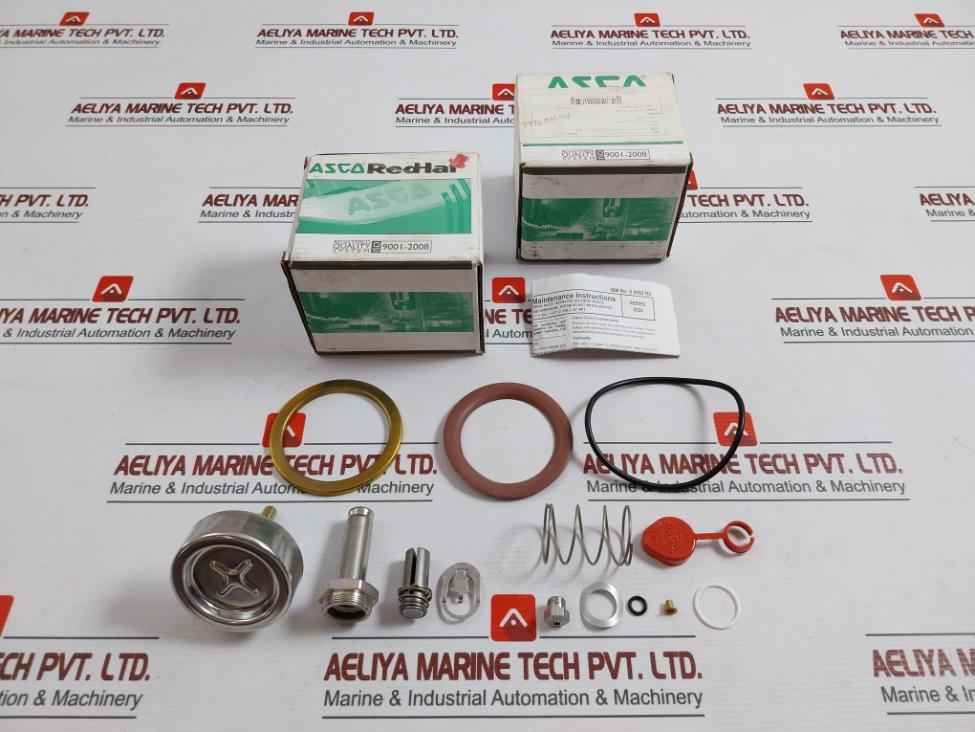

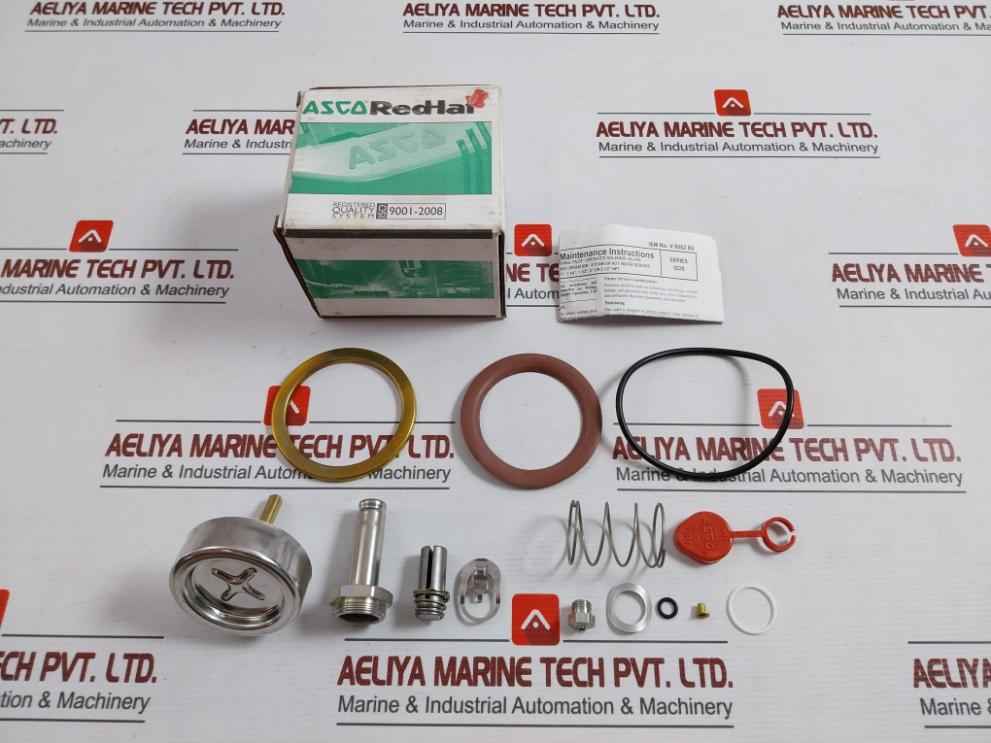

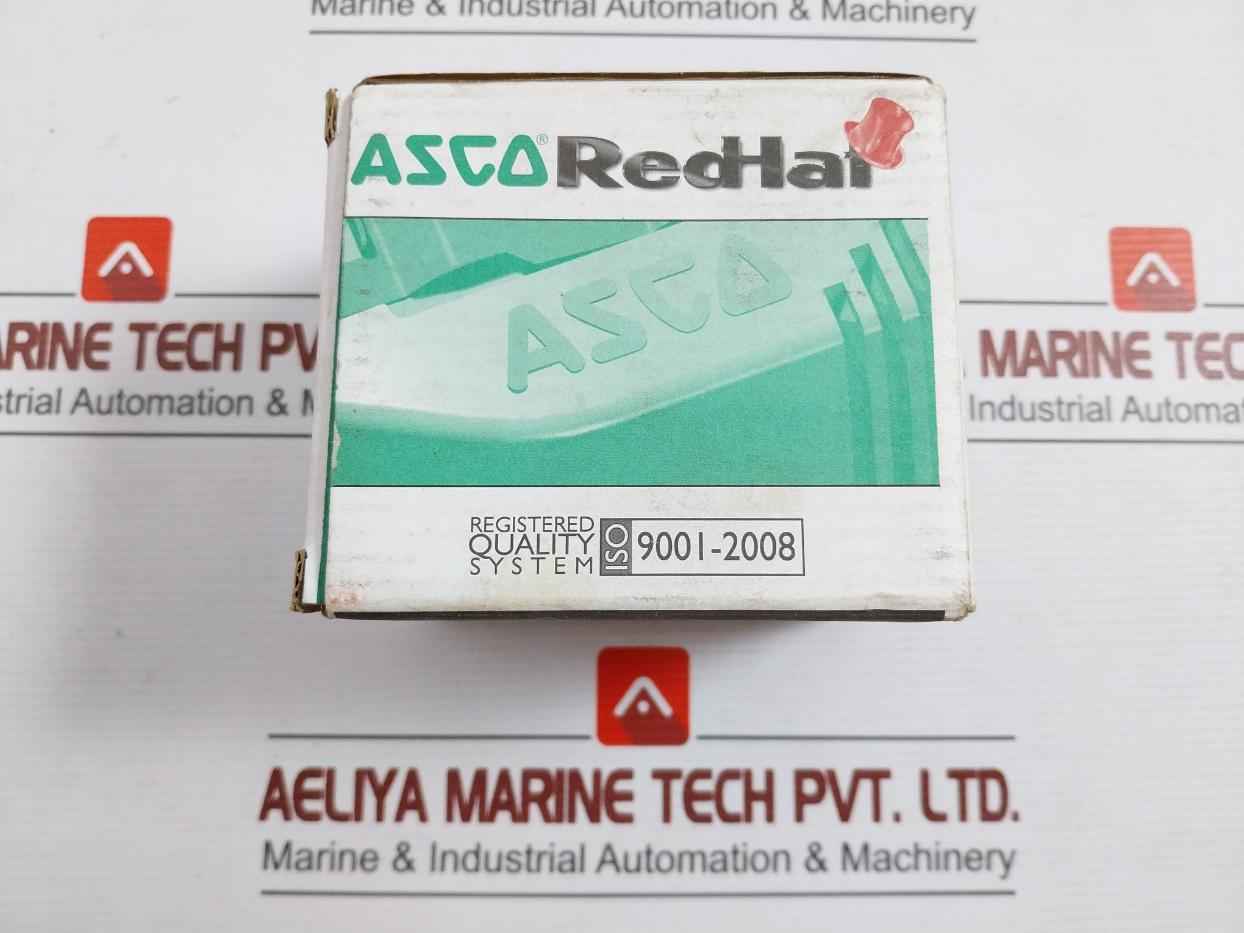

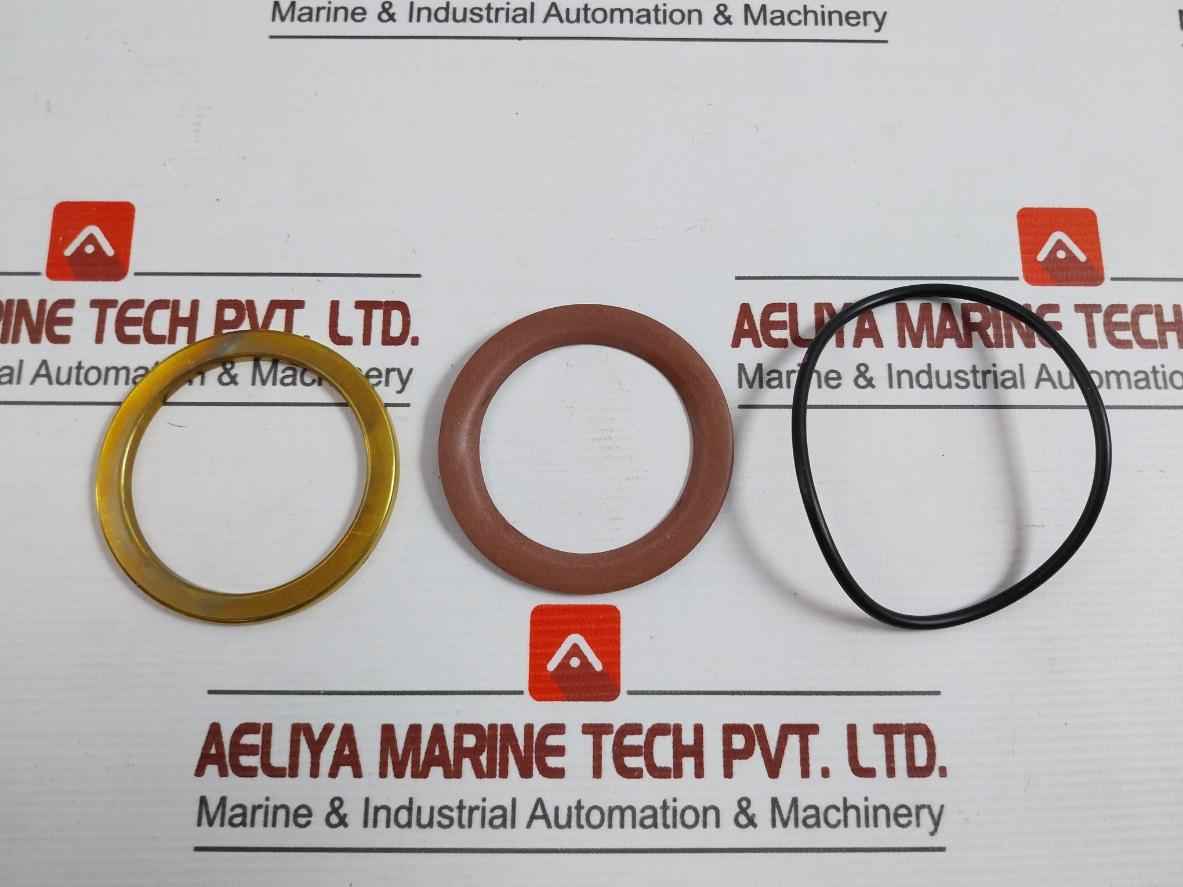

Asco 304393 Valve Rebuild Kit Series 8220 Vv.797.51.76.008
Asco Valve, Inc.
Redhat
Part: Kit, Spare Parts
2-way Internal Pilot-operated Solenoid Valves
Normally Closed Operation-steam Or Hot Water Service
Series 8220

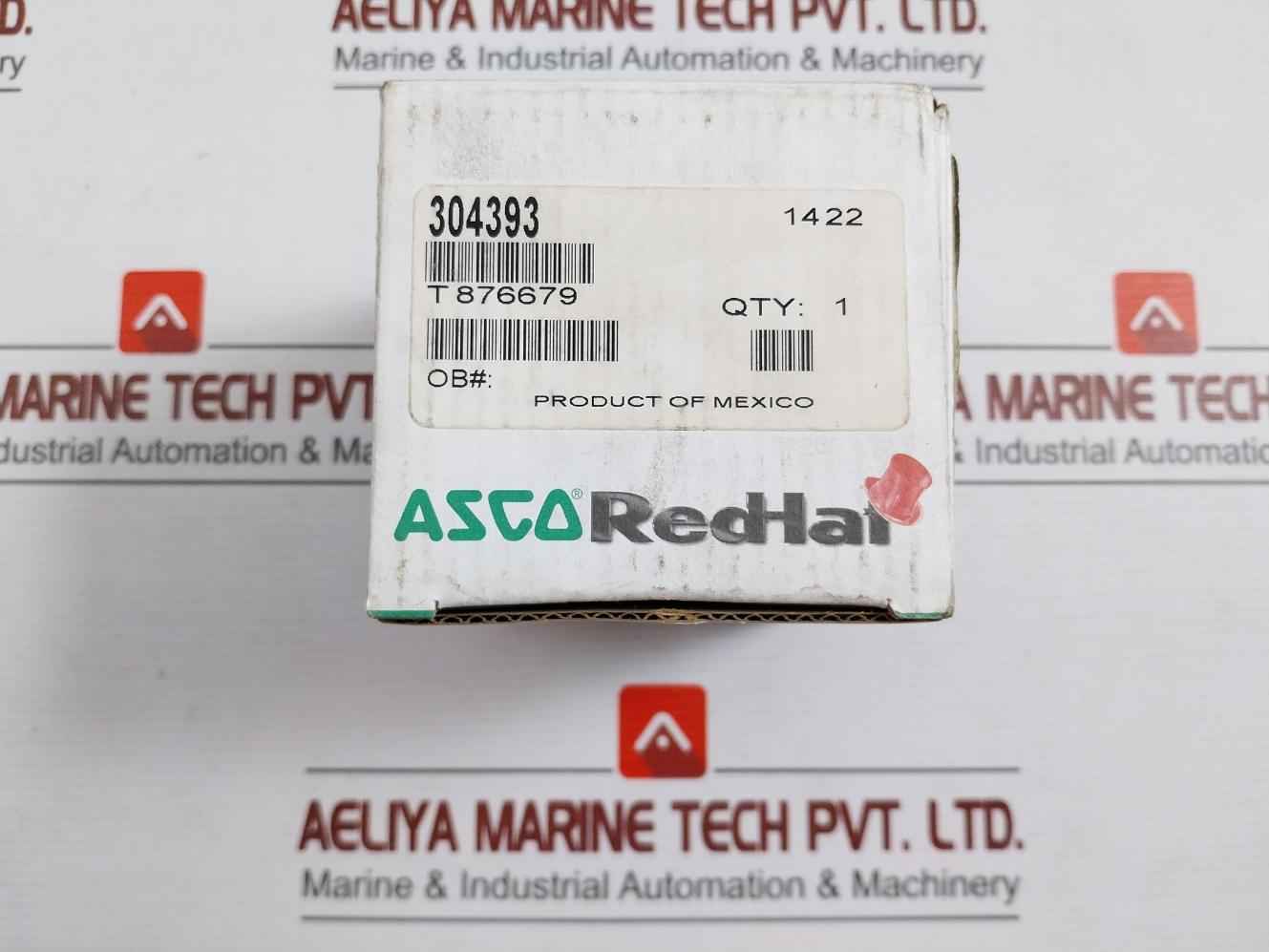

304393
T 876679
1422

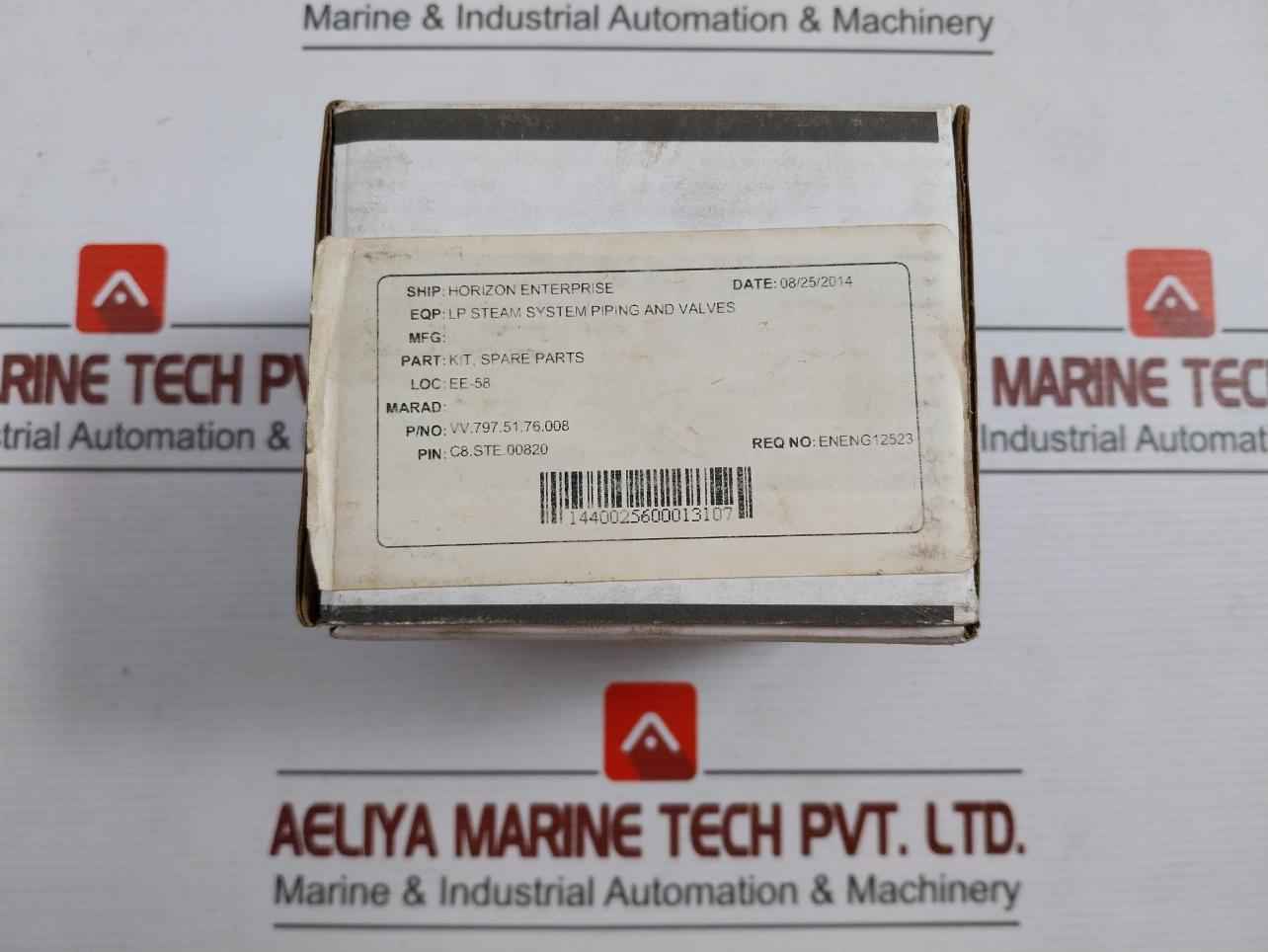

Eqp: Lp Steam System Piping And Valves
P/No: Vv.797.51.76.008
Pin: C8.Ste.00820
1440025600013107

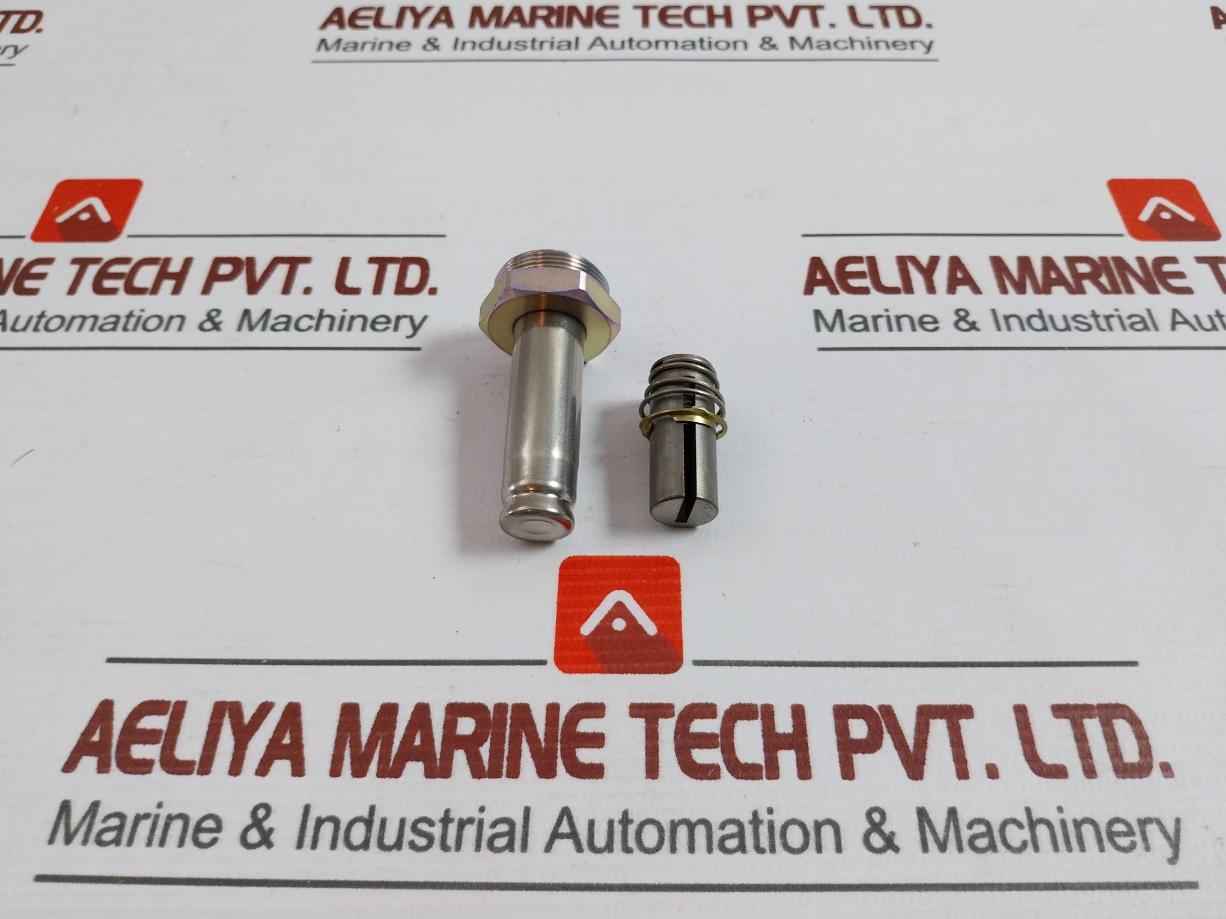

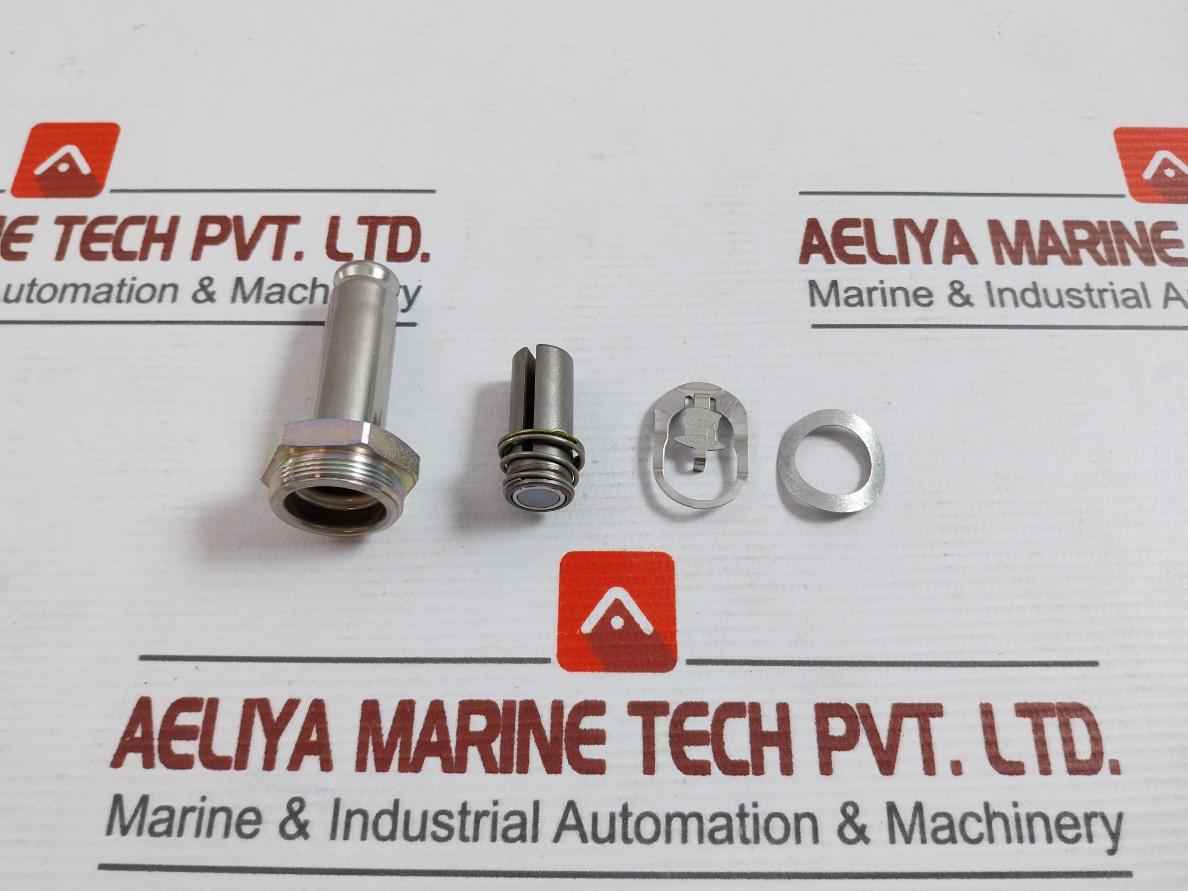

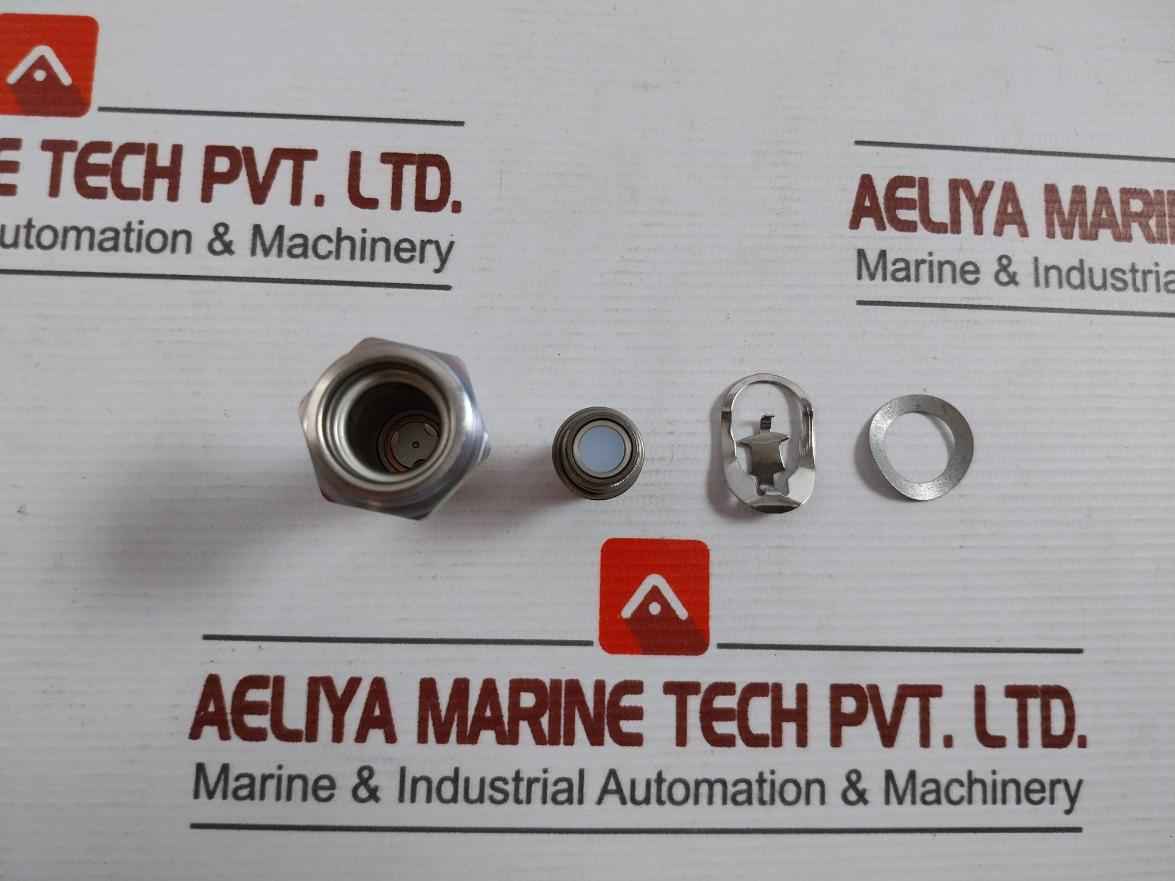

Part Name: Solenoid Base Sub-assembly
Torque Value Inch-pounds: 175 ± 25
Torque Value Newton-meters: 19,8 ± 2,8
Part Name: Valve Seat
Torque Value Inch-pounds: 65 ± 15
Torque Value Newton-meters: 7,3 ± 1,7
Part Name: Bonnet Screws
Torque Value Inch-pounds: 144 ± 15
Torque Value Newton-meters: 16,3 ± 1,7

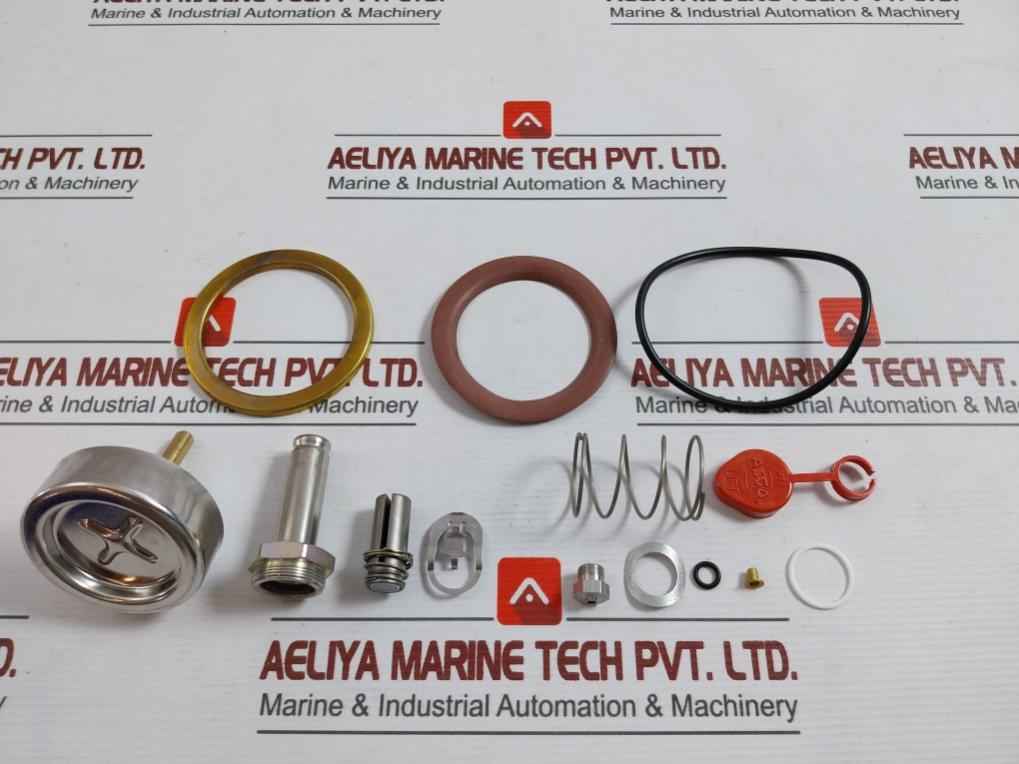

Core Guide
Core Assembly

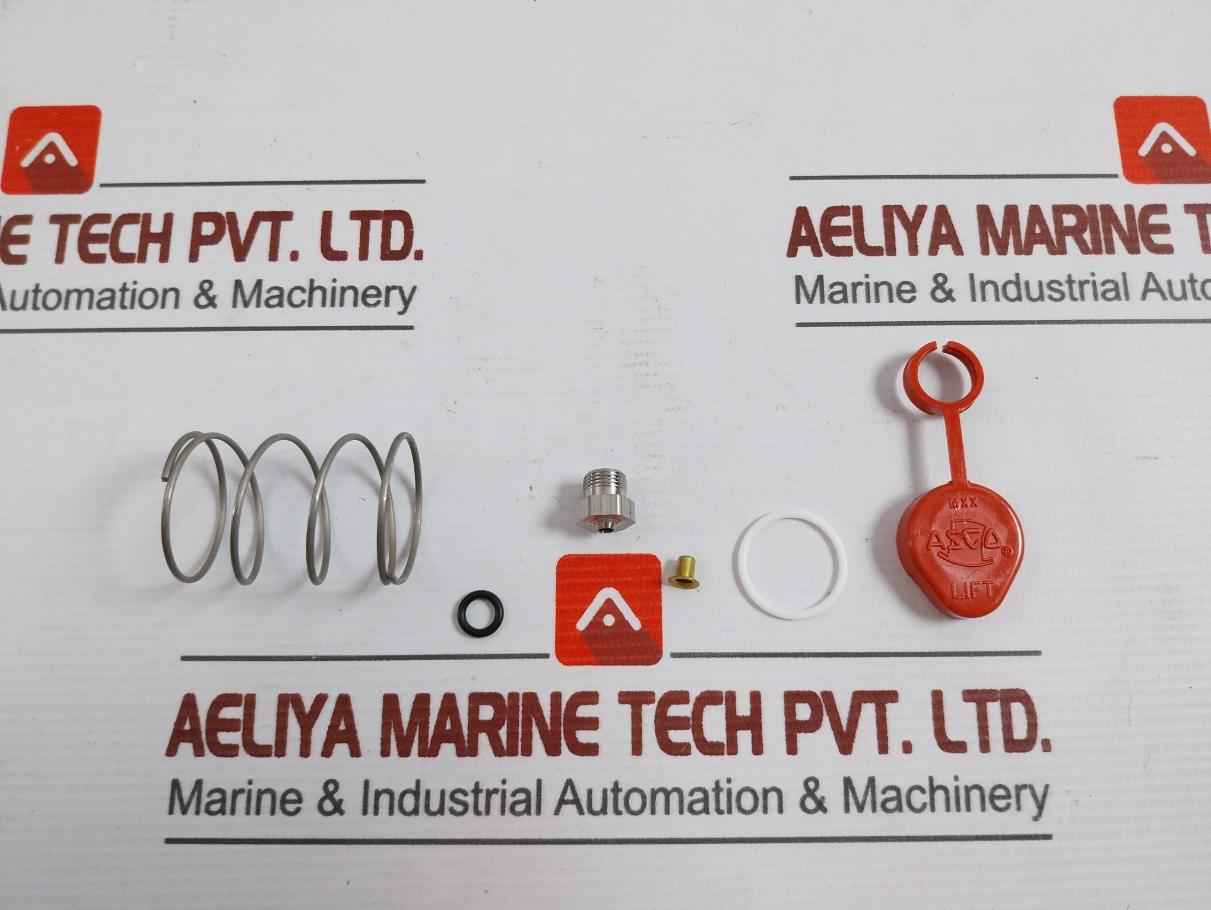

Core Spring

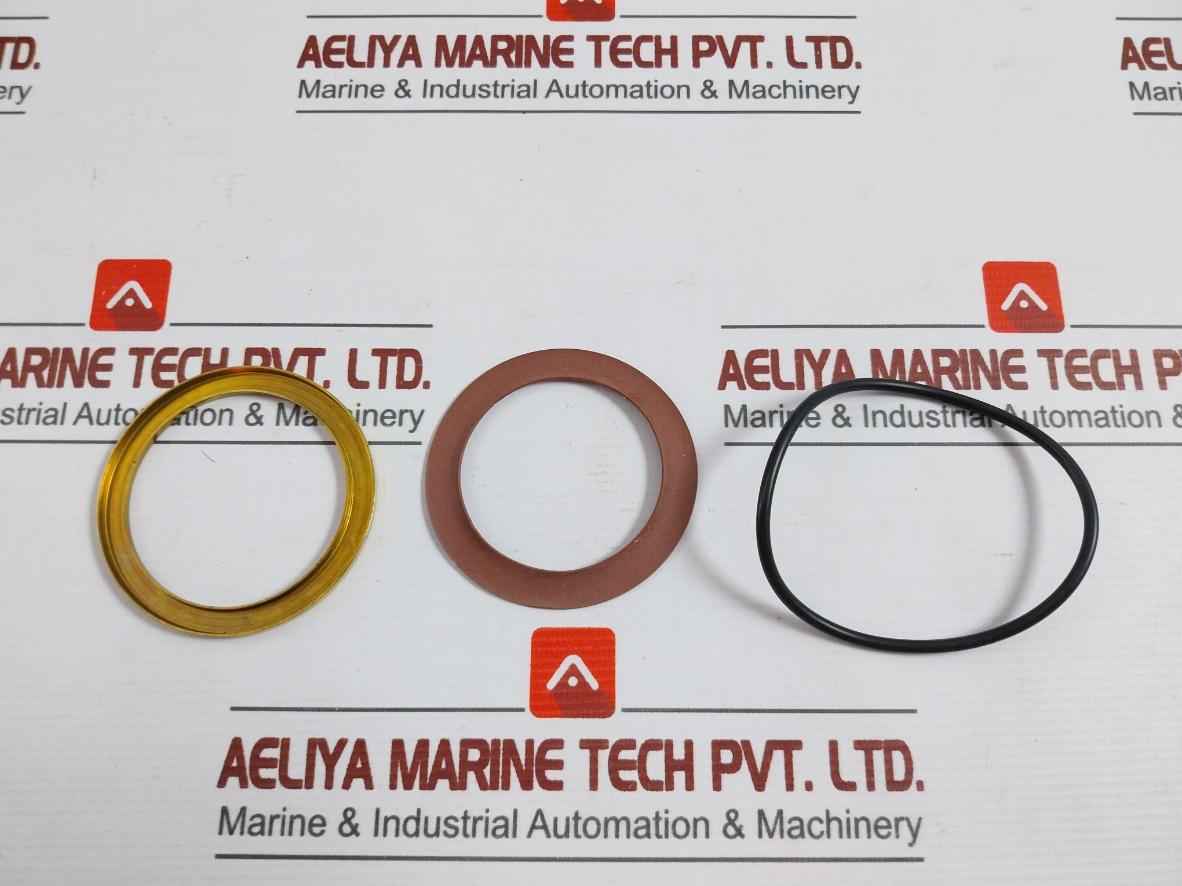

Solenoid Base Gasket
Valve Body
Body Passage Gasket
Body Passage Tube
Body Gasket
Support
Lip Seal

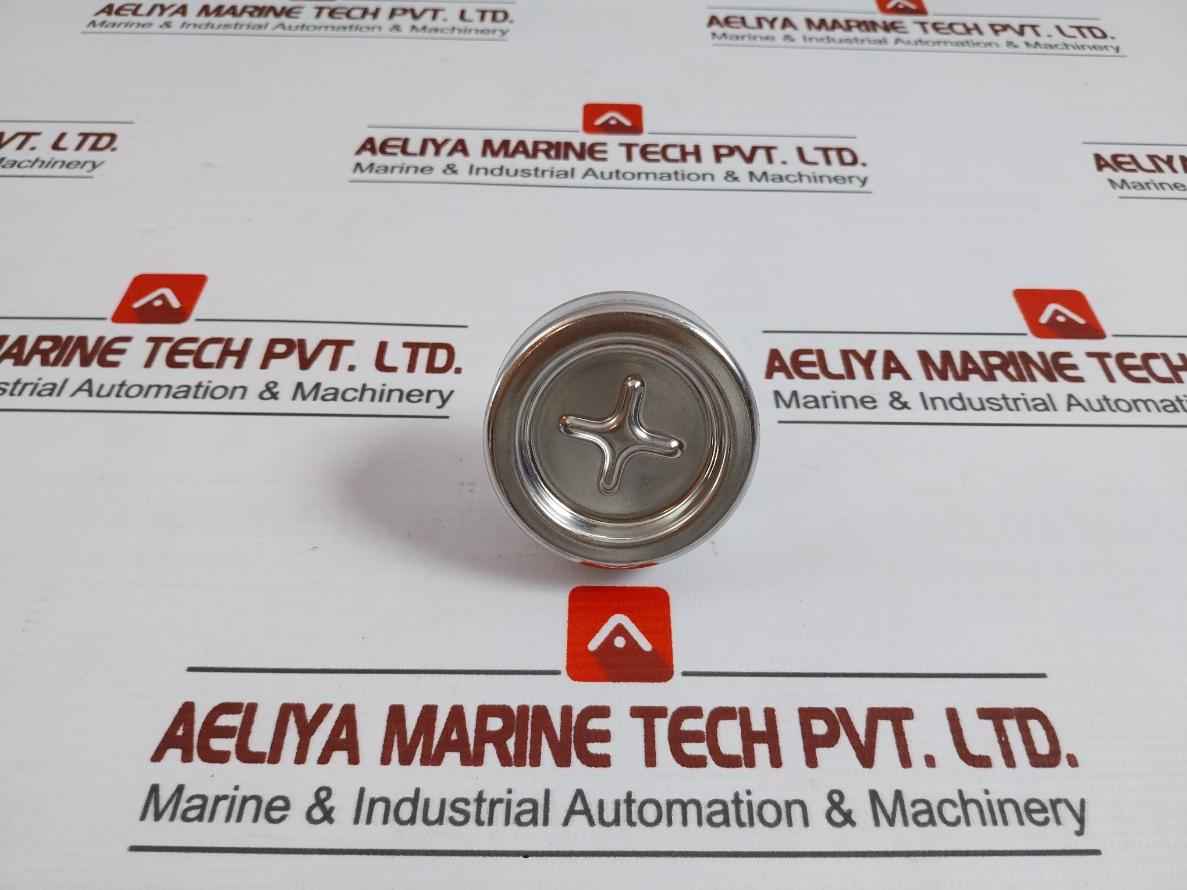

Piston Assembly
Piston Spring
Valve Bonnet
(2” Or 2 1/2” Npt Construction For 125 Psi Steam Or 150 Psi Hot Water)
Product Of Mexico
Weight: 300 Gm
