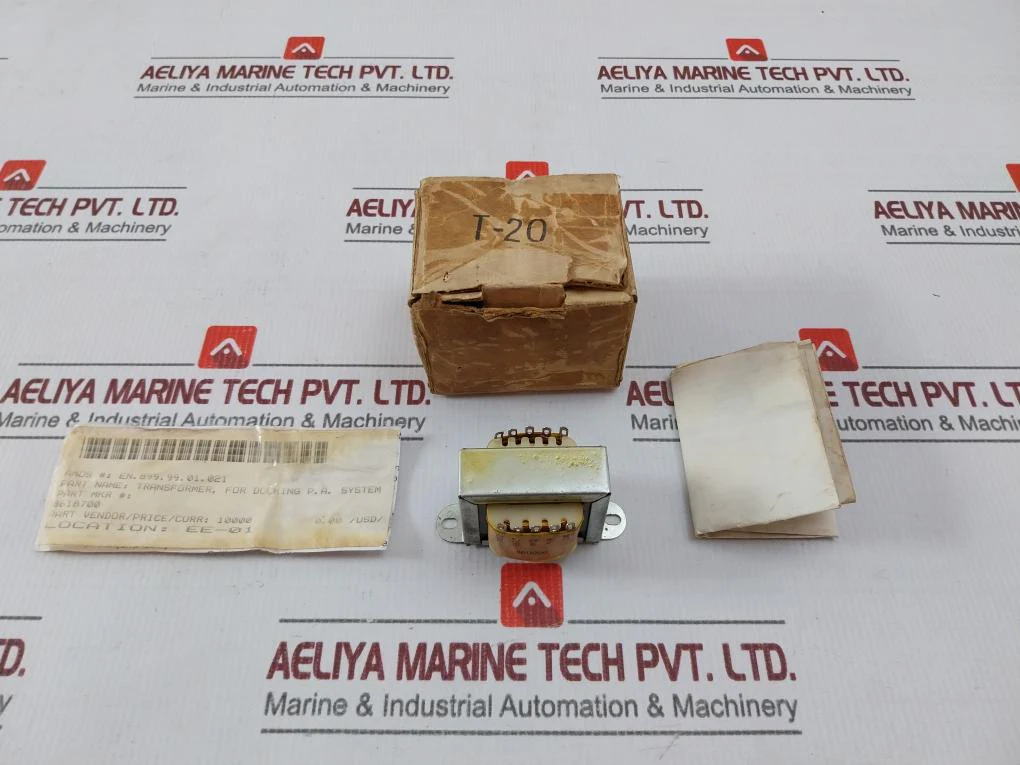

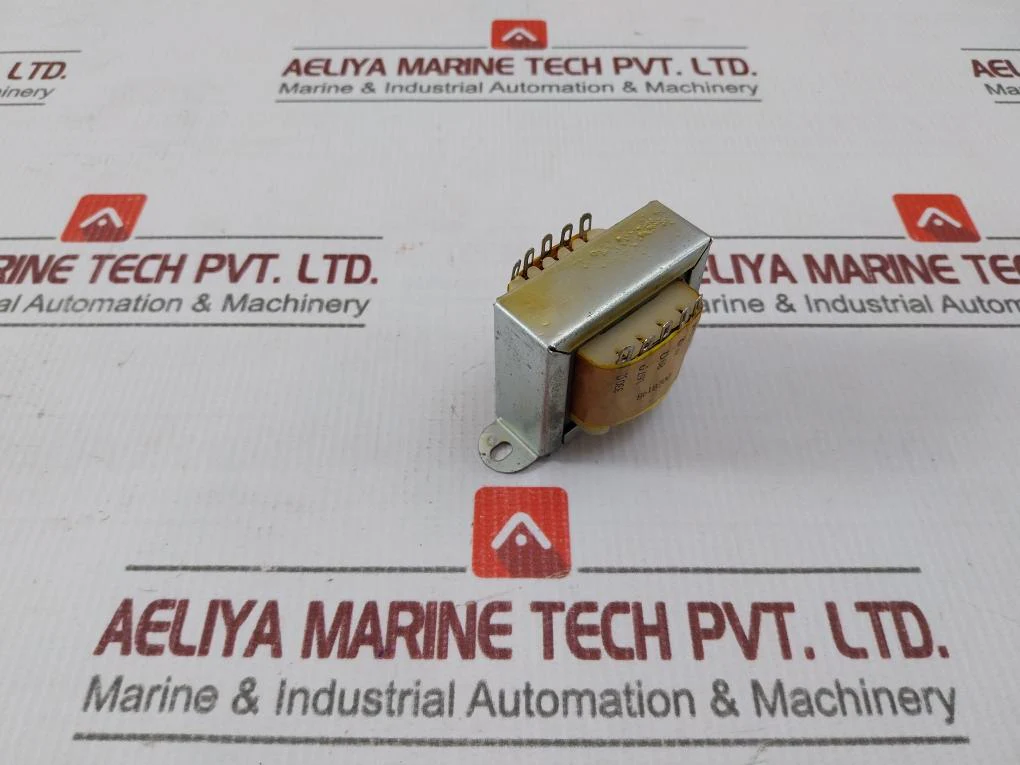

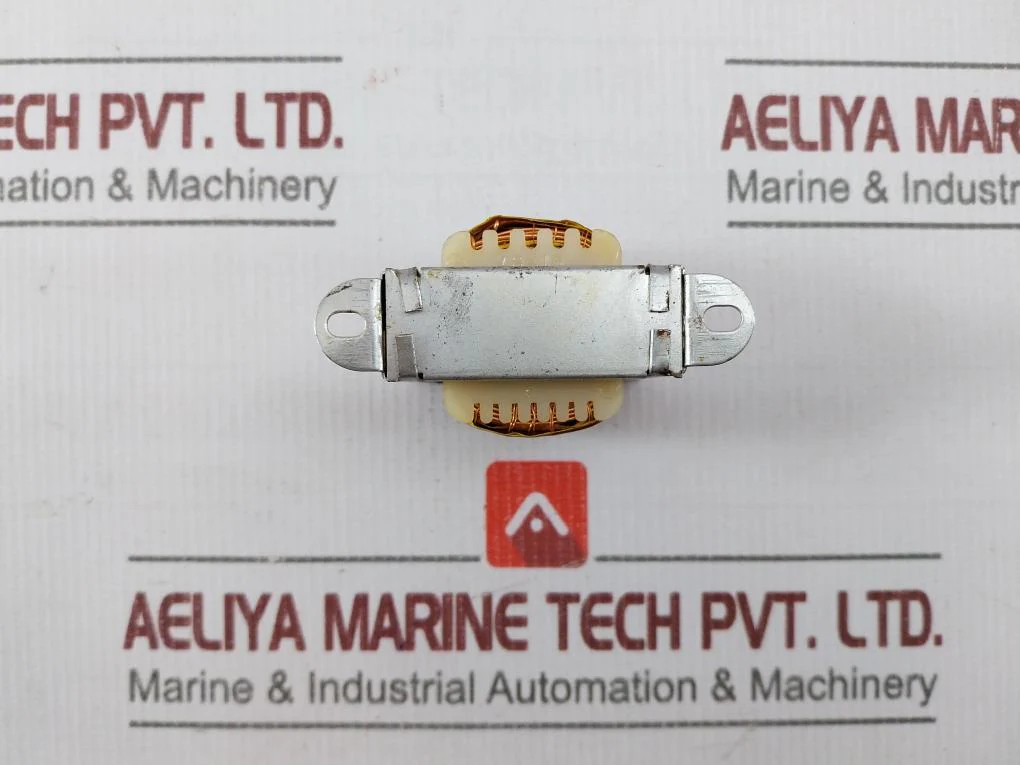

Atlas/Soundolier 8618700 High Power Line Transformer T-20 30 Watts
Atlas/ Soundolier
Division Of American Trading And Production Corporation
Part Name: Transformer, For Docking P.A. System
Line Matching Transformers And Loudspeaker Accessories
Transformers, Adaptors, Loudspeaker/Equipment Stands
Amos #: En. 899. 99. 01. 021
8618700
T-20 Power Rating: 30 Watts
Transformer Specifications
Model: T-20
Pri. Volts: 70.7V/25V
Frequency Response: ± 1.5 Db 60 Hz-20 Khz

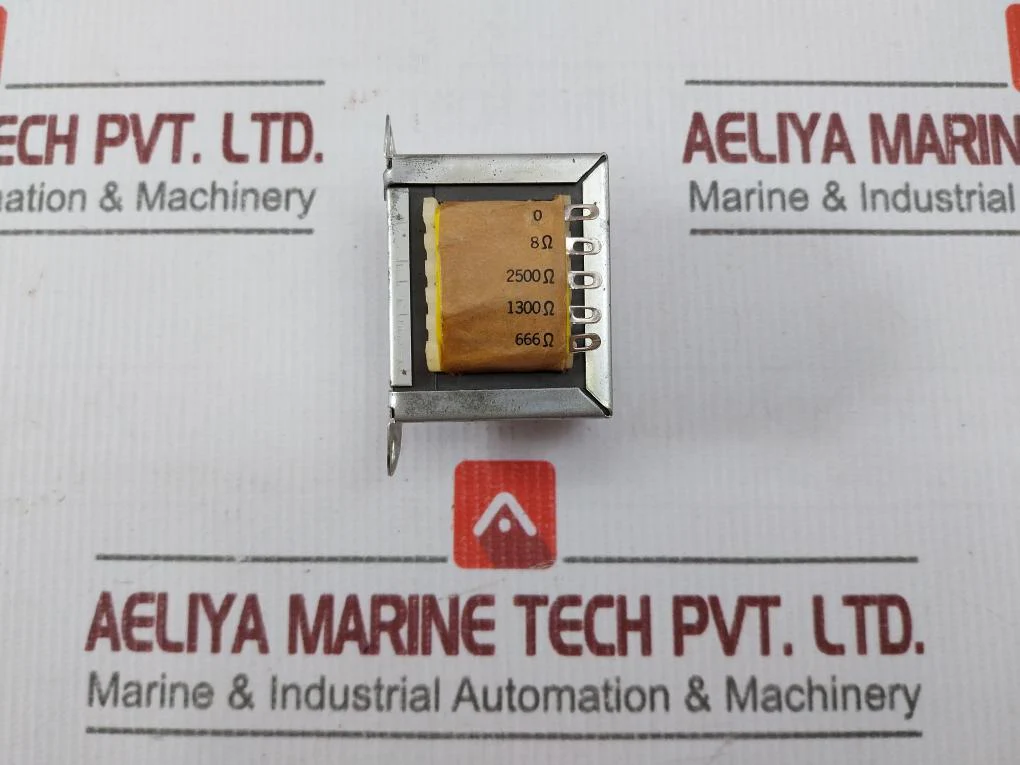

Secondary Impedance (Ohms): 8
Maximum Insertion Loss: .5 Db
Primary Terminations/ Secondary Terminations: Solder Lugs
Core-size: 5/8" X 5/8"
Transformer Dimensions
A: 1-5/8" (41Mm)
B: 1-15/16" (49Mm)
C: 3/4" (19Mm)
D: 2-3/8" (60Mm)
U.S.A.
Weight: 320 Gms
