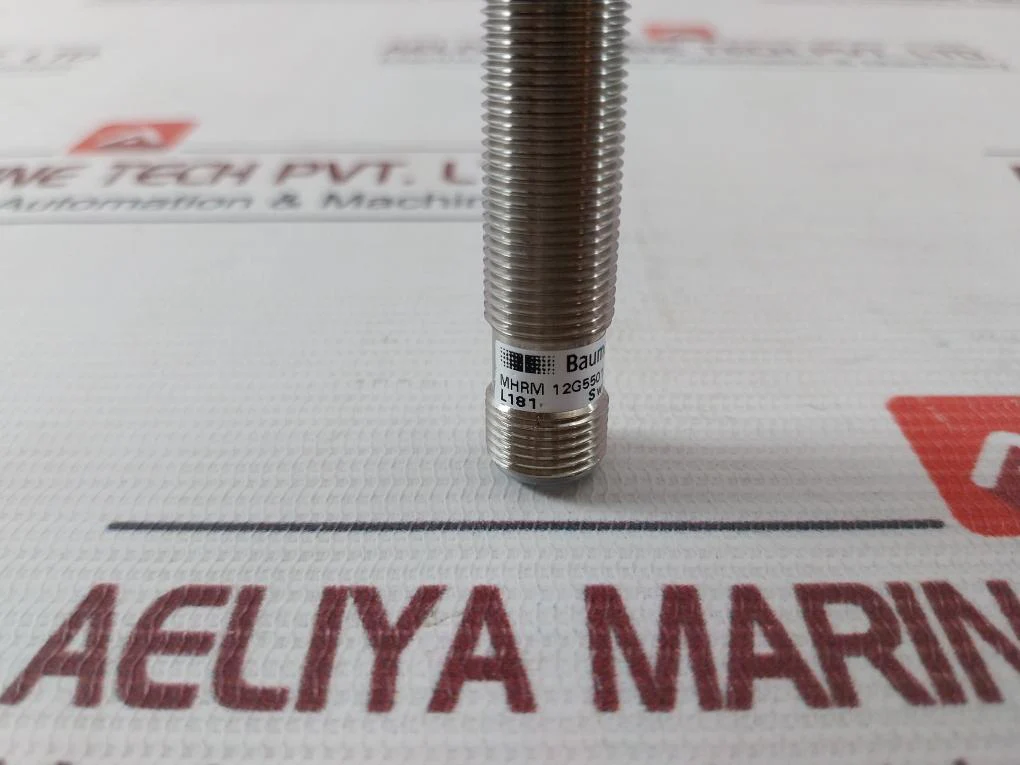

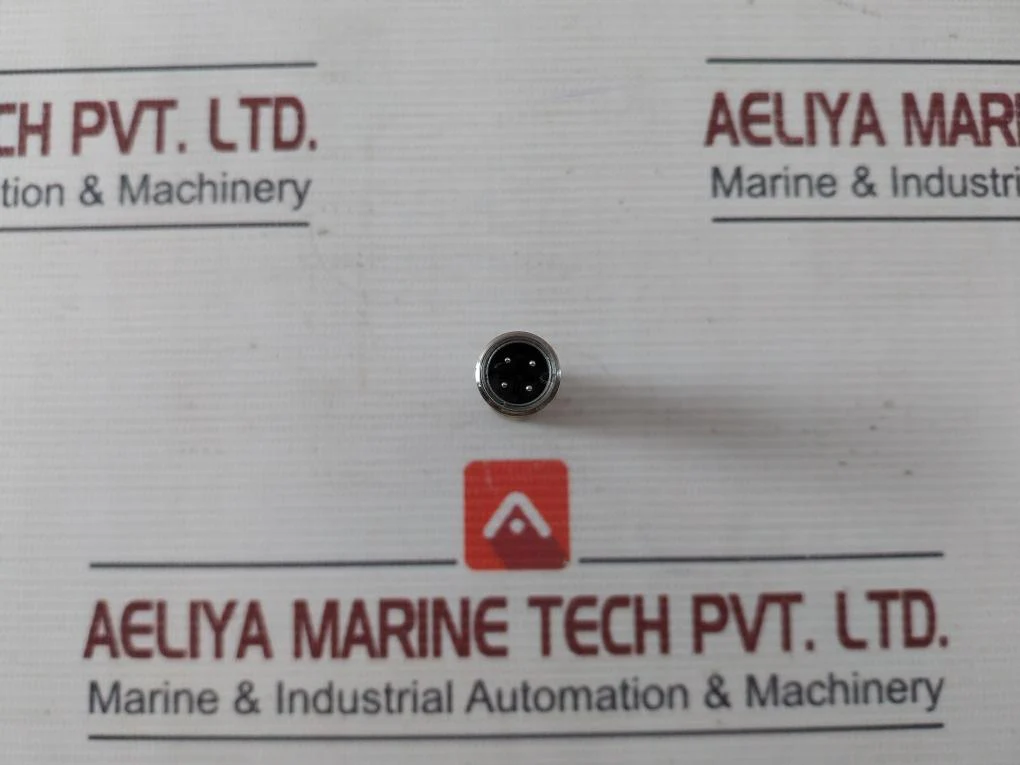

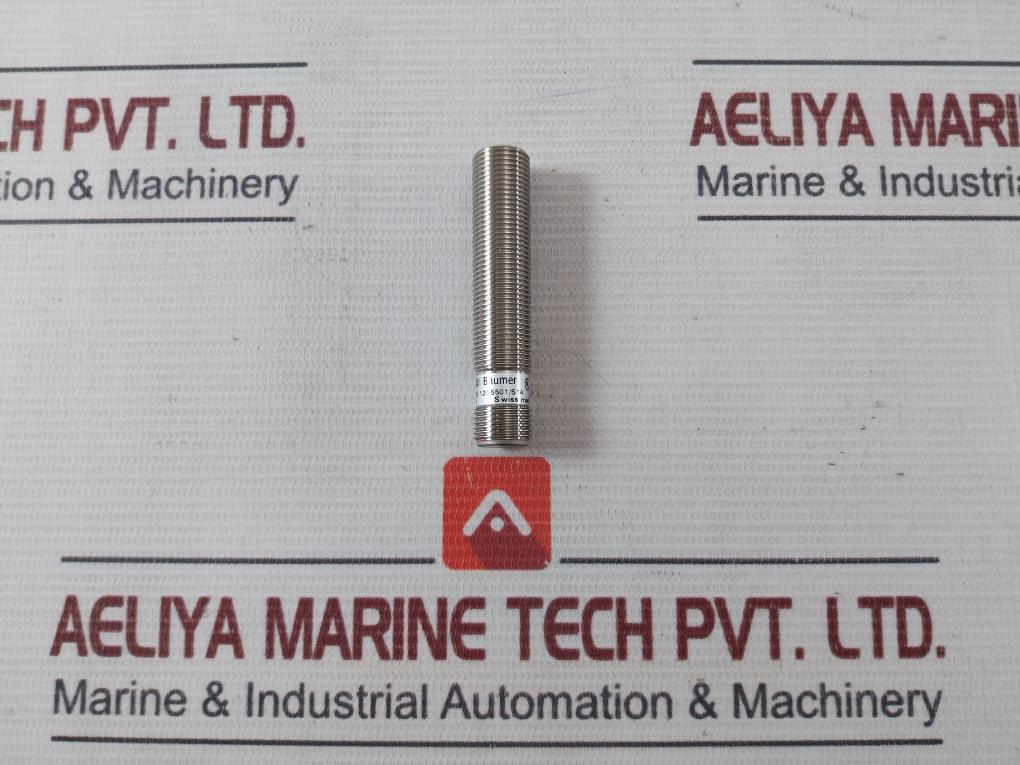

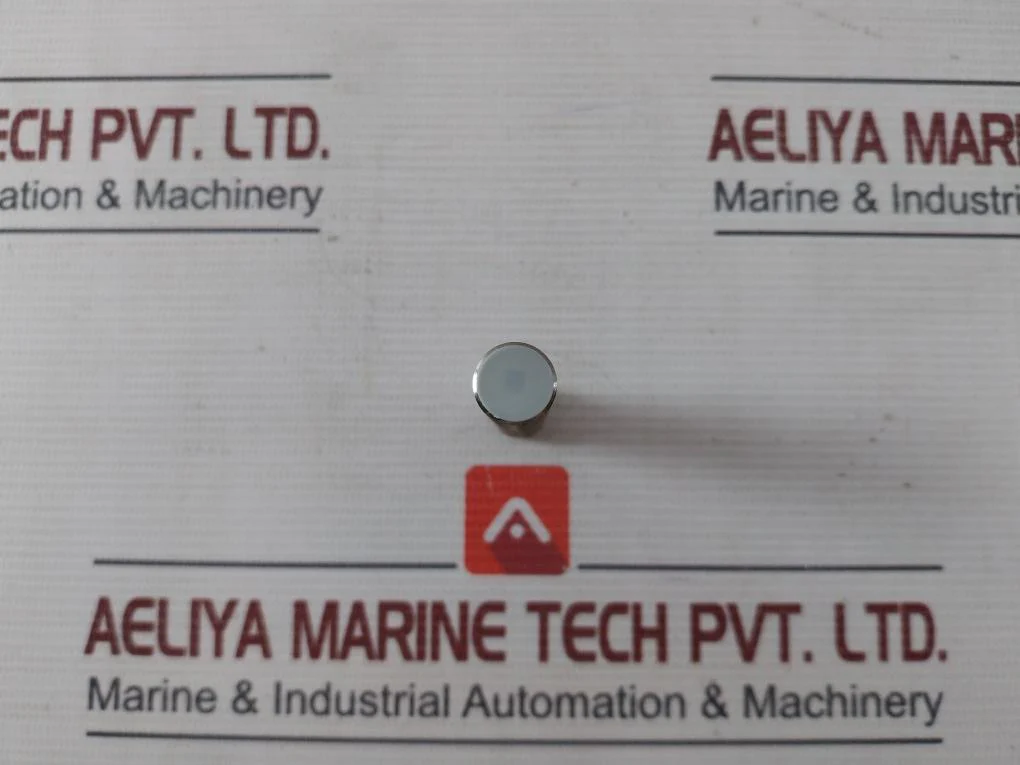

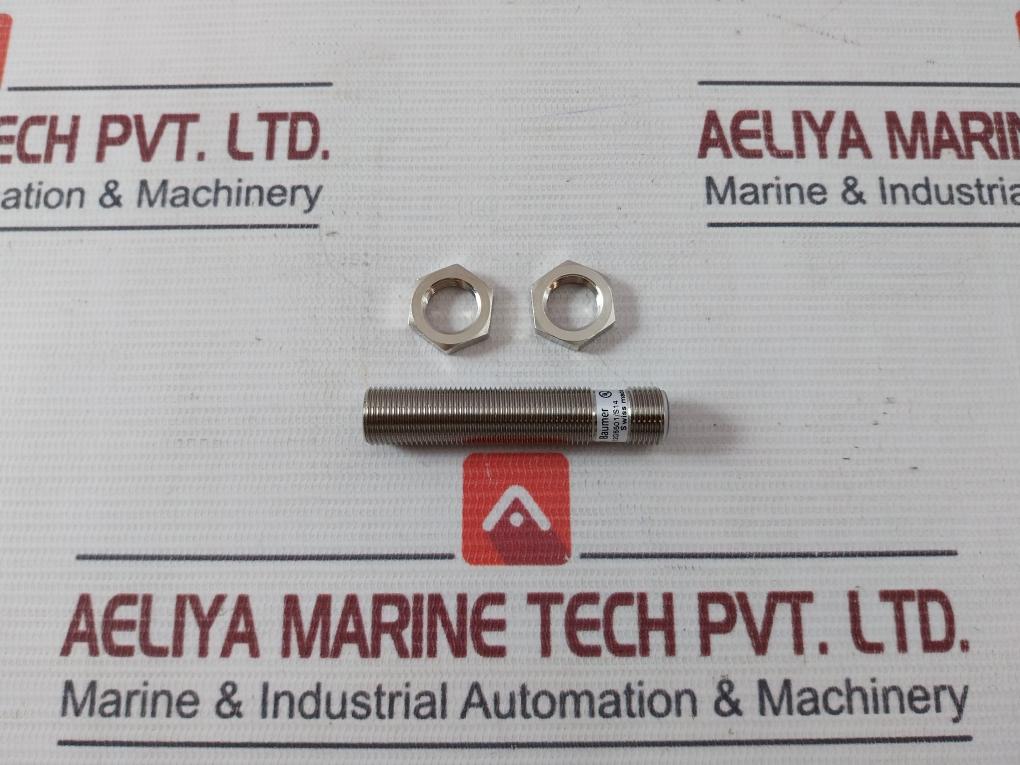

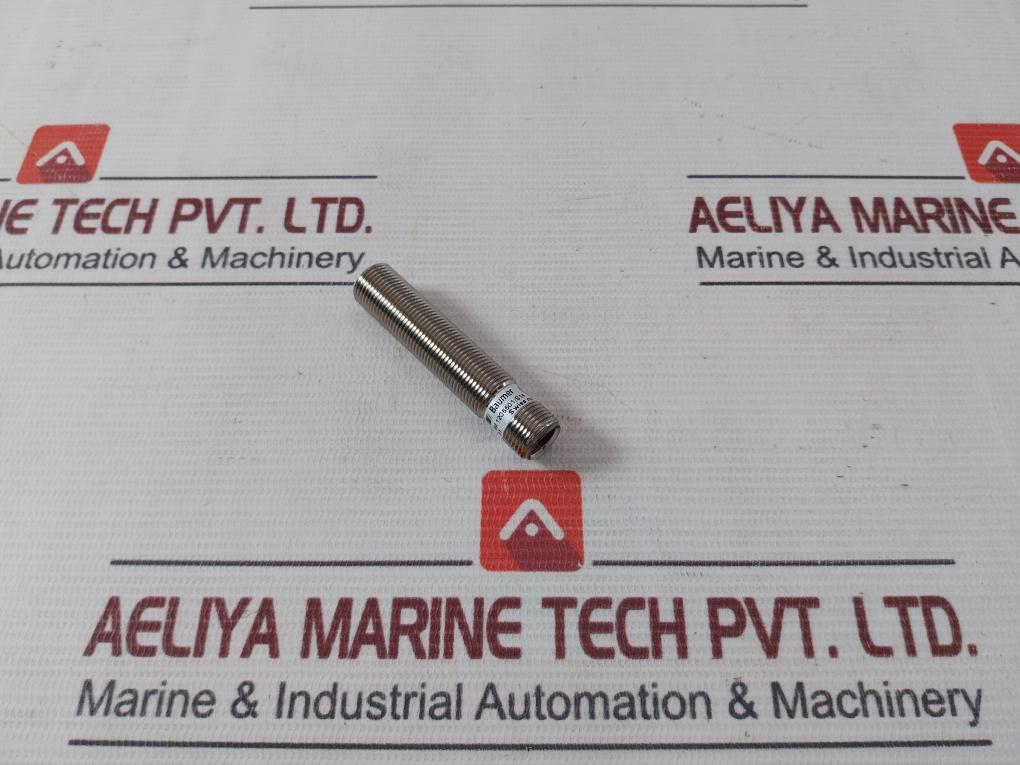

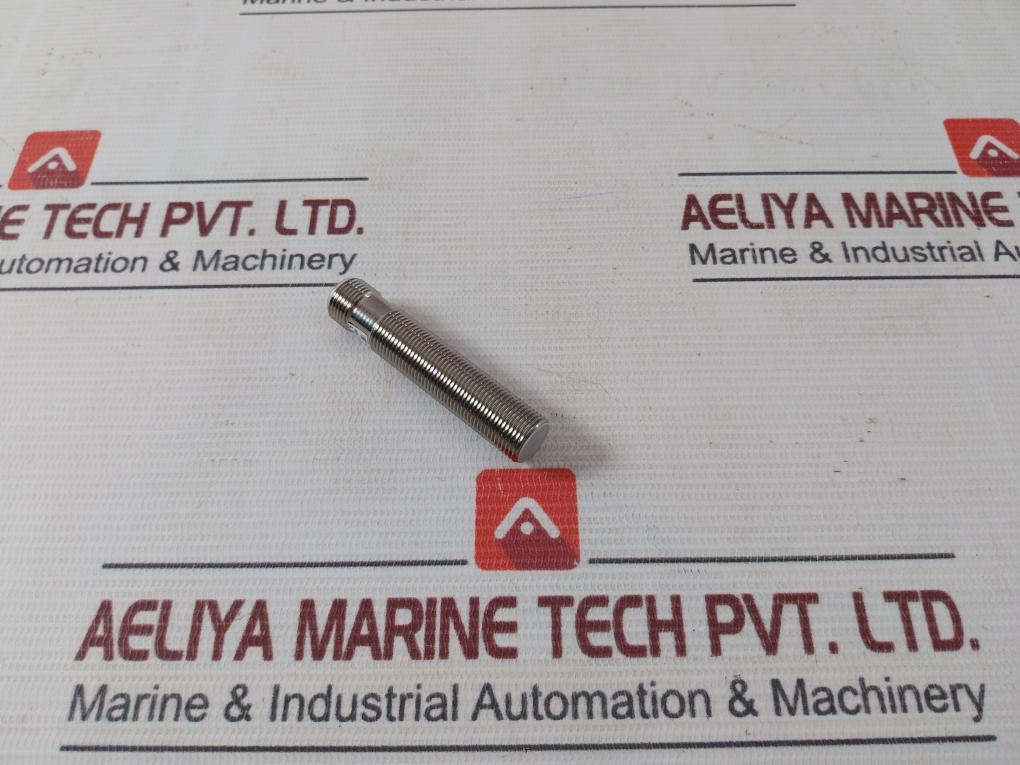

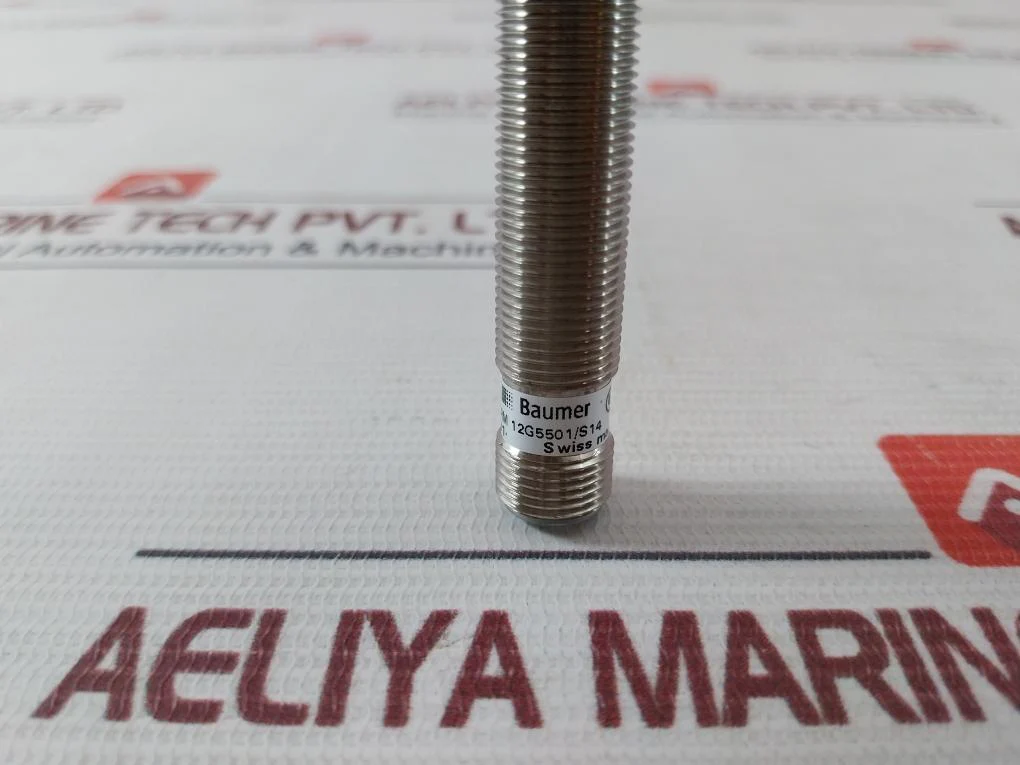

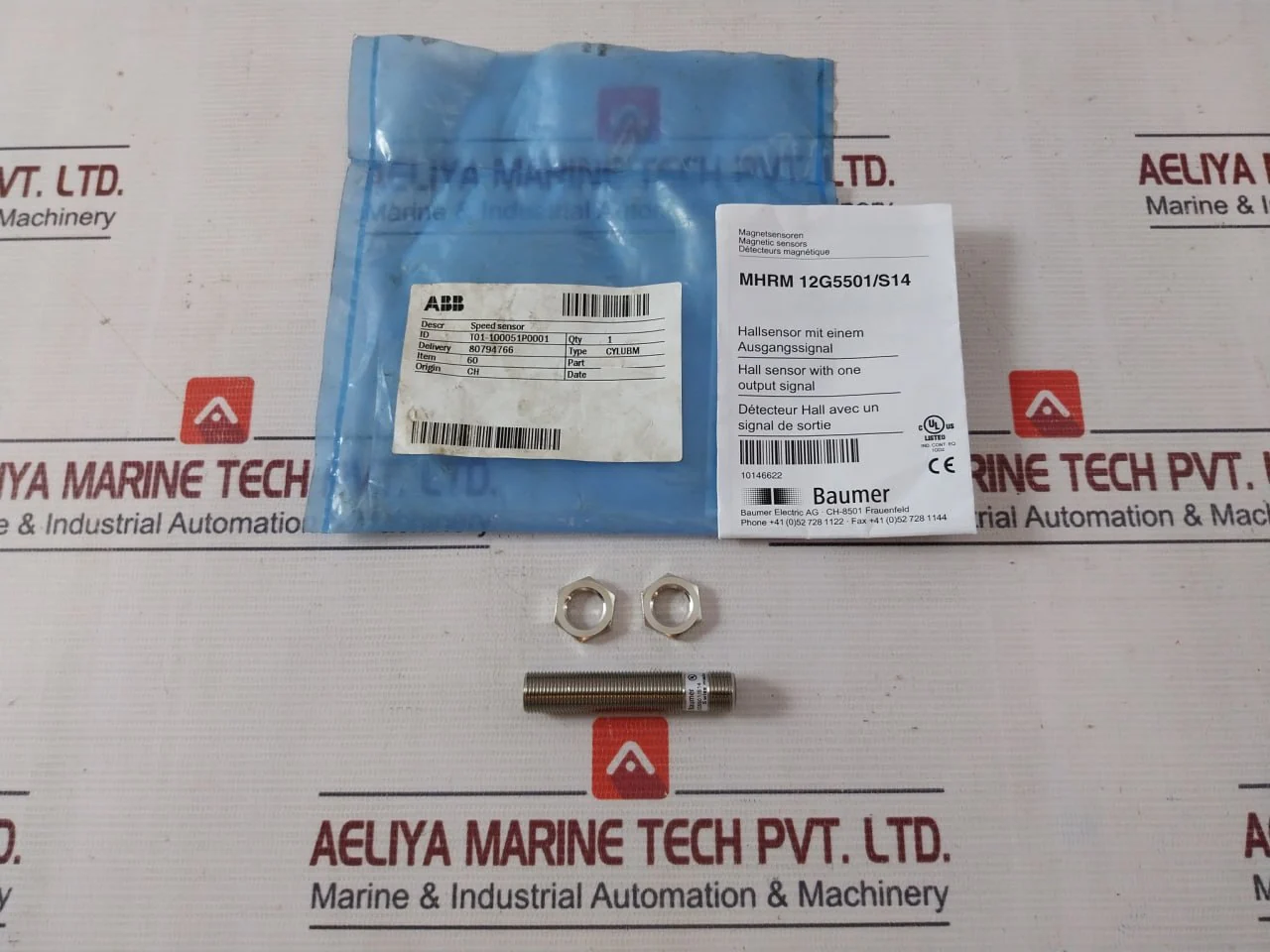

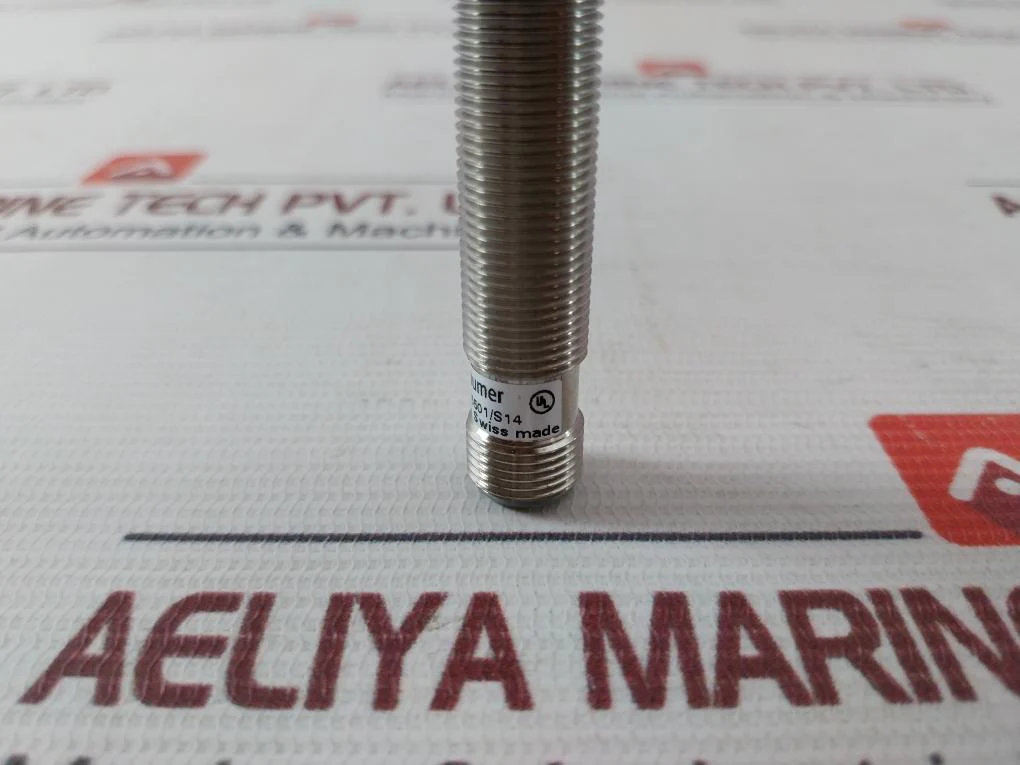

Baumer Mhrm 12G5501/S14 Hall Sensor With One Output Signal
Baumer Electric Ag
Hall Sensor With One Output Signal
Mhrm 12G5501/S14
L181

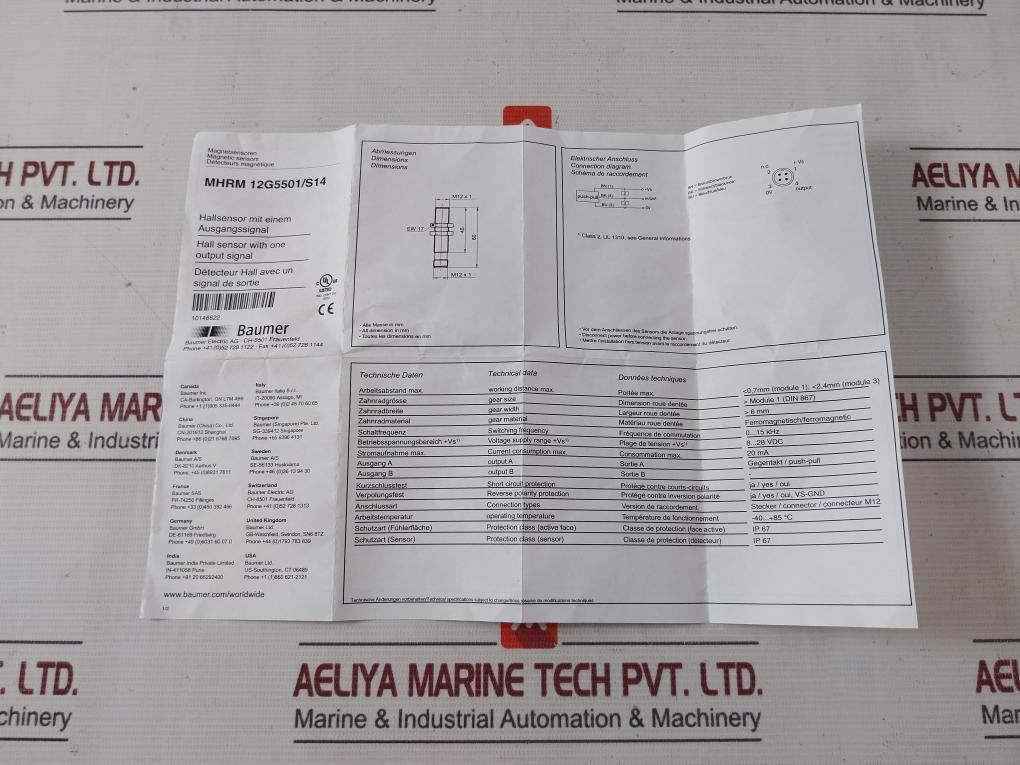

Technical Data:
Working Distance Max:
Less Than 0,7Mm (Module 1);
Less Than 2,4Mm (Module 3)
Gear Size: Greater Than Module 1 (Din 867)
Gear Width: Greater Than 6 Mm
Switching Frequency: 0…15 Khz
Voltage Supply Range + Vs1: 8…28 Vdc
Current Consumption Max: 20 Ma
Operating Temperature: -40…+85°C
Protection Class: Ip 67

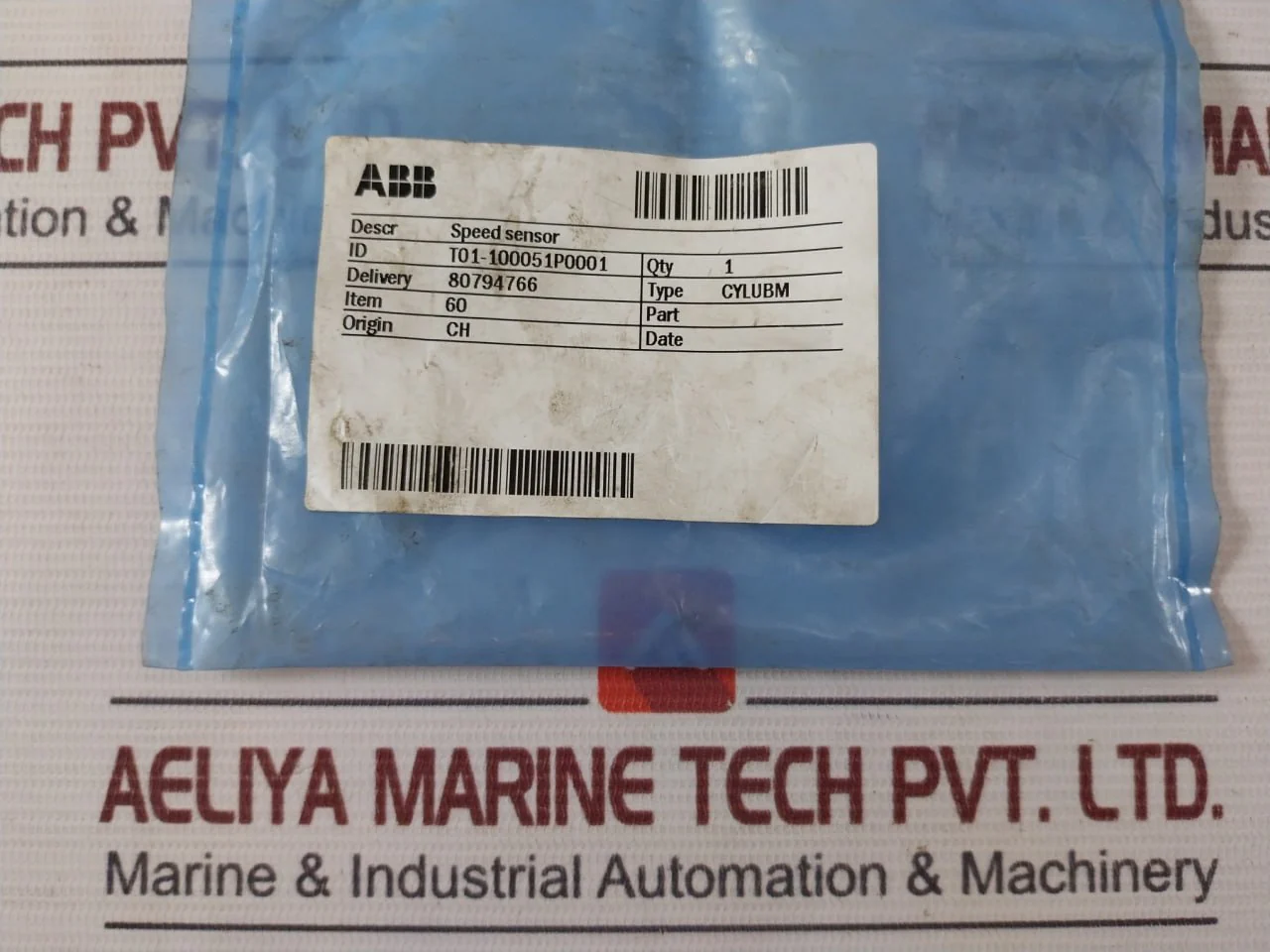

Descr: Speed Sensor
Typr: Cylubm
Id: T01-100051P0001
10146622
Art: 11042373
Origin: Ch
Swiss Made
Weight: 50 Gm
