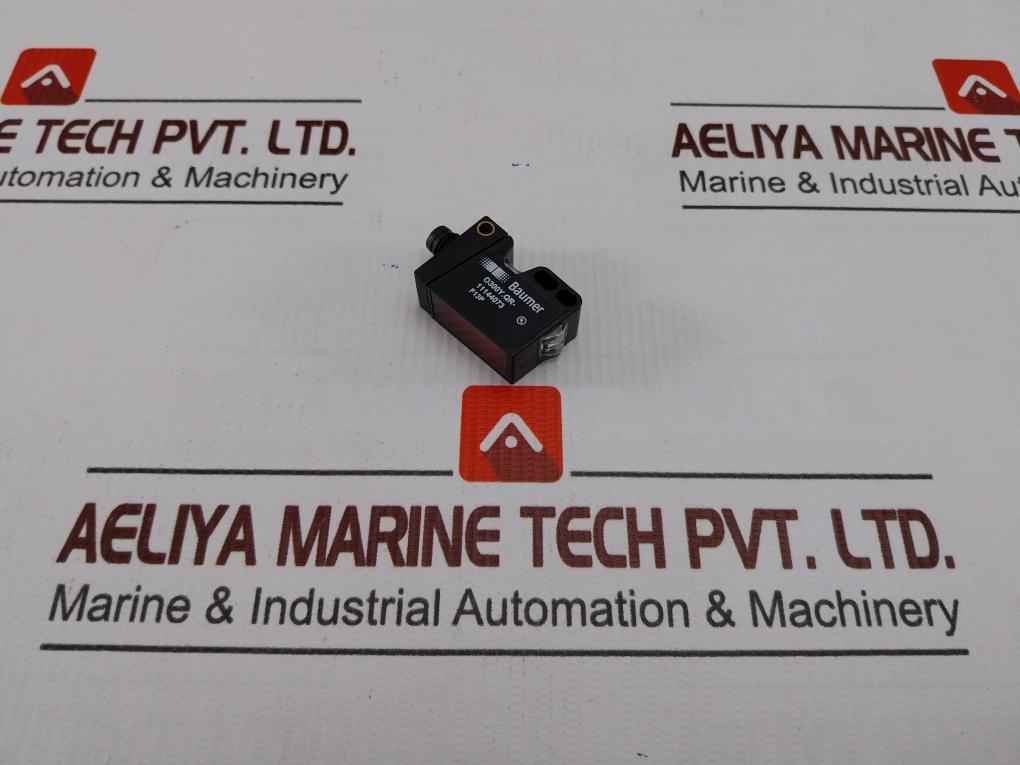

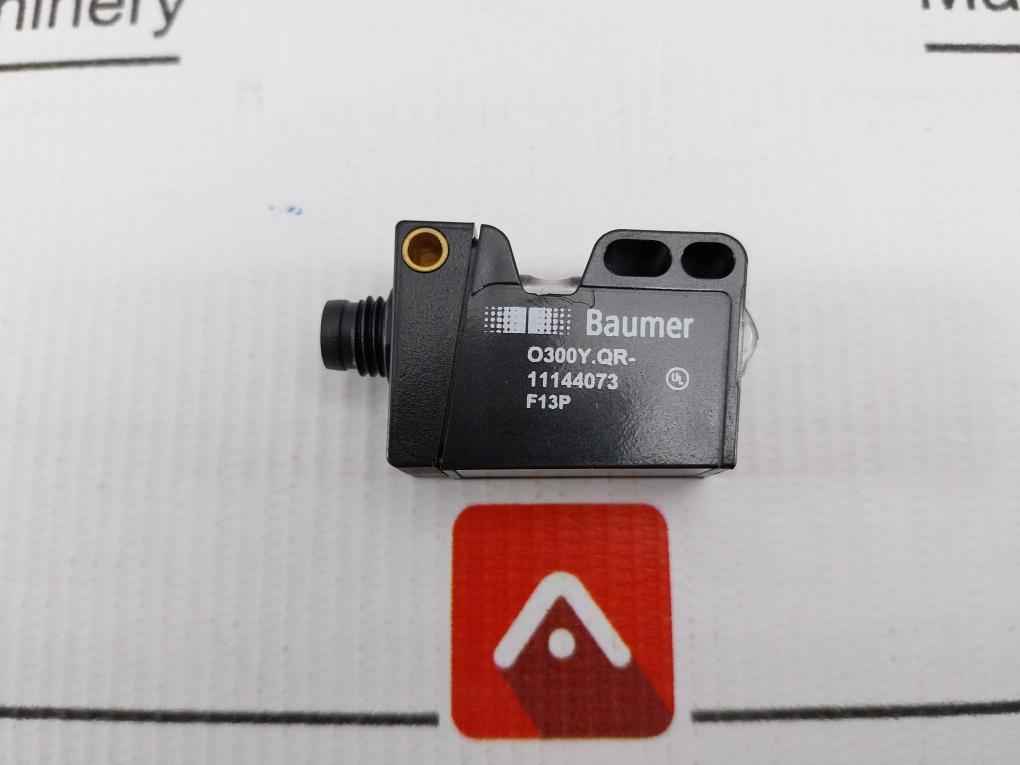

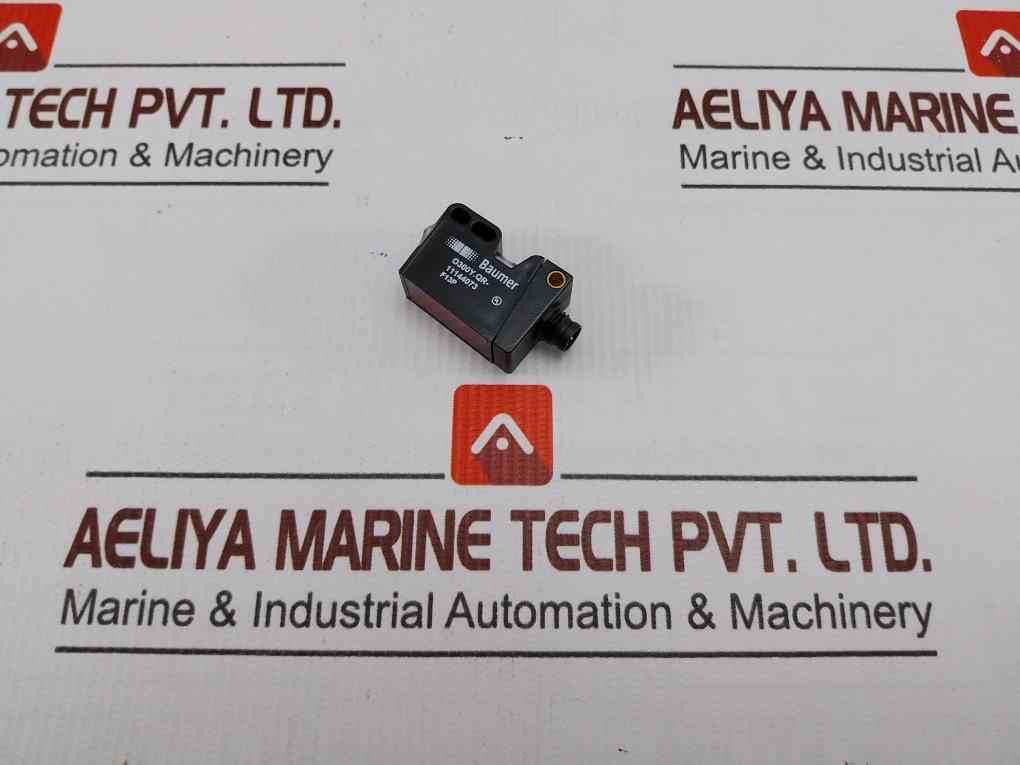

Baumer O300y.qr-11144073 Photoelectric Sensor -25+60c 40ma 3.5m 10-30 Vdc

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Product image 7
Product image 8
Product image 9
Product image 10
Product image 11
Product image 12
Product image 13
Product image 14

Baumer O300y.qr-11144073 Photoelectric Sensor -25+60c 40ma 3.5m 10-30 Vdc

Baumer O300y.qr-11144073 Photoelectric Sensor -25+60c 40ma 3.5m 10-30 Vdc

Baumer O300y.qr-11144073 Photoelectric Sensor -25+60c 40ma 3.5m 10-30 Vdc
Baumer Electric Ag
Photoelectric Sensor
Retro-reflective Sensor
O300y.qr-11144073
F13p
11144073
Art. 11042373

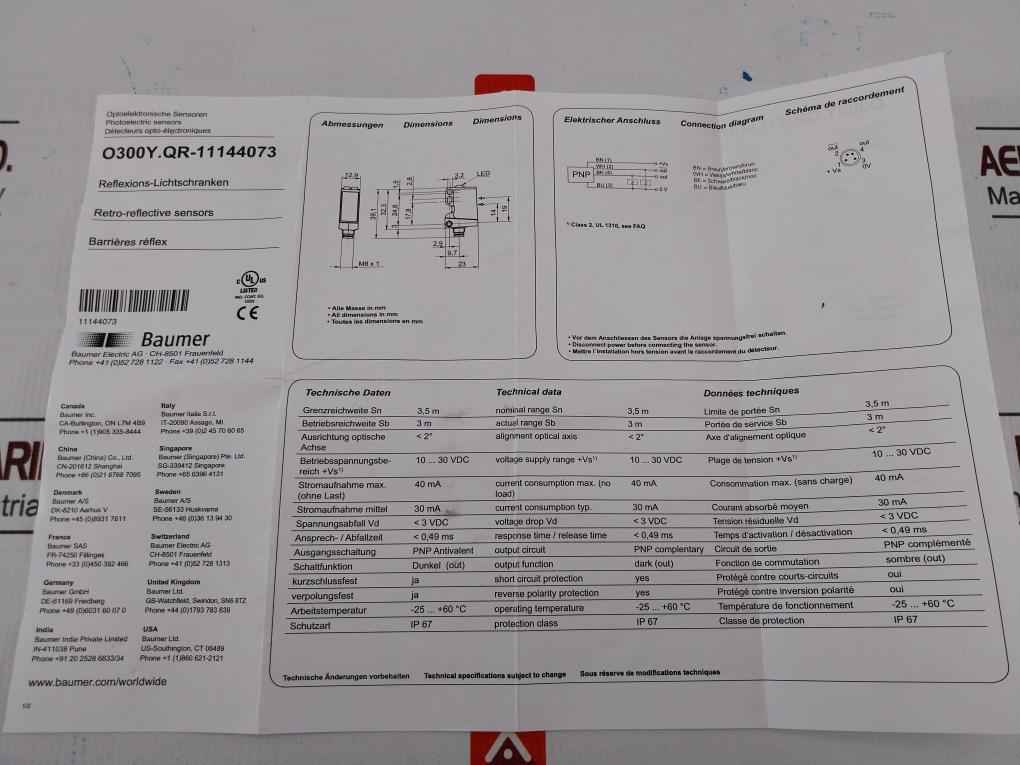

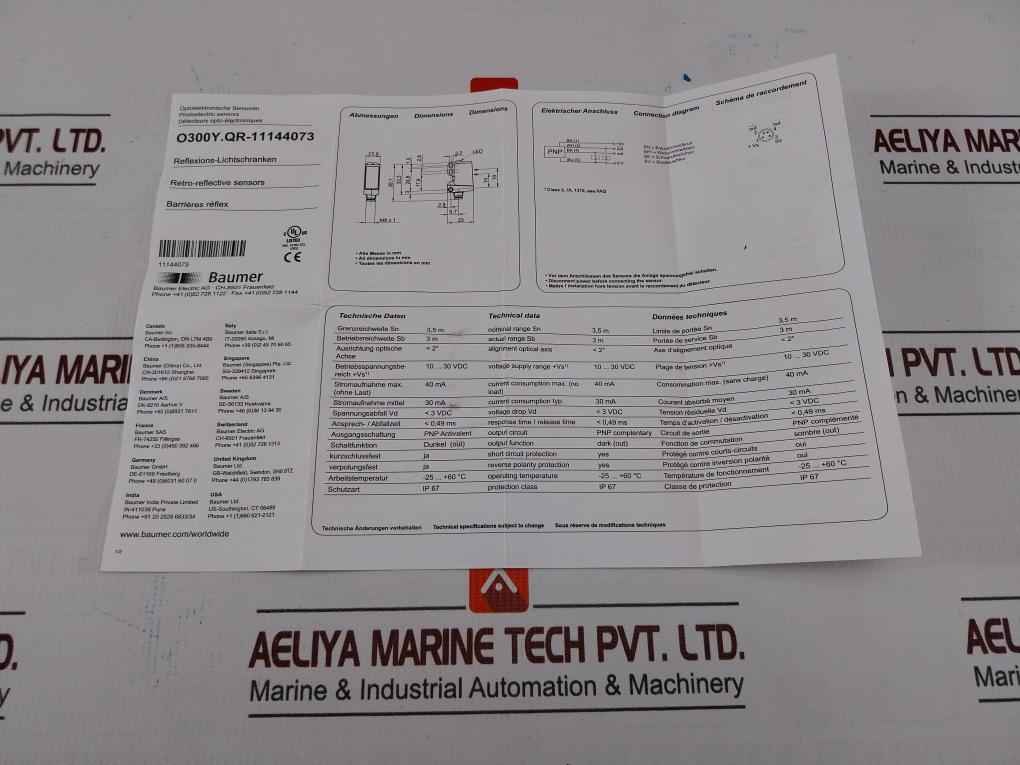

Technical Data:
Nominal Range Sn: 3.5 M
Actual Range Sb: 3 M
Alignment Optical Axis: Less Than 2°
Voltage Supply Range +vs¹): 10 ... 30 Vdc
Current Consumption Max. (no Load): 40 Ma
Current Consumption Typ.: 30 Ma
Voltage Drop Vd: Less Than 3 Vdc
Response Time/release Time: Less Than 0.49 Ms
Output Circuit: Pnp Complementary
Output Function: Dark (out)
Short Circuit Protection: Yes
Reverse Polarity Protection: Yes
Operating Temperature: -25 ... +60°c
Protection Class: Ip 67
Rated Max. 30vac/3a Or 24vdc/4a.
Weight: 50 Gm

$36.00

Original: $120.00

-70%
Baumer O300y.qr-11144073 Photoelectric Sensor -25+60c 40ma 3.5m 10-30 Vdc—

$120.00

$36.00

Product Information

Shipping & Returns

Description

Baumer O300y.qr-11144073 Photoelectric Sensor -25+60c 40ma 3.5m 10-30 Vdc
Baumer Electric Ag
Photoelectric Sensor
Retro-reflective Sensor
O300y.qr-11144073
F13p
11144073
Art. 11042373
Technical Data:
Nominal Range Sn: 3.5 M
Actual Range Sb: 3 M
Alignment Optical Axis: Less Than 2°
Voltage Supply Range +vs¹): 10 ... 30 Vdc
Current Consumption Max. (no Load): 40 Ma
Current Consumption Typ.: 30 Ma
Voltage Drop Vd: Less Than 3 Vdc
Response Time/release Time: Less Than 0.49 Ms
Output Circuit: Pnp Complementary
Output Function: Dark (out)
Short Circuit Protection: Yes
Reverse Polarity Protection: Yes
Operating Temperature: -25 ... +60°c
Protection Class: Ip 67
Rated Max. 30vac/3a Or 24vdc/4a.
Weight: 50 Gm
