Cegelec Alspa C80-35 Power Supply Programmable Controller 100-240 Vac 50/60Hz
Cegelec Controls
Alspa C80-35
High Capacity
Power Supply
Programmable Controller
Input: 100-240 Vac~
50/60Hz 100Va
125Vdc---, 50W
Output: 24Vdc---
0.8A Max.
Torque 12 In-lb.
Use Copper Conductors Rated Or 75 Deg. C Only.

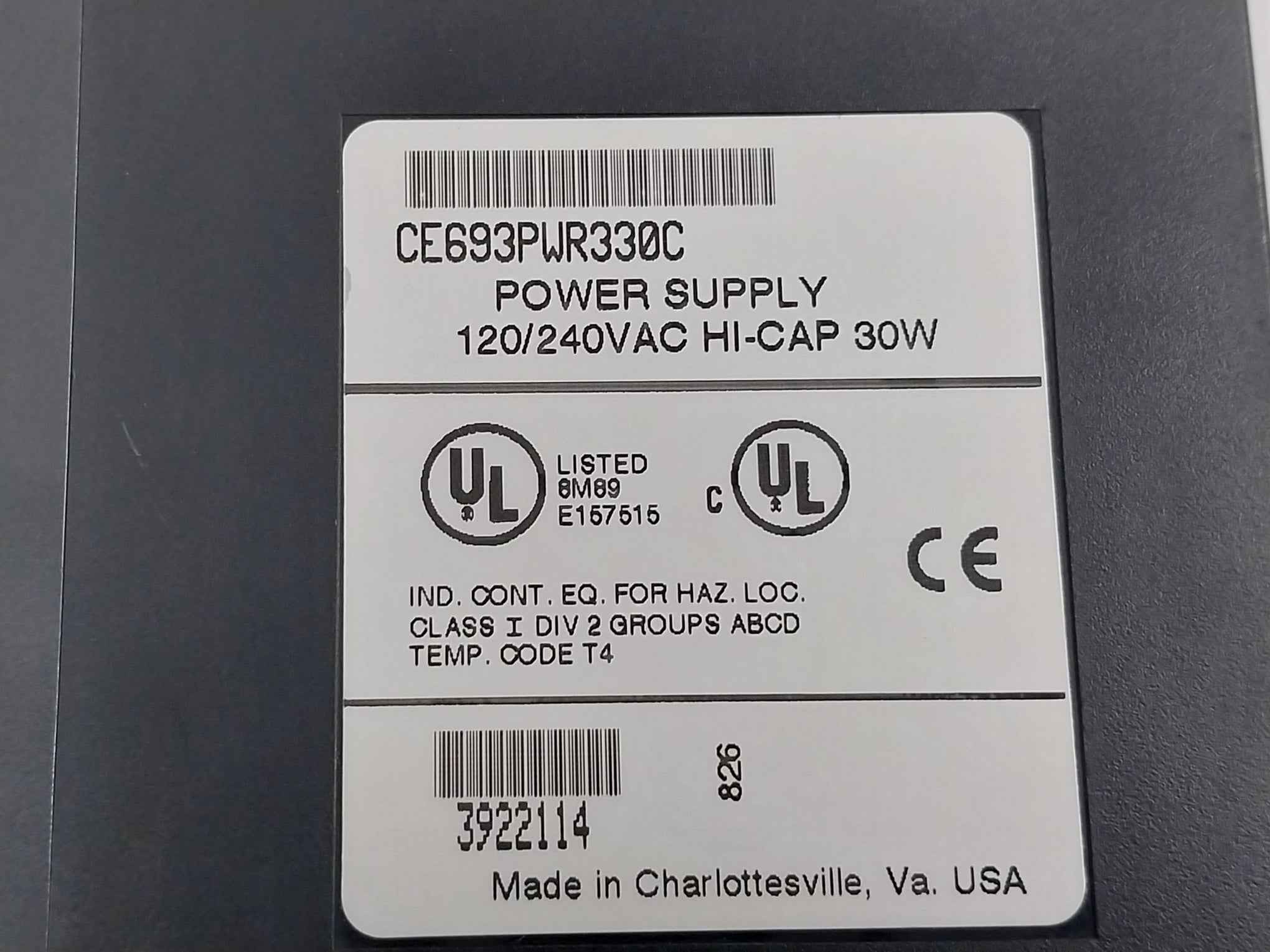

Ce693Pwr330C
120/240Vac Hi-cap 30W
E157515
Temp. Code T4
3922114
826

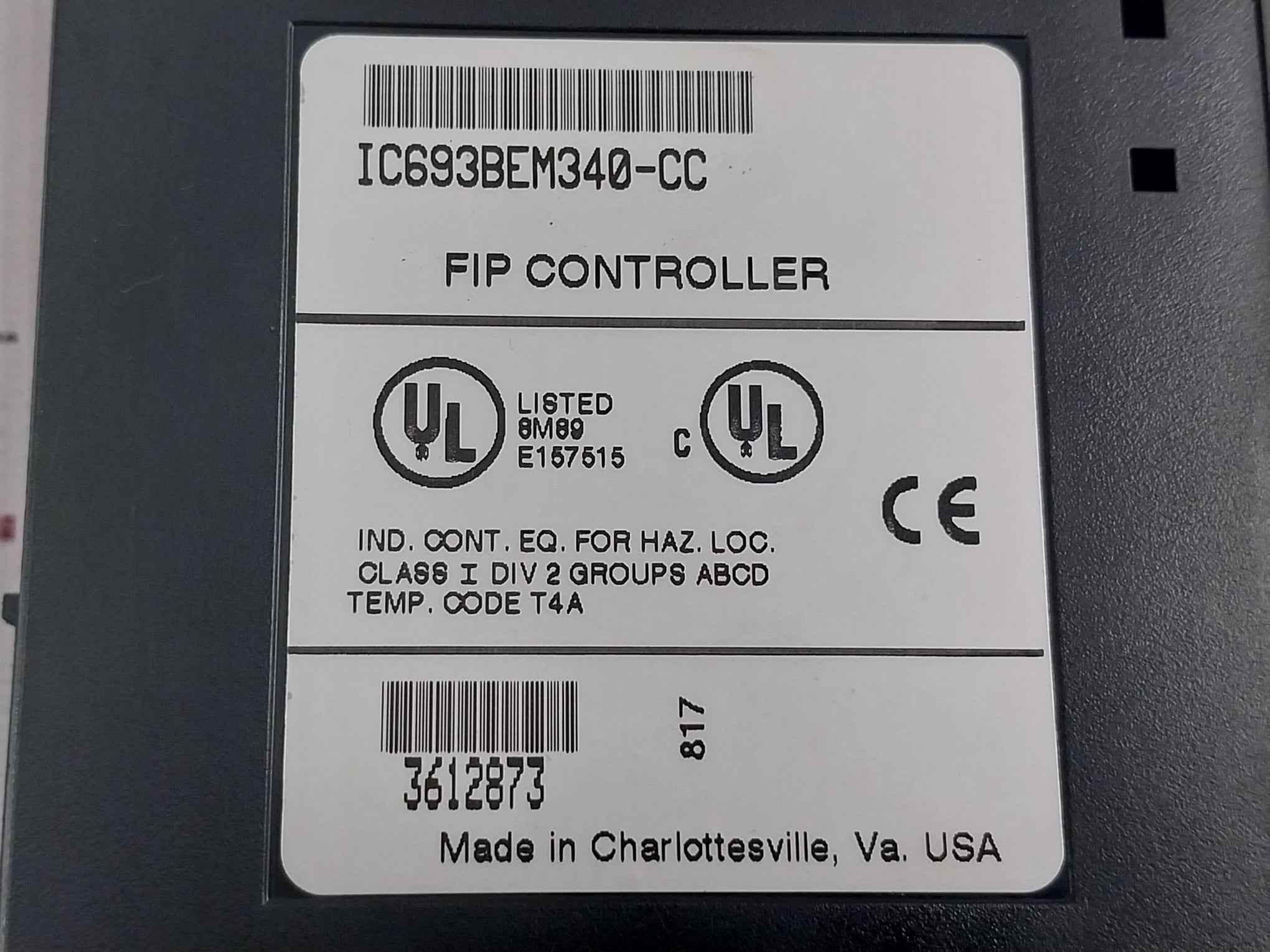

Fip Fieldbus Dual Channel Control Fip Ch 2 1Mhz
Rs-422
Fip Controller
Ic693Bem340-cc
Temp. Code T4A
3612873
817

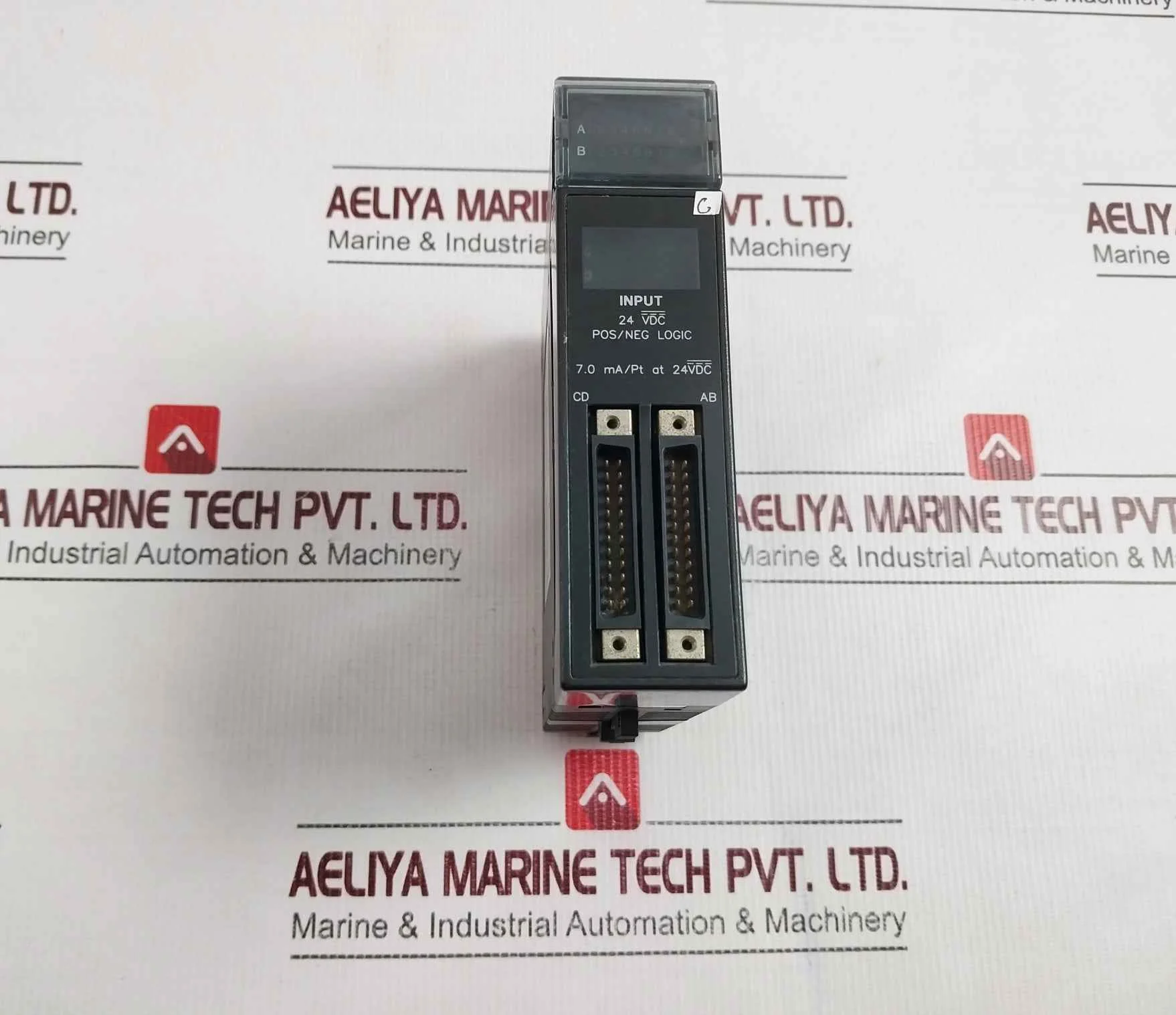

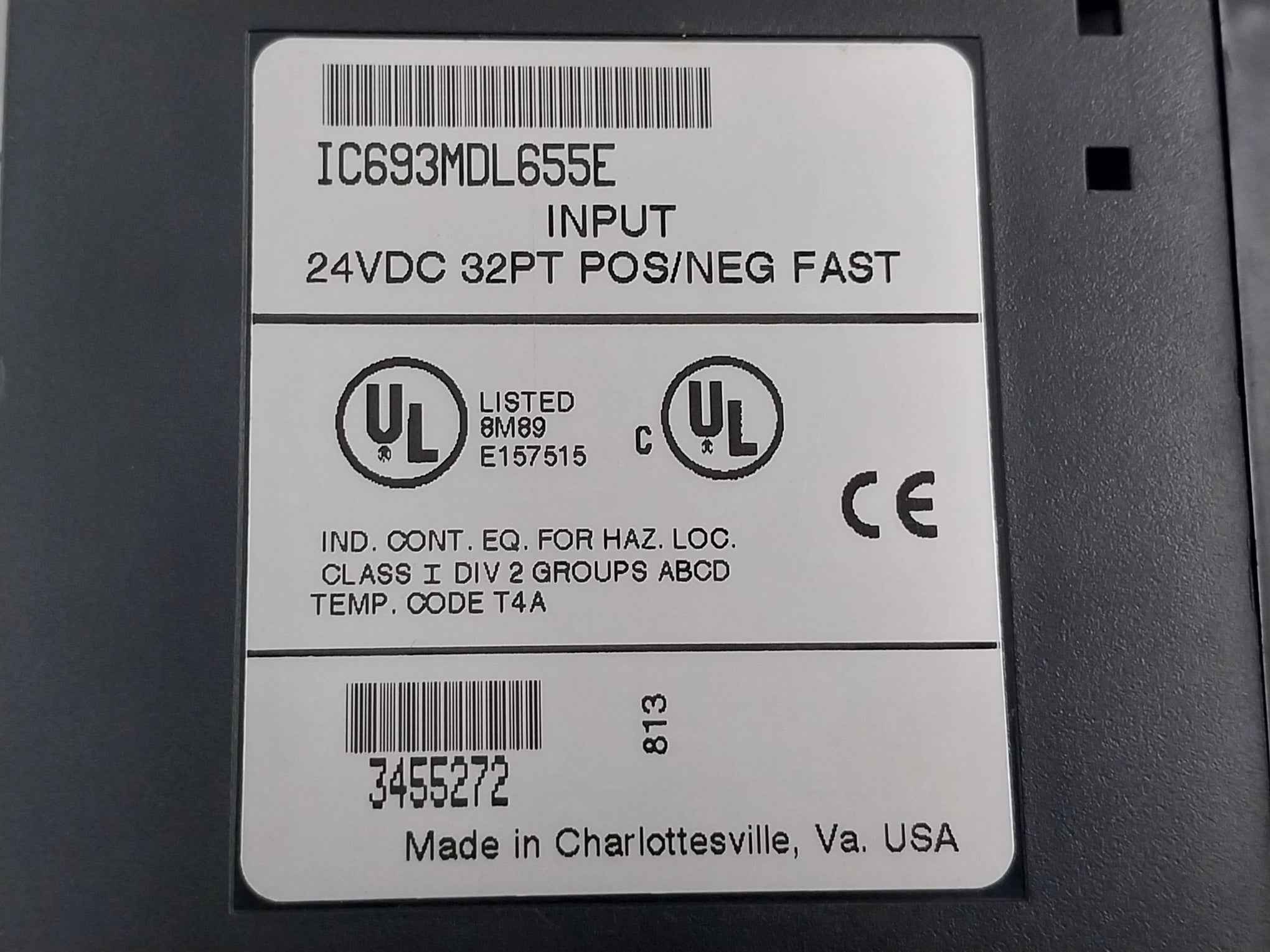

Input
24Vdc---
Pos/Neg Logic
7.0 Ma/Pt At 24Vdc---
32 Pt Pos/Neg Fast
Ic693Mdl655E
3455272
813
Output
5/12/24Vdc---
Neg Logic
25Ma Max/Output At 5Vdc---
0.5A Pilot Duty
At 12/24Vdc---
Ic693Mdl752E
Ttl 32Pt
3542673
829

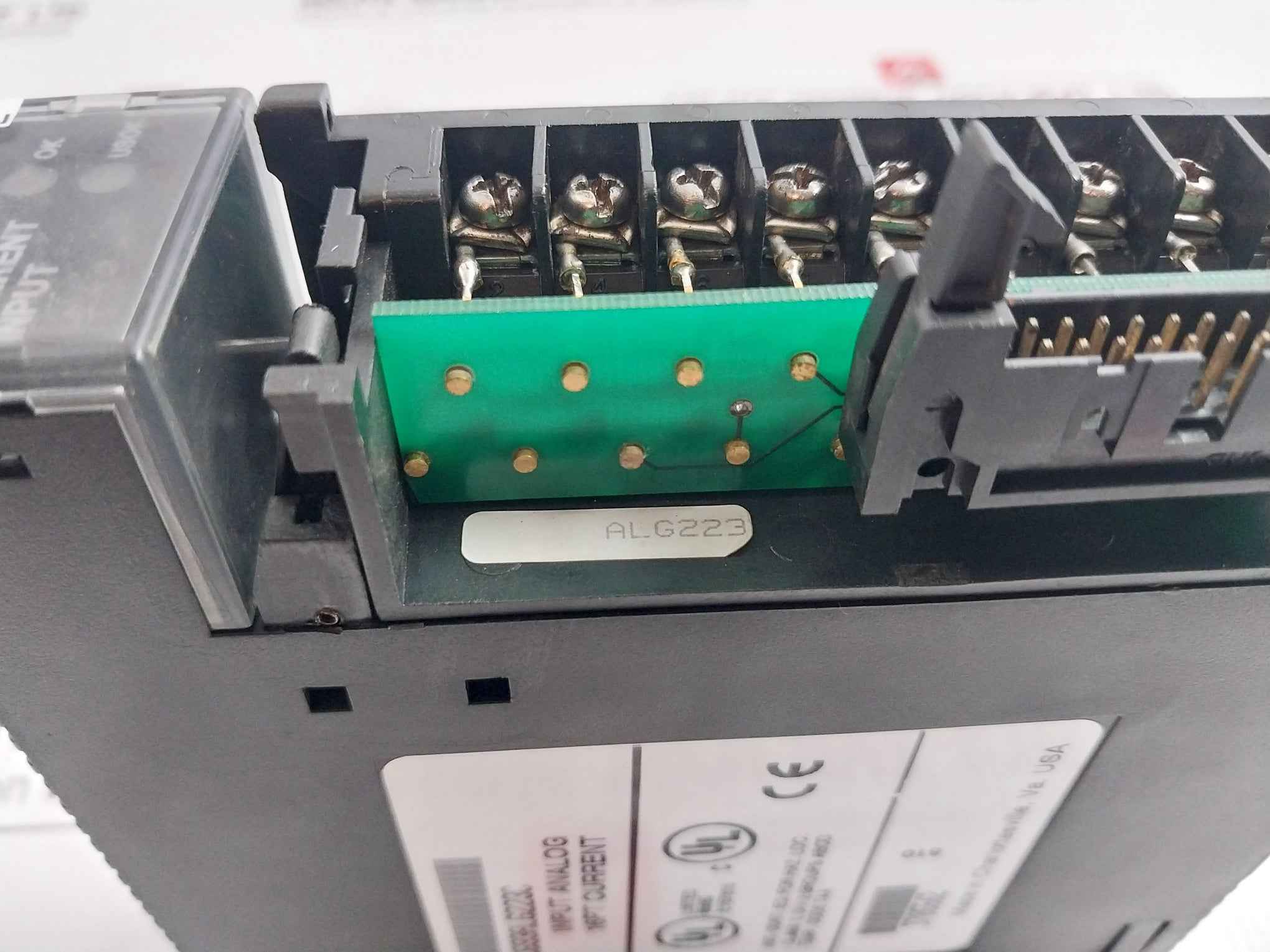

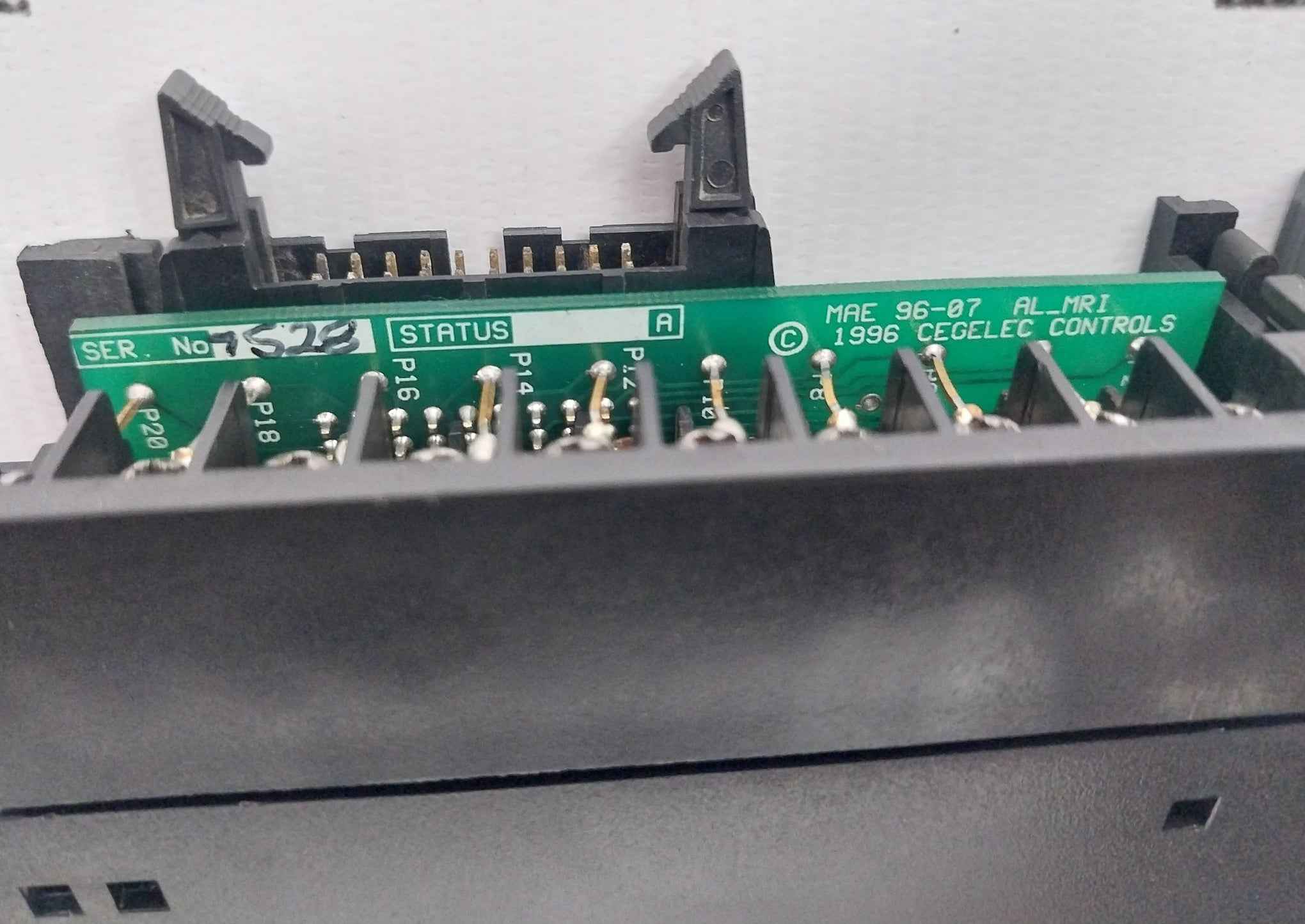

High Density Analog Current Input
Alg223
Mae 96-07
Al_Mri

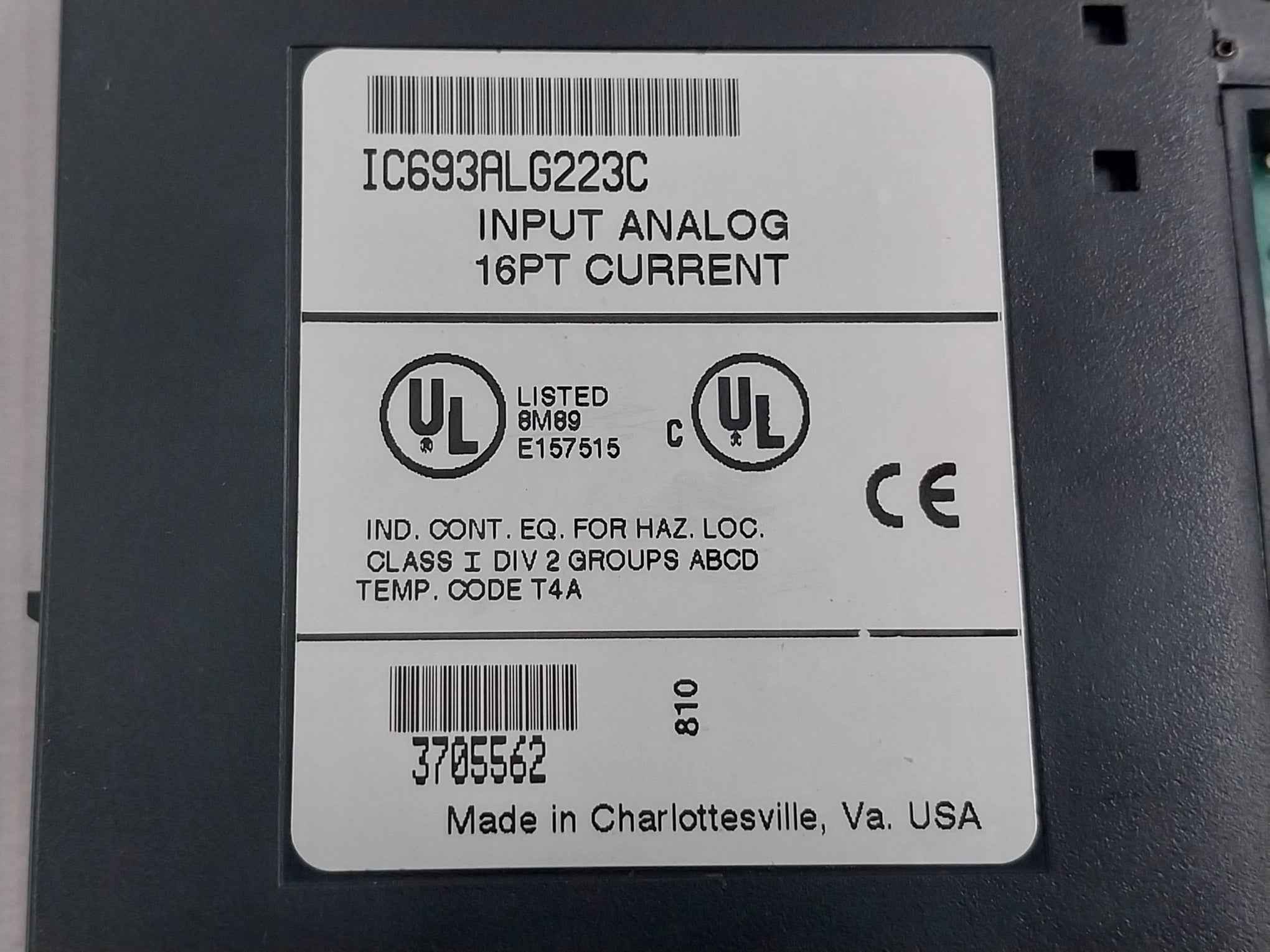

Ic693Alg223C
Input Analog 16Pt Current
3705562
810

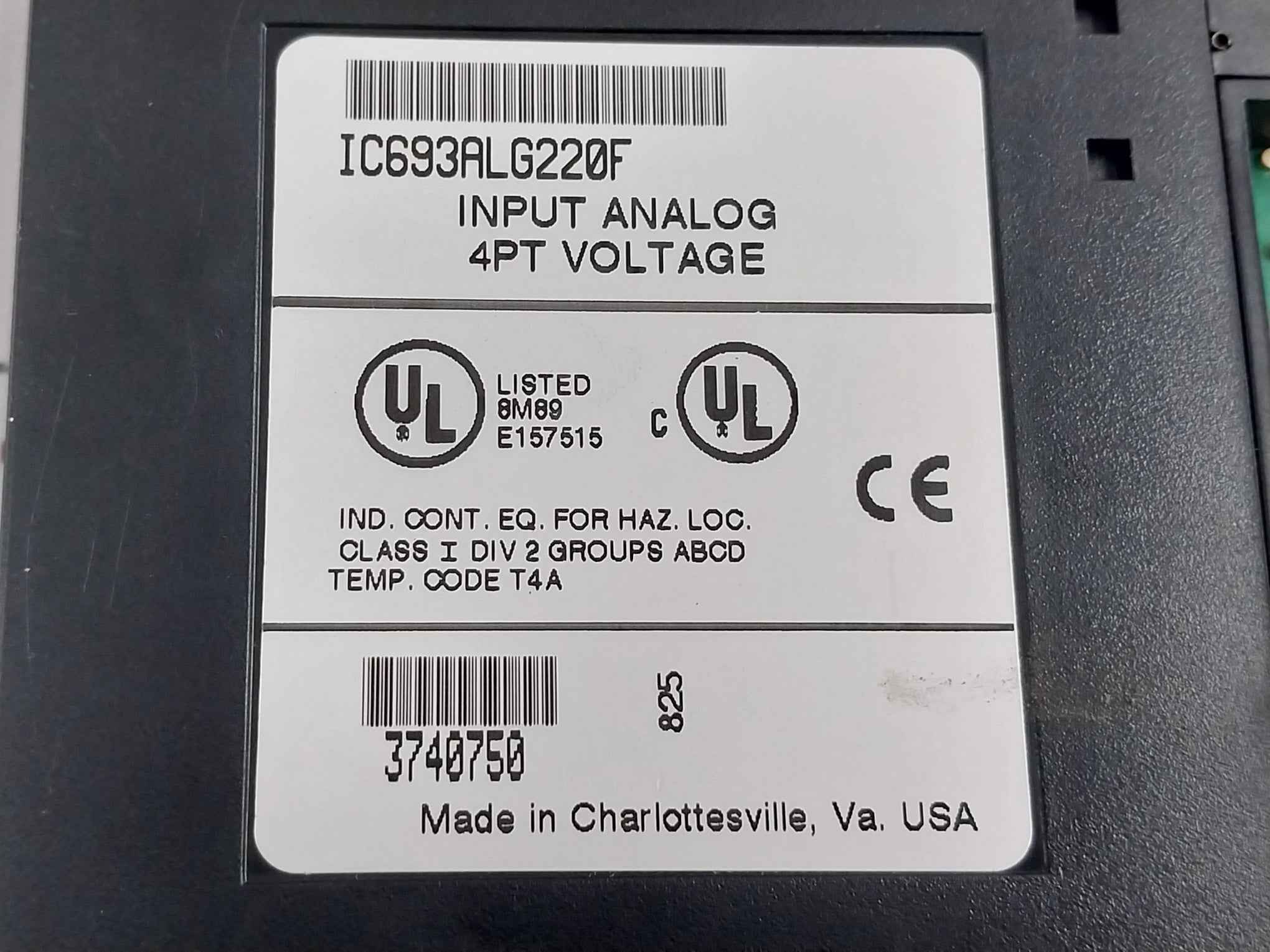

Alg220
Ic693Alg220F
Input Analog 4Pt Voltage
3740750
825

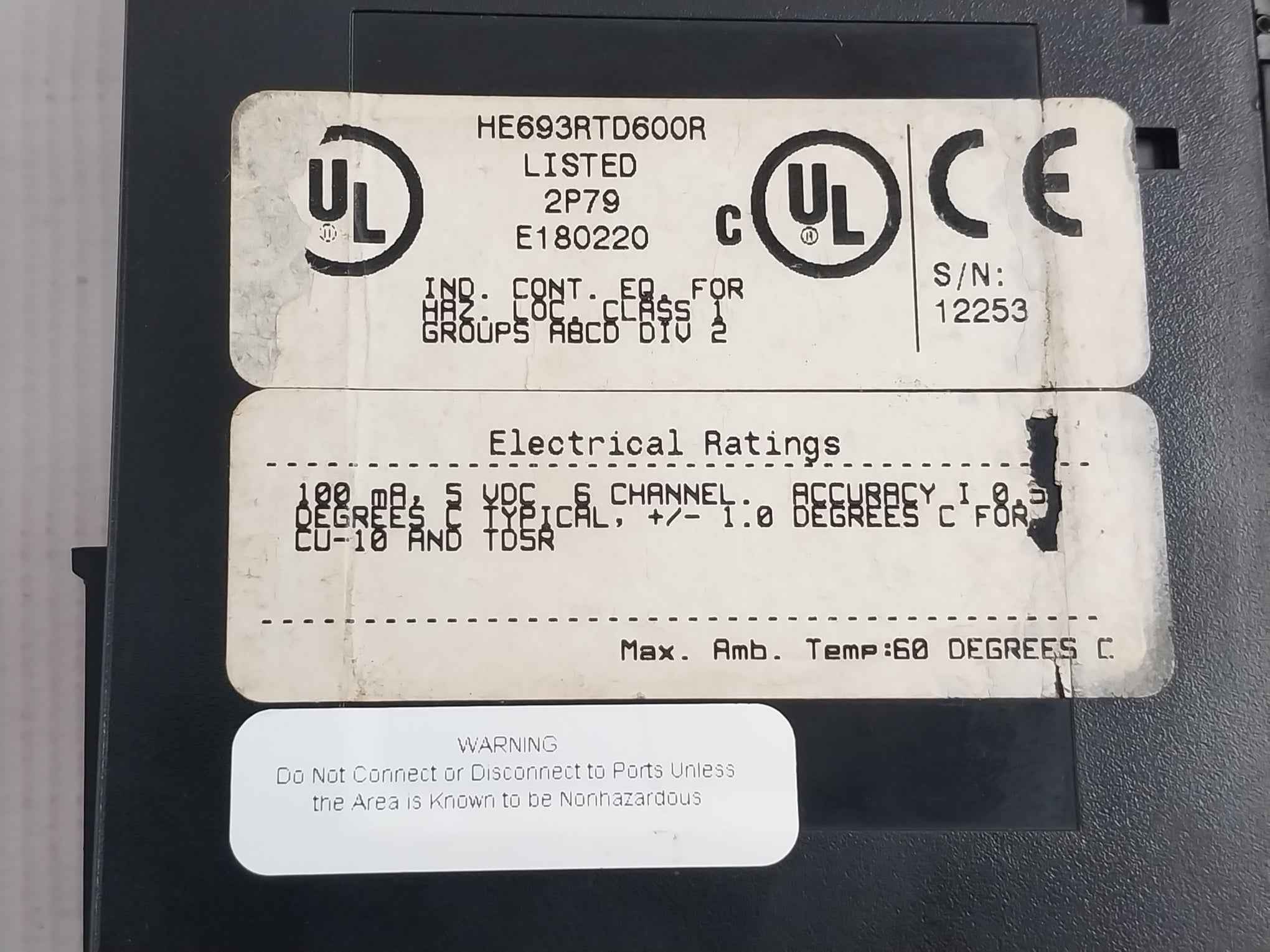

Rtd Input
He693Rtd600R
E180220
Electrical Ratings: 100Ma, 5 Vdc 6 Channel. Accuracy I 0,5
Degrees C Typical, +/-1.0 Degrees C For Cu-10 And Td5R
Max.Amb.Temp: 60 Degrees C

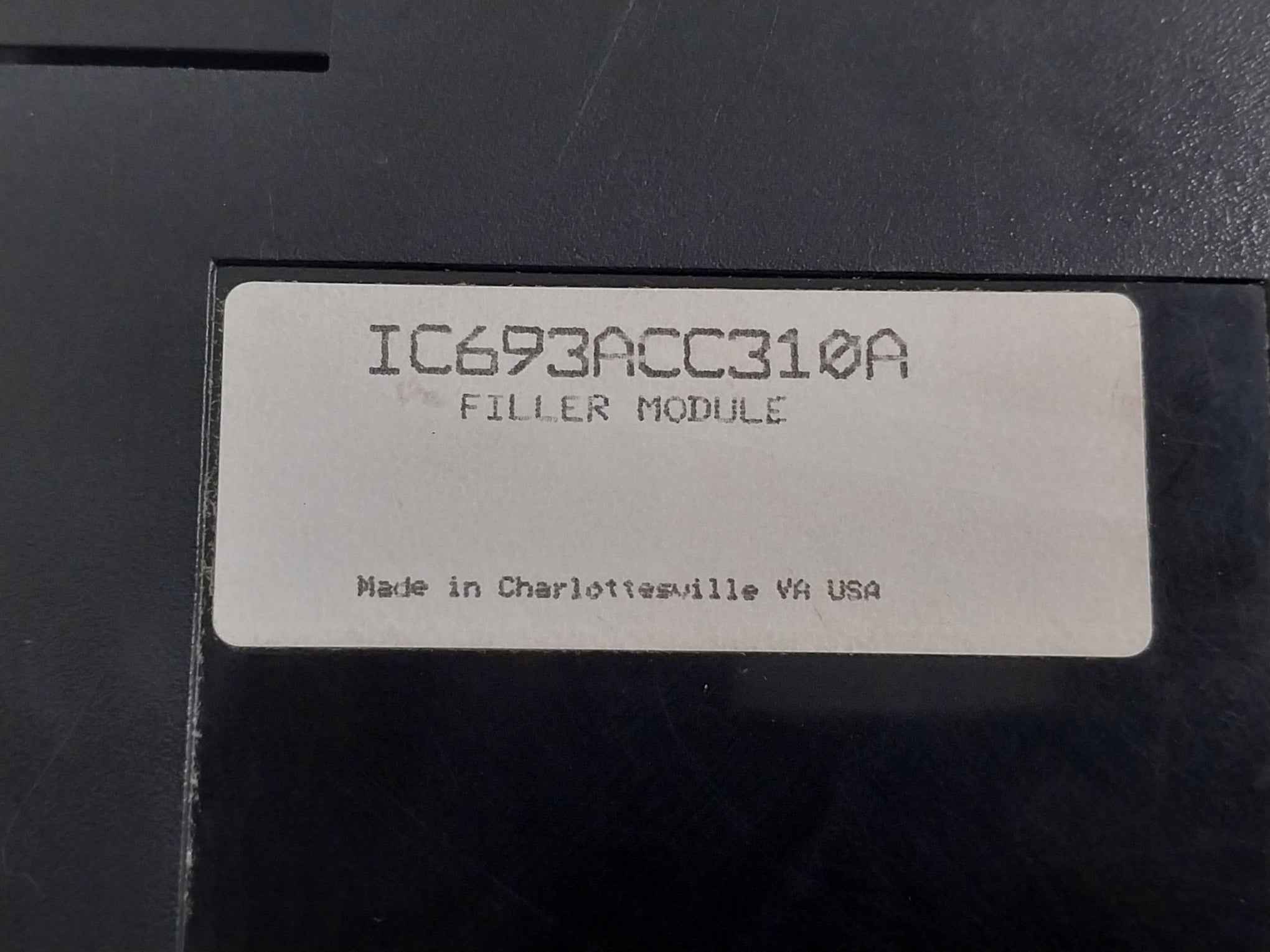

Filter Module
Ic693Acc310A

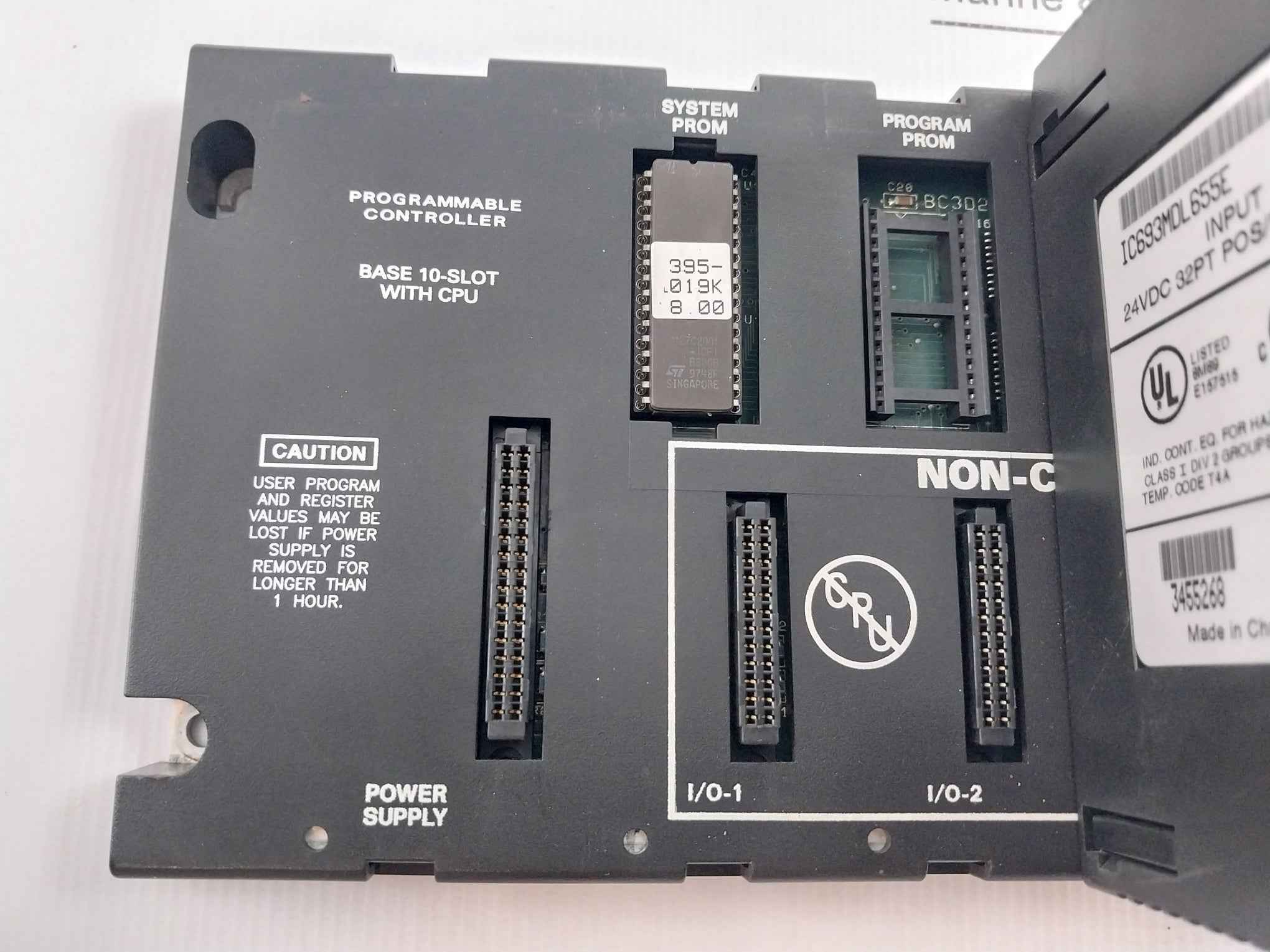

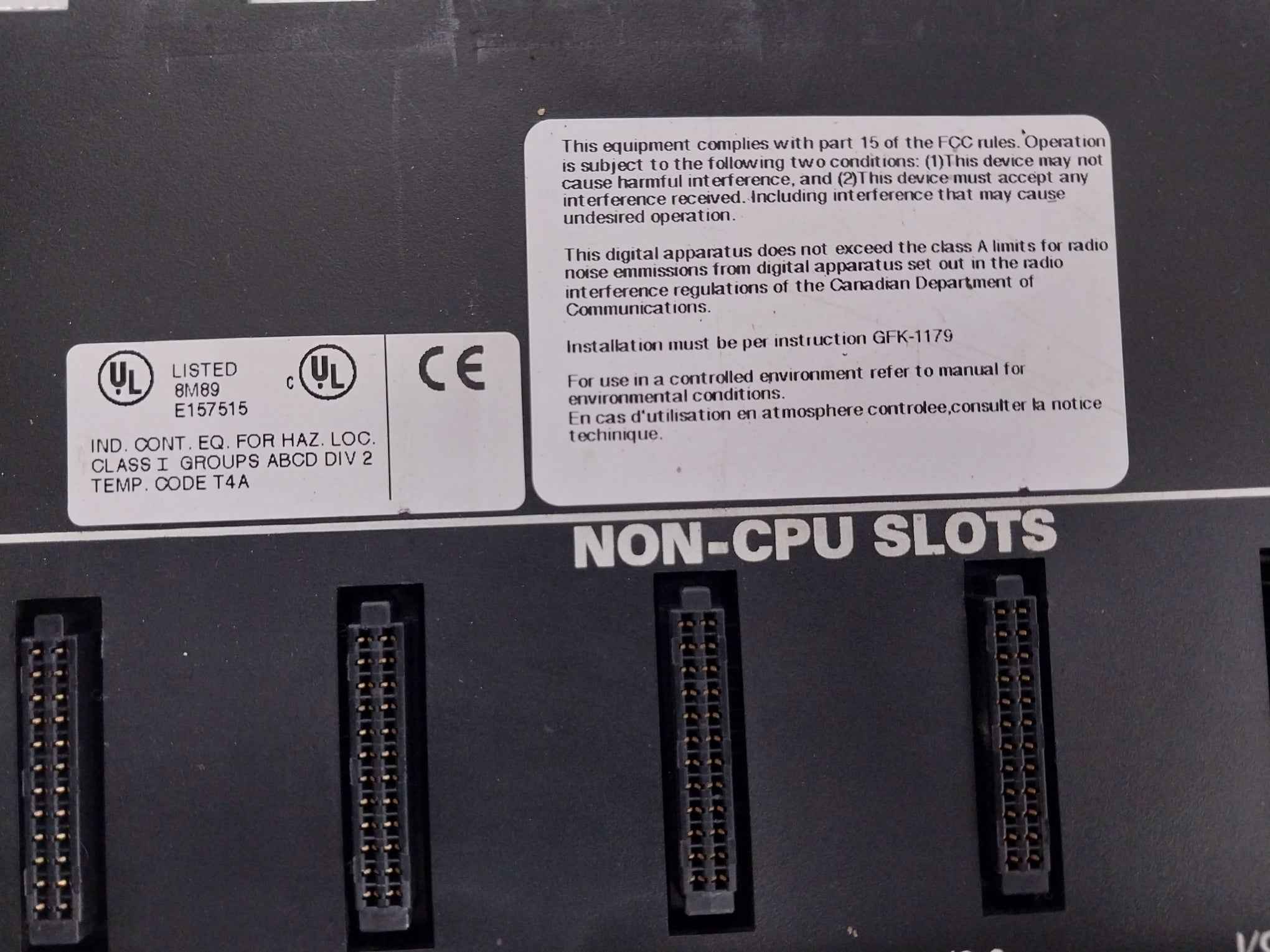

Base 10-slot With Cpu
Bc3D2
Ic693Cpu323R
3723992
3814
Made In Usa
Weight: 4.440 Kg
