Dell Nh493 Switching Power Supply L305P-01,Ps-6311-5Df-lf

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5

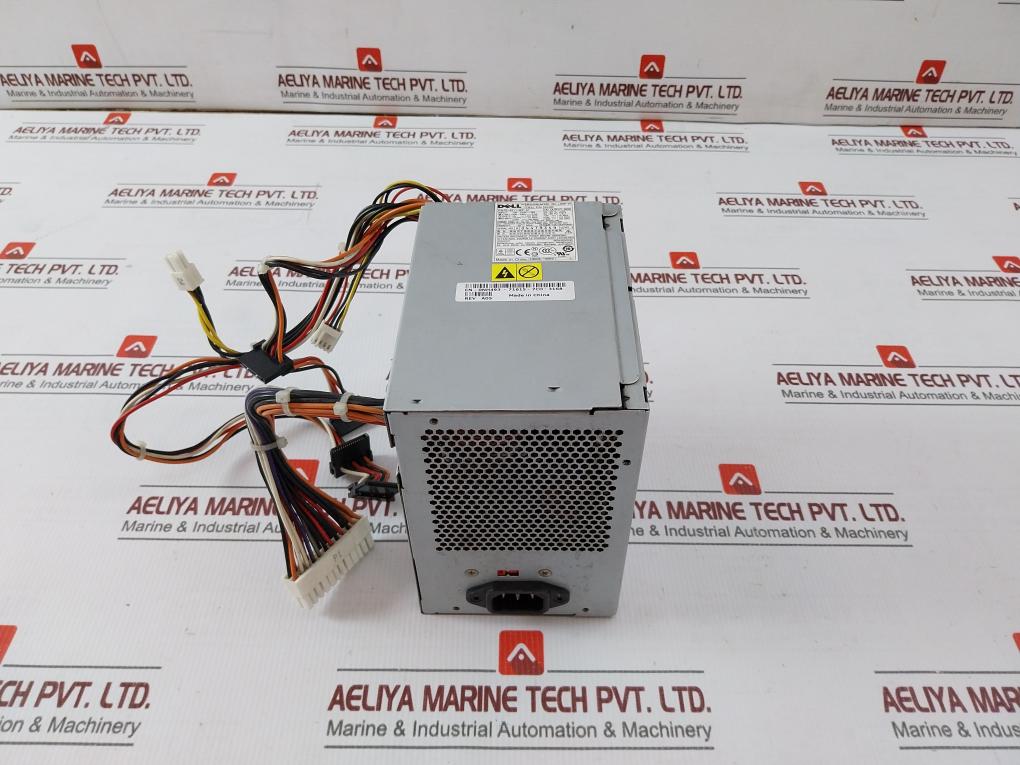

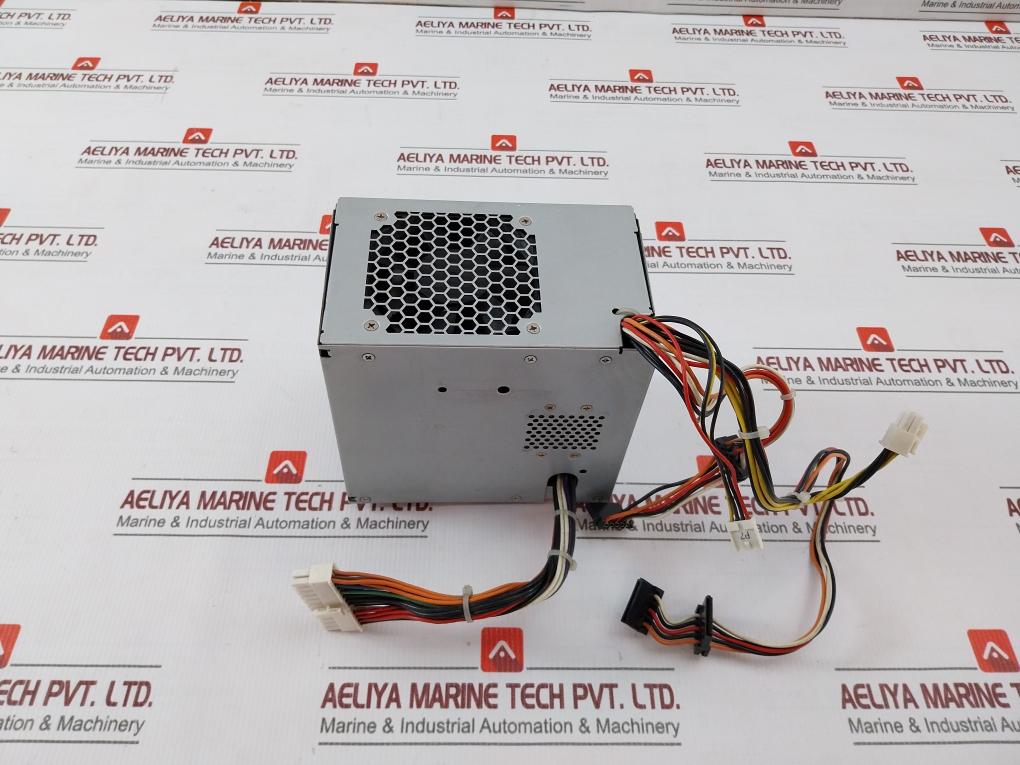

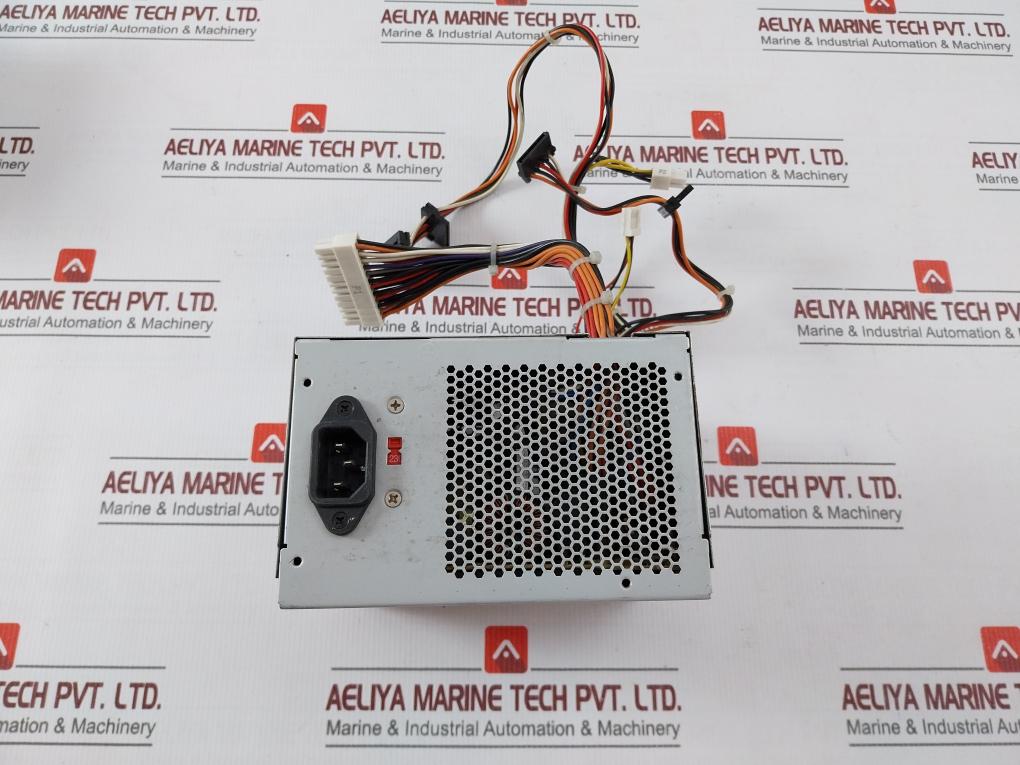

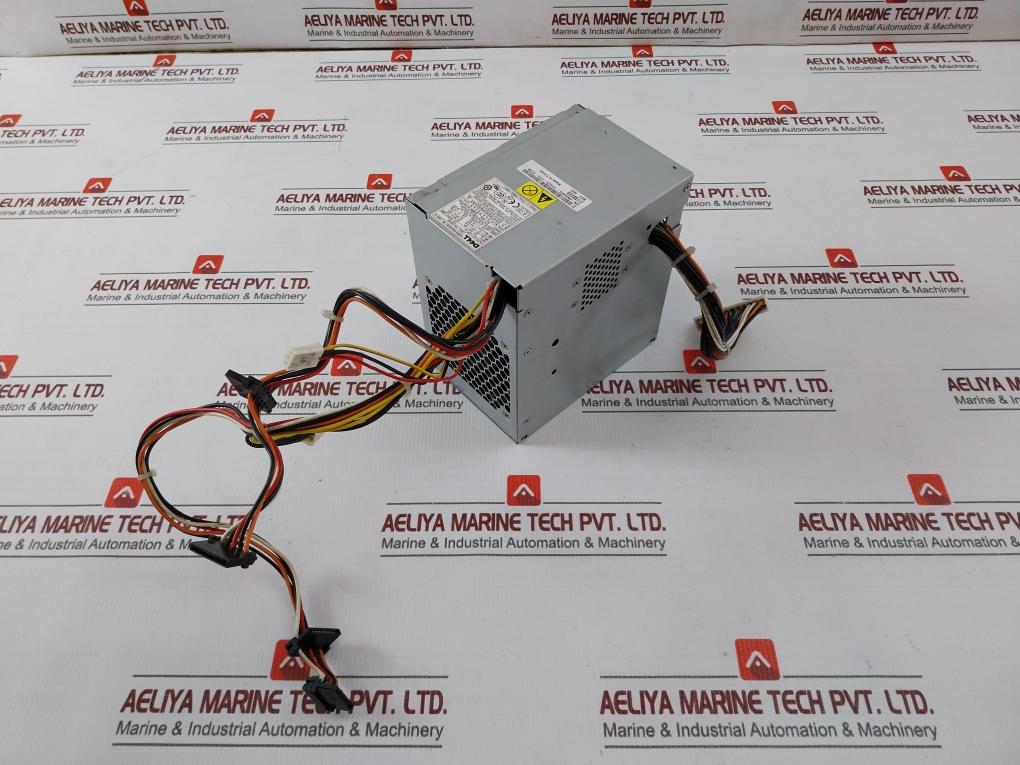

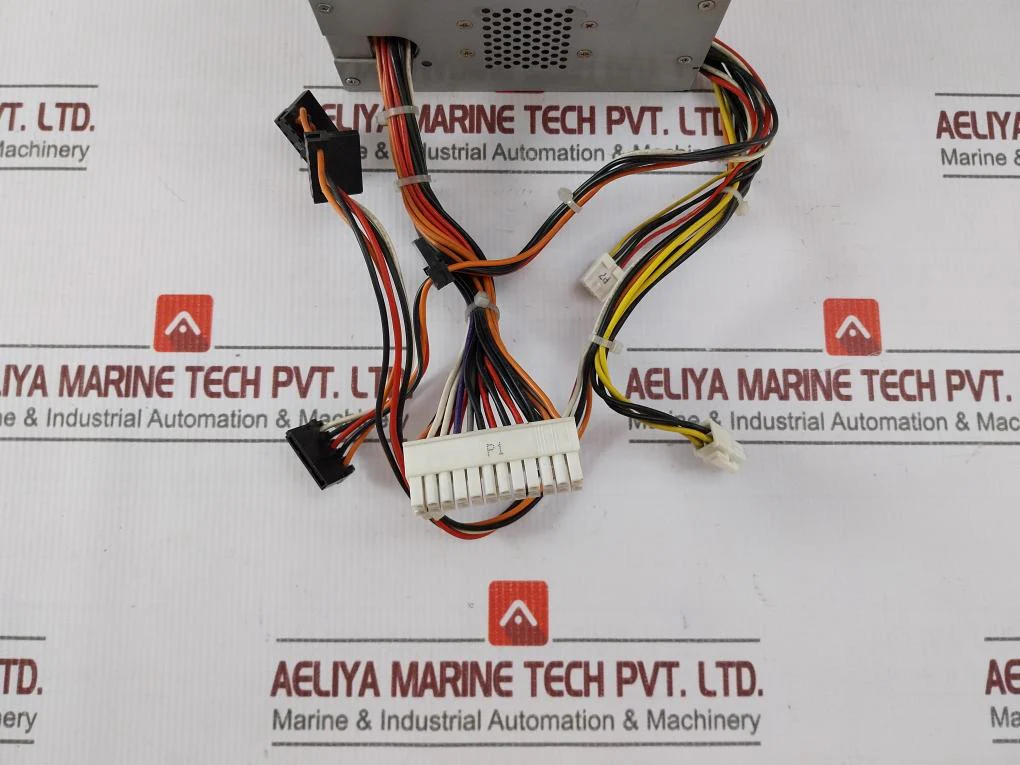

Dell Nh493 Switching Power Supply L305P-01,Ps-6311-5Df-lf

Dell Nh493 Switching Power Supply L305P-01,Ps-6311-5Df-lf

Dell Nh493 Switching Power Supply L305P-01,Ps-6311-5Df-lf
Dell
Model No.: L305P-01
P/N: Nh493
P/N: Ps-6311-5Df-lf
Dc Output: 305W
Input: 100-120V~/9A 50-60Hz
200-240V~/4.5A 50-60Hz
Output: +5V ---/22A Max -12V --- /1A Max
+5V(Fp)---/4A Max +3.3V --- /17A Max
+12Va---/18A Max +12Vb ---/ 18A Max
Combined Power On +3.3V And +5V Rails Not Exceed 150W.
Combined Power On +12Va And +12Vb Rails Not Exceed 264W.
Max. Continuous Total Dc Output Power Shall Not Exceed 305W.
Ambient: 50°C Max.
(Switching Power Supply/Exchange Power Supply)
Level 3
E132068
Cn- 0Nh493-71615-7Co-3168
Rev. A05
Made In China
Weight: 1.760 Kg

$37.50

Original: $125.00

-70%
Dell Nh493 Switching Power Supply L305P-01,Ps-6311-5Df-lf—

$125.00

$37.50

Product Information

Shipping & Returns

Description

Dell Nh493 Switching Power Supply L305P-01,Ps-6311-5Df-lf
Dell
Model No.: L305P-01
P/N: Nh493
P/N: Ps-6311-5Df-lf
Dc Output: 305W
Input: 100-120V~/9A 50-60Hz
200-240V~/4.5A 50-60Hz
Output: +5V ---/22A Max -12V --- /1A Max
+5V(Fp)---/4A Max +3.3V --- /17A Max
+12Va---/18A Max +12Vb ---/ 18A Max
Combined Power On +3.3V And +5V Rails Not Exceed 150W.
Combined Power On +12Va And +12Vb Rails Not Exceed 264W.
Max. Continuous Total Dc Output Power Shall Not Exceed 305W.
Ambient: 50°C Max.
(Switching Power Supply/Exchange Power Supply)
Level 3
E132068
Cn- 0Nh493-71615-7Co-3168
Rev. A05
Made In China
Weight: 1.760 Kg
