Foxboro 5906-1 Sensor Segment L8005Yp B0134Kp Rev: H 10 Megohm At 500Vdc
Foxboro Canada Inc.
A Siebe Company
Niagara Plastics Co.

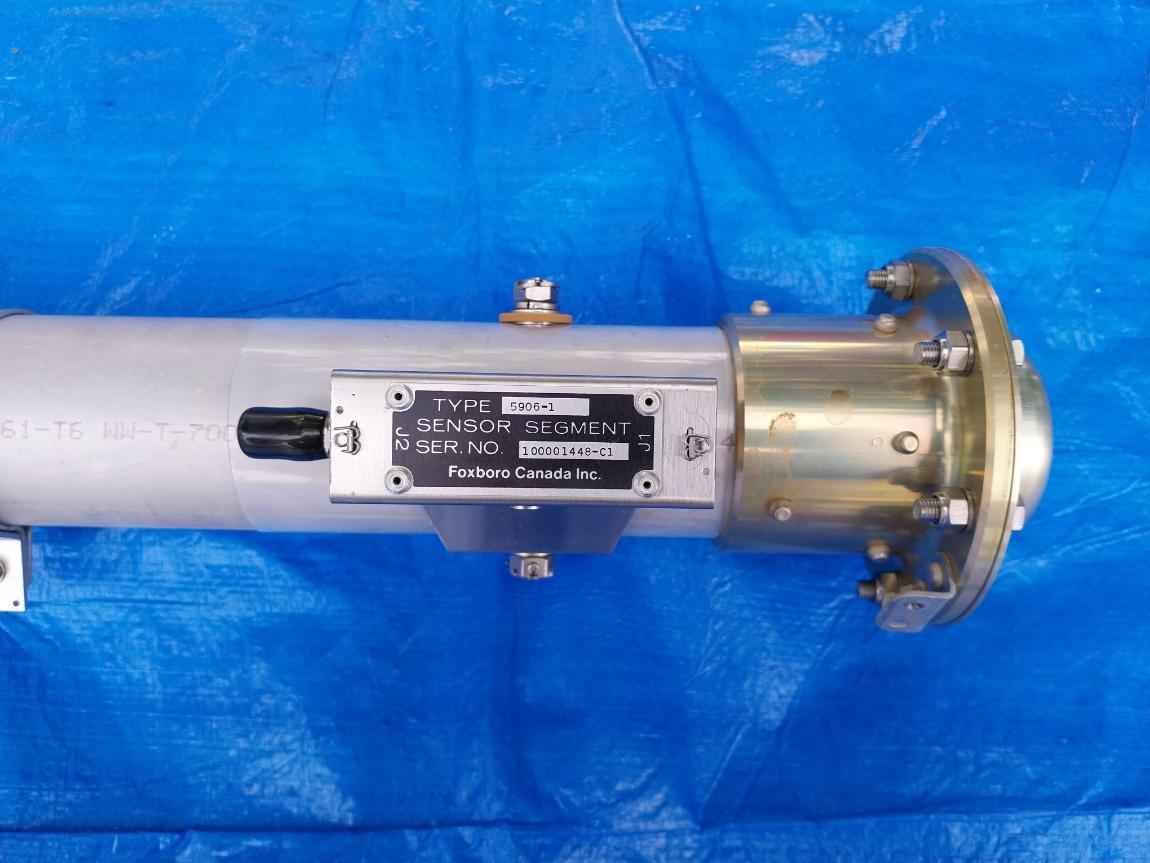

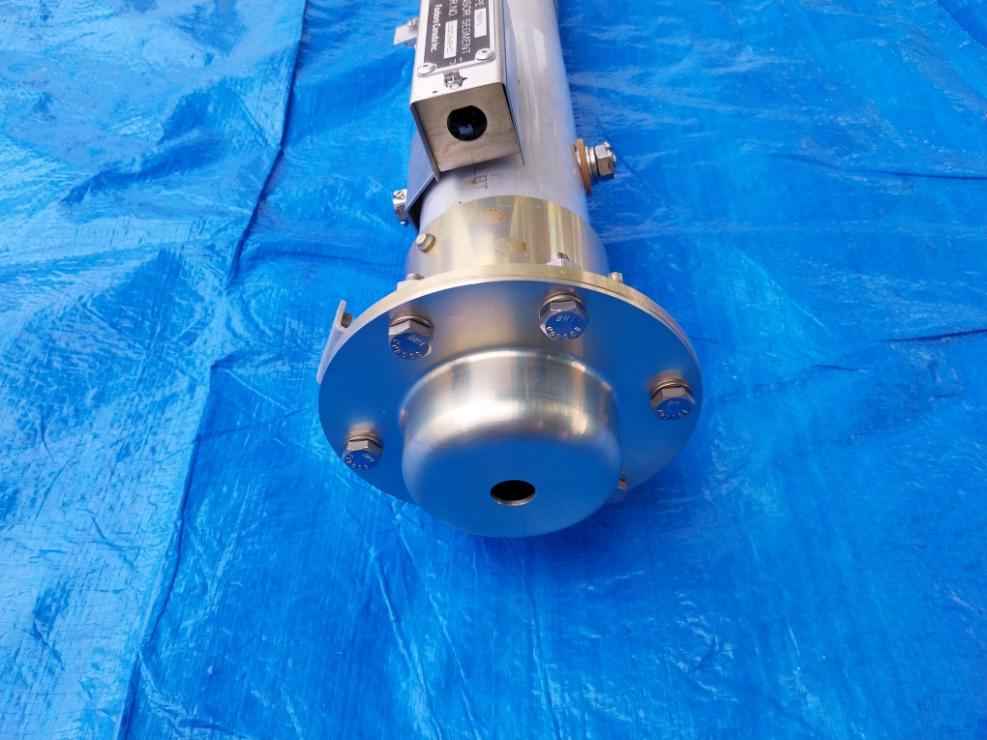

Sensor Segment
Type/Model: 5906-1

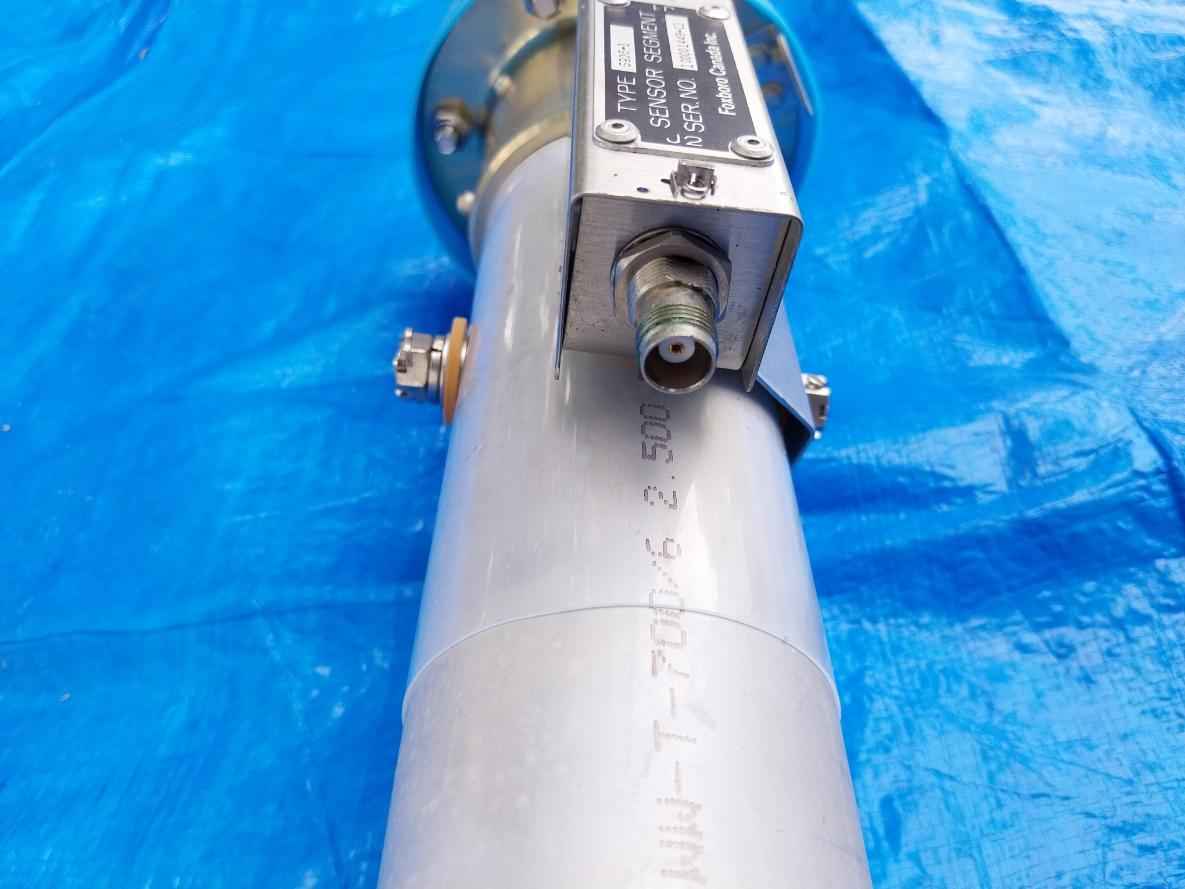

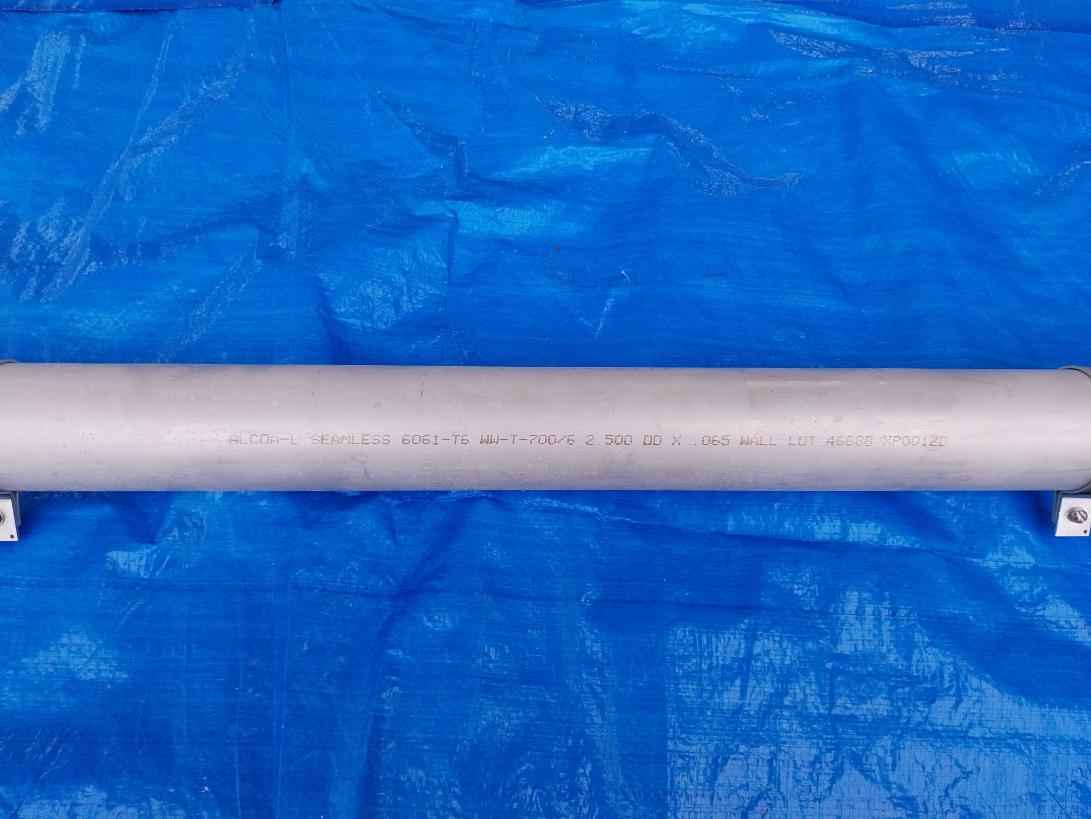

Alcda-l Seamless 6061-t6 Ww-t-700/6
2.500 Od X .065 Wall
Part No: L8005Yp
Order No.: M01-82795/1770
C/R/Hull No: H-1207
Dimensional: Specified Length: 197.554 Tol. +/- .015
Actual Length: 197.552
Deviation: -.002
Dwg .No: 18004Rf
Rev: H

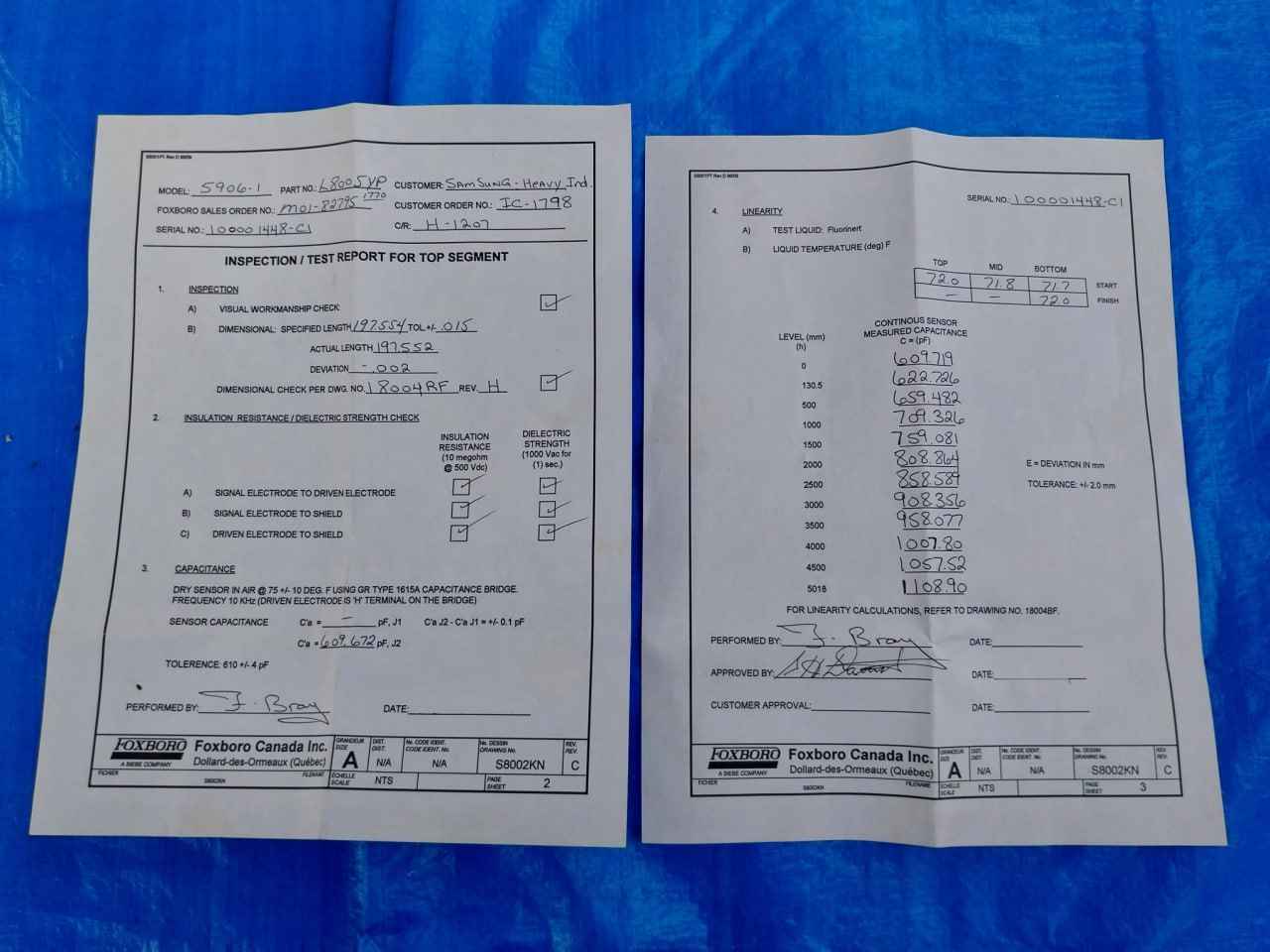

Insulation Resistance/Dielectric Strength Check:
Signal Electrode To Driven Electrode/ Signal Electrode To Shield/ Driven Electrode To Shield:
Insulation Resistance (10 Megohm @ 500 Vdc
Dielectric Strength (1000 Vac For (1) Sec.)
Capacitance:
Dry Sensor In Air @ 75+/-10 Deg. F Using Gr Type 1615A Capacitance Bridge.Frequency 10 Khz (Driven Electrode Is ‘H’ Terminal On The Bridge)
Sensor Capacitance: C’a=609.672 Pf, J2
Tolerence/Tolerance: 610 +/-4 Pf
Drawing No: S8002Kn
Rev: C
Size: A
Scale: Nts
E=Deviation In Mm
Tolerance: +/-2.0 Mm
Drawing No: 18004Bf

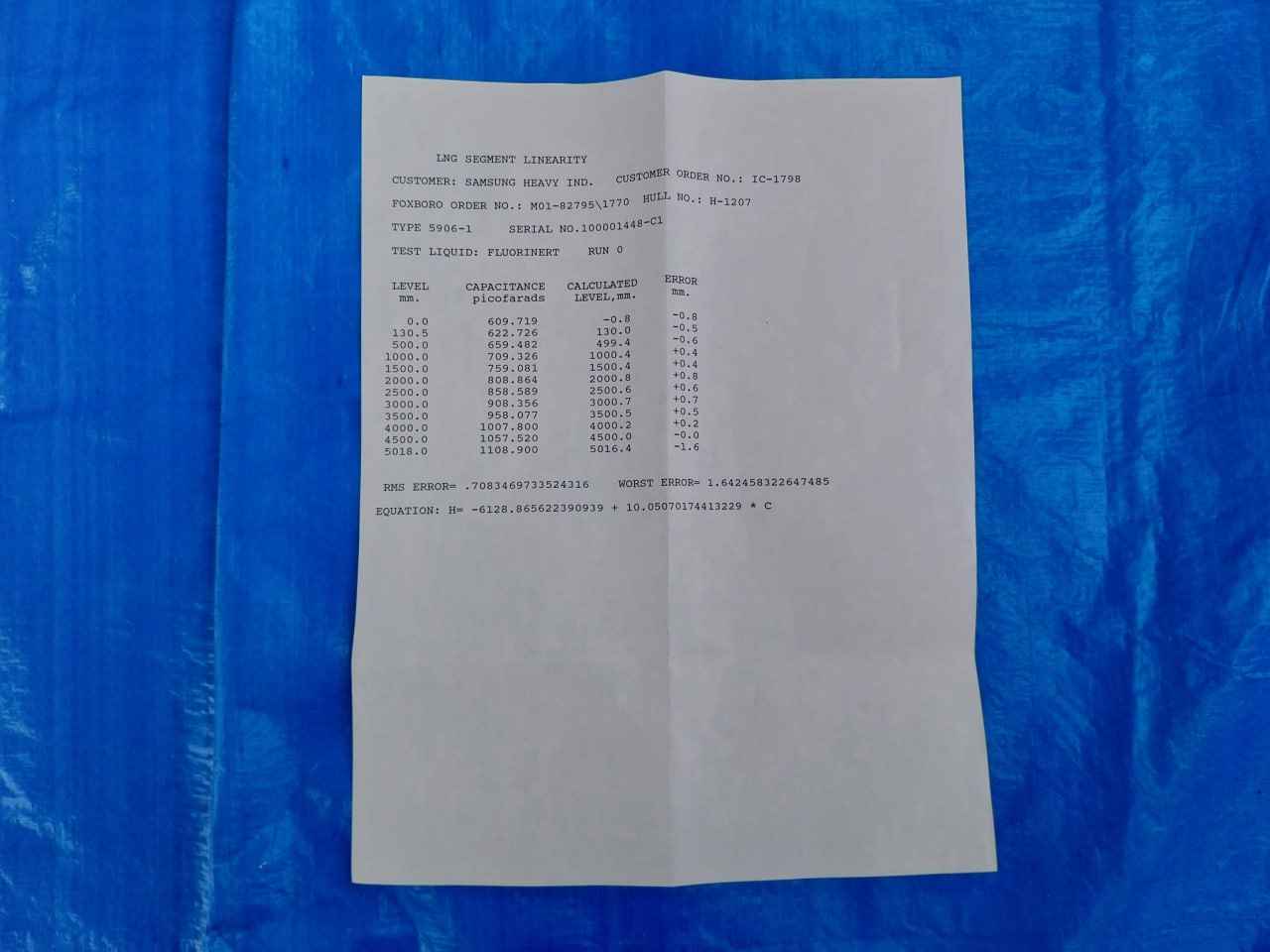

Lng Segment Linearity

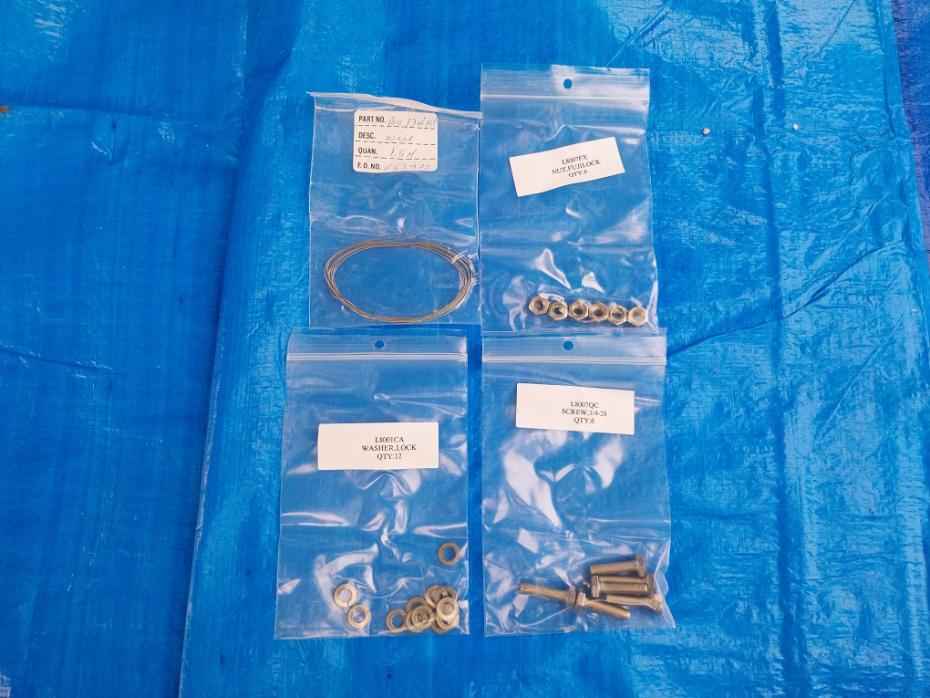

Desc: Wire
Part No: B0134Kp
Quan: 1.5M
F.O.No: F52973
Nut, Fujilock
L8007Fx
Washer, Lock
L8001Ca
Screw, 1/4-28
L8007Qc

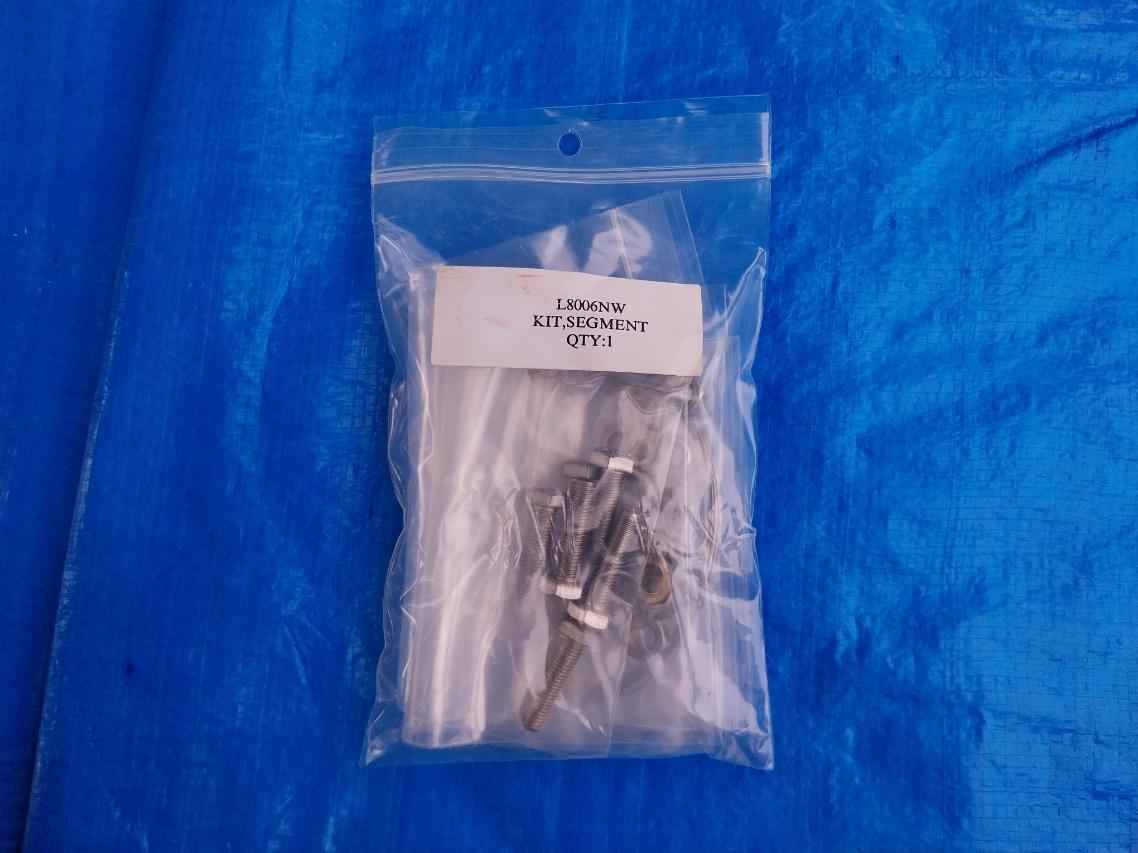

Kit, Segment
L8006Nw

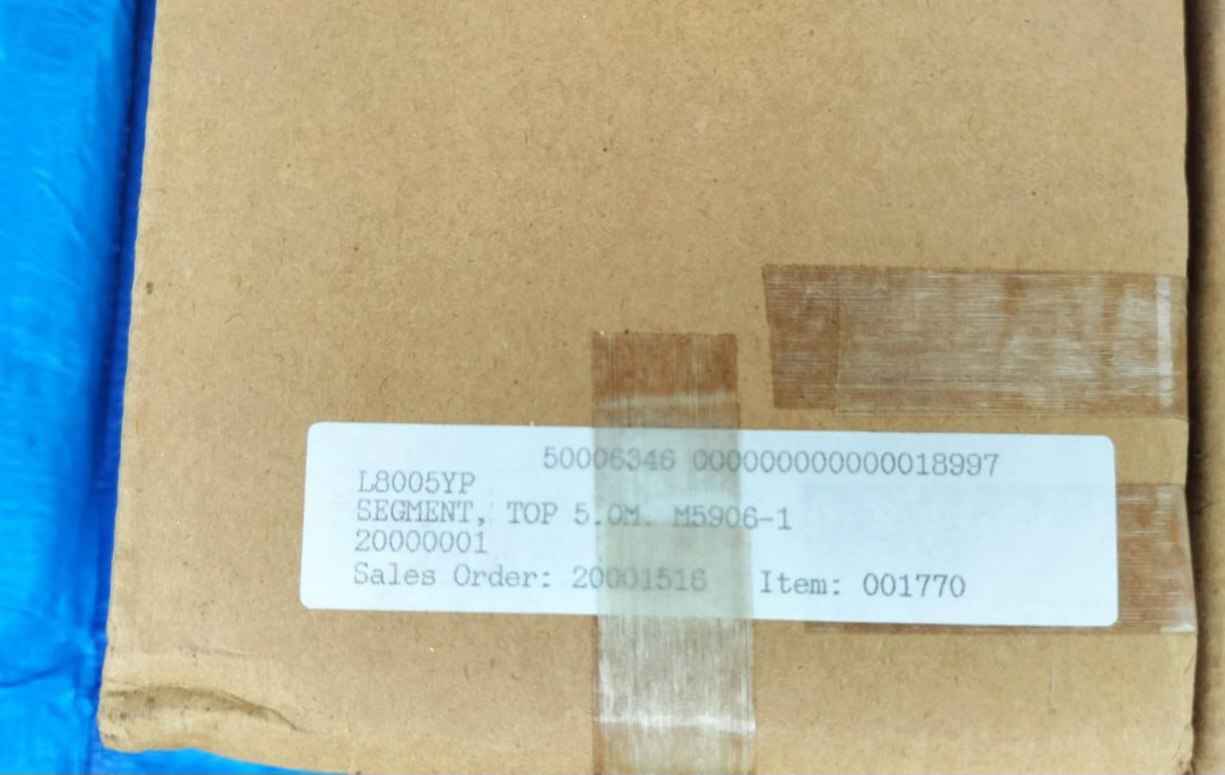

50006346 000000000000018997
Top 5.0M. M5906-1
20000001
Item: 001770

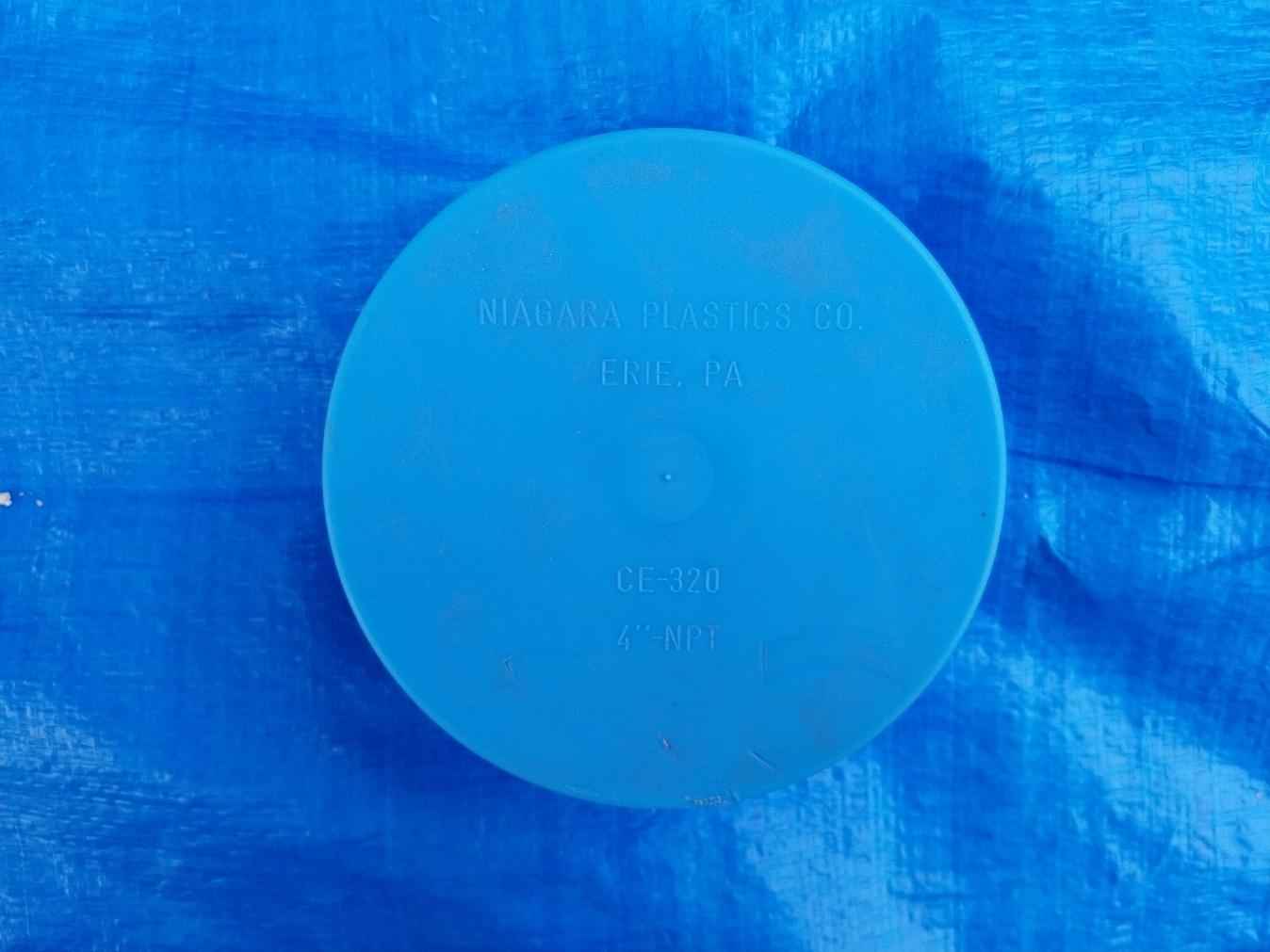

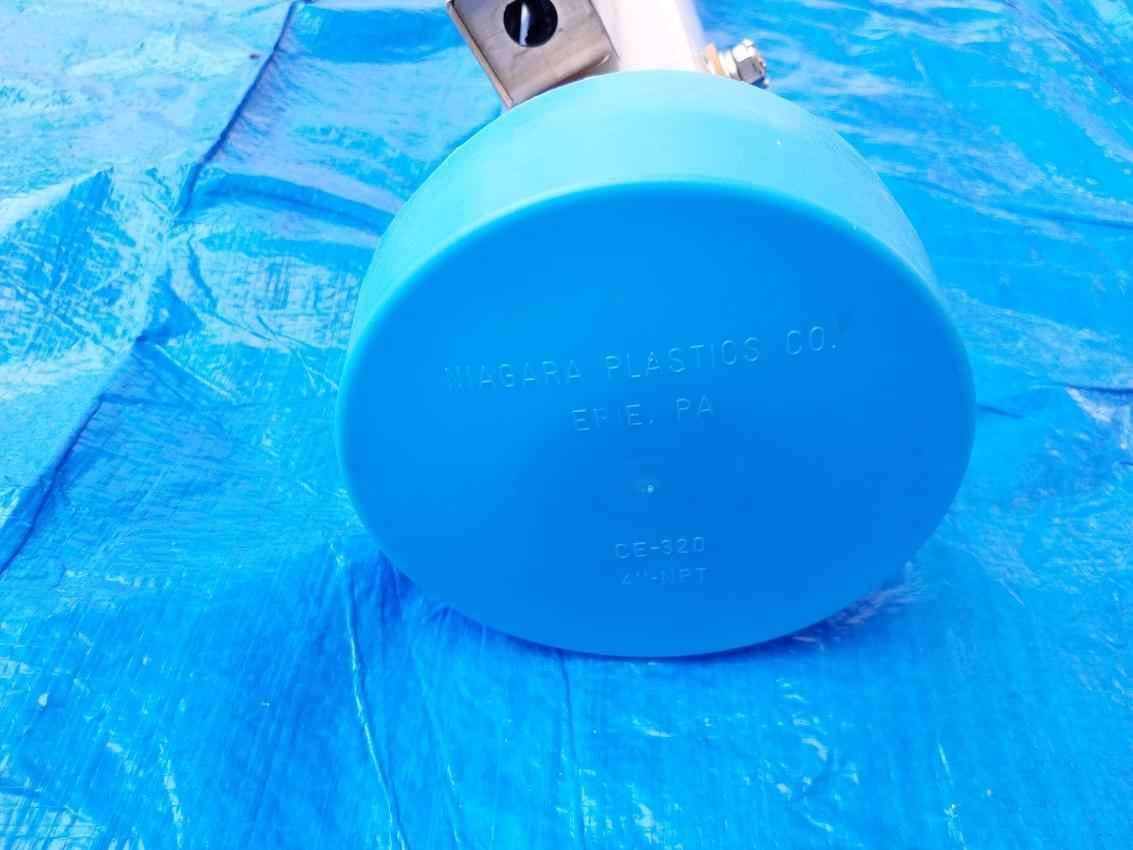

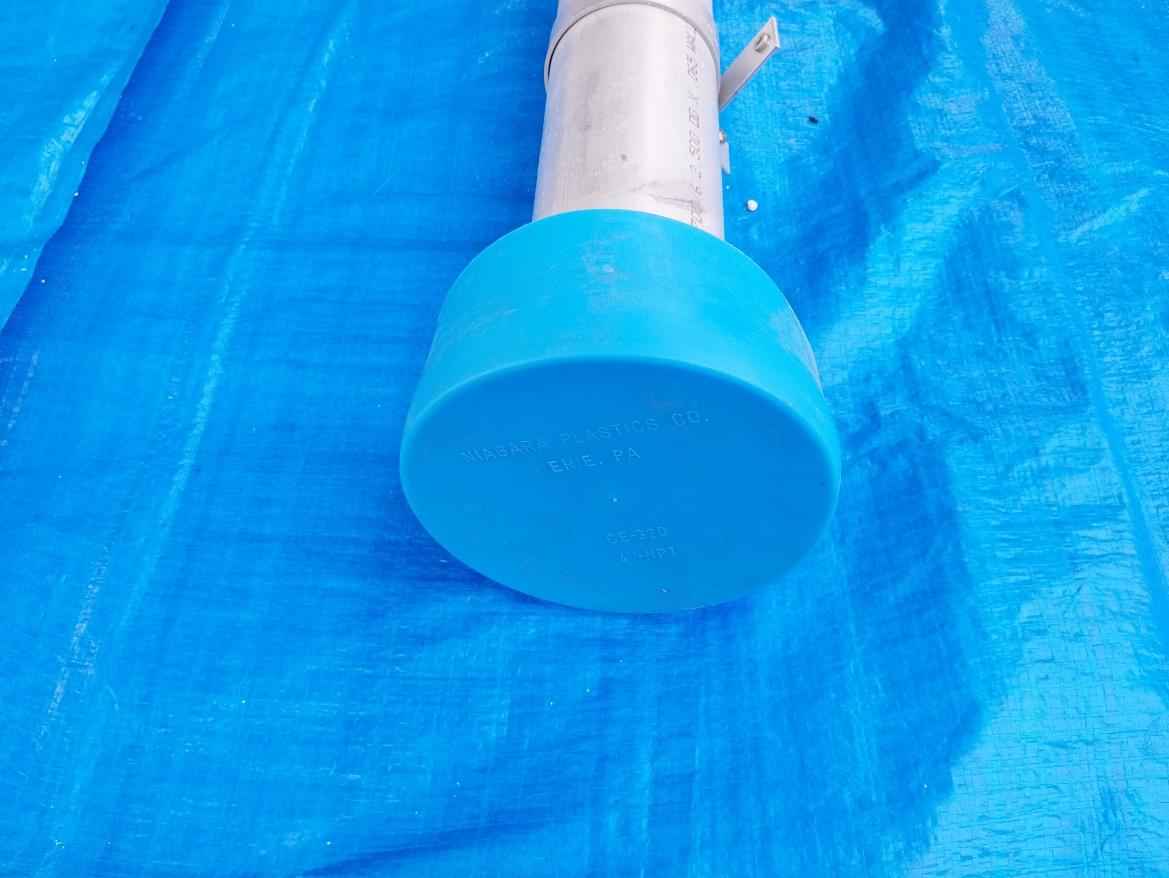

Ce-320
4”-npt
Weight: 11.700 Kg
