Gic Md21Df Voltage Monitoring Relay 60/75C 47-63Hz
Manufactured By: Gic-general Industrial Controls Private Limited
Larsen & Toubro Limited

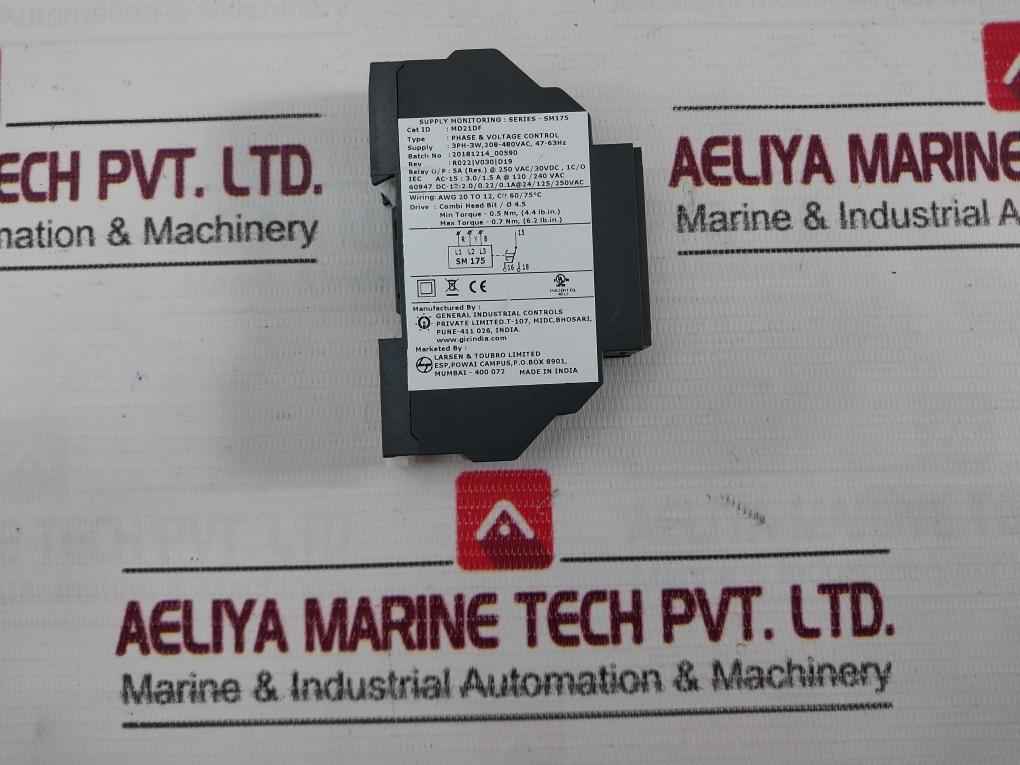

Supply Monitoring: Series-sm175
Cat Id: Md21Df
Type: Phase & Voltage Control
Supply: 3Ph-3W, 208-480Vac, 47-63Hz
Rev: R022|V030|D19
Relay O/P: 5A (Res.) @ 250 Vac/30Vdc, 1C/O
Iec 60947
Ac-15: 3.0/1.5A @120/240 Vac
Dc-12: 2.0/0.22/0.1A @24/125/250 Vac
Wiring: Awg 20 To 12, Cu 60/75°C
Drive: Combi Head Bit / Ø4.5
Min Torque- 0.5Nm, (4.4 Lb.In.)
Max Torque- 0.7Nm, (6.2 Lb.In.)

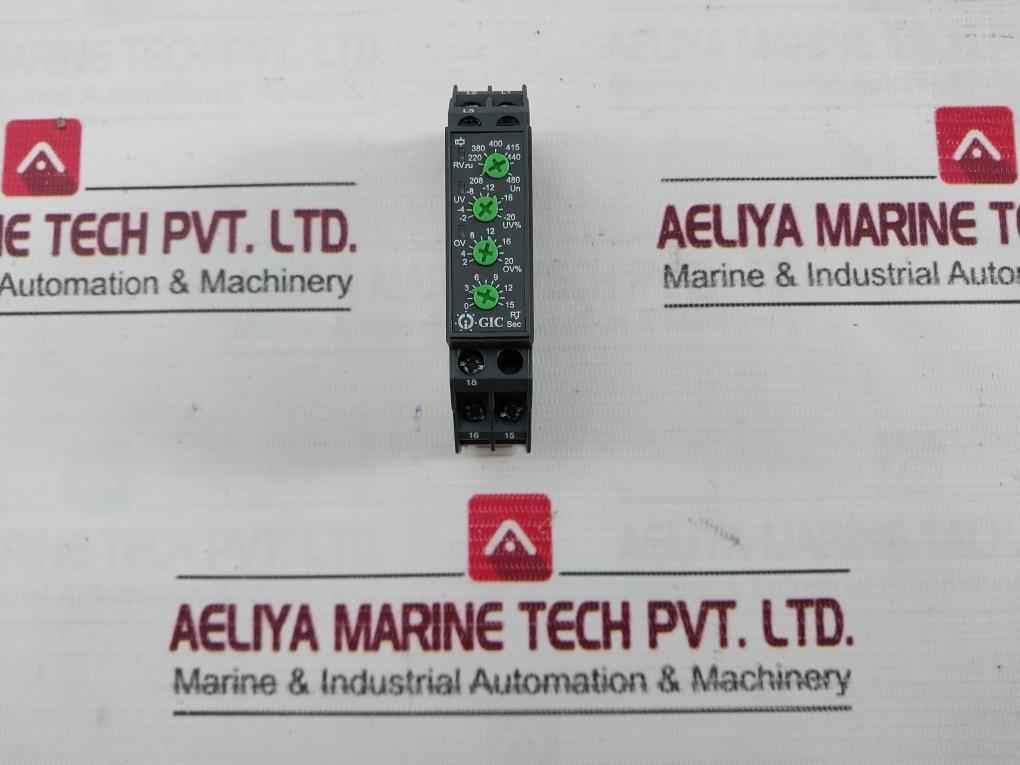

Sm 175
Un: 208 To 480
Uv%: -2 To -20
Ov% 2 To 20
Rt: 0 To 15 Sec
Made In India
Weight: 60 Gm
