Honeywell M7284A1004 Modutrol Actuator With Modulating Control 230V
Honeywell
M7284A1004
24V
230V
Use Copper Conductors Only.
150°F Max. Amb 25% Duty Cycle At 22 Sec. Max. On Time
Supply Wire: 90°C Min.

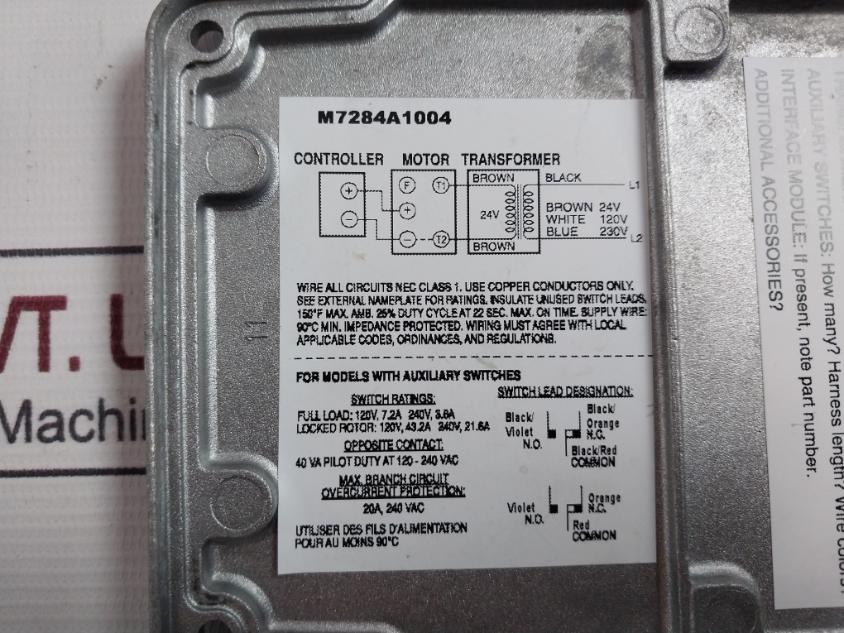

Switch Ratings:
Full Load: 120V, 7.2A 240V, 3.6A
Locked Rotor: 120V, 43.2A 240V, 21.6A
Opposite Contact: 40 Va Pilot Duty At 120-240 Vac
Max. Branch Circuit Overcurrent Protection: 20A, 240 Vac
Utiliser Des Fils D'alimentation Pour Au Mains 90°C/ Use Power Wires For At Least 90°C

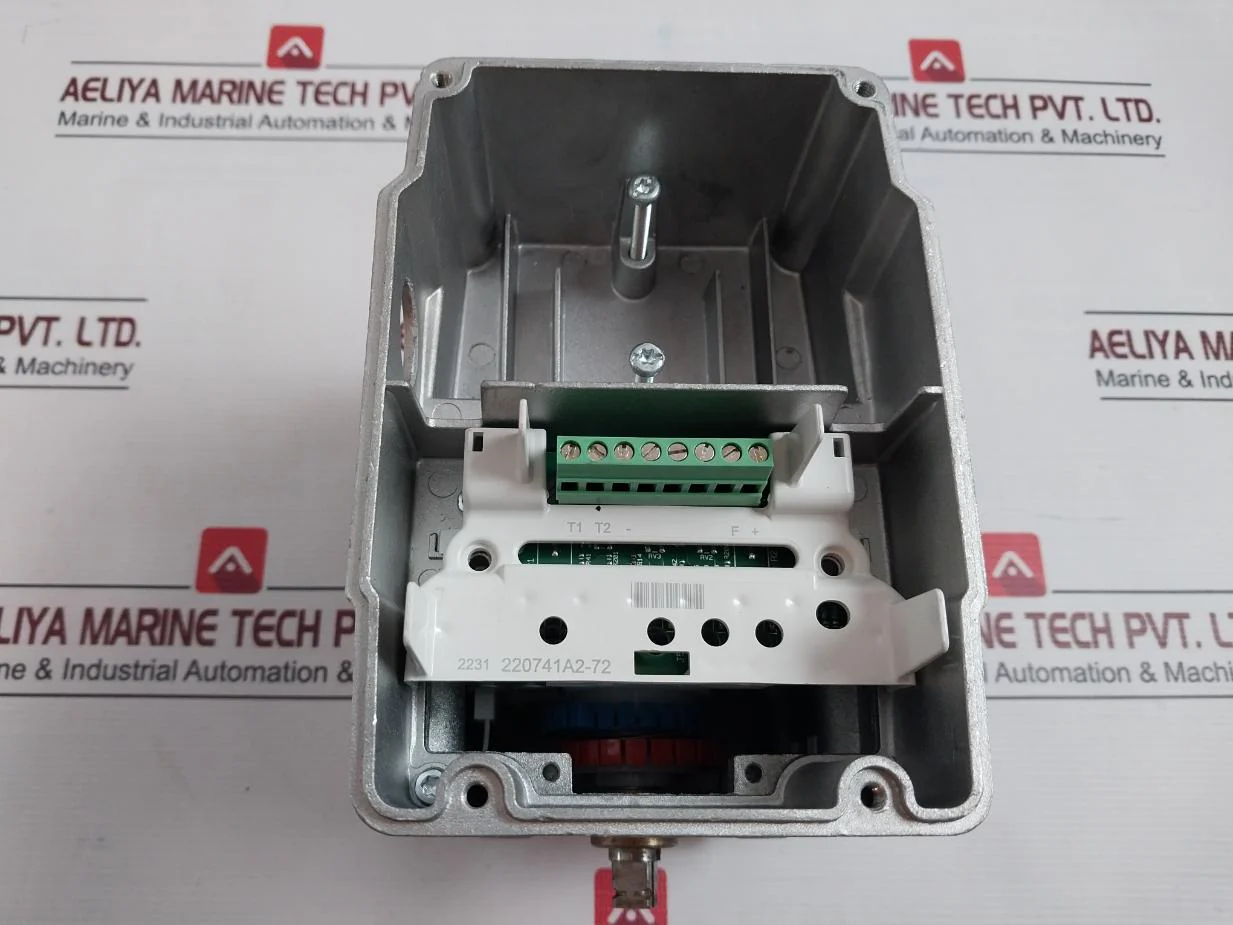

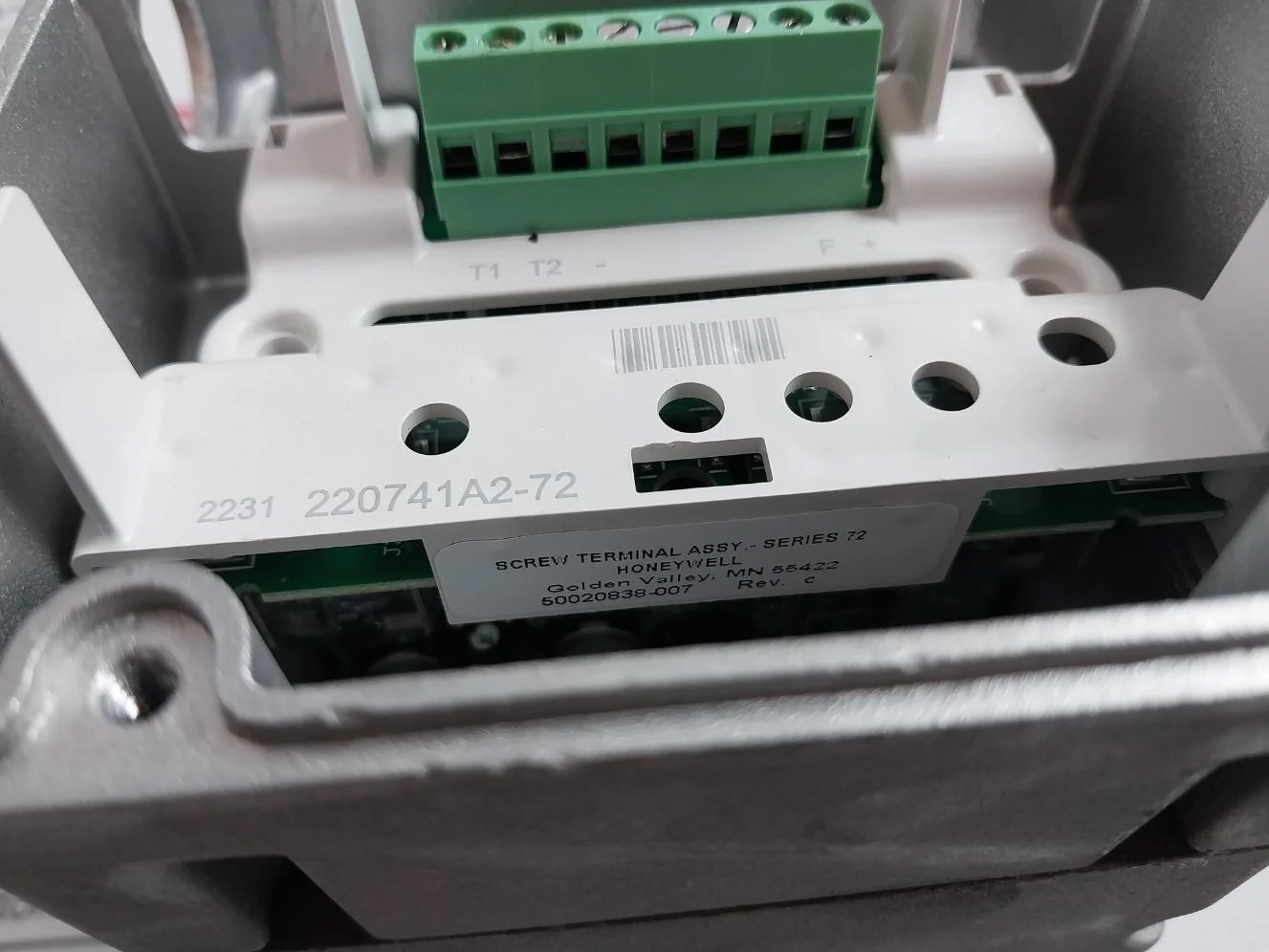

Screw Terminal Assy.-series 72
50020838-007
Rev. C
2231
220741A2-72
Weight: 2.580 Kg
