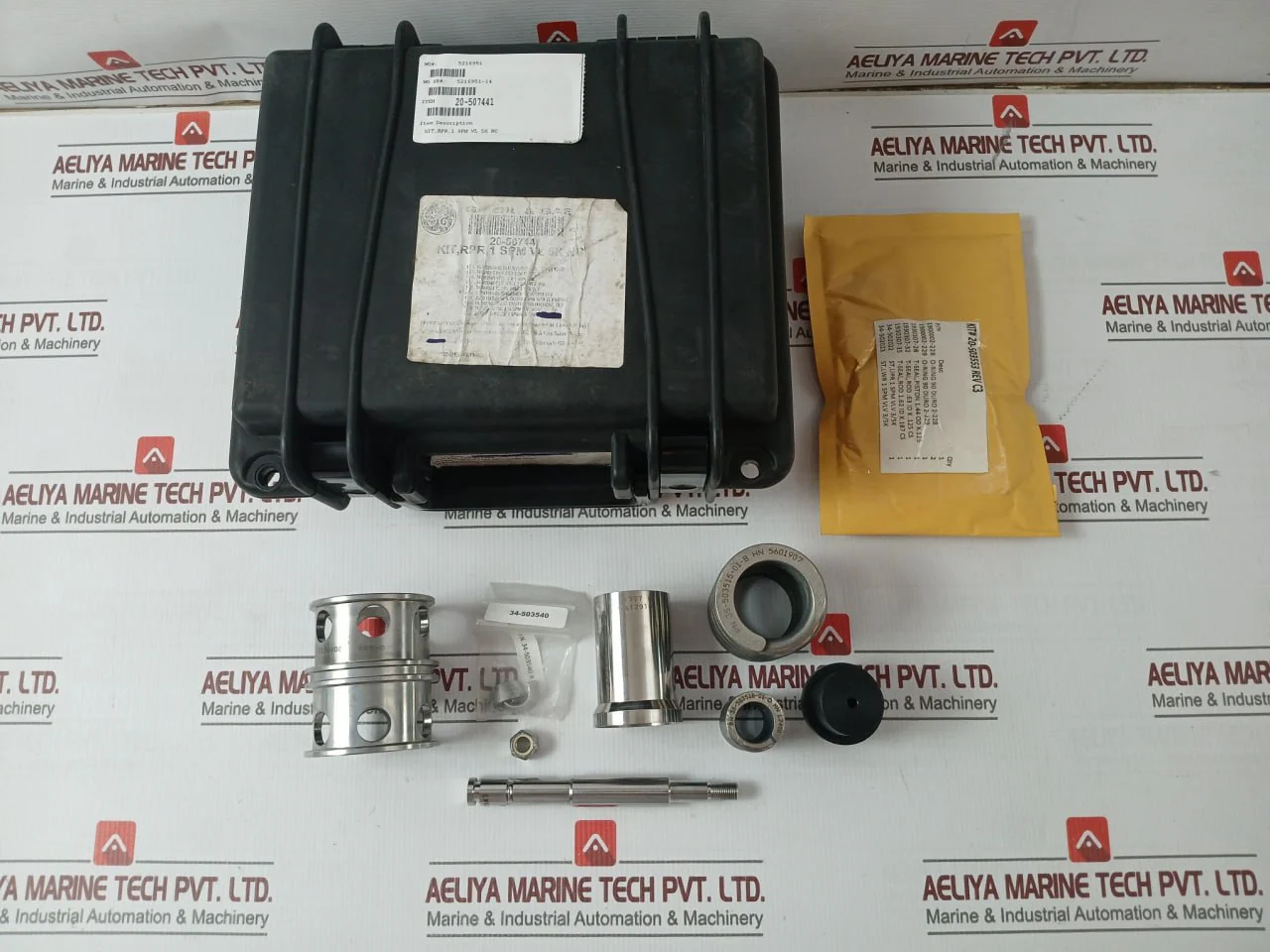

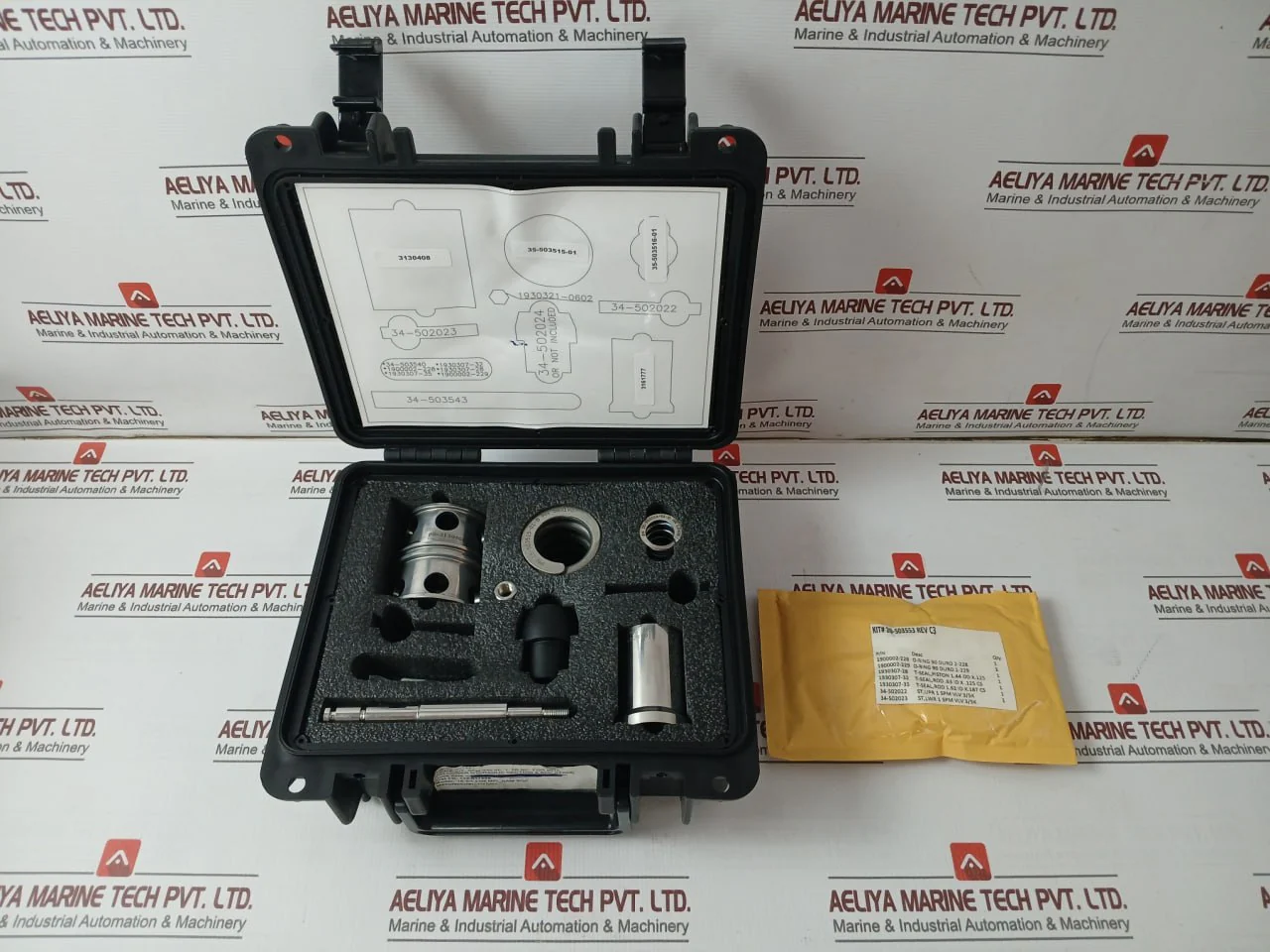

Hydril 20-507441 Repair Kit 1" Spm Valve 5K Nc For Mux Pod & Bop 3130408 Rev D
Manufacturer: Hydril

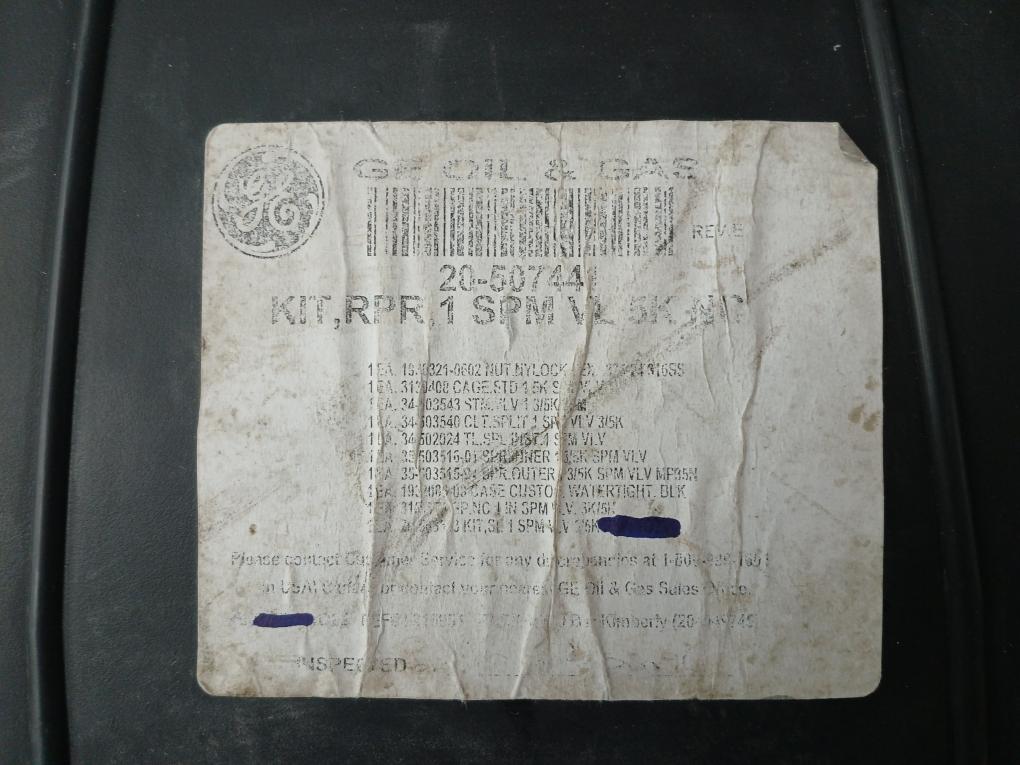

Ge Oil & Gas
Item/ Mfg: 20-507441

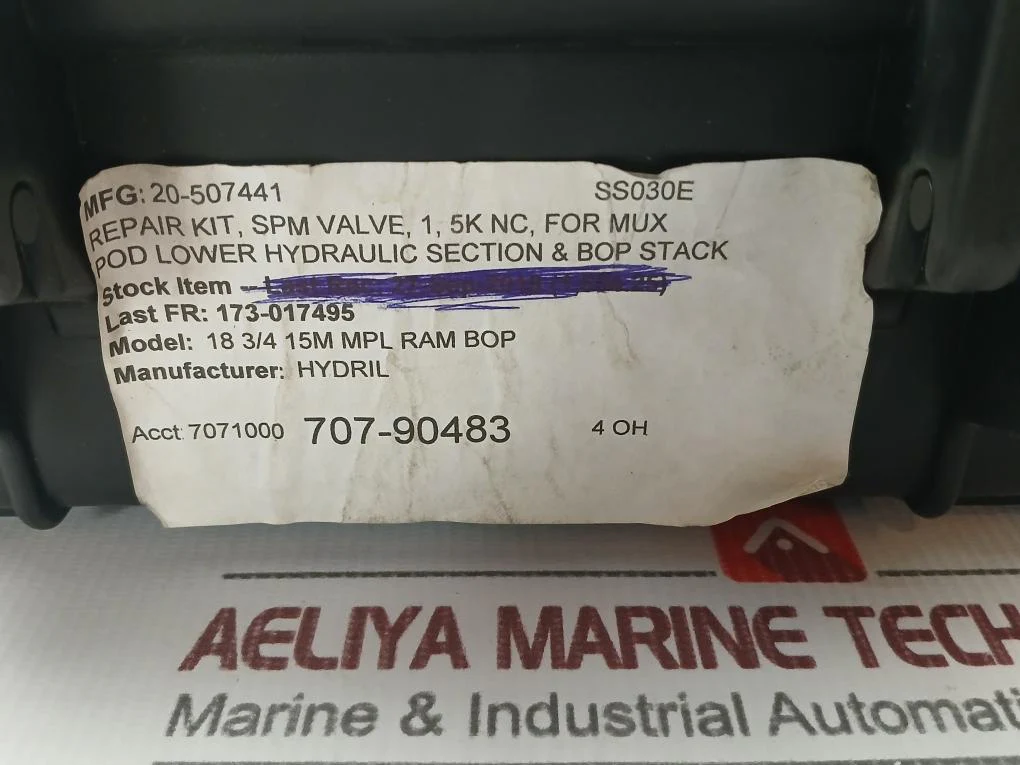

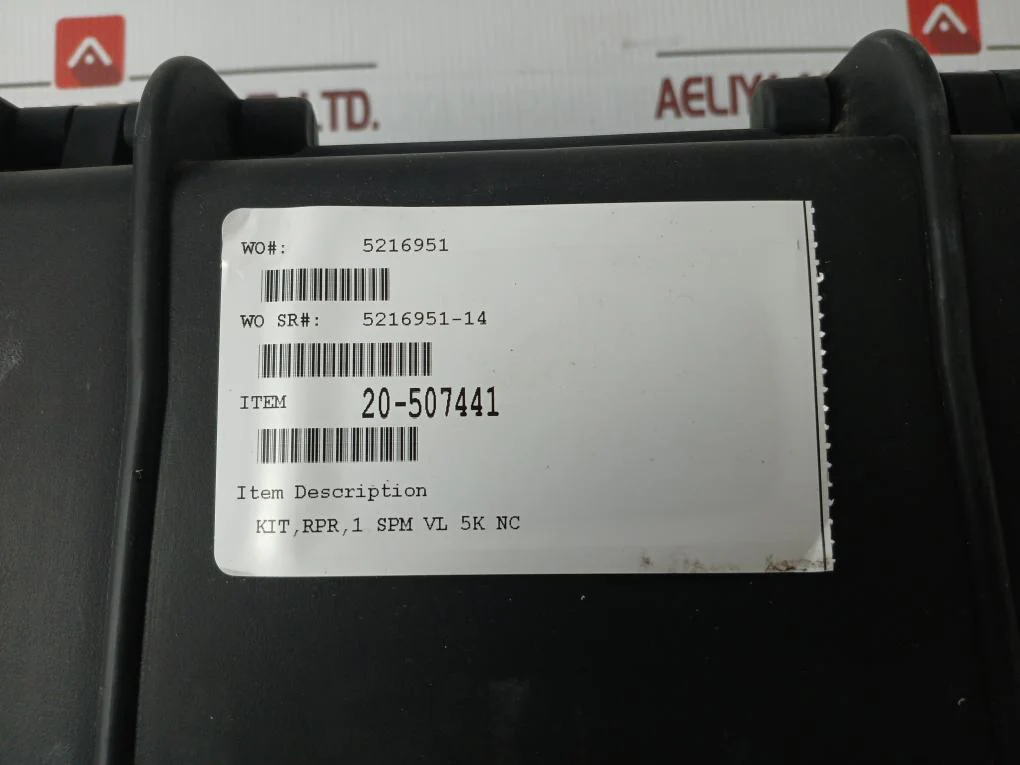

Item Description: Kit, Rpr,1 Spm Vl 5K Nc
Repair Kit, Spm Valve, 1, 5K Nc, For Mux Pod Lower Hydraulic Section & Bop Stack
Model: 18 3/4 15M Mpl Ram Bop
Acct: 7071000 707-90483
Ss030E
1930321-0602
Nut. Nylock Hex.375-24 316Ss
3130408
Rev. D

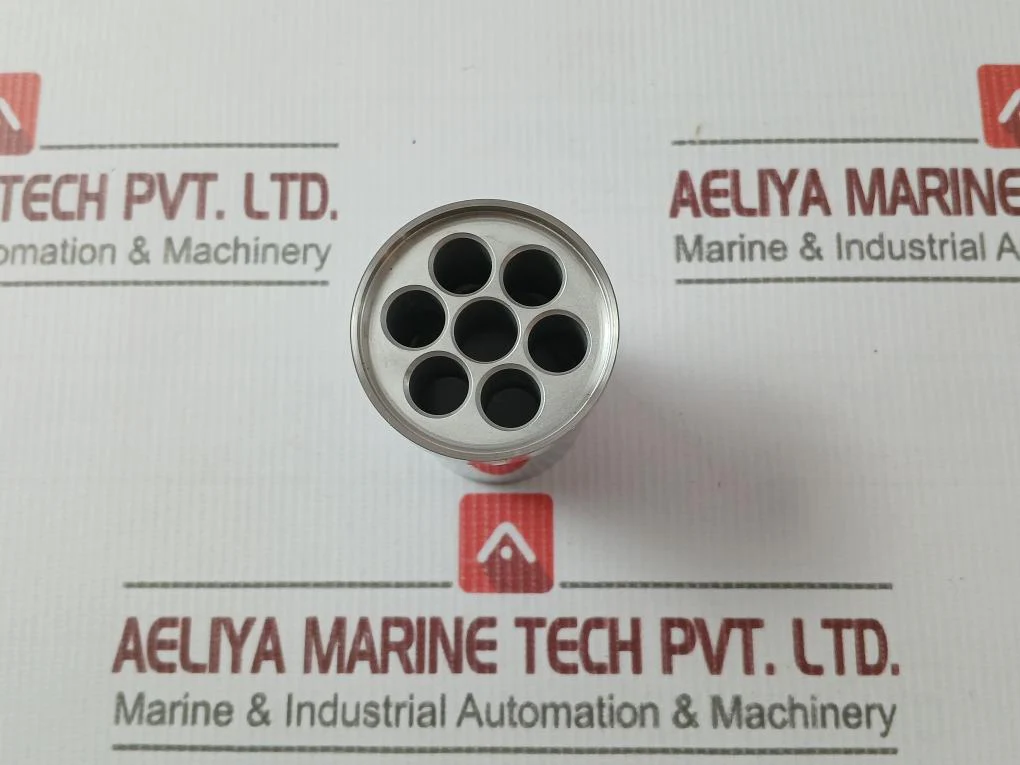

Cage Std 1.5K Spm Vlv
34-503543
Rev. H
272188
Stm. Vlv 1.3/5K Spm

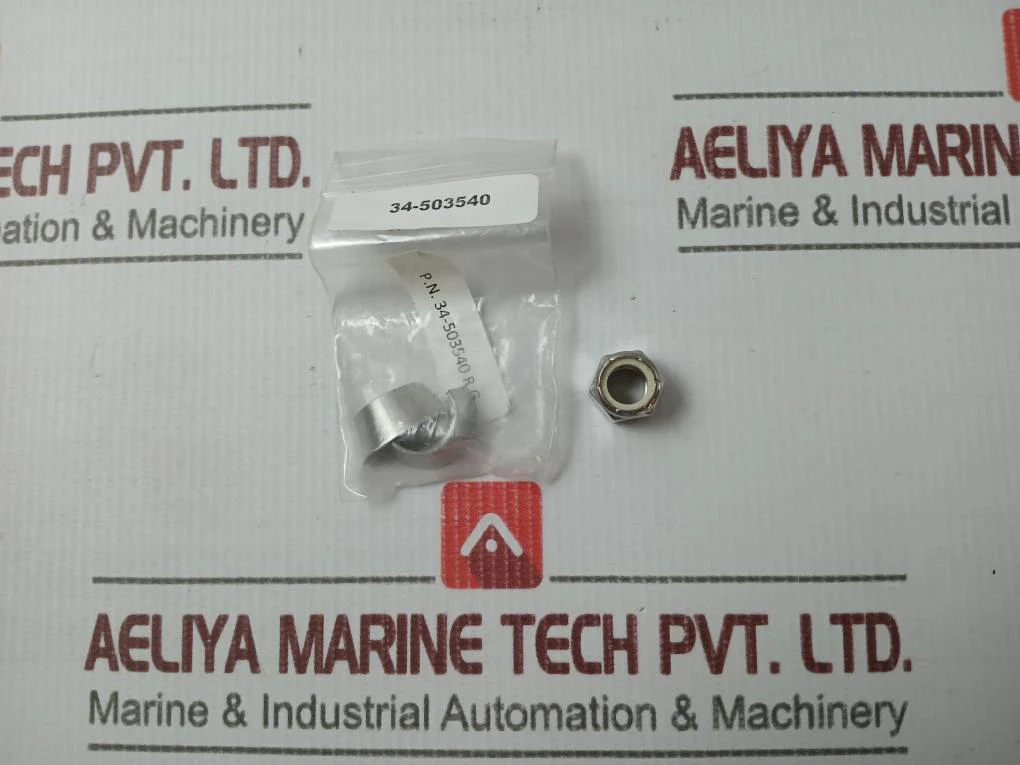

34-503540
P.N. 34-503540 R.G
Clt. Split 1 Spm Vlv 3.5K
34-502024
Tl. Spl Inst. 1 Spm Vlv
35-503516-01
35-503516-01-d
Hn: L2400
Spr, Inner 1 3.5K Spm Vlv
35-503515-01
35-503515-01-b
Hn: 5601907
Spr. Outer 1 3/5K Spm Vlv Mp35N
1932006-03
Case. Custom. Watertight. Blk
3161777
3161777 B
Ht: A12910
Sp. Nc 1 In Spm Vlv 3/5K

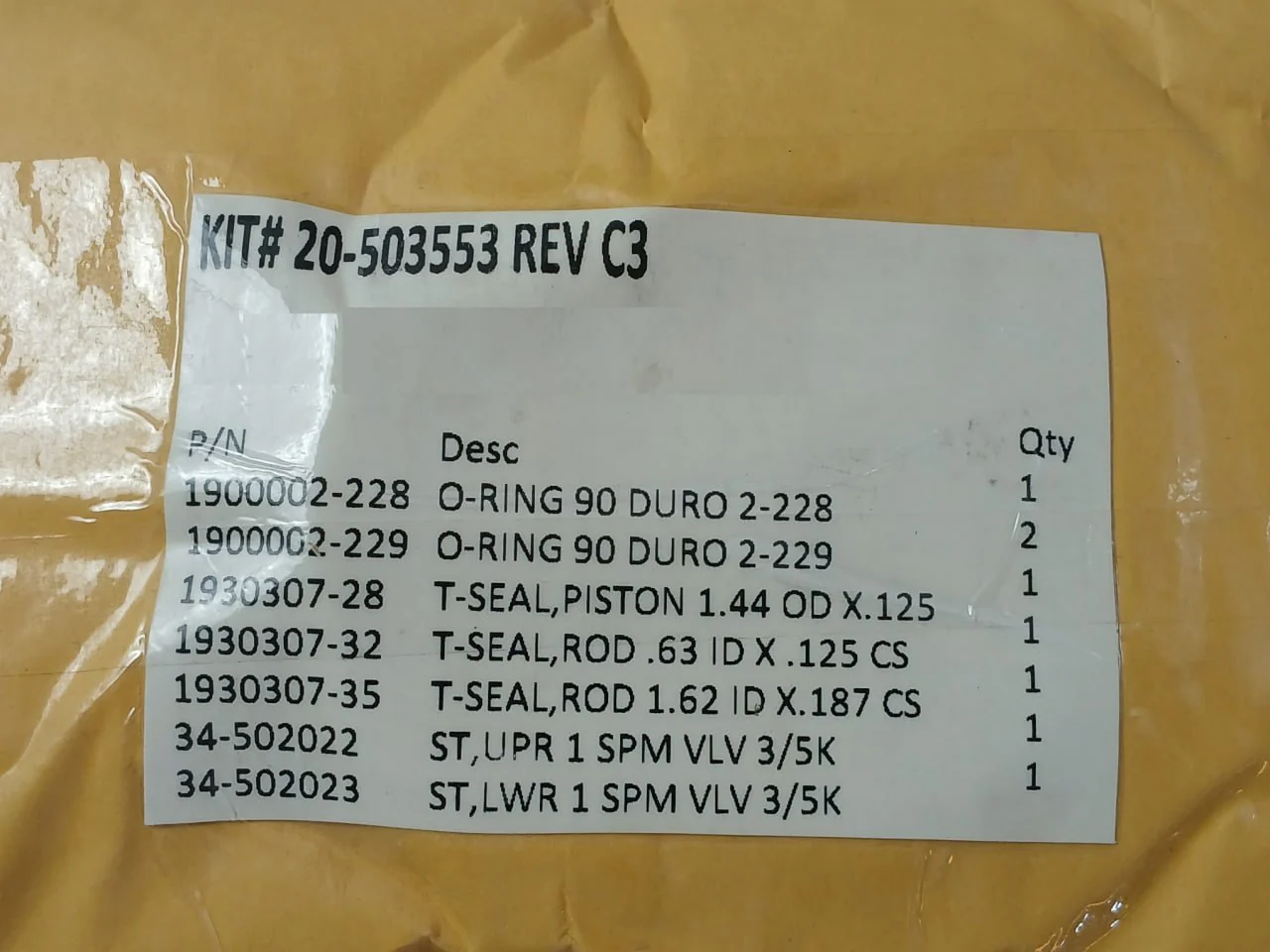

Kit#: 20-503553
Kit, Sl 1 Spm Vlv 3/5K
Rev. C3
P/N Desc
1900002-228 O-ring 90 Duro 2-228
1900002-229 O-ring 90 Duro 2-229
1930307-28 T-seal, Piston 1.44 Od X.125
1930307-32 T-seal, Rod.63 Id X.125 Cs
1930307-35 T-seal, Rod 1.62 Id X.187 Cs
34-502022 St, Upr 1 Spm Vlv 3/5K
34-502023 St, Lwr 1 Spm Vlv 3/5K
Weight: 2.950 Kg
