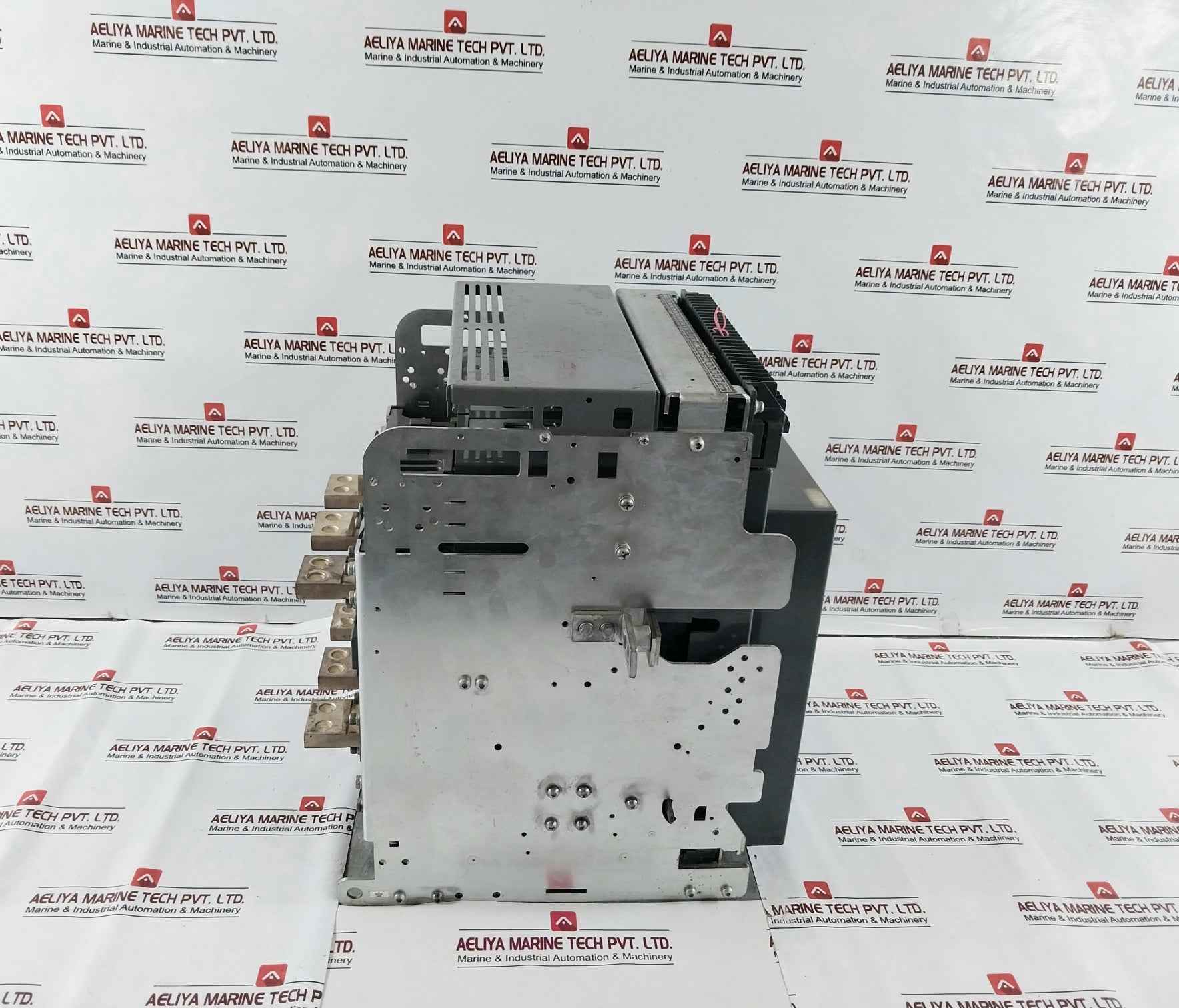

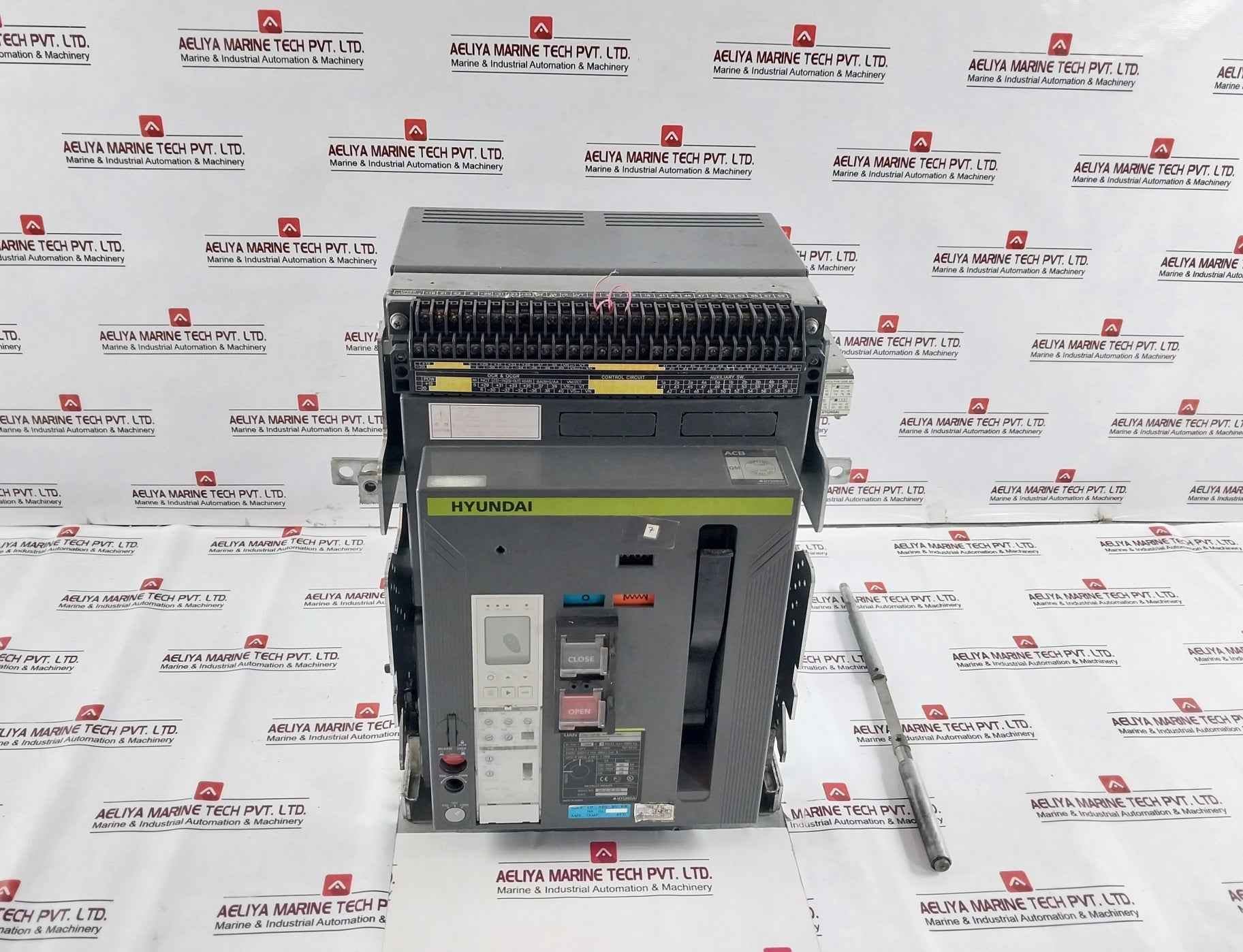

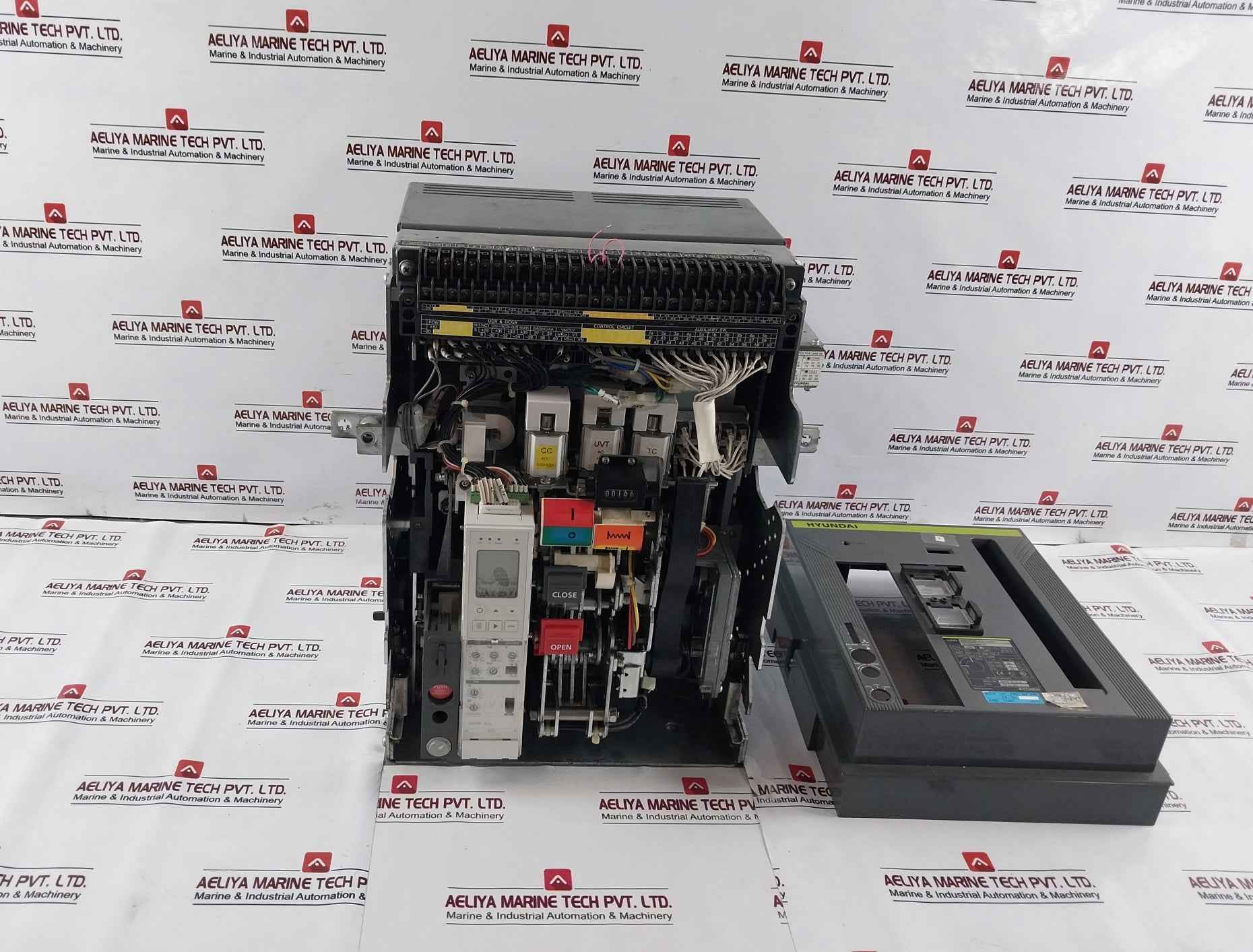

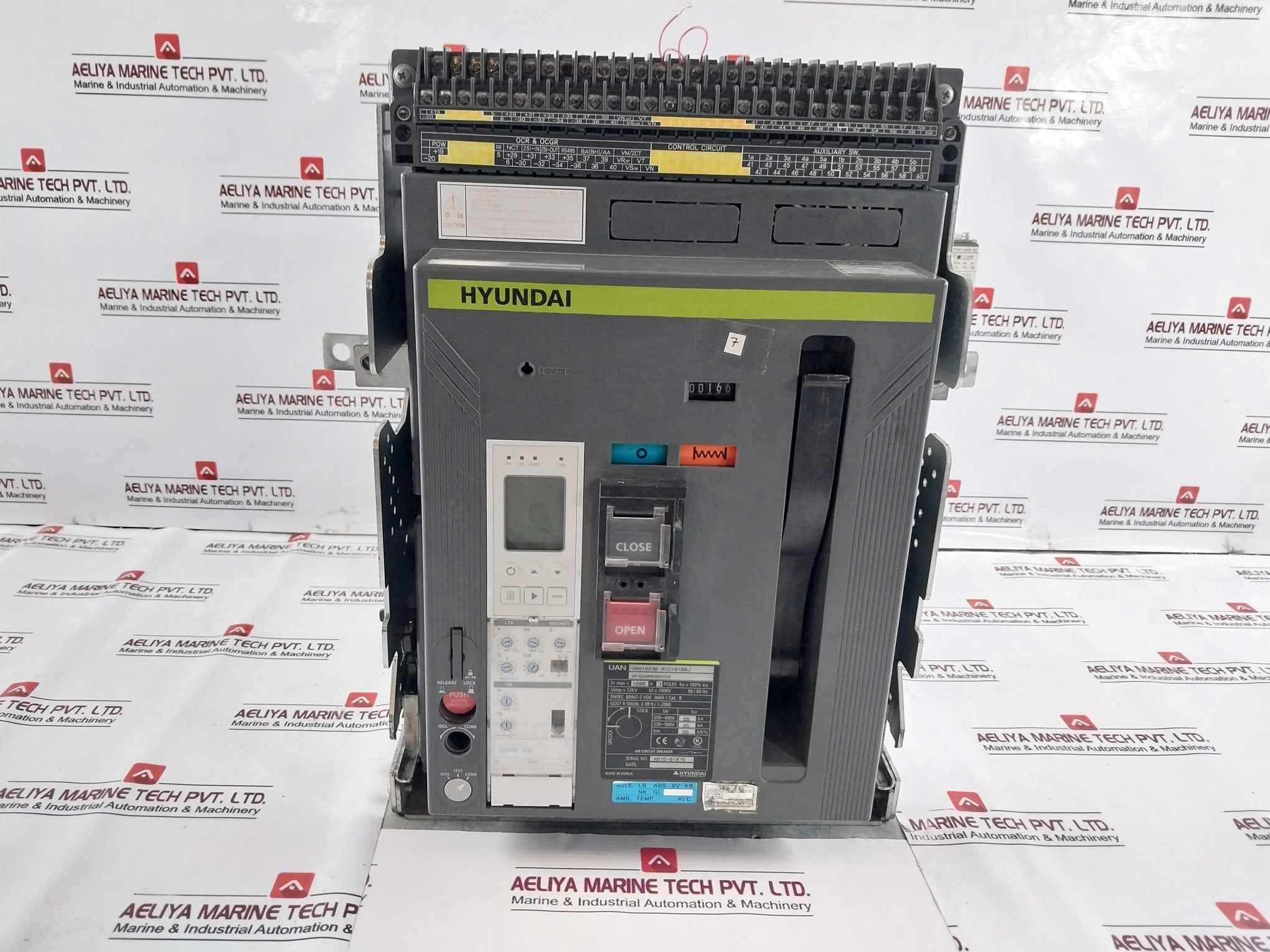

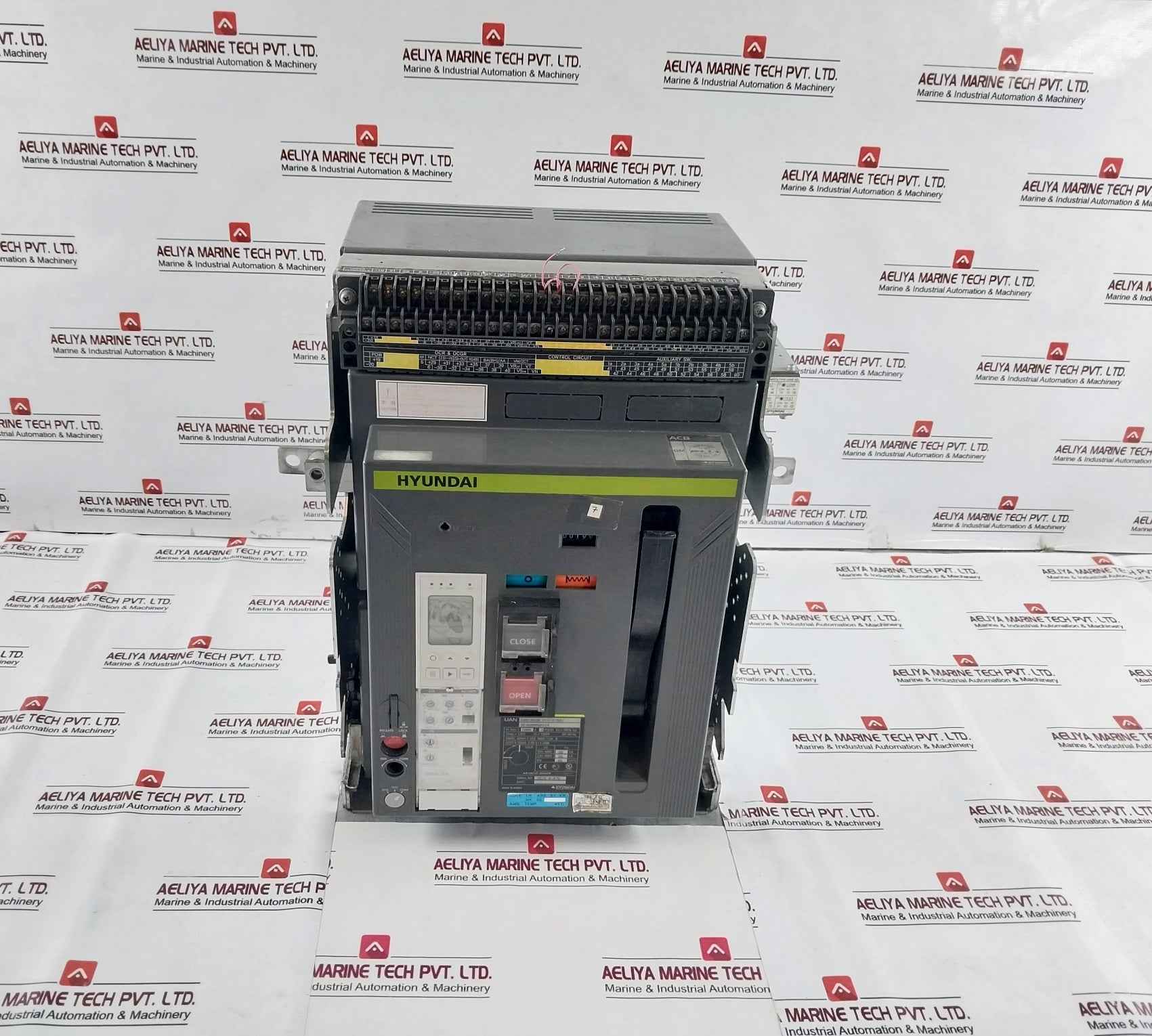

Hyundai Uan16A3B M1C1S168J 3-pole Air Circuit Breaker Afagamaqaxv4

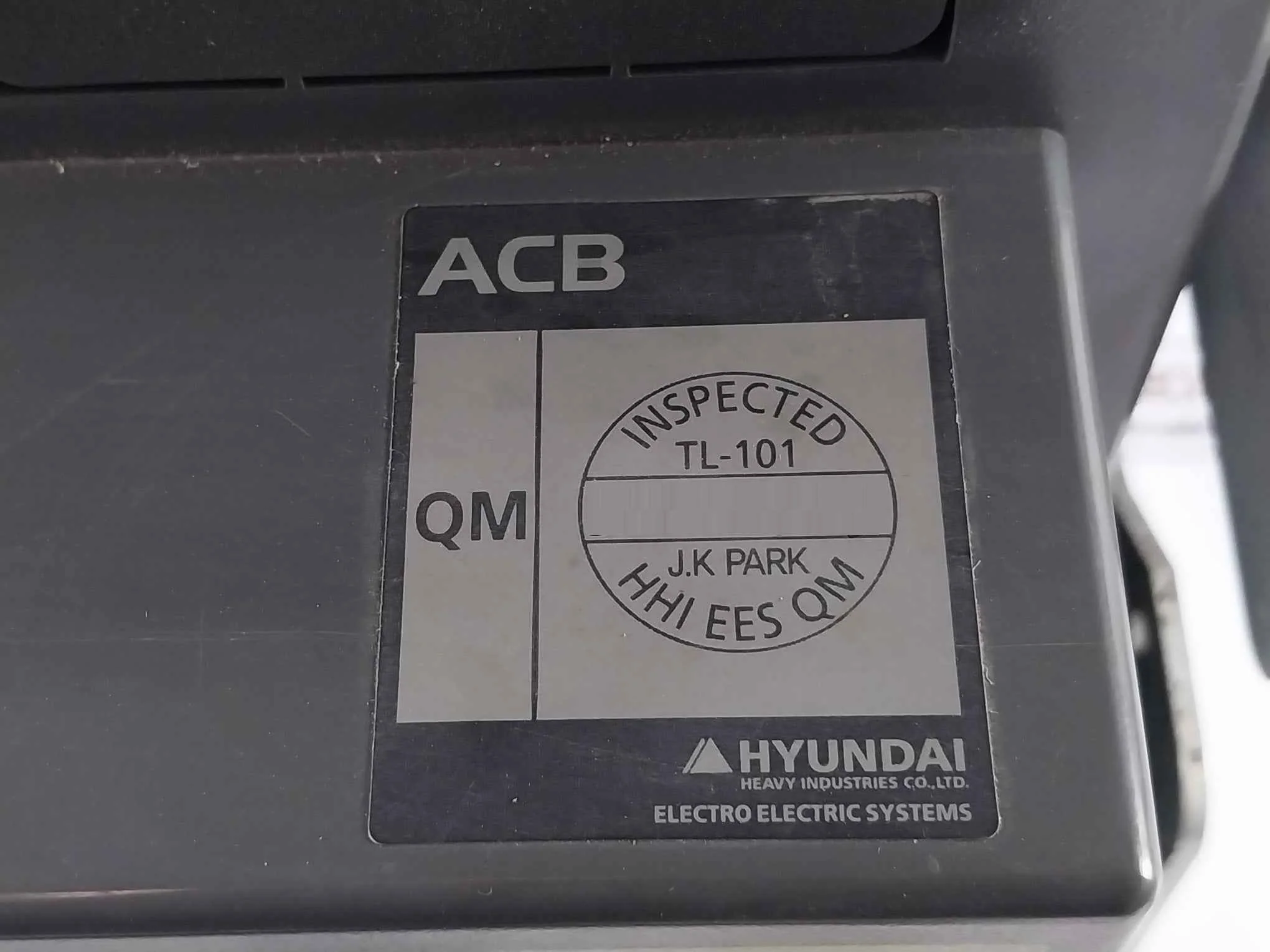

Hyundai Heavy Industries Co., Ltd.
Electro Electric Systems
Acb-air Circuit Breaker
Uan

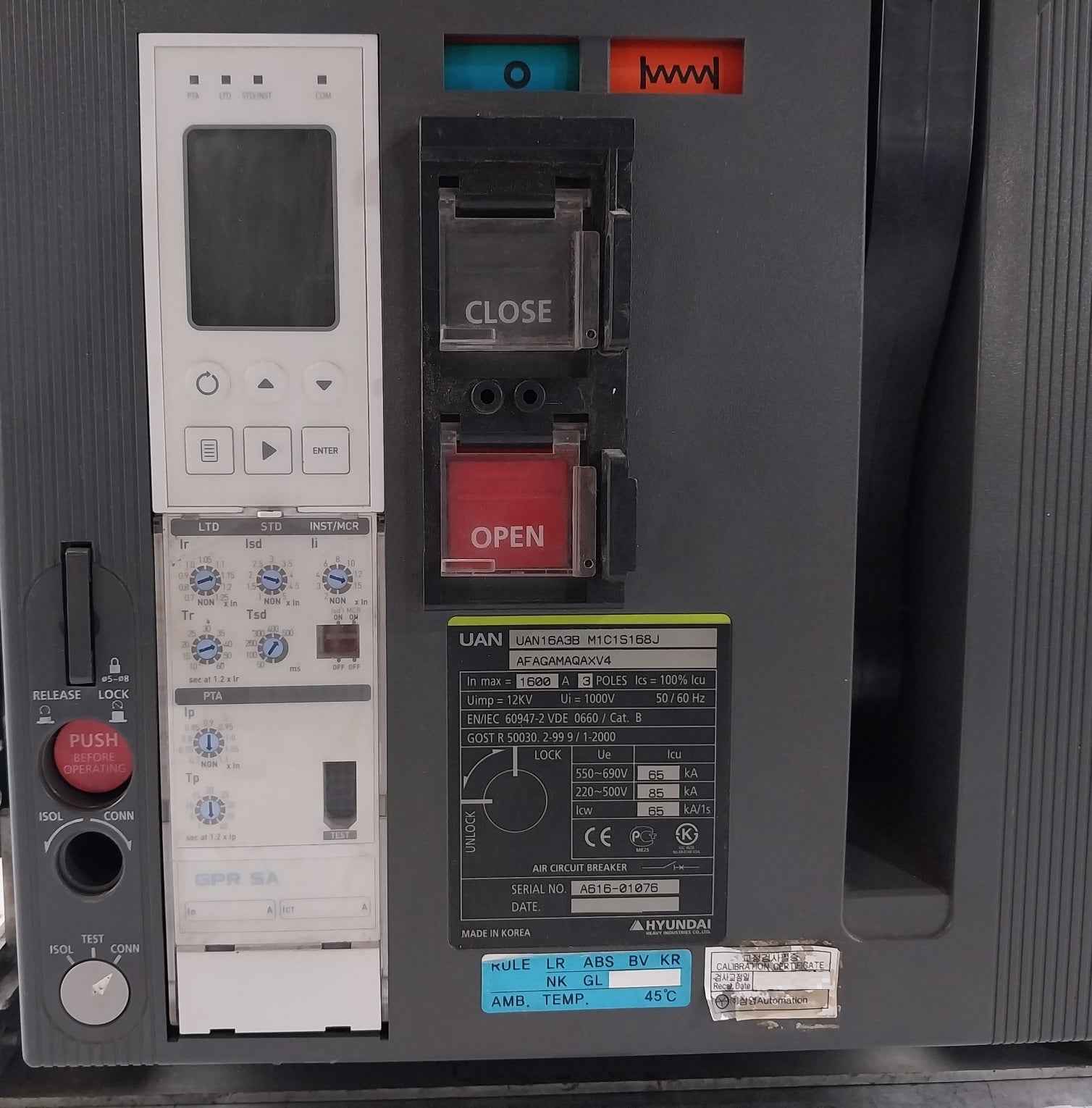

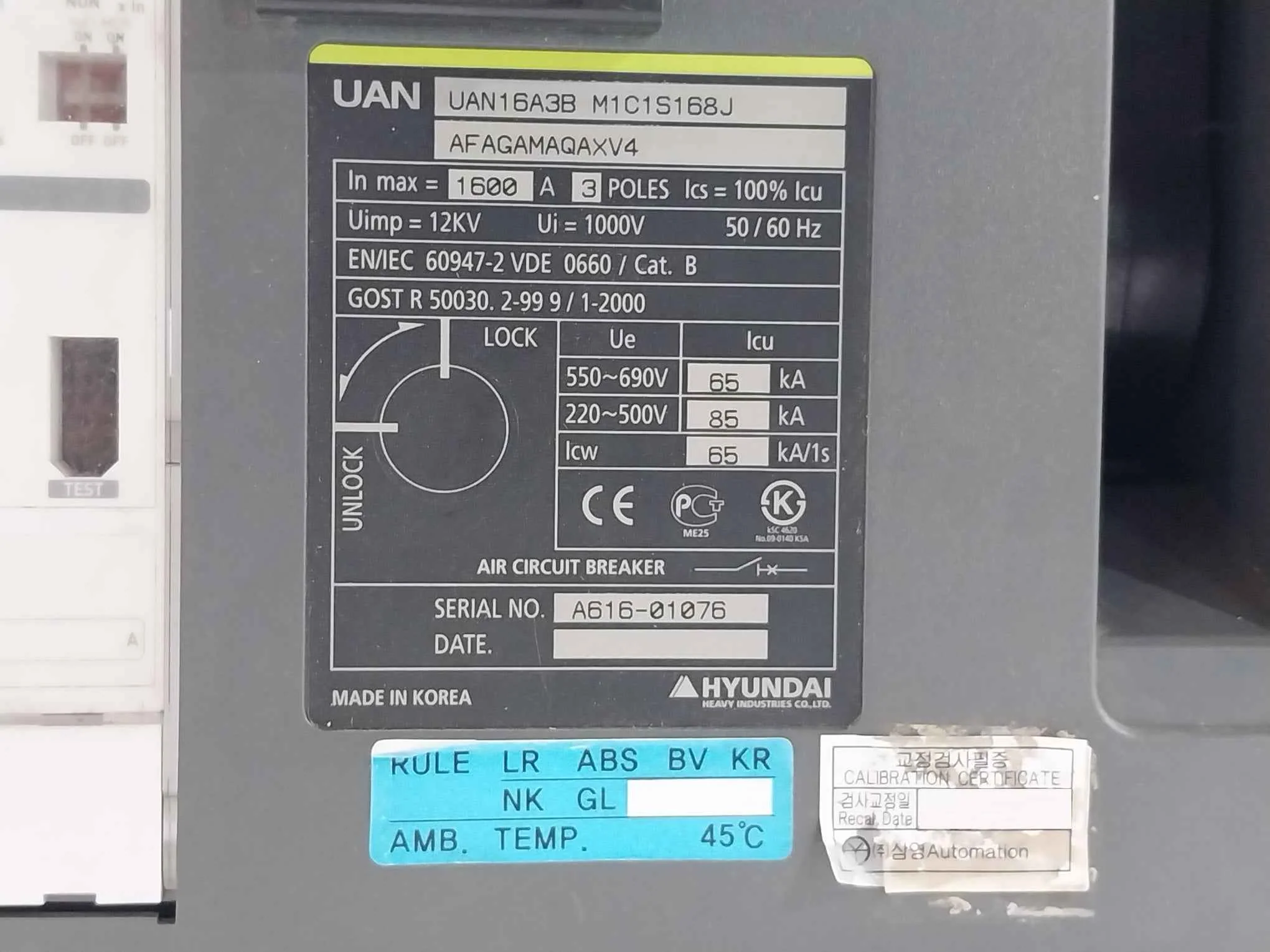

Uan16A3B M1C1S168J
Afagamaqaxv4
In Max= 1600A
3 Poles (1600Af)
Ics= 100% Icu
Uimp= 12Kv
Ui= 1000V 50/60 Hz
En/Iec 60947-2 Vde 0660/ Cat. B
Gost R 50030.2-99 9/1-2000
Ue                Icu
550~690V   65 Ka
220~500V   85 Ka
Icw: 65 Ka/1S
Amb. Temp. 45˚C
Gpr Sa
Posit'n Switch. Type: Uans Aq
Uan16/A Frame
Ct: 1000/ 0.2
In= 870A
Motor Charge (A/Dc110V)
Closing Voltage (A/Dc110V)
Trip Voltage (A/Dc110V)
U-posit'n-sw (1T1C)
Uvt Controller Ac 440V
Cradle H-type
Terminal Tightening Torque: 161~184 (Kgf.Cm)
Name: Uans-c1.9/S01
Code: 5832000245
Cc Adc 100~130
Uan063~163A
Code: 3223001196
Name: Uans-u4/S04
Code: 5832000272
Uvt Ac 400
Name: Uans-s1.9/S01
Code: 5832000247
Name: Uas-cj-5A5B
Code: 3223-0015-81

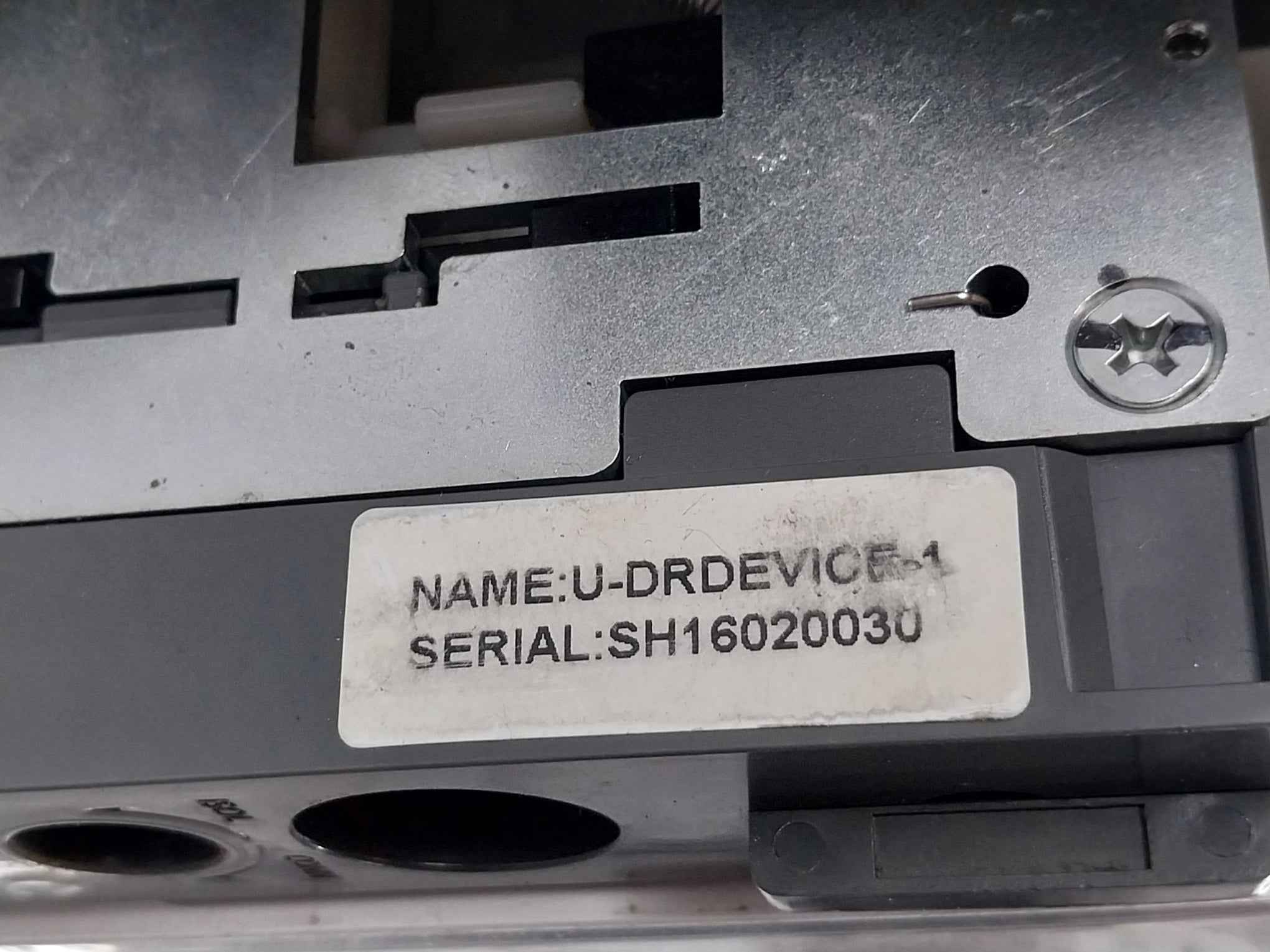

Name: U-drdevice-1
Name: U-mht Unit
Code: 3223-0015-82
Name: New Mht Unit
Ohm: (6.1) Ω
Uans-m1/M9
(Ians-m1/M9)
Adc 110V
Dc 125V
Djm (Rev: 4)
160219-007
Part Name: U-mecha’m/A203

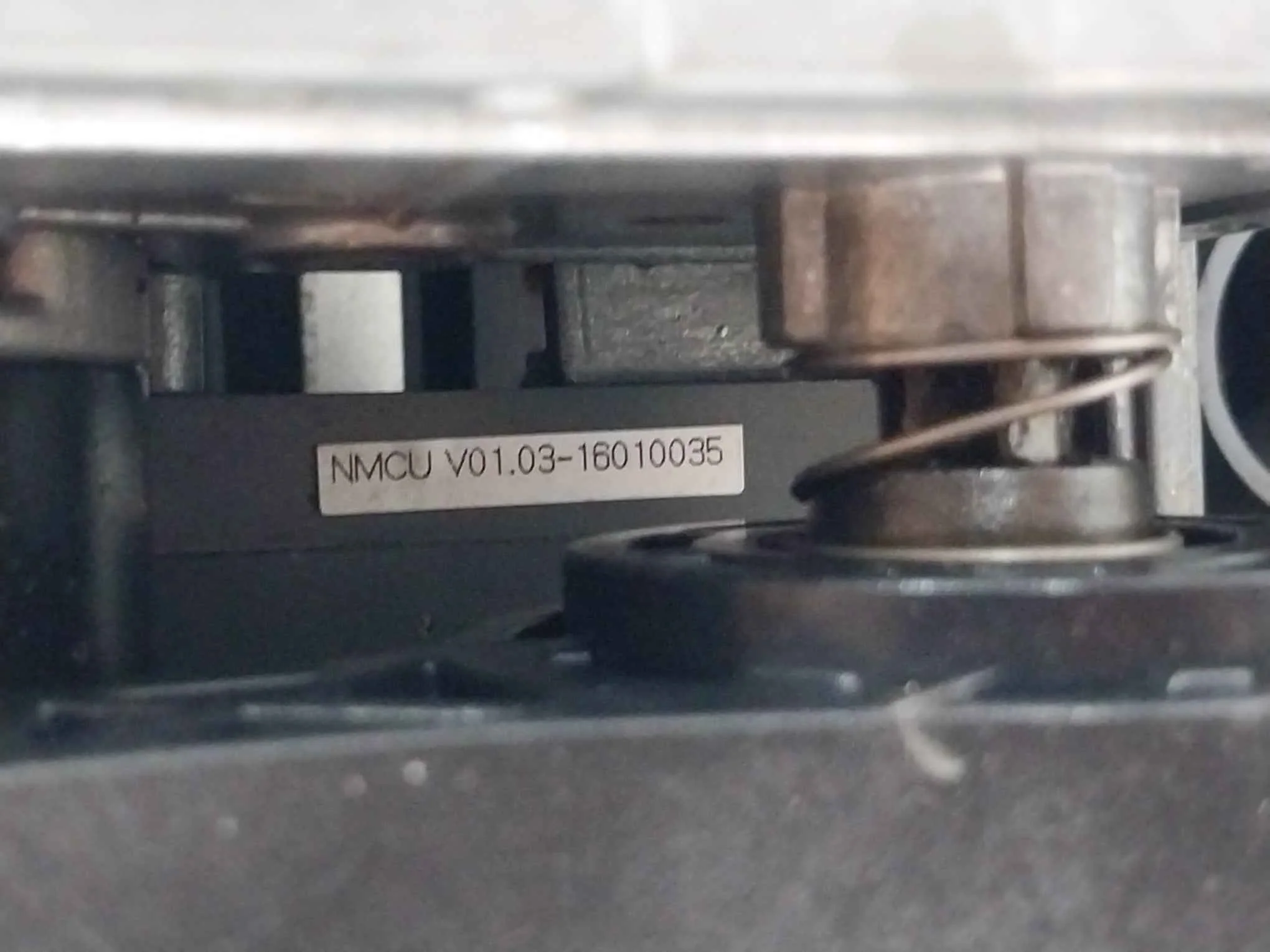

Nmcu V01.03-16010035
Made In Korea
Weight: 64 Kg
