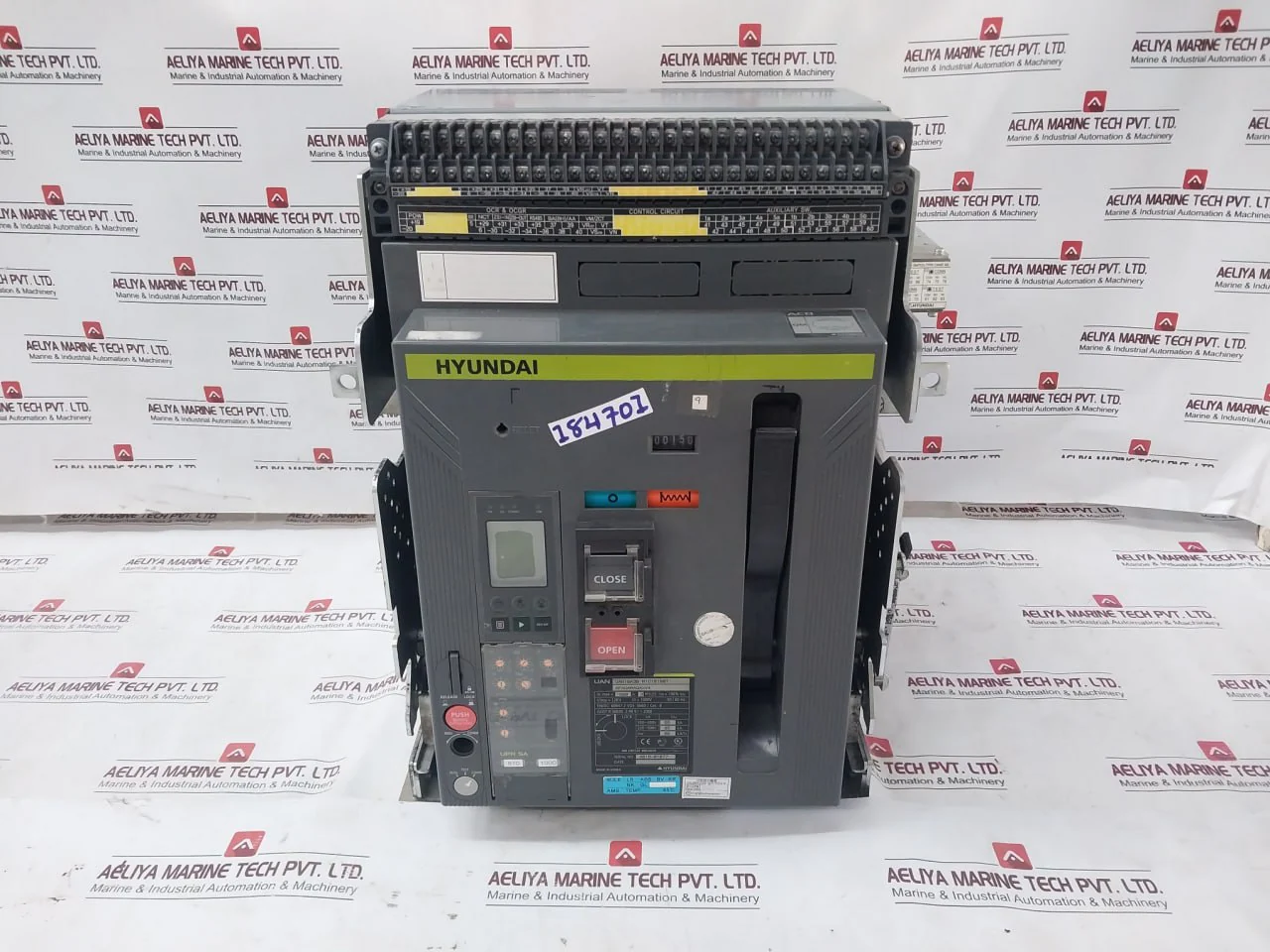

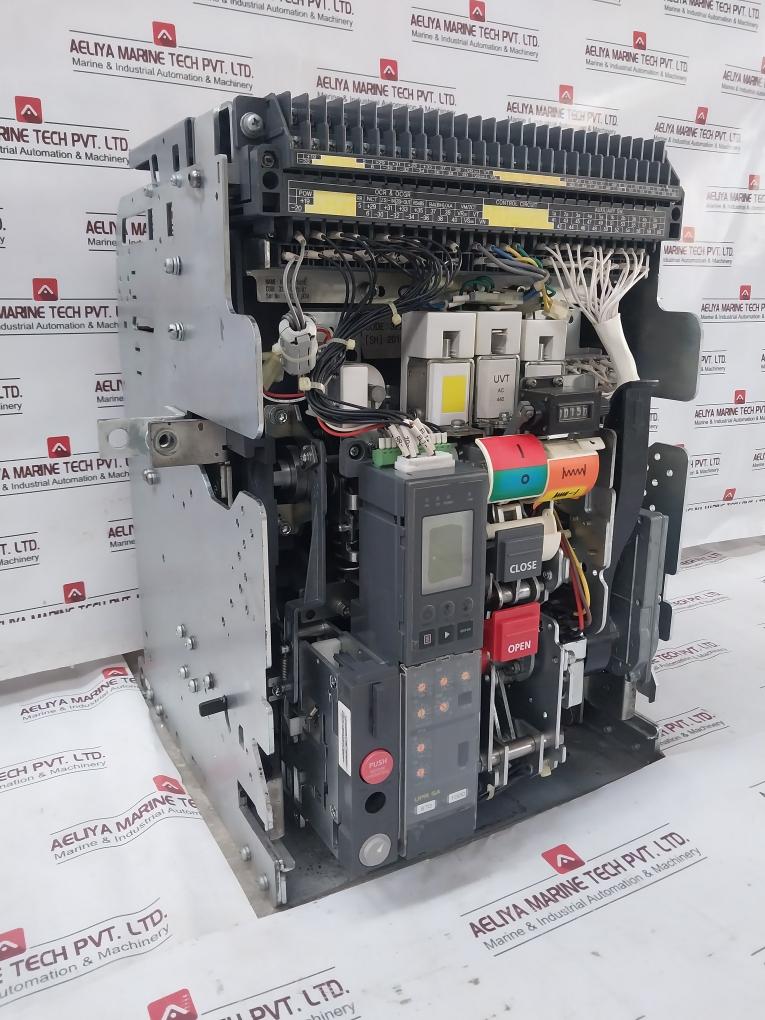

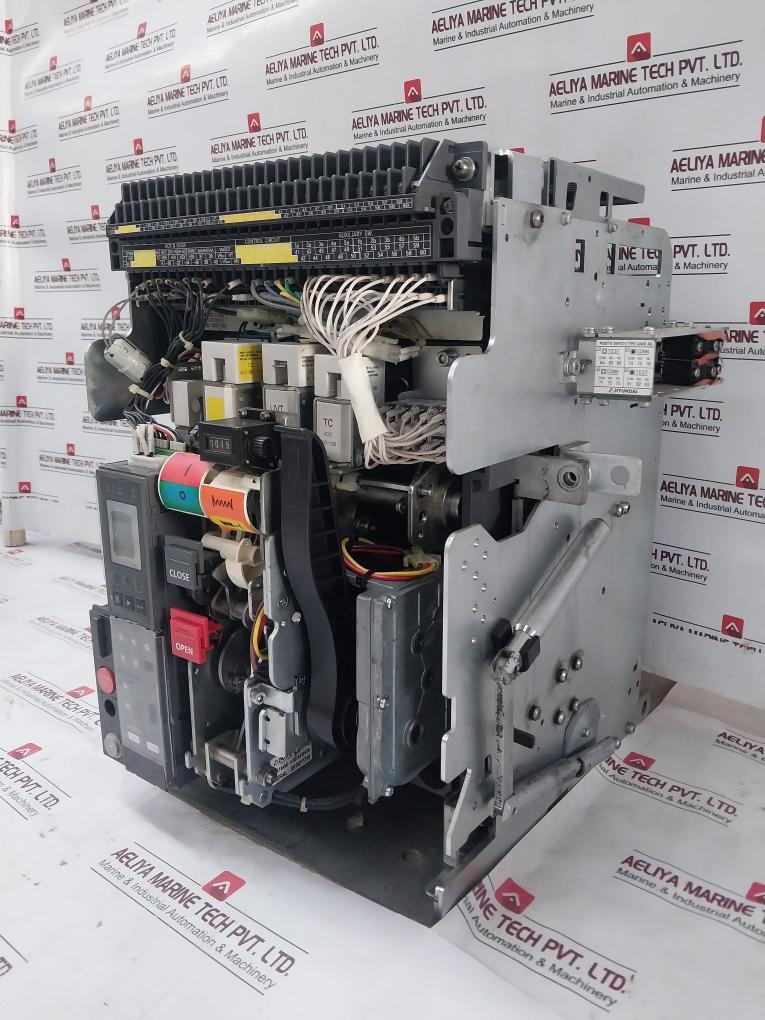

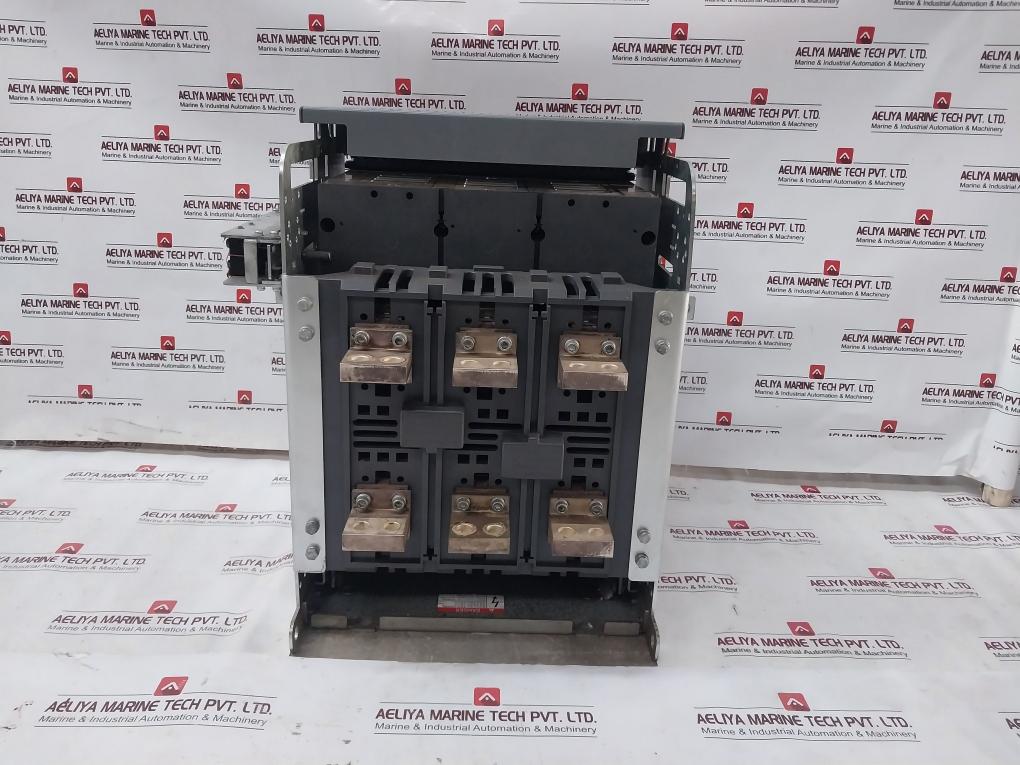

Hyundai Uan16A3B M1C1S168T 3-pole Air Circuit Breaker 12Kv 1000V 50/60Hz
Hyundai Uan16A3B M1C1S168T 3-pole Air Circuit Breaker 12Kv 1000V 50/60Hz
Hyundai Heavy Industries Co.,Ltd.
Electro Electric Systems

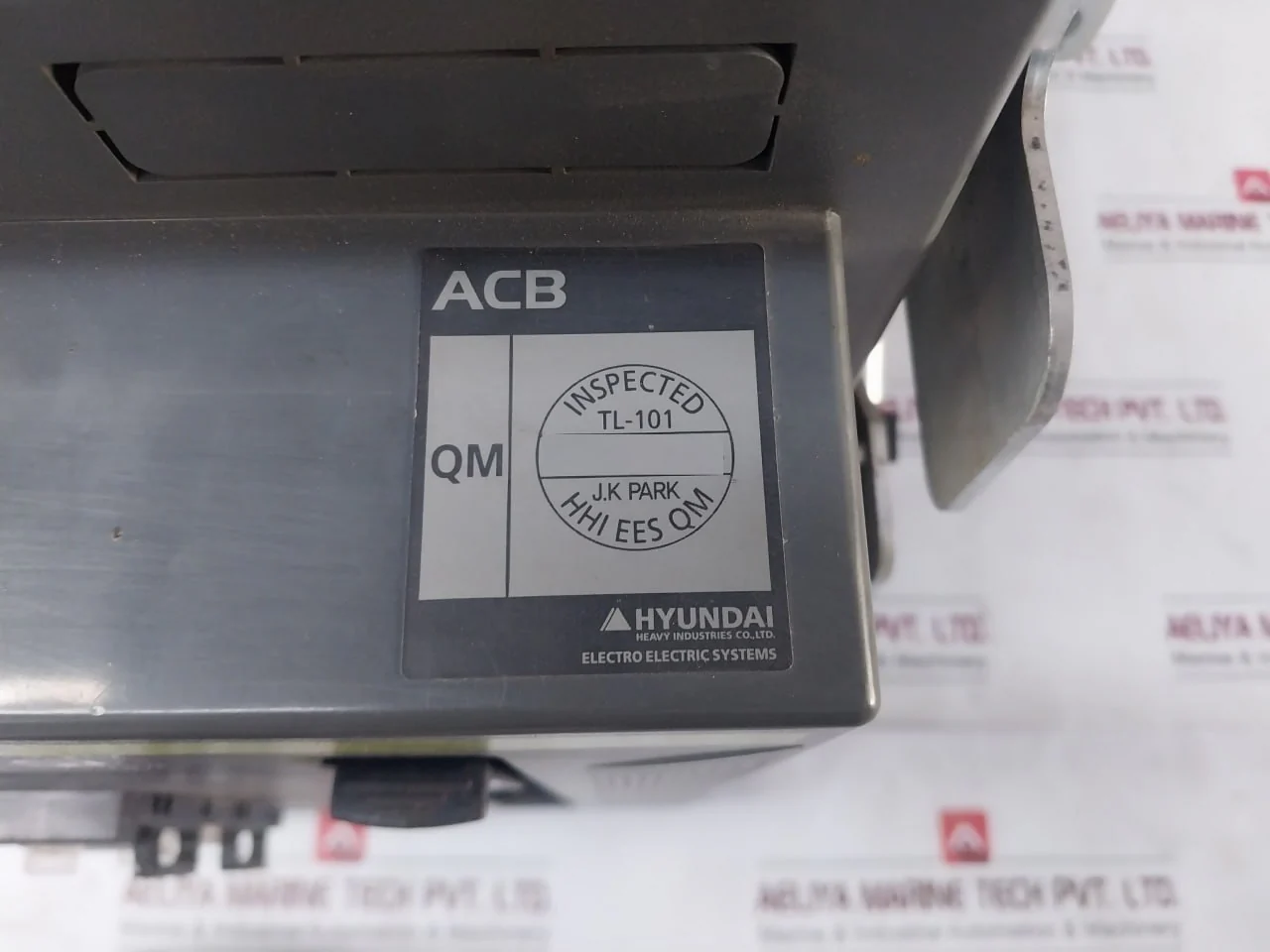

Acb

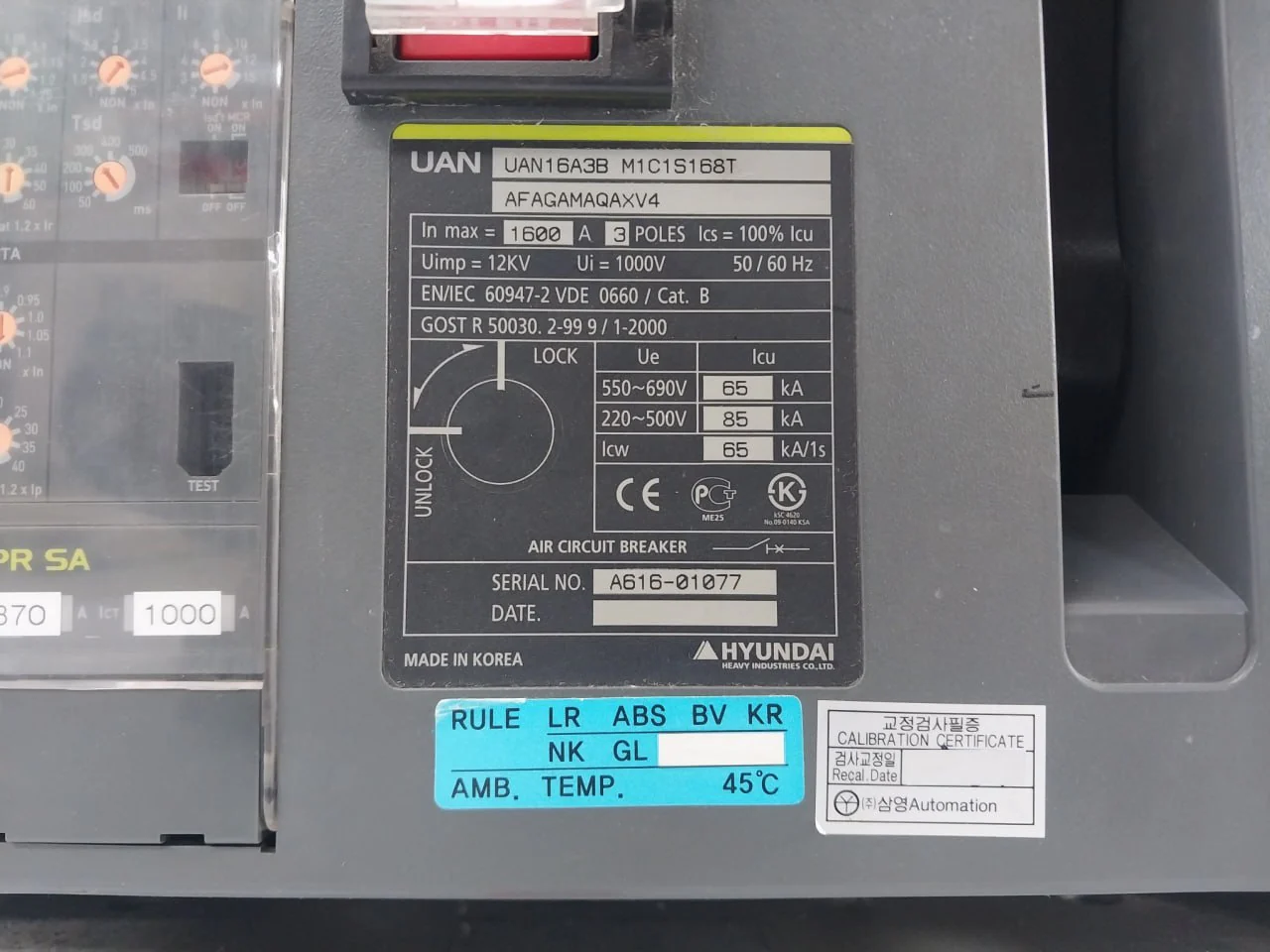

Uan

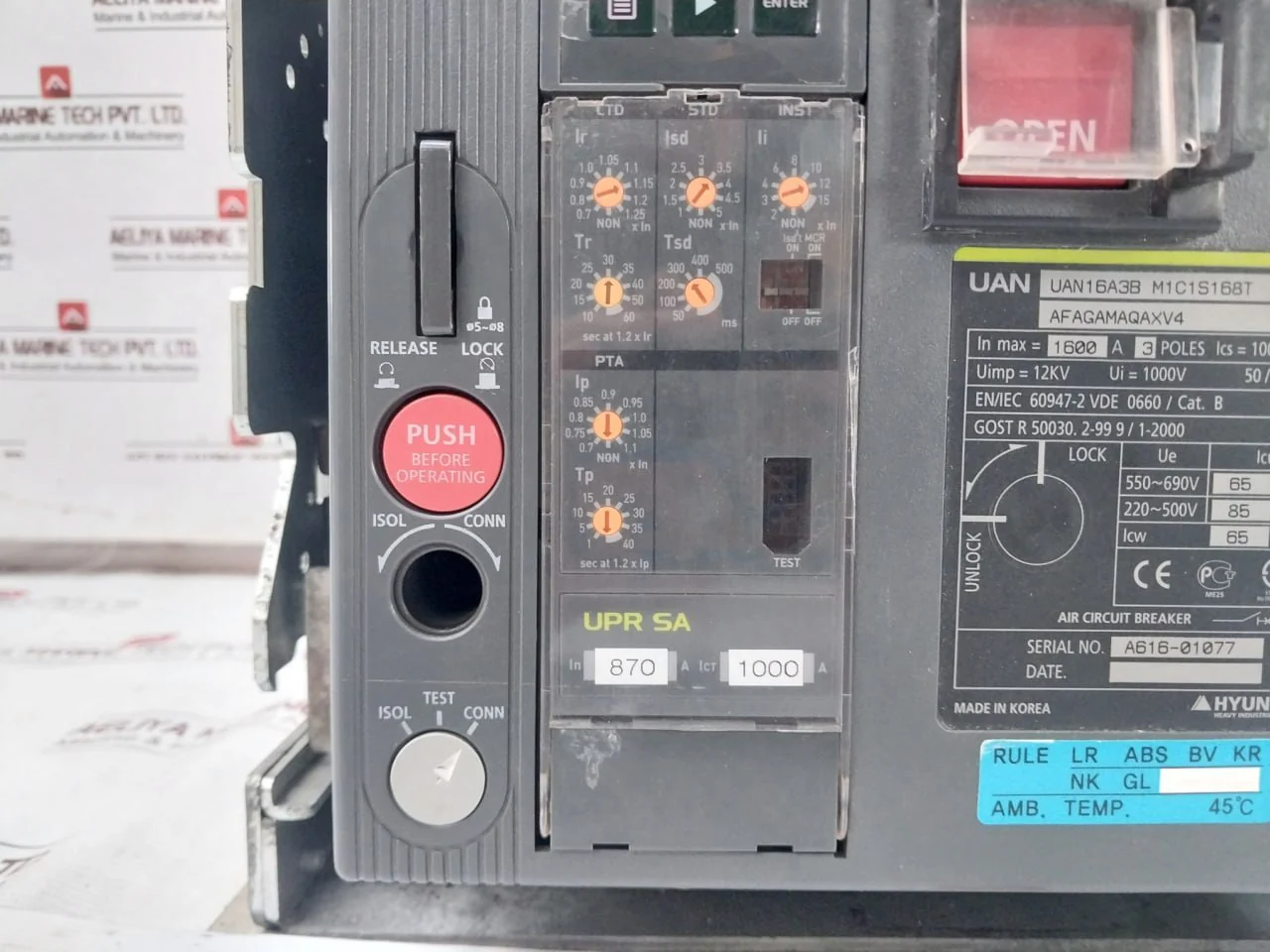

Uan16A3B M1C1S168T
Afagamaqaxv4
In Max= 1600 A
3 Poles
Ics= 100% Icu
Uimp= 12Kv
Ui= 1000V
50/60Hz
En/Iec 60947-2
Vde 0660/Cat.B
Gost R 50030.2-99 9/1-2000
Ue Icu
550~690V 65 Ka
220~500V 85 Ka
Icw 65 Ka/1S
Air Circuit Breaker
Amb.Temp: 45°C
Upr Sa
In: 870 A
Ict: 1000 A

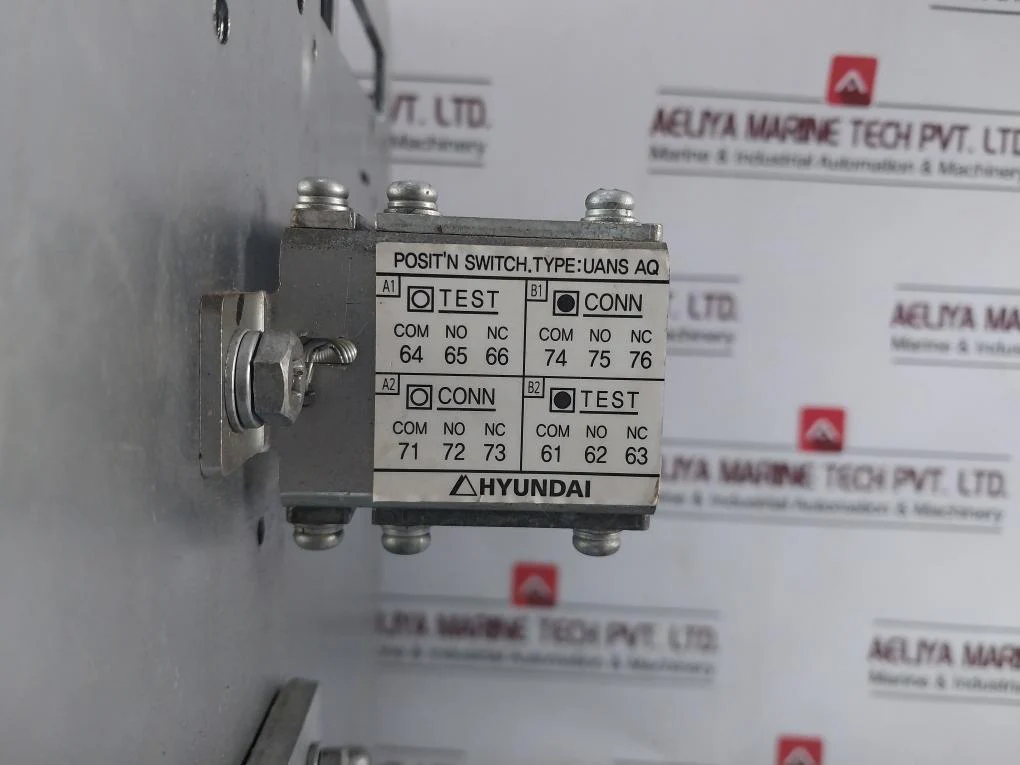

Posit’n Switch
Type: Uans Aq

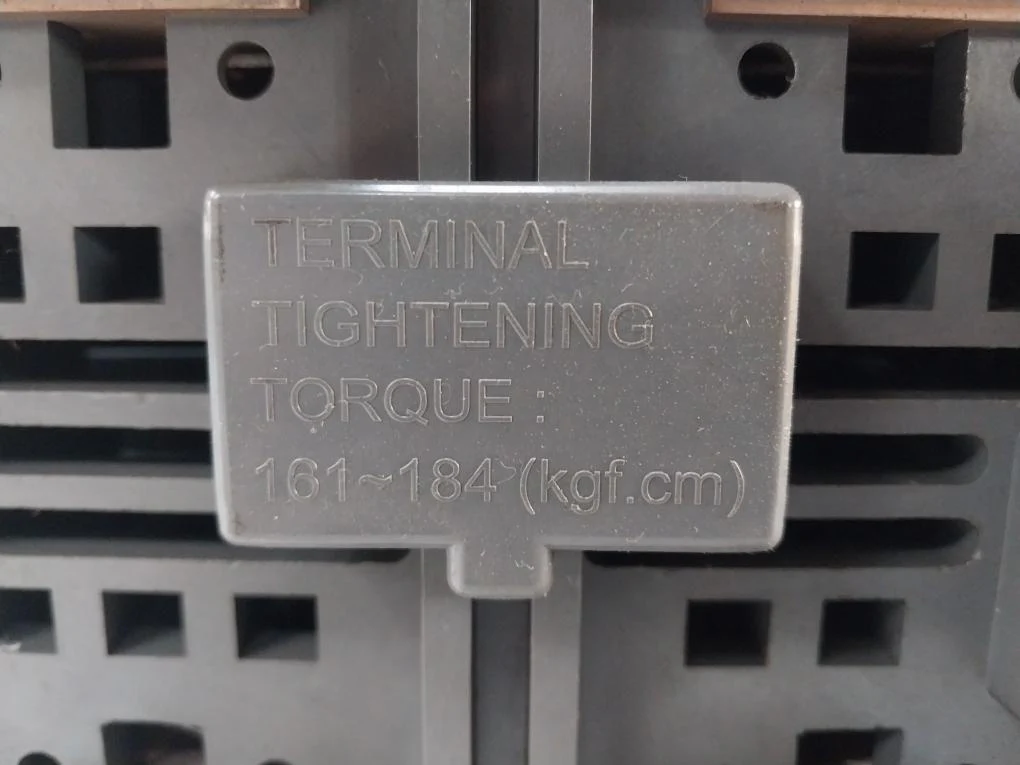

Terminal Tightening Torque:
161~184 (Kgf.Cm)

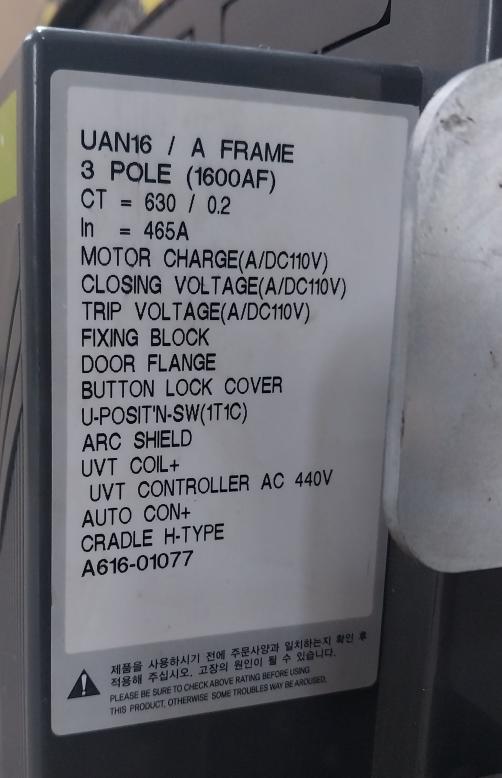

Uan16/ A Frame
3 Pole (1600Af)
Ct=630/0.2
In=465A
Motor Charge (A/Dc110V)
Closing Voltage (A/Dc110V)
Trip Voltage (A/Dc110V)
Uvt Controller Ac 440V
Cradle H-type
A616-01077

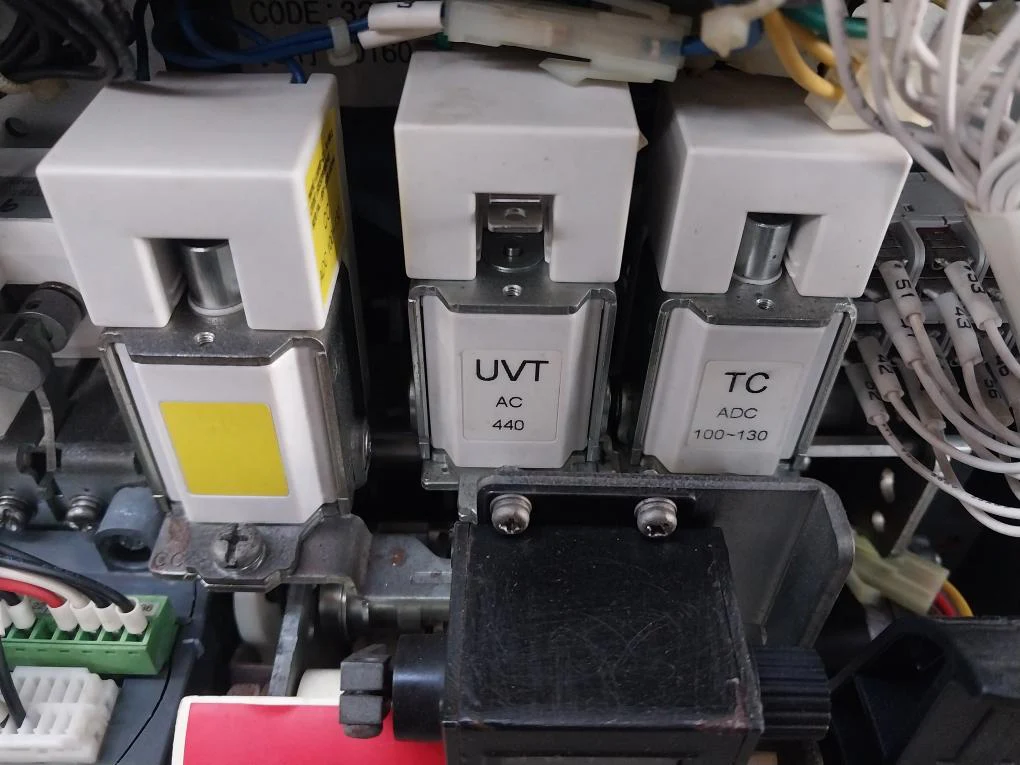

Uvt Ac 440
Tc Adc 100~130

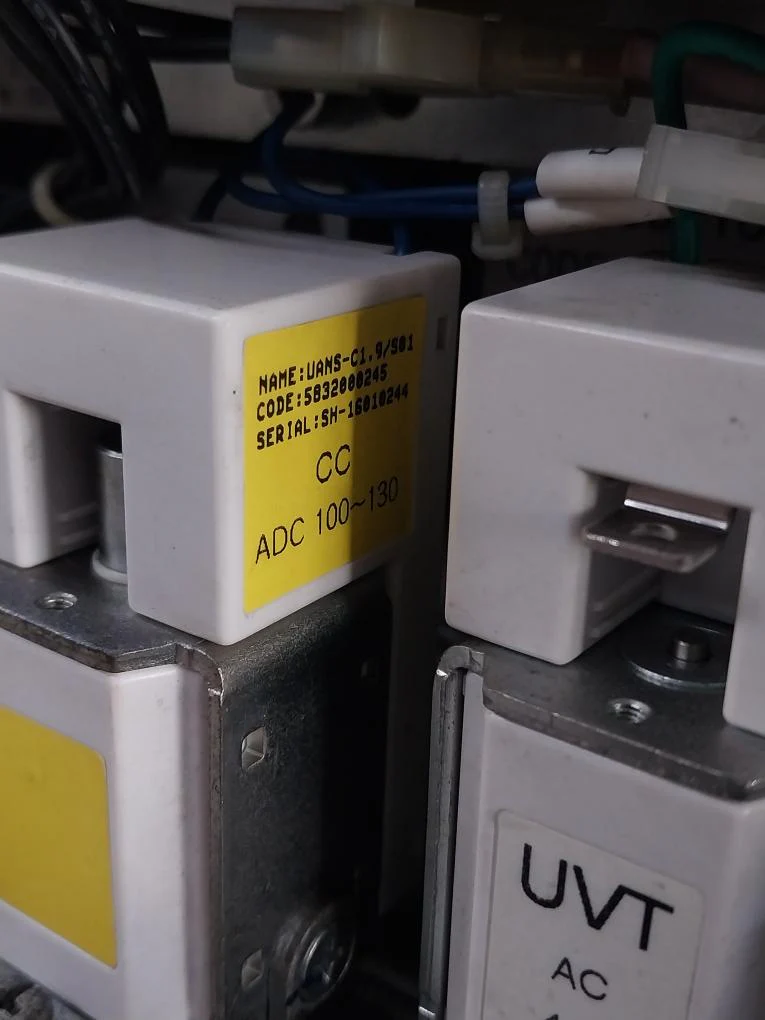

Name: Uans-c1, 9/S01
Code: 5832000245
Cc Adc 100~130

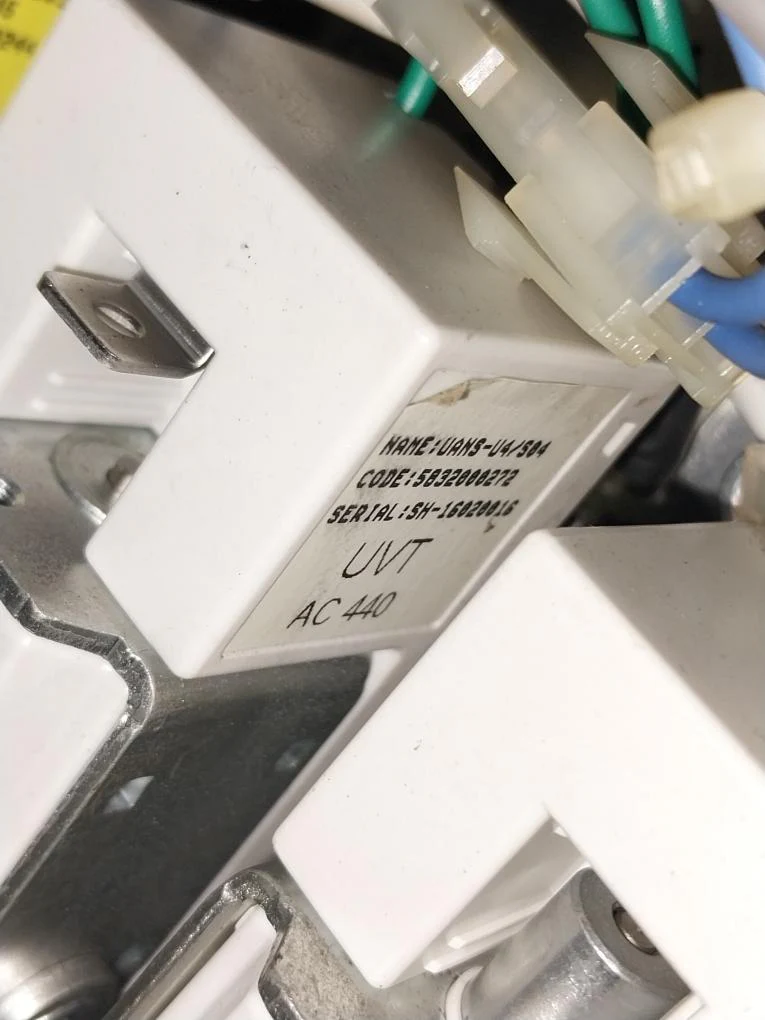

Name: Uans-u4/S04
Code: 5832000272
Uvt Ac 440

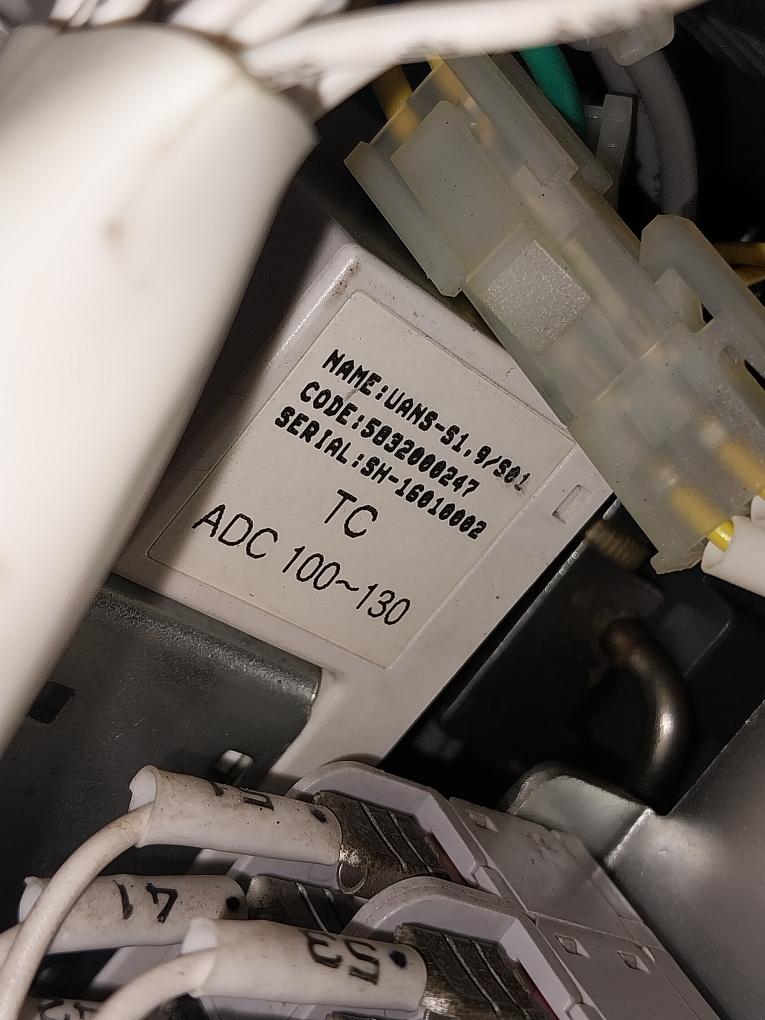

Name: Uans-s1,9/S01
Code: 5832000247
Tc Adc 100~130

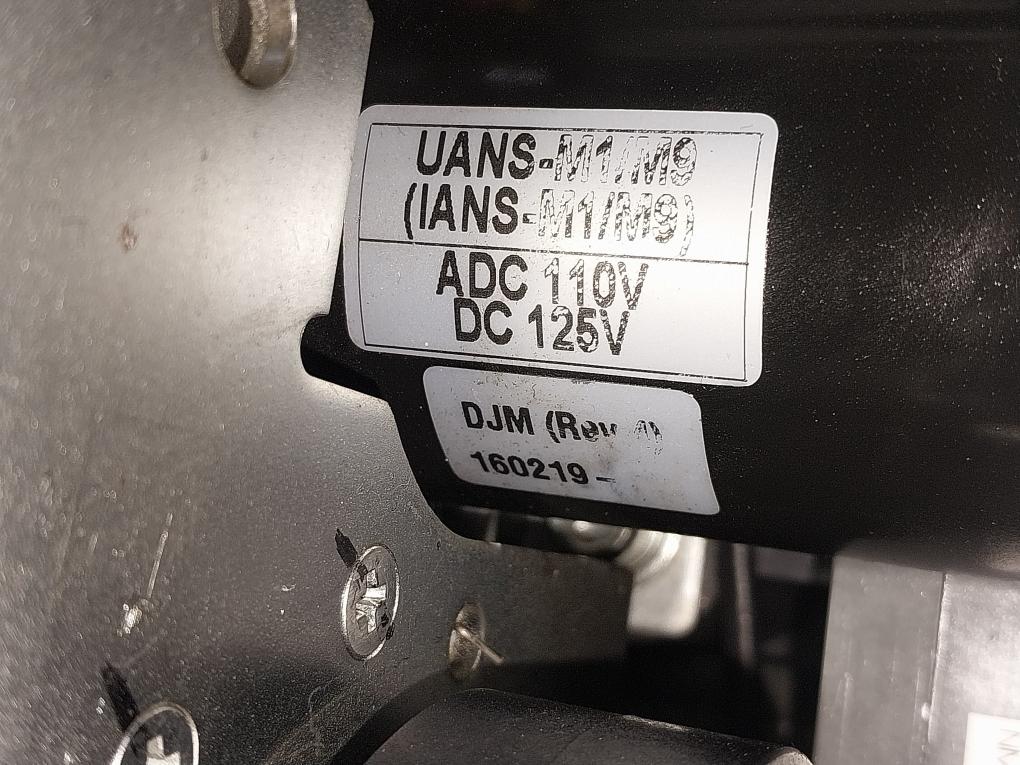

Uans-m1/M9
(Ians-m1/M9)
Adc 110V
Dc 125V
Djm
160219

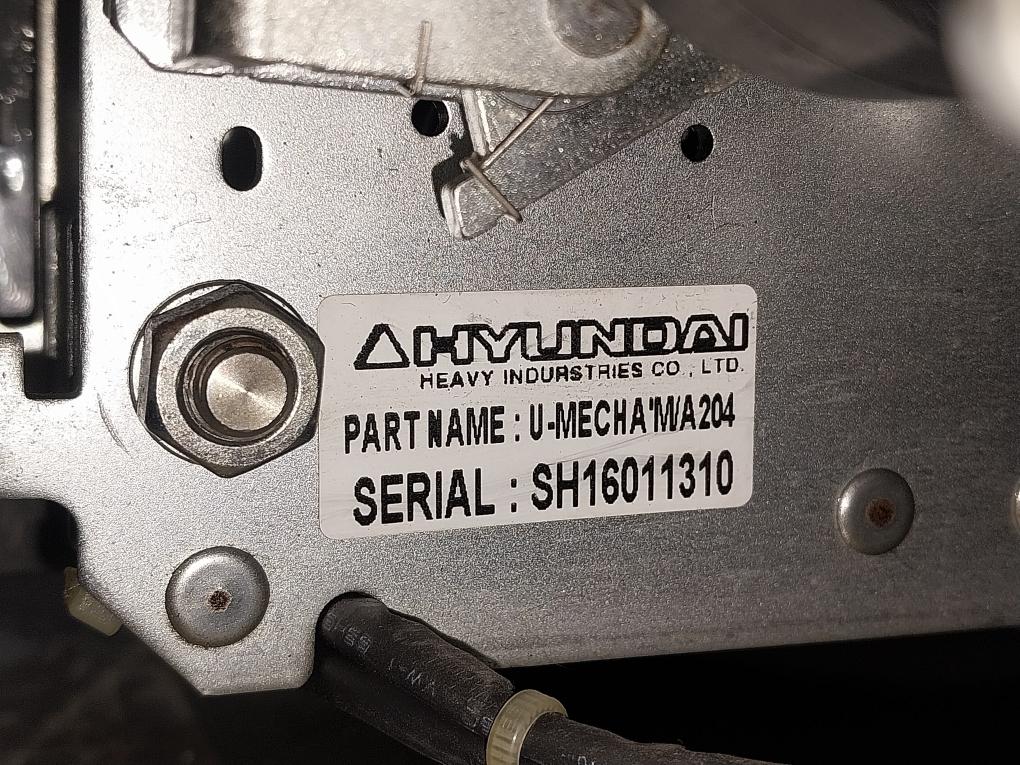

Part Name: U-mecha’m/A204

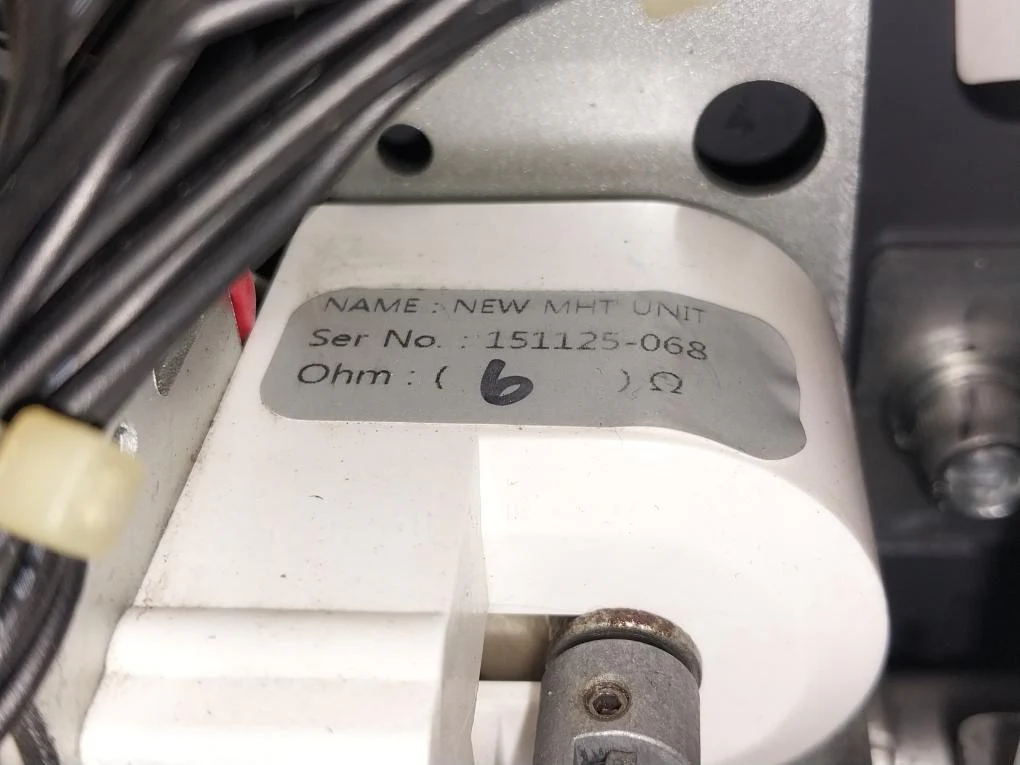

Name: New Mht Unit
Ohm: (6) Ω

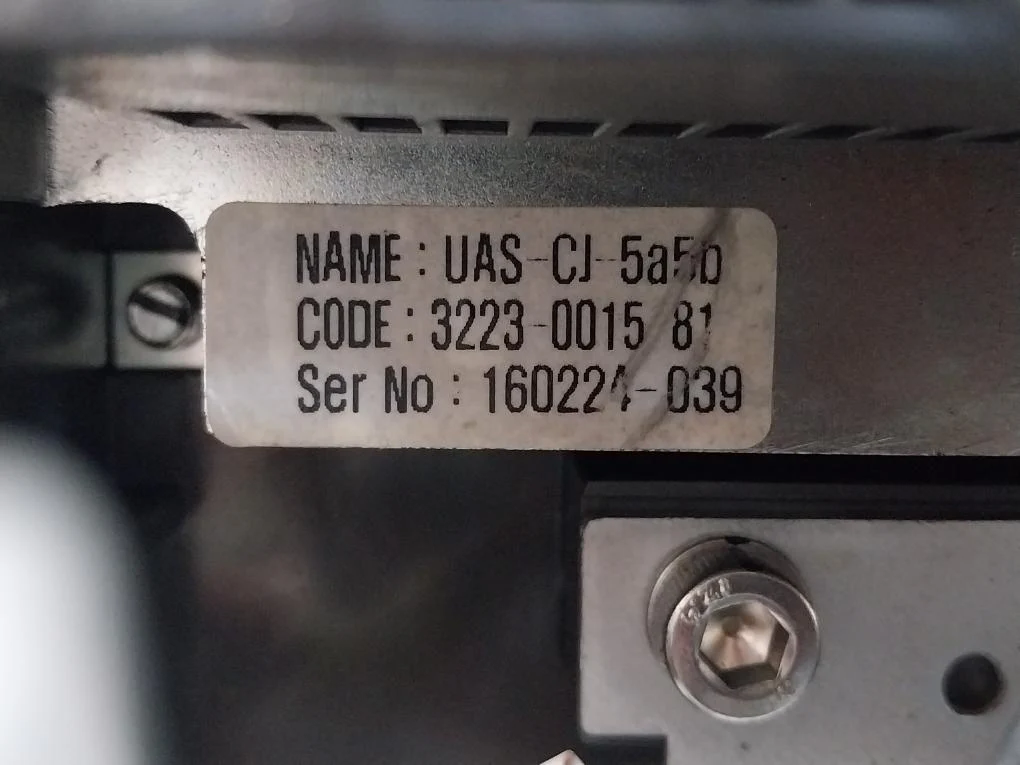

Name: Uas-cj-5A5B
Code: 3223-0015 81

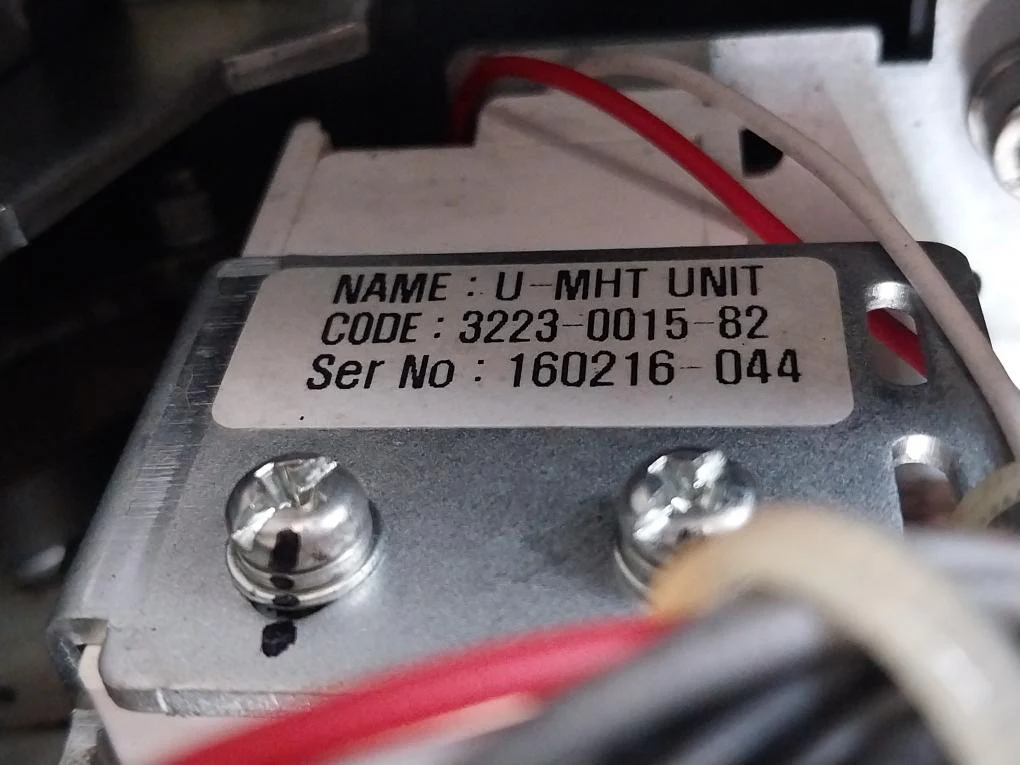

Name: U-mht Unit
Code: 3223-0015-82

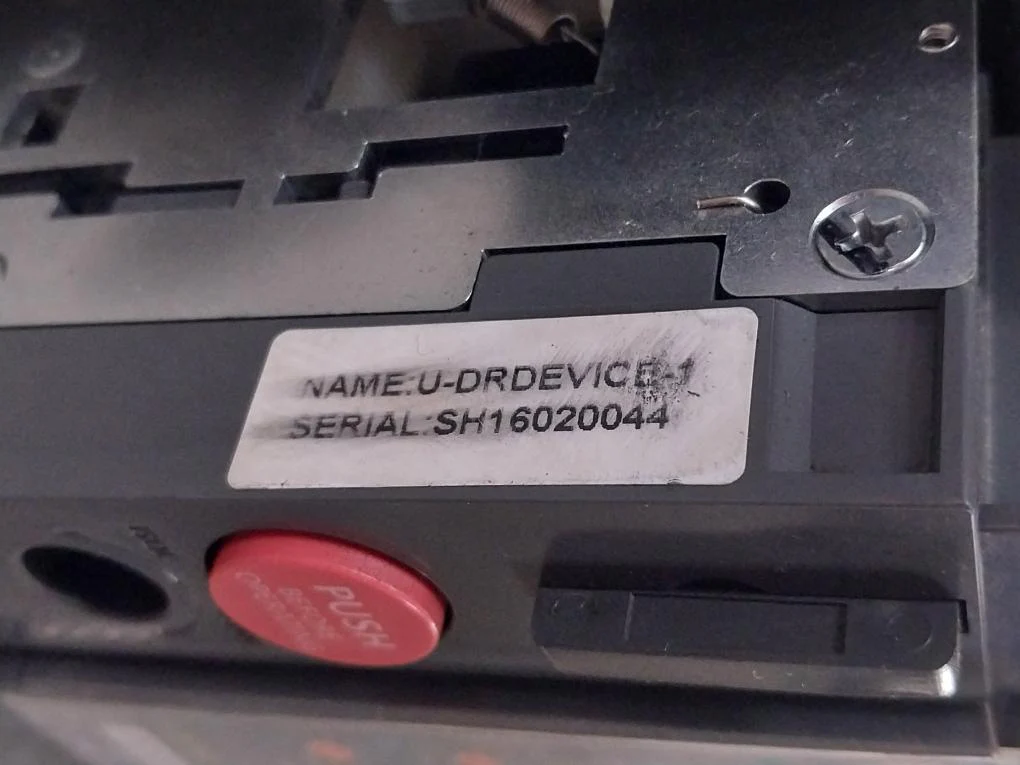

Name: U-drdevice-1

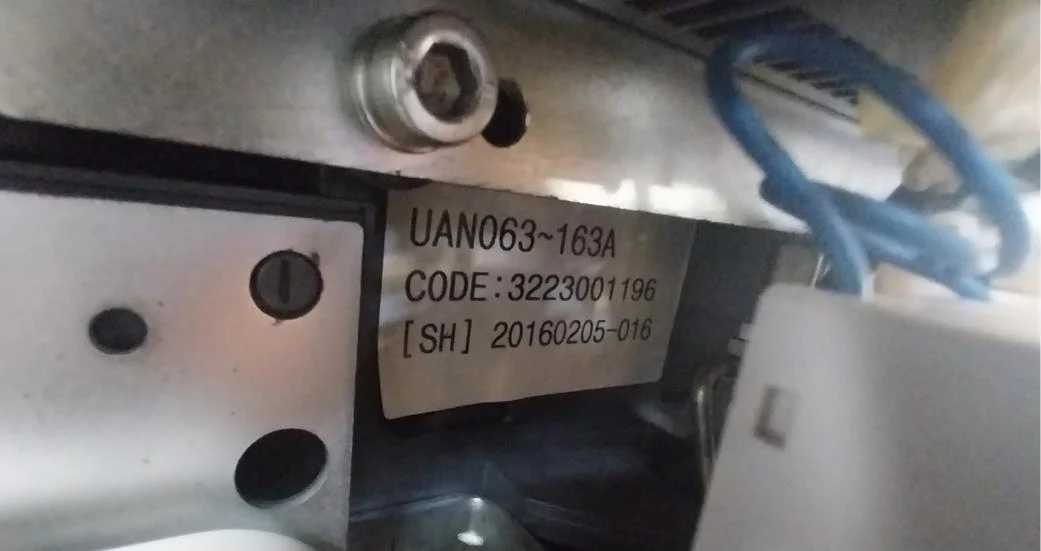

Uan063~163A
Code: 3223001196
[Sh] 20160205-016
Made In Korea
Weight: 64.500 Kg
