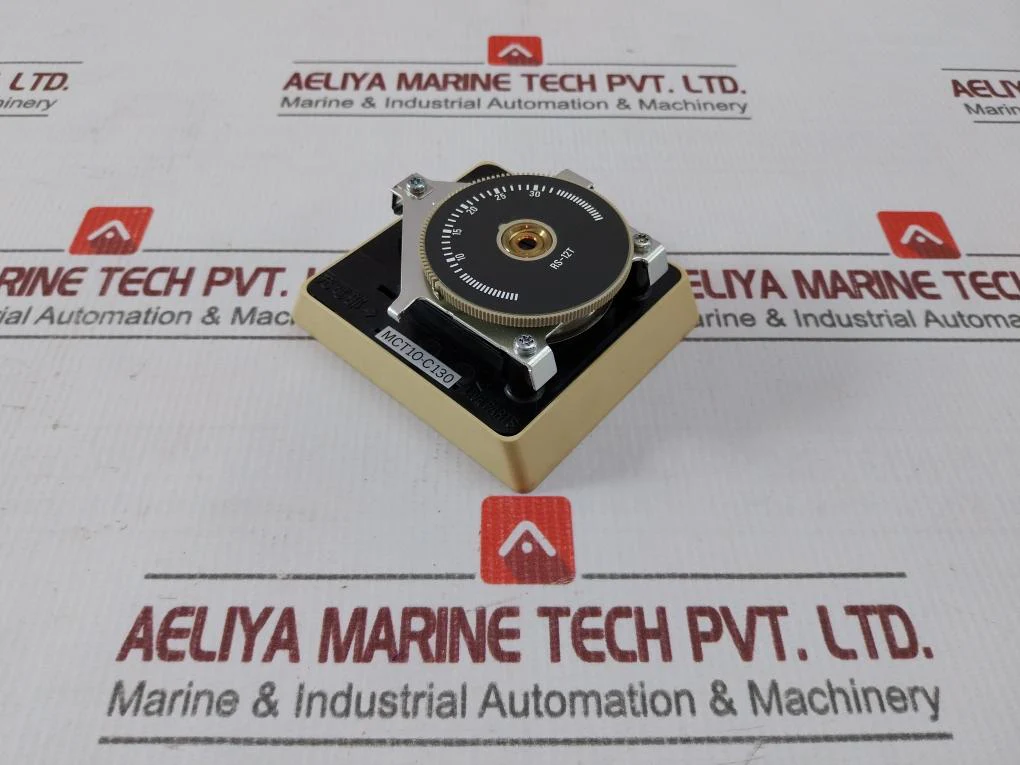

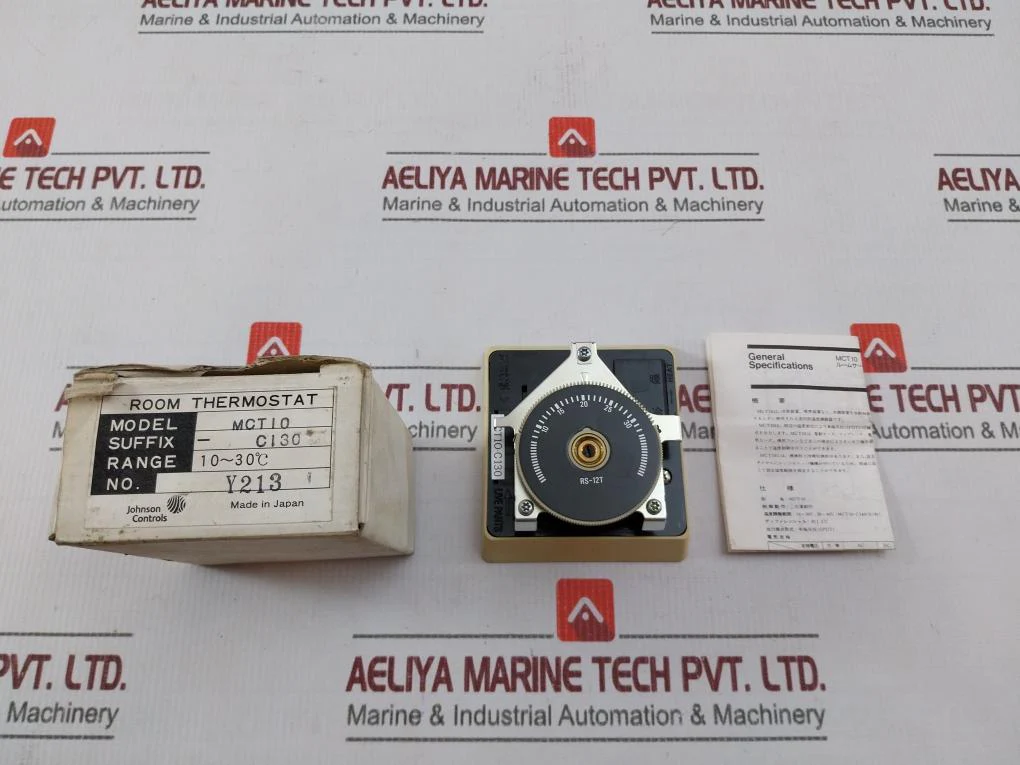

Johnson Controls Mct10-c130 Room Thermostat Mct10 1500V Ac 100M2
Johnson Controls Inc.
Saginomiya
Part Name: Room Thermostat
Model: Mct10
Part No: Mct10-c130
Rs12T
Suffix: C130
Range: 10~30˚C
No.: Y213

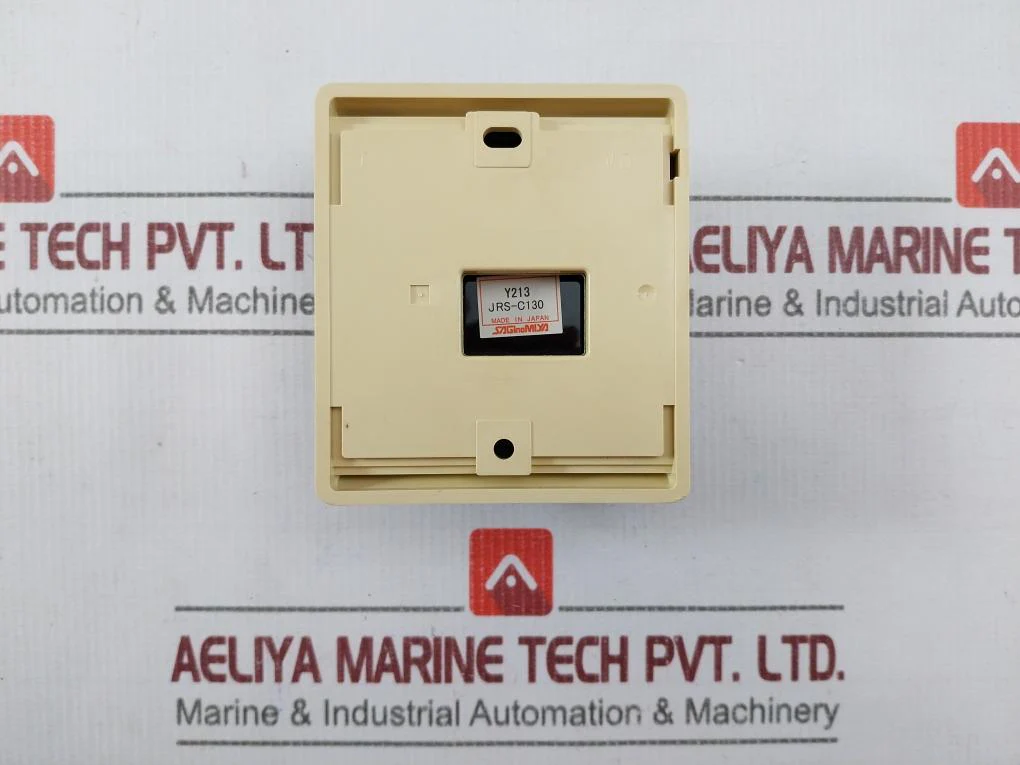

Jrs-c130
Control Action: Two-position Action
Temperature Adjustment Range: 10~30℃, 20-40℃ (Mct10-c140(S) Type)
Differential: Approx. 1.5°C
Output Contact Type: Single-pole Double-throw (Spdt)
Insulation Resistance: 100M2 Or More (500V Dc Megger)
Withstand Voltage: 1500V Ac For 1 Minute
Material: Abs
Ambient Conditions For Use: -20 To +50°C (No Condensation)
Code Number: Standard Type: Mct10-c130, Mct10-c140
Cooling/Heating Switch Type: Mct10-c130S, Mct10-c140S
Rs-7C
Made In Japan
Weight: 190 Gm
