Johnson Controls P170Ca-3C High-pressure Control 50/500 Psig 152073
Johnson Controls, Inc.
Penn
P170 Controls For High Pressure Applications
P170Ca-3

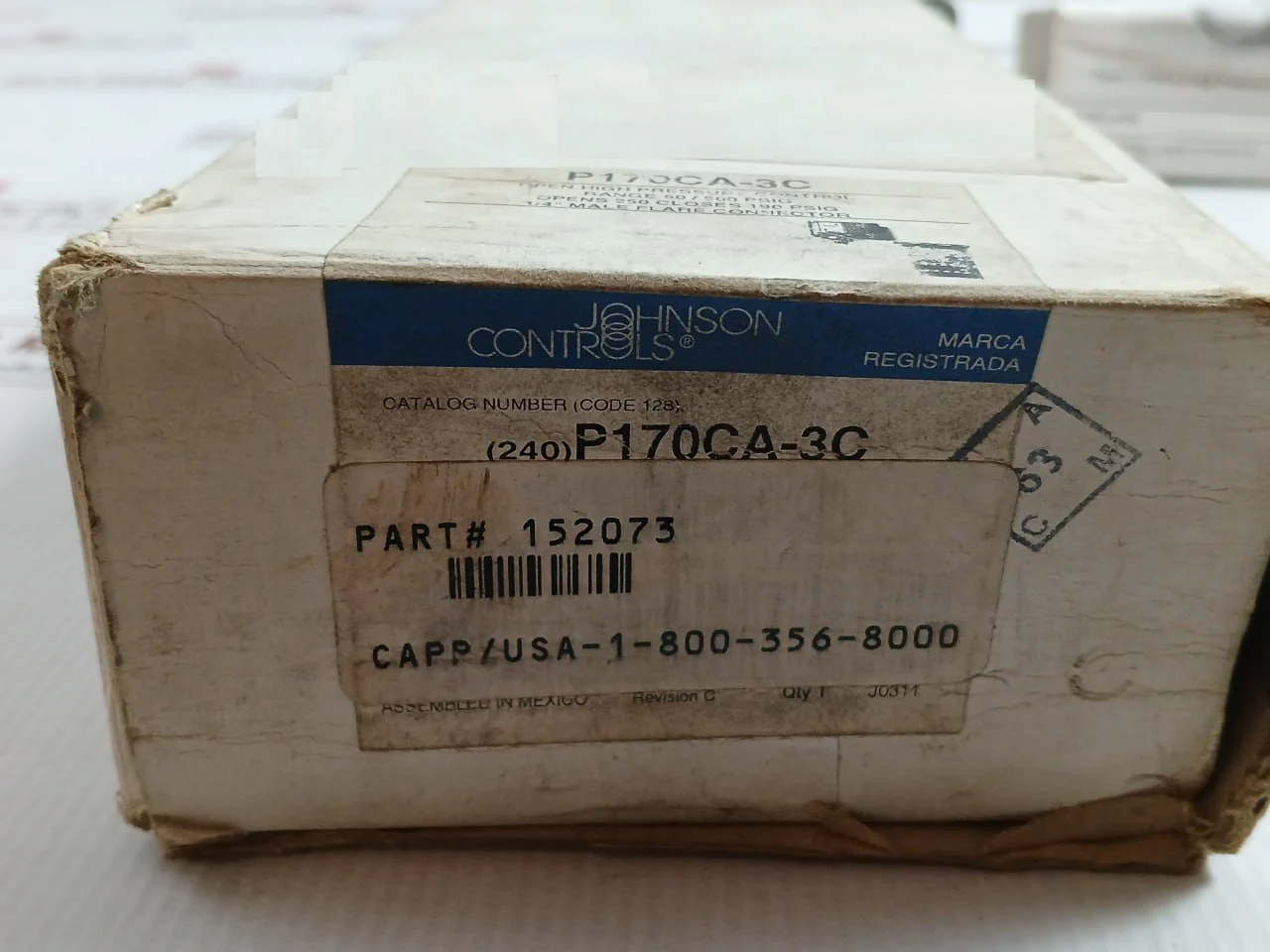

Catalog Number: P170Ca-3C
Open High Pressure Control
Range: 50/500 Psig
Opens 250 Closes 190 Psig
1/4" Male Flare Connector
Use Copper Conductors Only, Rated At Least 90°C
Pilot Duty-125Va, 120/600 Vac; 57.5Va, 120/300Vdc
Hermetic Unit-208/240 Vac, 24 Fla Max., 144 Lra Max.
High Pres: 50-500 Lbs/Sq.In
(Code 128)
(240)
Part#: 152073
Assembled In Mexico
Weight: 780 Gm
