Kawasaki Boiler Operation Panel 300 To 600 °C
Kawasaki Heavy Industries, Ltd.

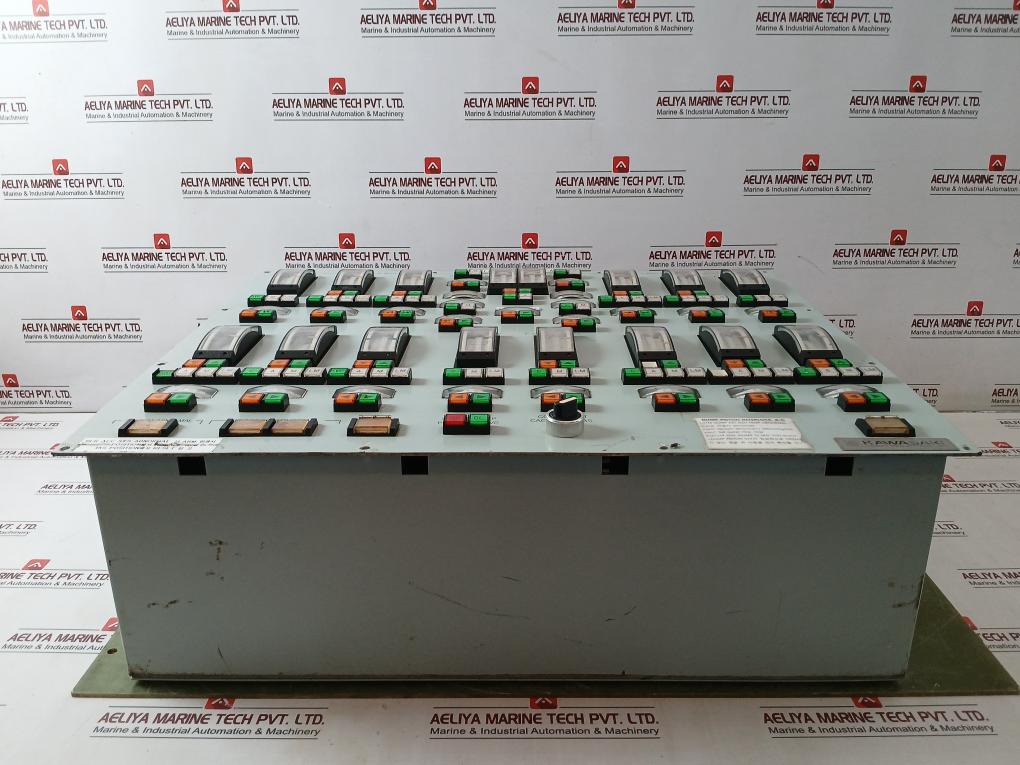

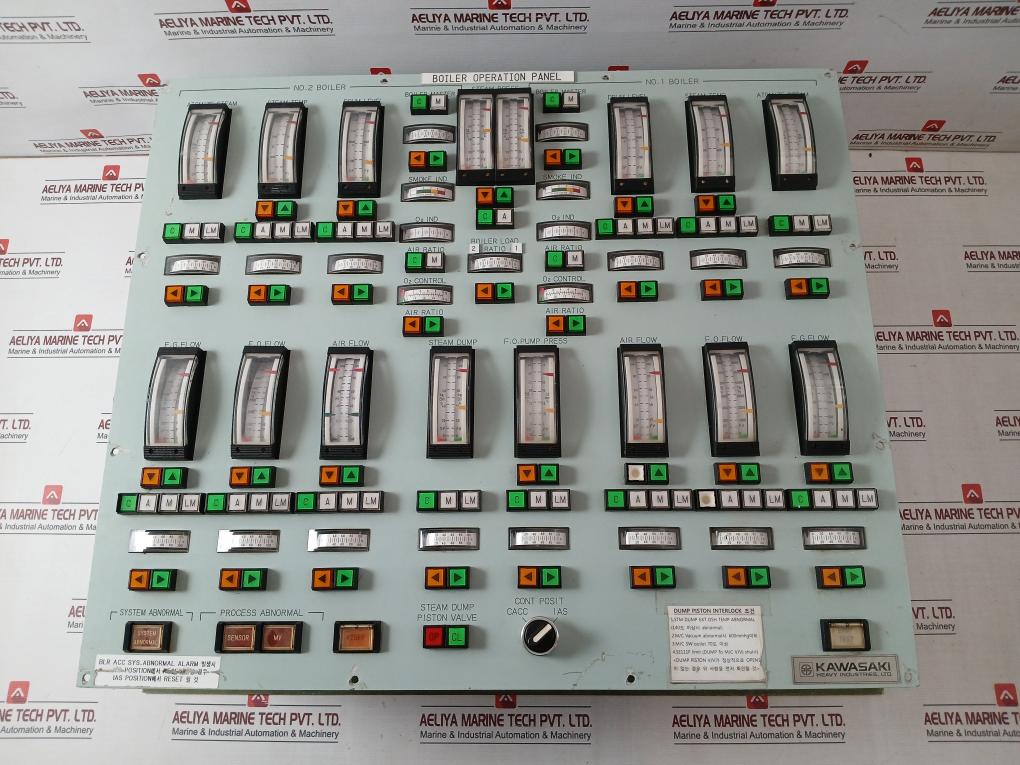

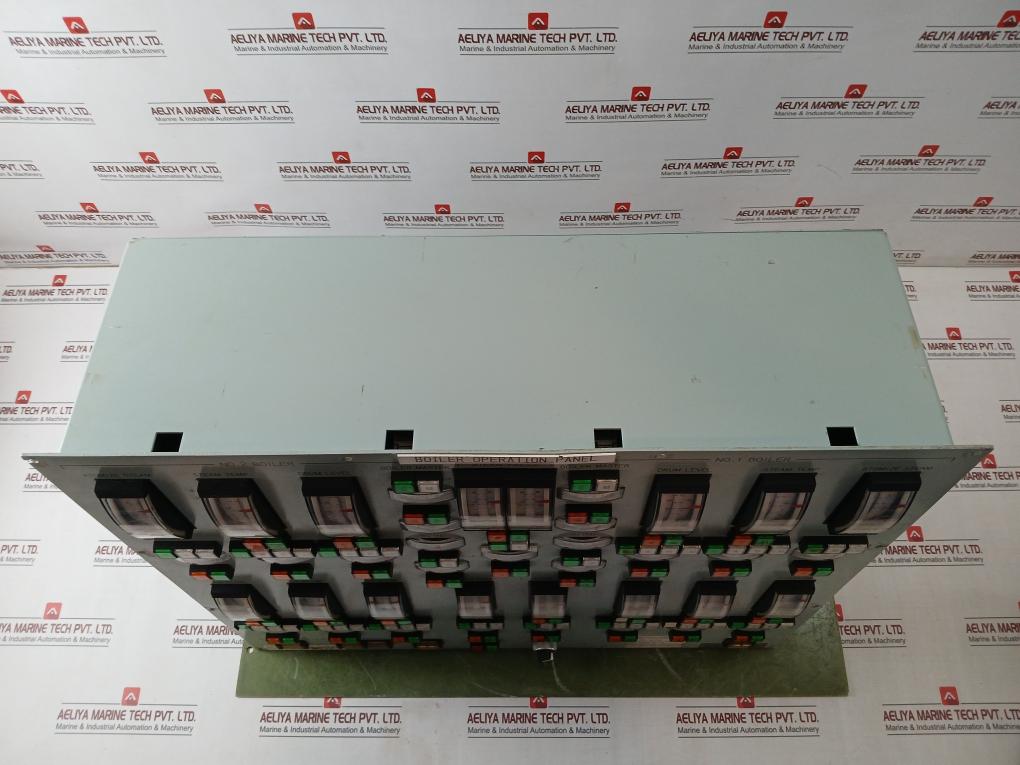

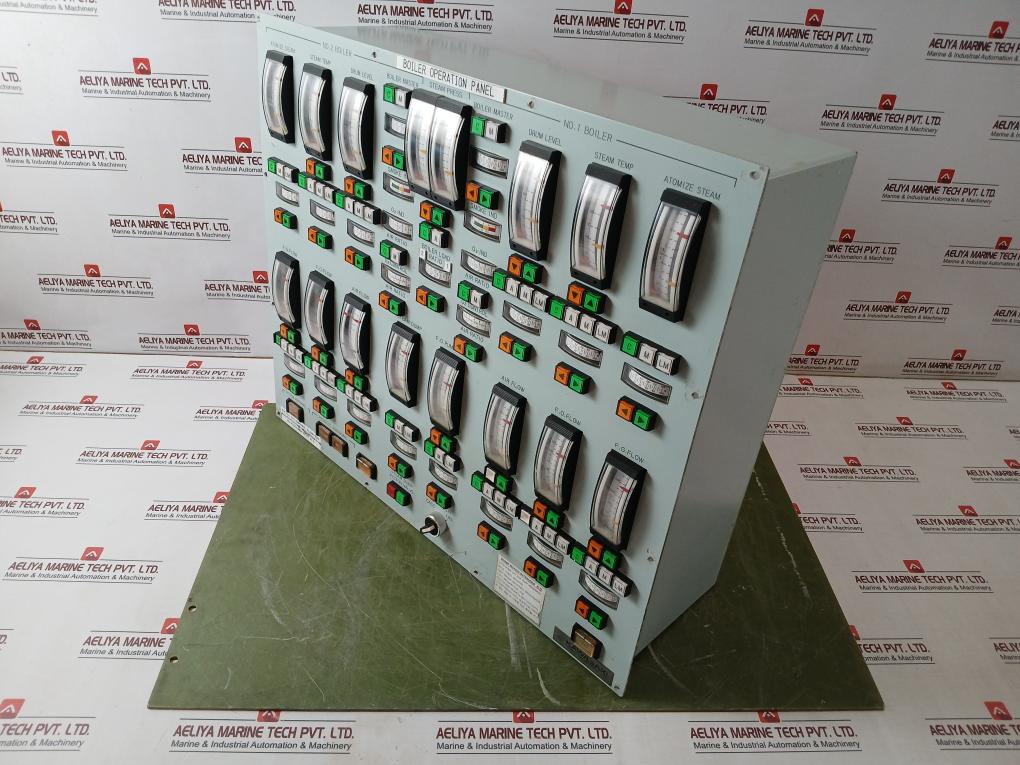

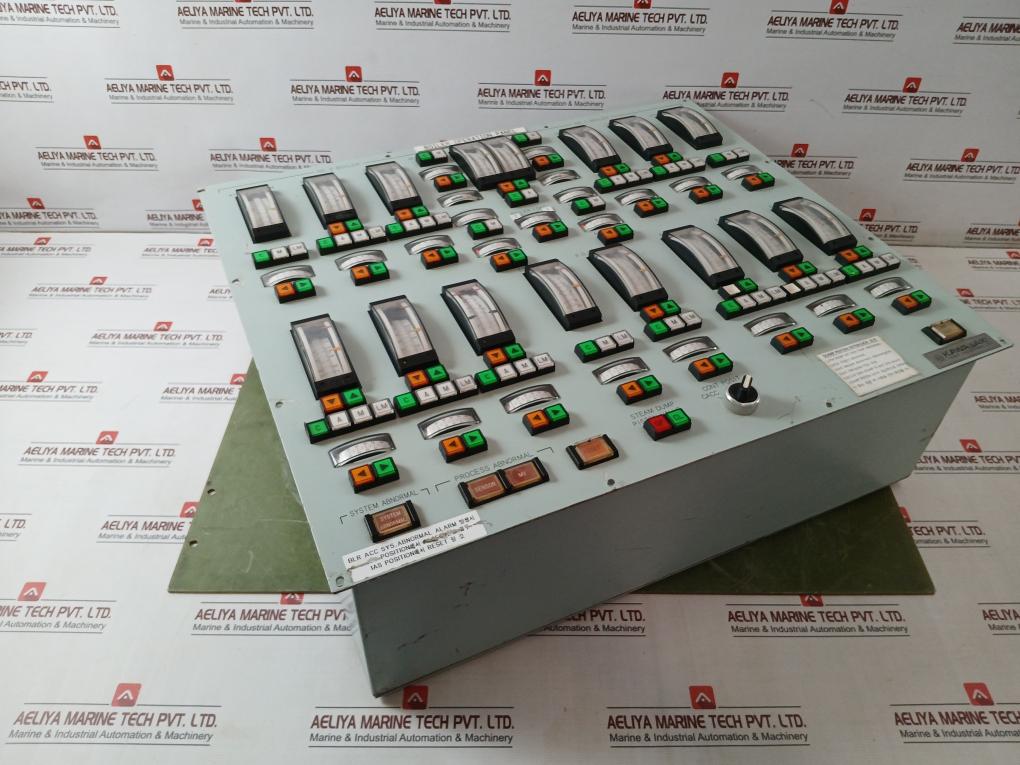

Boiler Operation Panel

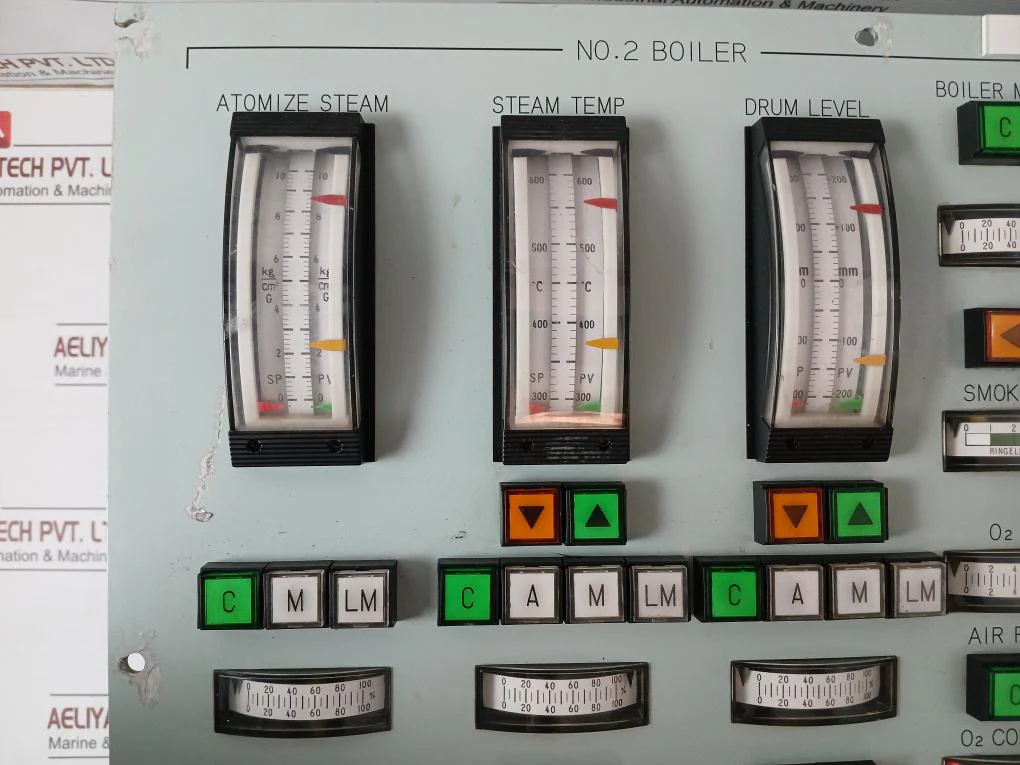

Atomize Steam: Sp/Pv 0 To 10 Kg/Cm2 G
Steam Temp: Sp/Pv 300 To 600 °C

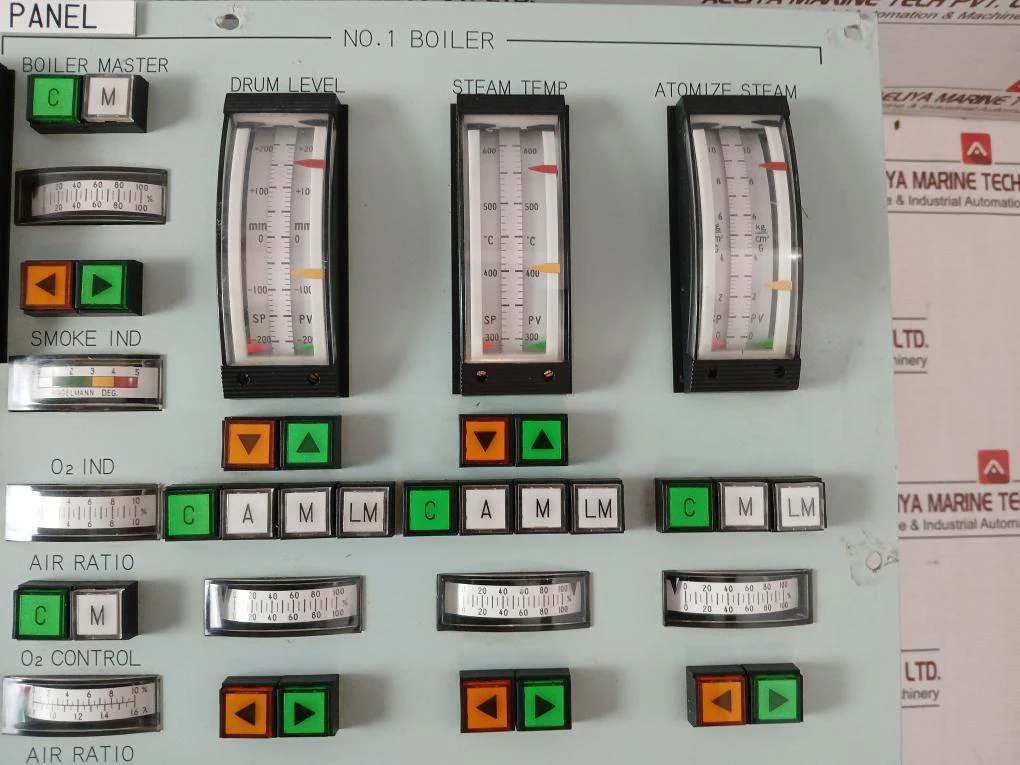

Drum Level: Sp/Pv -200 To 0 To +200 Mm

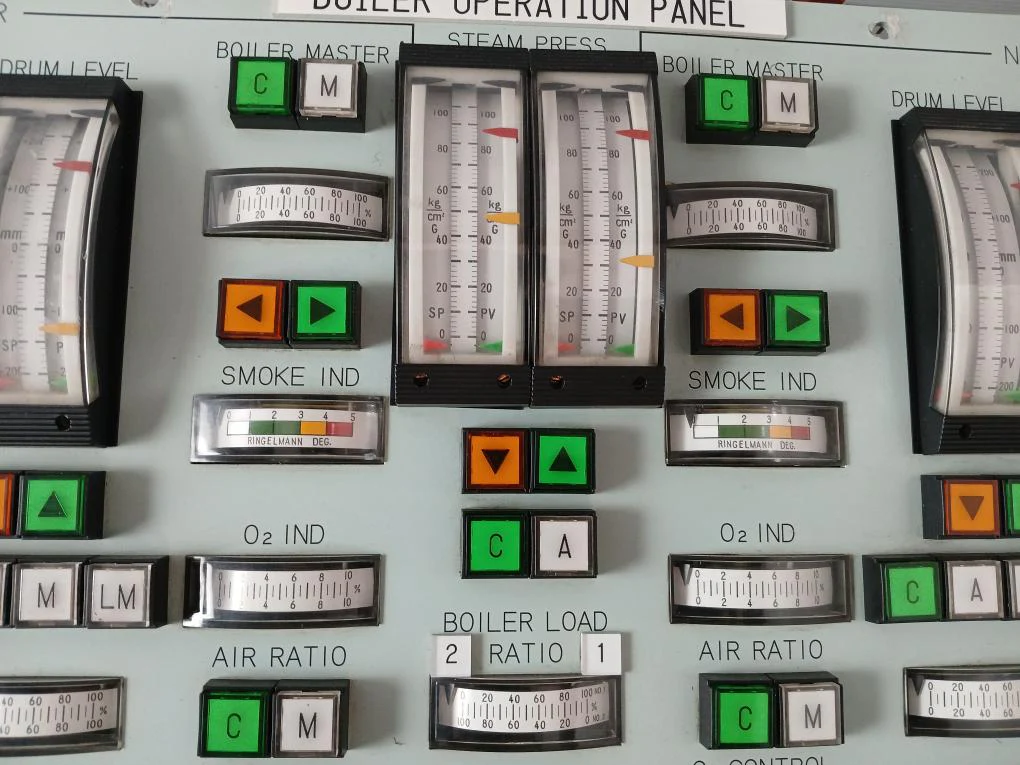

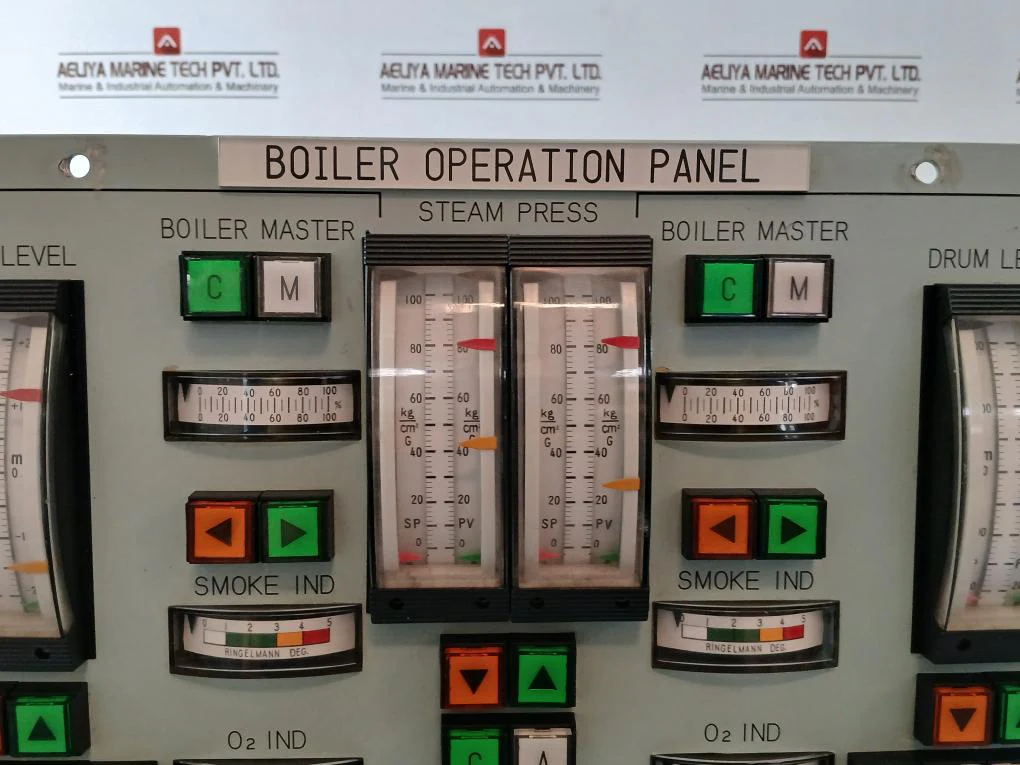

Steam Press: Sp/Pv 0 To 100 Kg/Cm2 G
Boiler Master: 0 To 100 %
Smoke Ind: 0 To 5 Ringelmann Deg.
O2 Ind: 0 To 10 %
Boiler Load Ratio: 0 To 100 %
O2 Control:
0 To 10 %
0.8 To 1.6 λ

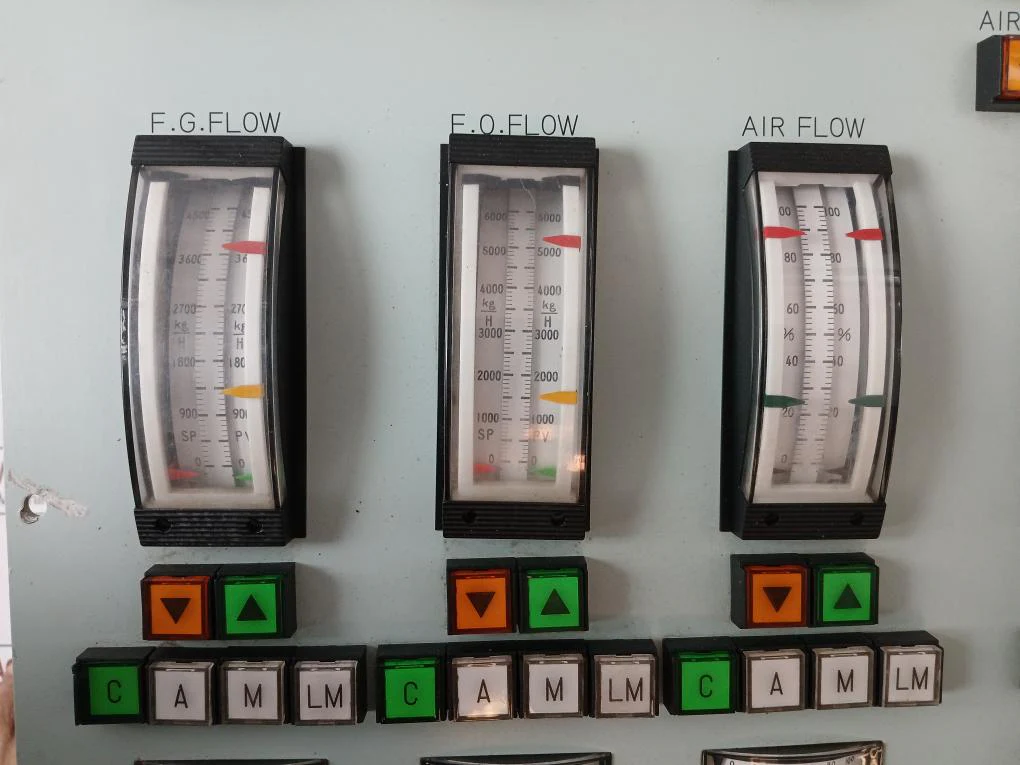

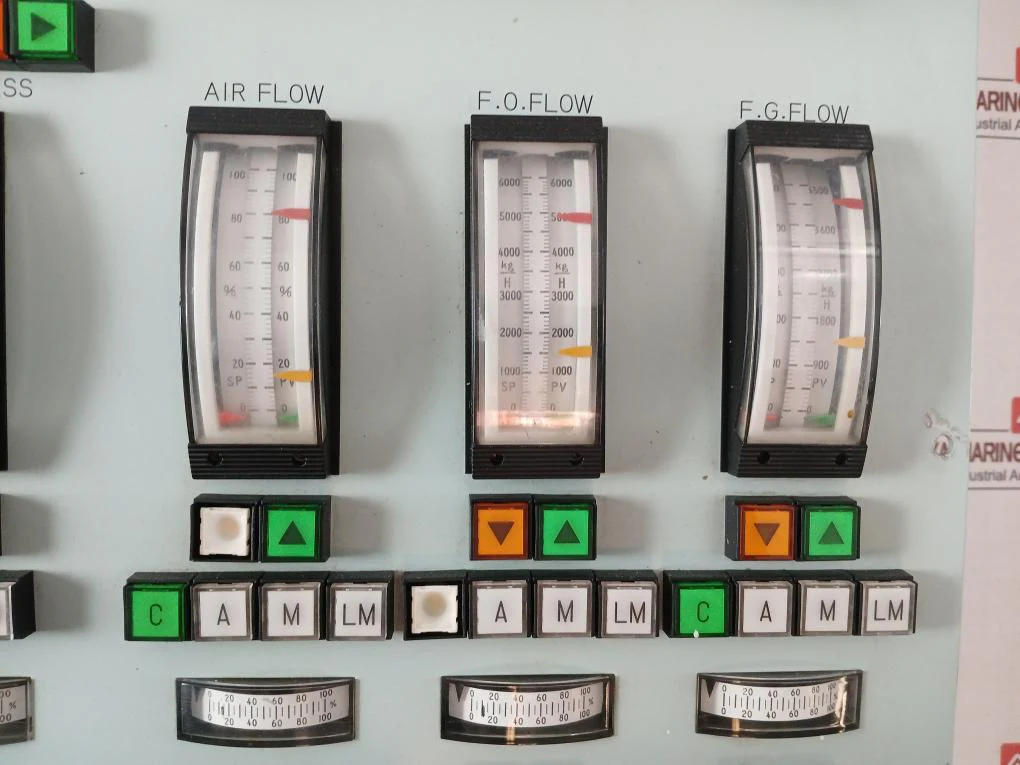

F.G. Flow: Sp/Pv 0 To 4500 Kg/H
F.O. Flow: Sp/Pv 0 To 6000 Kg/H
Air Flow: Sp/Pv 0 To 100 %

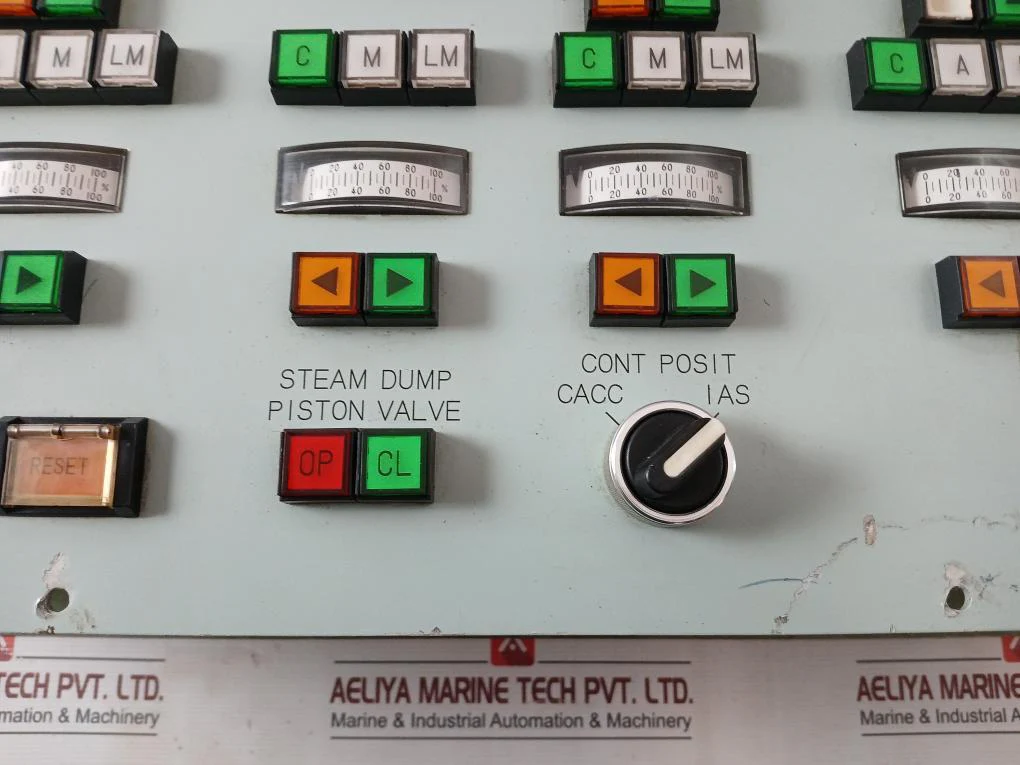

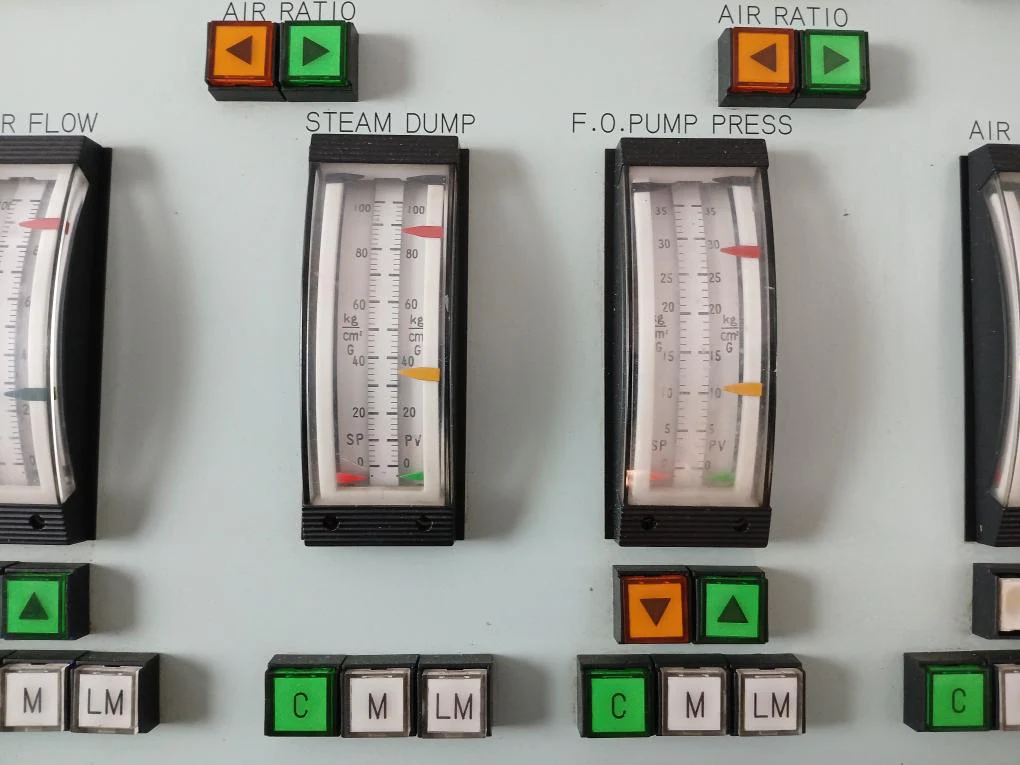

Steam Dump: Sp/Pv 0 To 100 Kg/Cm2 G
F.O. Pump Press: Sp/Pv 0 To 35 Kg/Cm2 G
Weight: 32.650 Kg
