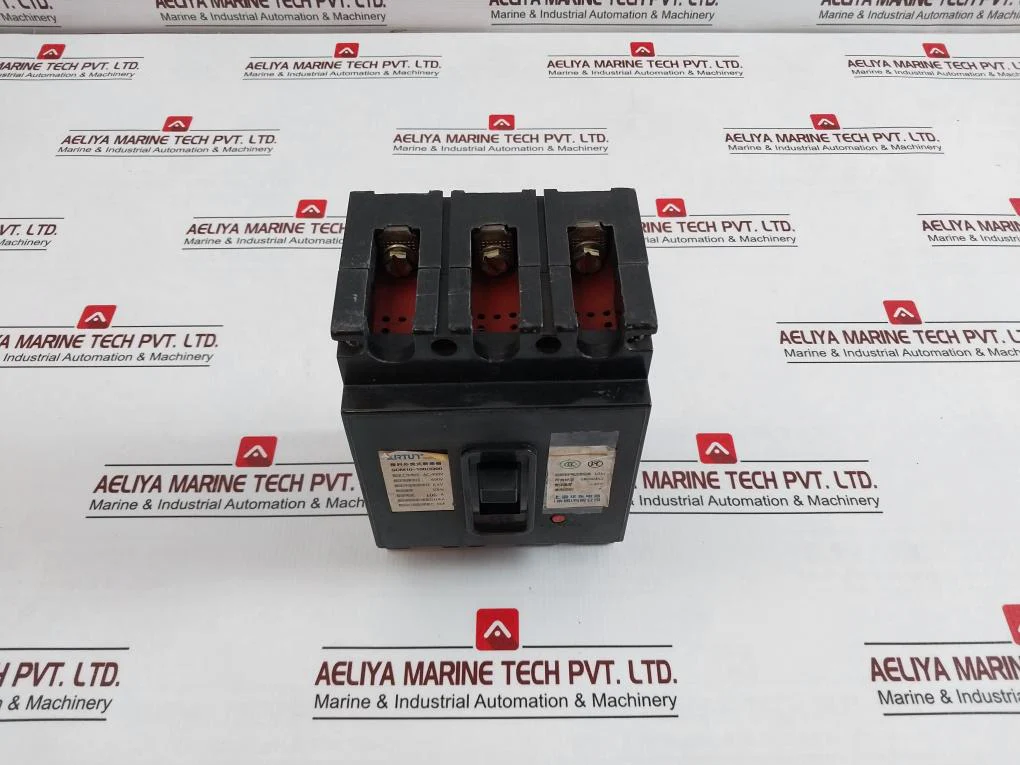

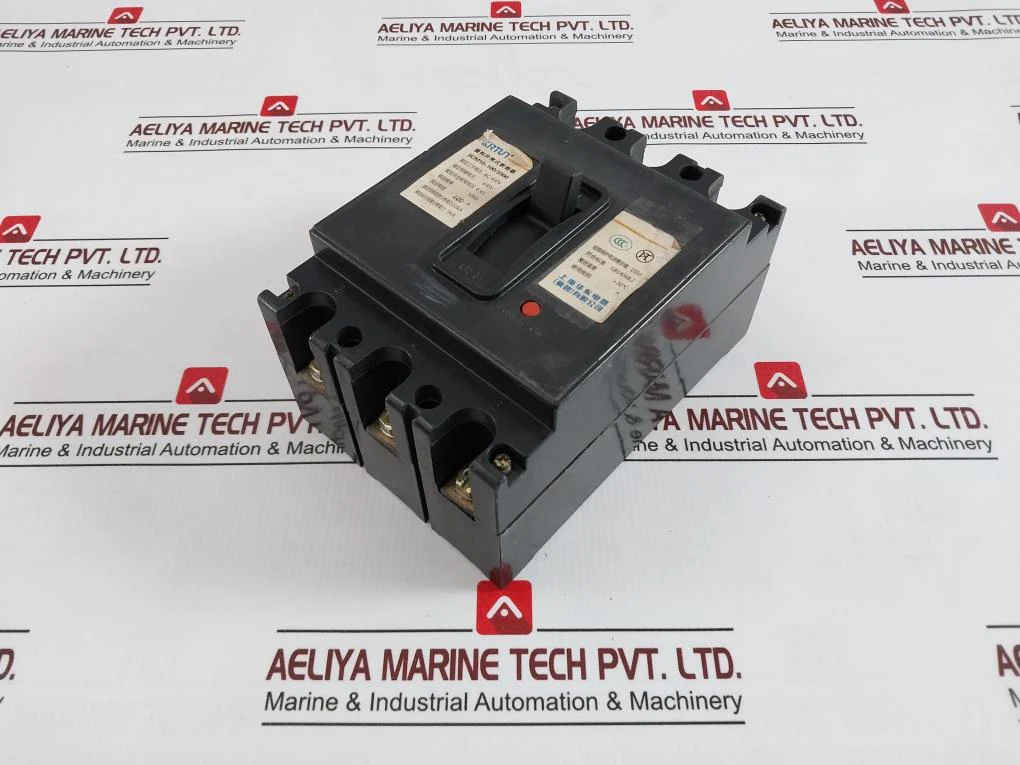

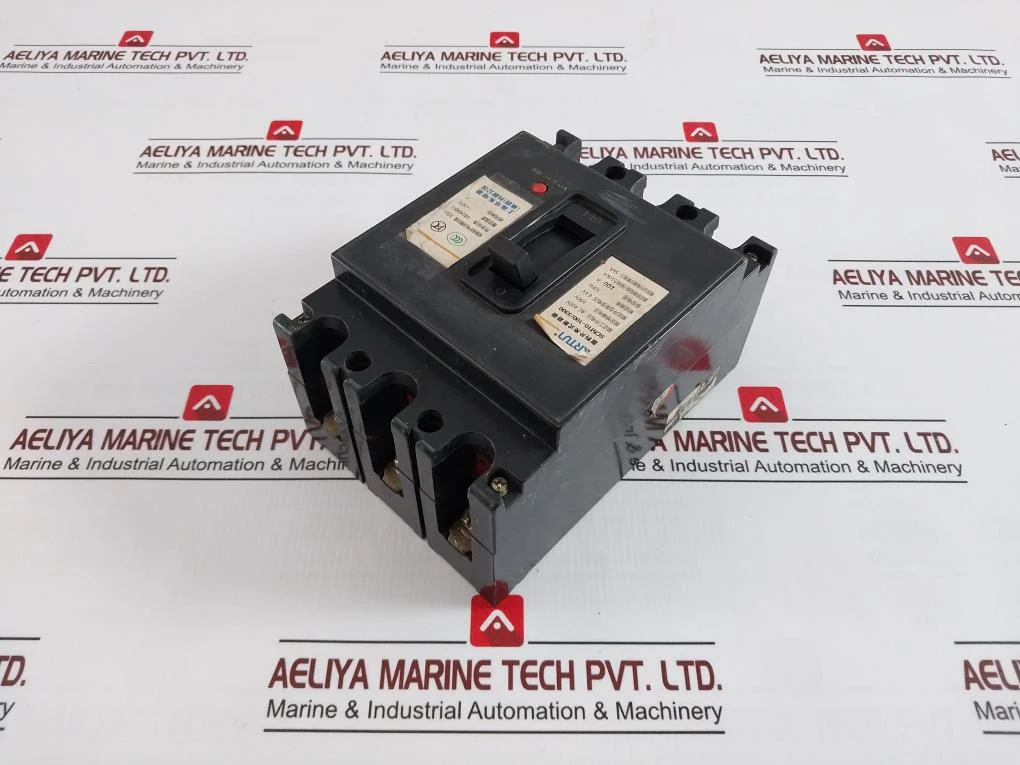

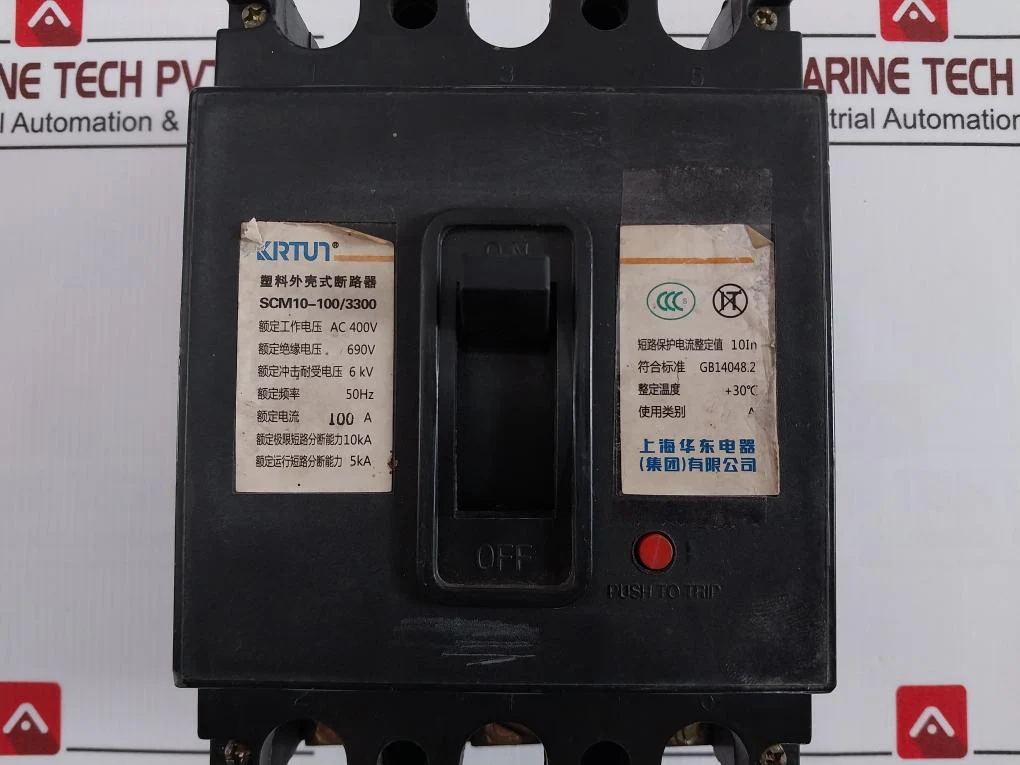

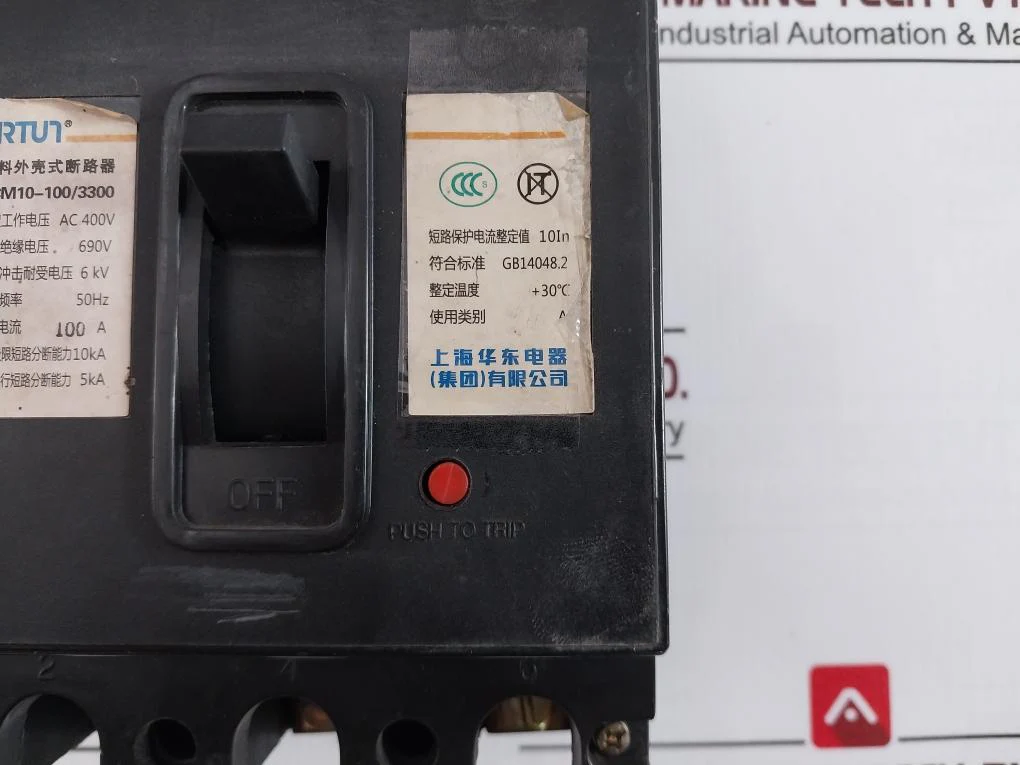

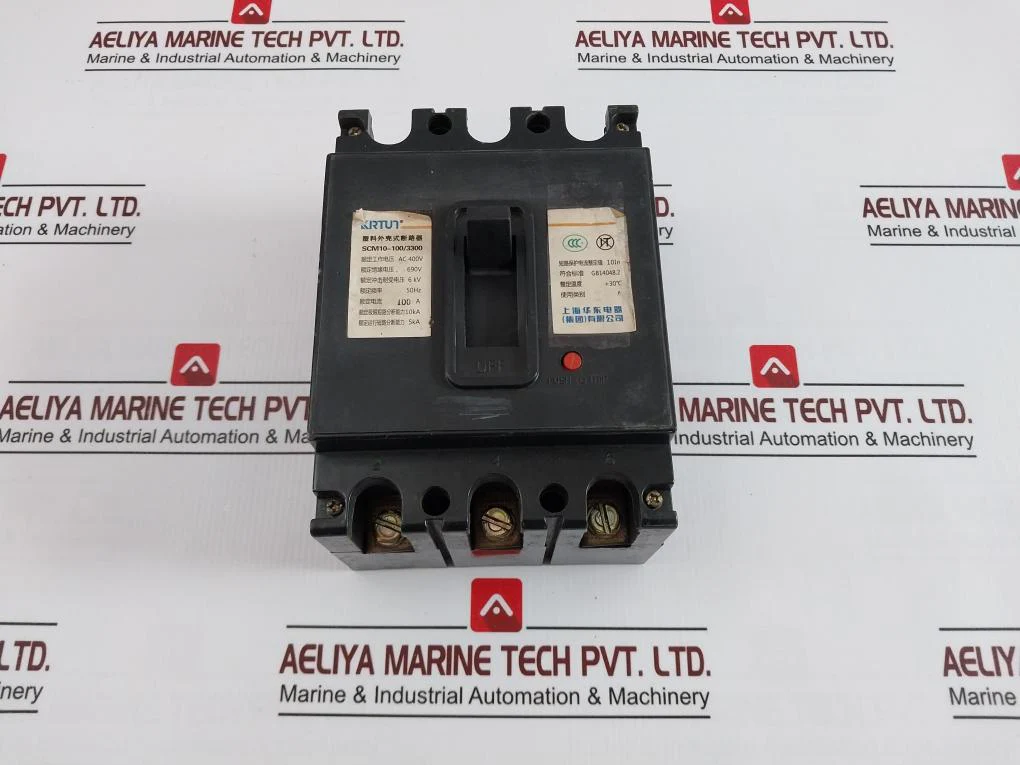

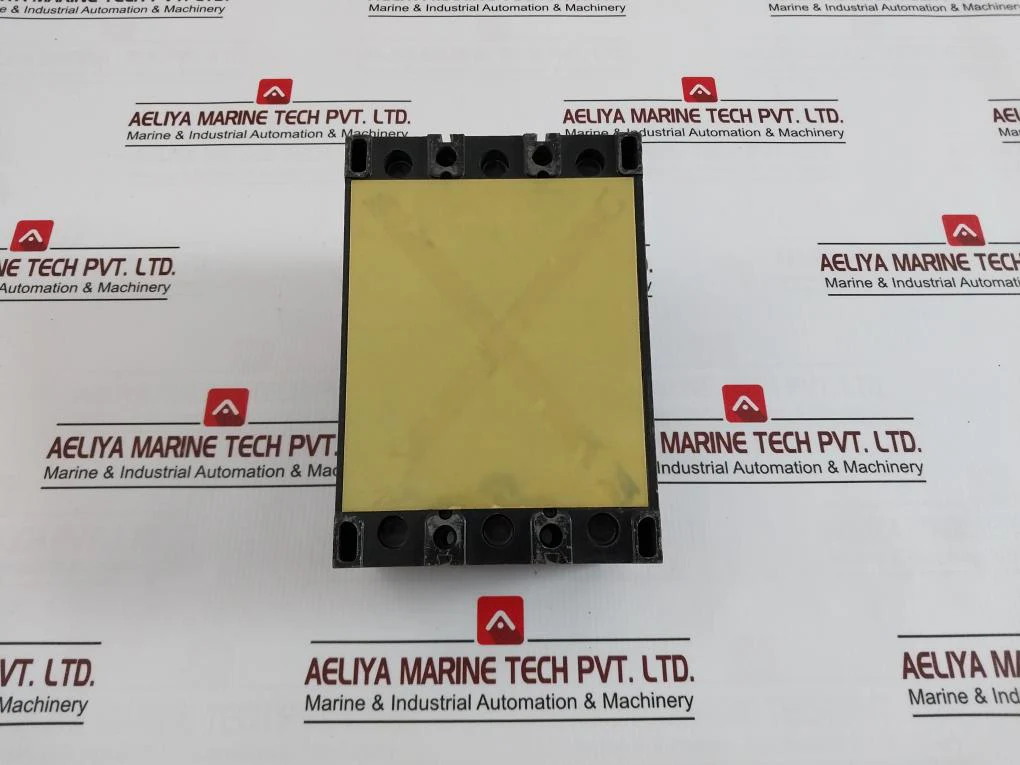

Krtun Scm10-100/3300 Plastic Case Circuit Breaker Ac 400V 50Hz 100 A
Krtun
Shanghai Huadong Electrical Appliances (Group) Co., Ltd.
Plastic Case Circuit Breaker
Scm10-100/3300
Rated Working Voltage: Ac 400V
Rated Insulation Voltage: 690V
Rated Impulse Withstand Voltage: 6 Kv
Rated Frequency: 50Hz
Rated Current: 100 A
Rated Ultimate Short Circuit Breaking Capacity: 10 Ka
Rated Operating Short Circuit Breaking Capacity: 5Ka
Short Circuit Protection Current Setting Value: 10In
Meet Standards: Gb14048.2
Set Temperature: +30°C
Use Category: A

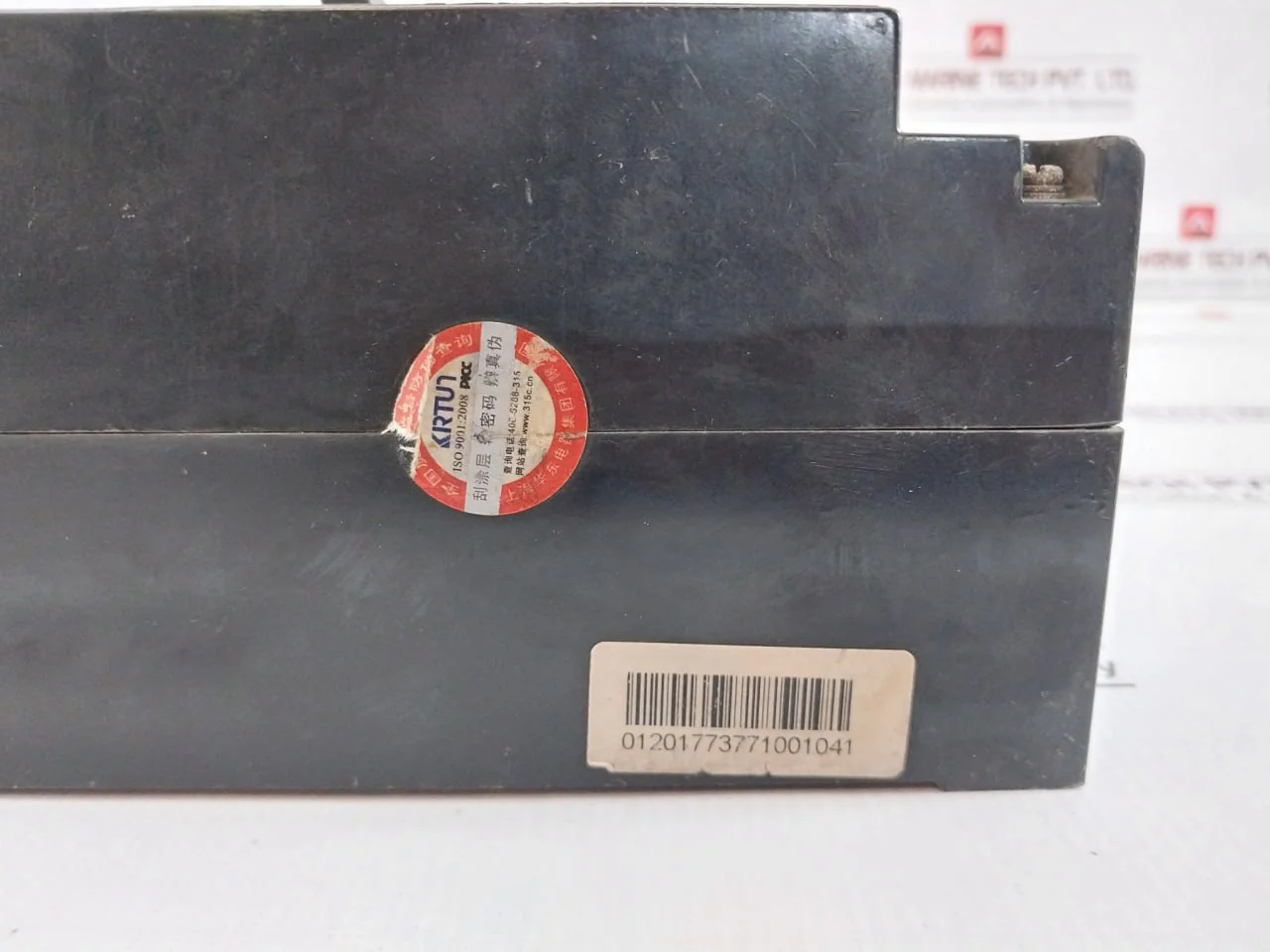

01201773771001041
Weight: 1.170 Kg
