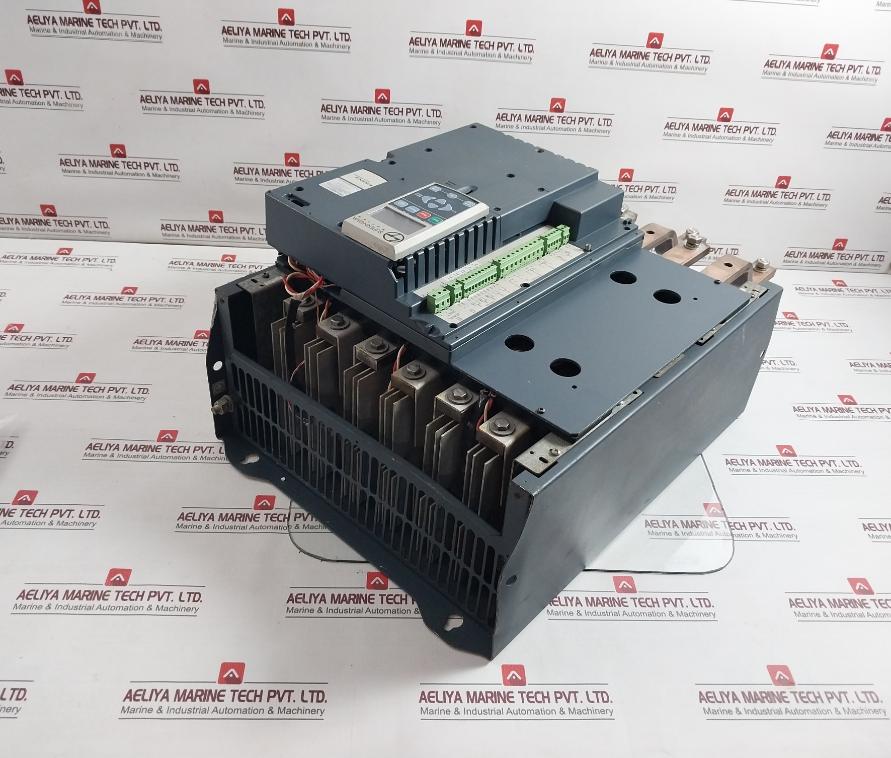

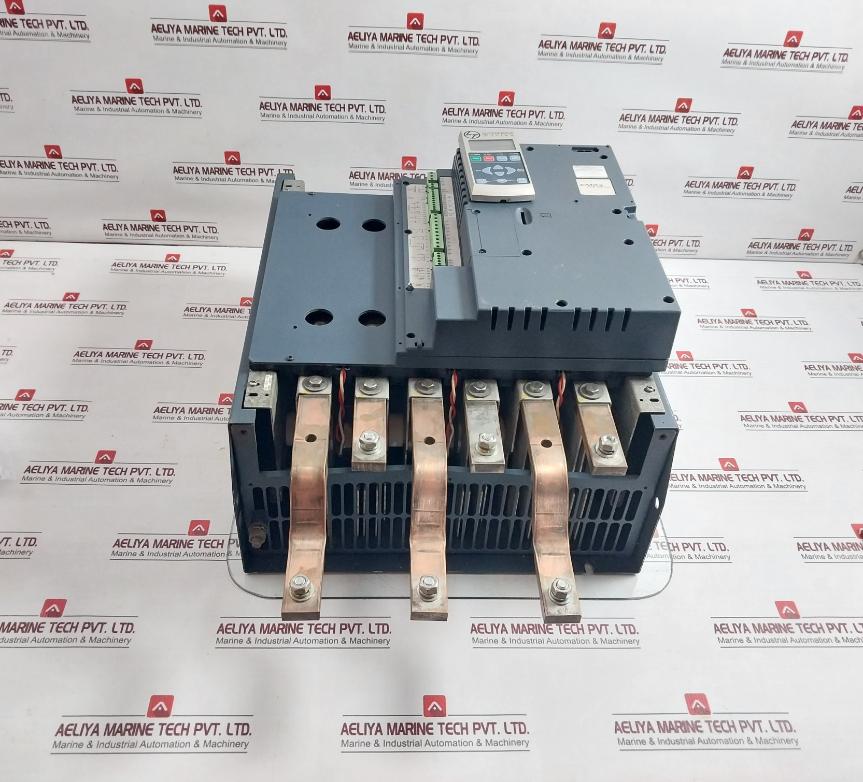

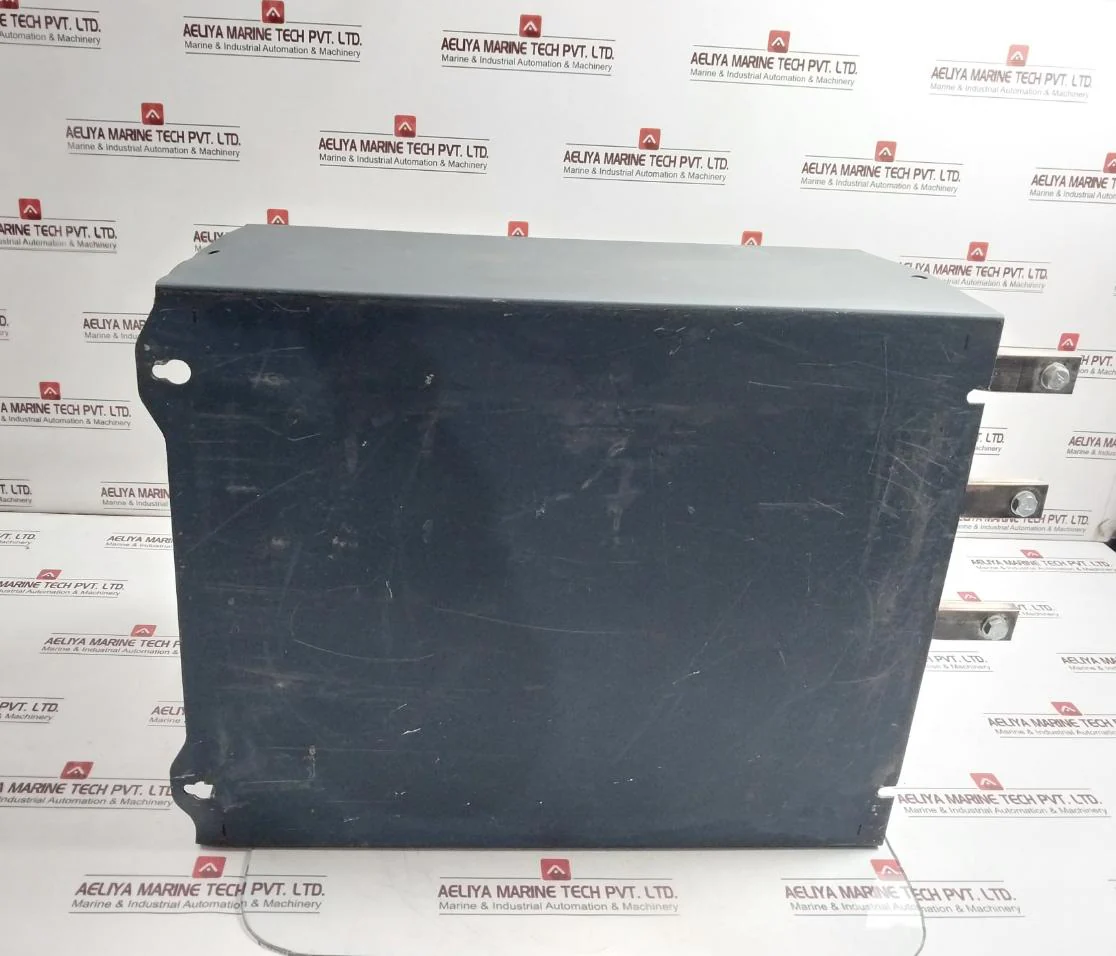

Larsen & Toubro Emx3-0620C-v4-c1-h Soft Starter Emx3-0620C-b 3Ph 50/60Hz
Larsen & Toubro Limited
Supernova Series
Soft Starter
Emx3

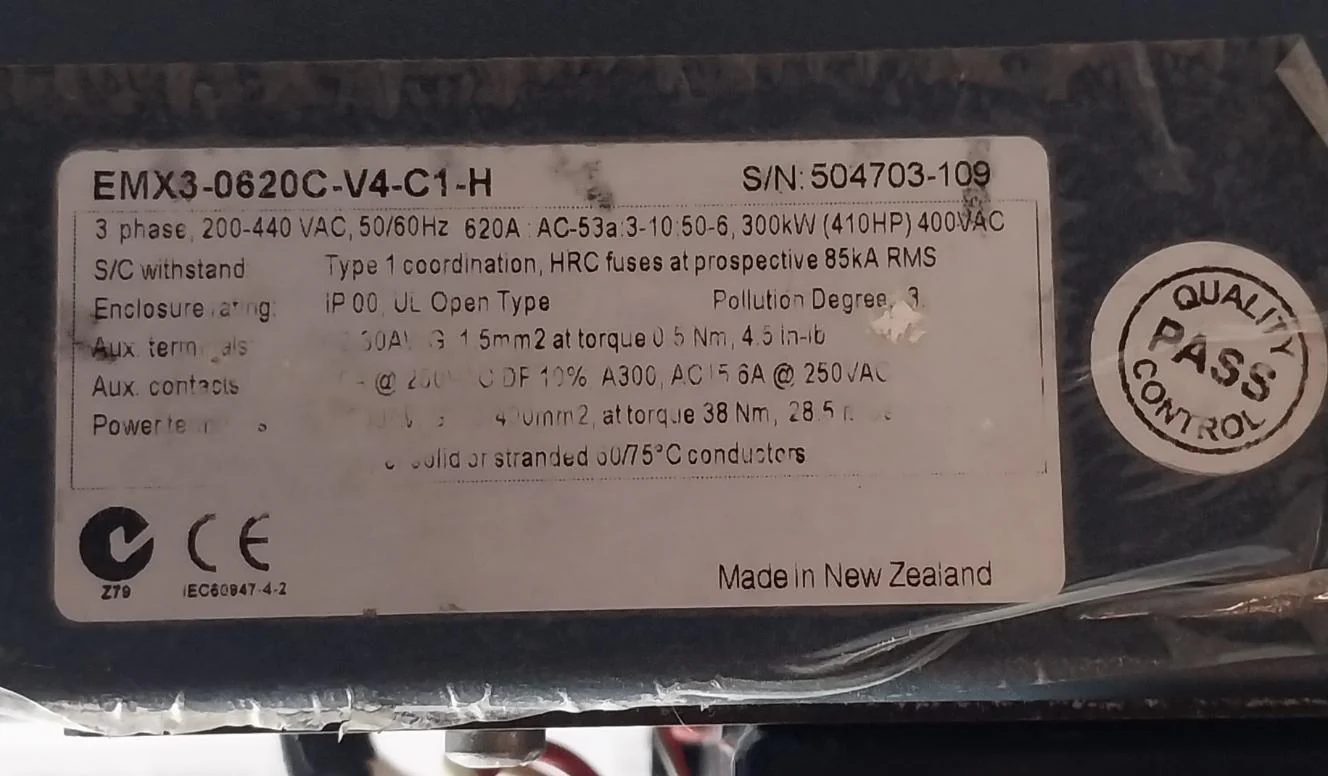

Emx3-0620C-v4-c1-h
Part No.:Emx3-0620C-411
Rating: 3 Phase, 200-440 50/60Hz
620A: Ac-53A:3-10:50-6, 300Kw(410Hp)400Vac
S/C Withstand Type 1 Coordination, Hrc Fuses At Prospective 85Ka Rms
Enclosure Rating: Ip00, Ul Open Type
Pollution Degree 3
Aux. Terminals: 12-30 Awg 1.5Mm2 At Torque 0.5 Nm, 4.5 In-lb
Aux. Contacts: 10A @ 250Vac Df 10% A300, Ac15 6A @250Vac
Power Terminals: Copper Solid Or Stranded 60/75° Conductors
994-05441-00
Emx3-0620C-b
Control Supply:
110-210 Vac
220-440 Vac
Output: 24 Vdc
Made In New Zealand
Weight: 42.400 Kg
