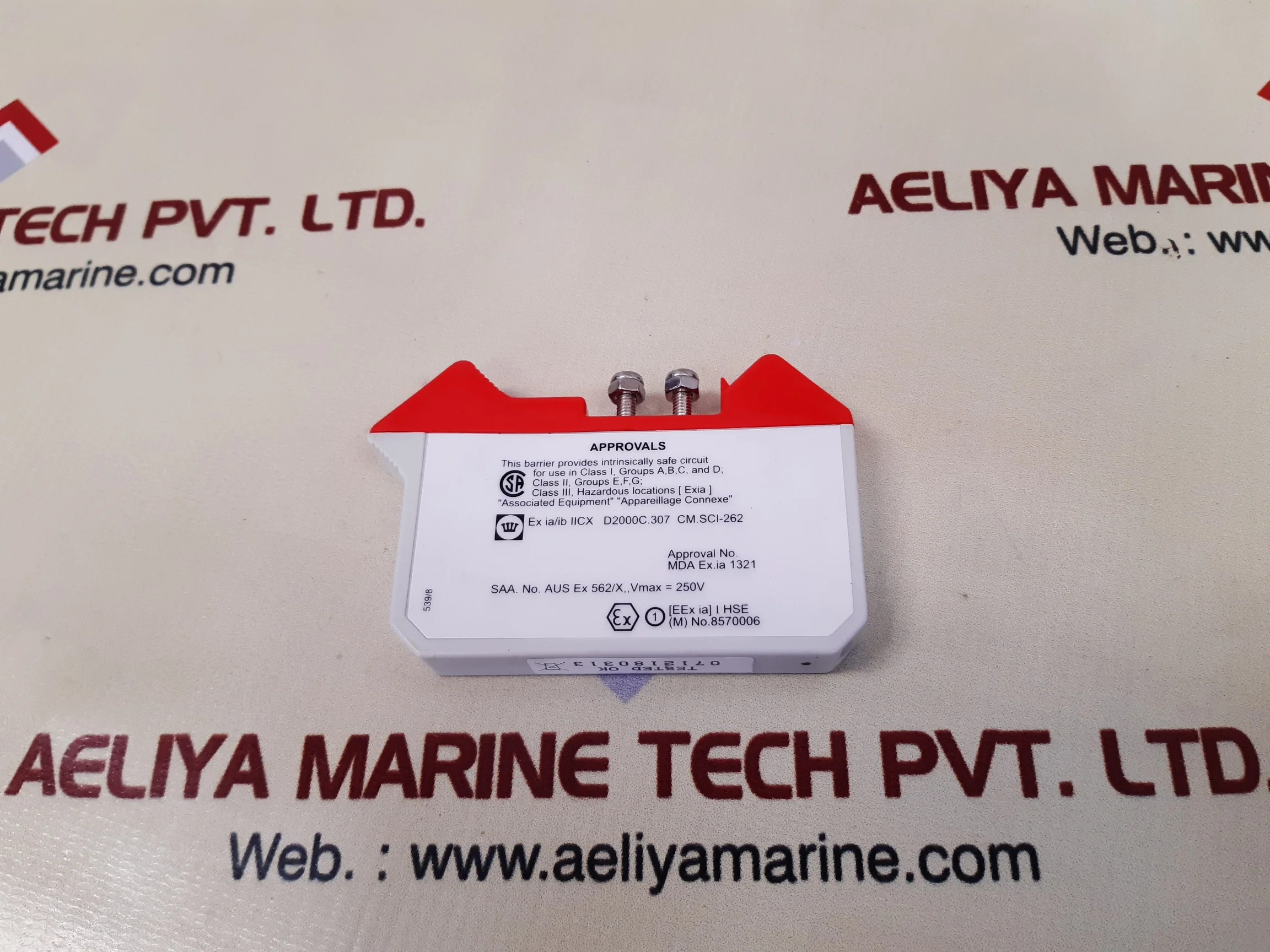

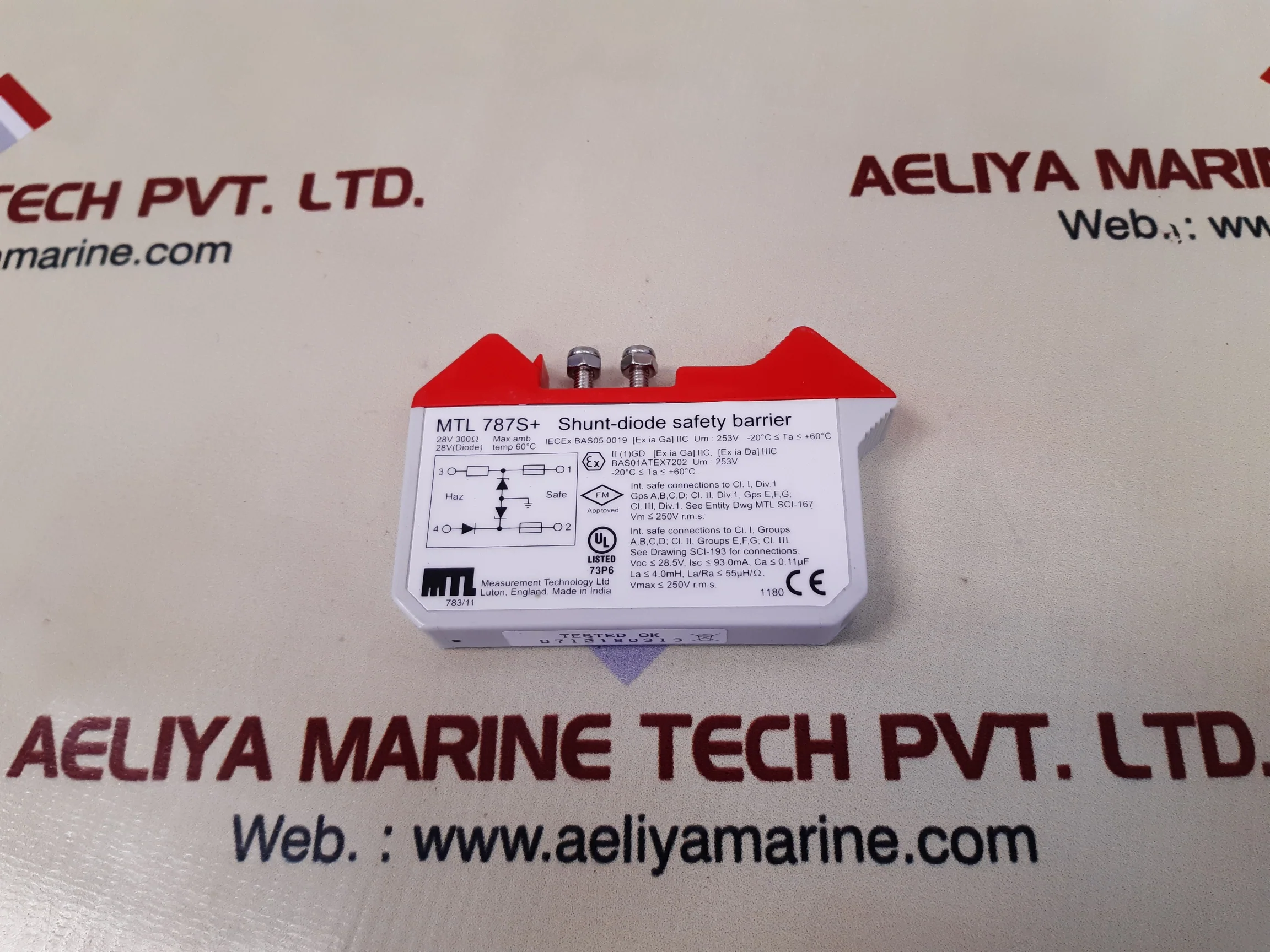

Measurement Technology Mtl 787S+ Shunt-diode Safety Barrier
Measurement Technology Ltd,England
Mtl 787S+
Shunt-diode Safety Barrier
28V 300Ω 28V (Diode)
Max Amb Temp 60°C
Iecex Bas05.0019
[Ex Ia Ga] Iic Um: 253V -20⁰C Ta +60⁰C
Ii (1) Gd [Ex Ia Ga] Iic; [Ex Ia Da] Iiic
Bas01Atex7202 Um: 253V
-20°C Ta +60°C
Cl.I, Groups A, B, C, D;
Cl.Ii, Groups E, F, G; Cl.Iii
Voc 28.5V, Isc 93.0Ma, Ca 0.11µF
L A 4.0Mh, La/Ra 55µH/Ω.
Vmax 250V R.M.S.
783/11                 1180
Saa.No. Aus Ex 562/X,, Vmax= 250V
Mtl787S

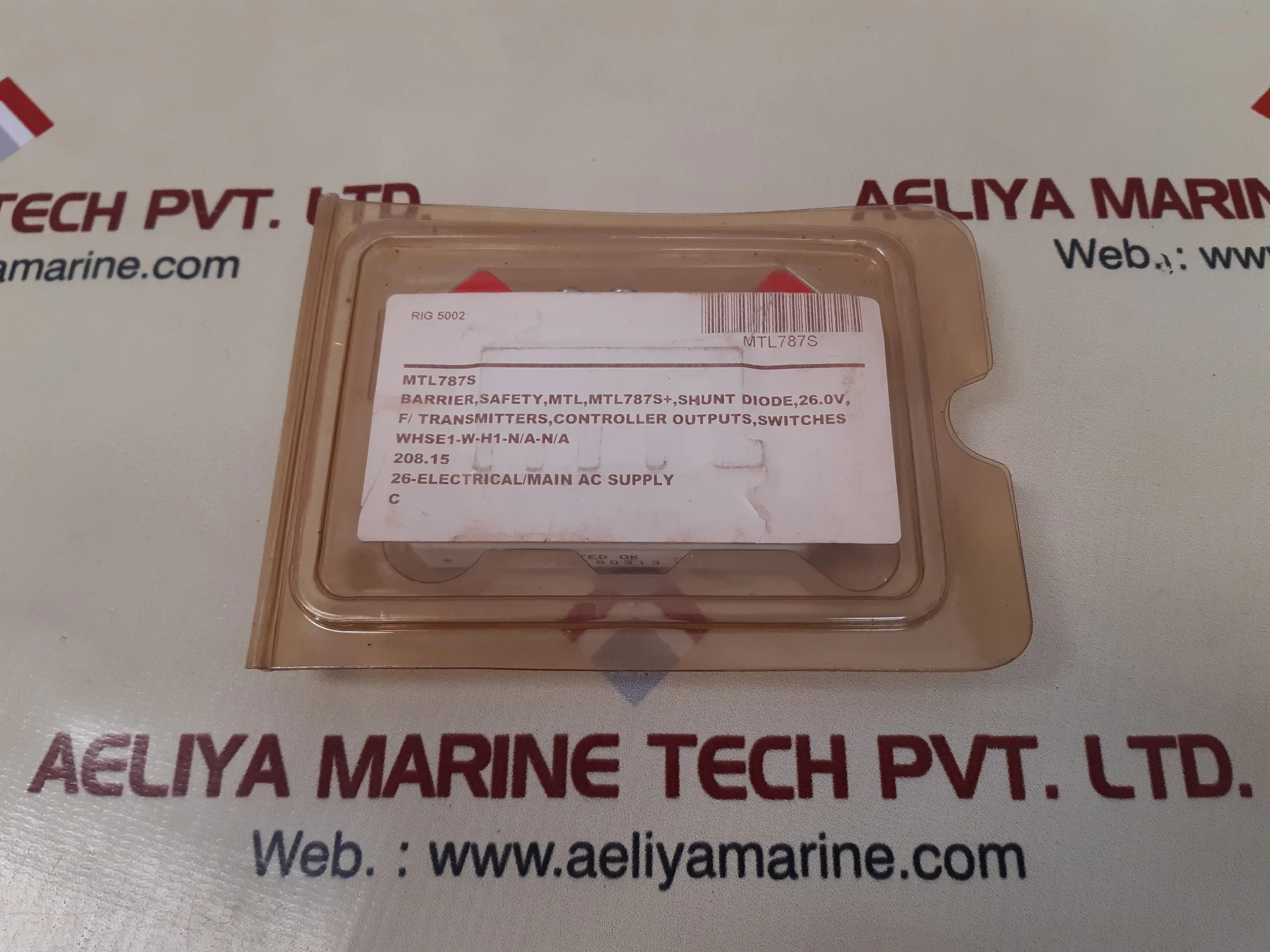

Barrier, Safety, Mtl, Mtl787S+ Shunt Diode, 26.0V,
F/Transmitters, Controller Outputs, Switches
Whse1-w-h1-n/A-n/A
208.15
26-electrical/Main Ac Supply
C
Made In India
Weight: 130 Gm
