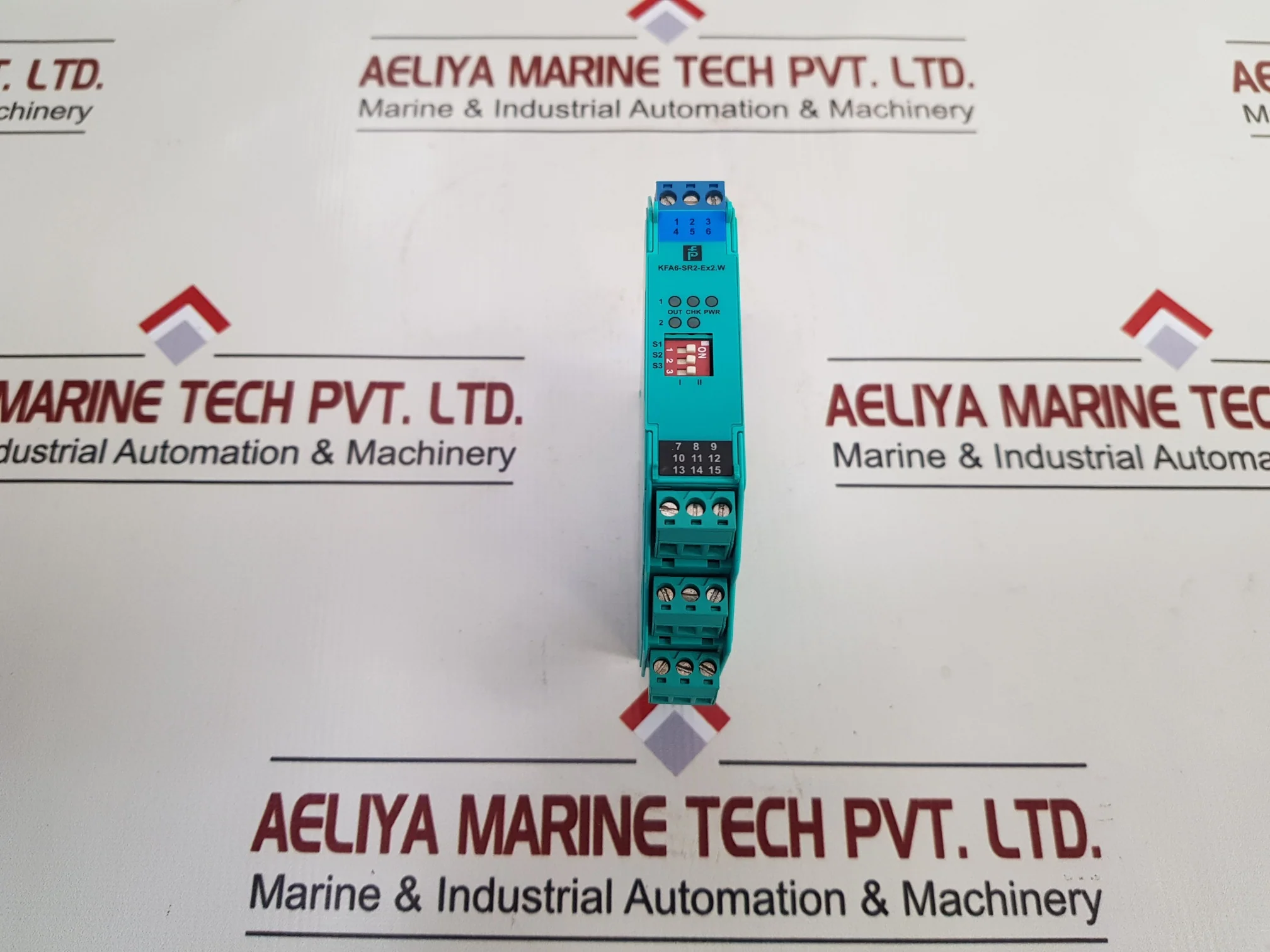

Pepperl+Fuchs Kfa6-sr2-ex2.W Isolating Switching Amplifier 2A 253V 60Hz
Pepperl+Fuchs
K-system
Kfa6-sr2-ex2.W
Part No.103373

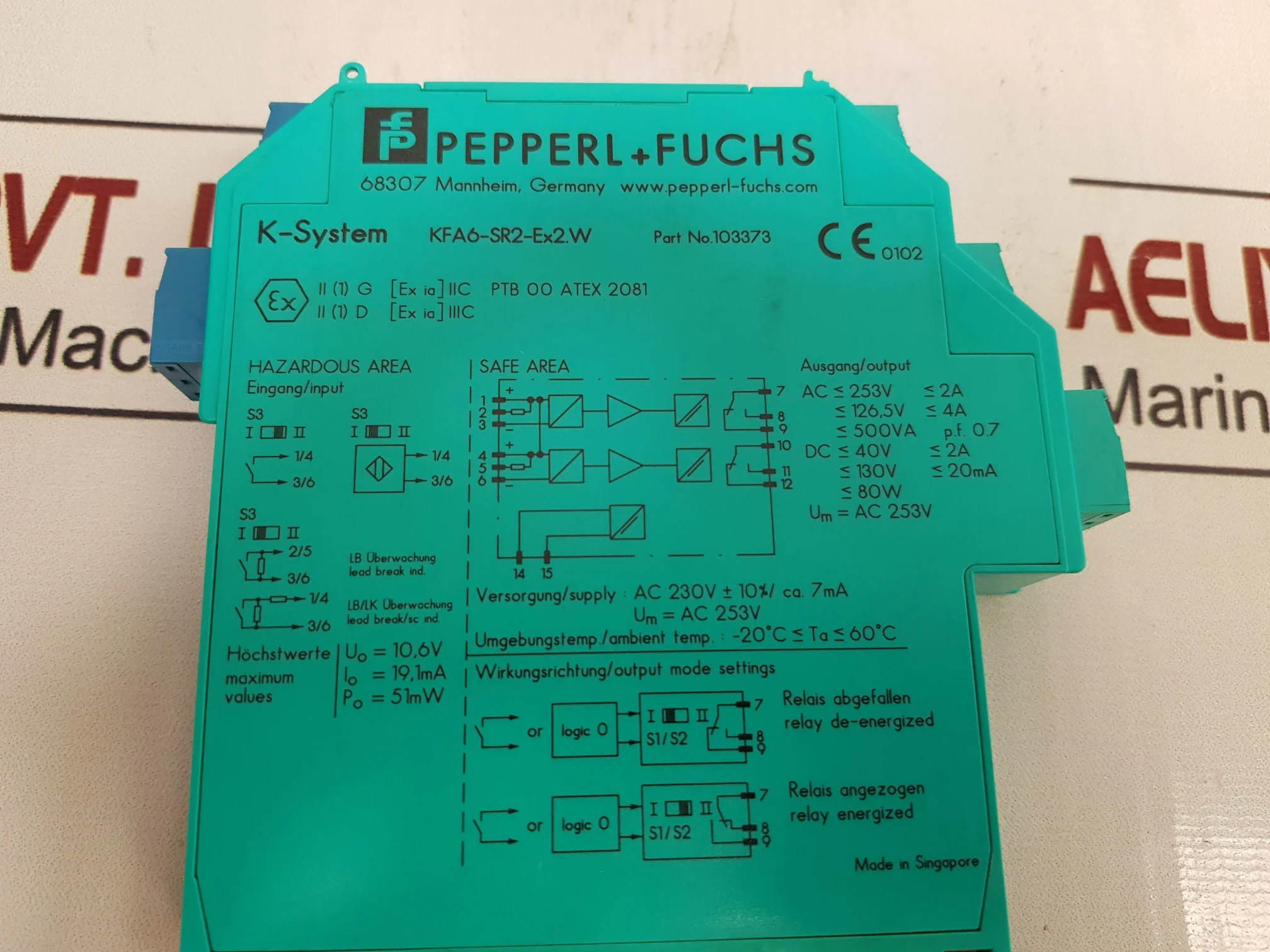

Ii (1) G [Ex Ia]Iic
Ii (1) D [Ex Ia]Iiic
Ptb 00 Atex 2081
Output:
Ac 253V 2A
126.5V 4A
500Va P.F. 0.7
Dc 40V 2A
130V 20Ma
80W
Um= Ac 253V
Supply: Ac 230V±10%/ Ca. 7Ma
Ambient Temp: -20°C Ta 60°C
Maximum Values:
Uo= 10.6V
Lo= 19.1Ma
Po= 51Mw
Cl.I, Div 2, Gp A,B,C,D And Cl I, Zn 2, Gp Iic
Cl.I, Div 1, Gps A,B,C,D, Cl Ii, Div 1, Gps E,F,G; Cl Iii And Cl I, Zn 0, Gp Iic

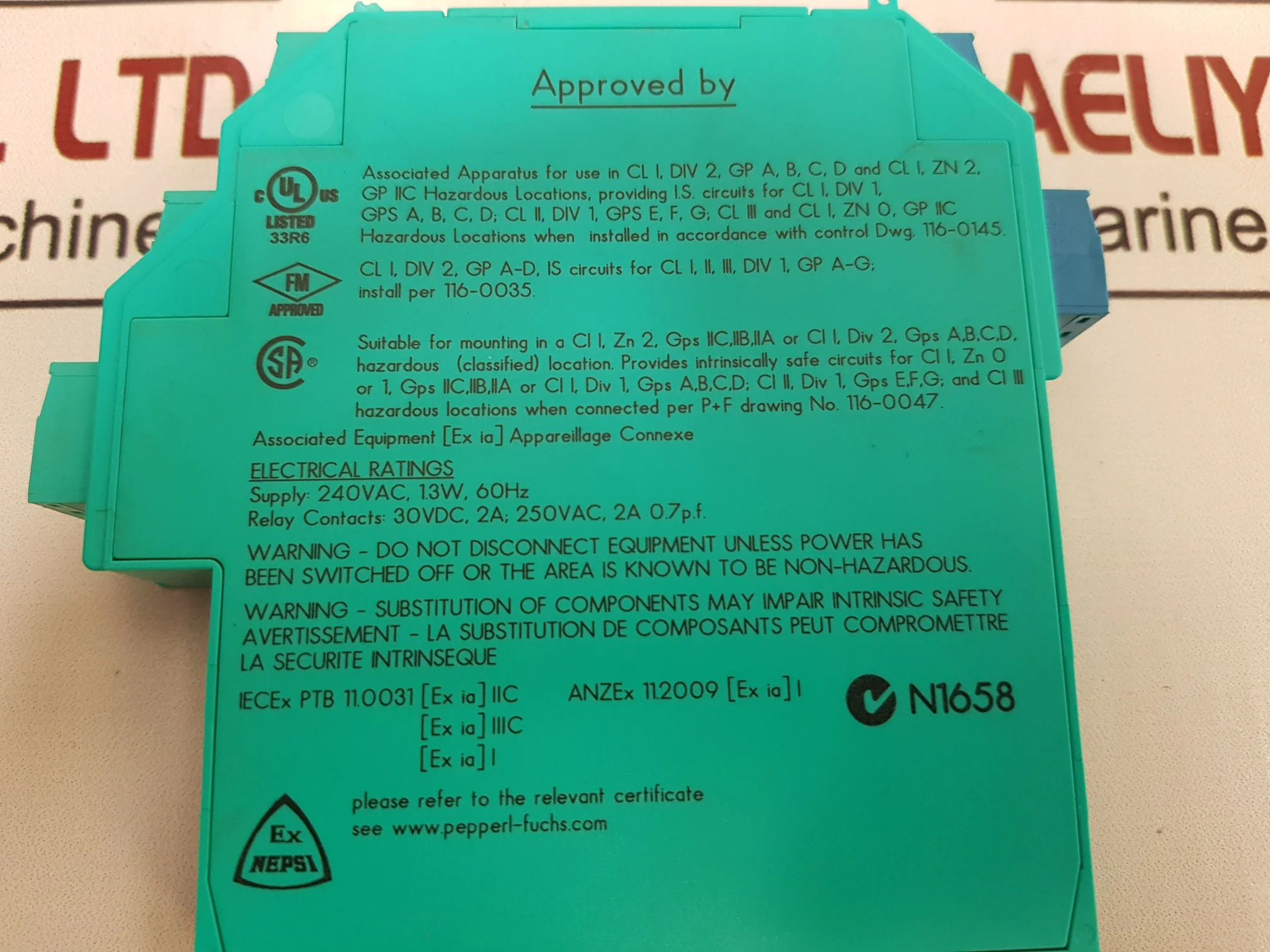

Electrical Ratings:
Supply: 240Vac,13W,60Hz
Relay Contacts: 30Vdc, 2A
250Vac, 2A
0.7 P.F.
Made In Singapore
Weight: 170 Gm
