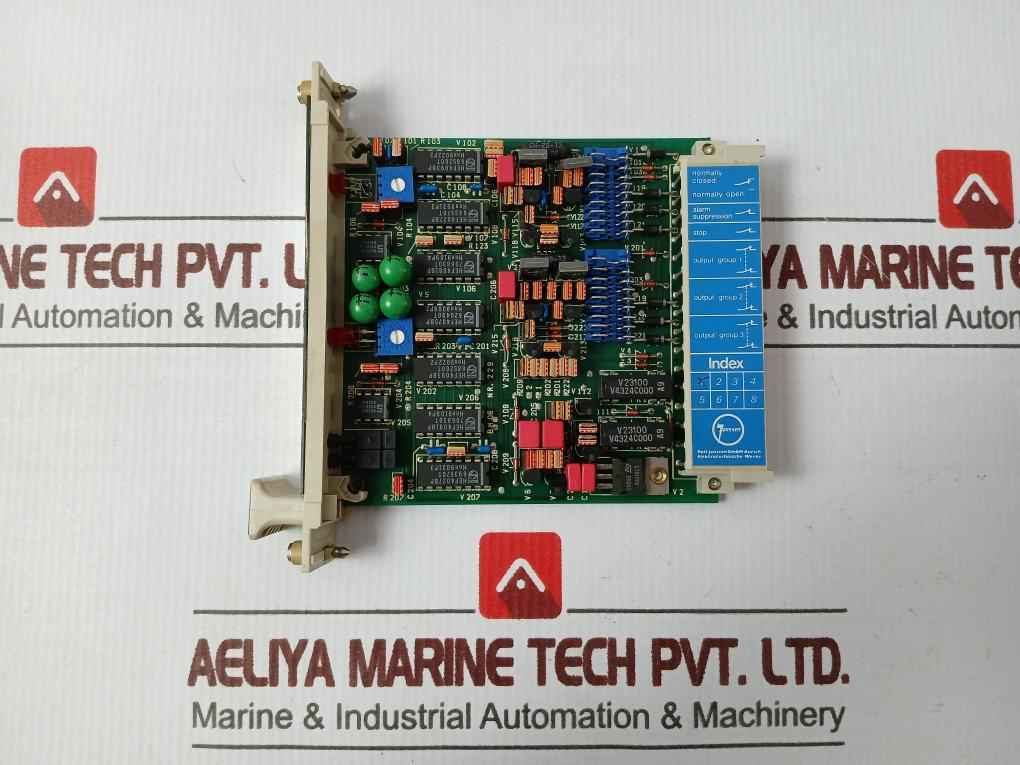

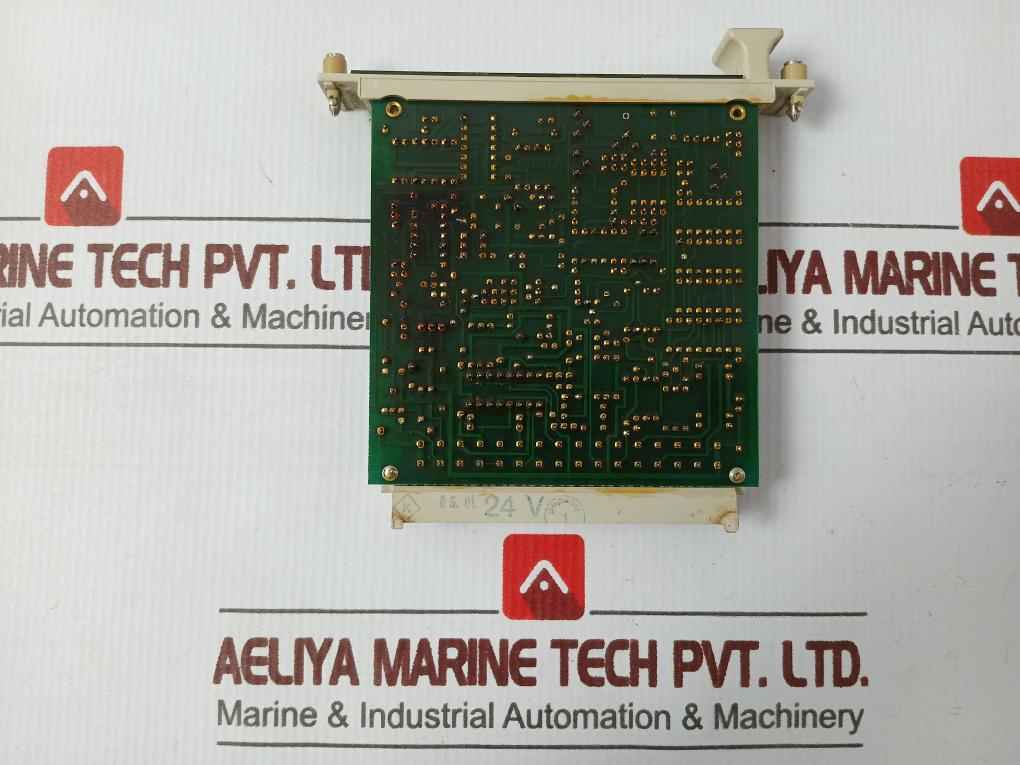

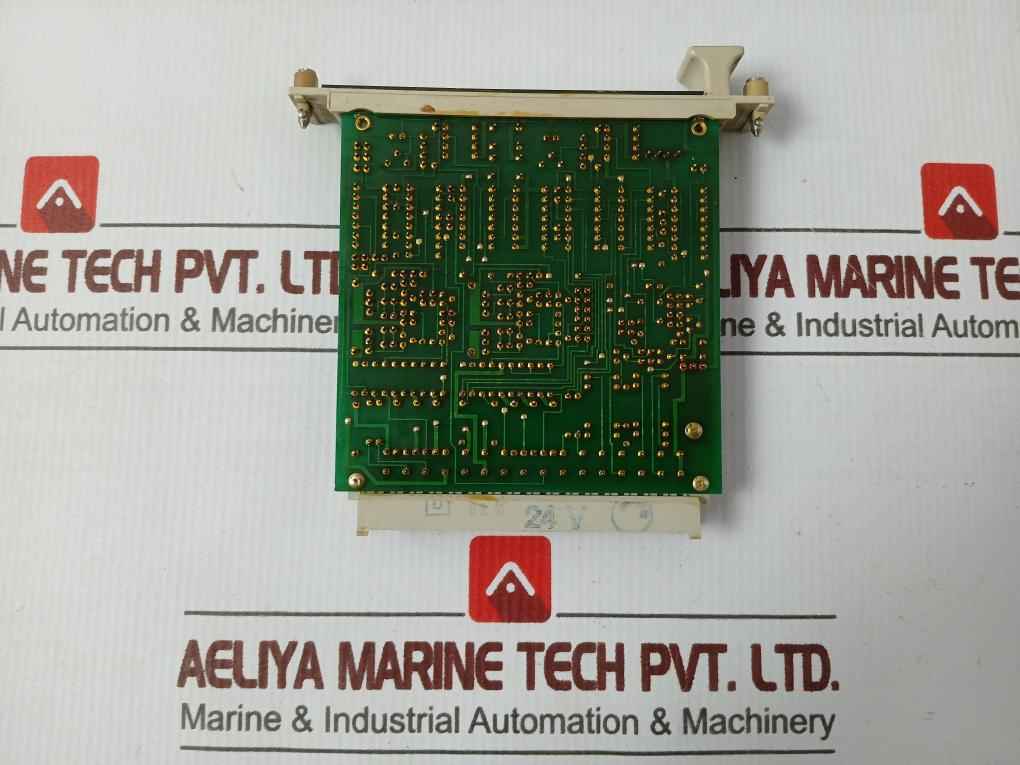

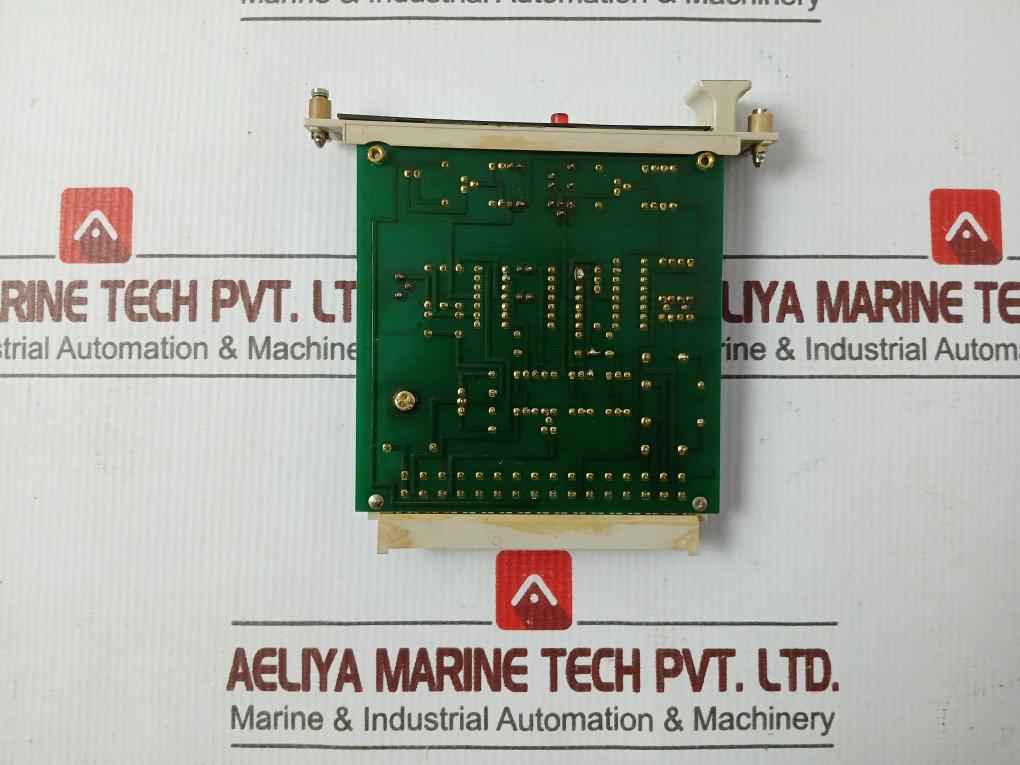

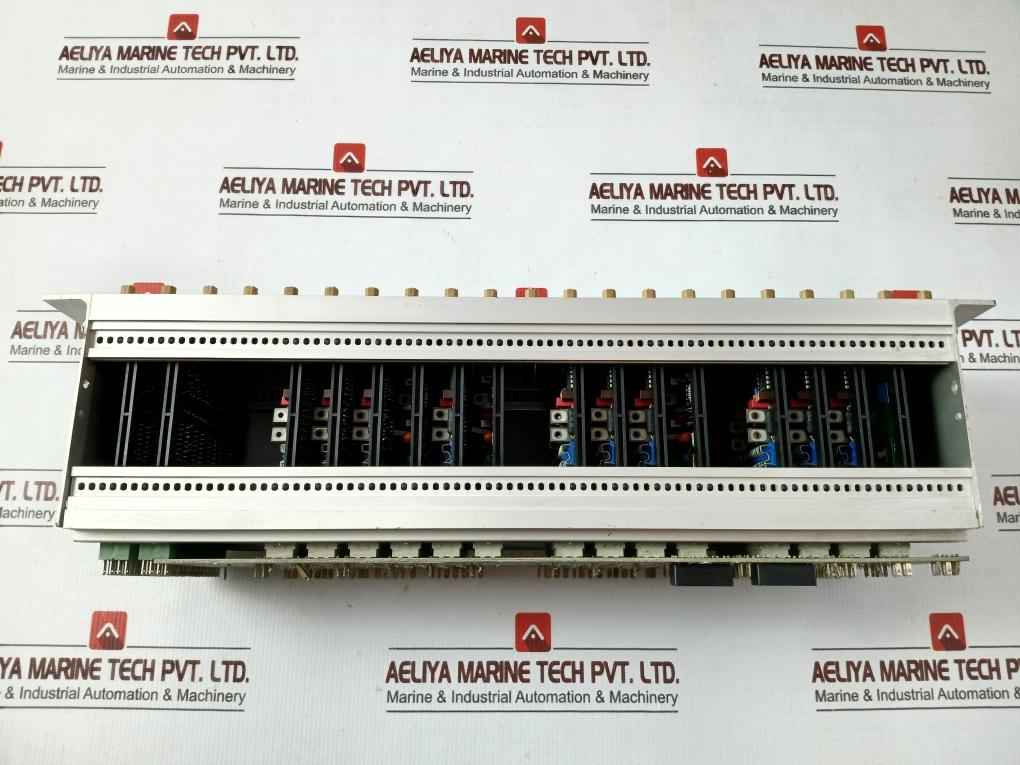

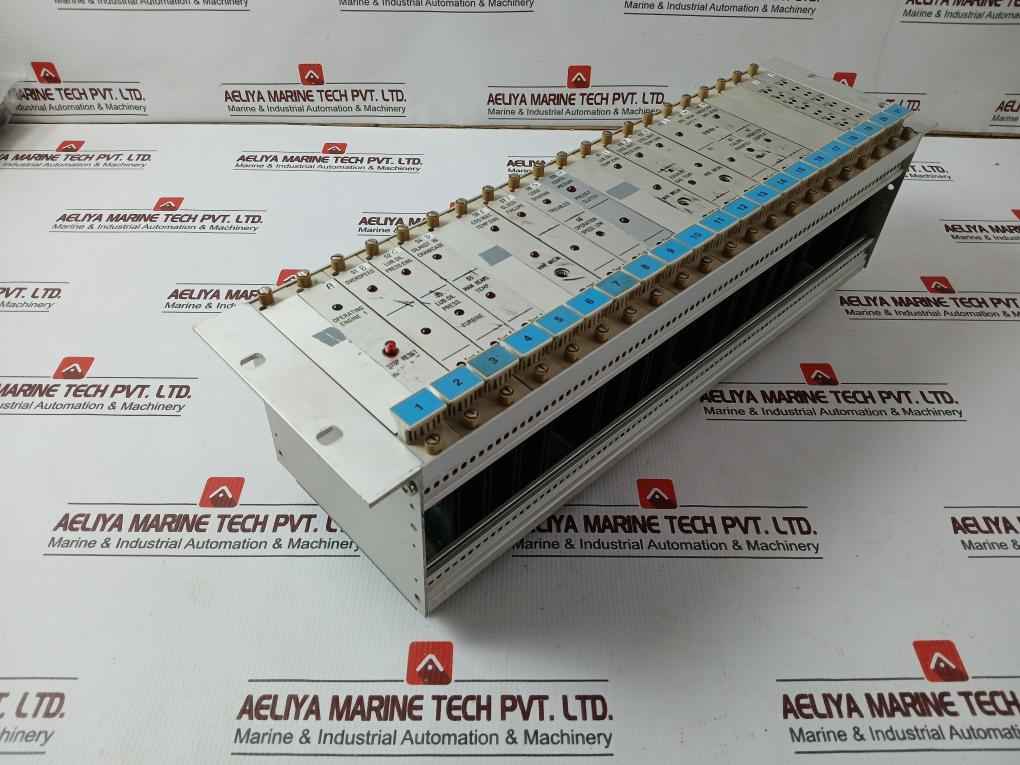

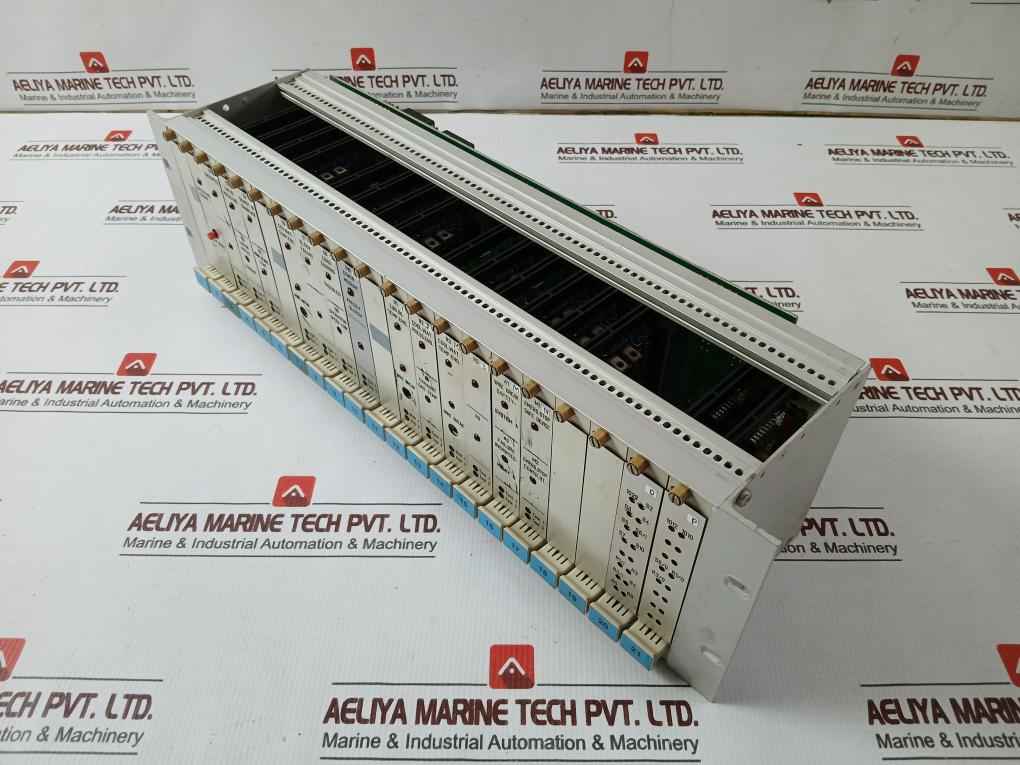

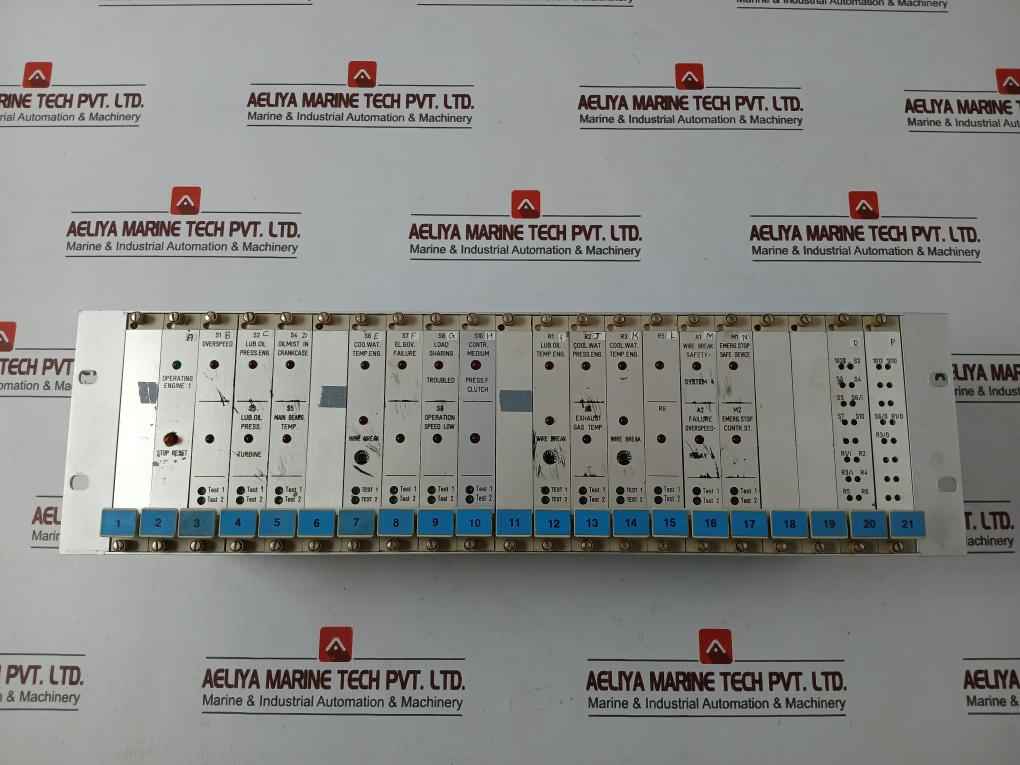

Rolf Janssen 232 Wire Break Monitoring System Rack Module
Rolf Janssen Gmbh
Elektrotechnische Werke
Operating Engine 1
Nr. 232
Betriebsschalter/Power Switch /Stop

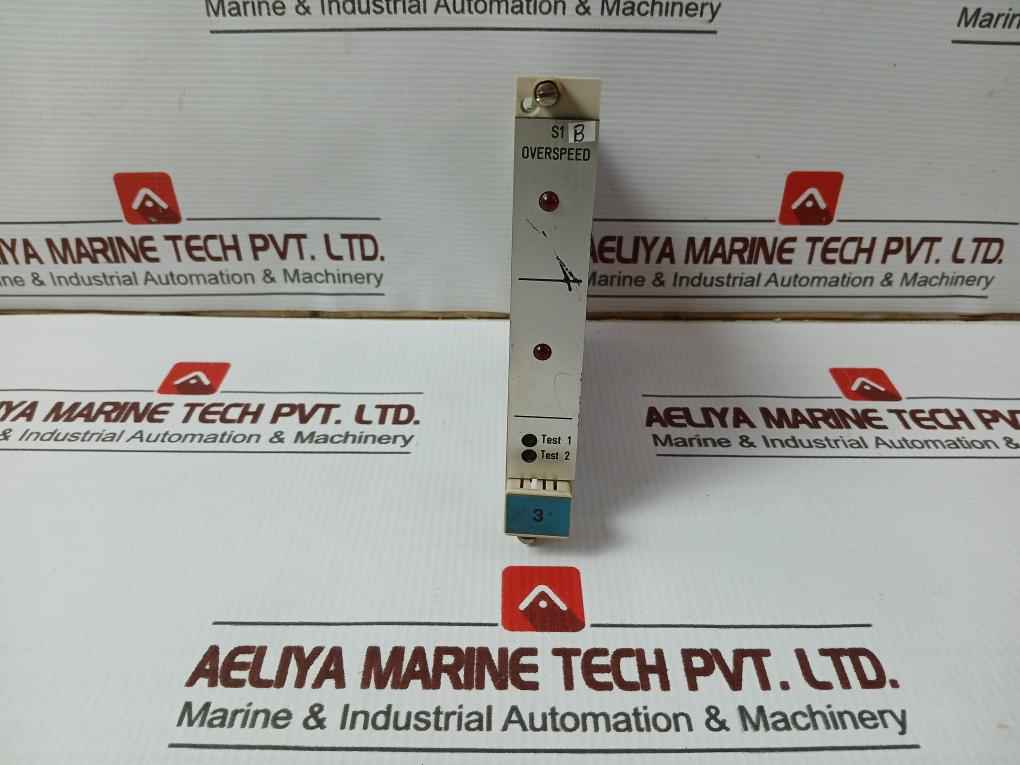

S1 Overspeed
Bm 06
Nr: 229
Index: X 2 3 4 5 6 7 8 / 1
S2 Lub.Oil Press.Eng.
S3 Lub.Oil Press.
S4 Oilmist In Crankcase
S5 Main Bearg.Temp.
S6 Coo.Wat.Temp.Eng.
Am-ie-lz
1 X 3 4/2
03.011
03.0111.A
S7 El.Gov.Failure
S8 Load Sharing
S9 Operation Speed Low
Index: X 2 3 X 5 6 7 8/1 4
S10 Contr. Medium

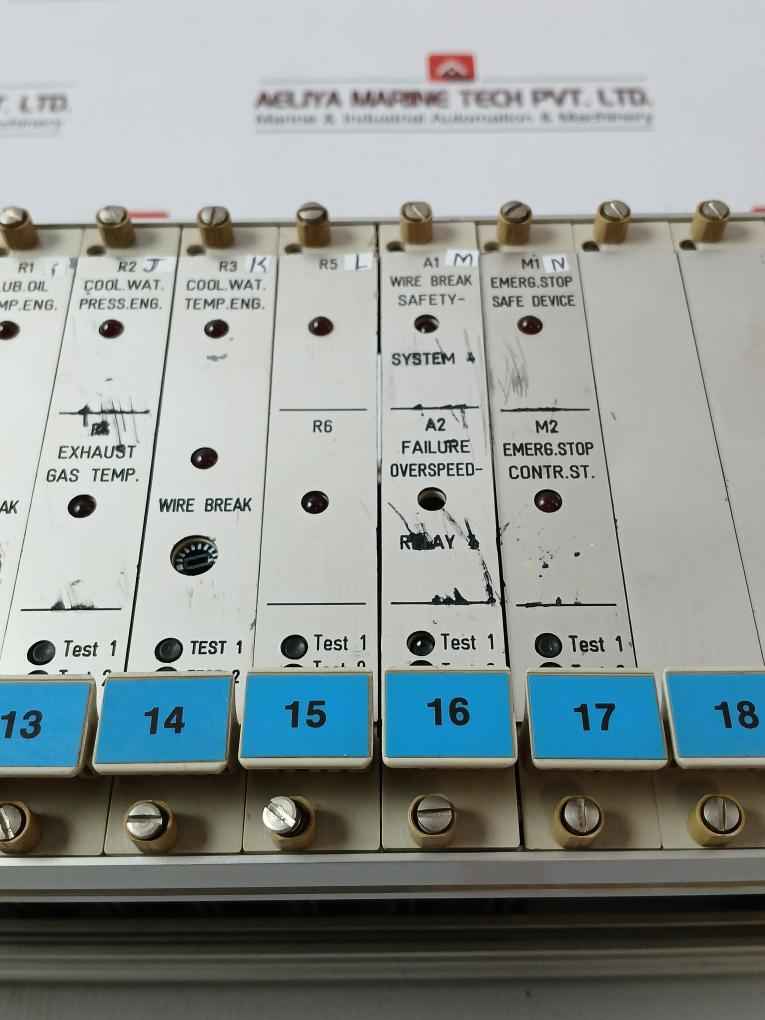

R1 Lub.Oil Temp.Eng.
R2 Cool. Wat. Press. Eng.
R4 Exhaust Gas Temp.
R3 Cool. Wat. Temp. Eng.
R5
R6
A1 Wire Break Safety
A2 Failure Overspeed
M1 Emerg. Stop Safe Device
M2 Emerg. Stop Contr. St.
Drahtbruchueberwachung/ Wire Break Monitoring
Typ/Type: Dbu 06/24
Nr. 233
F24.230/01
Index: 1
Weight: 3.640 Kg
