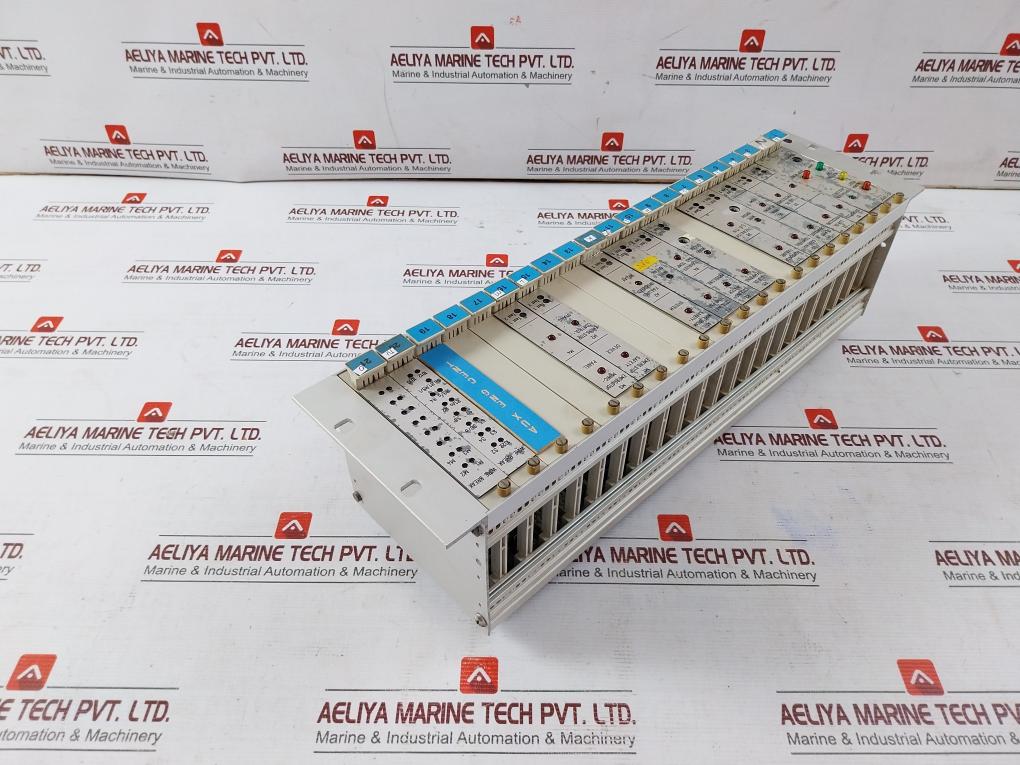

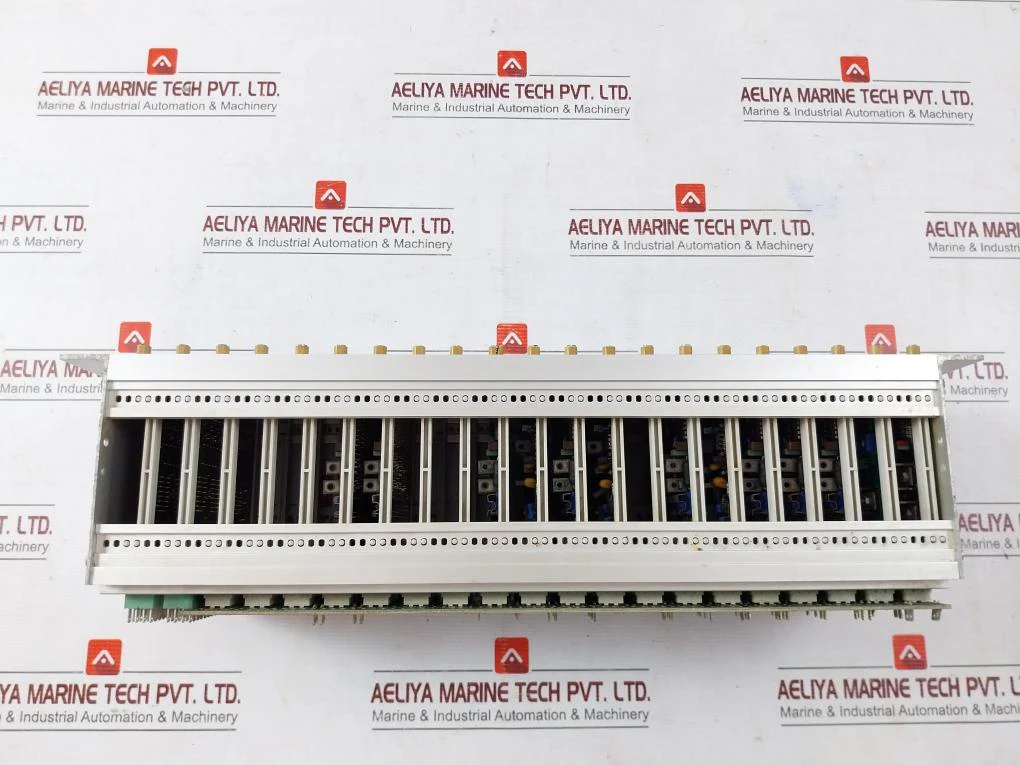

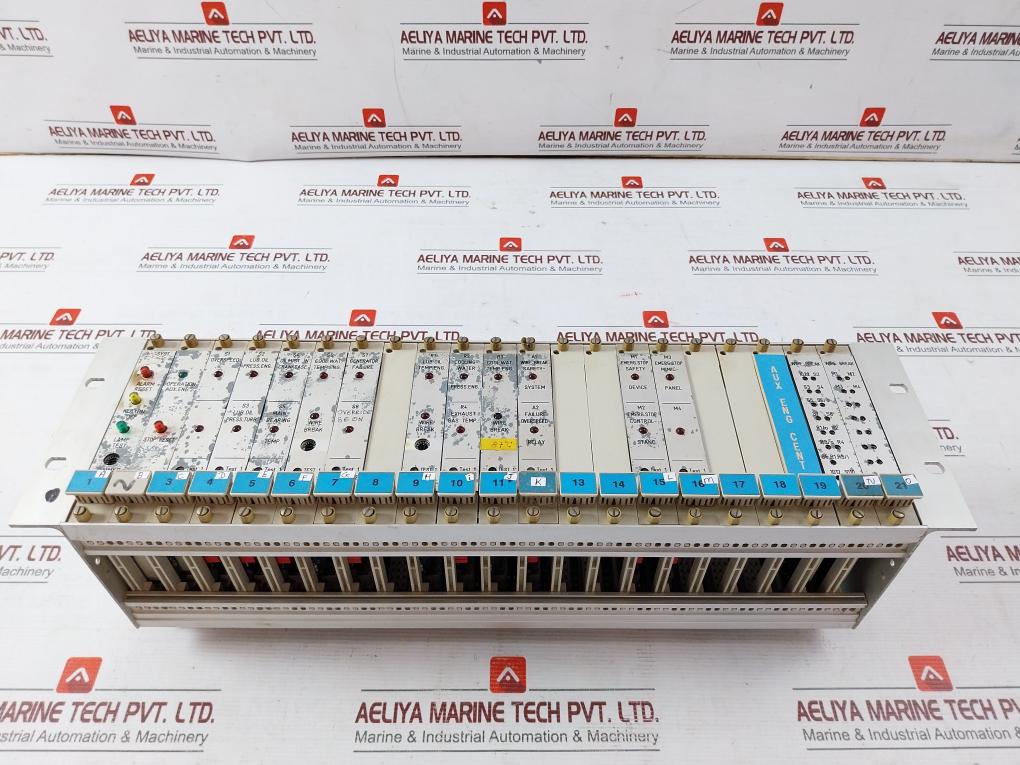

Rolf Janssen Blkh 06 Operational Rack Mount Panel Dbu 06/24, Am-ie-lz
Rolf Janssen Gmbh
Elektrotechnische Werke

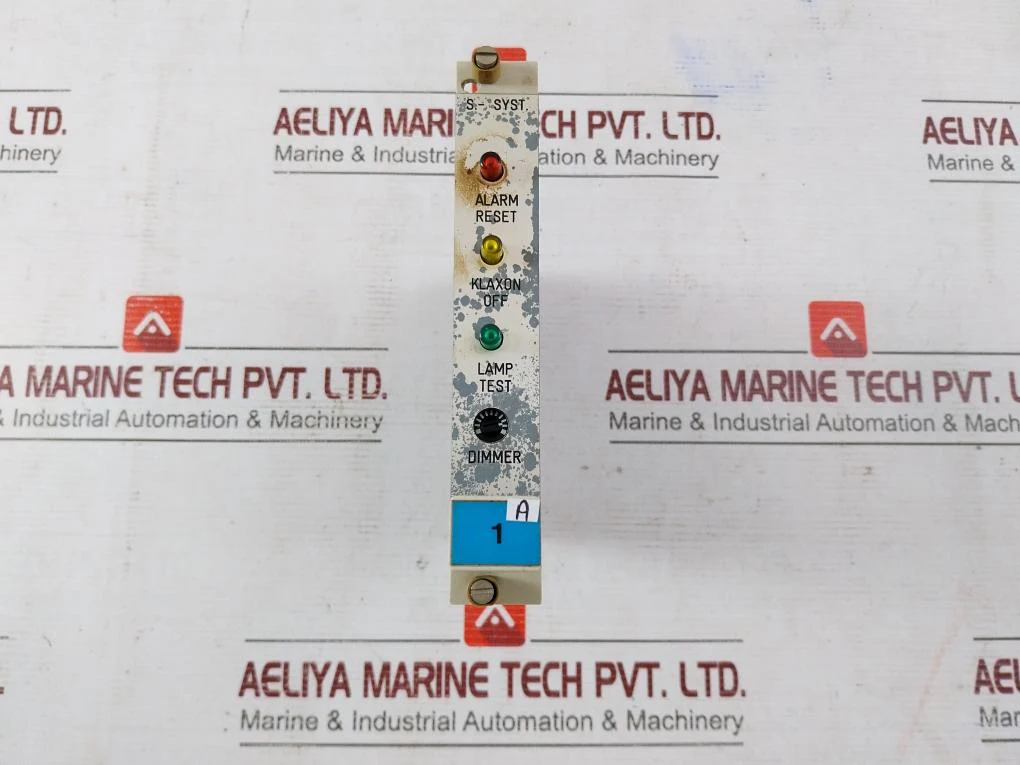

S.-syst.
Blkh 06
Nr. 230

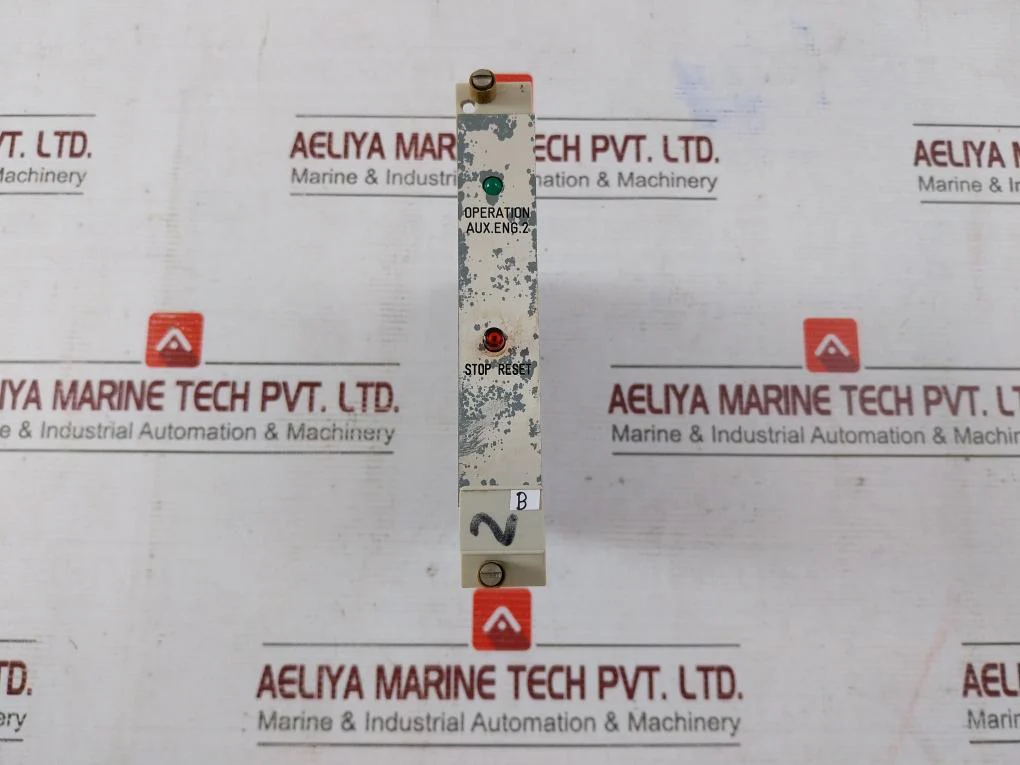

Operation Aux. Eng. 2

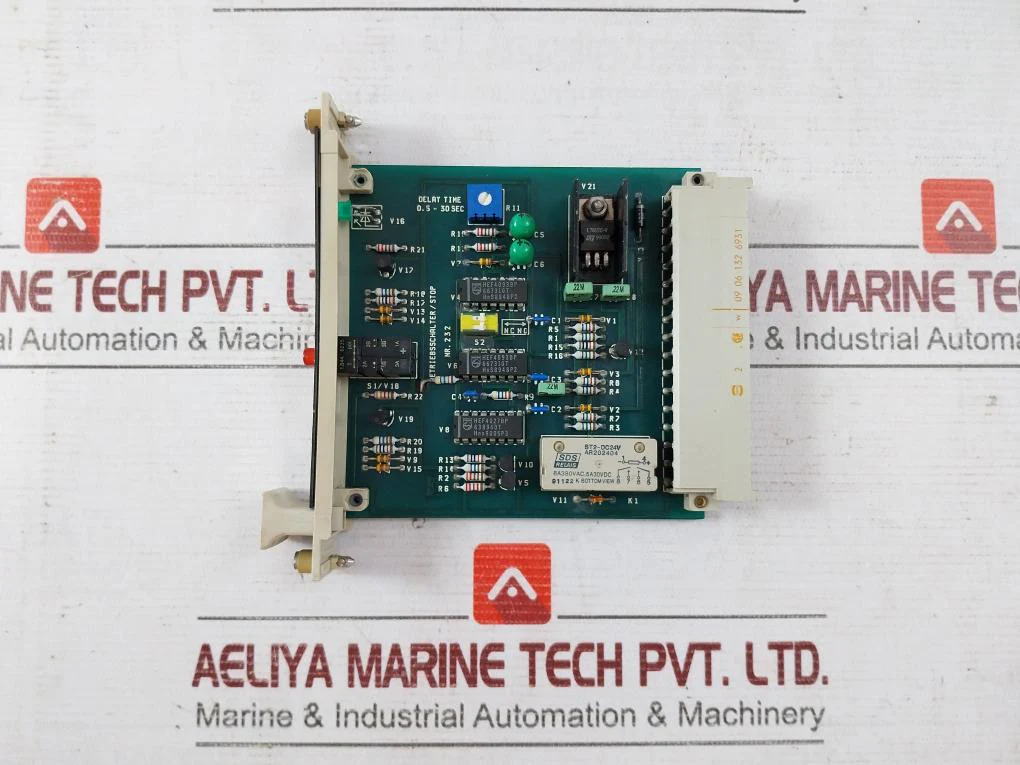

Betriebsschalter/ Power Switch/Stop

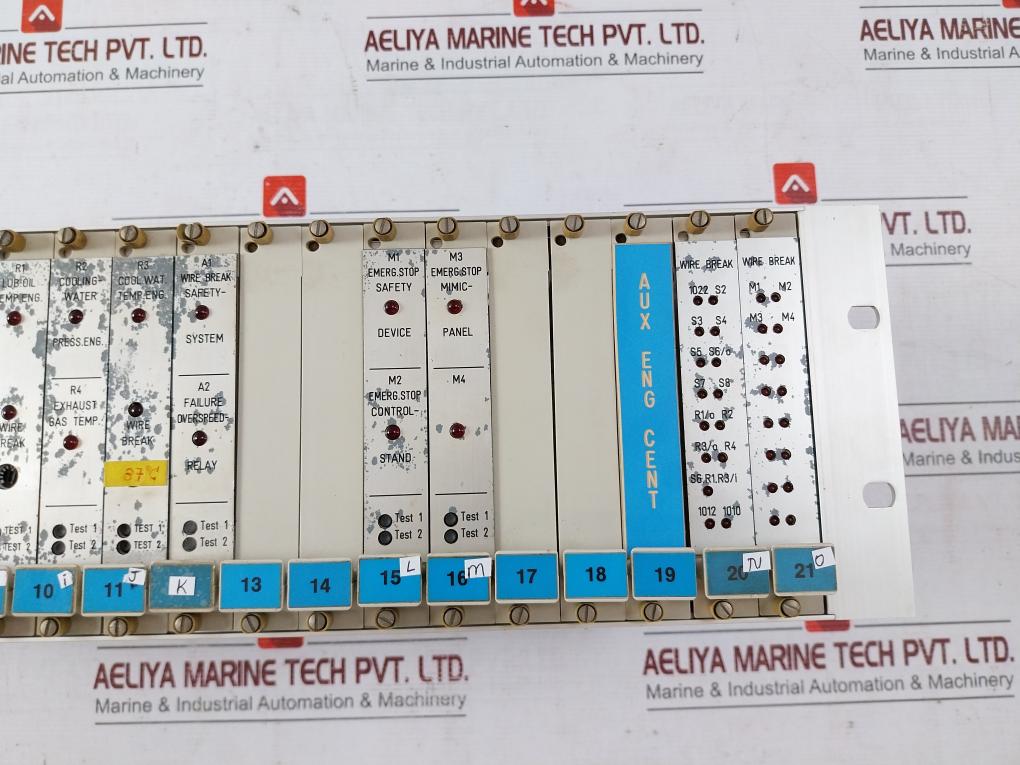

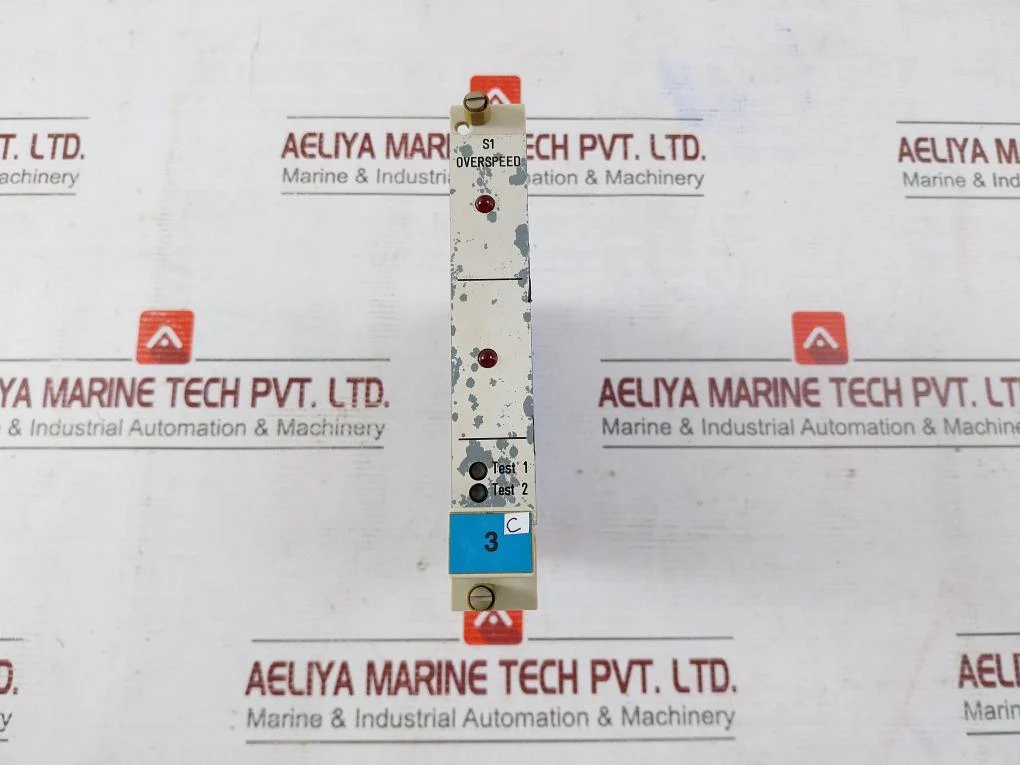

S1 Overspeed
S2 Lub.Oil Press.Eng.
S3 Lub.Oil Press.Turb

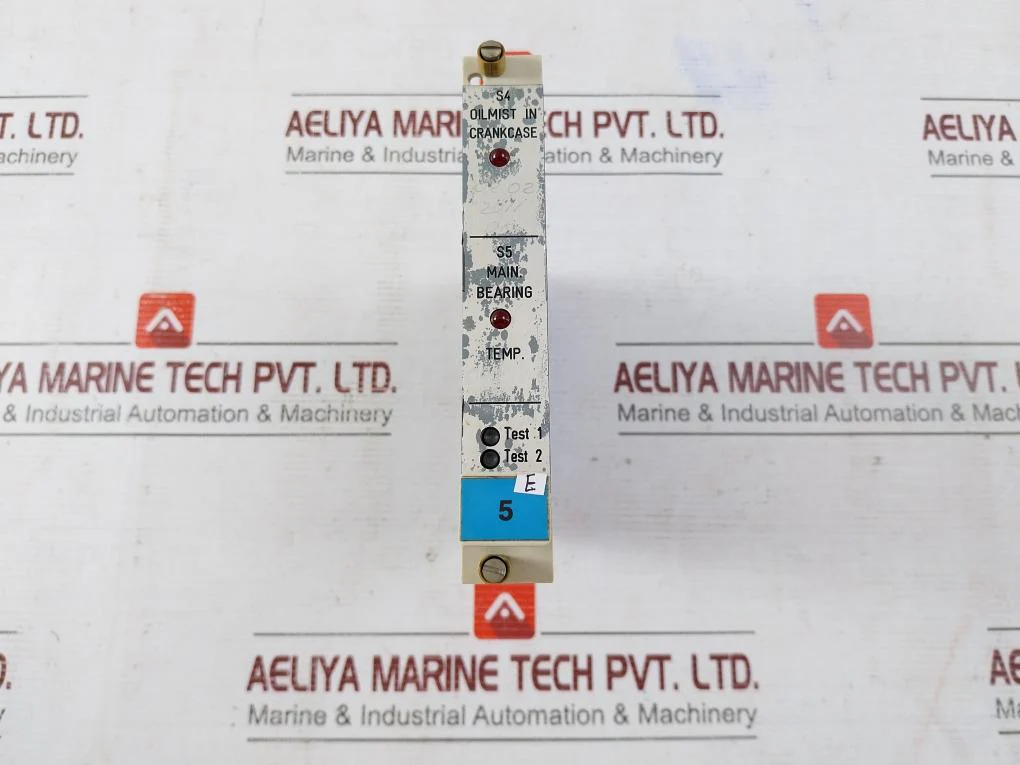

S4 Oil Mist In Crankcase
S5 Main.Bearing
S7 Generator Failure
S8 Override S6 On
R2 Cooling-water
R4 Exhaust Gas Temp.
A1 Wire Break Safety-
A2 Failure Overspeed-
M1 Emerg.Stop Safety
M2 Emerg.Stop Control-
M3 Emerg. Stop Mimic-
Bm 06 Nr: 229
Index: X 2 To 8/1
S6 Cool. Wat. Temp. Eng.
R1 Lub. Oil Temp. Eng.
R3 Cool. Wat. Temp. Eng.
87˚C
Am-ie-lz
1 X 3 4/2

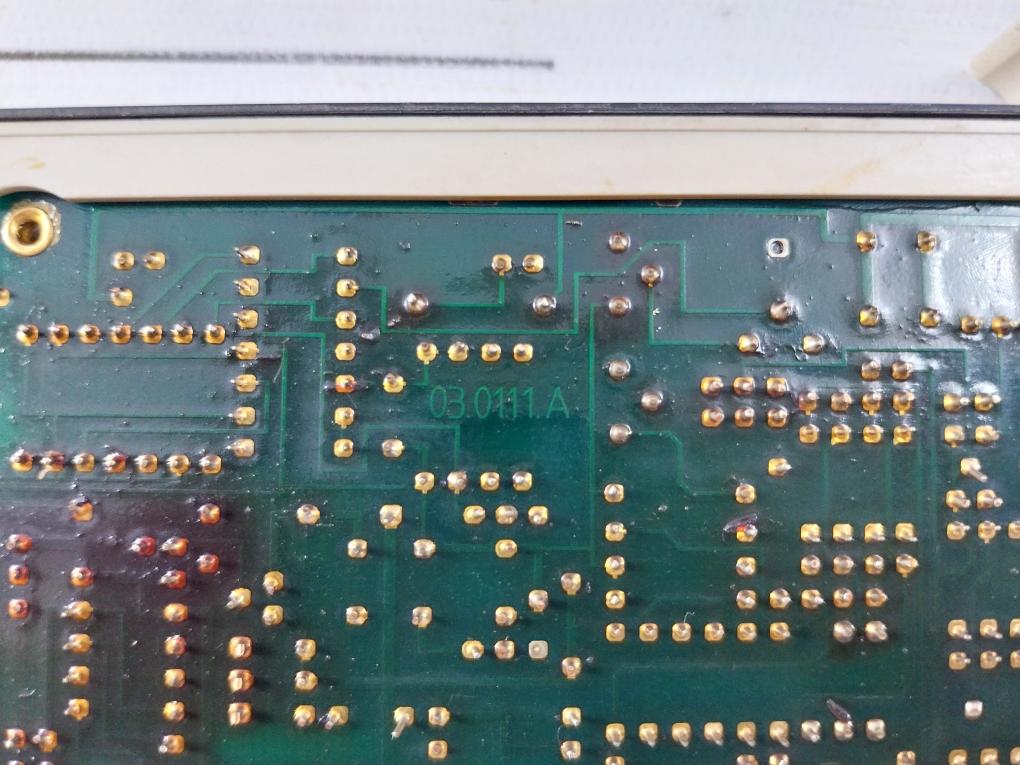

03.0111.A
Wire Break

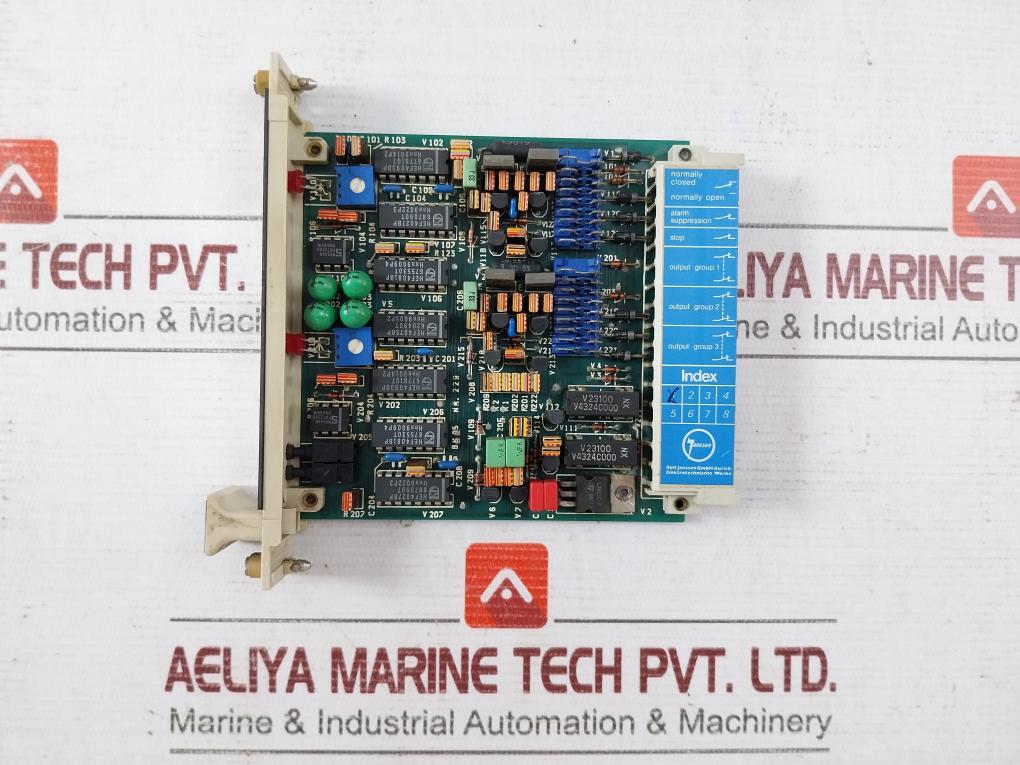

Drahtbruchueberwachung/Wire Break Monitoring
Typ/Type Dbu 06/24
Nr: 233
Weight: 3.730 Kg
