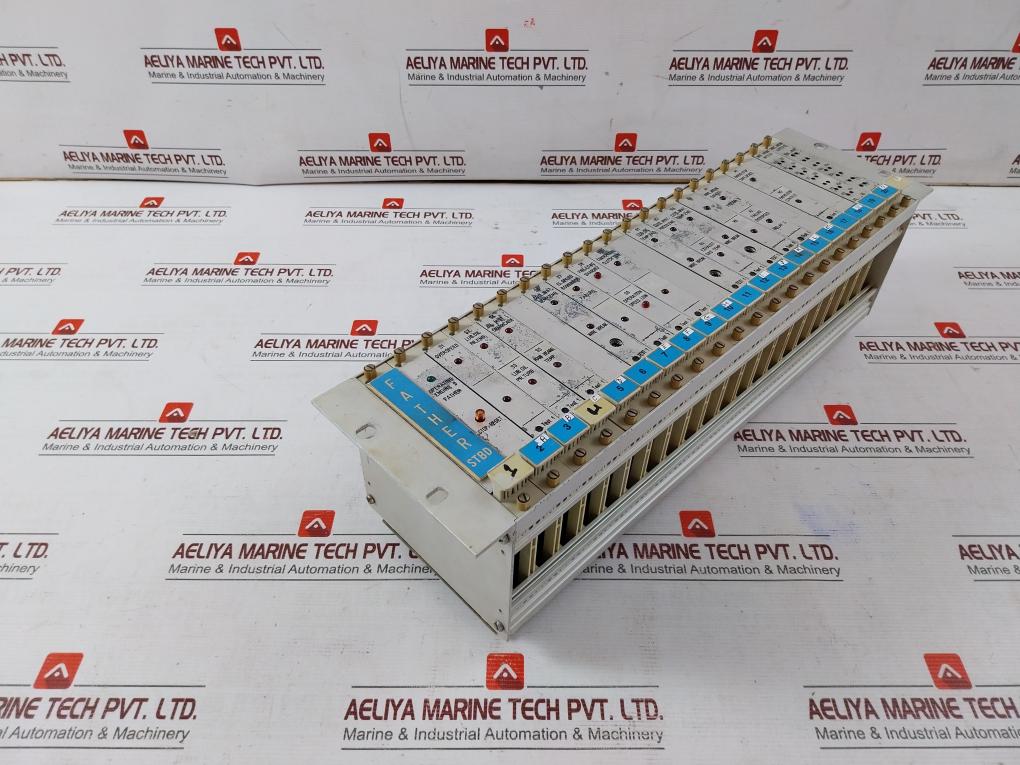

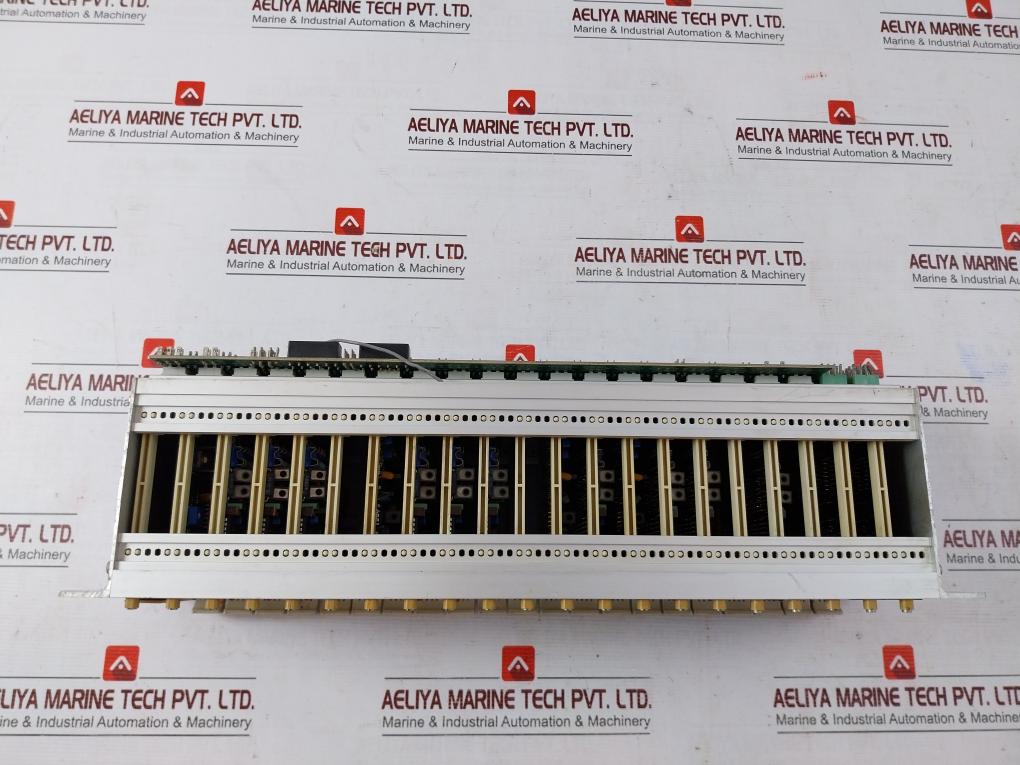

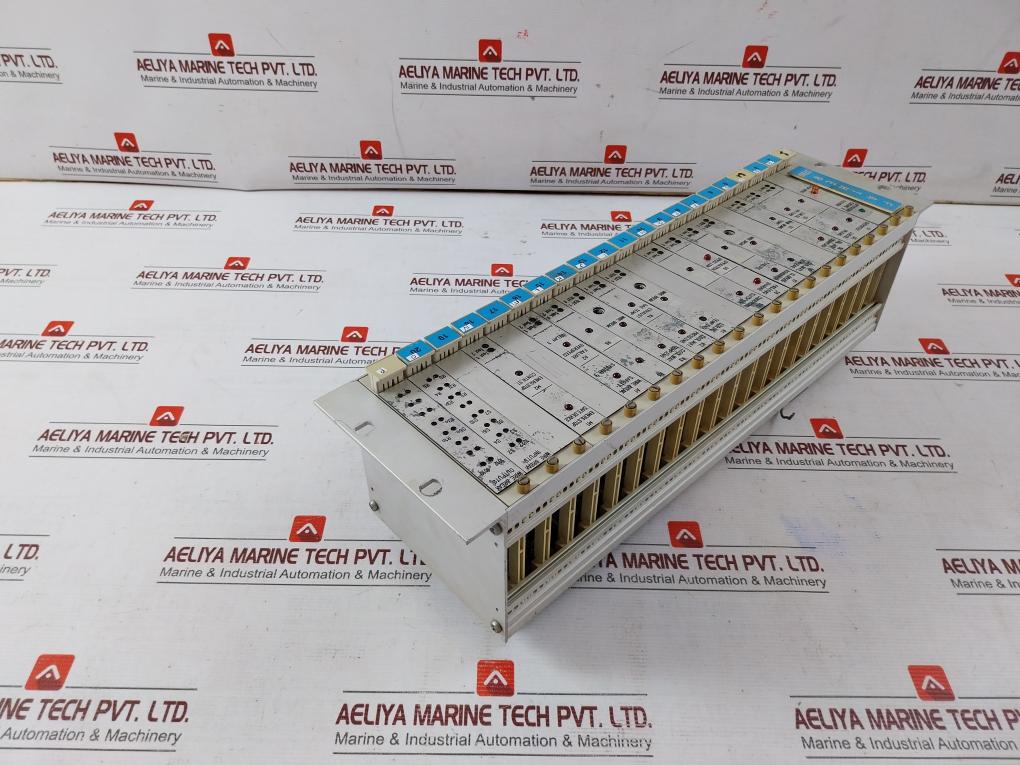

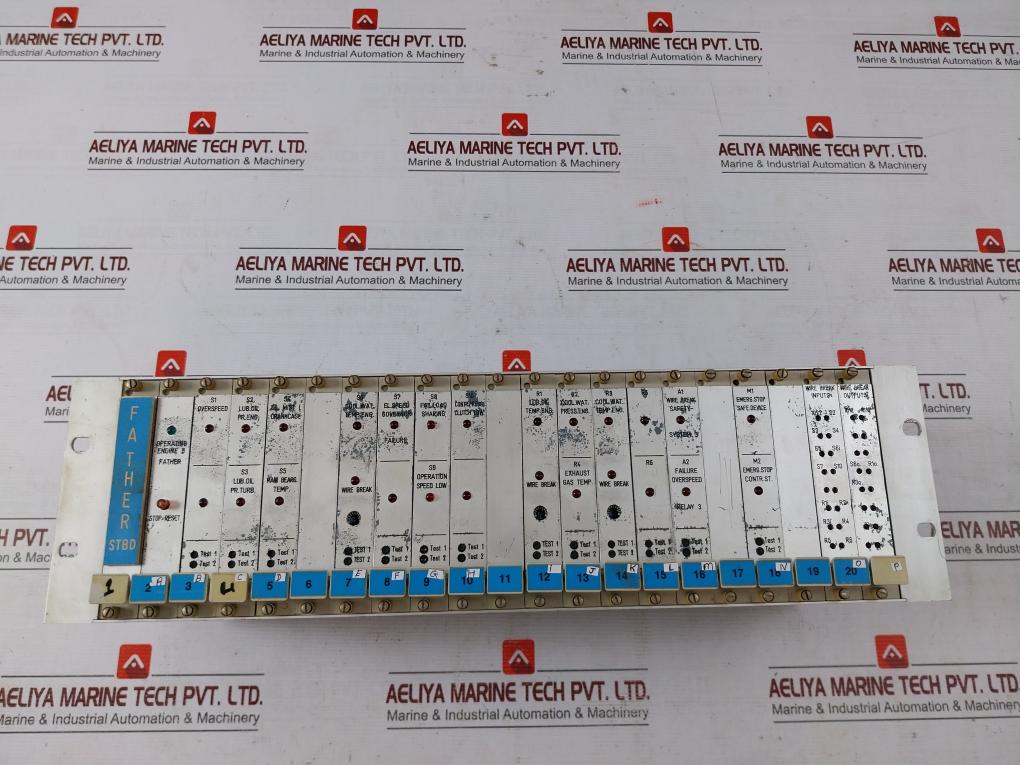

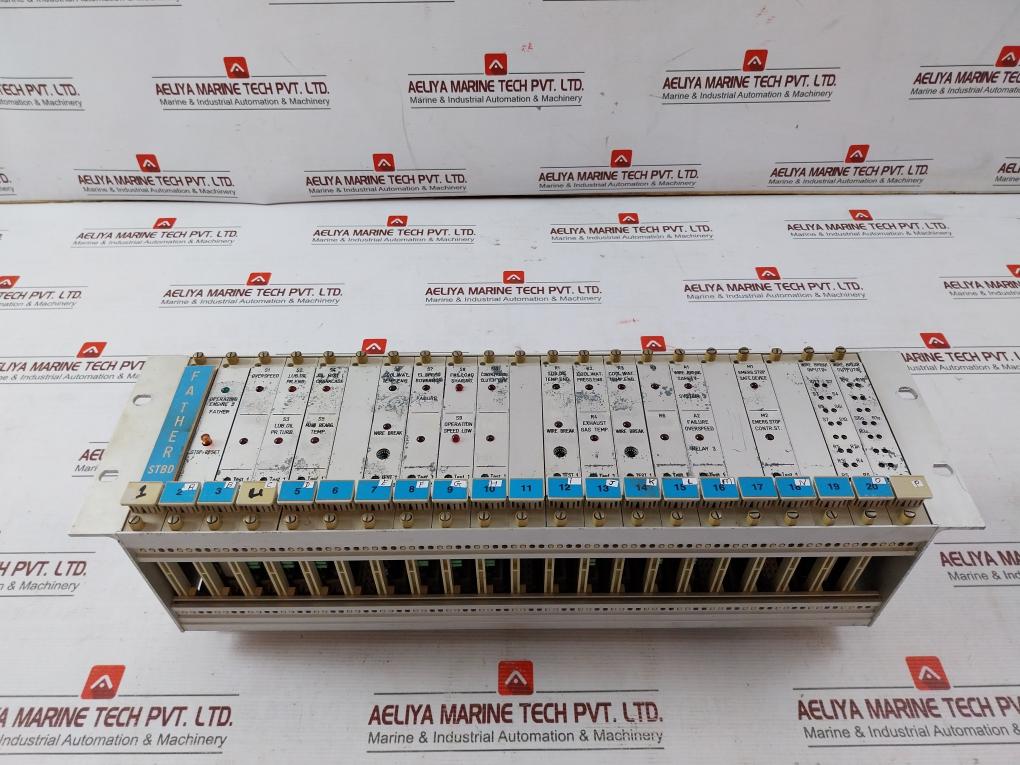

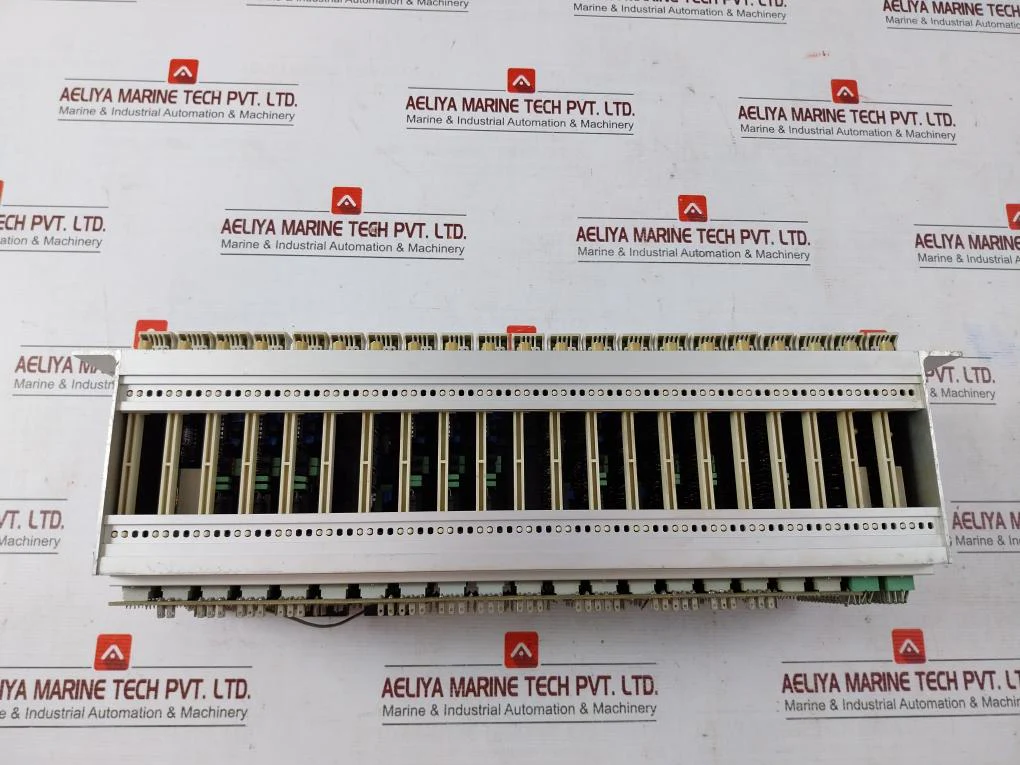

Rolf Janssen Bm 06 Operational Monitor Rack Mount Panel Dbu 06/24, Am-ie-lz
Rolf Janssen Gmbh
Elektrotechnische Werke

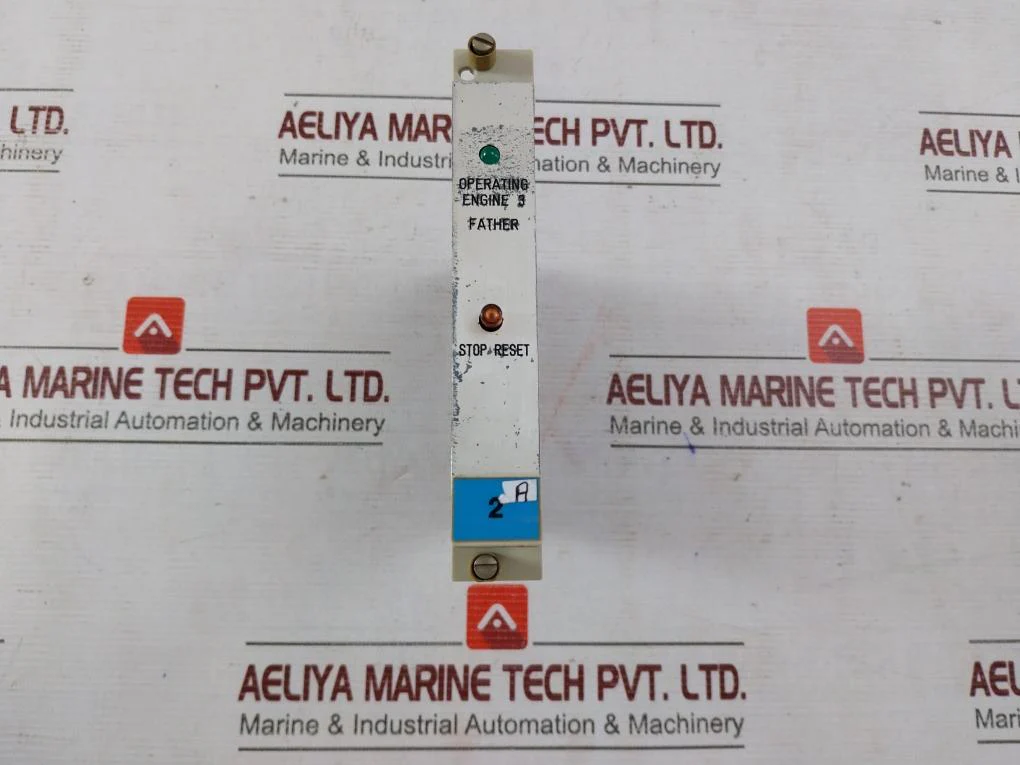

Father Stbd
Operating Engine 3
Betriebsschalter/ Power Switch/Stop
Nr: 232

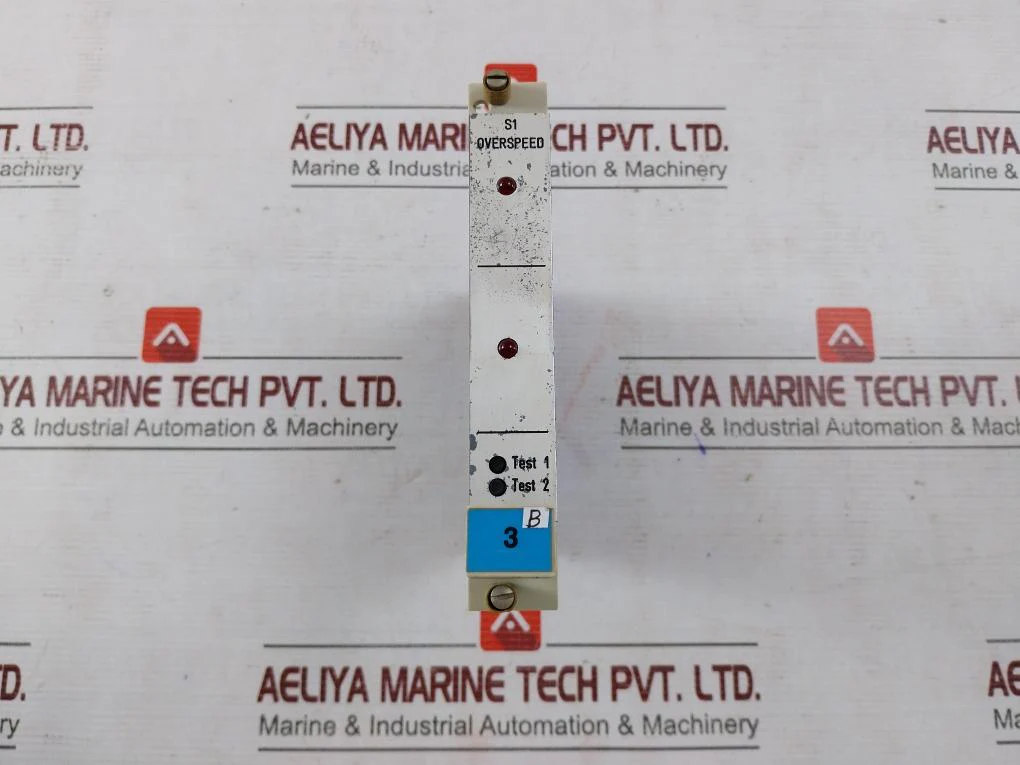

S1 Overspeed

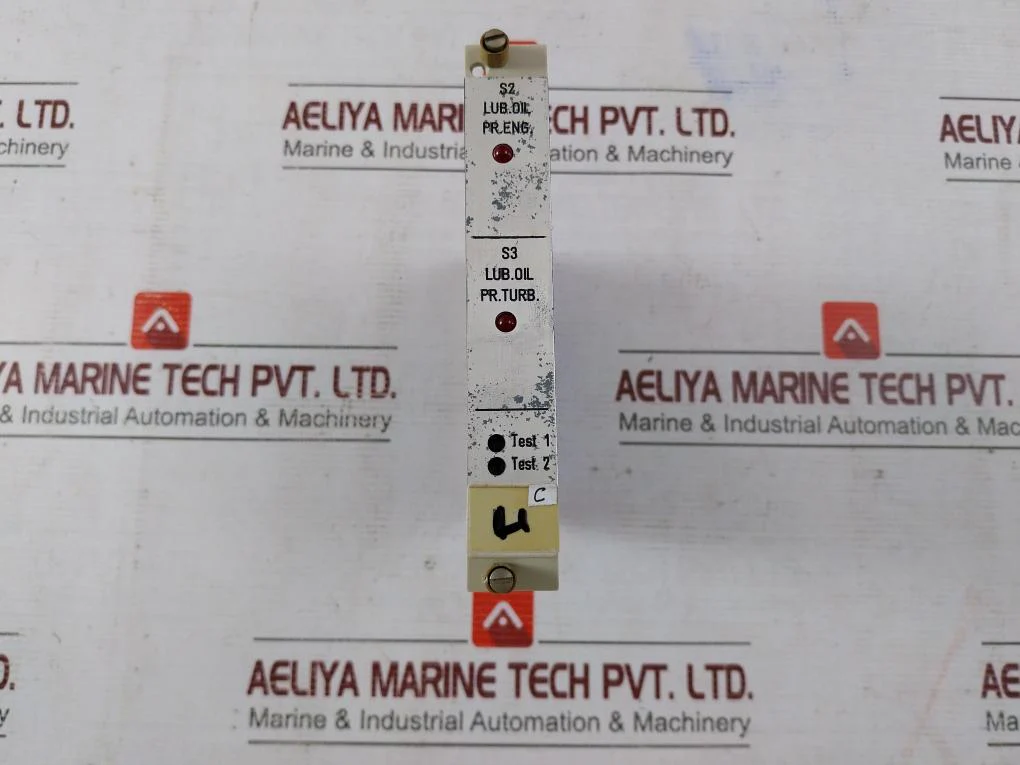

S2 Lub.Oil Pr.Eng.
S3 Lub.Oil Pr. Turb.

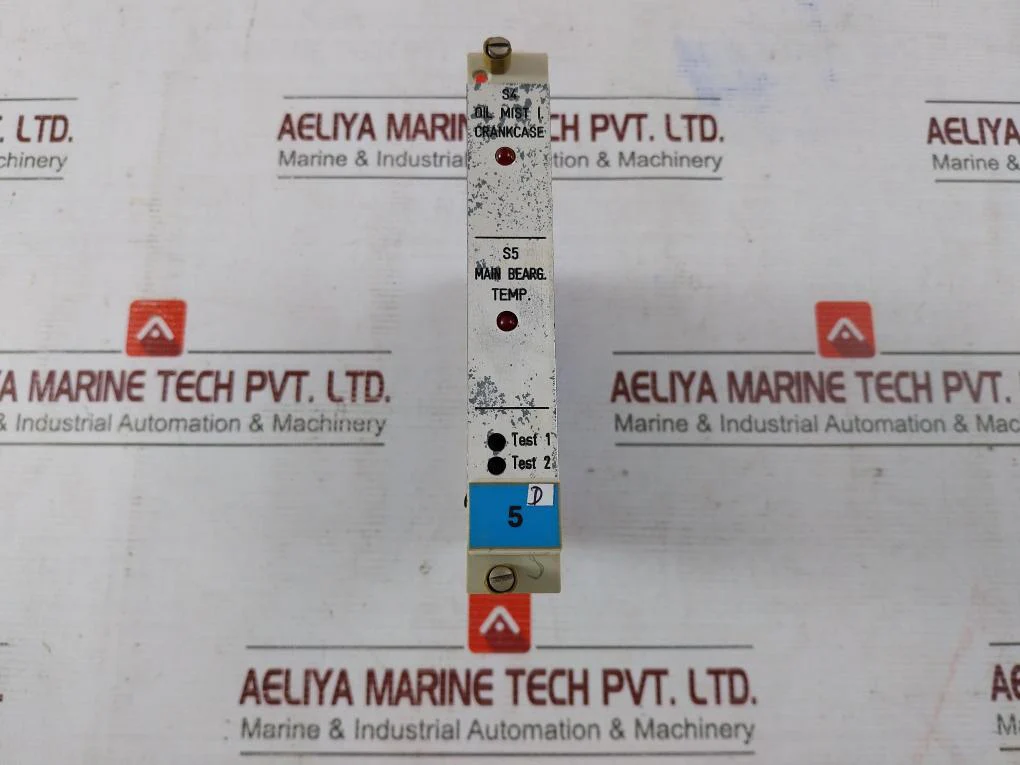

S4 Oil Mist I. Crankcase
S5 Main Bearg. Temp.

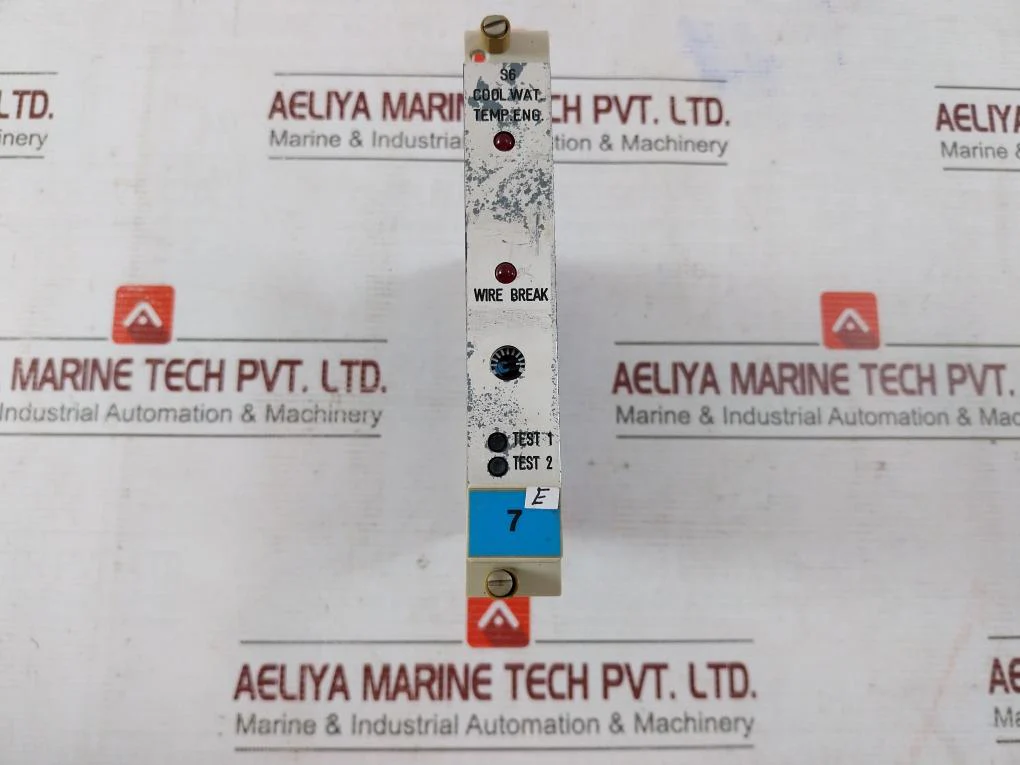

S6 Cool Wat. Temp. Eng.
Bm 06 Nr: 229
Index: X 2 To 8/1
Am-ie-lz
Index: 1 X 3 4/2

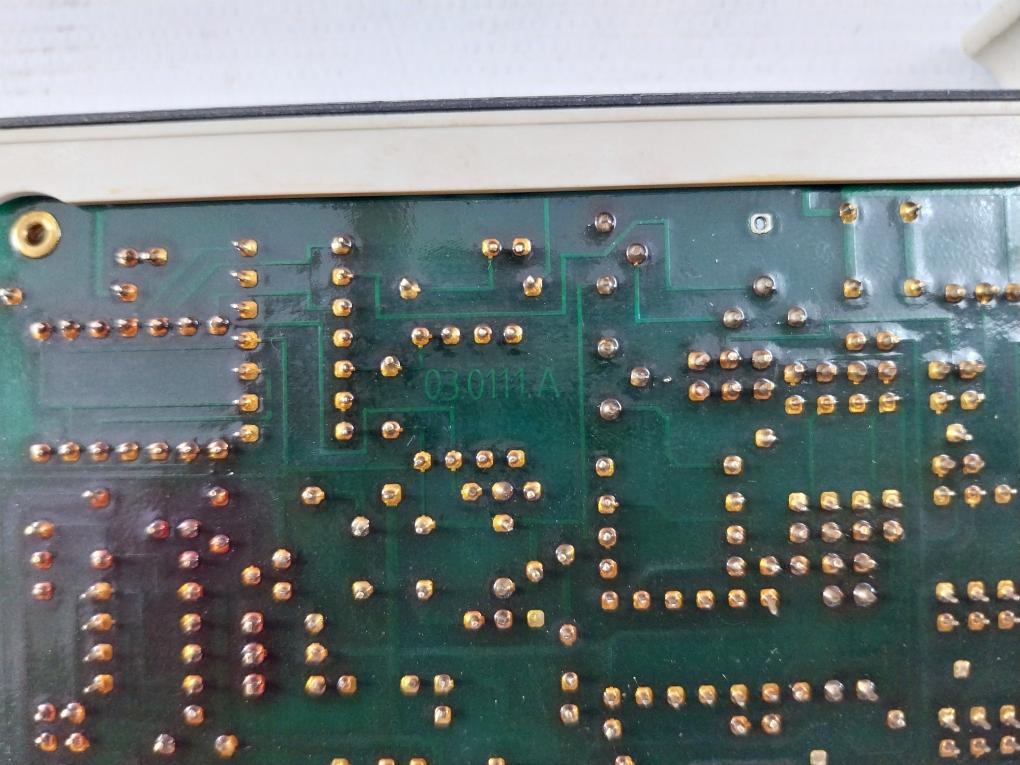

03.0111.A
S7 El.Speed Governor
Index: X 2 To 8/1
S8 Fail. Load Sharing
S9 Operation Speed Low
Index: 1 2 3 X 5 6 7 8/4
S10 Contr. Press. Clutch Low
Index: X 2 To 8/1
R1 Lub. Oil Temp. Eng.
Index: 1 To 3 X 5 To 8/4
1 X 3 4/2
R2 Cool. Wat. Press. Eng.
R4 Exhaust Gas Temp.
Index: X 2 To 8/1
R3 Cool. Wat. Temp. Eng.
Index: 1 X 3 4/2
03.011
R5 R6
Index: X 2 To 8/1

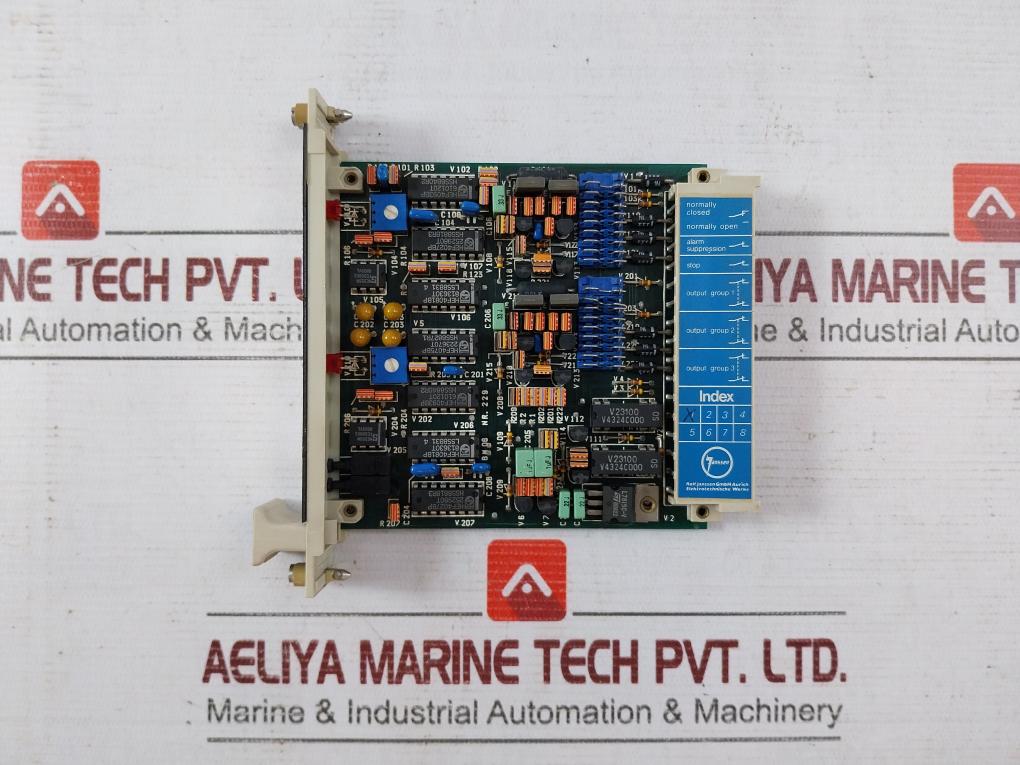

A1 Wire Break Safety-
A2 Failure Overspeed
Index: X 2 To 8/1
M1 Emerg. Stop Safe. Device
M2 Emerg. Stop Contr. St.
Index: X 2 To 8/1
Wire Break Outputs

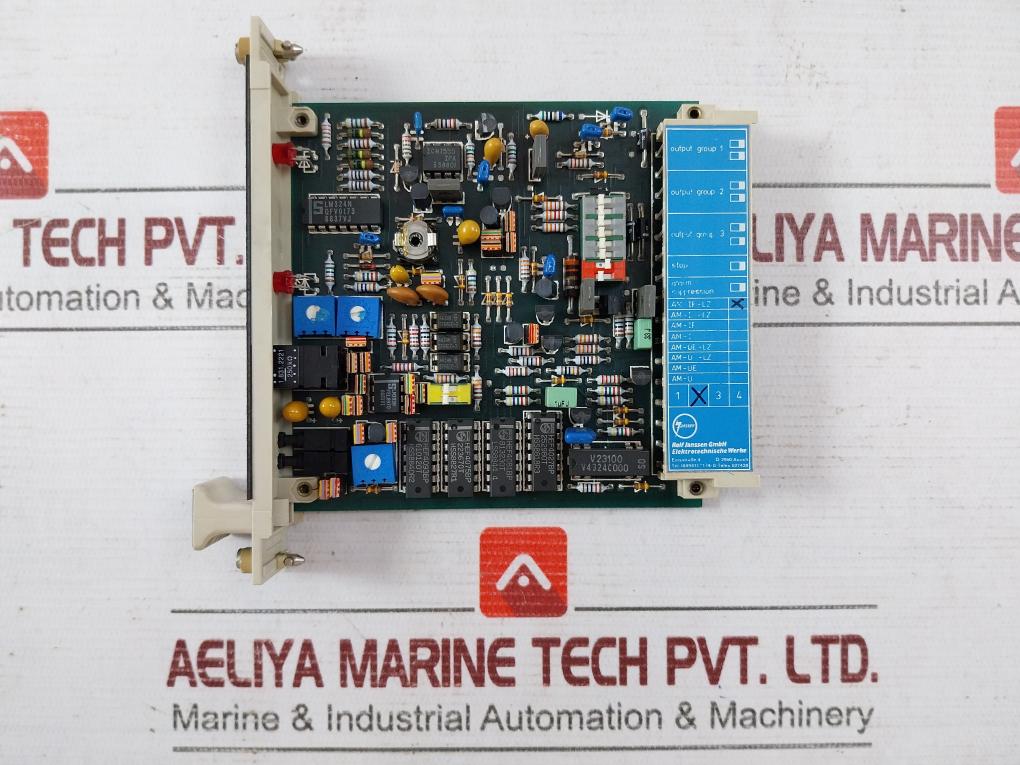

Drahtbruchueberwachung /Wire Break Monitoring
Typ/Type Dbu 06/24
Nr.: 233
Made In Germany
Weight: 3.870 Kg
