Rosemount 8750Wdmt1A1Ftsa020Ca3M4 Magnetic Flowtube Transmitter 740Psig/5.10Mpa
Rosemount
Hart Communication Protocol
Magnetic Flowtube

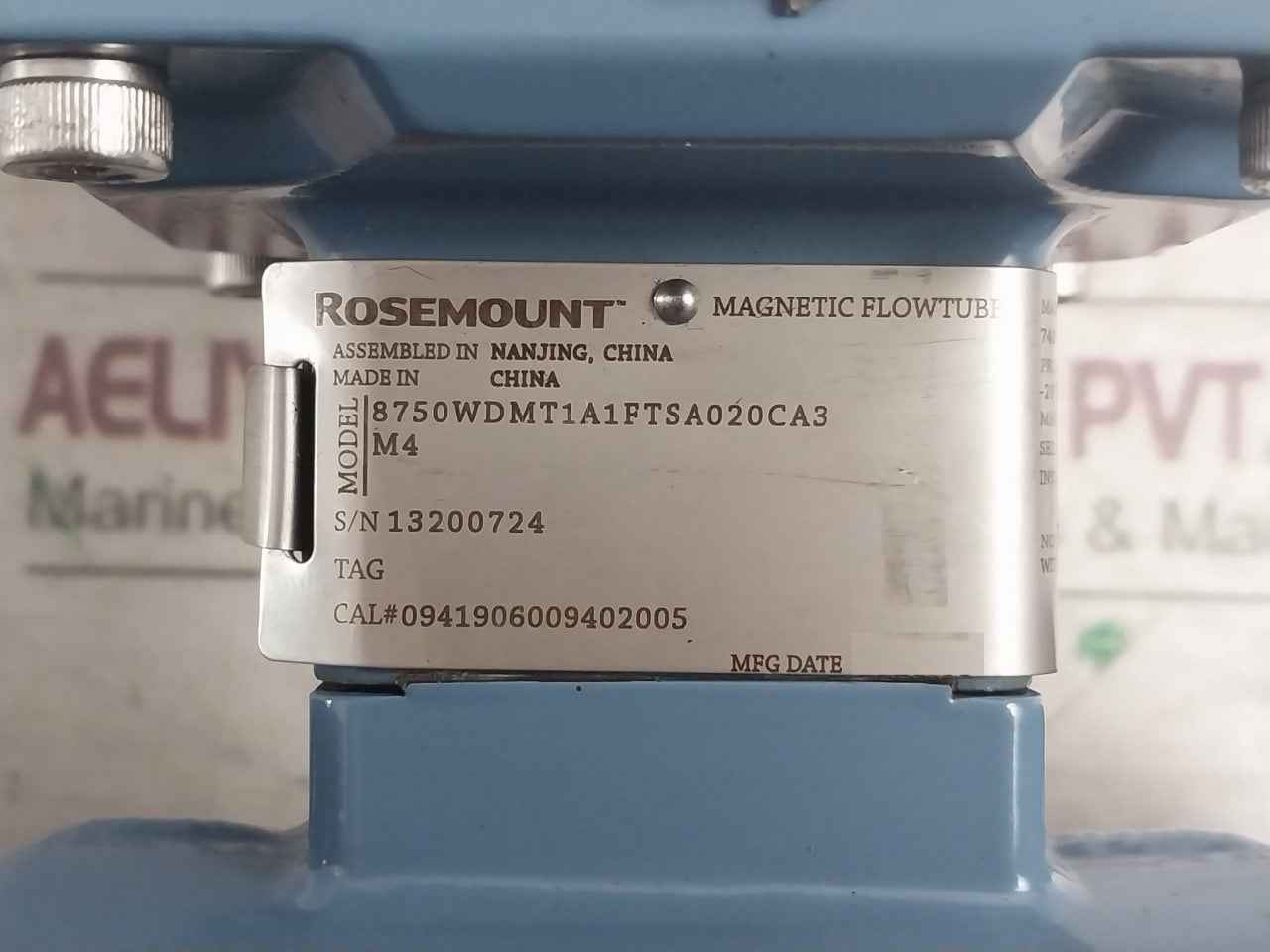

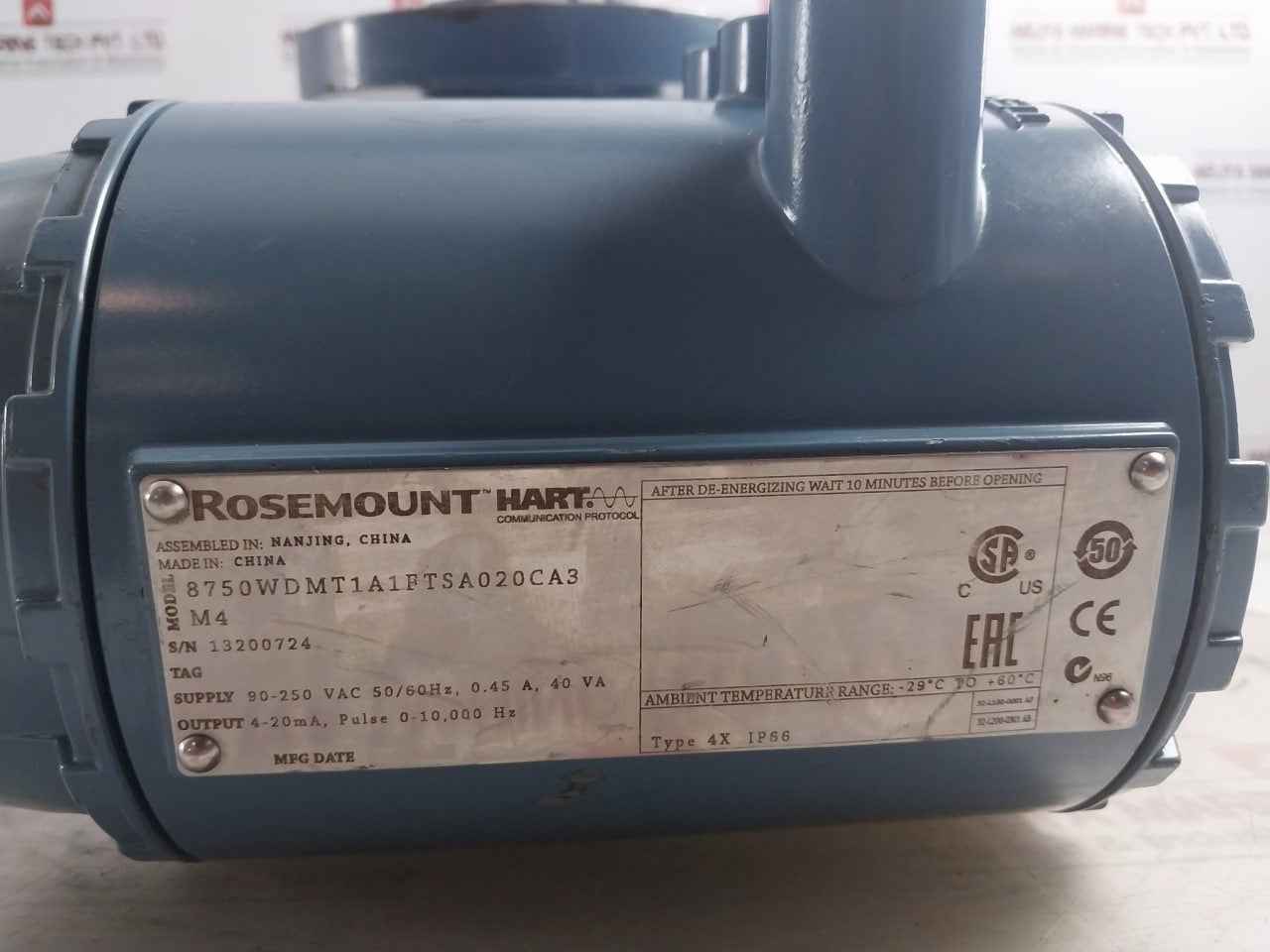

Model: 8750Wdmt1A1Ftsa020Ca3M4
Cal#: 0941906009402005

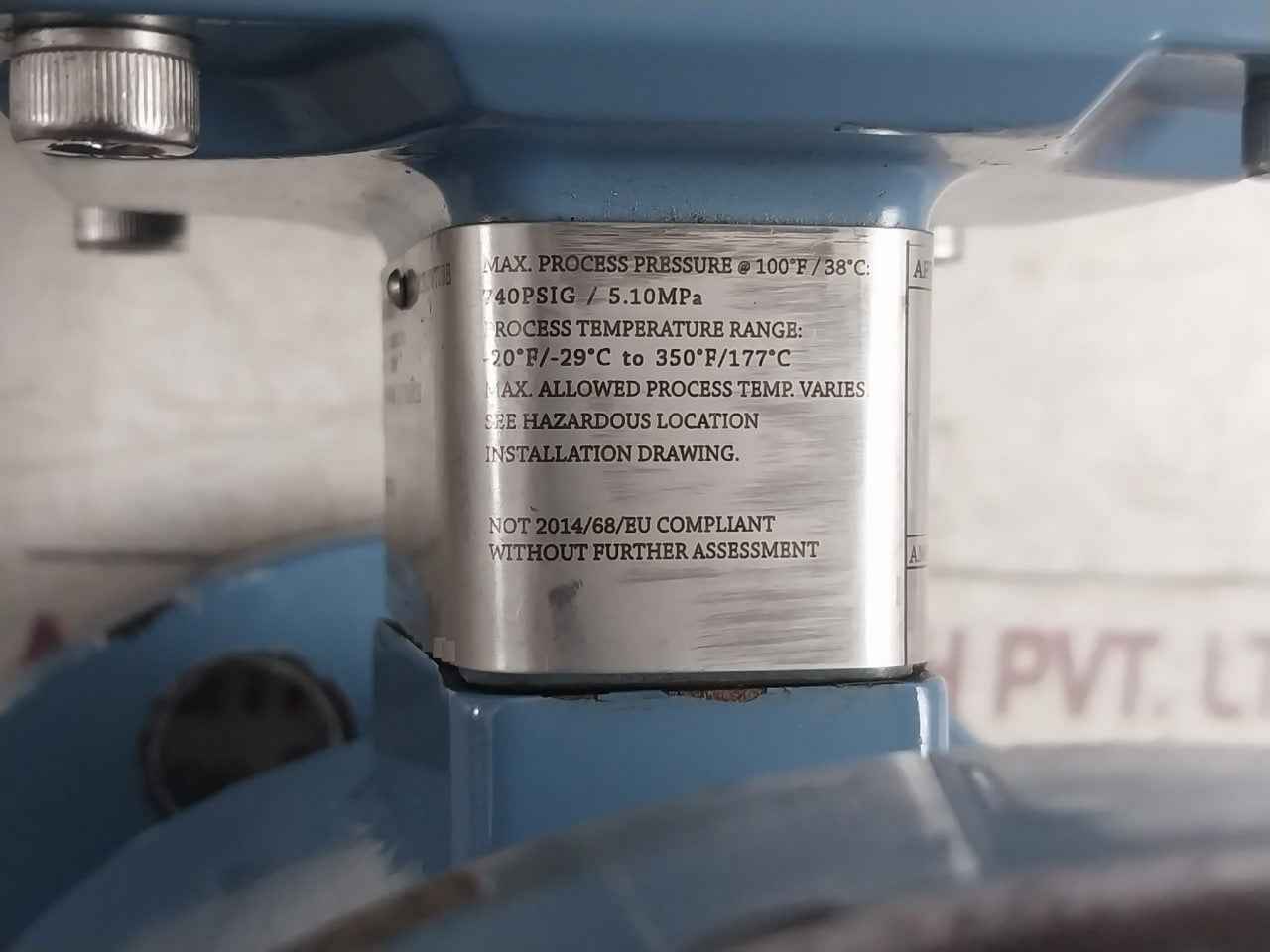

Max.Process Pressure @ 100°F/38°C:
740Psig/5.10Mpa
Process Temperature Range:
-20°F/-29°C To 350°F/177°C

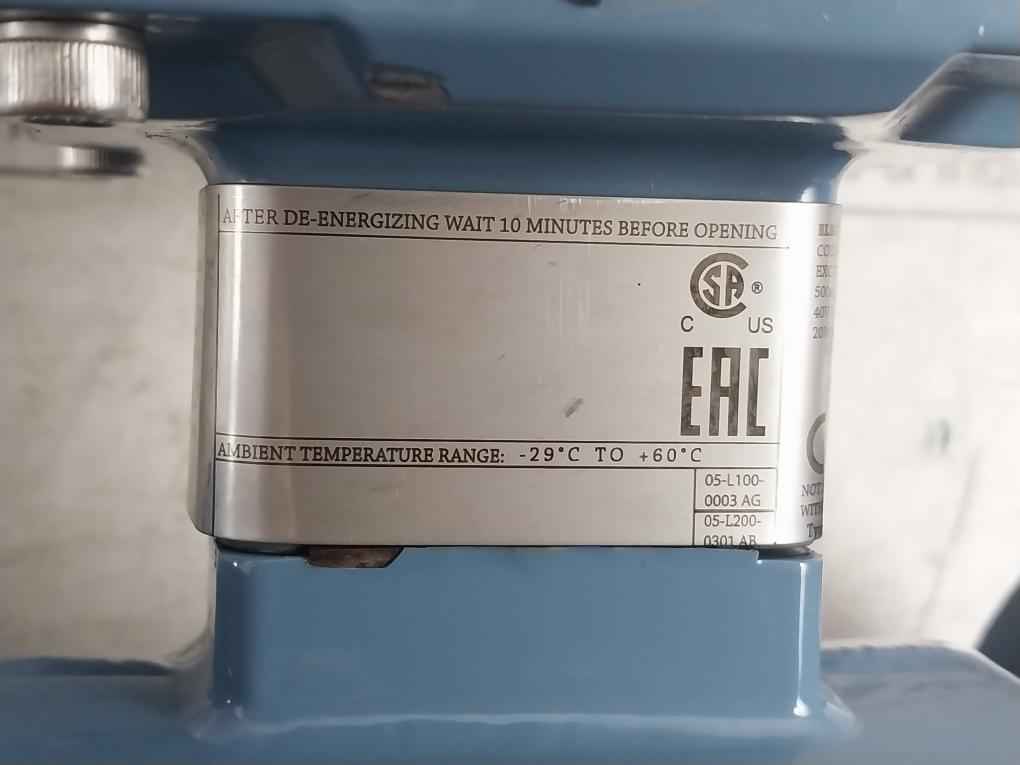

Ambient Temperature Range: -29°C To +60°C
05-l100-0003 Ag
05-l200-0301 Ab

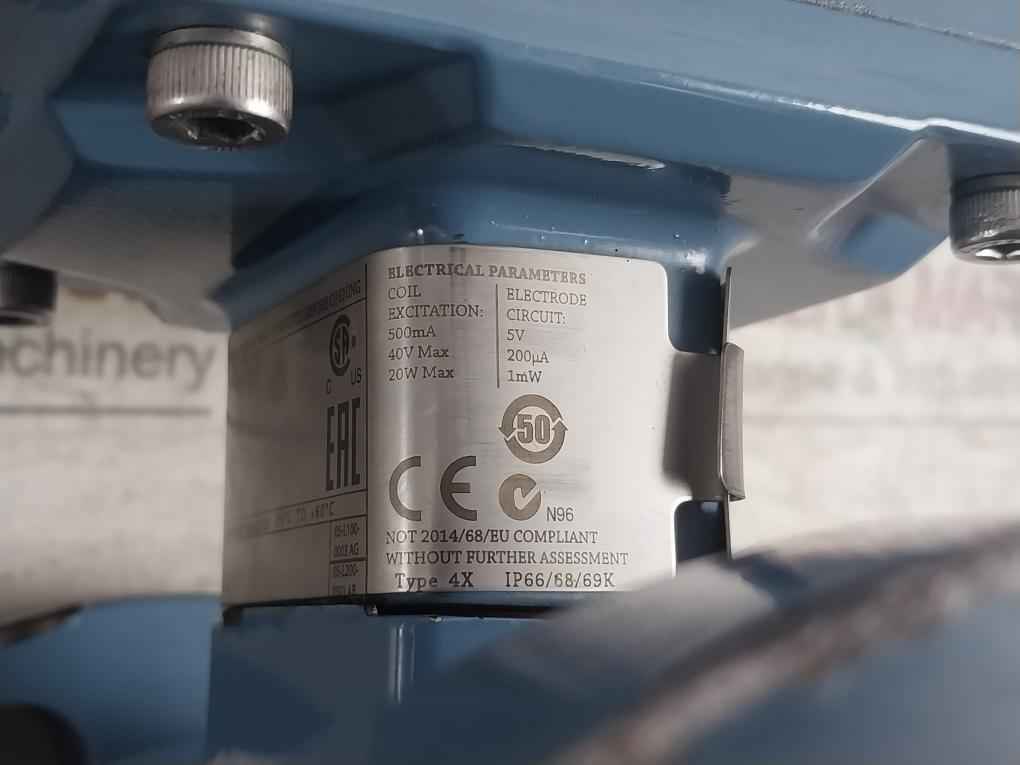

Electrical Parameters
Coil Electrode
Excitation Circuit
500Ma 5V
40V Max 200µA
20W Max 1Mw

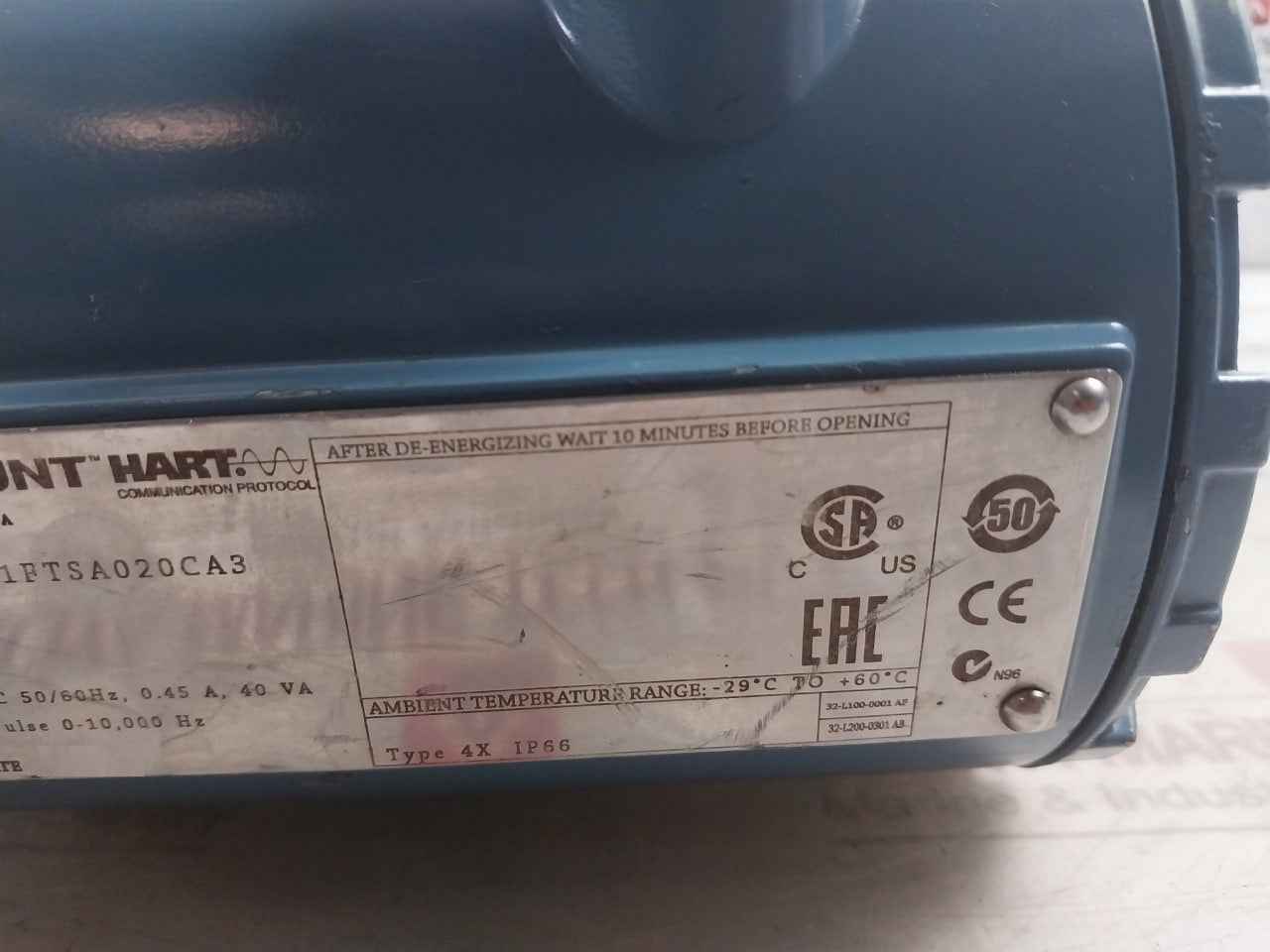

Type 4X Ip66/68/69K
Supply: 90-250 Vac 50/60Hz, 0.45A, 40Va
Output: 4-20Ma, Pulse 0-10,000 Hz

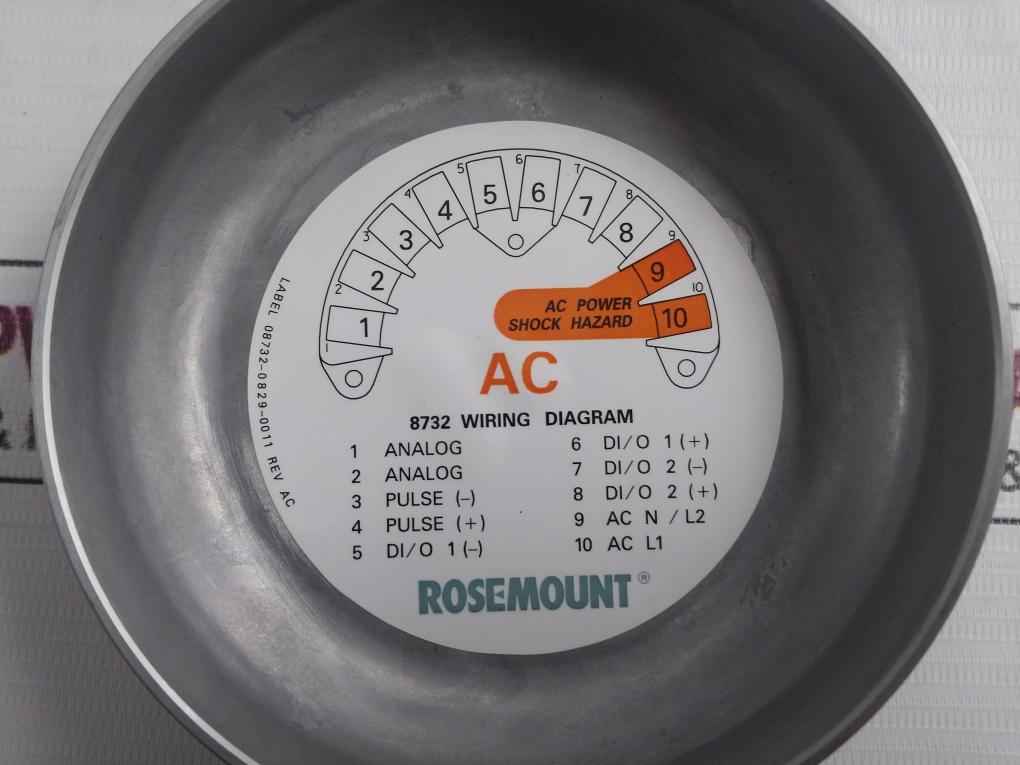

Label: 08732-0829-0011 Rev: Ac
08712-0571-0008 Rev: Ac

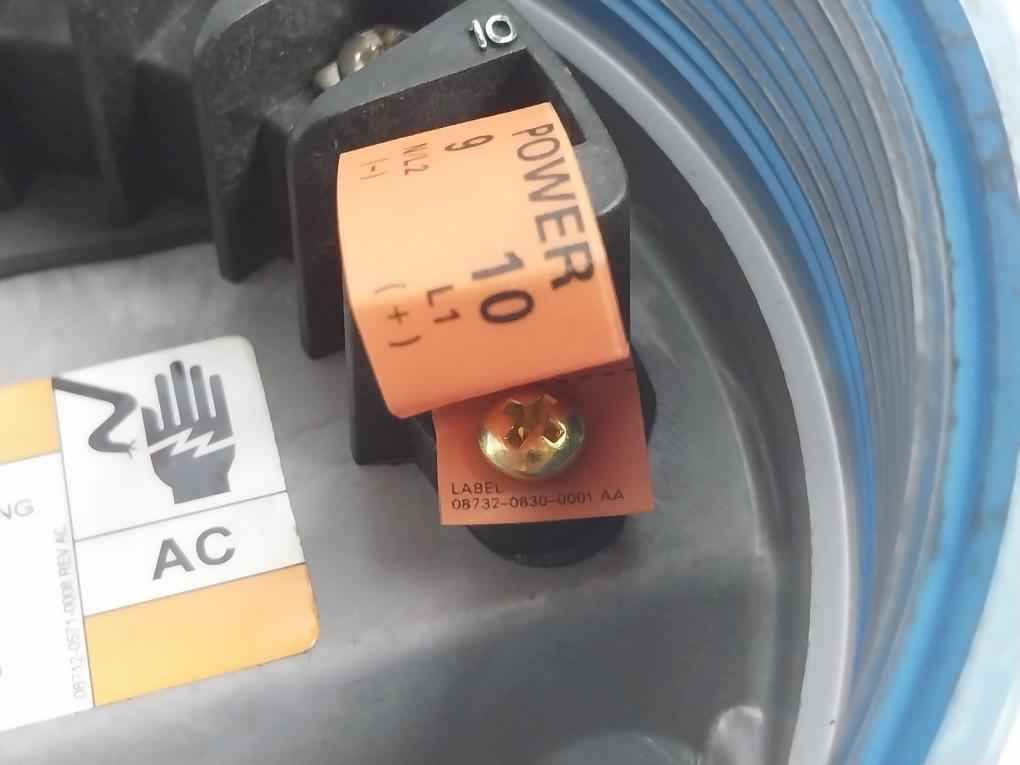

Label: 08732-0830-0001 Aa
Label: 08732-0830-0002 Aa
32-l100-0001 Af
32-l200-0301 Ab

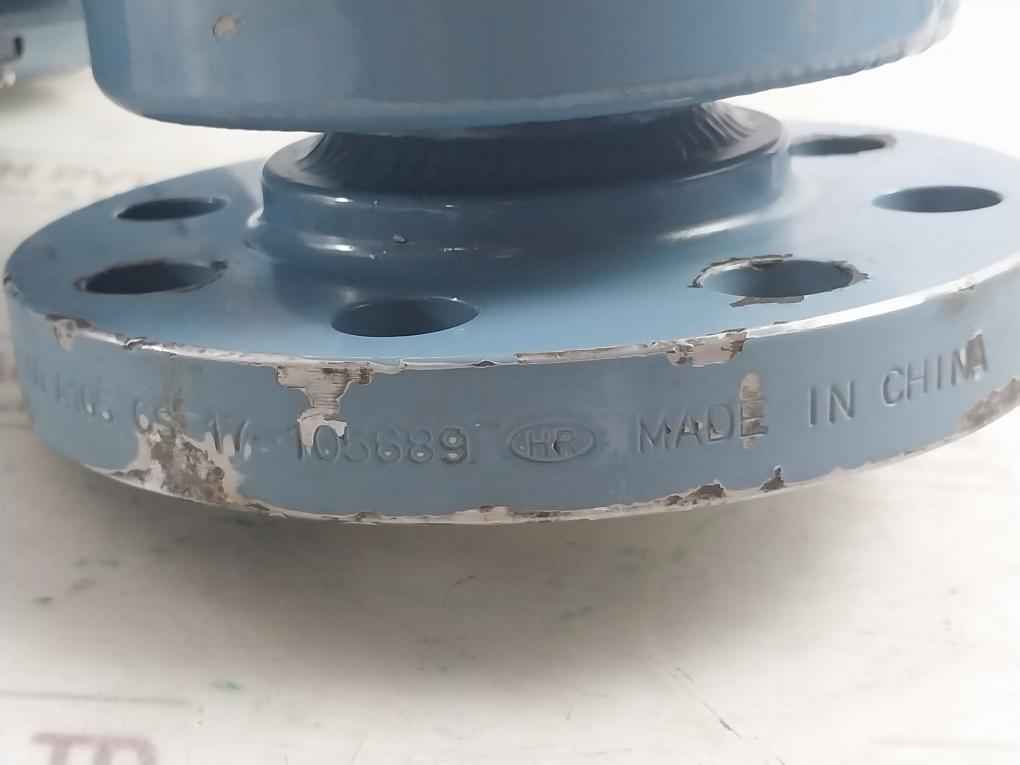

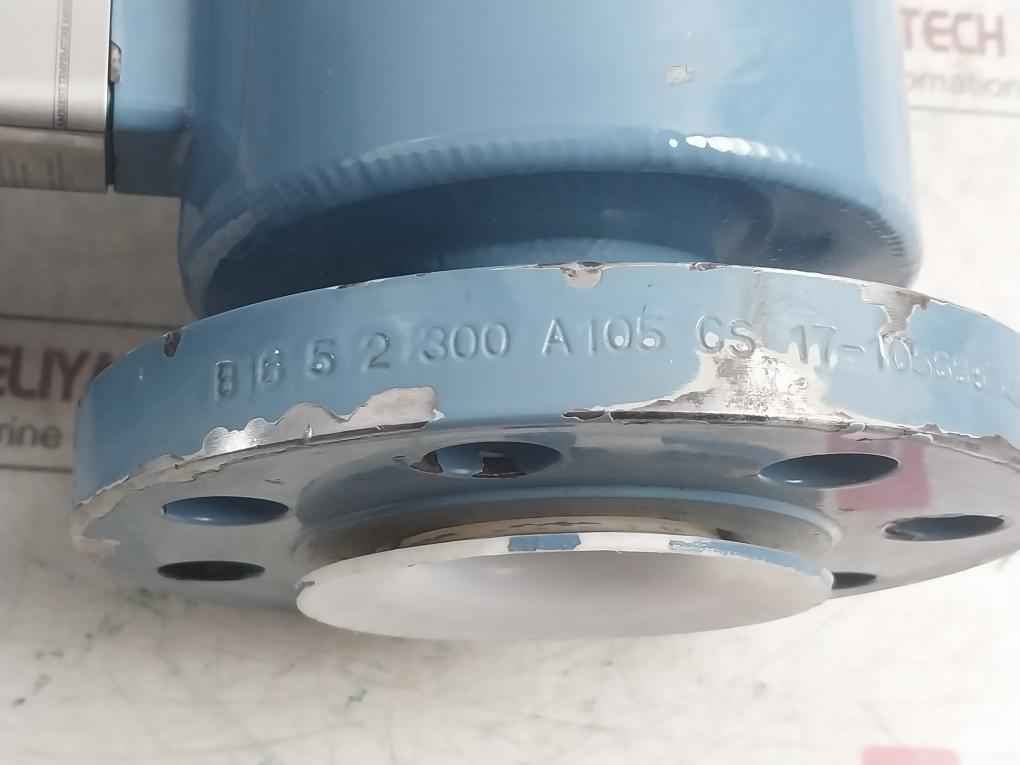

B 16 5 2 300 A105 Cs 17-105689

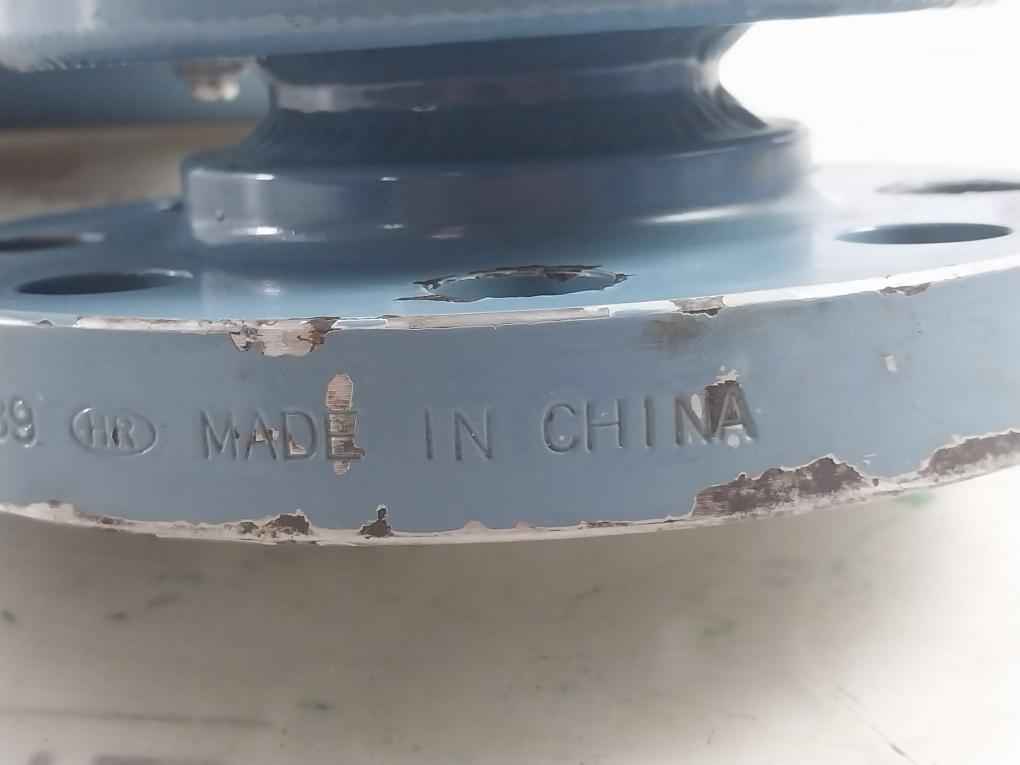

Made In China
Assembled In China
Weight: 13 Kg
