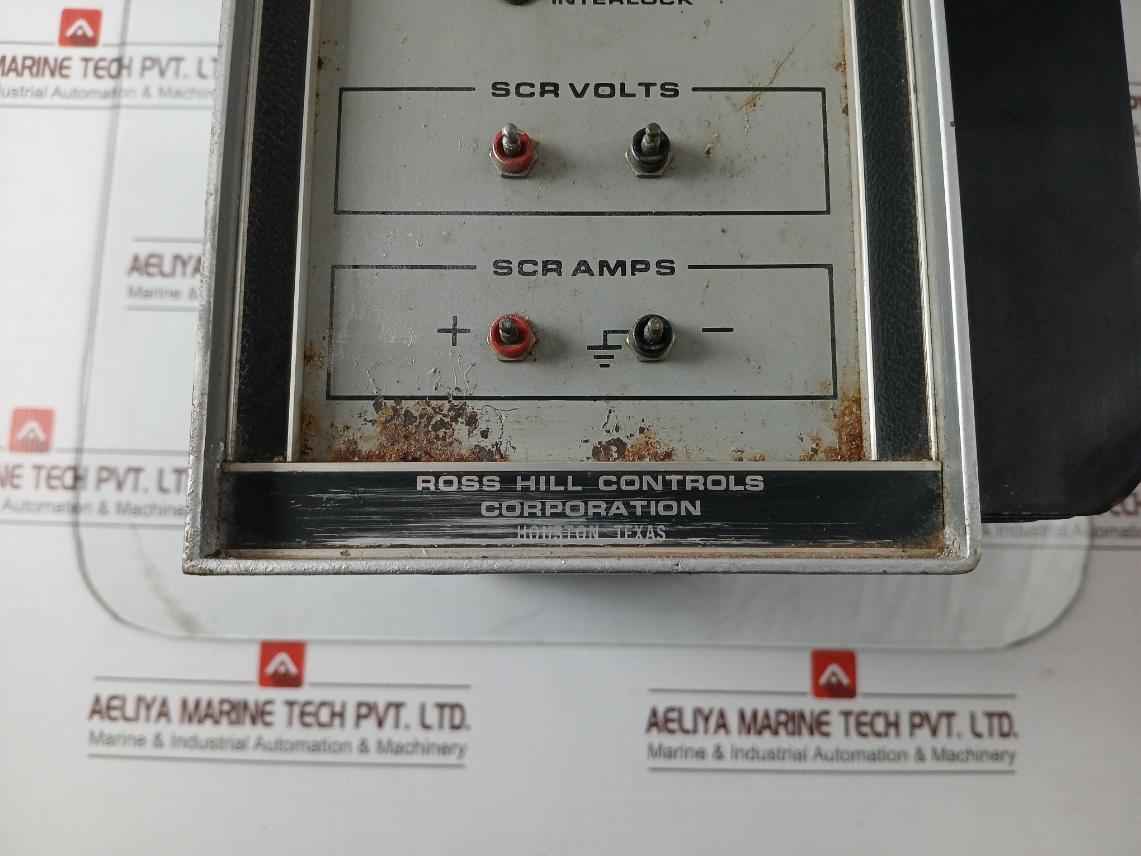

Ross Hill 0522-2400 Dc Control Module Rev A-c 0905-1528-01 (Not Working)

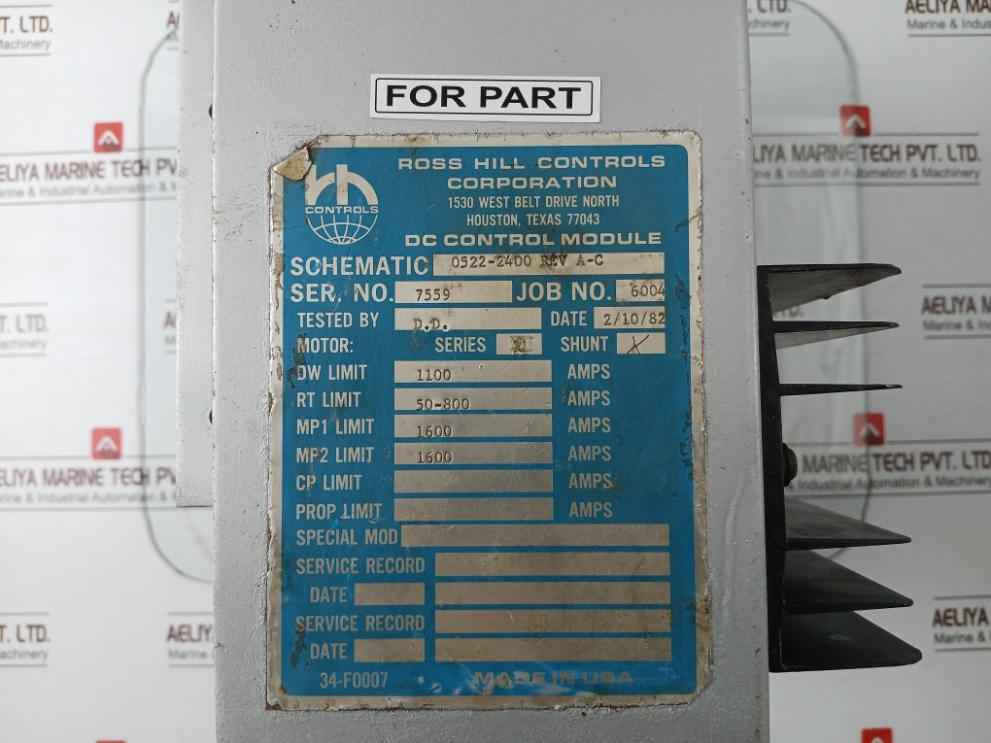

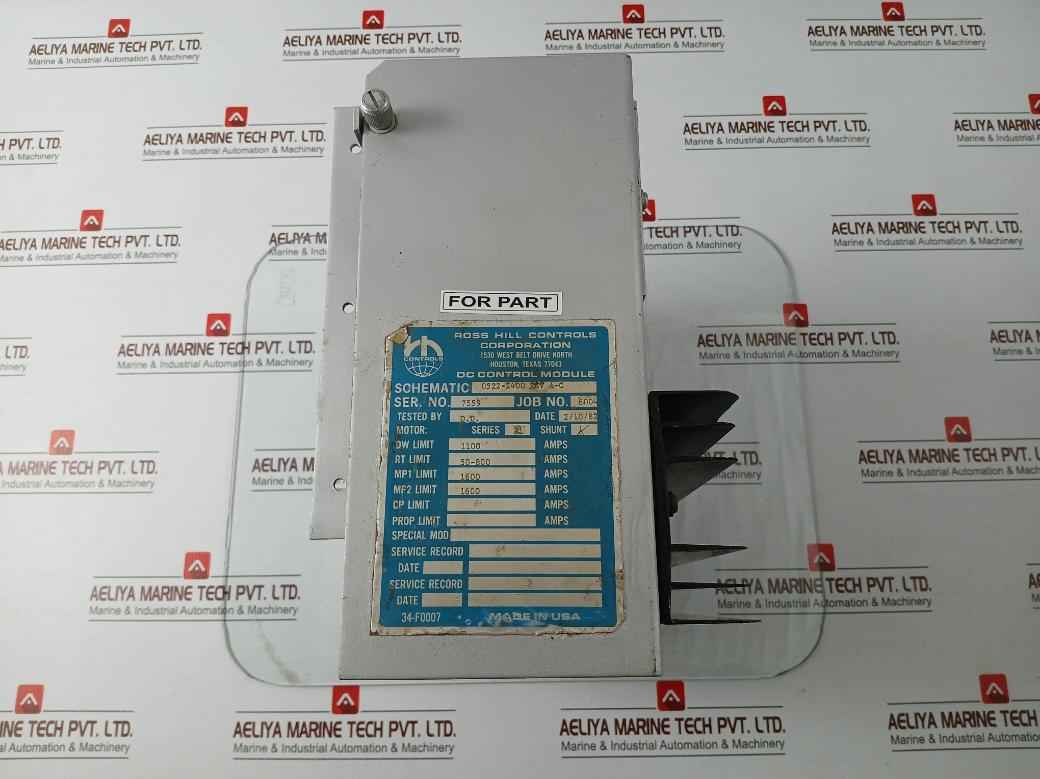

Ross Hill Controls Corporation

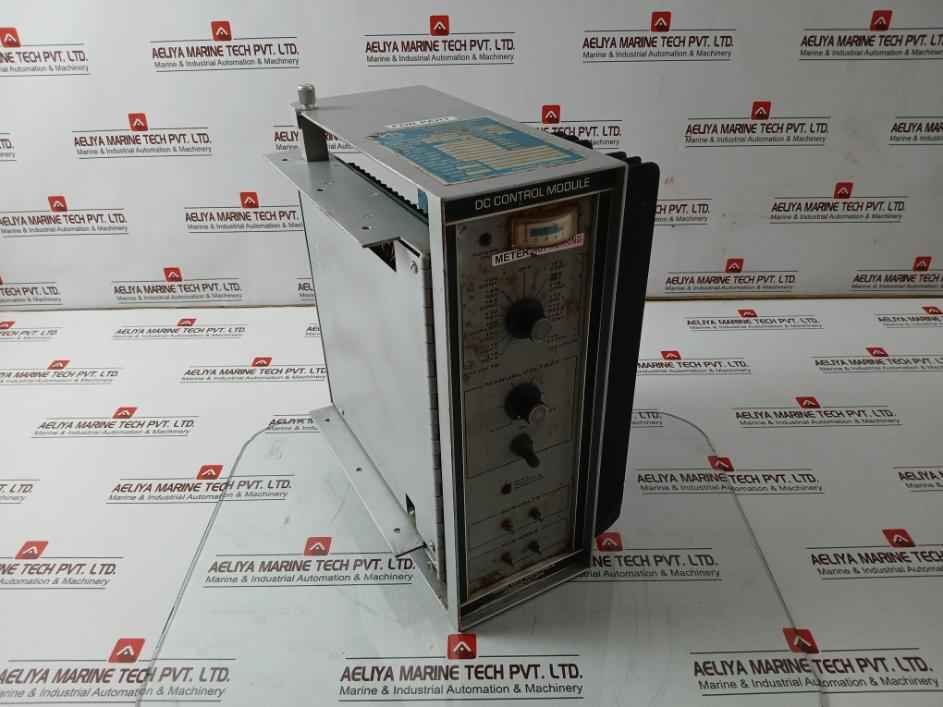

Dc Control Module
Schematic
0522-2400
Rev. A-c
Shunt
Dw Limit: 1100 Amps
Rt Limit: 50-800 Amps
Mp1 Limit: 1600 Amps
Mp2 Limit: 1600 Amps
34-f0007

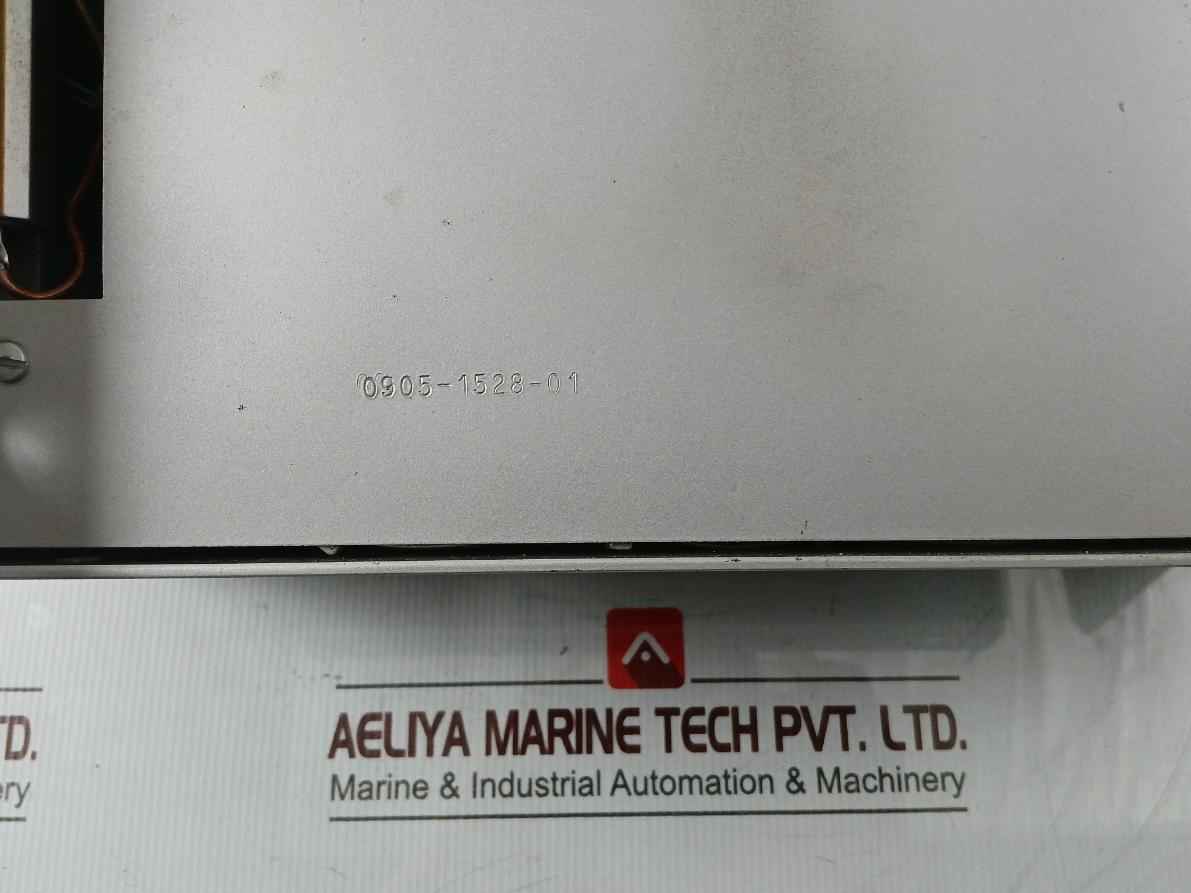

0905-1528-01

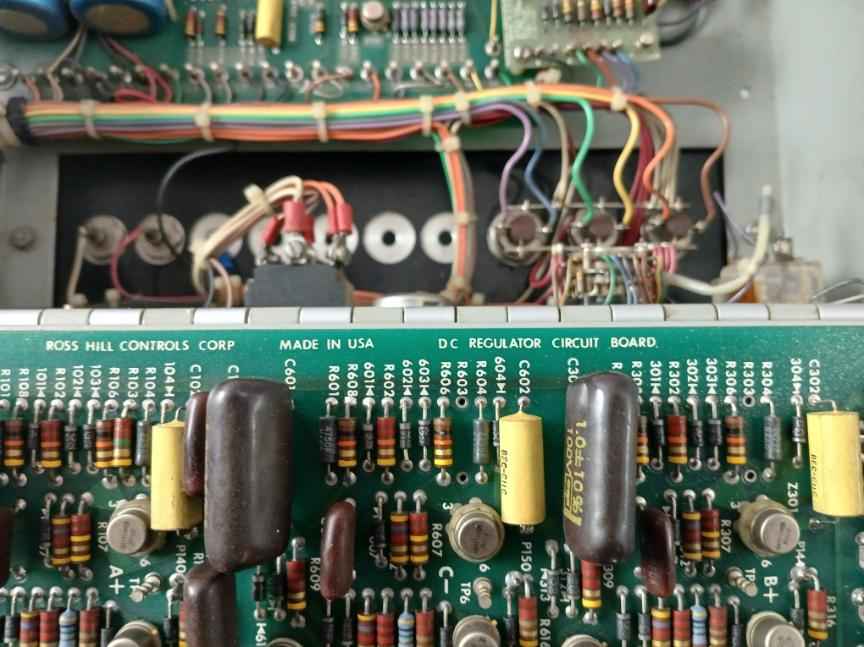

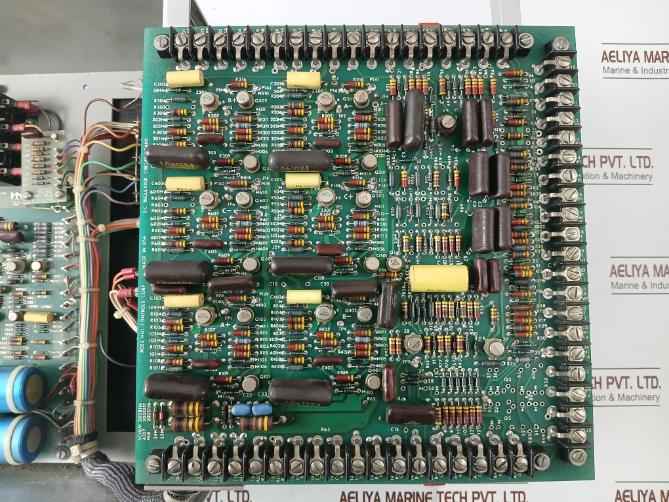

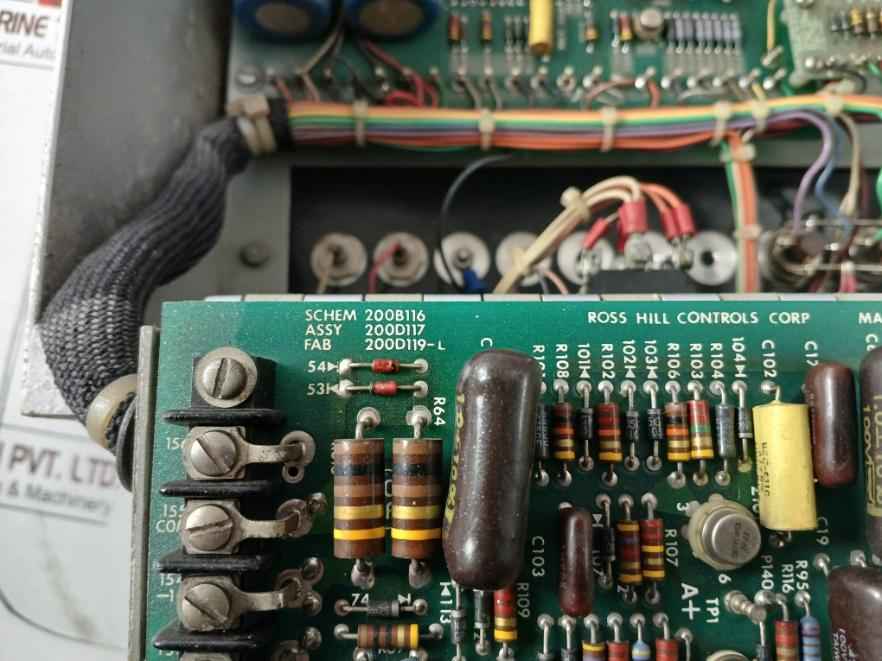

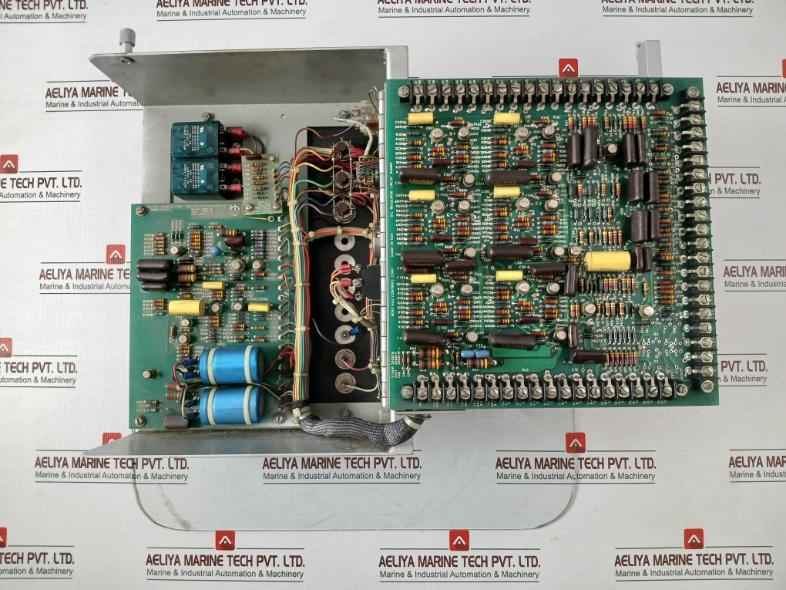

Dc Regulator Circuit Board
Schem 200B116
Assy 200D117
Fab 200D119-l

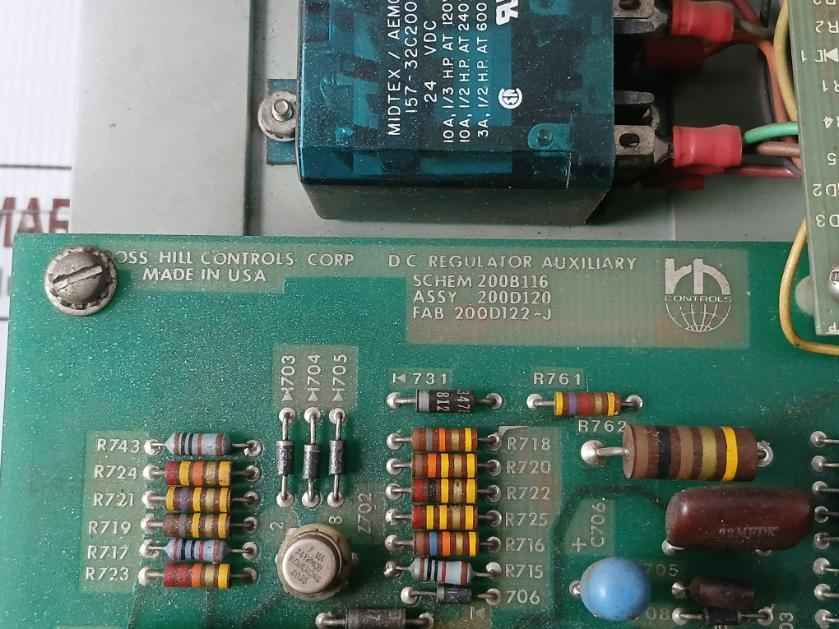

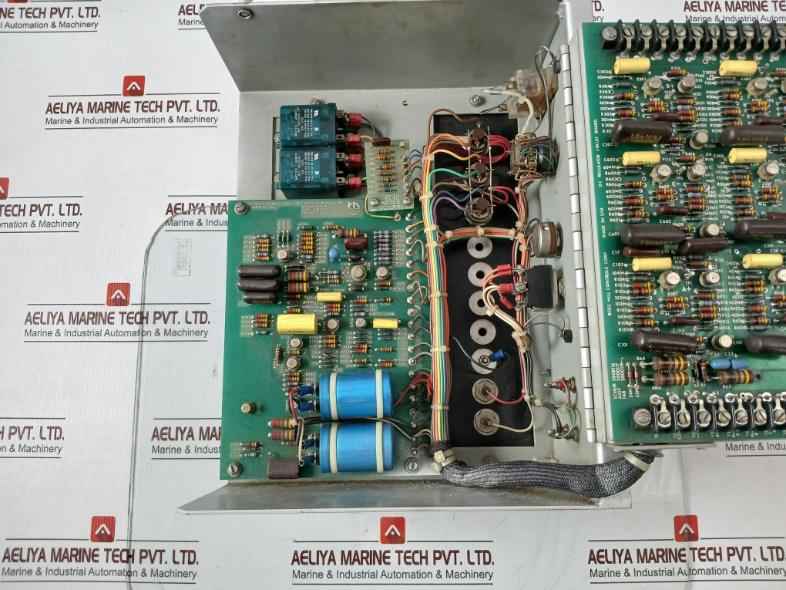

Dc Regulator Auxiliary
Assy 200D120
Fab 200D122-j

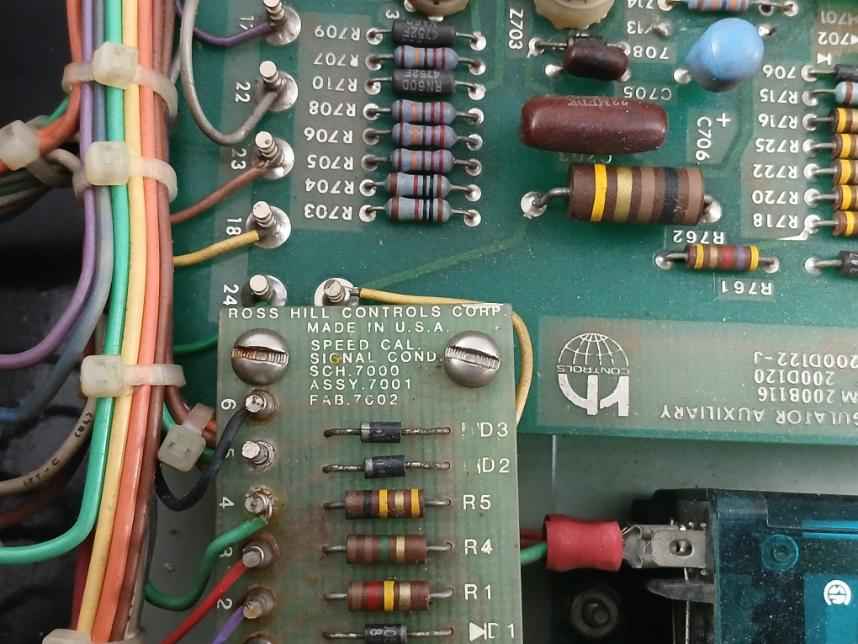

Speed Cal. Signal Cond.
Sch. 7000
Assy. 7001
Fab. 7002
Made In U.S.A.
Weight: 9.120 Kg
