Rotech Acr1Areaazzm252M20Al Pneumatic Actuator Assembly With Dr00030U Al 8 Bar
Rotech Antriebselemente Gmbh
Parker Lucifer
Torque For Cover 1,5 To 2 Nm
Model Nr.: Acr1Areaazzm252M20Al
Alb-model Crouzet 83.139.1
Gehause Aluminium 160X82X60/Aluminum Housing 160X82X60
Mit M25X1.5 + M20X1.5 Sw. Exe
T80°C Ip65

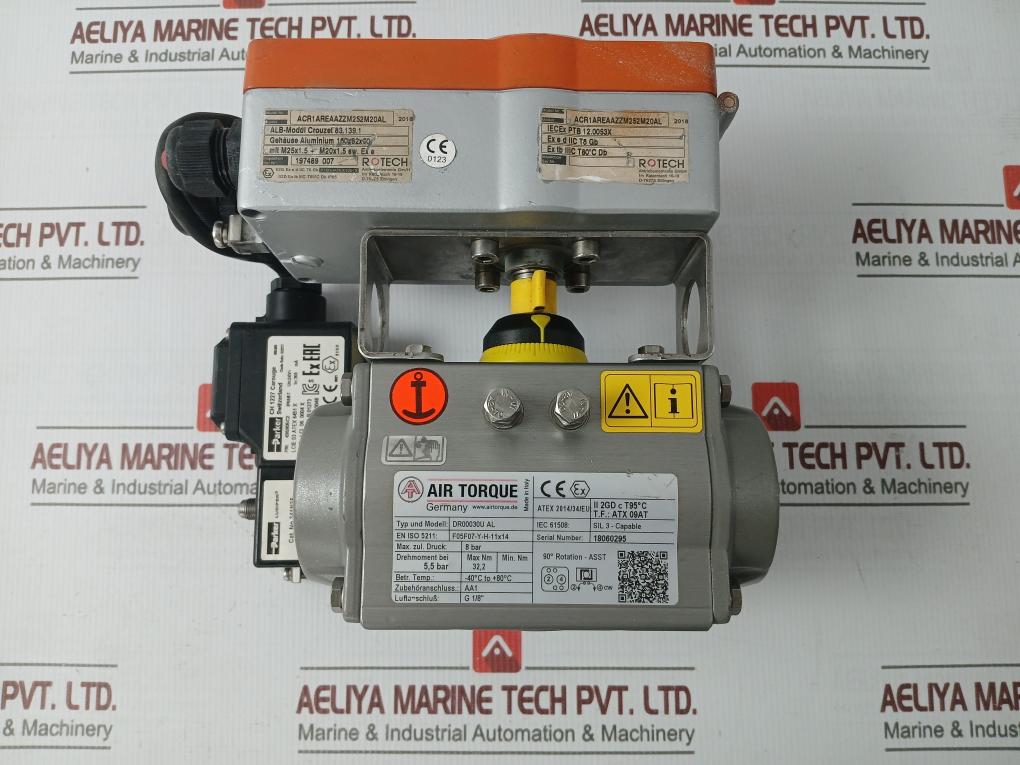

Typ Und Modell/Type And Model: Dr00030U Al
En Iso 5211: F05F07-y-h-11X14
Max. Zul.Druck/Max Allowed Pressure: 8 Bar
Drehmoment Bei/Torque At: 5,5 Bar
Max Nm: 32,2
Betr. Temp./Operating Temp.: -40°C To +80°C
Zubehoranschluss/Accessory Connection: Aa1
Luftanschluẞ/Air Connection: G 1/8”
90°Rotation-asst

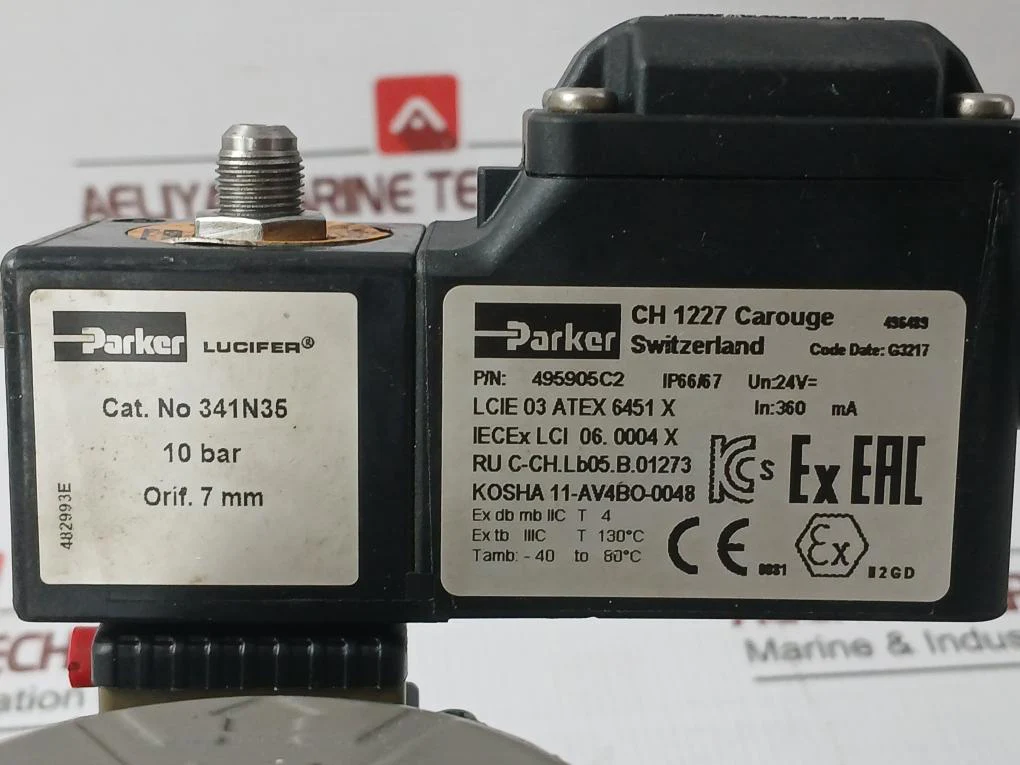

Cat. No: 341N35
10 Bar
Orif. 7 Mm
482993E
P/N: 495905C2
Ip66/67
Un: 24V=
T4
T 130°C
Tamb: -40 To 80°C
G 1/4 Ms
Wwc W28Ml
1316035/131603S
496548
Designed In Switzerland
Made In Italy
Weight: 3.500 Kg
