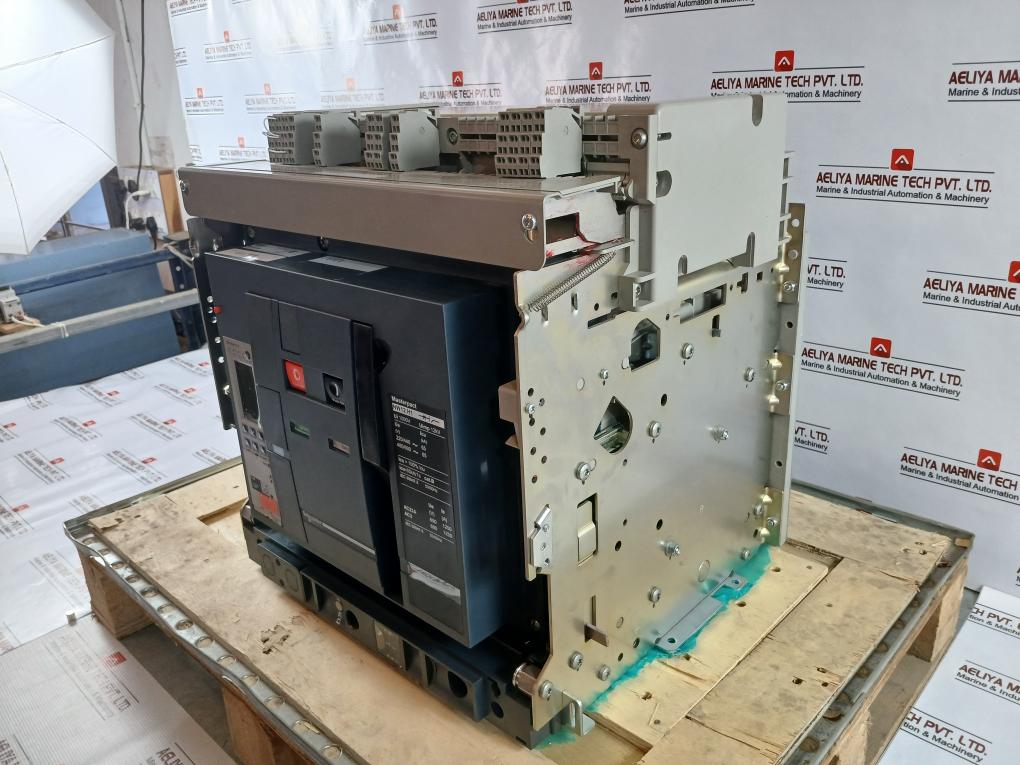

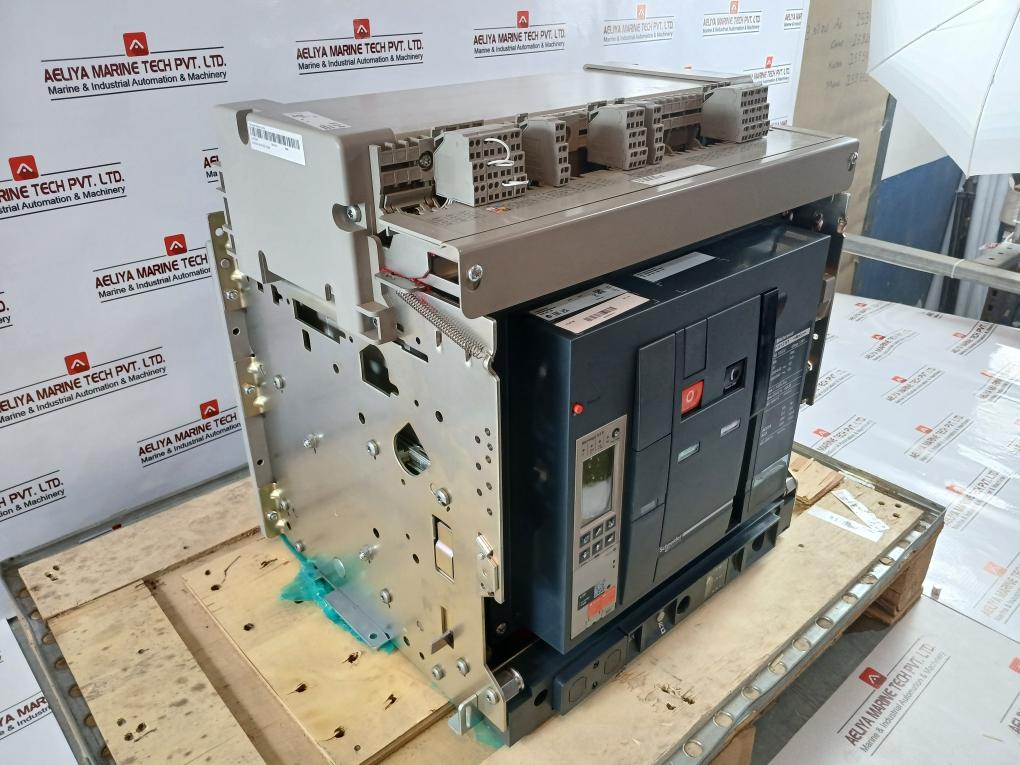

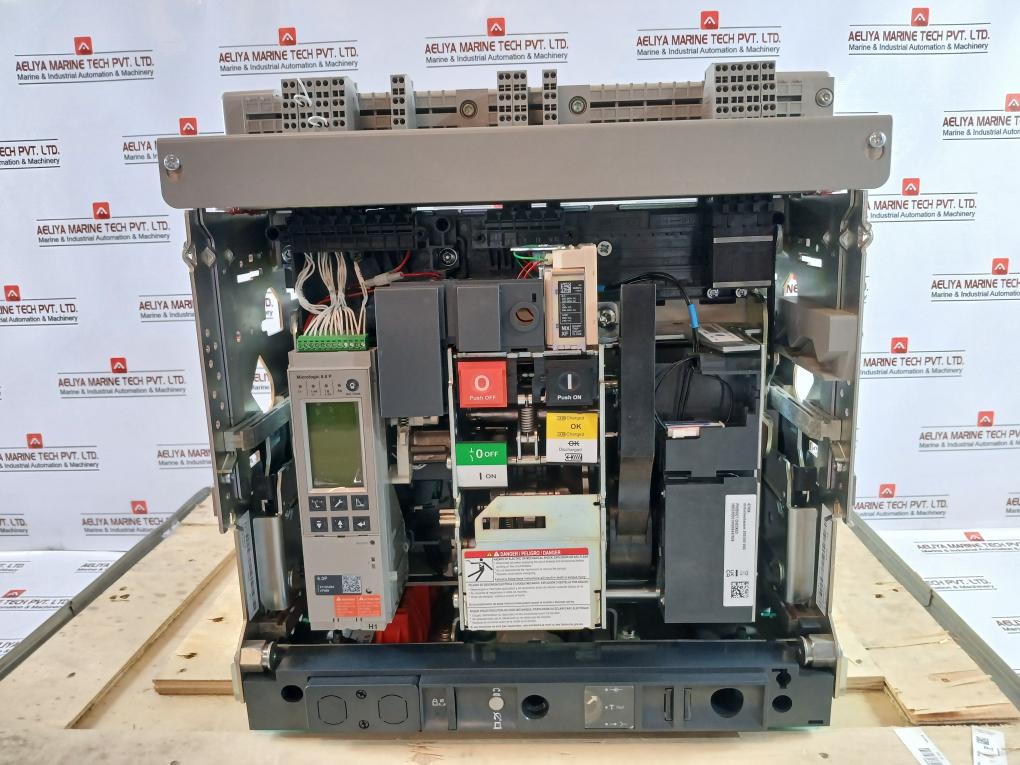

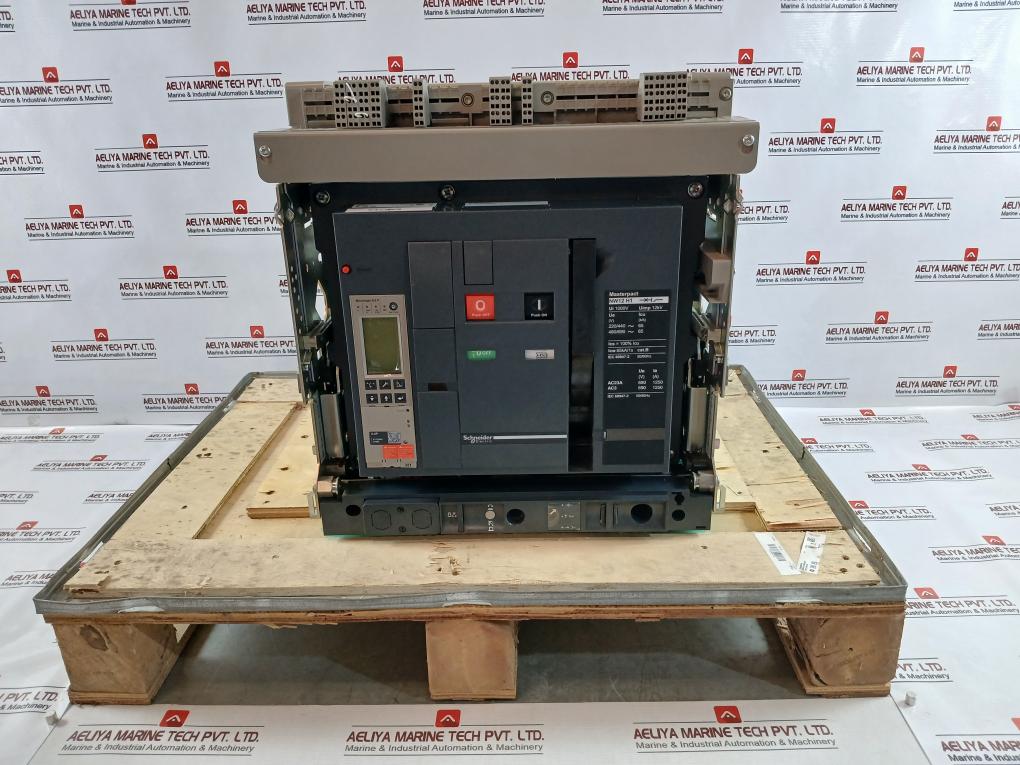

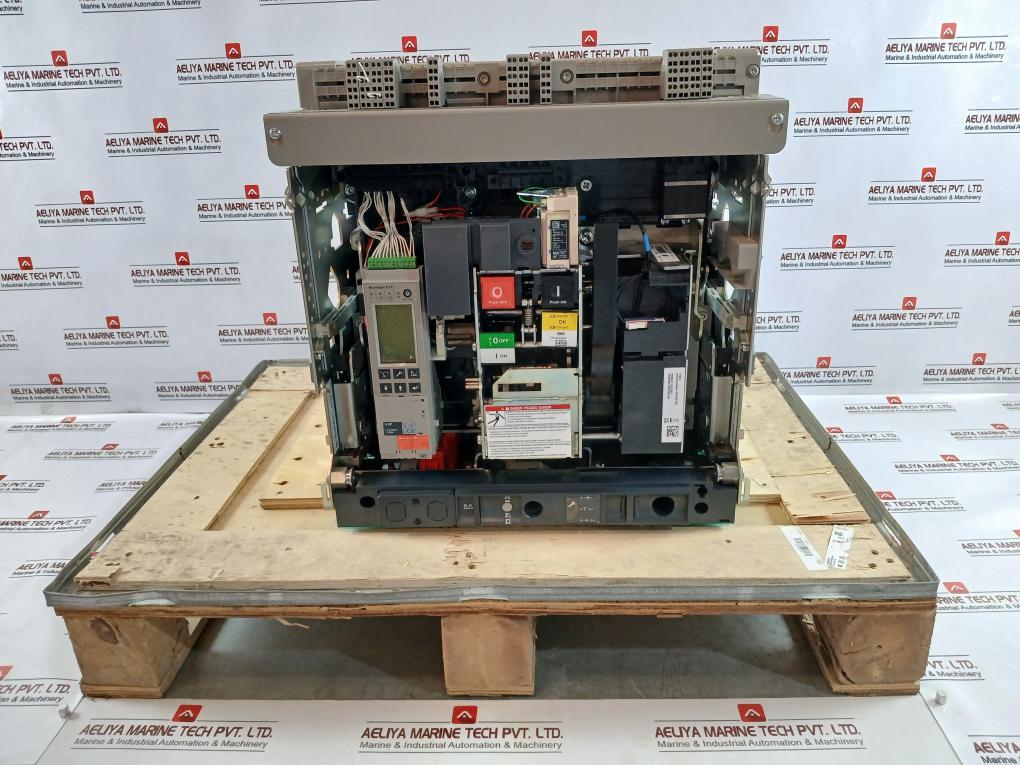

Schneider Electric Nw12 H1 Masterpact Nw Circuit Breaker 690V-ac-50/60Hz 1000V
Adapted By Schneider Electric
Schneider Electric India Private Limited
Assembled By Schneider Electric

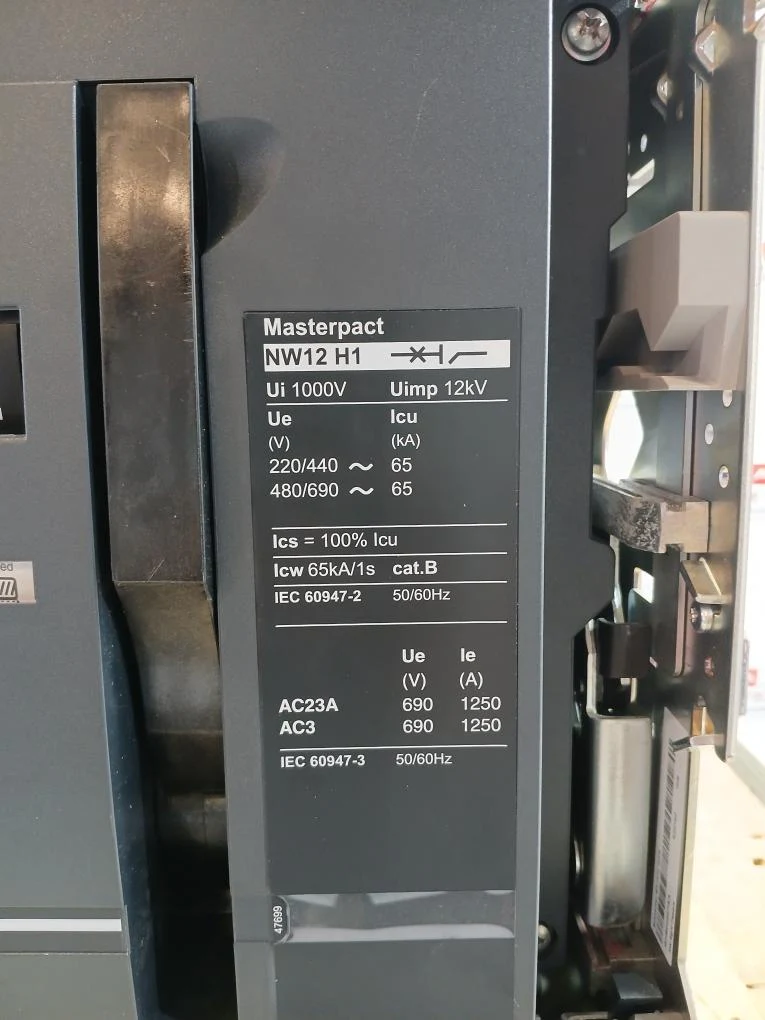

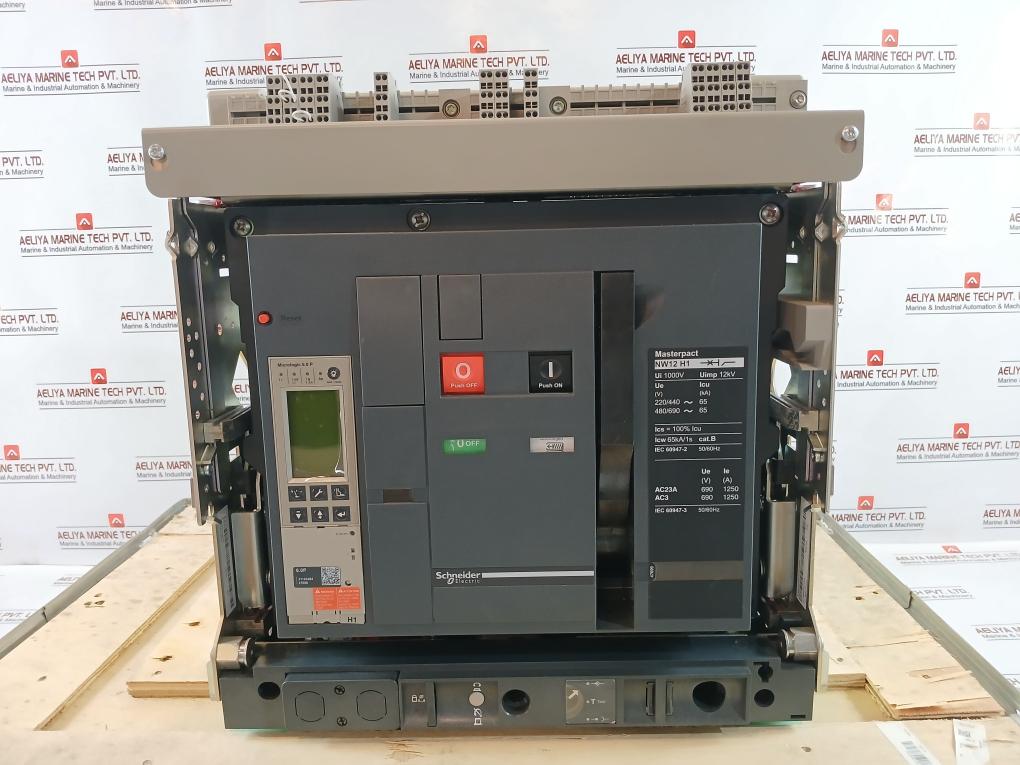

Masterpact Nw

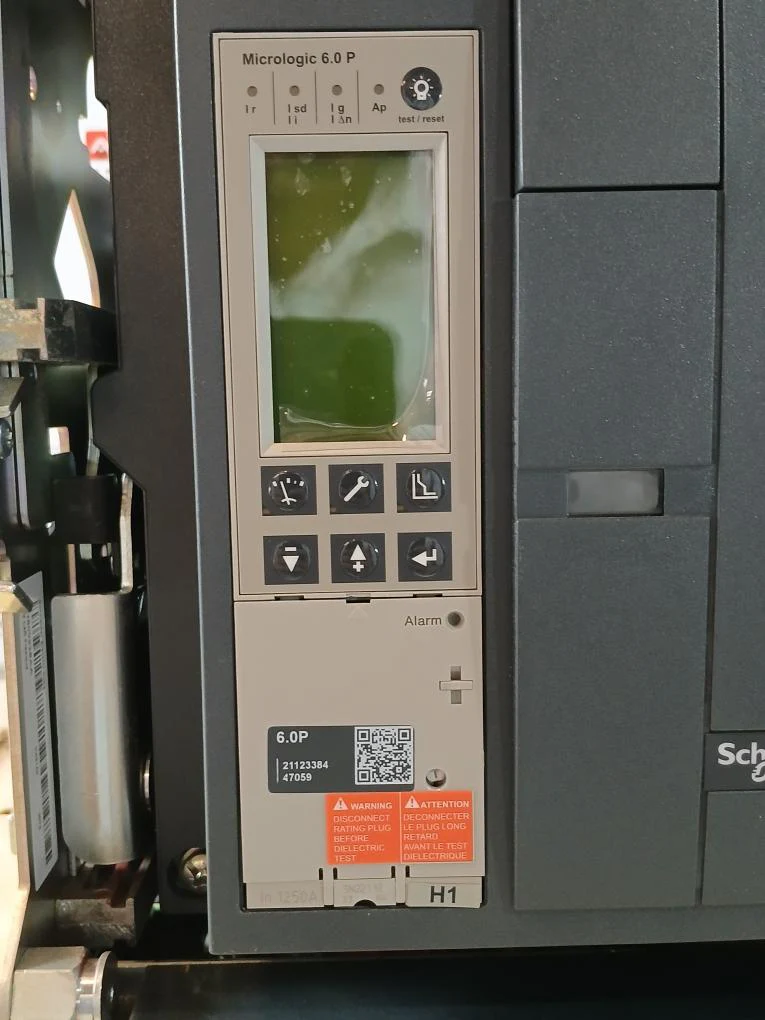

Micrologic 6.0 P
Nw12 H1
Ui: 1000V
Uimp: 12Kv
Ue                Icu
(V)                (Ka)
220/440~    65
480/690~    65
Ics= 100% Icu
Icw 65Ka/1S
Cat. B
Iec 60947-2
50/60Hz
              Ue   Ie
              (V)   (A)
Ac23A  690 1250
Ac3       690 1250
Iec 60947-3

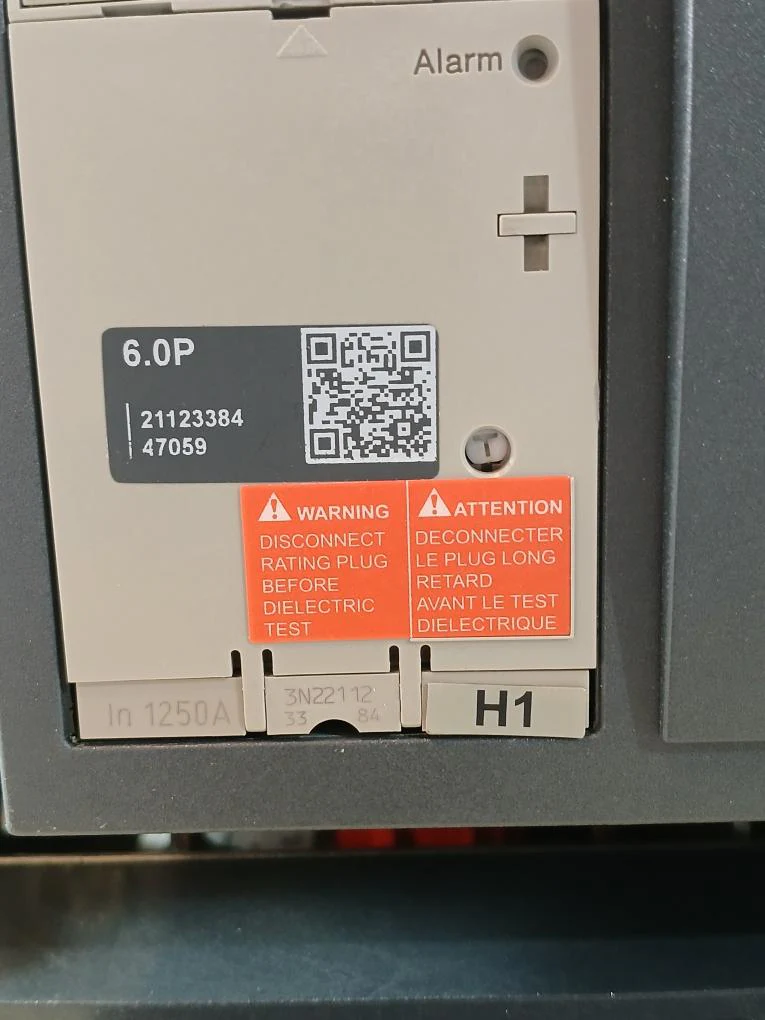

6.0P
21123384
47059
In: 1250A
3N22112
33 84

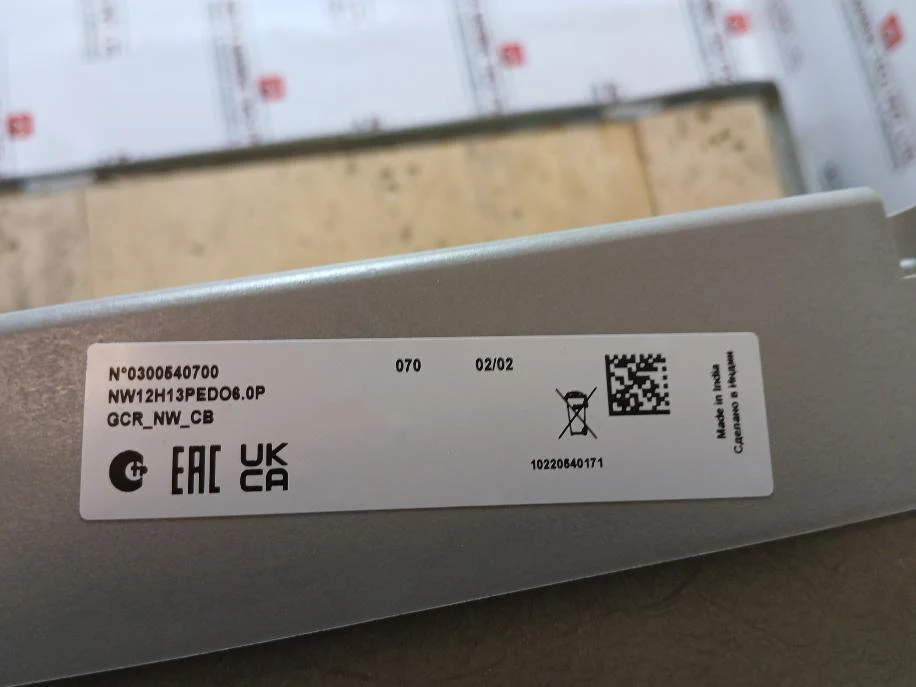

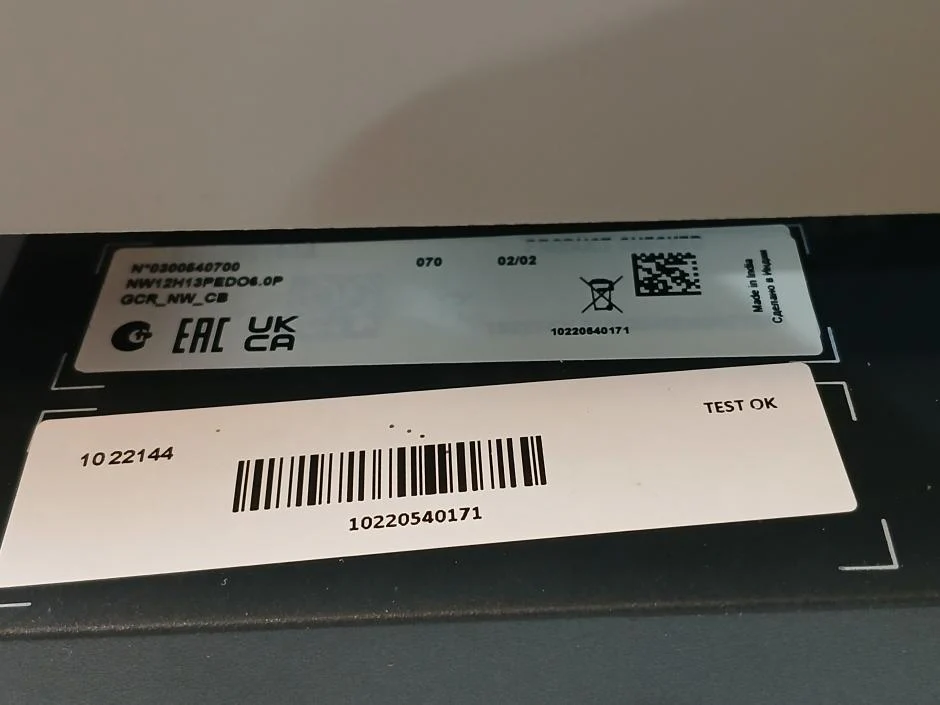

N˚0300540700 070

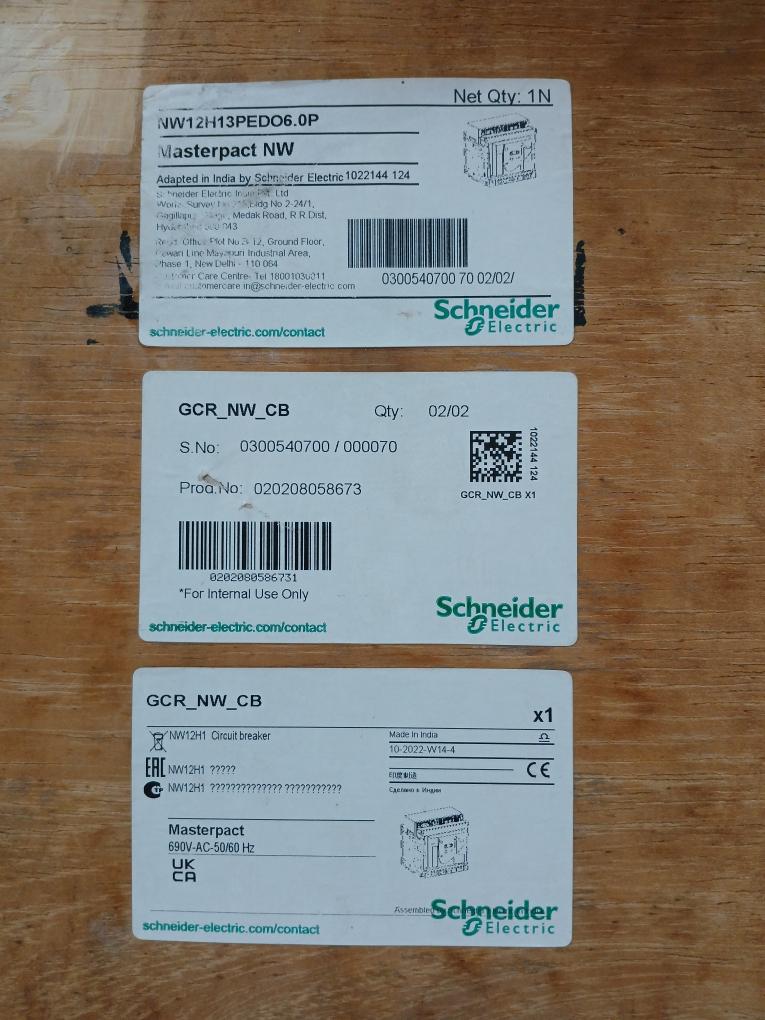

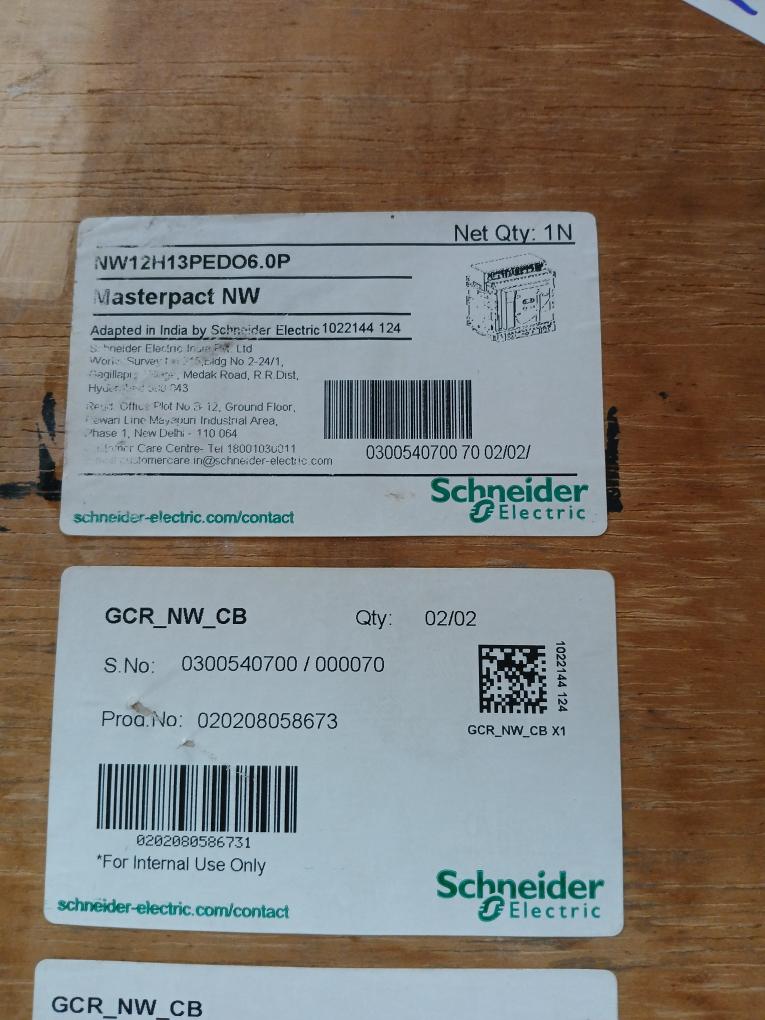

Reference Type: Nw12H13Pedo6.0P
Gcr_Nw_Cb
10220540171
1022144

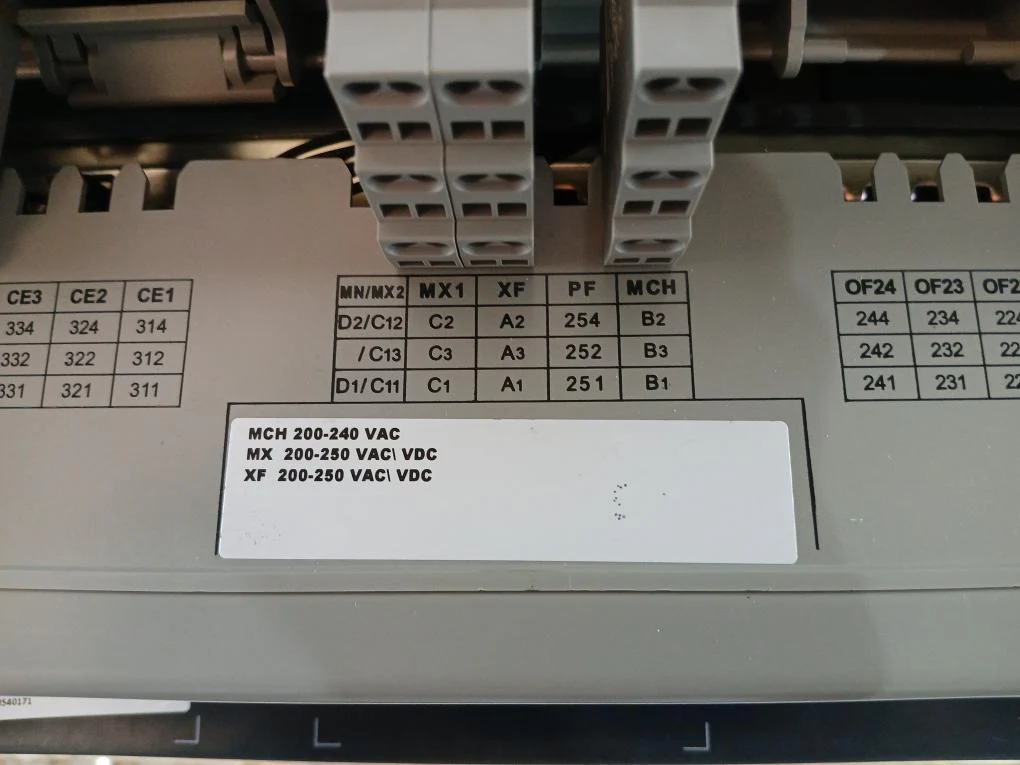

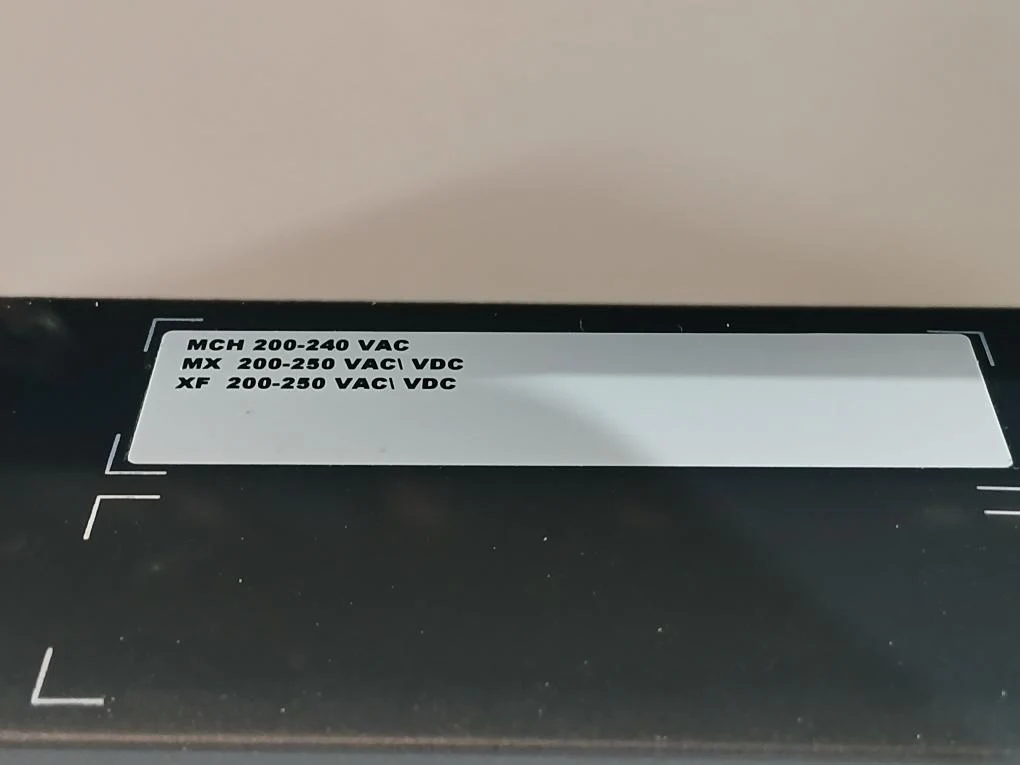

Mch 200-240 Vac
Mx 200-250 Vac\Vdc
Xf 200-250 Vac\Vdc
Breaker Type: Drawout
48603

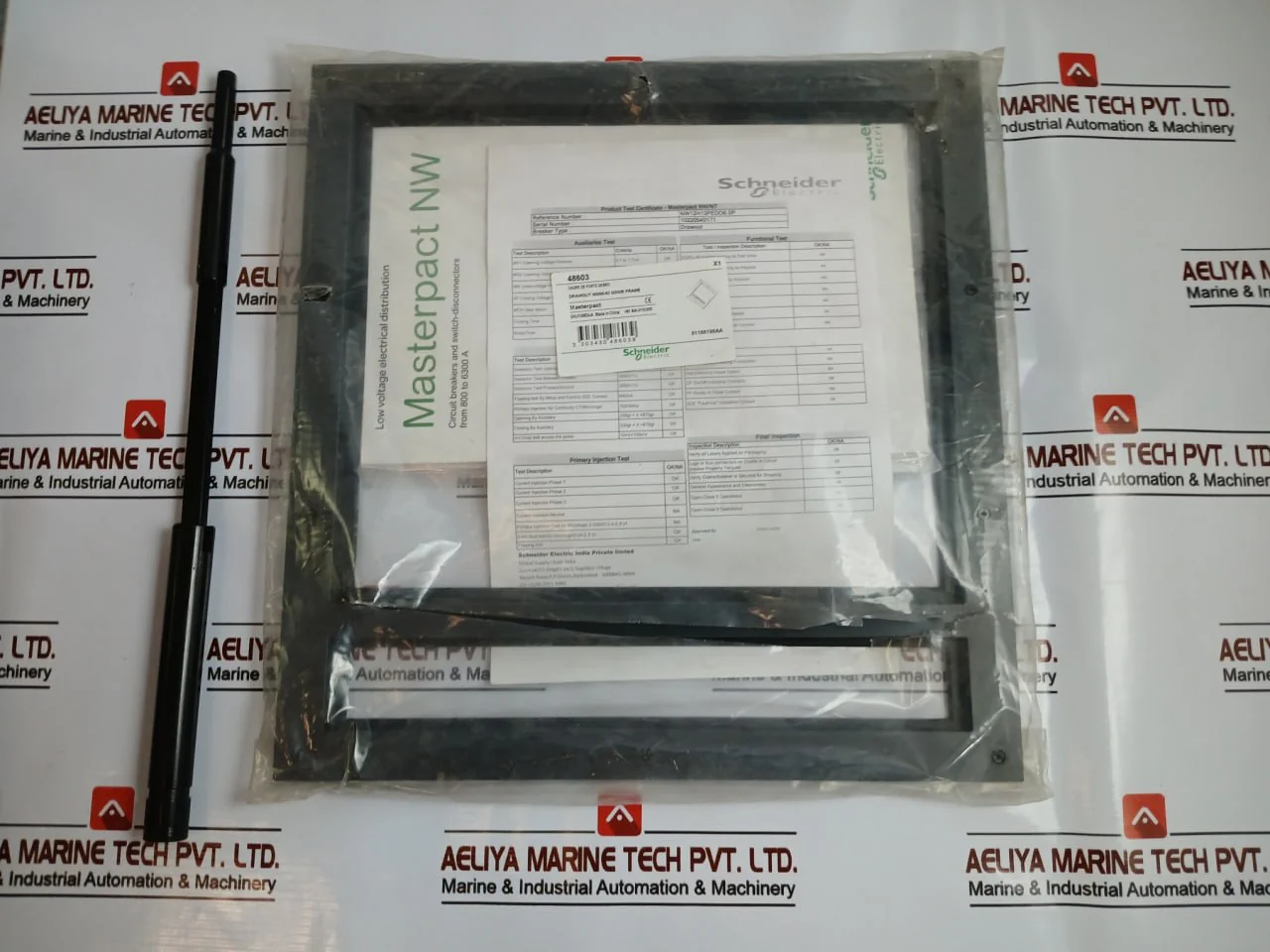

Drawout Nw06-63 Door Frame
51156196Aa
3 303430 486039
1022144 124
0300540700 70
Prod. No: 020208058673
0202080586731

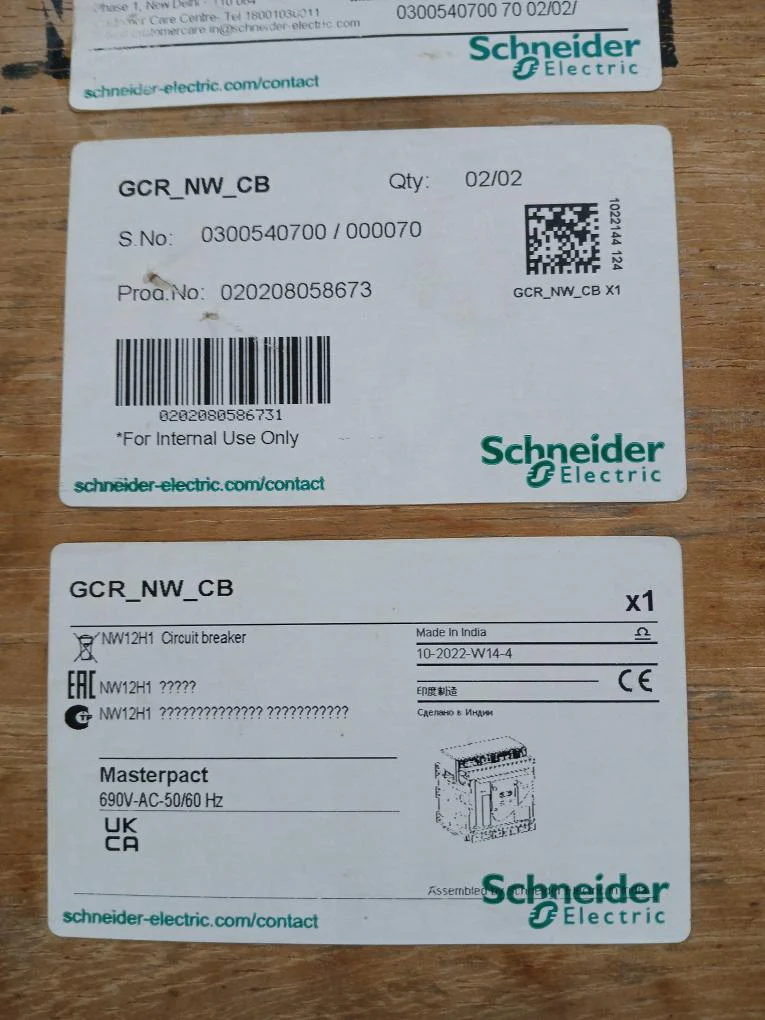

Gcr_Nw_Cb X1
Nw12H1 Circuit Breaker
690V-ac-50/60Hz
10-2022-w14-4

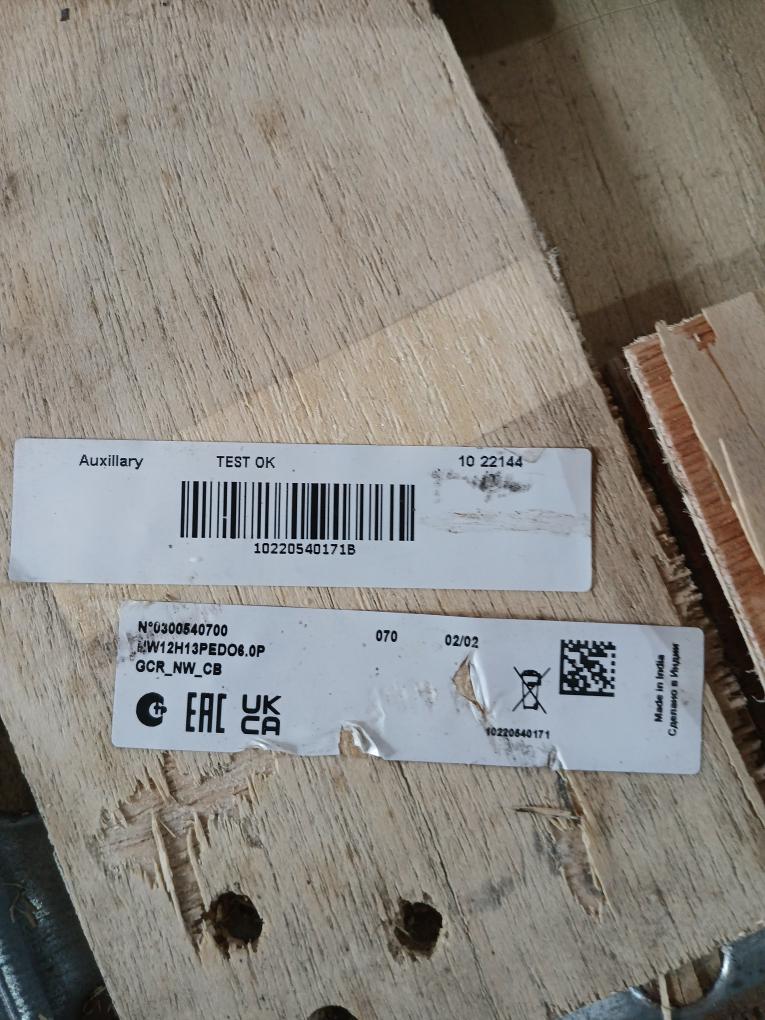

Auxiliary
10 22144
10220540171B

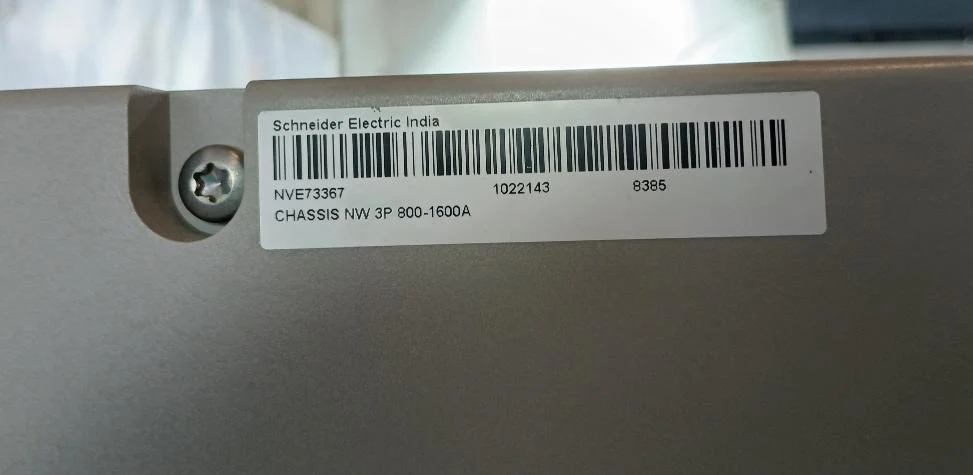

Nve73367

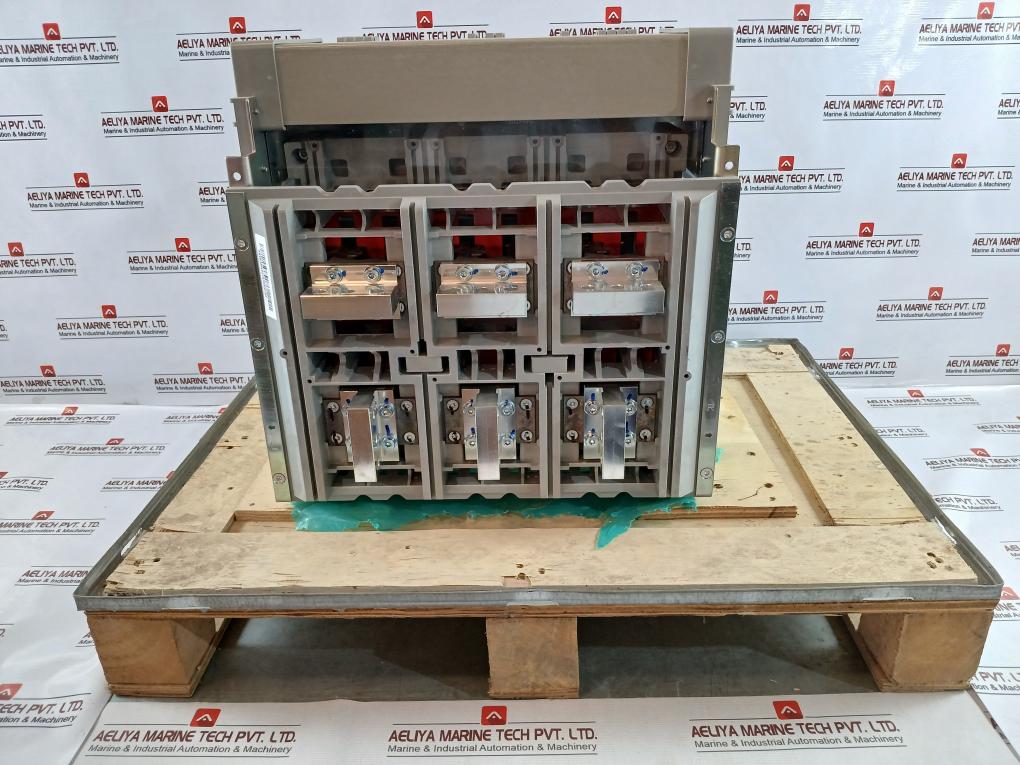

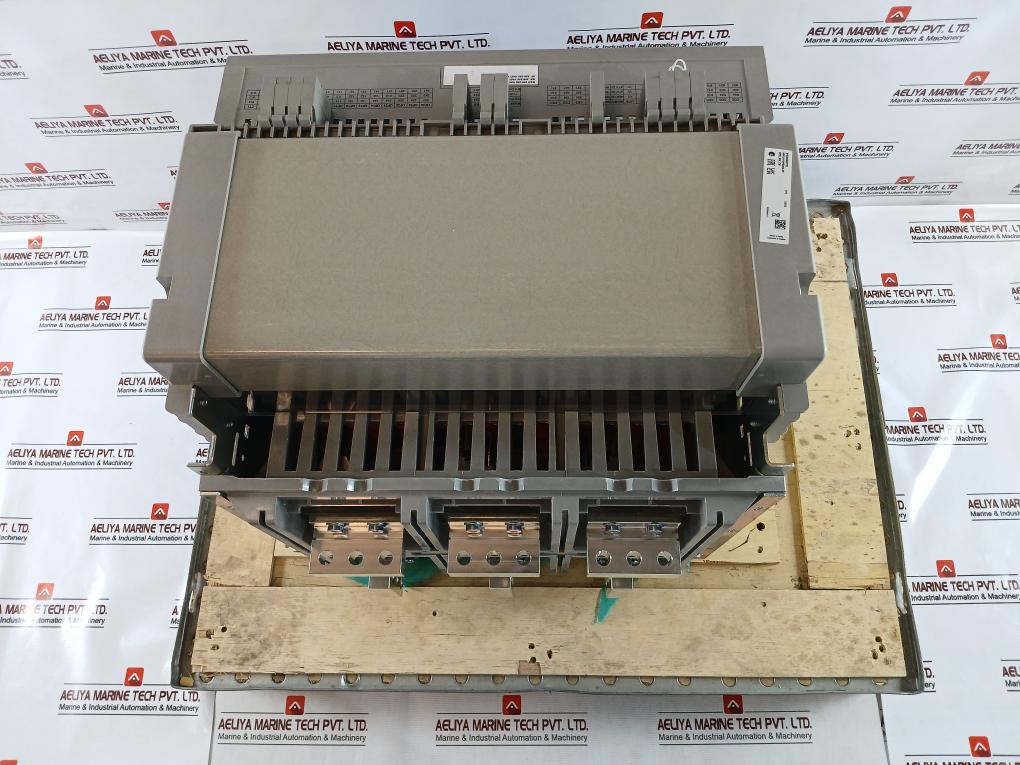

Chassis Nw 3P 800-1600A
1022143 8385

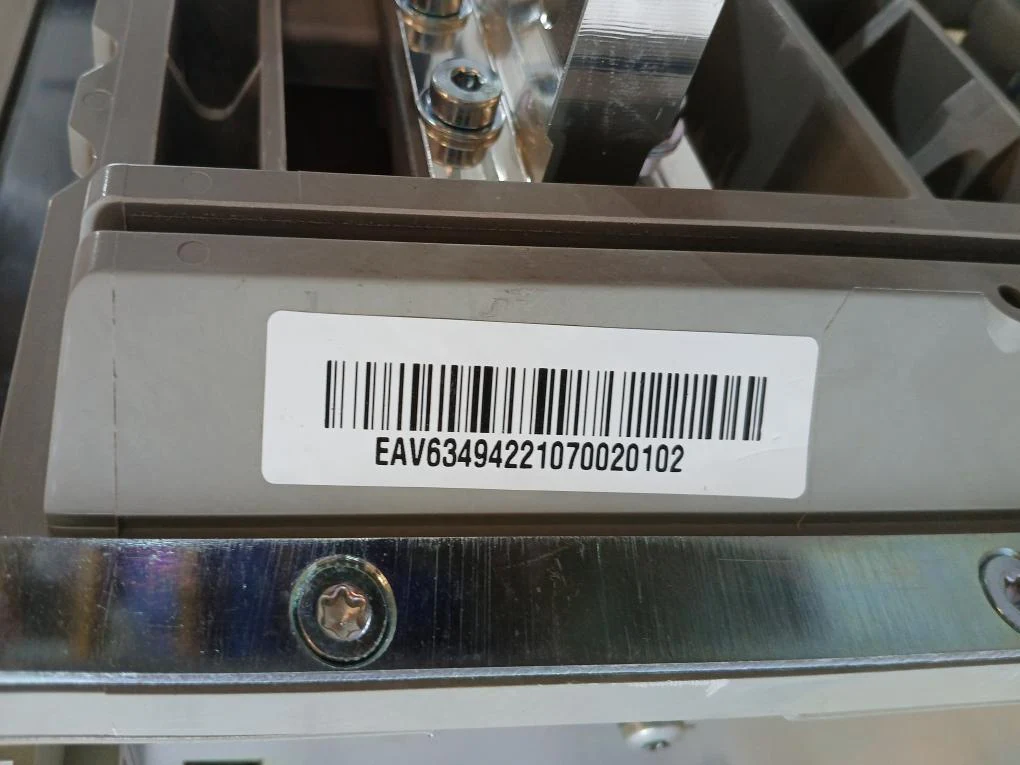

Eav63494221070020102
Assembled In India
Adapted In India
Made In India
Weight: 102 Kg
