Specification	Details

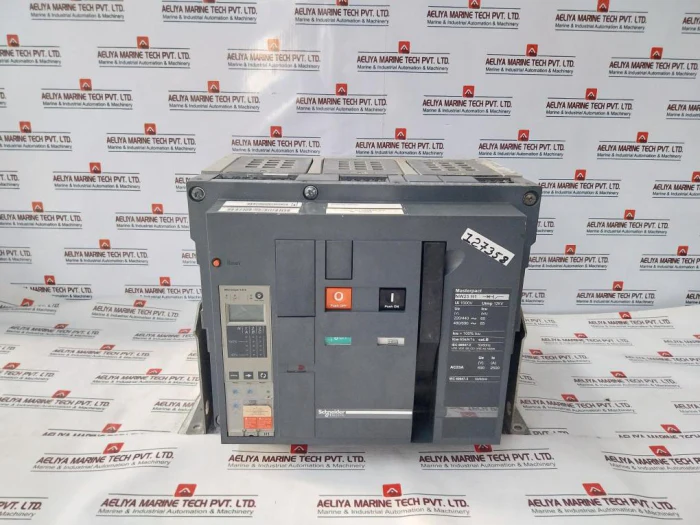

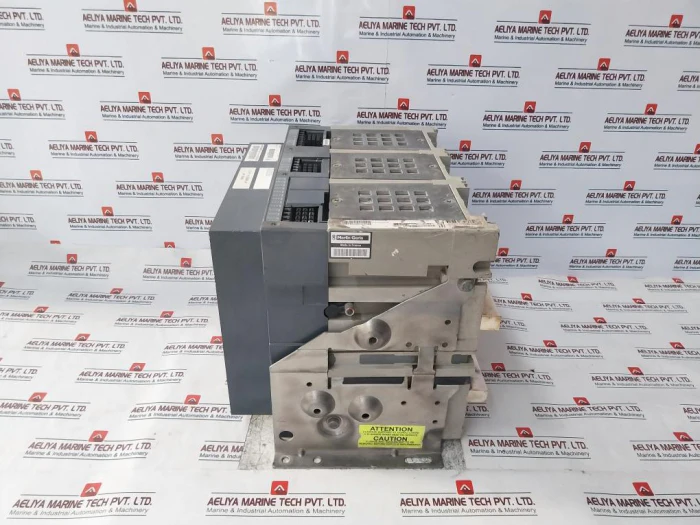

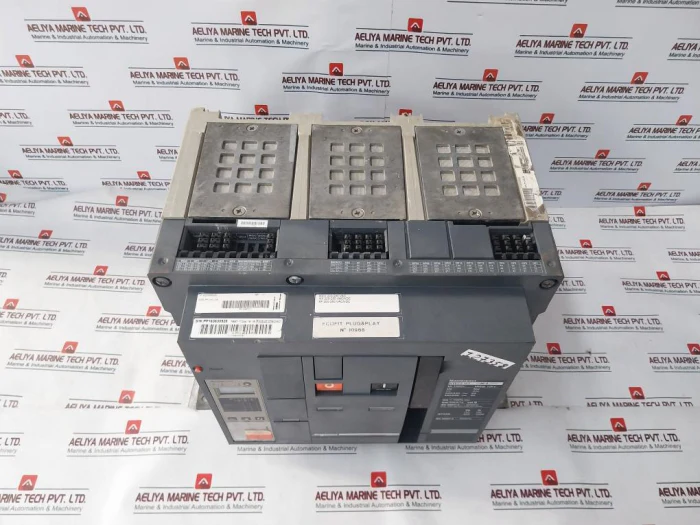

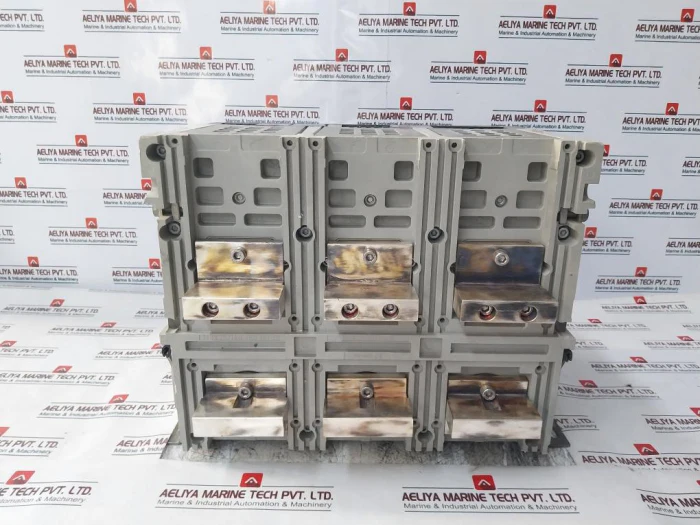

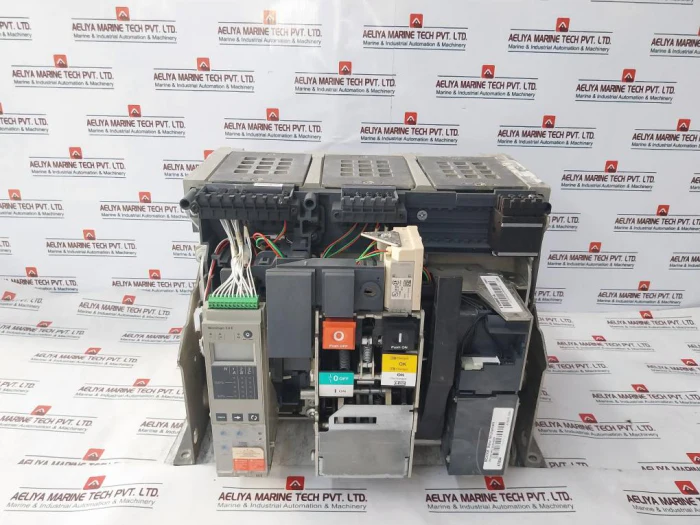

Product Name	Schneider Electric Nw25 H1 Masterpact Circuit Breaker 2500 Amp
Brand	Schneider Electric
Sub-Brand	Merlin Gerin
Product Line	Ecofit
Trip Unit	Micrologic 5.0E
Series	Masterpact
Model	Nw25 H1
Ui	1000V
Uimp	12kV
Ue (V)	220/440~, 480/690~
Icu (Ka)	65
Ics	100% Icu
Icw	65Ka/1S
Category	Cat.B
Standard	IEC 60947-2
Frequency	50/60 Hz
Application	AC23A
Operating Voltage	690V
Rated Current (Ie)	2500A
Standard 2	IEC 60947-3
Rated Current (In)	2500A
Serial Number	3N16345
Product Code	02 56
Frame Type	H1
Reference Number	N˚ 20205365226
Part Code	380
Catalog Reference	Gcr_Pp_Nw_Cb
Control Voltage (MCH)	200-240 Vac
Control Voltage (MX)	200-250 Vac/Vdc
Control Voltage (XF)	200-250 Vac/Vdc
Installation	Plug & Play
Order Number	N˚ 10988
Control Unit	Mn/Mx2 Mx1
Accessory	Xf
Part Number	51066621A
Production Region	N Moyen/ N Medium: 3
Manufacturing Code	A 16173
Component Number	161735106662101004207430
Actuator	Mch/Xm Motor Mechanism
Control Voltage	200-240 Vac
Frequency Range	50-60-400Hz
Identification Code	47894
Additional Code	016343478 49
Batch Number	A 16343 038H
Engineering Number	E 103955
Product Code 2	33662
Specification Code	04441662Ea
Unit Type	Circuit Breaker Trip Unit
Product Code 3	E161835
Batch Code	E63335
Product Code 4	47602
Serial Number 2	3N16345
Spare Part	Use Schneider Part 33593
Product Code 5	51066271
Additional Code 2	38H
Batch Code 2	1617351066271
Control Unit 2	Mx-xf/Sht-shc
Control Voltage 2	200-250 Vac-dc
Serial Number 3	3N16323
Product Code 6	33662
Country of Origin	Made in France
Weight	51 Kg

The Schneider Electric NW25 H1 Masterpact Circuit Breaker 2500 Amp is a robust solution designed to ensure efficient power distribution and management in industrial contexts. As a key component in Schneider Electric's Masterpact range, this circuit breaker offers exceptional performance and reliability, making it suitable for various applications where high-current protection is essential. With a rated current of 2500 amps, it effectively safeguards electrical circuits against overloads and short circuits, thereby enhancing the overall safety and operational continuity of electrical systems. This circuit breaker is designed to meet the demanding requirements of modern industrial services, providing reliable protection without compromising on efficiency. Its advanced design incorporates innovative technologies that optimize performance and minimize downtime. The Schneider Electric NW25 H1 Masterpact Circuit Breaker 2500 Amp features a compact track, making it ideal for installations where space is limited. Its modular structure allows for easy integration into existing electrical systems, ensuring seamless operation and maintenance.

Key Functionalities of Nw25 H1 Circuit Breaker

1. It is equipped with advanced protection mechanisms including adjustable trip settings and complicated monitoring capabilities, which enable precise management of electrical loads. This ensures optimal performance under varying operational conditions, enhancing both safety and efficiency.
2. The circuit breaker is designed for durability and longevity, capable of withstanding harsh environmental conditions and heavy-duty usage typical in industrial contexts. Its robust construction and high-quality materials contribute to its reliability, making it a trusted choice for critical applications where downtime is not an option.
3. The Schneider Electric NW25 H1 Masterpact Circuit Breaker 2500 Amp incorporates smart technology that supports remote monitoring and diagnostics. This feature allows operators to monitor the breaker's performance in real-time, detect potential issues early, and take proactive maintenance measures. Such capabilities reduce operational risks and maintenance costs, ensuring uninterrupted power supply to essential equipment and processes.

Applications

The Schneider Electric NW25 H1 Masterpact Circuit Breaker 2500 Amp finds wide-ranging applications across various industries. In manufacturing plants, it serves as a crucial component in electrical distribution systems, protecting machinery and equipment from electrical faults while maintaining operational efficiency. Its high interrupting capacity ensures reliable performance even in high-demand environments, safeguarding production processes from disruptions. In commercial buildings and data centers, where continuous power supply is crucial, this circuit breaker provides essential protection for sensitive equipment and systems. Its ability to handle large currents and its adaptive features make it well-suited for ensuring stable electricity distribution and preventing downtime due to electrical faults. Moreover, in renewable energy installations such as solar farms and wind turbines, the Schneider Electric NW25 H1 Masterpact Circuit Breaker 2500 Amp plays an important role in managing and protecting electrical connections. Its robust design and advanced protection features contribute to the safe and efficient operation of renewable energy systems, supporting sustainable energy generation practices.

For those looking for more information on high-capacity circuit breakers, this product, the Schneider Electric Masterpact NW25 H1 Circuit Breaker 2500A , offers robust performance and advanced protection features, making it an ideal choice for demanding electrical applications.
