Schneider Electric Nw40 H2 Masterpact Nw Circuit Breaker Iec 60947-2 50/60Hz
Assembled By Schneider Electric India Pvt Ltd
Adapted In India By Schneider Electric

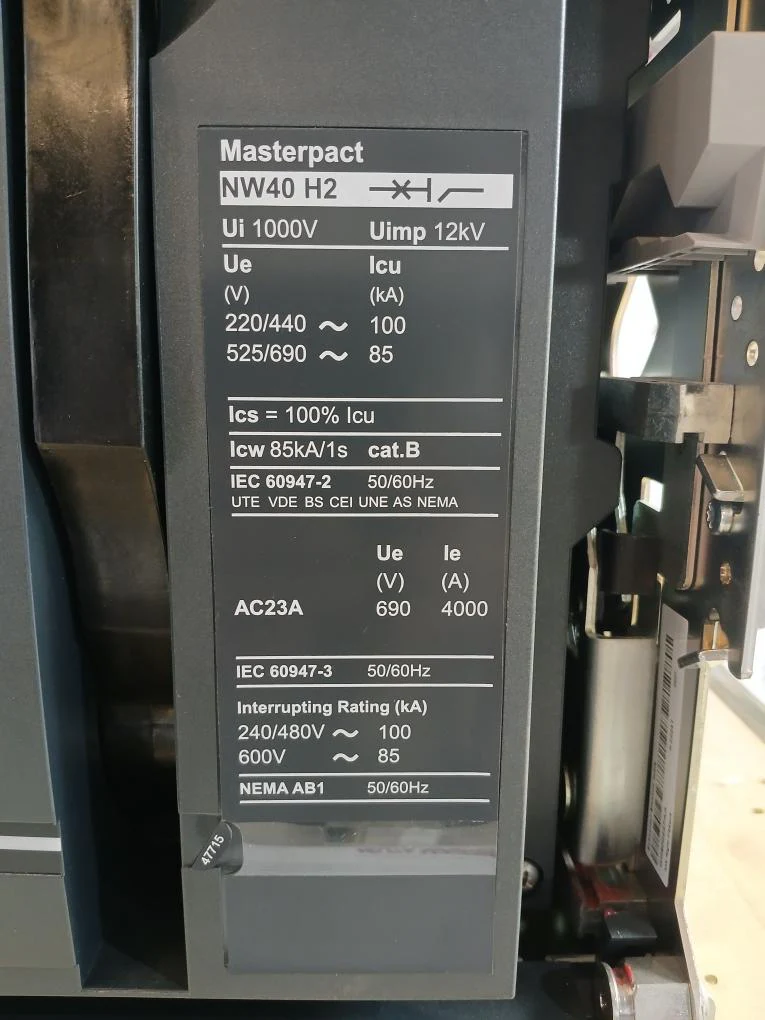

Masterpact
Masterpact Nw

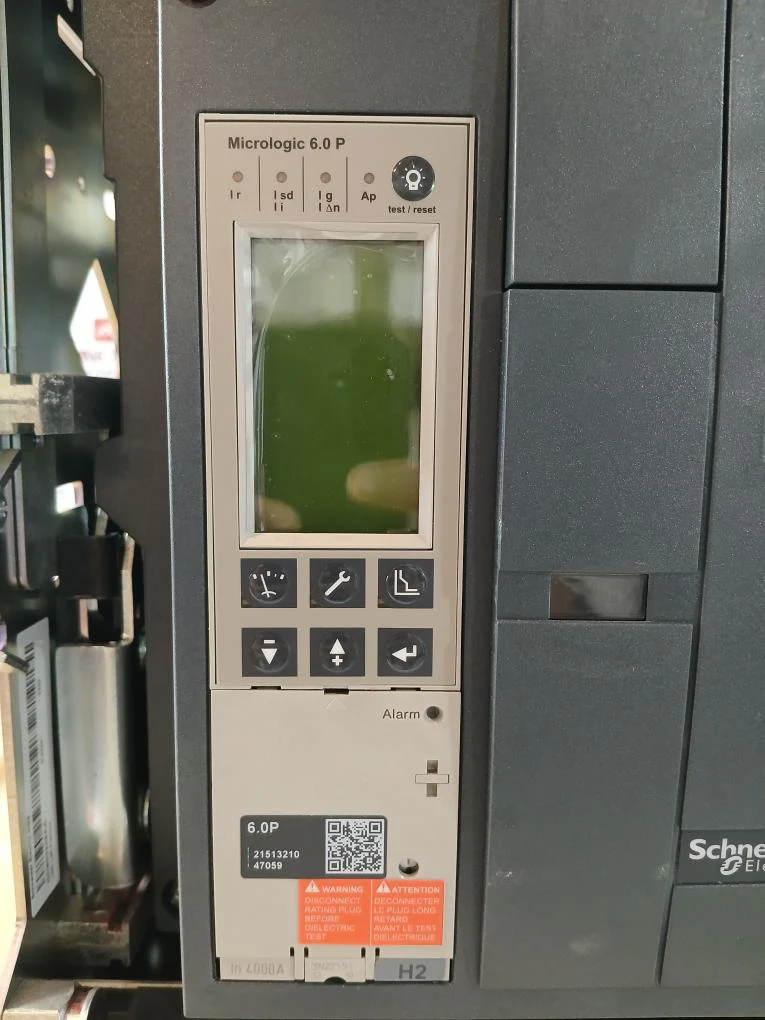

Micrologic 6.0 P
Nw40 H2
Ui: 1000V Uimp: 12Kv
Ue (V)         Icu (Ka)
220/440~    100
525/690~   85
Ics=100% Icu
Icw 85Ka/1S Cat.B
Iec 60947-2 50/60Hz
                 Ue(V) Ie(A)
Ac23A     690    4000
Iec 60947-3
Interrupting Rating (Ka)
240/480V~ 100
600V~ 85
Nema Ab1
47715

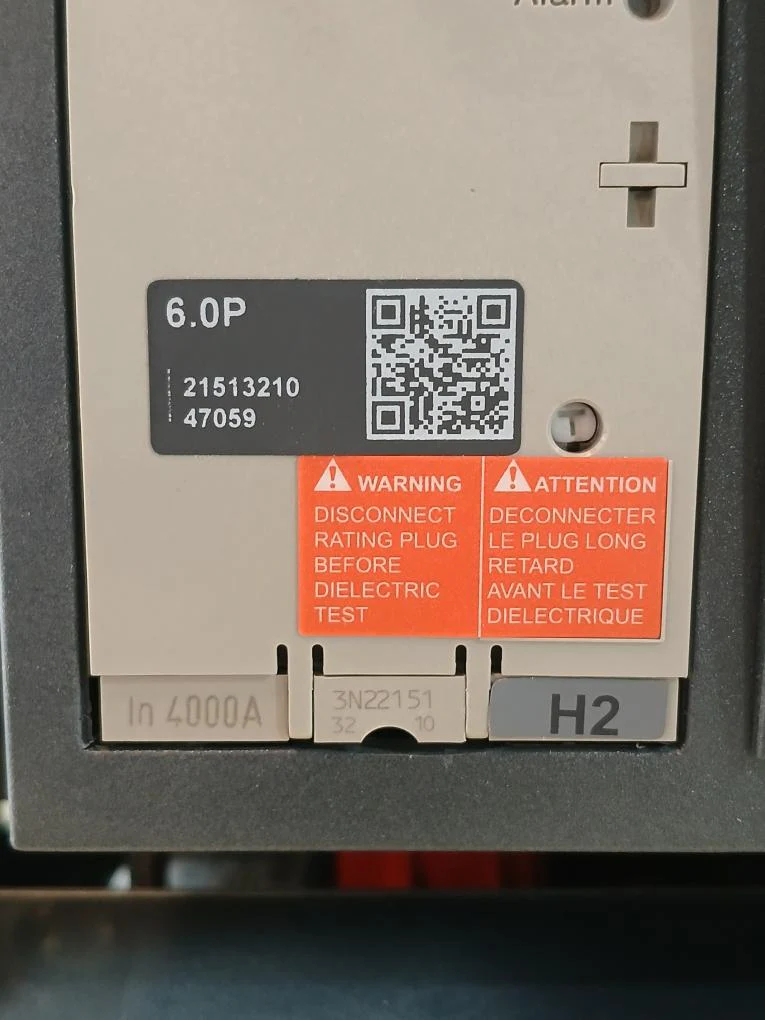

6.0P
21513210
47059
In: 4000A
3N22151
32 10
H2

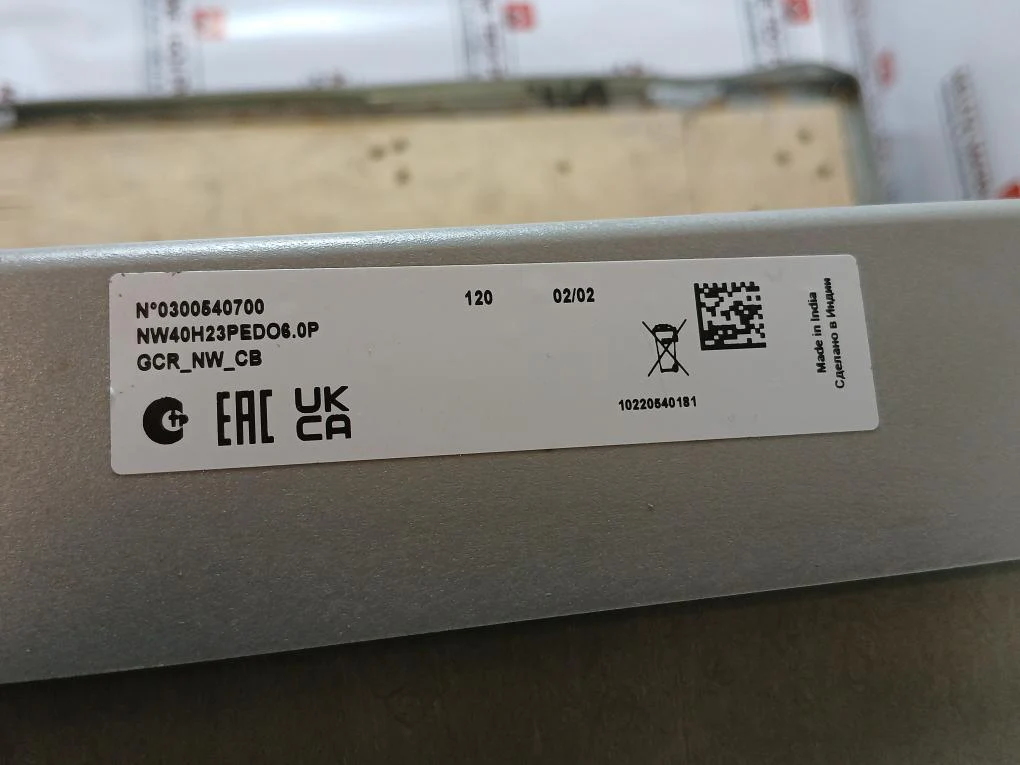

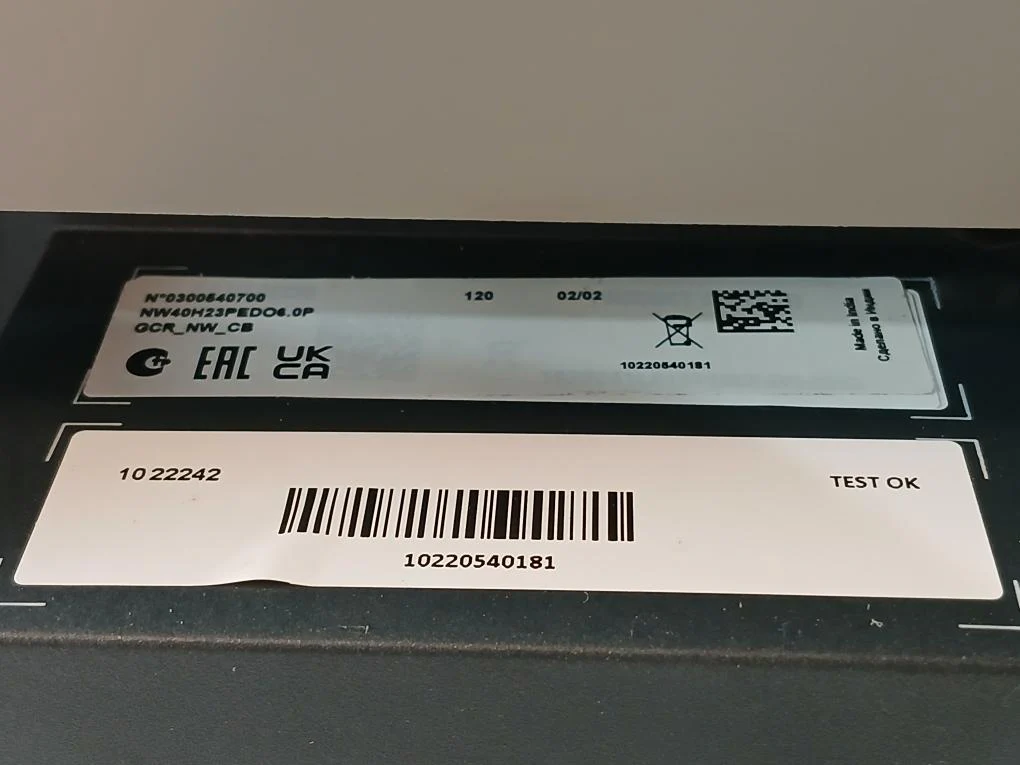

N°0300540700

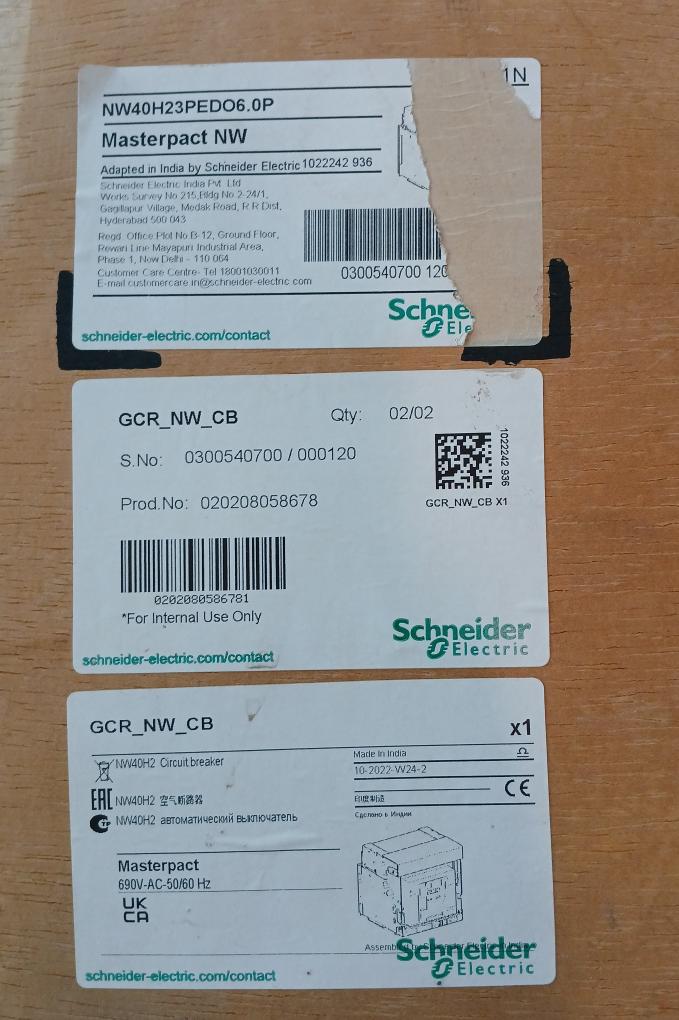

Reference Number: Nw40H23Pedo6.0P
Gcr_Nw_Cb
120
1022242

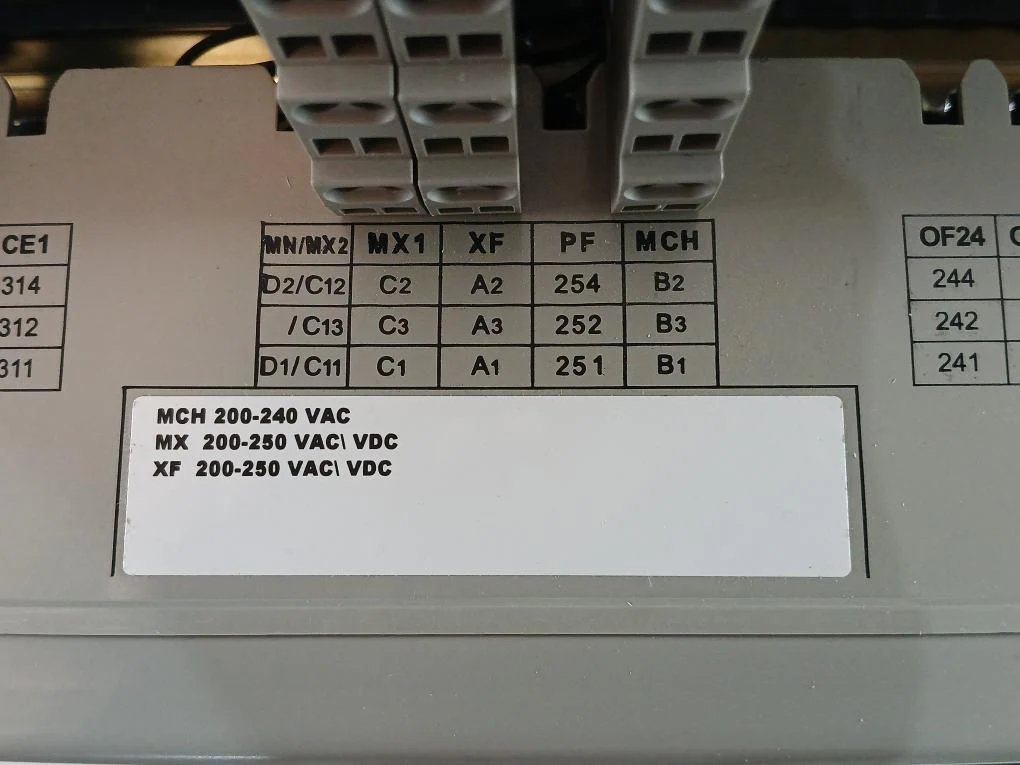

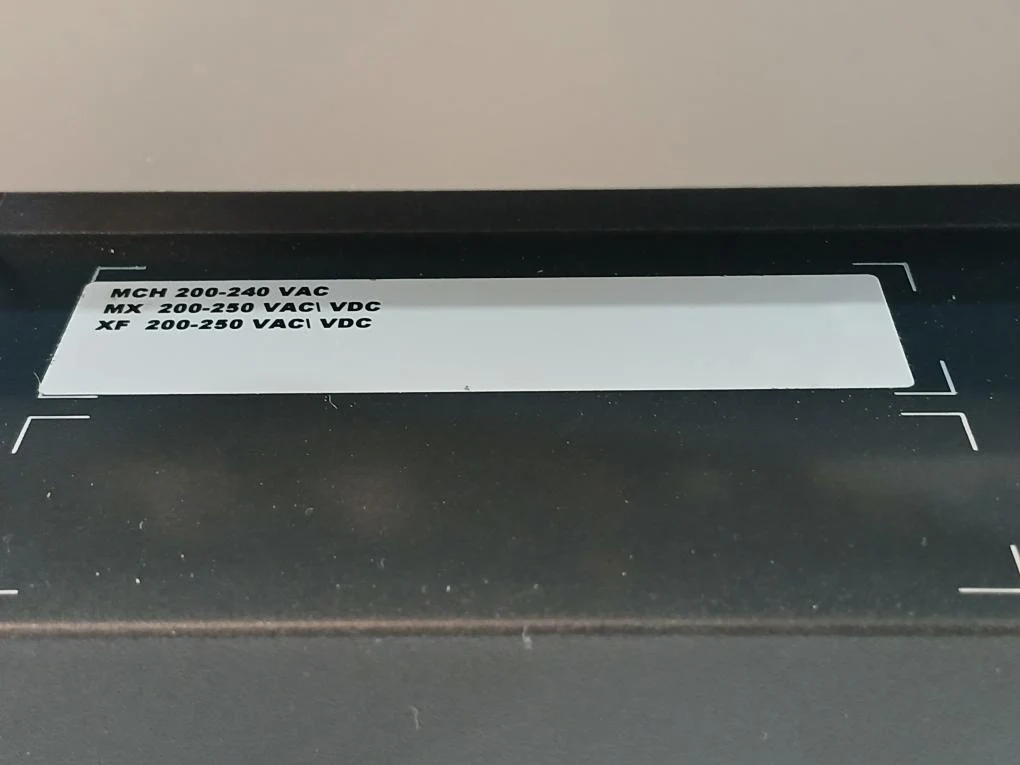

Mch 200-240 Vac
Mx 200-250 Vac/Vdc
Xf 200-250 Vac/Vdc

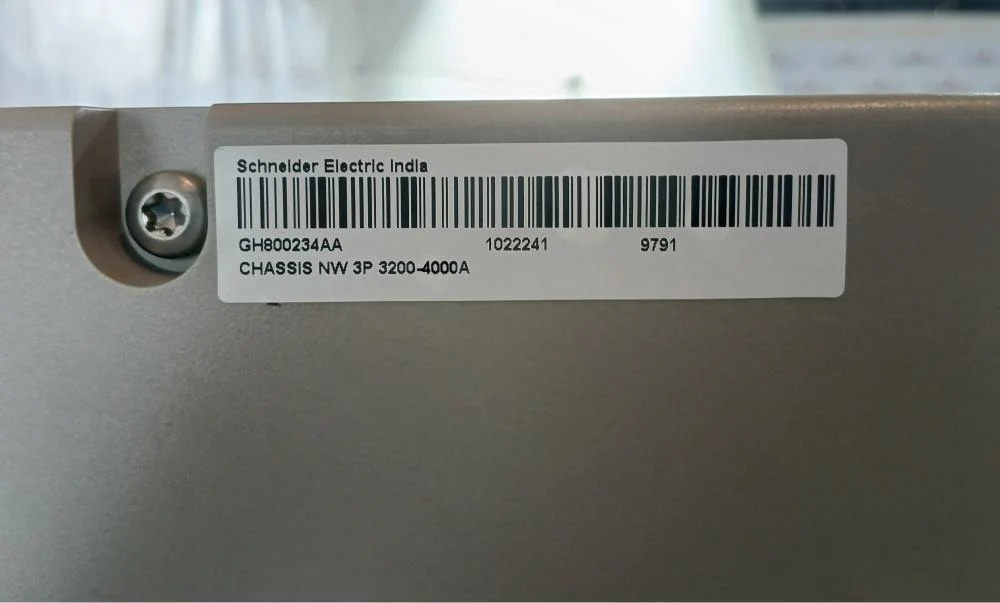

Gh800234Aa
Chassis Nw 3P 3200-4000A
1022241
9791

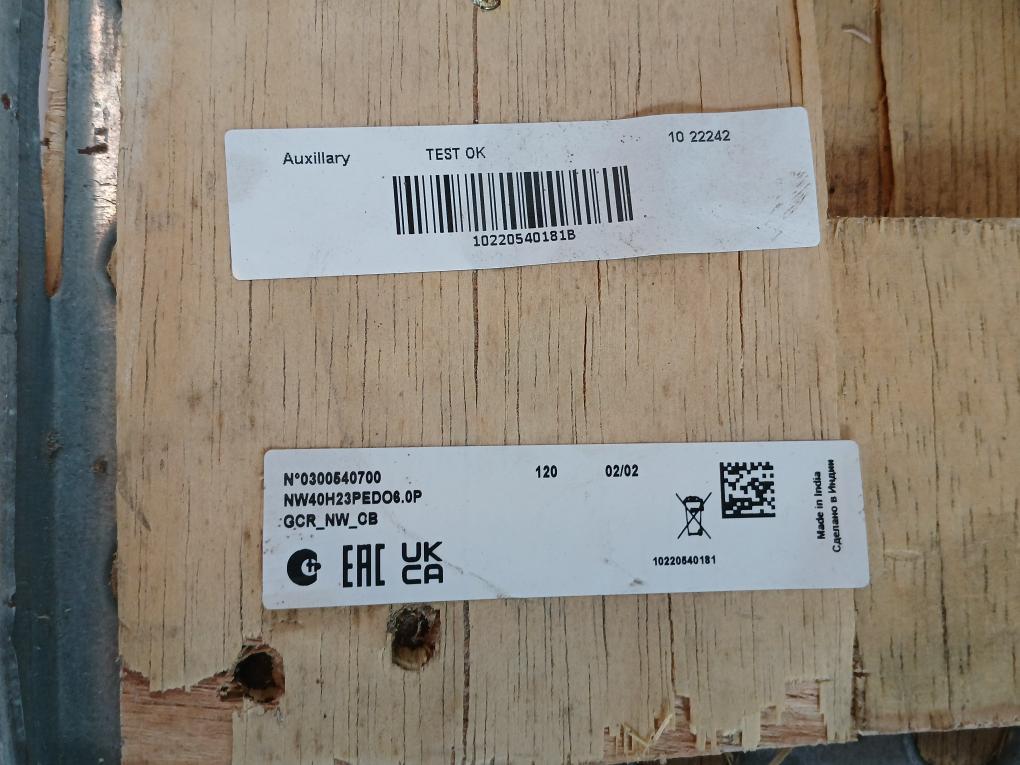

Auxiliary
10220540181B
1022242 936

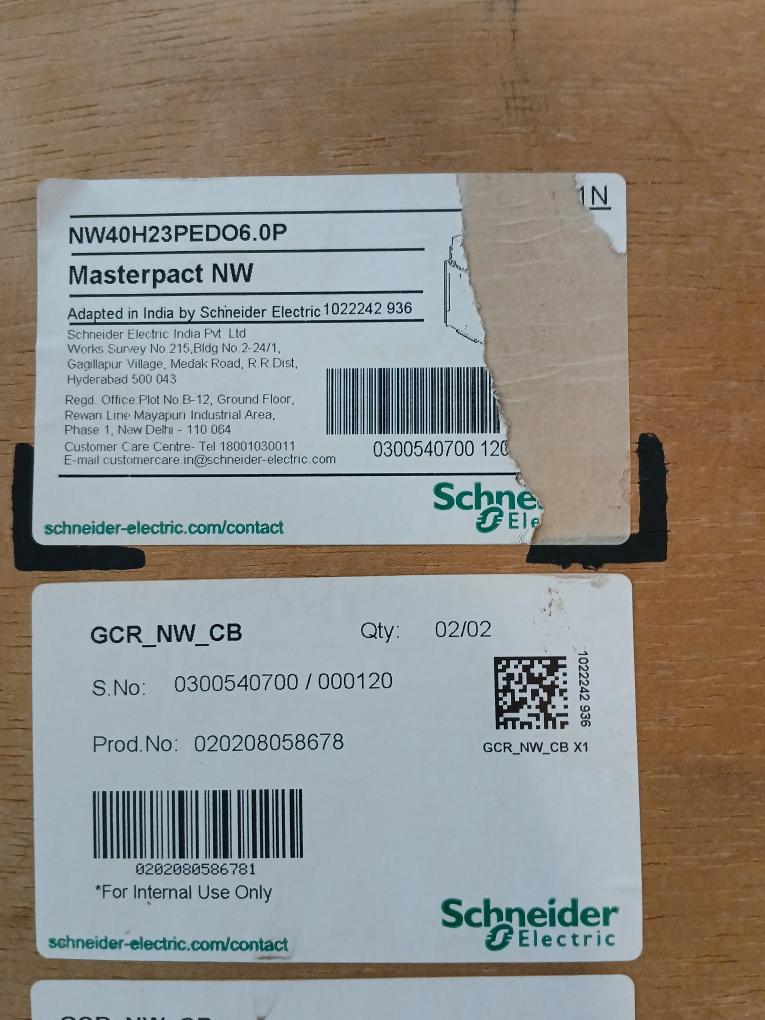

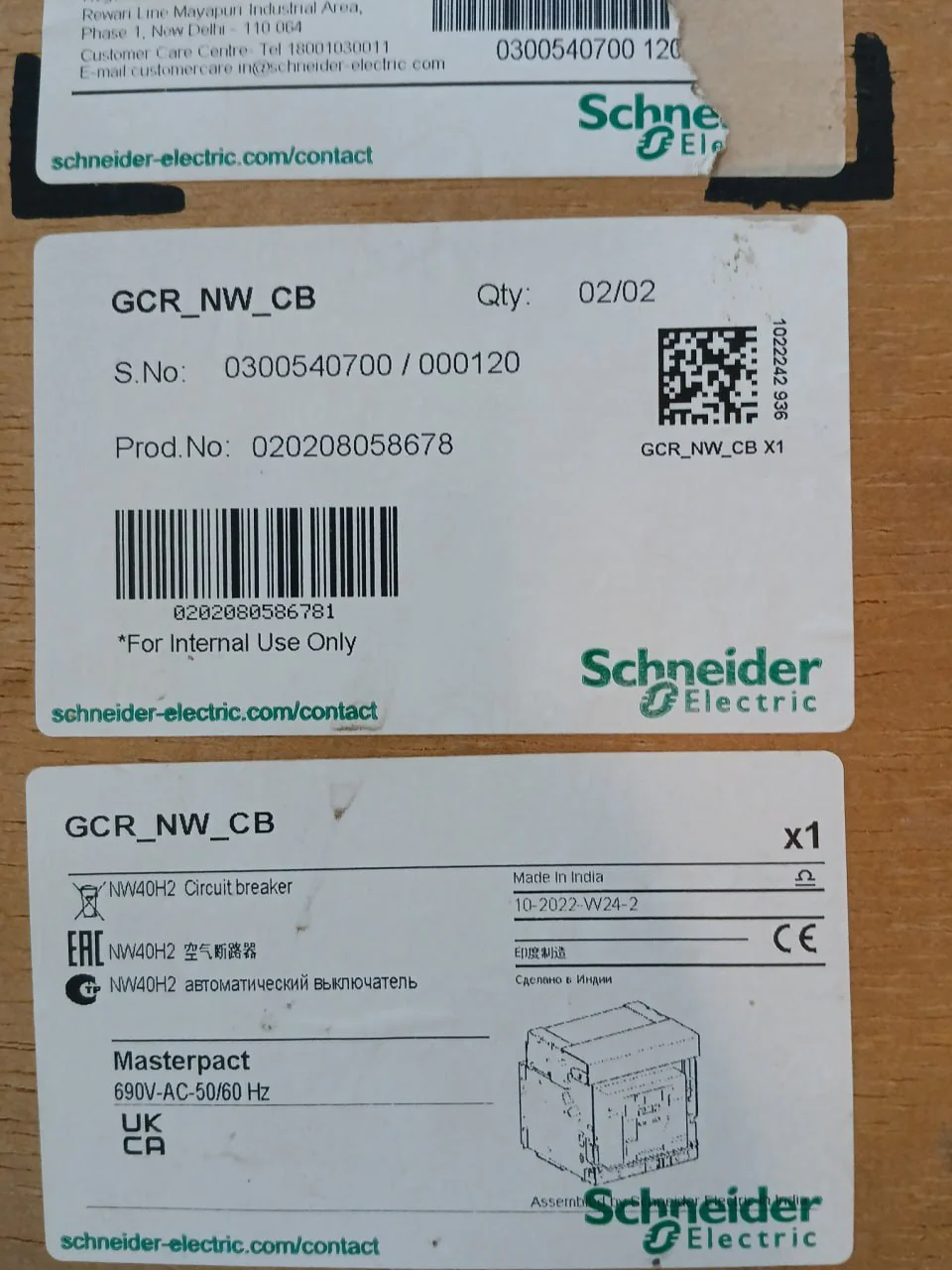

Prod.No: 020208058678
Gcr_Nw_Cb X1
0202080586781
Nw40H2 Circuit Breaker
690V-ac-50/60Hz
10-2022-w24-2
Control Units
Breaker Type: Drawout
Fixed Or Drawout Circuit Breaker Or Switch-disconnector
48603
Drawout Nw05-63 Door Frame
Ghj10553Aa
Hh 8A-220203
51156196Aa
3 303430 486039

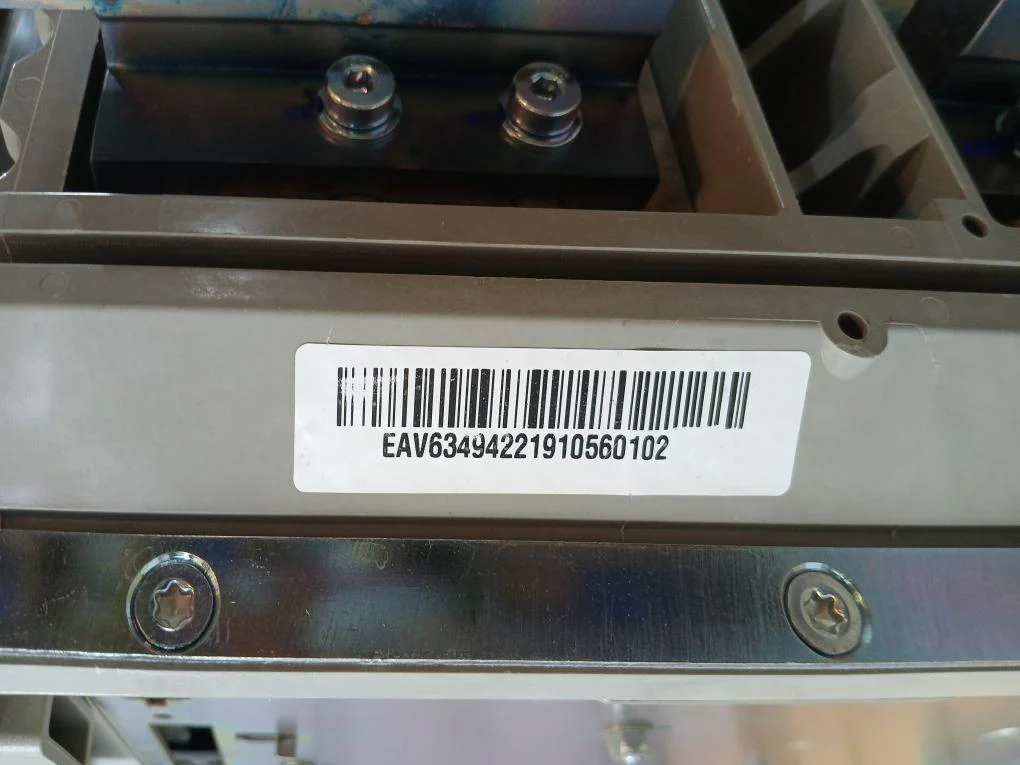

Eav63494221910560102
Made In India
Made In China
Weight: 122 Kg
