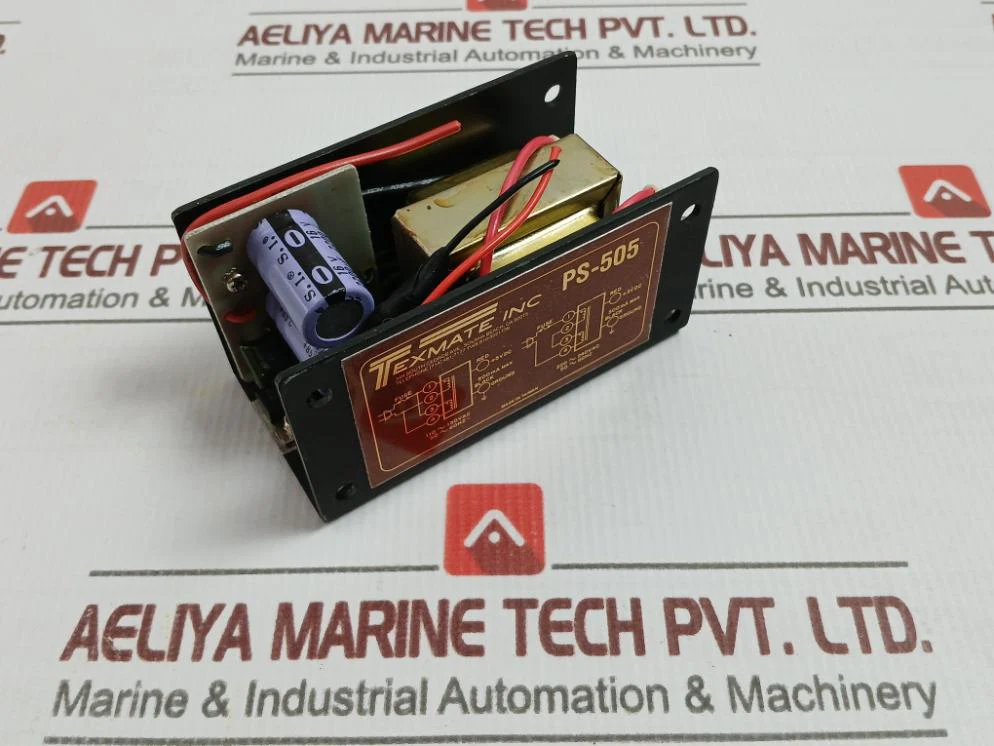

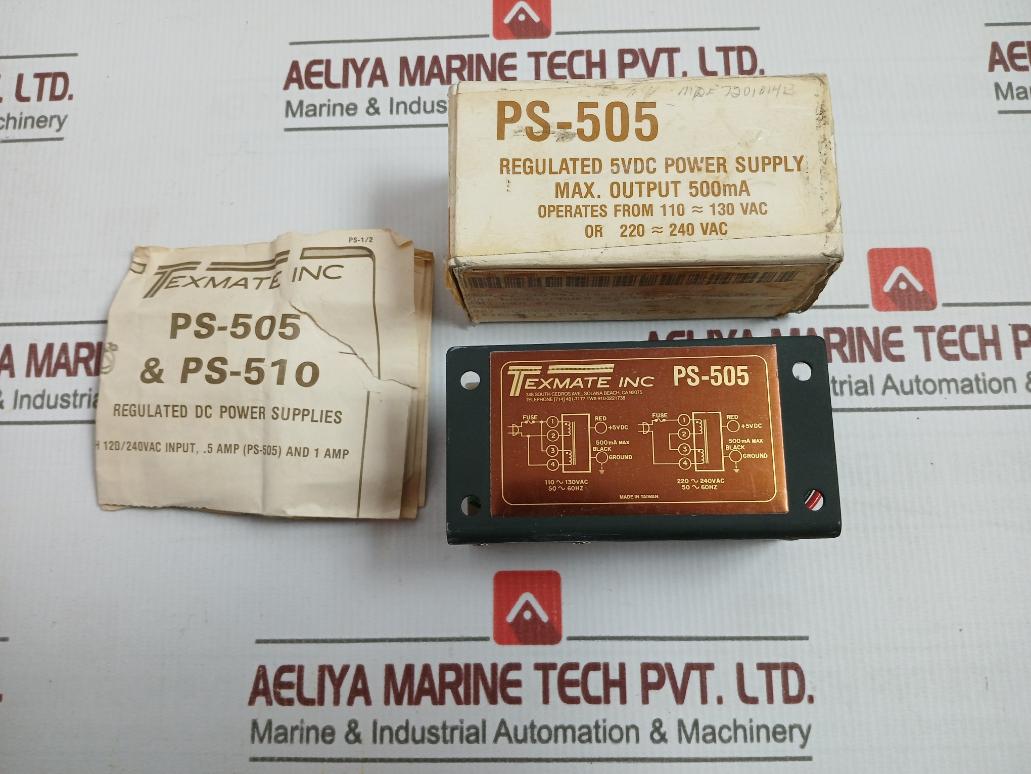

Texmate Ps-505 Regulated Dc Power Supply
Texmate Inc
Part Name: Regulated Dc Power Supplies
Low Cost Regulated +5Vdc Power Supplies With 120/240Vac Input, .5 Amp
Part No: Ps-505
Max. Output: 500Ma
Operates From: 110~130Vac Or 220~240Vac
50~60Hz
Specifications:
Output Voltage: +5Vdc ±4%
Output Current: 500Ma Max. (Ps-505)
Line Regulation: 50Mv Or 60Db
Load Regulation: 50Mv
Ripple Rejection: 60Db (Or Ripple 10Mv Max.)
Output Resistance: 8MΩ Typical
Protection: Short Circuit Current Limit 2 Amps Thermal Overload Protection Current Fold Back On 3-terminal Regulator
Temperature Coefficient: Output Voltage Drift At 0.6Mv/°C
Input Power Requirement: 110V Or 220V ±5% At 50Hz 117V Or 230V ±5% At 60Hz To 400Hz
Operating Temperature: -10°C To +50°C
Isolation: 500V Between A.C. Input, D.C. Output And The Case

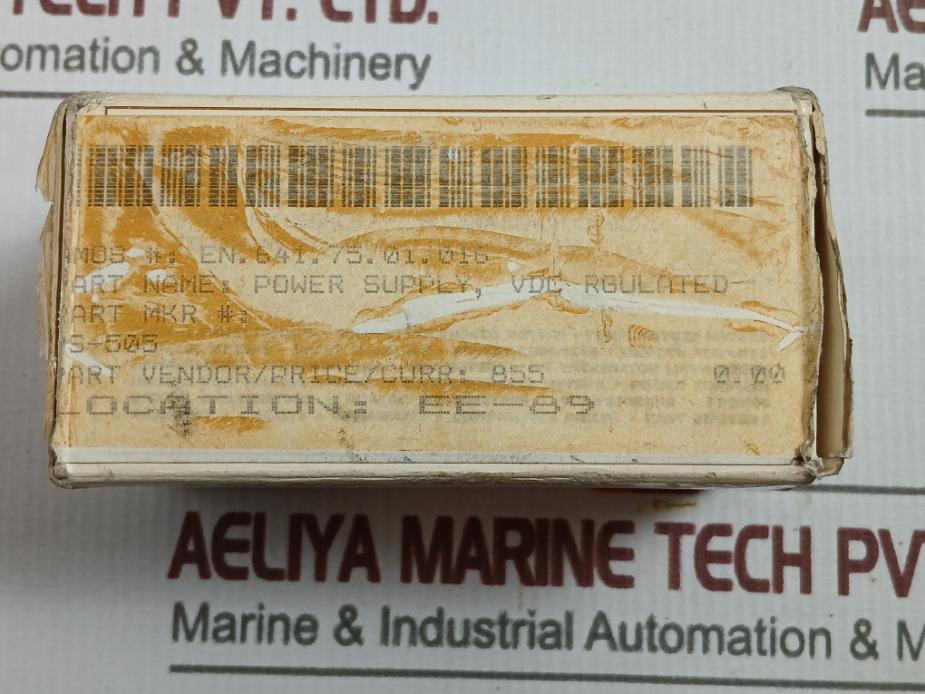

Amos #: En. 641. 75. 01. 016
Made In Taiwan
Weight: 430 Gm
