Woodward Egcp-2 Digital Generator Control Panel 4-20Ma 5V 500Hz (Not Working)
Woodward
Avr Electronics Private Ltd.
Digital Control
Egcp-2
Part No: 8406-120
Rev: G
Type 4 Enclosure
Maximum Ambient 70°C

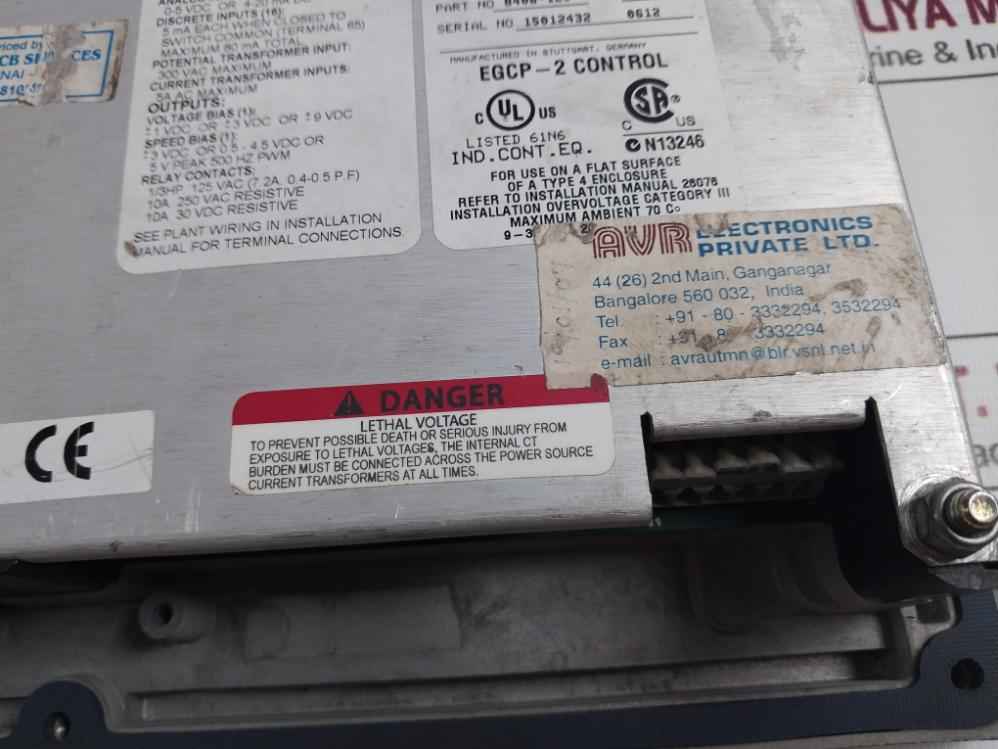

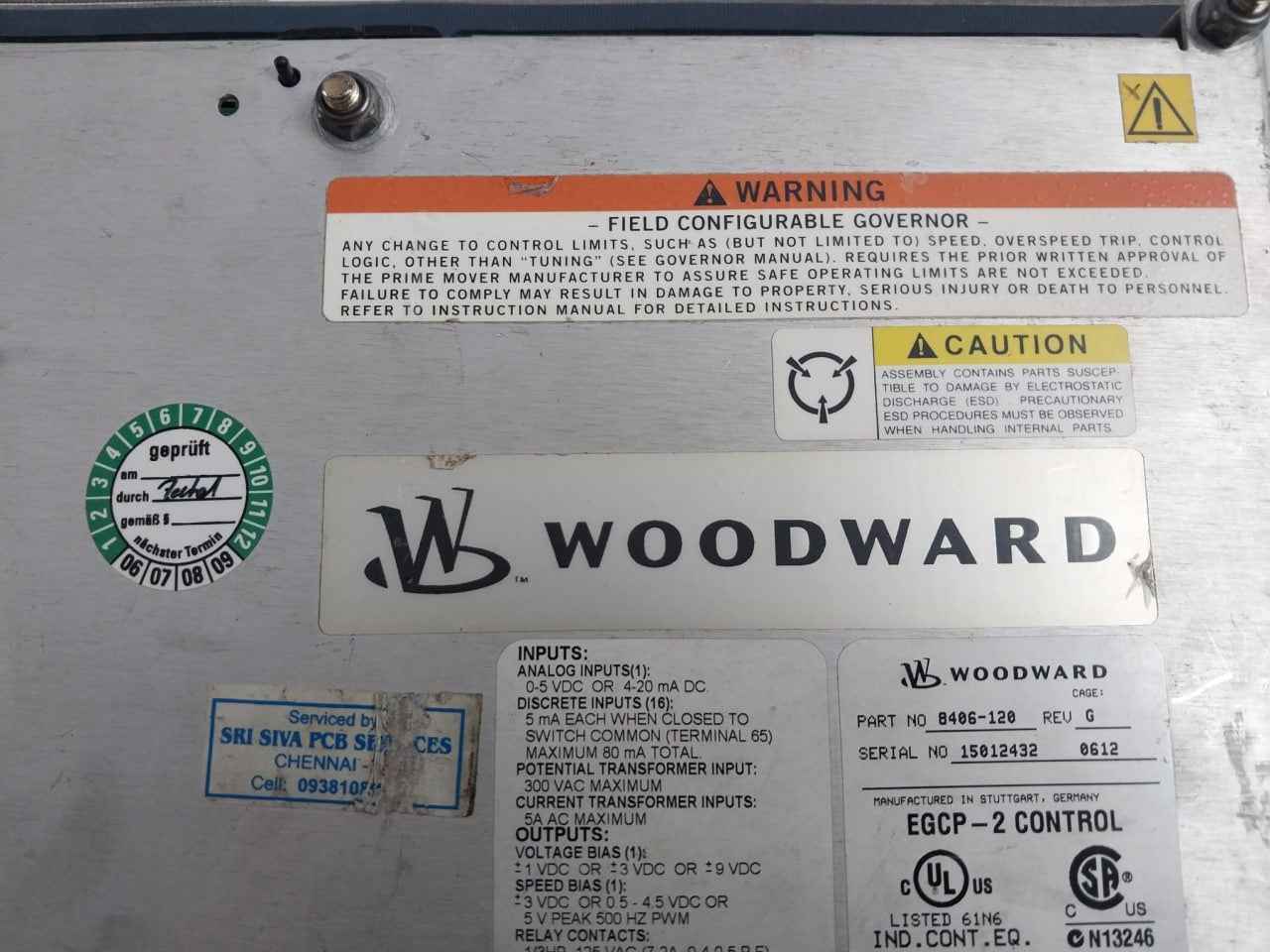

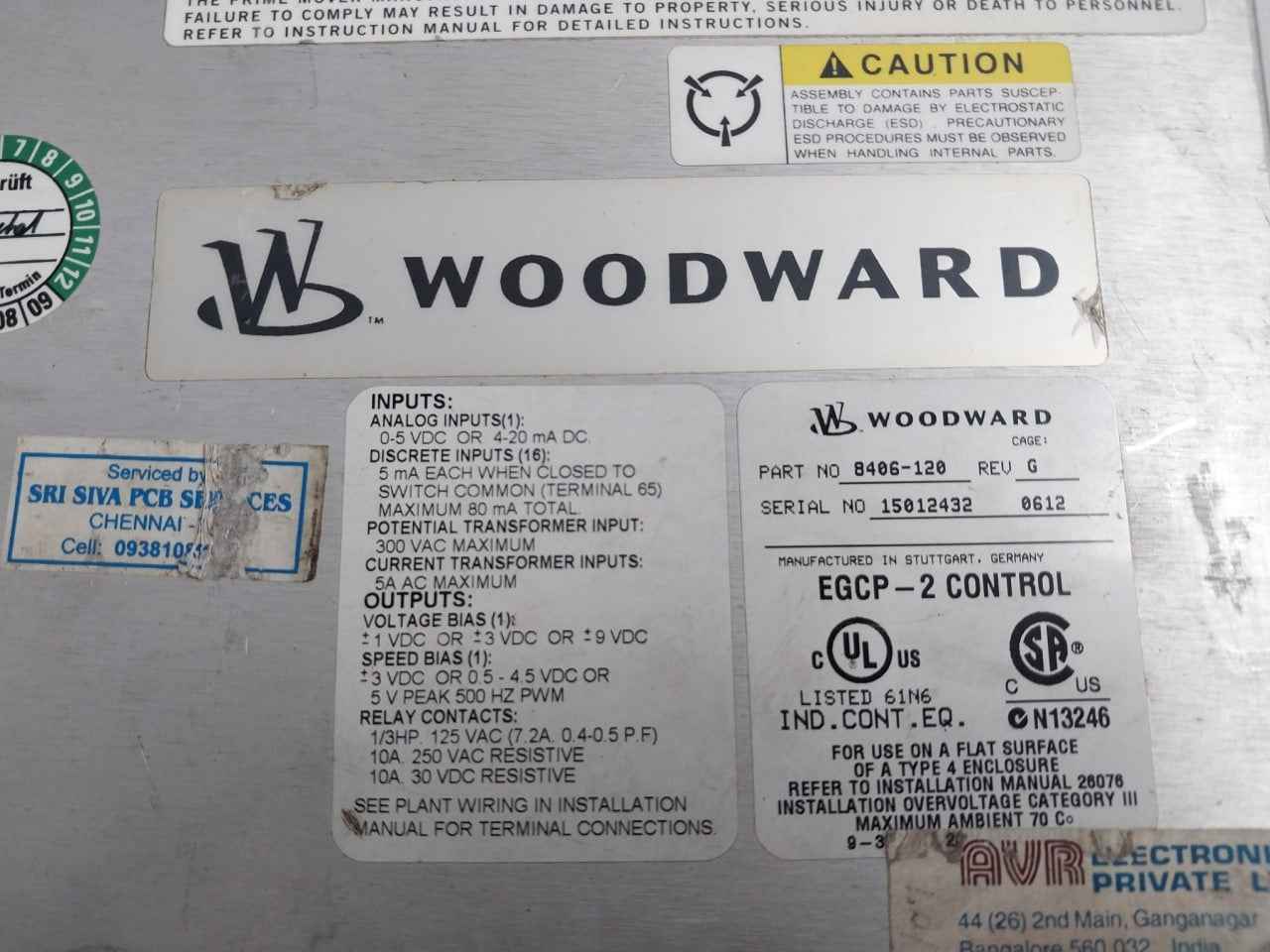

Inputs:
Analog Inputs (1): 0-5 Vdc Or 4-20Ma Dc
Discrete Inputs (16): 5 Ma Each When Closed To Switch Common (Terminal 65)
Maximum 80 Ma Total
Potential Transformer Input: 300 Vac Maximum
Current Transformer Inputs: 5A Ac Maximum
Outputs:
Voltage Bias (1): ± 1 Vdc Or ± 3 Vdc Or ± 9 Vdc
Speed Bias (1): ± 3 Vdc Or 0.5-4.5 Vdc Or 5V Peak 500 Hz Pwm
Relay Contacts:
1/3Hp, 125 Vac (7.2A, 0.4-0.5 P.F)
10A, 250Vac Resistive
10A, 30Vdc Resistive
Manufactured In Germany
Weight: 3.030 Kg
