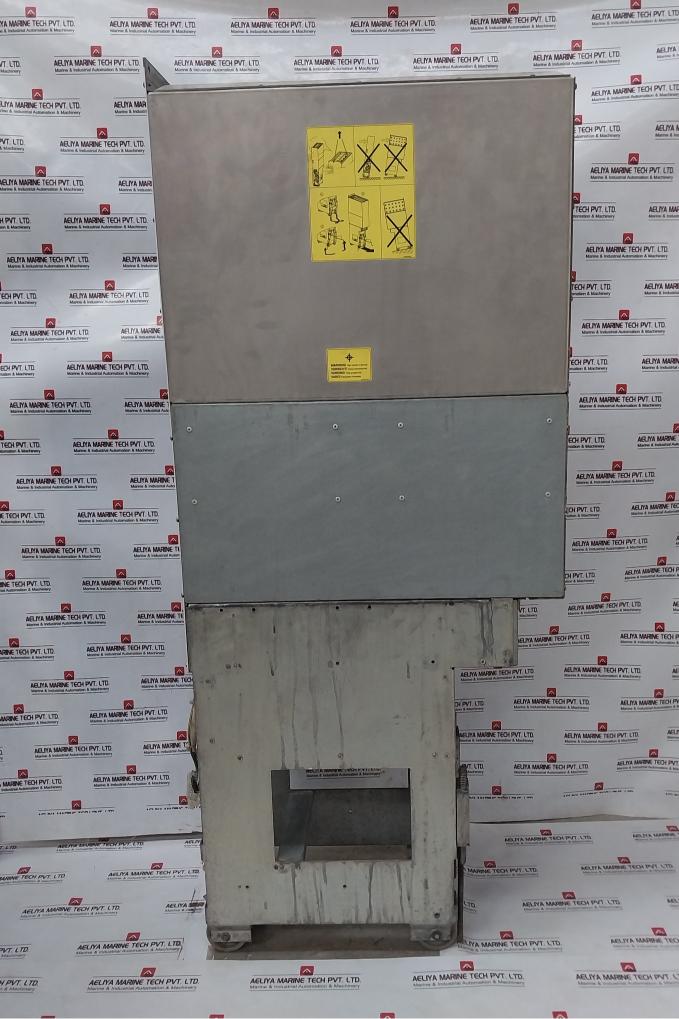

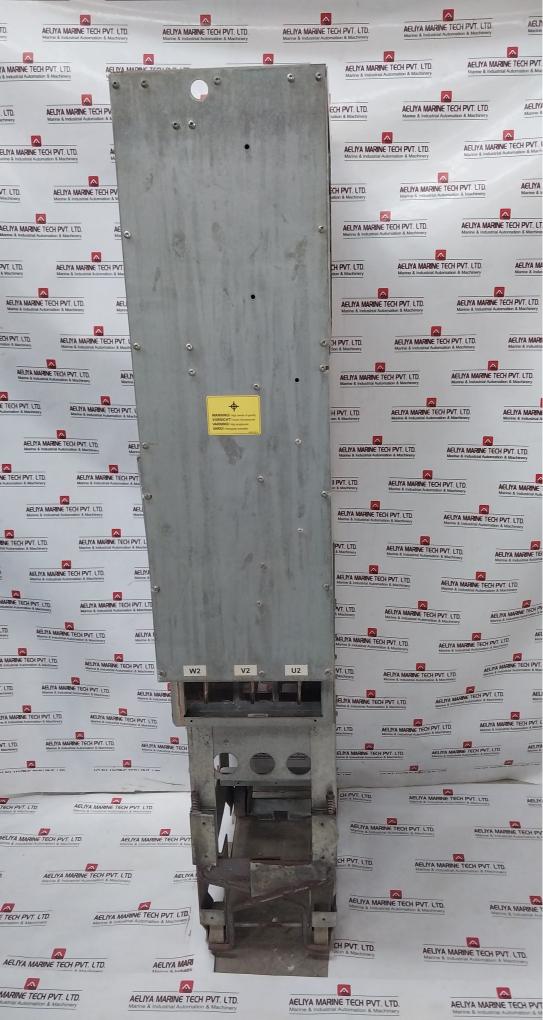

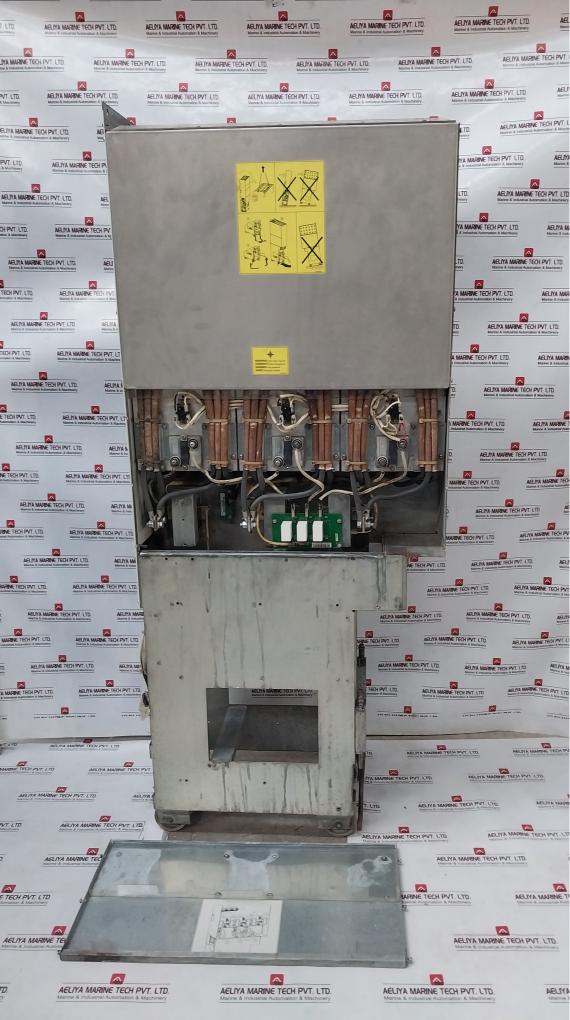

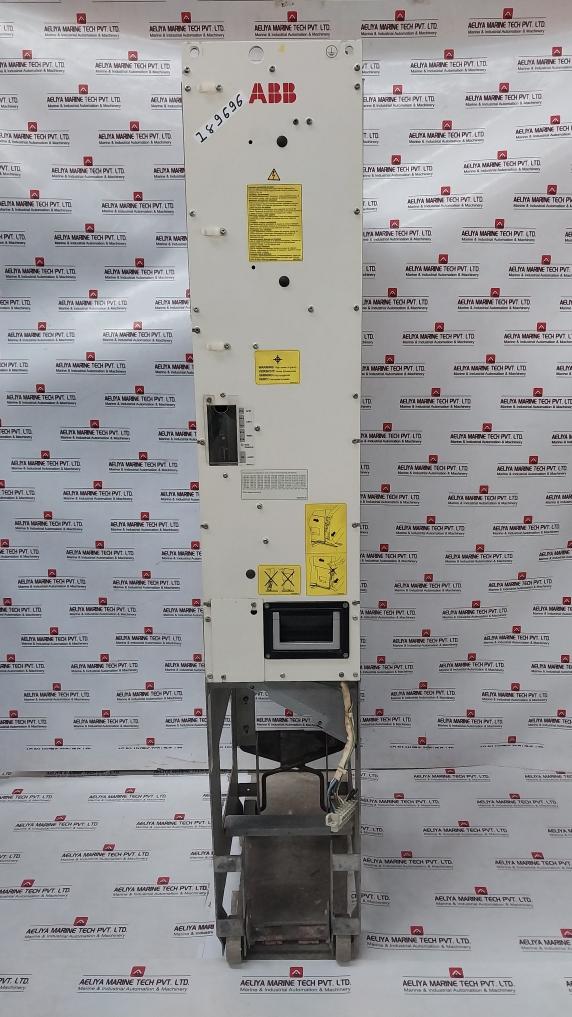

Abb Acs800-104-0580-7+E205+V991 Inverter Drive Module 68685192 709–976 Vdc,583 A
Abb Oy
Mcb
Ebg
Epcos
Acs800-104-0580-7+E205+V991
Code: 68685192
Inverter:
Input: U 709...976 (848 Ul, Csa) Vdc
I 583 Adc
Output: U 3~ 0...690 (600 Ul, Csa) V
I 486 A
F 0...300 Hz
Line Converter:
Input: U 3~ 525...690 (600 Ul, Csa) V
I 400 A
F 48...63 Hz
Output: U 742...976 (848 Ul, Csa) Vdc
I 485 Adc
Brake Chopper
Input: U 709...976 (848 Ul, Csa) Vdc
I 1171 Adc
Output: U 3X 0...976 (848 Ul, Csa) Vdc
I 3X 465 Adc
Ip00, Ul Open Type
58978396 C
64791745 C
68261431 C
68654963 B
64810901 B
68295505 B 1/2
Code: 68295459B
Type: Aofc-02
Mod. Depose
Rcec 750
5 Ohm 5%
710 095
Vhp/6
3X8Kgg
95612 Lf
093314
68908574B 1/2
68909058
Type: Atmb-01C
Rev. B
10865
64702238 D
68436770
Type: Agdr-71C
Rev: A
17830
11860
48174
B6-30-10
68685826
Type: Aint-14C
Rev: D
64493647D 1/2

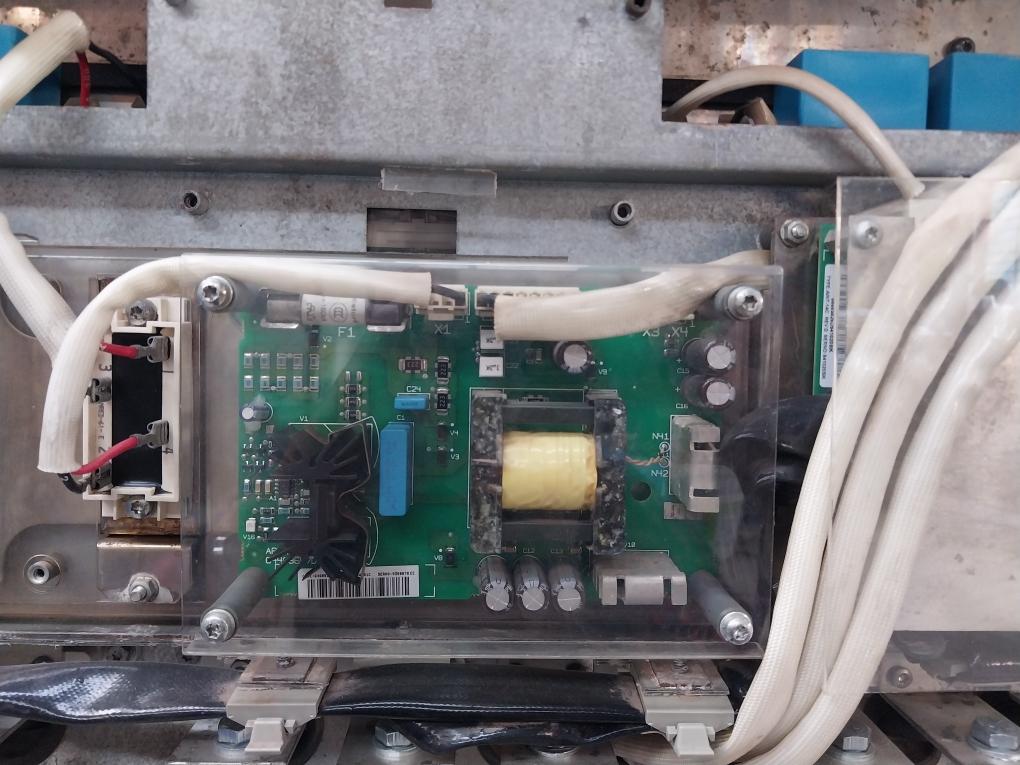

Code: 64605666B
Type: Apow-01C
16328
Nred-61-e
B32656-s1474-k500
0.47µF K 1500V
Mkp
X0
68439990A 1/4
M2
94V-0
X50
Made In Finland
Weight: 122.300 Kg
