Pepperl+Fuchs Khd4-irr/Ex1 Potentiometer Converter Ex88B2409 15-35Vdc
Pepperl+Fuchs
K-series

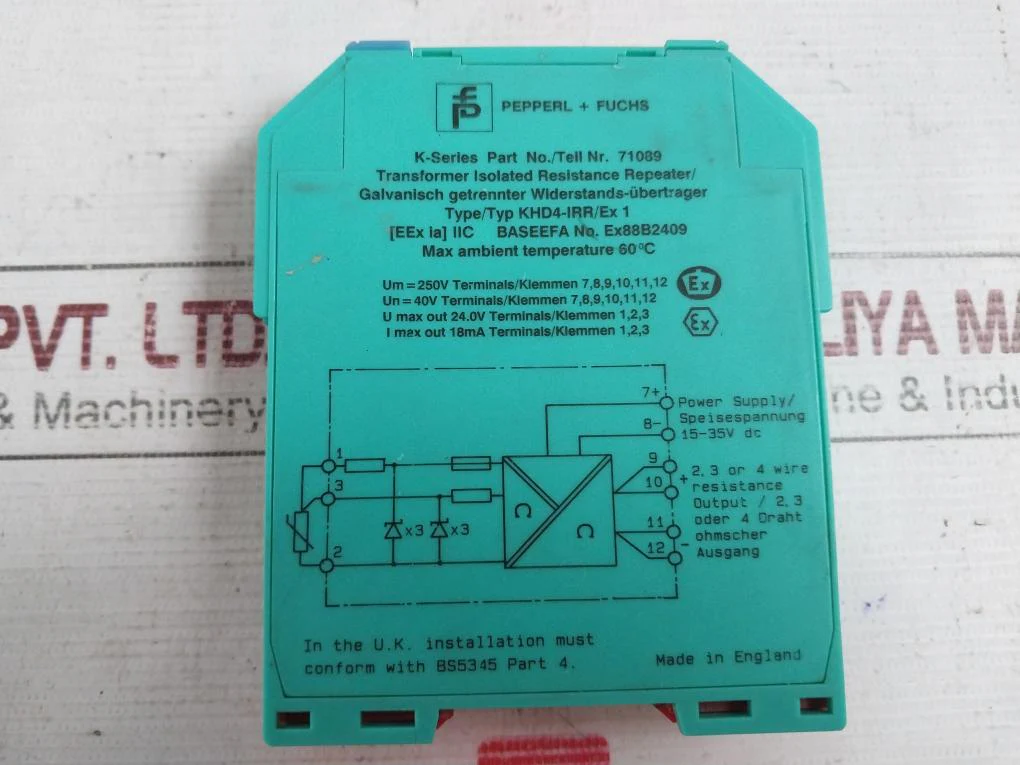

Transformer Isolated Resistance Repeater
Type: Khd4-irr/Ex1
Part No: 71089
[Eex Ia] Iic
Baseefa No.Ex88B2409
Max Ambient Temperature 60˚C
Um= 250V Terminals
Un= 40V Terminals
U Max Out 24.0V Terminals
I Max Out 18Ma Terminals
Power Supply: 15-35Vdc
2, 3 Or 4 Wire Resistance Output
Made In England
Weight: 100 Gm
