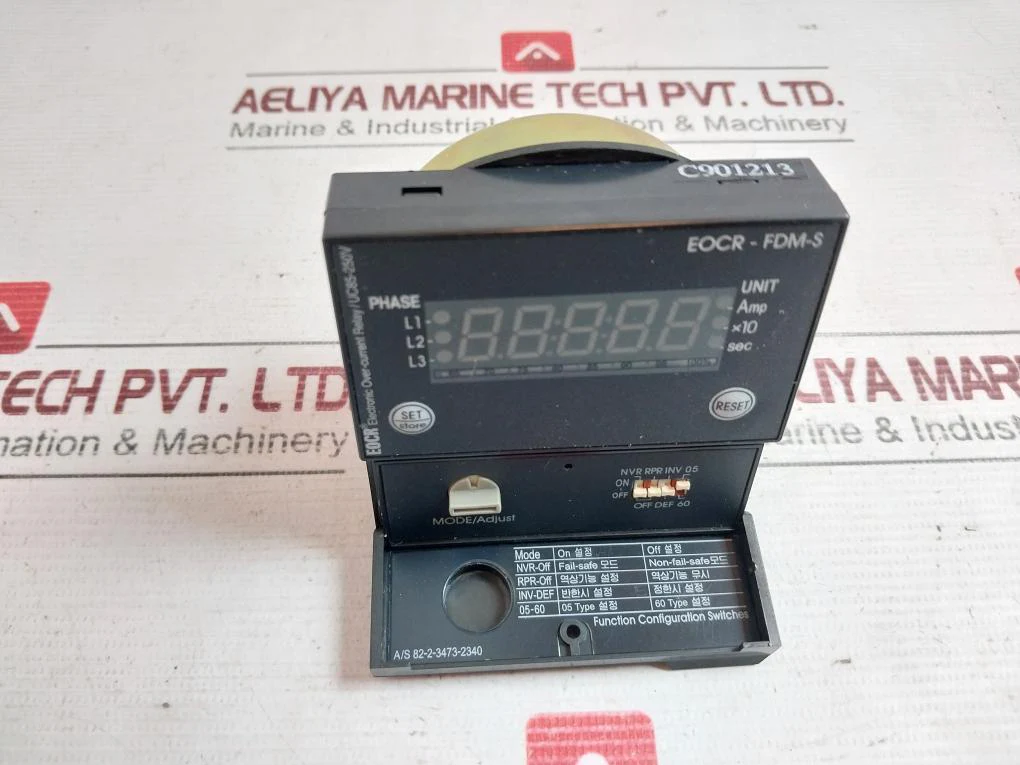

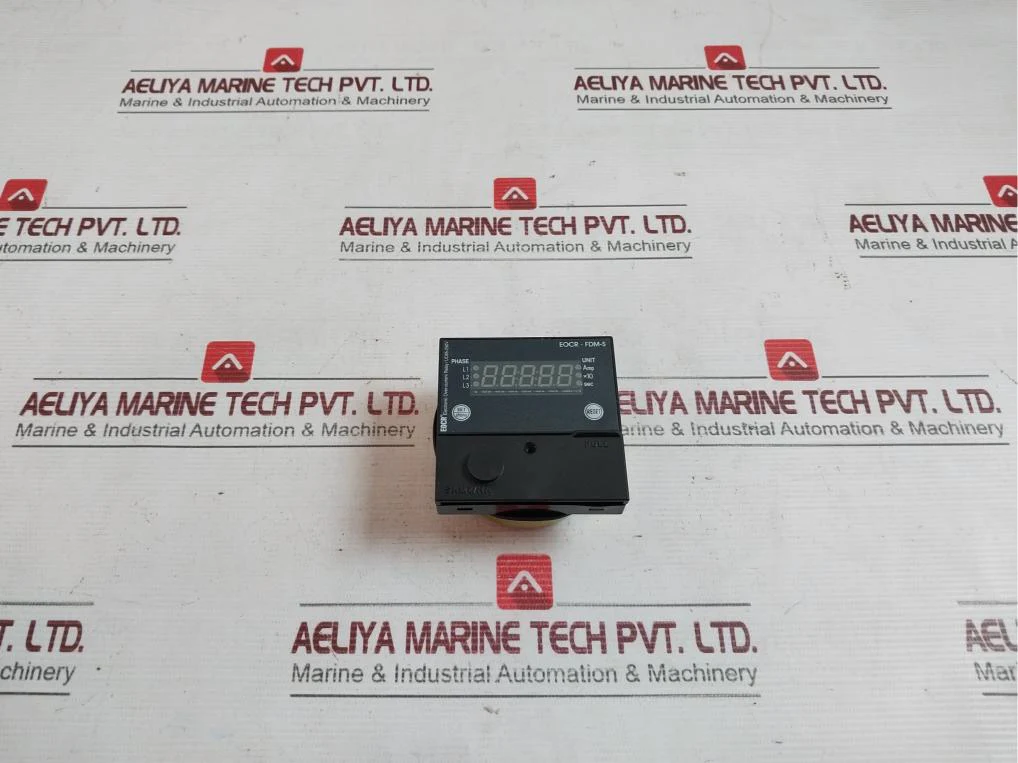

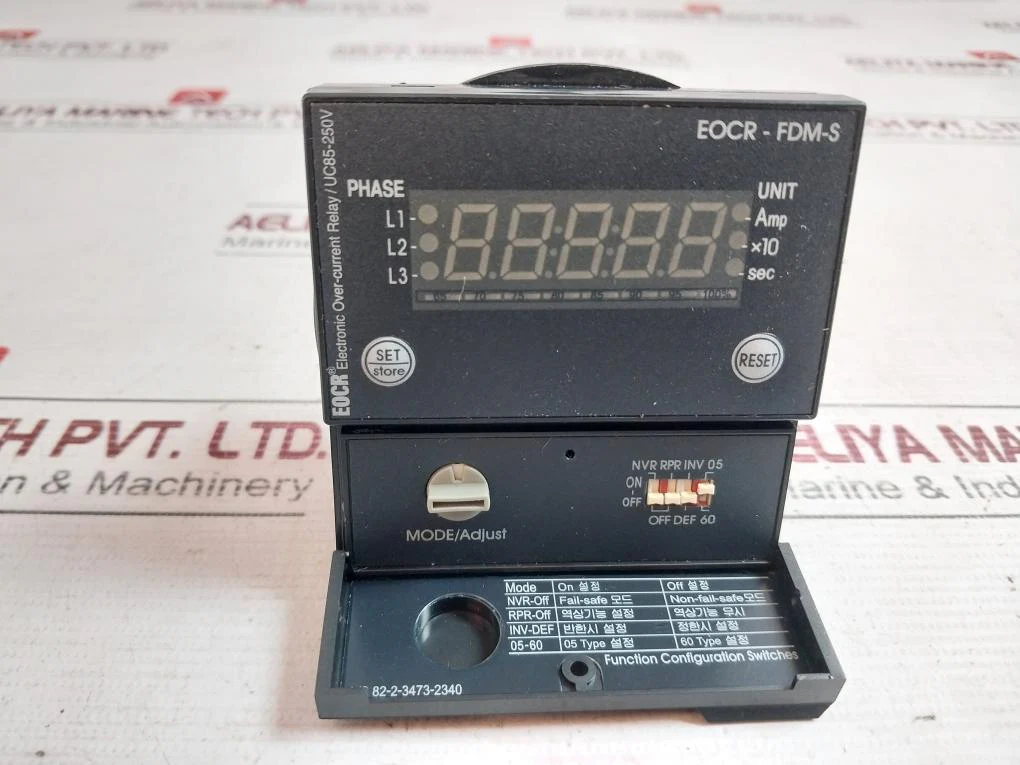

Samwha Eocr-fdm-s Electronic (Digital) Overload Relay & Power Converter Set
Samwha Eocr Ltd.
Flush Mounting Multi-functional Relay
Electronic (Digital) Overload Relay

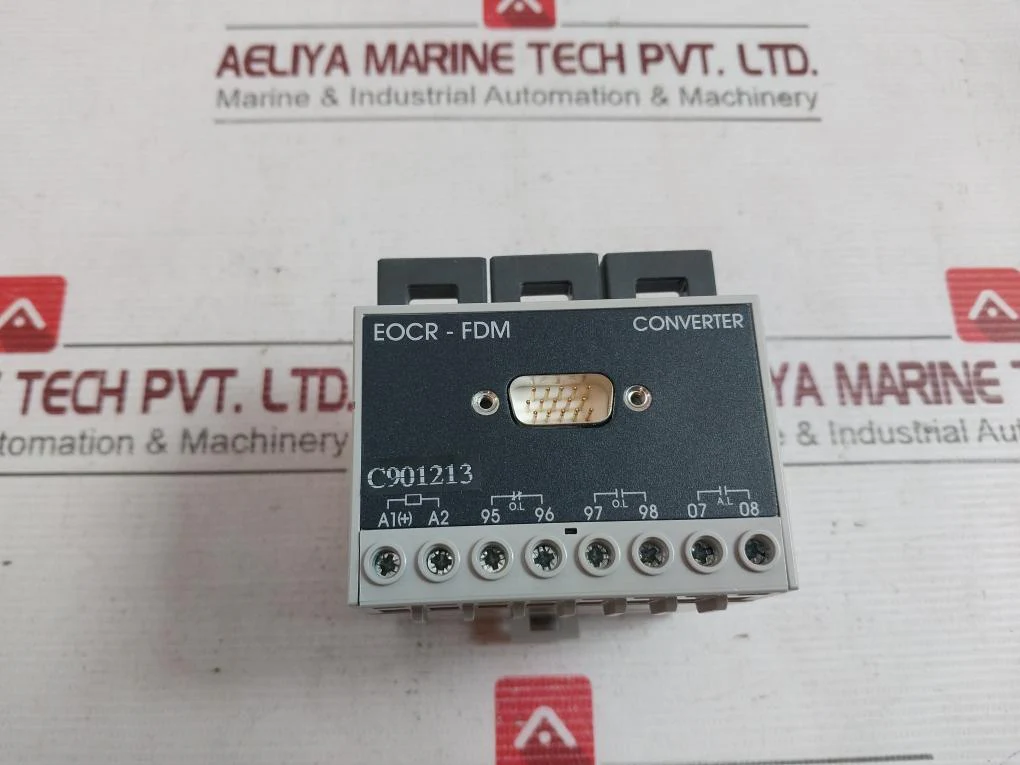

Converter
Eocr-fdm
C901213

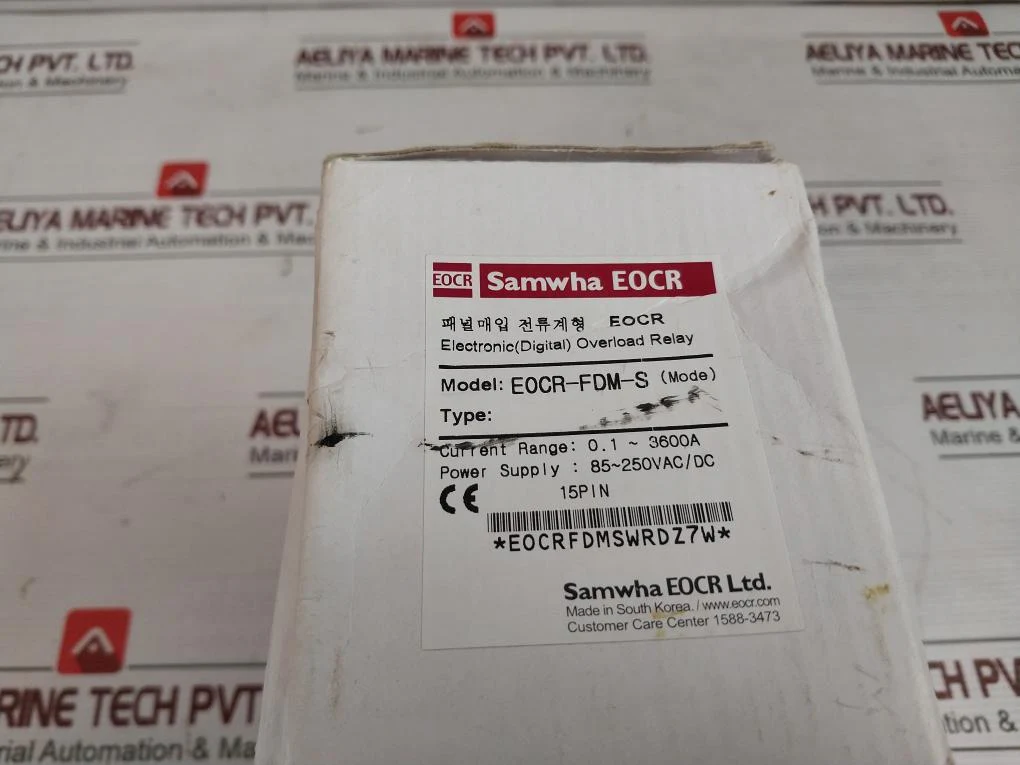

Model: Eocr-fdm-s

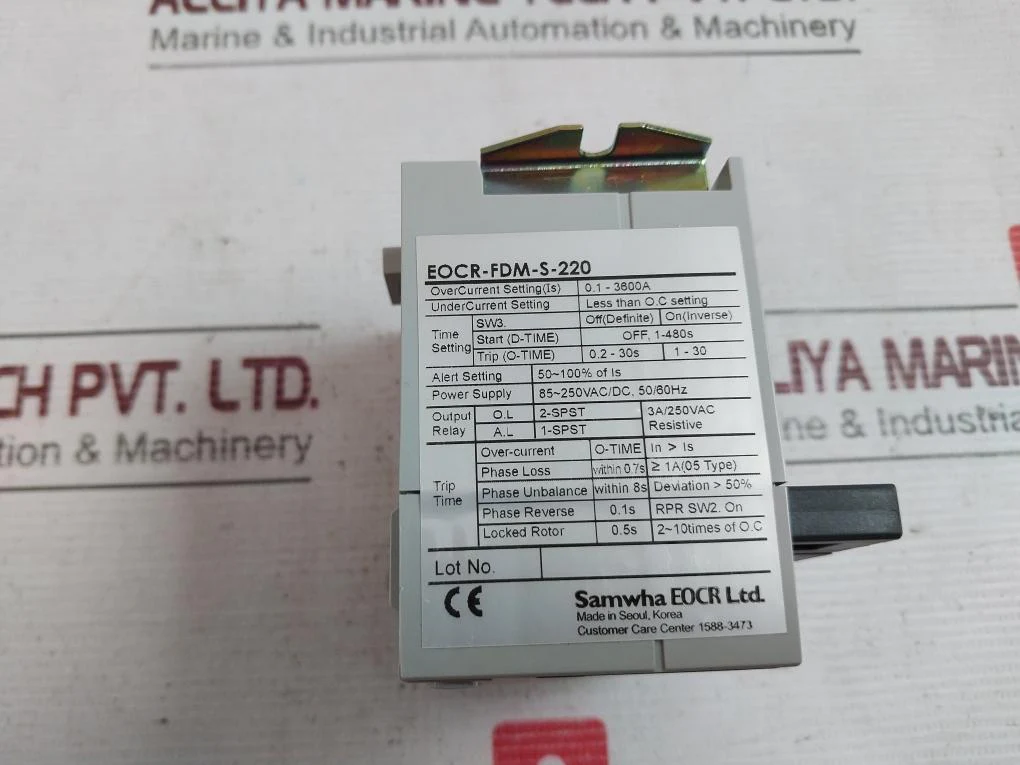

Eocr-fdm-s-220
Over Current Setting (Is): 0.1-3600A
Under Current Setting: Less Than O.C Setting
Time Setting:
Sw3.                     Off(Definite) I On(Inverse)
Start (D-time)                 Off, 1-480S
Trip (O-time)       0.2-30S               1-30
Alert Setting: 50~100% Of Is
Power Supply: 85~250Vac/Dc, 50/60Hz
Output Relay:
O.L 2-spst
A.L 1-spst
3A/250Vac Resistive
Trip Time:
Over-current: O-time In Greater Than Is
Phase Loss: Within 0.7S 1A(05 Type)
Phase Unbalance: Within 8S Deviation Greater Than 50%
Phase Reverse: 0.1S Rpr Sw2. On
Locked Rotor: 0.5S 2~10 Times Of O.C
Electronic Over-current Relay/Uc85-250V
A/S: 82-2-3473-2340
Ammeter Type Digital Multi-function Protection Relay
Panel-mounted Current Meter Type
Current Range: 0.1~3600A
15Pin

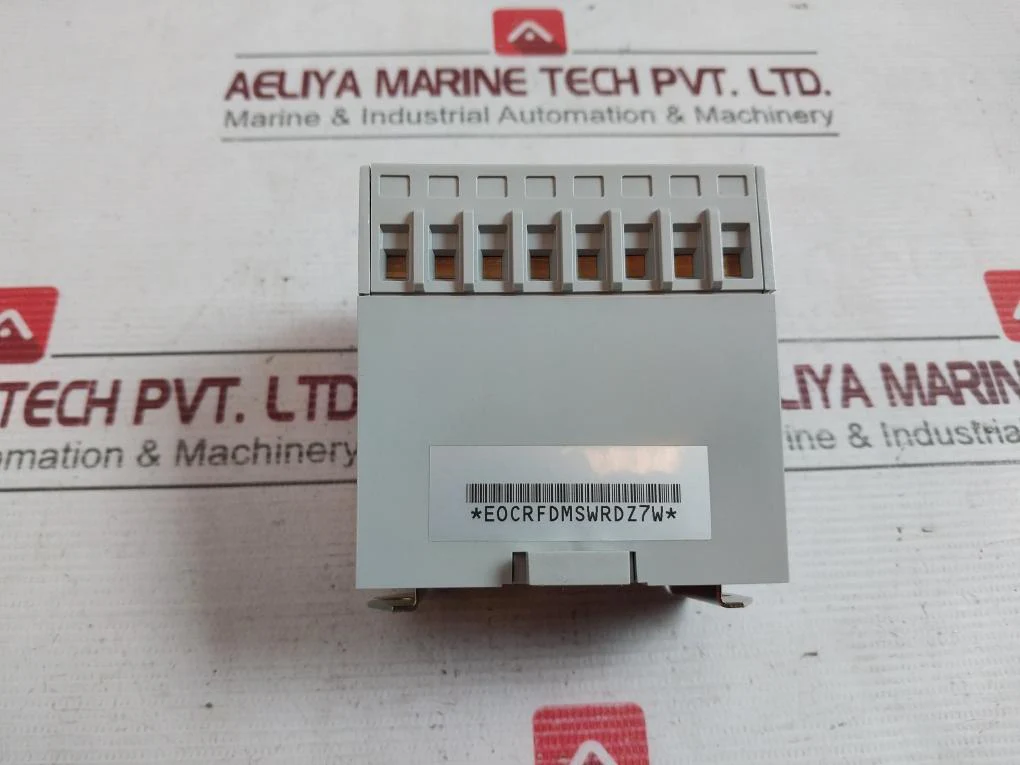

*Eocrfdmswrdz7W*
Made In Korea
Weight: 510 Gm
